ICIP-360L5

(0) No Reviews yet
SKU: ICIP-360L5
ITEM WEIGHT: 2
5MP Indoor 360° Spherical Dome. 1.42mm Fisheye Lens (360°). Built In Microphone. PoE Capable.
1/2.7 CMOS | 5MP | 25fps@5MP
1.4mm | fixed | AoV 180
IR Sensitive, No IR LEDs
1ch audio in 1ch audio out | Built in mic | 1ch alarm in 1ch alarm out | 64GB mSD
IP67 | IK08 | 12VDC or PoE | Max. 3.4W
IVS | AGC | WDR | HLC | BLC | 3DNR
Discontinued Item, USE IPEL-F50F-W1

Details

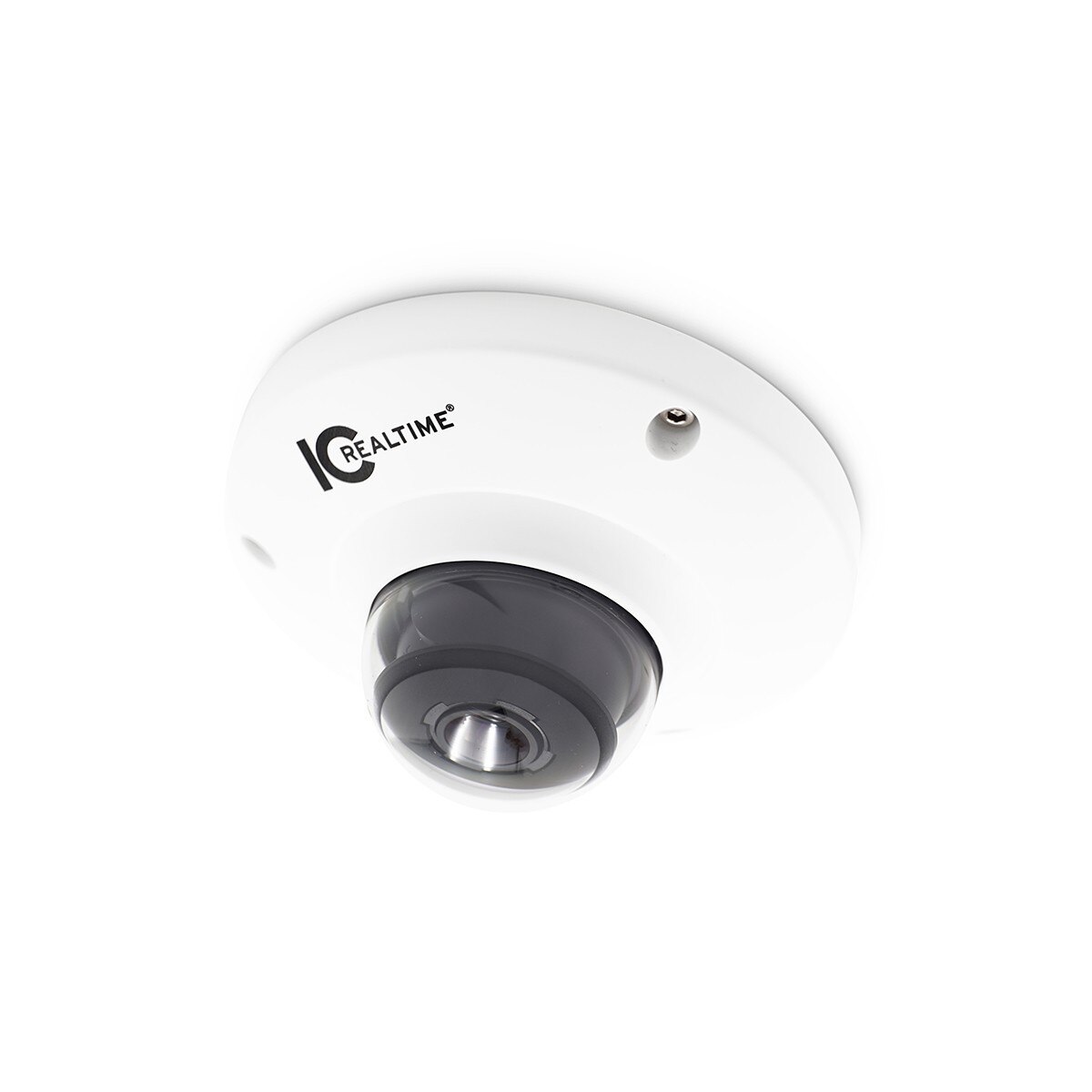

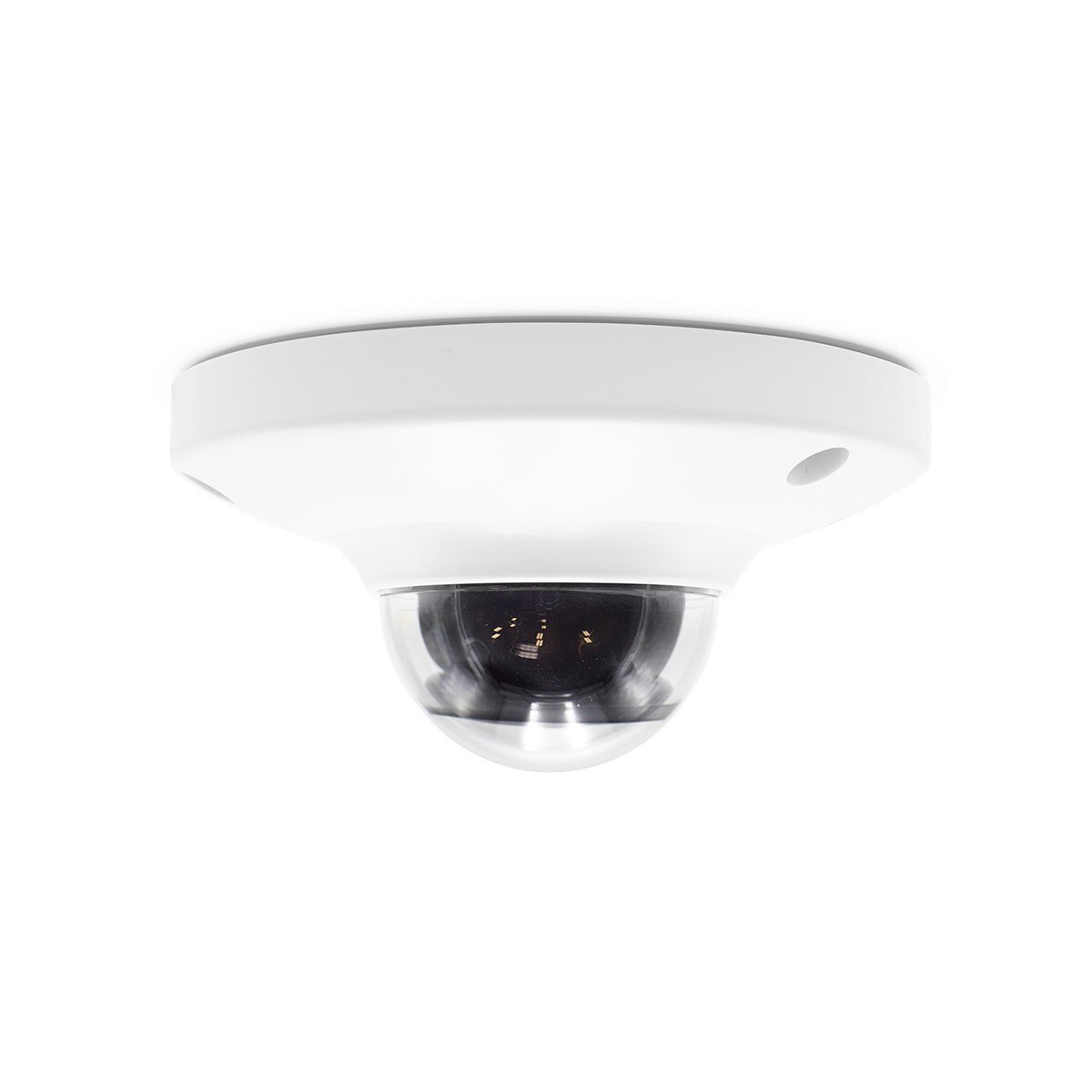

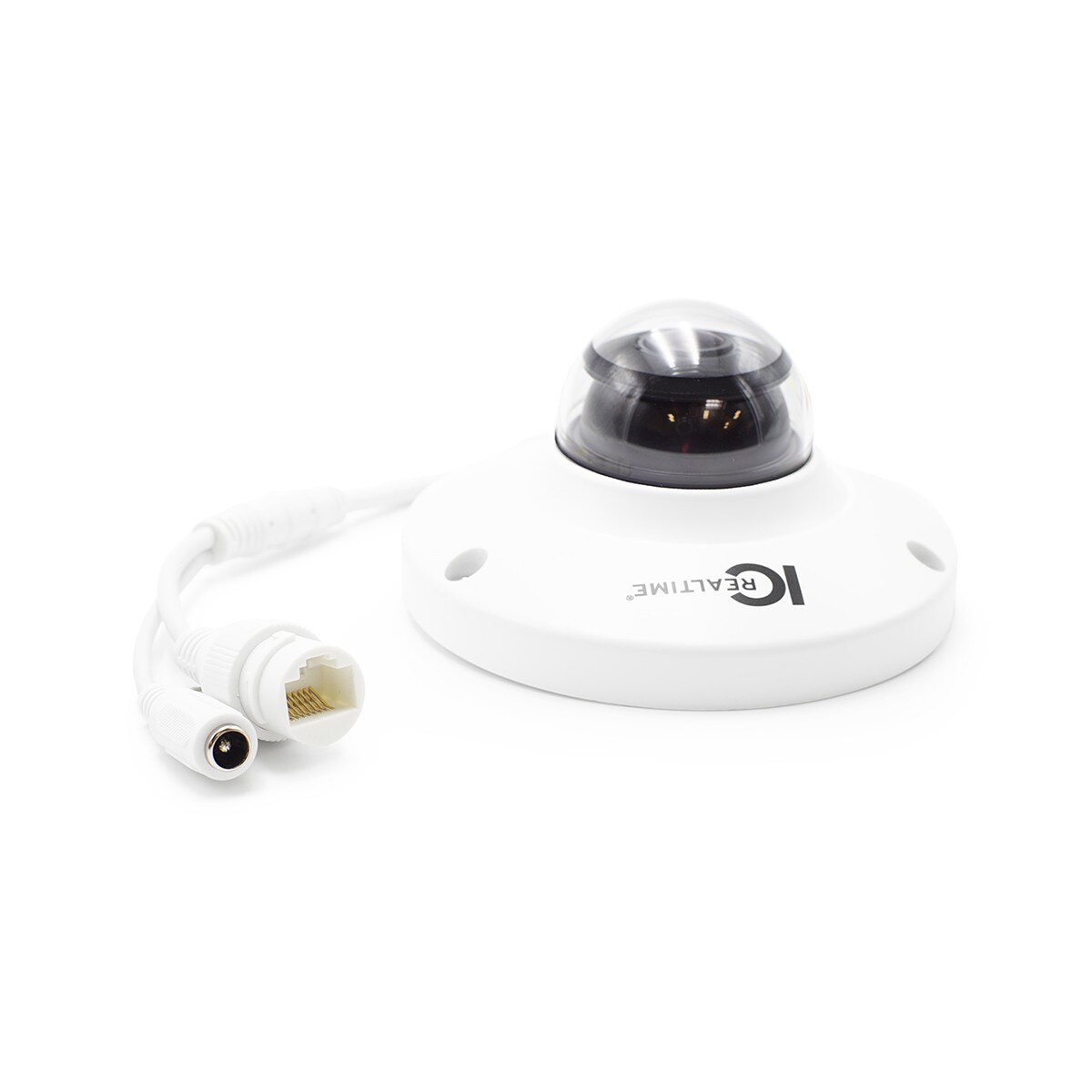

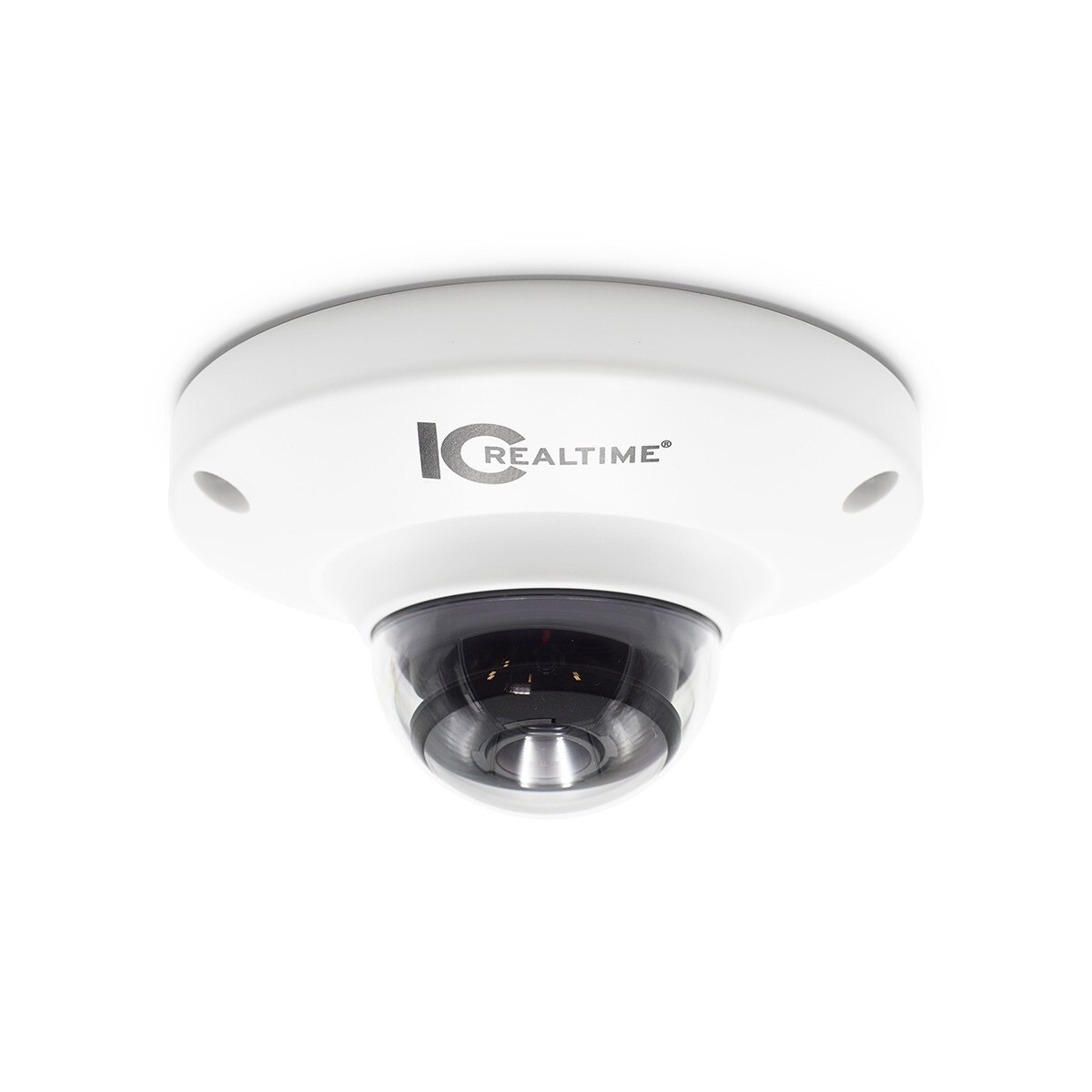

A 5.0 megapixel 360° Indoor Dome camera with a built-in microphone. The ICIP360L5 series camera is a real-time, 360° situational awareness camera. It is capable of recording a wide area of surveillance and de-warping the native fisheye view in order to watch a stream that is undistorted to the human eye.

Specifications

Camera
Image Sensor: 1/2.7 5 Megapixel progressive scan CMOS
Effective Pixels: 2592(H) x 1944(V)
RAM/Rom: 512MB / 32MB
Scanning System: Progressive
Sync: Internal
Minimum Illumination: 0.02Lux/F1.6( Color1/3s30IRE) 0.2Lux/1.6( Color1/30s30IRE) 0.05Lux/F1.6( B/W1/3s30IRE) 0.5Lux/1.6( B/W1/30s30IRE)
S/N Ratio: More than 50dB
IR Distance: N/A
Lens
Lens Type: Fixed
Mount Type: Board-in
Focal Length: 1.4mm
Max. Aperture: F1.6
Angle of View: H: 180 degrees V: 180 degrees
Focus Control: Fixed
PTZ
Pan/Tilt Range: Pan:0 ~ 355 ; / Tilt:0 ~ 75 ; / Rotation:0 ~ 360
Intelligence
Smart Function: Tripwire / Intrusion / Heat map
Video
Compression: H.265+ / H.265 / H.264+ / H.264
Resolution: 5M (2592 x 1944) / 3M (2048 x 1536) / UXGA (1600 x 1200) / 1.3M (1280 x 960) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240)
Frame Rate: Main Stream:5M(1 - 25fps) Sub Stream: D1(1 - 25/30fps)
Bit Rate: H.264: 24 - 10240Kbps H.265: 14 - 9984Kbps
Day/Night: Electronic
Backlight Compensation: BLC / HLC / WDR
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zones Rectangular)
Region of Interest: Off / On (4 Zones Rectangular)
Digital Zoom: 16X
Mirror: Off / On
Privacy Masking: Up to 4 areas
Audio
Compression: G.711a / G.711Mu / AAC / G.726
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Wifi: N/A
Interoperability: ONVIF / PSIA / CGI
Compatability: ONVIF / PSIA / CGI
Streaming Method: Unicast / Multicast
Max. User Access: 20 Users
Edge Storage: NAS / Local PC for instant recording / Micro SD Card 128GB
Smart Phone: iPhone, iPad, Android, Windows Phone
Interface
Video Interface: N/A
RS232: N/A
Audio I/O: Built-in Mic
Alarm I/O: 1/1 channel In/Out
Factory Reset: Yes
Memory Slot: Micro SD card 128GB
Electrical
Power Supply: DC12V PoE (802.3af)(Class 0)
Power Consumption: < 3.4W
Enviromental
Operating Conditions: -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
Operating Humidity: Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK08
Construction
Casing: Metal
Dimensions: 110mm x 56mm (4.33in x 2.2in)
Gross Weight: 0.44Kg (0.97lb)
