IPEL-F50F-W1

(0) No Reviews yet
SKU: IPEL-F50F-W1
ITEM WEIGHT: 2
5MP Indoor 360 Spherical Dome 1.42mm Fisheye Lens (360 AOV) Built in Microphone POE
1/2.7 CMOS | 5MP | 25fps@5MP
1.4mm | fixed | AoV 180
IR Sensitive, No IR LEDs
1ch audio in 1ch audio out | Built in mic | 1ch alarm in 1ch alarm out | 64GB mSD
IP67 | IK08 | 12VDC or PoE | Max. 3.4W
IVS | AGC | WDR | HLC | BLC | 3DNR

Details

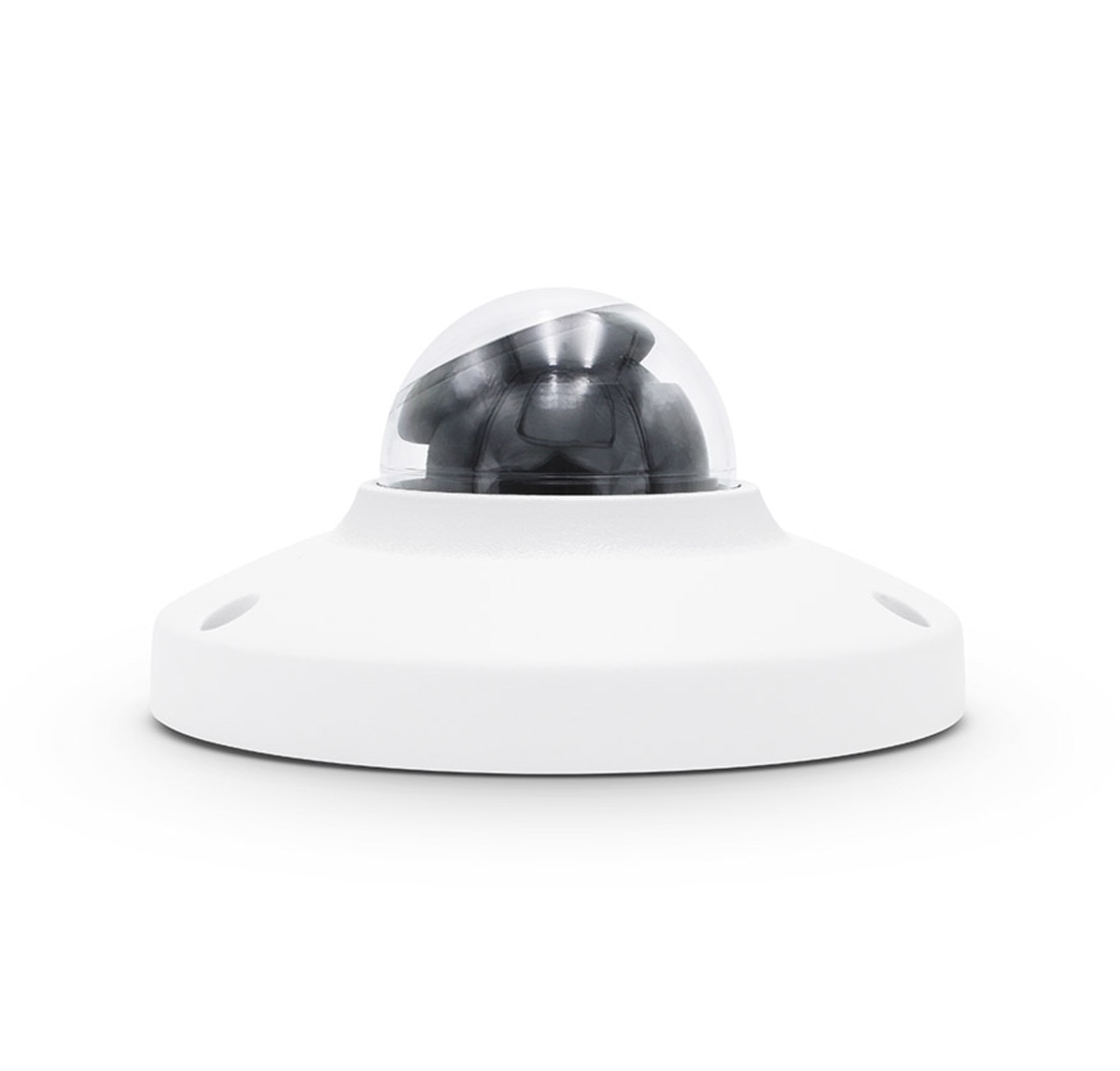

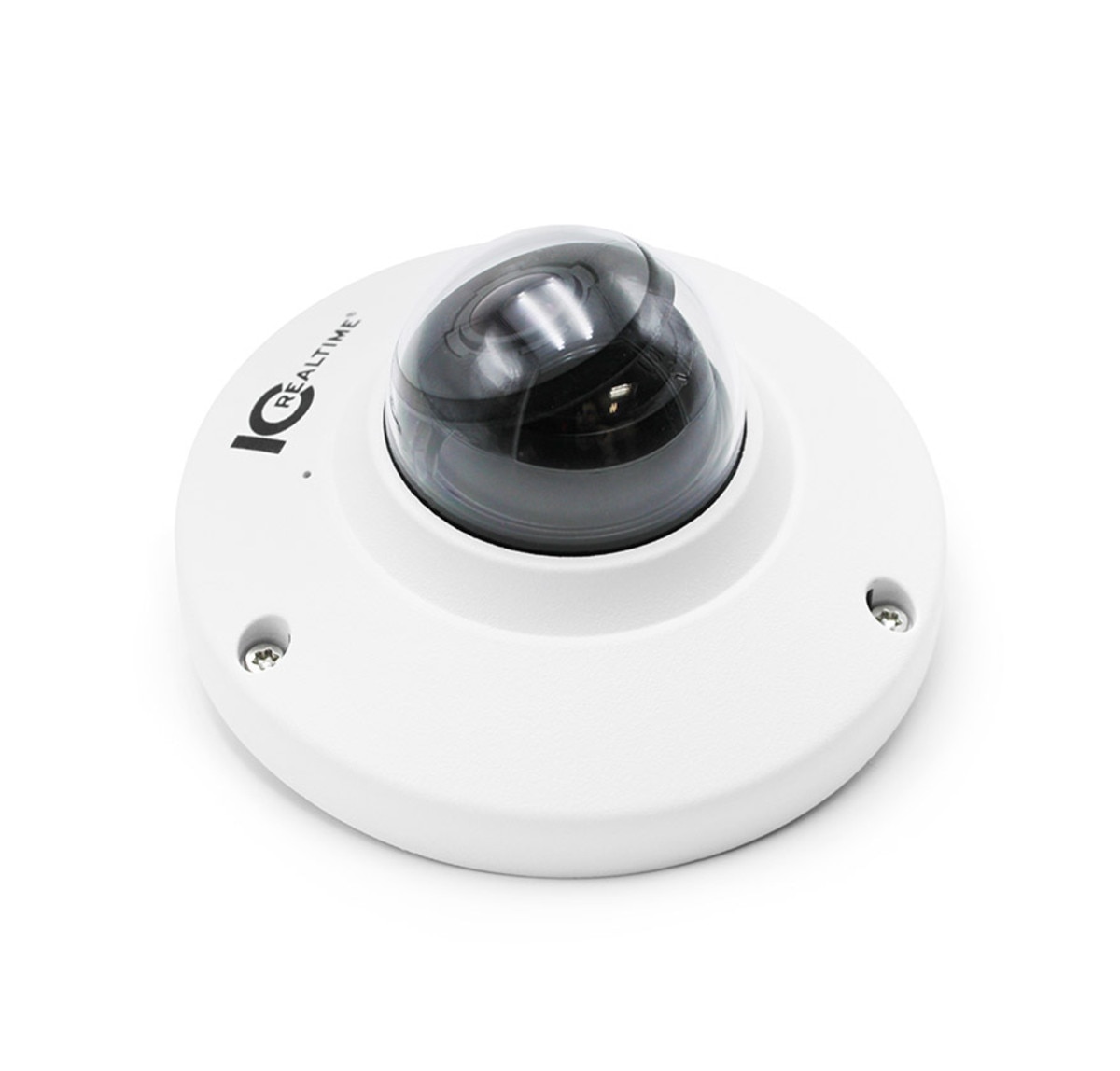

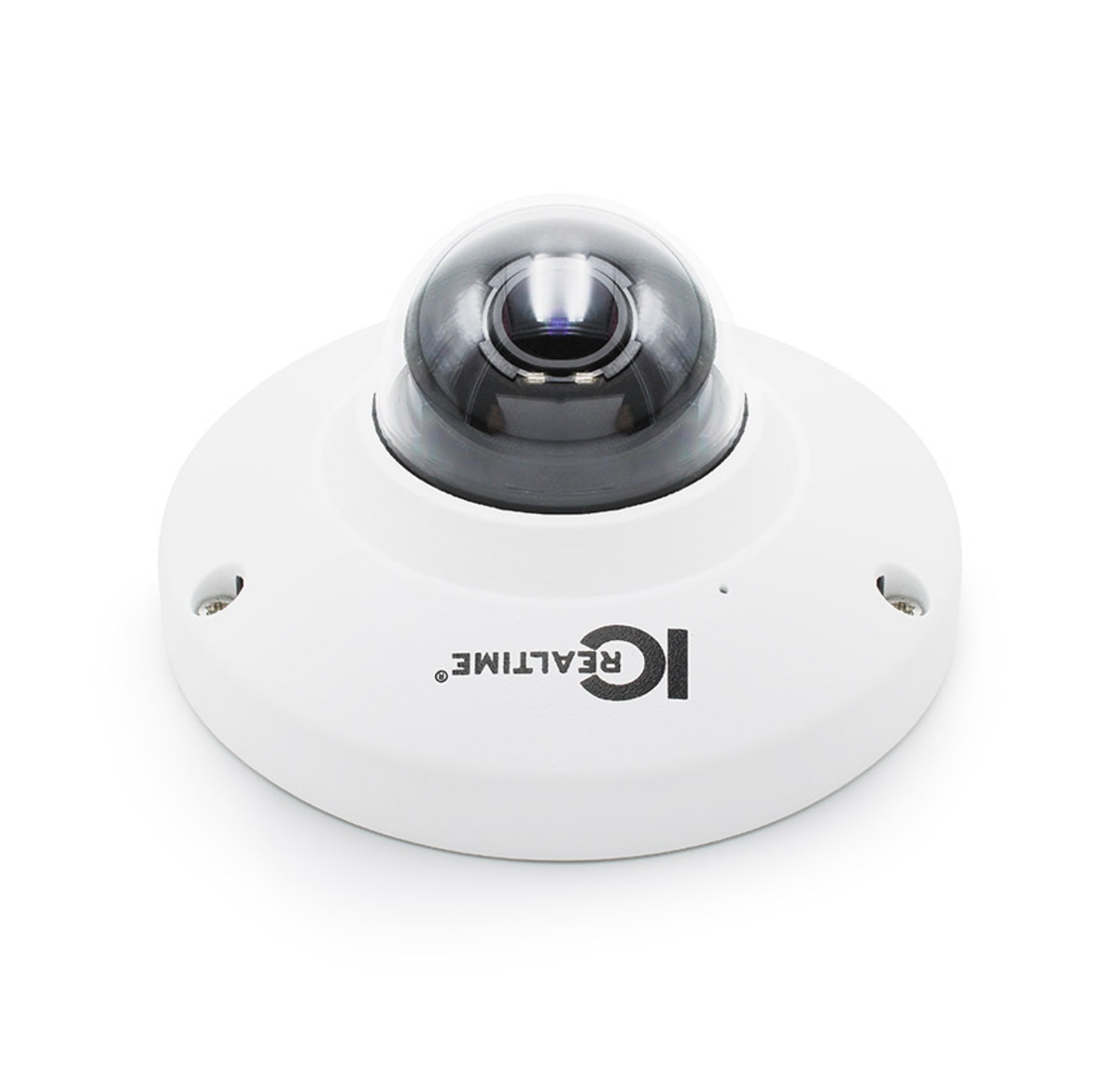

The ICIP360L5 series camera is a real-time, 360° situational awareness camera featuring a 5.0 megapixel fixed 1.4mm lens with a 360° dewarpable image and a built-in microphone.

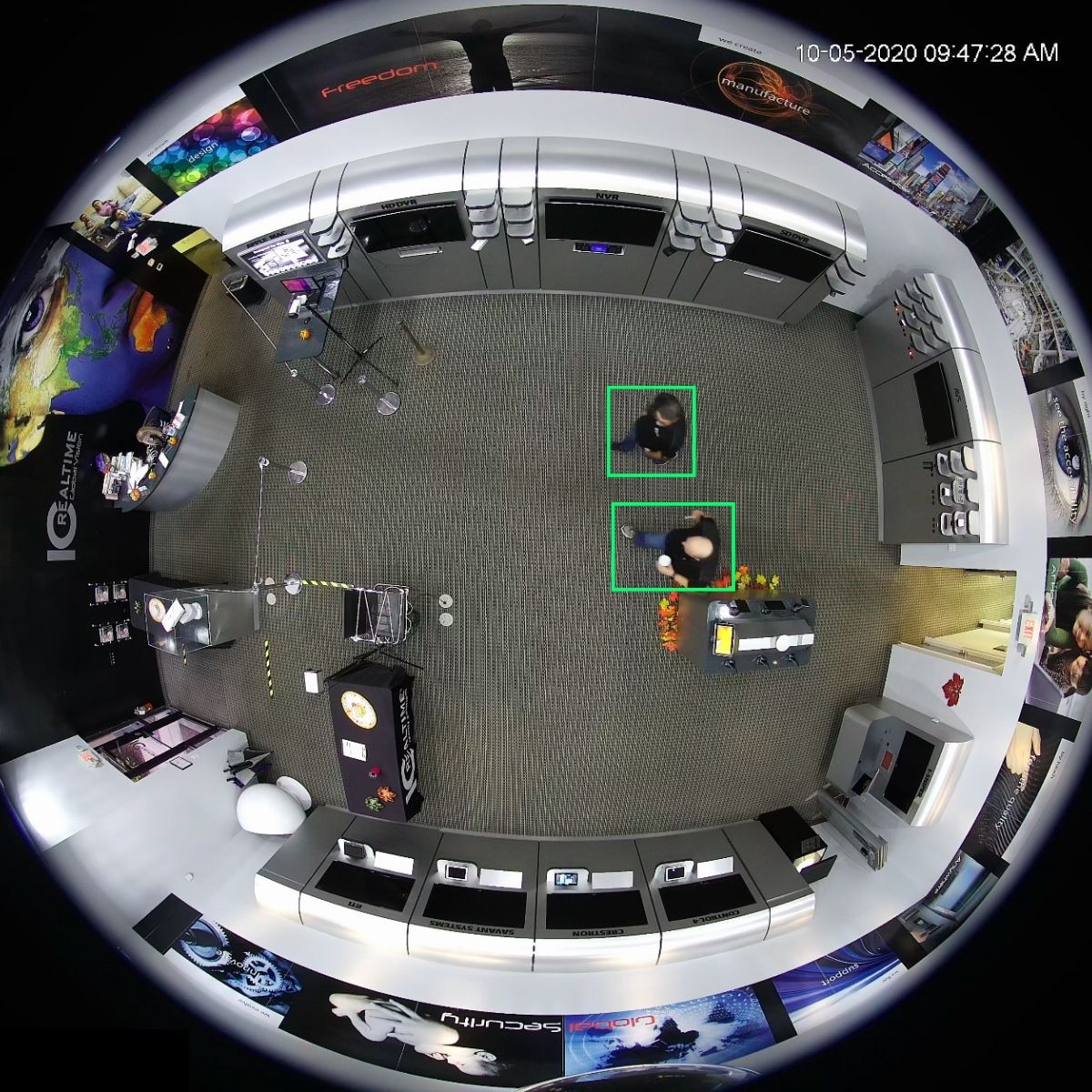

It is capable of recording a wide area of surveillance and de-warping the native fisheye view in order to watch a stream that is undistorted to the human eye. In addition, the camera supports H.265 encoding, IVS support (Tripwire, Intrusion and Heat Map) as well as IP67 and IK08 protection.

Specifications

Camera
Image Sensor: 1/2.7 5 Megapixel progressive scan CMOS
Effective Pixels: 2592(H) x 1944(V)
RAM/Rom: 32MB/ 512MB
Scanning System: Progressive
Minimum Illumination: 0.02Lux/F1.6( Color1/3s30IRE) 0.2Lux/1.6( Color1/30s30IRE) 0.05Lux/F1.6( B/W1/3s30IRE) 0.5Lux/1.6( B/W1/30s30IRE)
S/N Ratio: More than 50dB
IR Distance: N/A
IR On/Off Control: N/A
IR LEDs: N/A
Lens
Lens Type: Fixed
Mount Type: Board-in
Focal Length: 1.4mm
Max. Aperture: F1.6
Angle of View: H: 180 degrees V: 180 degrees
Focus Control: Fixed
DORI - Detect: 92ft
DORI - Observe: 36ft
DORI - Recognize: 20ft
DORI - Identify: 10ft
PTZ
Tracking Trigger Event: N/A
Intelligence
IVS: Tripwire / Intrusion
Advanced Intelligent Functions: Heat map
Video
Compression: H.265, H.264, H.264H, H.264B, MJPEG
Streaming Capability: 3 Streams
Resolution: 5M (2592 x 1944) / 3M (2048 x 1536) / UXGA (1600 x 1200) / 1.3M (1280 x 960) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240)
Frame Rate: Main Stream:5M(1 - 25fps) Sub Stream: D1(1 - 25/30fps)
Bit Rate Control: CBR/ VBR
Bit Rate: H.264: 24 - 10240Kbps
H.265: 14 - 9984Kbps
Day/Night: Electronic
Backlight Compensation: BLC / HLC / WDR
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zones Rectangular)
Region of Interest: Off / On (4 Zones Rectangular)
Smart IR: N/A
Digital Zoom: 16X
Flip: N/A
Mirror: Off / On
Privacy Masking: Up to 4 areas
Audio
Compression: G.711a / G.711Mu / AAC / G.726
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Interoperability: ONVIF / PSIA / CGI
Compatability: ONVIF / PSIA / CGI
Streaming Method: Unicast / Multicast
Max. User Access: 20 Users
Edge Storage: NAS / Local PC for instant recording / Micro SD Card 128GB
Web Viewer: IE, Firefox, Safari, Chrome
Management Software: Smart ICRSS, DSS
Smart Phone: iPhone, iPad, Android, Windows Phone
Interface
Video Interface: N/A
RS232: N/A
RS485: N/A
Audio I/O: Built-in Mic
Alarm I/O: 1/1 channel In/Out
Factory Reset: Yes
Memory Slot: Micro SD card 128GB
Electrical
Power Supply: DC12V PoE (802.3af)(Class 0)
Power Consumption: < 3.4W
Enviromental
Operating Conditions: -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
Operating Humidity: Less than 95% RH
Storage Conditions: -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK08
Construction
Casing: Metal

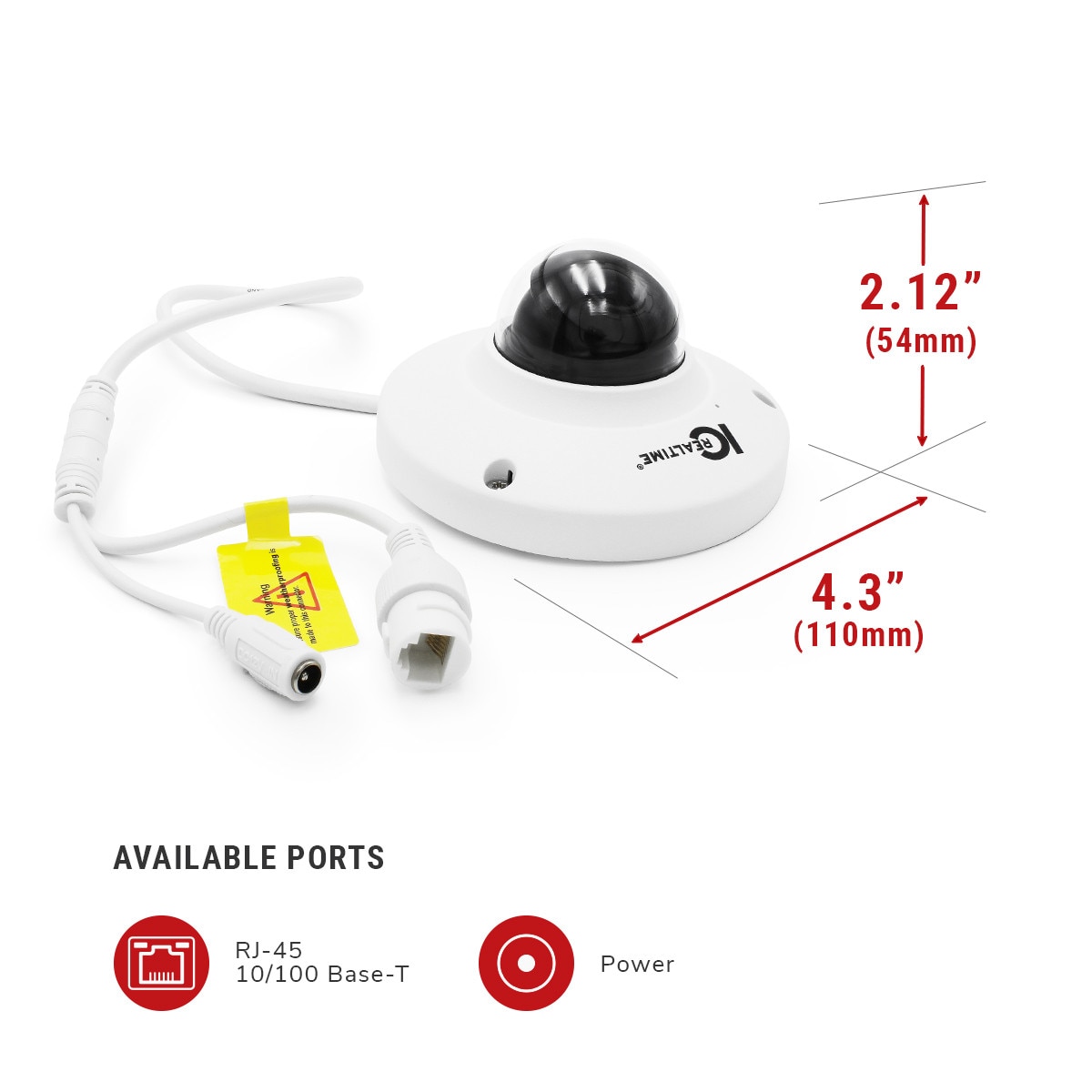

Dimensions: 110mm x 56mm (4.33in x 2.2in)
Gross Weight: 0.44Kg (0.97lb)

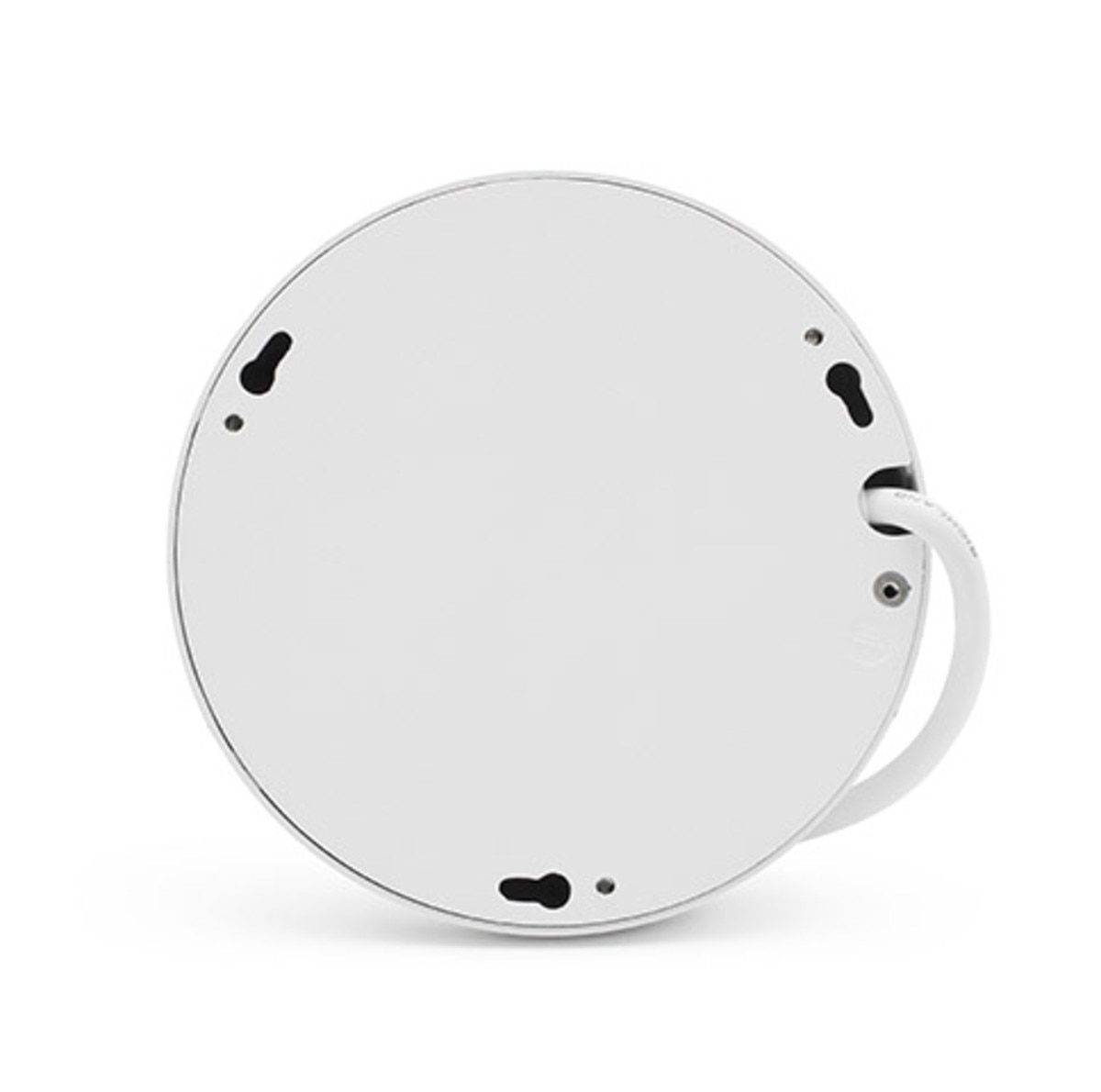

Mounting Pan/Tilt/Rotation: Pan:0 ~ 355 ; / Tilt:0 ~ 75 ; / Rotation:0 ~ 360
