HDVR-MX1616-1U4K-AI1
Details
IC Realtime’s newest generation digital video recorder adopts HD-AVS technology, our in-house technology is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.
It supports up to 16 channels of HD-AVS/CVBS inputs, up to 9 channel local live-view channels (25 with IP cams added), and 16 playback channels. This recorder also has the capability of supporting up to 8 (8MP or less) or 32 total IP cameras by disabling all of the AVS inputs.
It is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access & is compatible with ONVIF 2.42.
It supports up to 16 channels of HD-AVS/CVBS inputs, up to 9 channel local live-view channels (25 with IP cams added), and 16 playback channels. This recorder also has the capability of supporting up to 8 (8MP or less) or 32 total IP cameras by disabling all of the AVS inputs.
It is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access & is compatible with ONVIF 2.42.
Specifications
| System | |
| Main Processor: | Embedded Processor |
| Operating System: | Embedded LINUX |
| Display | |
| Display Interface: | 1 HDMI, 1 VGA |
| Display Resolution: | HDMI:3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720 VGA: 1920 x 1080, 1280 x 1024, 1280 x 720 |
| OSD: | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Display Split: | When IP extension mode not enabled: 1/4/8/9/16, When IP extension mode enabled: 1/4/8/9/16/25 Main+ Extra screen (only coax channels are supported on extra screen) |
| Video | |
| Supported Camera Types: | IP, Coax |
| IP Camera Input: | 16+16 Channel, each channel up to 8MP |

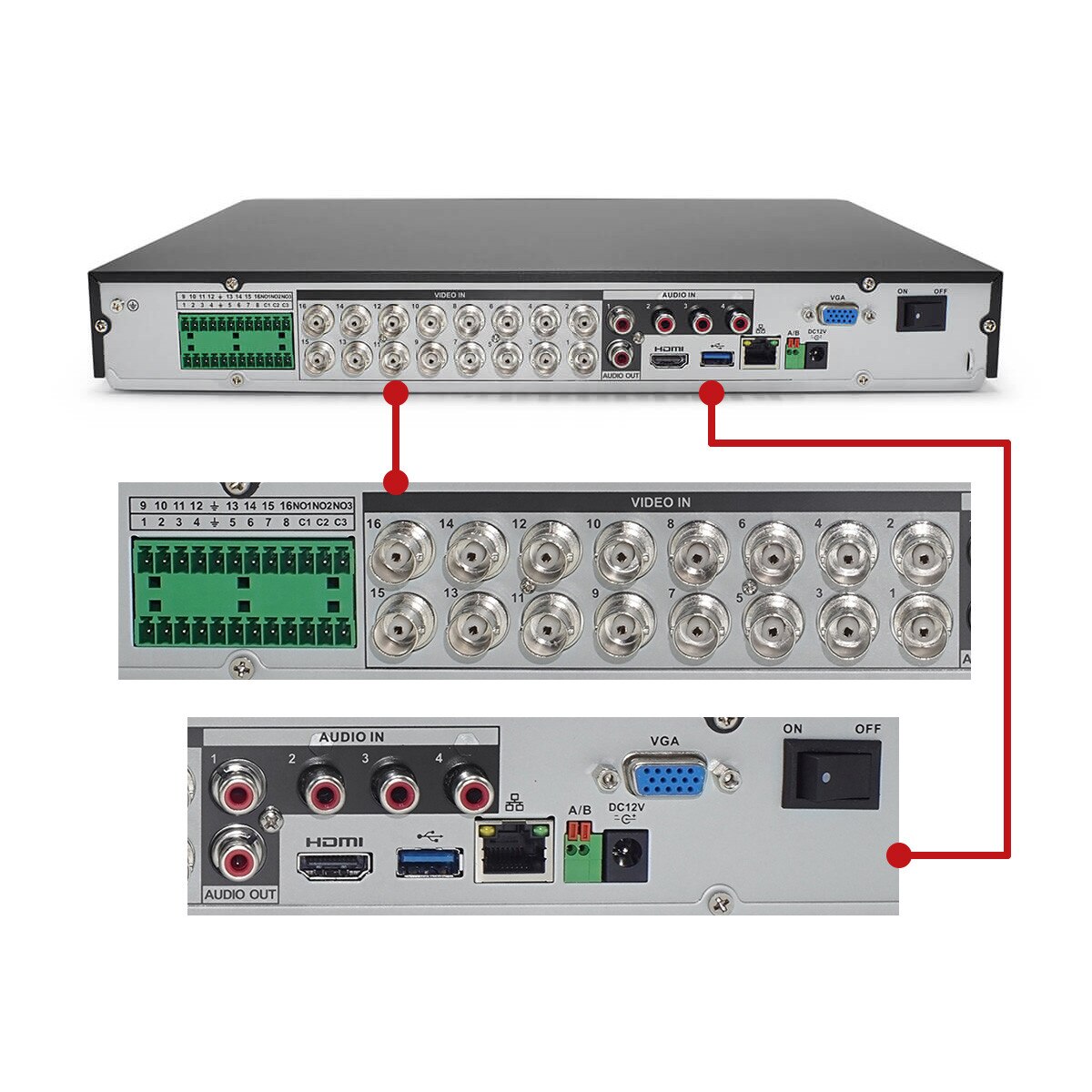

| HDAVS input: | 16 Channel, BNC (HD-AVS Camera 4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps, AHD Camera 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps, TVI Camera5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps, CVBS Camera PAL/NTSC) |
| Trigger Events: | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection: | Motion Detection, MD Zones: 396 (22 x 18), Video Loss,Tampering and Diagnosis |
| Playback: | 1/4/9/16 |
| Search Mode: | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function: | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode: | USB Device/Network |
| Bit Rate: | 32Kbps ~ 6144Kbps Per Channel |
| Audio | |
| Compression: | AAC(only for the 1st channel), G.711A, G.711U, PCM |
| Two-way Talk: | Reuse audio in/out, RCA |
| Recording | |
| Record Compression: | H.265+/H.265/H.264+/H.264 |
| Record Resolution: | 4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF |
| Record Mode: | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval: | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Throughput: | 128Mbps |
| Storage | |
| Internal HDD: | 2 SATA Ports, up to 10TB capacity for each disk |
| Network | |
| Ethernet: | 1 RJ-45 Port (1000M) |
| Protocol: | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search |
| Compatibility: | IC Realtime, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| Max. User Access: | 128 Users |
| Smart Phone: | iPhone, iPad, Android |
| Interface | |
| RS232: | N/A |
| RS485: | 1 Port, for PTZ Control |
| USB: | 2 USB Ports (1 USB 2.0 , 1 USB 3.0) |
| Electrical | |
| Power Supply: | DC12V/5A |
| Power Consumption: | <20W |
| Environmental | |
| Operating Conditions: | -10C ~ +55C (+14F ~ +131F), 10% ~ 90% RH |
| Storage Conditions: | -20C ~ +70C (-4F ~ +158F) , 0~ 90% RH |
| Construction | |
| Installation: | Desktop installation |

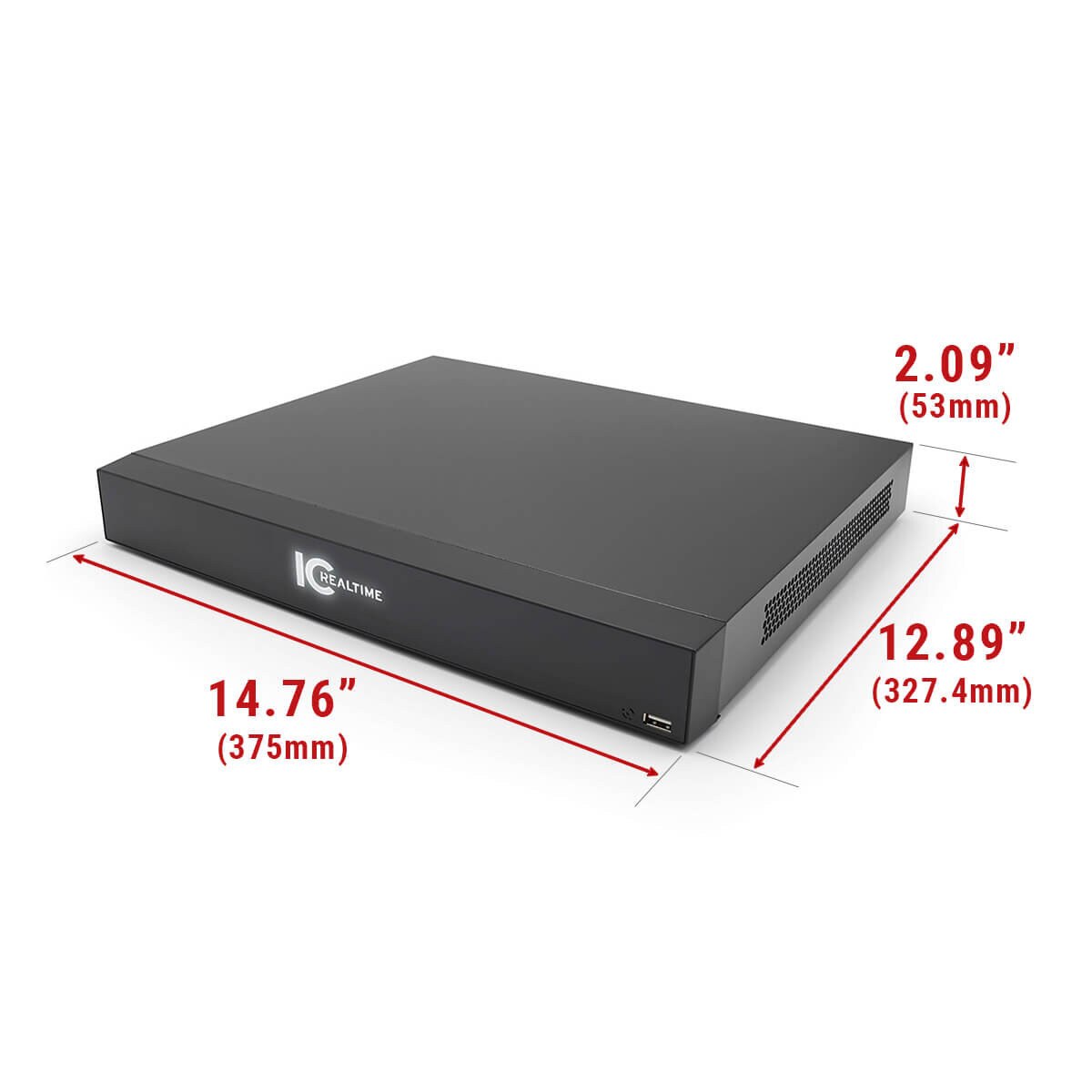

| Dimensions: | 1U, 375mm x 287mm x 53mm (14.8" x 11.3" x 2.1") |
