HDFX-P2015X-W1-T

(0) No Reviews yet
SKU: HDFX-P2015X-W1-T
Jump to Product Specs

Details

The new HDFX-P2015X-W1-T is IC Realtime's next-generation HD/AVS replacement for our best-selling AVS-P2012T mid-size surface mount PTZ. The P2015X is equipped with an upgraded 15x power zoom lens, a new StarVision (STARVIS) 2.8" 2Megapixel STARVIS™ video chipset, and a new high-speed / high-precision autofocus system. Unlike the 24VAC needed for larger PTZs, the P2015X requires 12VDC @ 5 amps, and a matched DC power supply "brick" is included in the box with the camera.

Compact & Capable Upgrade PTZ
Like all HD/AVS cameras, the P2015X is an excellent replacement camera that is ready for the future. One of IC Realtime's HD/AVS's most significant advantages is easy "Plug, Power & Play" installation.

A P2015X upgrade is ready for full 1080P HD video, audio streaming, and one-wire control once the head-end recorder is upgraded. Upgrade the recorder to an HD/AVS unit, and PTZ commands are enabled using the recorder's on-screen channel setup menu for that PTZ's channel.

P2015X's "one wire" camera control eliminates the need for an extra RS485 PTZ control line completely. Complete PTZ control is available through the recorder's on-screen pop-up interface, ICRSS central control software, or on the ICView phone app, just like you would with an IP-based PTZ.

Multi-Format Compatible

The versatile P2015X can adapt to AHD, TVI, CVI, and even standard analog (CVBS) output for maximum video compatibility. Hence, it works flawlessly with older video recorders and standard Pelco P/D RS485 control signals. Need to replace an older PTZ camera? We've got you covered - the P2015X can be set for standard analog video output. When set up for analog video, it will auto recognize & respond to standard Pelco P/D commands over its built-in standard RS-485 input.

1080p HD Video, Audio and "One Wire Control" Over BNC

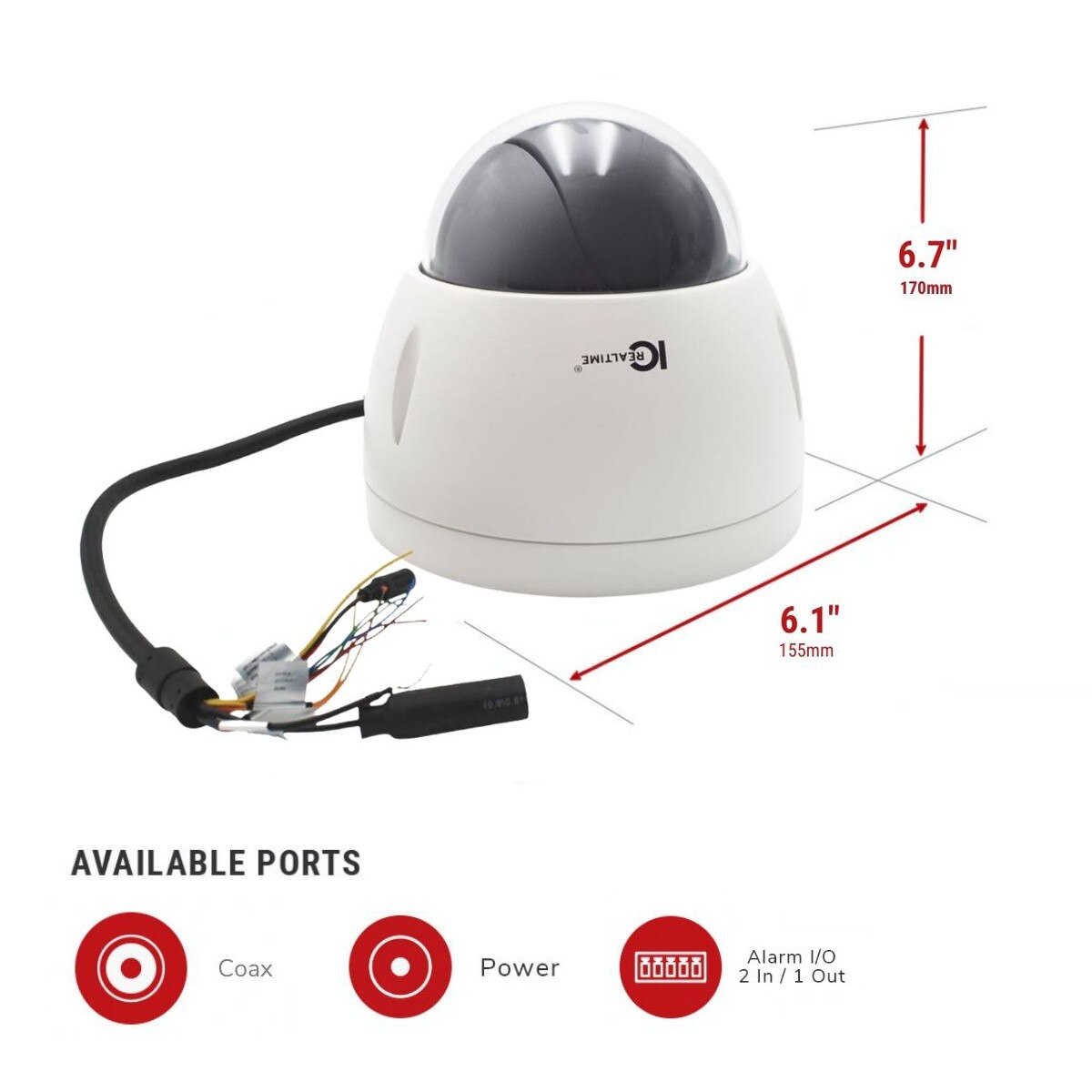

Like all IC Realtime's HD/AVS cameras, the P2015X brings full 1080p video/audio and control over coax advantages without network configuration or potential latency issues. Its full 1080P HD and audio streaming are ready to access when the system's recorder is upgraded to HD/AVS. The IP-style one-wire simplicity makes HD/AVS an easily installed, cost-effective upgrade path for any existing BNC wire-based video security system. Audio is easy with HD/AVS because it's encoded and streamed on the coax with the video & control signals. For easy installation access, the new P2015X has its audio input port on the camera pigtail, along with 2 alarm-in and 1 alarm-out input.

15X Power Zoom Lens
The advanced 5mm–75mm optical power zoom lens system on the P2015X is optimized to take advantage of the P2015X's redesigned high-speed autofocusing system. Faster zoom motors and improved edge-detection algorithms allow virtually instantaneous focus at any zoom setting for perfect, sharp images every time. Zooming in for close-ups is as easy as a mouse click or using your phone app's zoom control.

STARVIS (Star Vision) Color Nightvision Video Chipset

The P2015X utilizes the sophisticated STARVIS (Star Vision) low light chipset to hold color rendition in dim "candlelight" down to a super-low 0.005 Lux. Even the smallest ambient light level (think nightlight or moonlight through a window) is enough to get clear video, so low light environments are no longer a limitation. Also, the chipset's high scan rate and the P2015X's advanced video management capabilities even enable a 60fps frame rate (twice the standard 30fps) at 720p to clearly capture even fast-moving objects.

Superior Tech For Superior Images
Super-wide illumination and contrast management ranges are essential for excellent video, and the P2015X delivers 120db of WDR (Wide Dynamic Range), enabling superior edge definition and contrast. The P2015X is equipped with IC Realtime's most advanced WDR, an automated system for maintaining the tonal range & color differences in each frame. Every video frame is analyzed & adjusted in real-time utilizing 3D video noise reduction before streaming to ensure maximum image detail.

Vandal & Lightning Resistant, Weatherproof & UL Listed

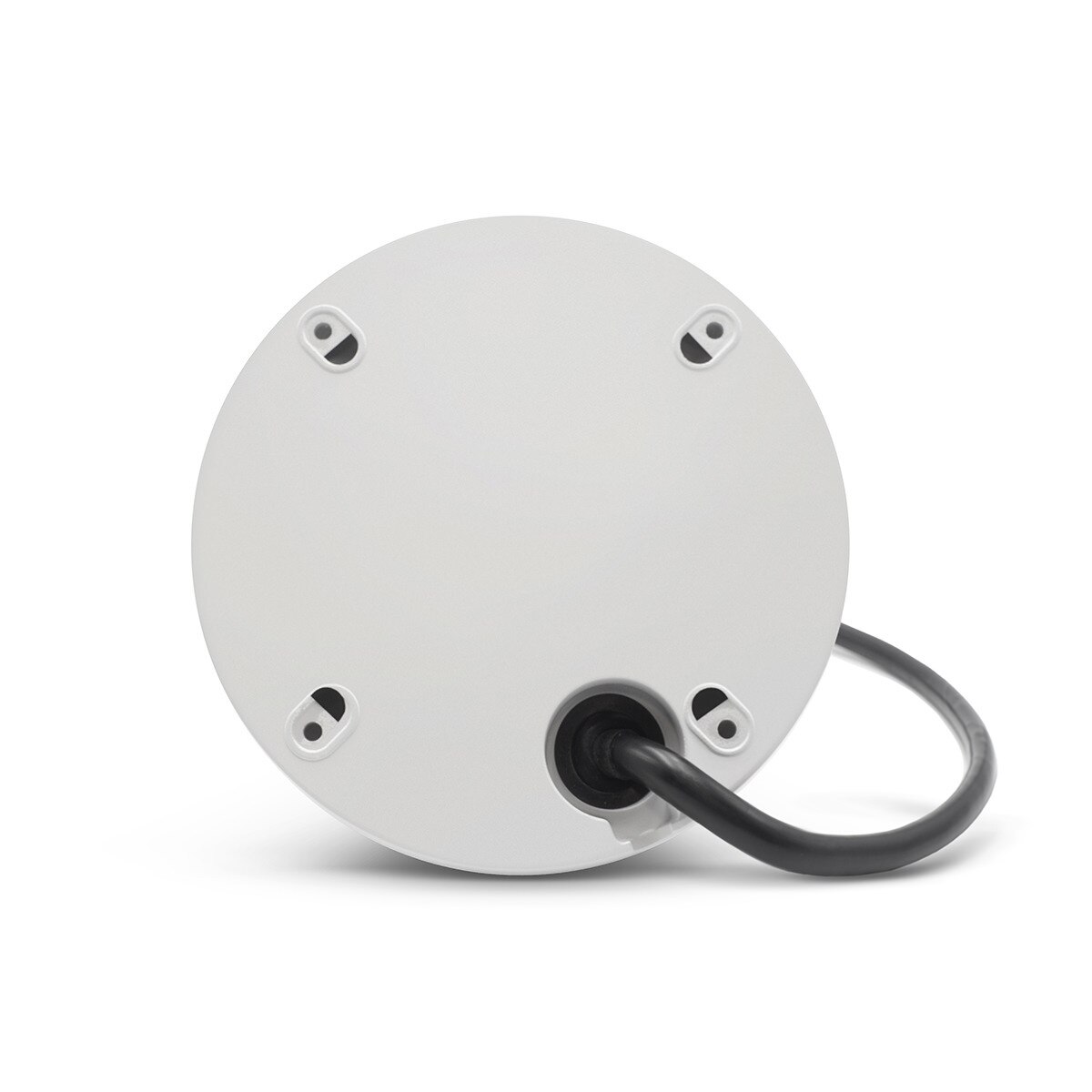

The P2015X is IK10 vandal-resistant and IP66 weatherproof, so it is suitable for both indoor and outdoor installations. As a tough, compact surface-mount dome, it offers little exposure to vandals. And although designed for direct surface mount, multiple mounting options are available for the camera, including ceiling bases with drop poles, corner and pole mounts bases, junction boxes, and even a large direct door-mount weather-sealed junction box (MNT-BOX-2). The P2015X is TVS 6000V lightning protection rated and carries UL: UL60950-1+CAN/CSA C22.2, No.60950-1 certification and FCC: Part15 subpart B, and ANSI C63.4-2014 ratings.

The Best Compact Coax / BNC 1080p HD PTZ Available

The new PTZ has faster and more accurate autofocusing, a better Starlight video chipset, better zoom lens magnification & better video electronics. Our new HD/AVS multi-format compatible HDEL-P2015X-IRW1 is a worthy successor to our dependable & best-selling AVS-P2012T. IC Realtime provides registered dealers, commercial integrators & distributors with only the best and most reliable HD over coax/BNC camera & recorder equipment. Why? Because we live in the real world. Our ultra-compatible state-of-the-art HD/AVS coax/BNC product line is a cost-competitive and less technically complex alternative to IP-based systems for new installations and upgrading existing pre-wired coax video systems.

Suppose you need a compact & capable coax/BNC compatible PTZ that delivers 1080p HD video, audio, and control over coax for easy one-wire installation. In that case, IC Realtime's new HDEL-P2015X-IRW1 is the industry's best choice.
