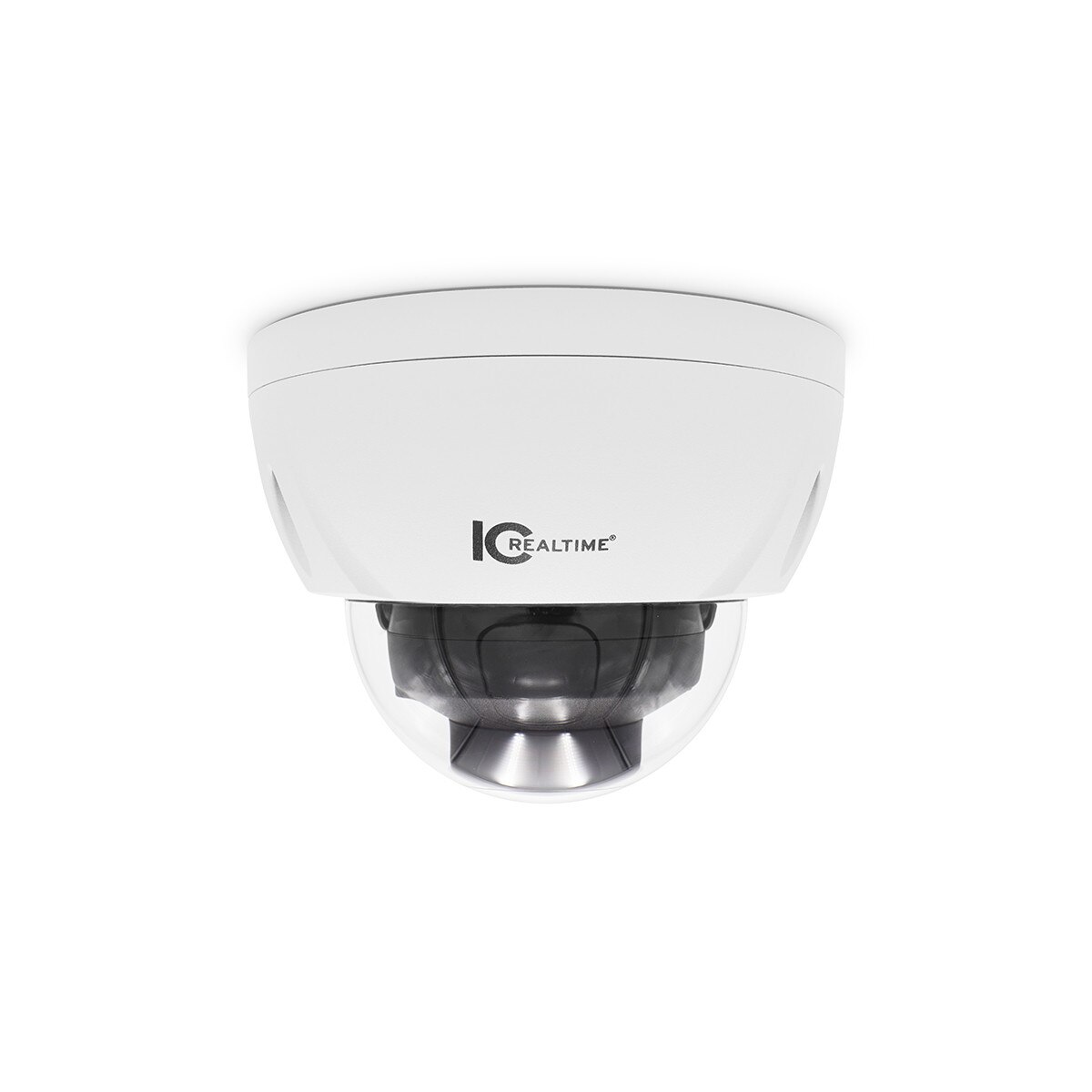

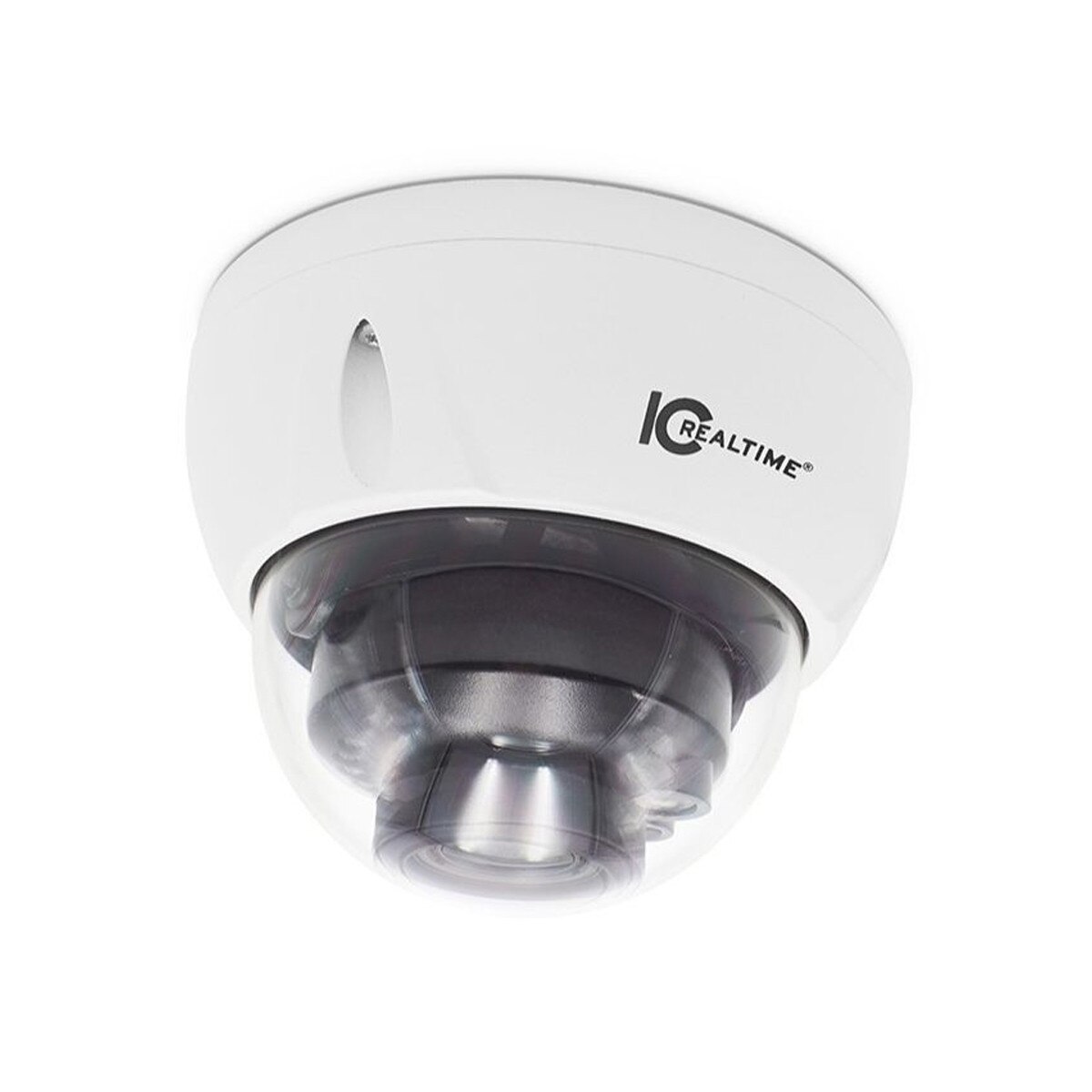

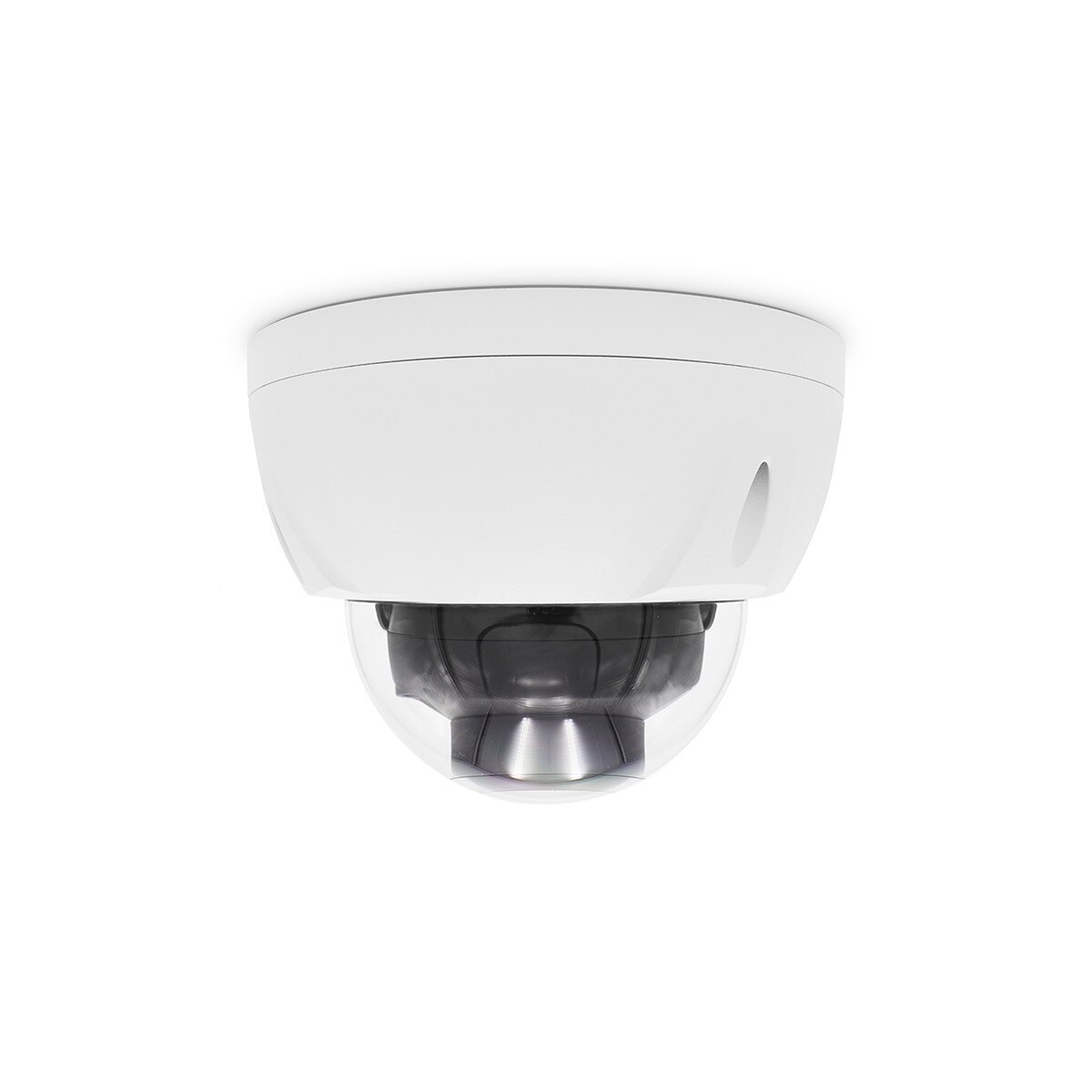

AVS-D8712SL-DP
Details
Experience 4K video surveillance with the simplicity of reusing existing coaxial infrastructure! The AVS-D8712SL-DP camera adopts a powerful 1/1.8'' imager as well as a varifocal 3.7-11mm motorized zoom lens, providing superior quality imaging. It also supports Starlight technology and 120dB true WDR for a clear image in even poor lighting conditions. In addition, this camera supports an Audio Input for an external microphone to capture broadcast-quality audio and improve supplementary evidence collection. Ultra high definition and a complete set of features makes this 4K HD-AVS camera an ideal choice for mid to large-size businesses and projects where both highly reliable surveillance and construction flexibility are demanded.
Note:For compatibility purposes, this camera may come default on 4MP/ 2MP resolution. When equipped with an appropriate HDVR, you can set the camera to the maximum resolution via the OSD interface.
Note:For compatibility purposes, this camera may come default on 4MP/ 2MP resolution. When equipped with an appropriate HDVR, you can set the camera to the maximum resolution via the OSD interface.
Specifications
| Camera | |
| Image Sensor: | 1/1.8" Starlight CMOS |
| Effective Pixels: | 4K(3840 x 832) / 4M(2560 x 554) |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.005Lux/F1.5 30IRE 0Lux IR on |
| S/N Ratio: | More than 65dB |
| Illumination Distance: | Up to 30m (98ft) |
| Illumination On/Off Control: | Auto/ Manual |
| Illumination LEDs: | 2 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Motorized lens / Fixed iris |
| Mount Type: | Board-in |
| Focal Length: | 3.7-11mm |
| Max. Aperture: | F1.5 |
| Angle of View: | H: 112 - 46 degrees |
| Focus Control: | Auto/Manual |
| Close Focus Distance: | 200mm (7.87in) |
| DORI - Detect: | 83m (272ft) / 190m (623ft) |
| DORI - Observe: | 33m (108ft) / 76m (249ft) |
| DORI - Recognize: | 17m (56ft) / 38m (125ft) |
| DORI - Identify: | 8m (26ft) / 19m (62ft) |
| PTZ | |
| Pan/Tilt Range: | Pan: 0 ~ 355 / Tilt: 0 ~ 75 / Rotation: 0 ~ 355 |
| OSD Menu: | Multi-language |
| Video | |
| Resolution: | 8MP (3840 x 2160) |
| Frame Rate: | 15fps@4K 20fps@6MP 25/30fps@4MP |
| Day/Night: | Auto (ICR) / Manual |
| Backlight Compensation: | BLC / HLC / WDR |
| White Balance: | Auto / Manual |
| Gain Control: | AGC |
| Noise Reduction: | 2D / 3D |
| Smart IR: | Auto / Manual |
| WDR: | 120dB |
| Interface | |

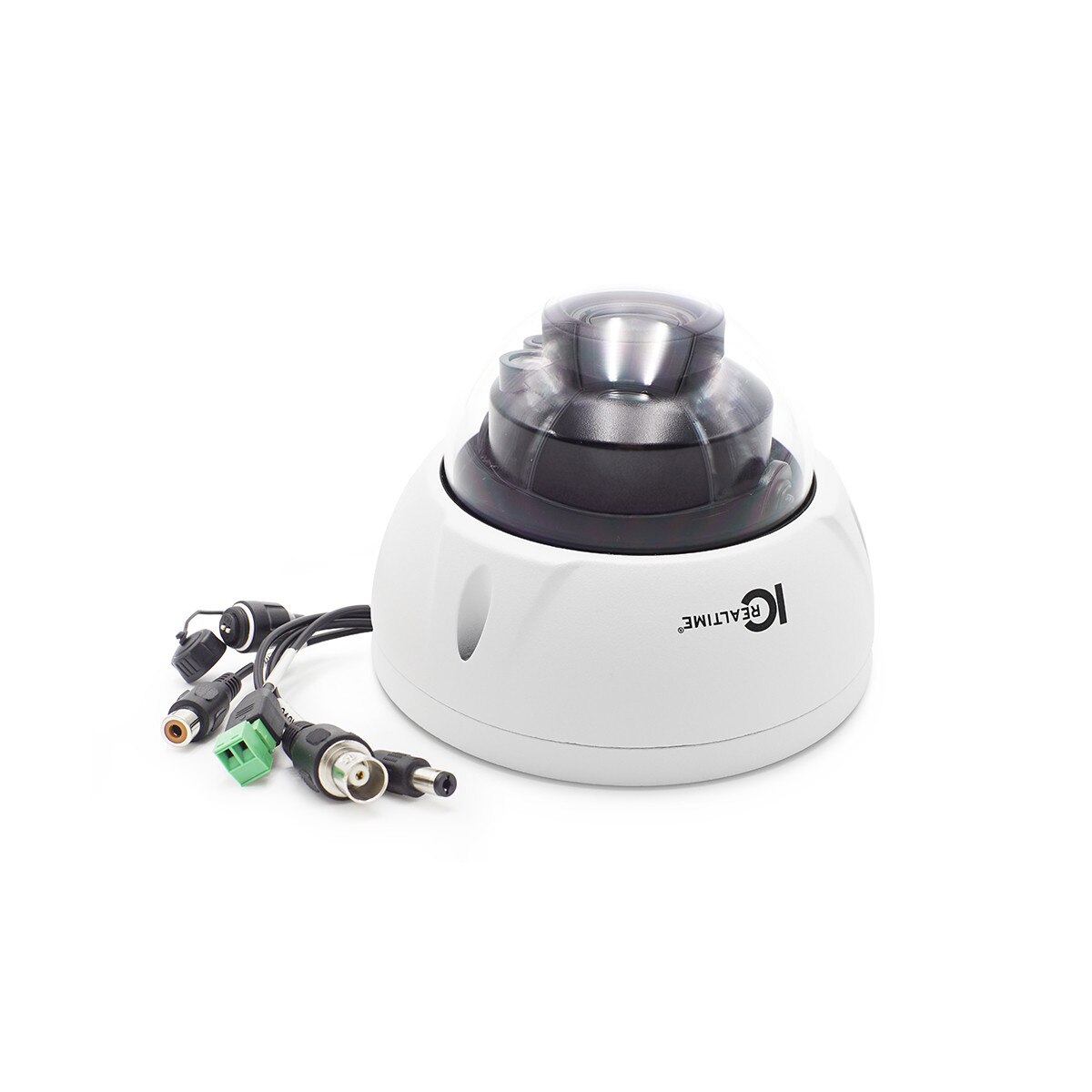

| Video Interface: | 1-channel BNC high definition video output / CVBS video output (DIP switch) |
| Audio I/O: | 1-channel audio in |
| Electrical | |
| Power Supply: | AC 24V +/- 30% / DC 12V +/- 30% |
| Power Consumption: | Max 8.4W |
| Environmental | |
| Operating Conditions: | -30C ~ +60C (-22F ~ +140F) / Less than 90% RH |
| Ingress Protection: | IP67 |
| Vandal Resistance: | IK10 |
| Construction | |
| Casing: | Aluminium |
| Dimensions: | 122mm x 88.9mm (Diameter 4.8in x 3.5in) |
| Gross Weight: | 0.65kg (1.43lb) |
