IVB-201C-V2

(0)No Reviews yet
SKU: IVB-201C-V2
Jump to Product Specs

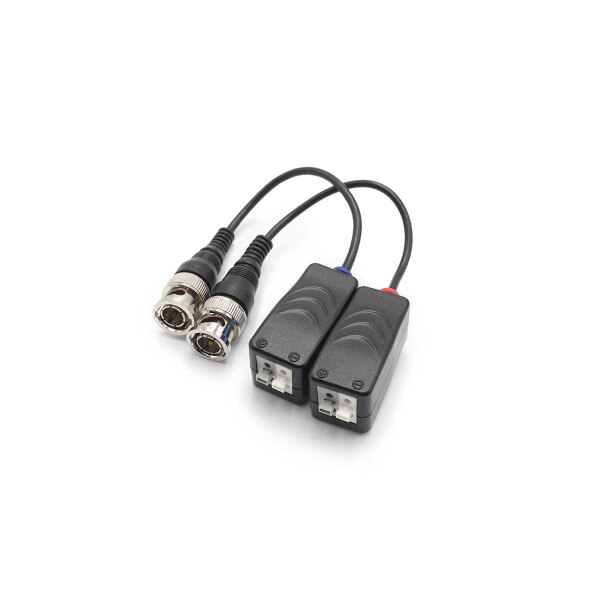

Passive Cat 5/Bnc Balun (Sold In Pairs Onl...
1-Channel Passive Video Balun
Real-time transmission over UTP CAT5E/6 cable
Compatible format: HD-AVS/TVI/AHD/CVBS
Excellent anti-thunder, anti-static and anti-interference capabilities
Female BNC connector, and pluggable screw terminal connections
Passive, no need for power supply
Back

Details

Video Baluns provide an economical alternative to coaxial cable for video/audio/signal transmission. IVB-201C-V2 transmits up to 720P of CCTV video at distances up to 1,300 feet over unshielded twisted pair cabling when used with any passive transceiver with little to no degradation of signal. It is also capable of 1080P at 820 feet and 4MP/4K at 590 feet and supports HD-AVS/TVI/AHD/CVBS. These Baluns save installation time/cost by sharing existing UTP network cable for video applications. The two-screw connector design makes installation easy and fast.
Back

Specifications

Video
Resolution: 720P/1080P/4MP/5MP/4K
Network
Compatibility: HDCVI/TVI/AHD/CVBS
Interface
Video Interface: BNC-M
Environmental
Operating Conditions: -30°C~+70°C(-22°F~+158°F)
Construction
Casing: ABS
Dimensions: 173.8mmx19.5mmx21mm (6.84”x0.77“x0.83”)
