AVR-4M316

(0) No Reviews yet
SKU: AVR-4M316-WEB
ITEM WEIGHT: 25
16 Channel 2U Pentabrid HD-AVS DVR - Supports up to 4MP AVS / 12MP IP - H.264E - HDMI
16+48 Ch | Up to 12MP | 256Mbps Total
8 HDDs | 0/1/5/10
2 RJ-45 (10/100/1000Mbps)
4 USB | Alarm 16/6 | 2 HDMI / 1 VGA / 1 TV
ONVIF 2.42 CGI Conformant
2U | Desktop or Rack Mount

Details

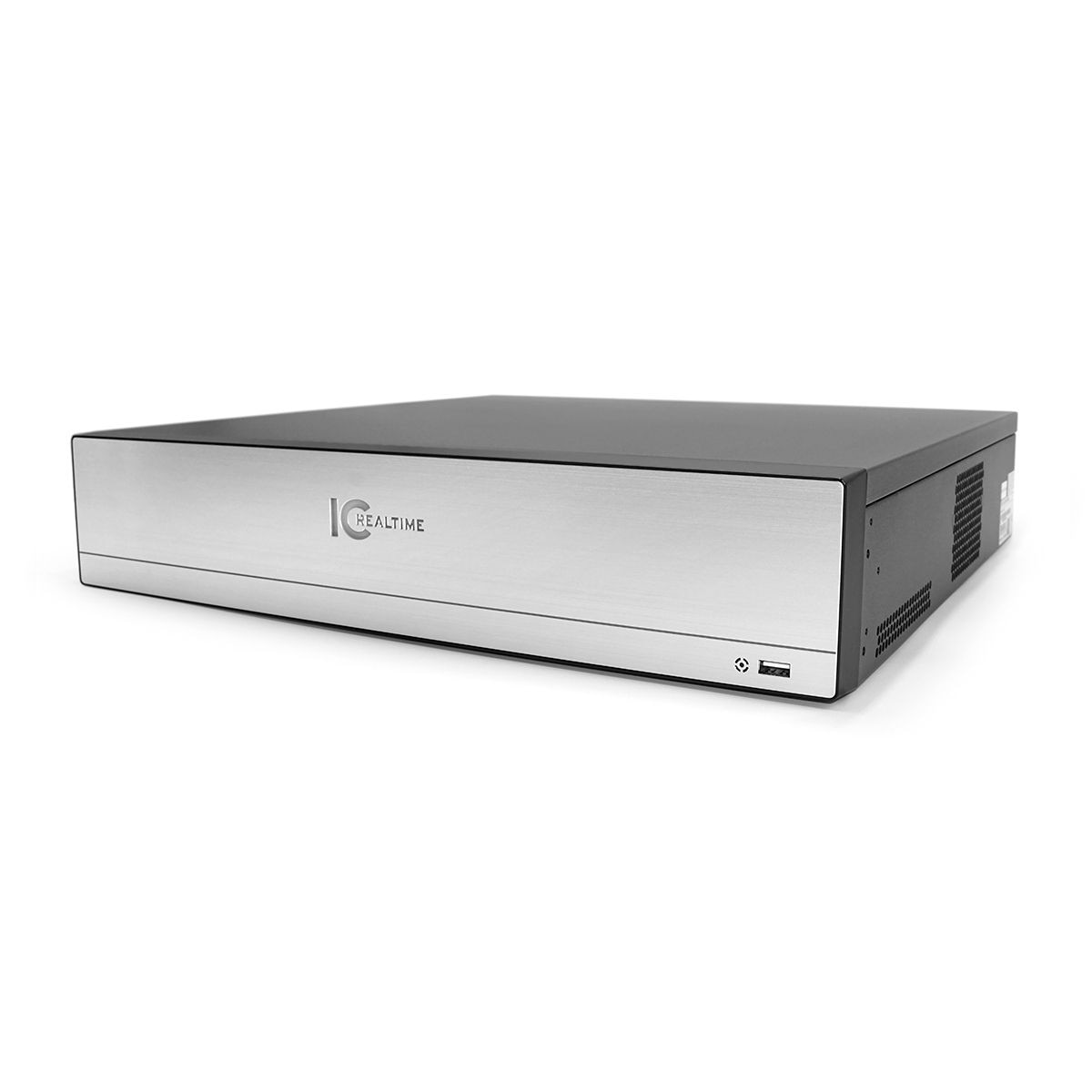

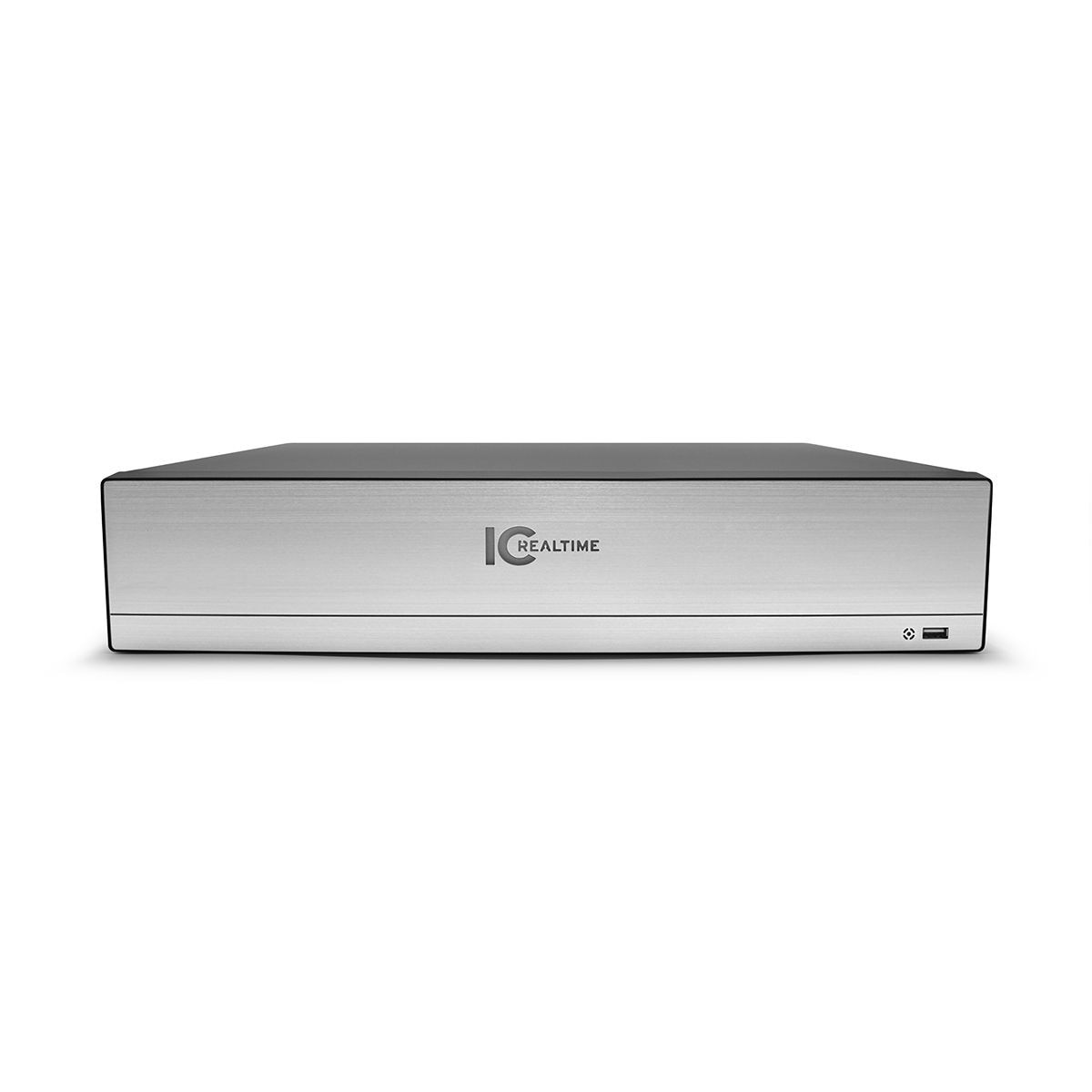

The pinnacle of pentabrid recording! Say hello to the AVR4M300 series of recorders. Ultra high definition recording, Face Detection and Searching, Fisheye Dewarping, H264+ compression and more are packed into this power house of a storage device. Our latest ICRealtime AVR4M300 series pentabrid covers the best of all Five analog signals: analog, AVS, TVI, AHD and IP. Ideal for installations where the environment is mixed between analog and IP Cameras, or for upgrading existing systems to the next level of resolution. The AVR4M300 series recorders are capable of recording analog cameras at 960H resolution, HDAVS cameras up to 4K, and IP cameras up to 12MP! Audio is supported on each and every input (both analog, and IP). The AVR4M300 series recorders are wrapped up in a full sized 2U DVR capable of housing 8 HDDs internally. This series recorders are available in 8 and 16 channel offerings, enabling it to be deployed into diverse, and varying sizes of installations ranging from small office, to large scale enterprises applications. Since the pentabrid series of recorders supports both analog, HD over coax, and IP cameras, it is a good fit for existing installations that want to expand into IP cameras, without replacing analog cameras. Like all IC Realtime series recorders, this device utilizes H.264+ compression technology, enabling crisp image viewing with the least bandwidth consumption possible. This unit adopts an embedded system design, as well as a Linux Operating System, resulting in high levels of stability, performance, and most importantly: reliability. In addition, this unit is fully operational from remote locations (Search / Playback / Backup / Configuration) over standard Ethernet networks.

Specifications

System
Main Processor: Embedded Processor
Operating System: Embedded LINUX
Display
Display Interface: 2 HDMI(HDMI1 up to 4K), 1 VGA, 1 TV
Display Resolution: 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Multi-screen Display: 1/4/8/9/16/25/36
OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video
IP Camera Input: up to 64 Channel, each channel up to 12MP
HDAVS input: 16 Channel
Trigger Events: Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis
Playback: 1/4/9/16
Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode: USB Device/Network
Bit Rate: 1Kbps ~ 12288Kbps Per Channel
Audio
Two-way Talk: 1 MIC IN, 1 MIC OUT, BNC(independent)
Recording
Record Compression: H.264+/H.264
Record Resolution: 4K, 4MP, 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate: Main stream: 1st and 9th channel 4K(1~12/15fps)/4MP (1~25/30fps), others 4MP(1~15fps); 1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps), Sub stream:960H/D1/CIF/QCIF(1~25/30fps)
Record Mode: Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval: 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Storage
Internal HDD: 8 SATA Ports, up to 8 TB capacity for each disk
eSATA: 1
Network
Ethernet: 2 RJ-45 Port (1000M)
Protocol: HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search
Max. User Access: 128 Users
Smart Phone: iPhone, iPad, Android

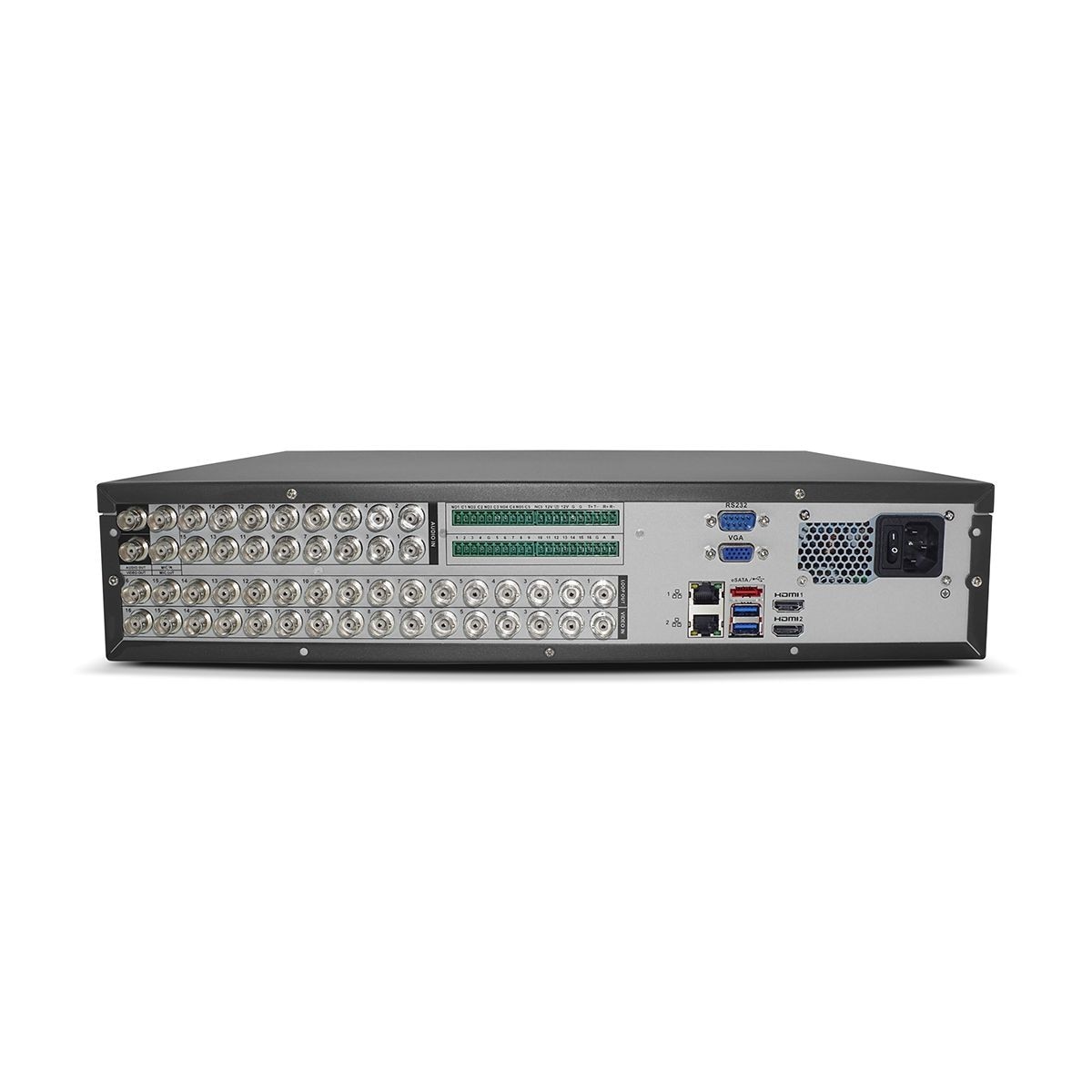

Interface
Loopouts: HD-AVS/CVBS 16 BNC
RS232: 1 Port�シ掲or PC communication & Keyboard
RS485: 1 Port�シ掲or PTZ Control
USB: 4 USB Ports (2USB 2.0 , 2 USB 3.0)
Electrical
Power Supply: AC 100~240V, 50/60HZ
Power Consumption: <40W (Without HDD)
Enviromental
Operating Conditions: -10C ~ +55C (+14F ~ +131F), 0~ 90% RH
Storage Conditions: -20C ~ +70C (-4F ~ +158F) , 0~ 90% RH
Construction
Installation: Desktop installation/Rack installation
Dimensions: 2U, 440mm x 455mm x 95mm (17.3" x 17.9" x 3.7")
