HDVR-EL1616-2U4K1
Details

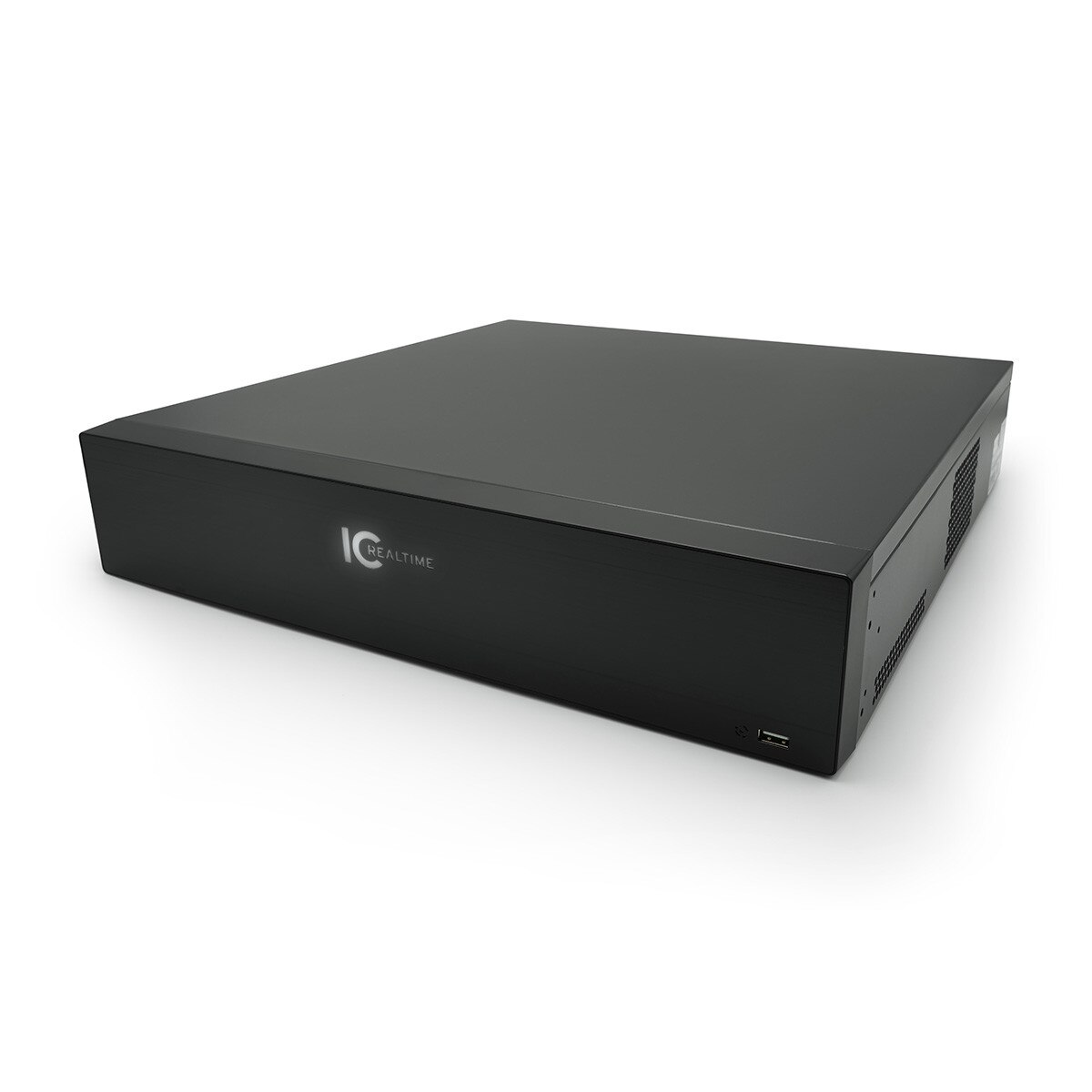

IC Realtime’s newest generation digital video recorder adopts HDAVS technology, this technology is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.
It supports up to 16 channels of HDAVS/CVBS inputs, or up to 32 channels IP camera total (with analog disabled), 36 local live-view channels, and 16 playback channels. This recorder is wrapped up in a full sized 2U DVR capable of housing 8 HDDs, each up to 10TB per port, internally.
Designed as a low-cost, easy installation product, this HD AVR is ideal for a wide range of applications such as public safety, retail store, transportation, home protection and education. It is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and is compatible with ONVIF 2.42.
It supports up to 16 channels of HDAVS/CVBS inputs, or up to 32 channels IP camera total (with analog disabled), 36 local live-view channels, and 16 playback channels. This recorder is wrapped up in a full sized 2U DVR capable of housing 8 HDDs, each up to 10TB per port, internally.
Designed as a low-cost, easy installation product, this HD AVR is ideal for a wide range of applications such as public safety, retail store, transportation, home protection and education. It is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and is compatible with ONVIF 2.42.
Specifications
| System | |
| Main Processor: | Embedded Processor |
| Operating System: | Embedded LINUX |
| Display | |
| Display Interface: | 2 HDMI, 1 VGA, 1 TV (Extra screen only displays Channels 1-16) |
| Display Resolution: | HDMI 1:3840×2160, 1920×1080, 1280×1024, 1280×720 HDMI2/VGA: 1920×1080, 1280×1024, 1280×720 |
| OSD: | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Display Split: | When IP extension mode disabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25/36 (Extra screen only displays Channels 1-16) |
| Intelligence | |
| IVS: | (Coax Channels Only) (6 Ch) Tripwire & intrusion |
| Advanced Intelligent Functions: | (Coax Channels Only) Perimeter Protection: Tripwire & intrusion; Recognition of human and vehicle (6 Channels) Intelligent Motion Detect: Human/ Vehicle Recognition (16 channels) Face Detection/ Recognition, Heat Map and People Counting (6 channels) |
| Video | |
| Supported Camera Types: | IP, Coax |
| IP Camera Input: | 16+16 Channels, each channel up to 12MP |
| HDAVS input: | 16 Channel |
| Trigger Events: | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection: | Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis |
| Playback: | 1/4/9/16 |
| Search Mode: | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function: | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode: | USB Device/Network |
| Audio | |
| Compression: | AAC(only for the 1st channel), G.711A, G.711U, PCM |
| Two-way Talk: | 1 MIC IN, 1 MIC OUT, BNC(independent) |
| Recording | |
| Record Compression: | H.265+/H.265/H.264+/H.264 |
| Record Resolution: | 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 1080P, 720P, 960H, D1, CIF |
| Record Bit Rate: | 32Kbps ~ 8192Kbps Per Channel |
| Record Mode: | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval: | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Throughput: | 320Mbps |
| Storage | |
| Internal HDD: | 8 SATA Ports, up to 10 TB capacity for each disk |
| eSATA: | 1 eSATA Port (Please contact technical engineer to confirm the compatible device) |
| Network | |
| Ethernet: | 2 RJ-45 Port (1000M) |
| Protocol: | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Supports IC Realtime and ONVIF devices) |
| Compatibility: | ONVIF 2.4 Conformant. Works with ONVIF compliant IP cameras. |
| Max. User Access: | 128 Users |
| Web Viewer: | IE, Chrome, Firefox, Edge, Safari |
| Management Software: | Smart ICRSS, DSS |
| Smart Phone: | iPhone, iPad, Android |
| Interface | |
| RS232: | 1 Port for PC communication & Keyboard |
| RS485: | 1 Port for PTZ Control |
| USB: | 4 USB Ports (2USB 2.0 , 2 USB 3.0) |
| Audio I/O: | 16 Audio In, 1 Audio Out, BNC |
| Electrical | |
| Power Supply: | AC 100~240V, 50/60HZ |
| Power Consumption: | <35W (Without HDD) |
| Environmental | |
| Operating Conditions: | +14°F to +131°F (-10°C to +55°C), 0–90% RH |
| Storage Conditions: | -4°F ~ +158°F (-20°C ~ +70°C) , 0~ 90% RH |
| Construction | |
| Installation: | Desktop installation/Rack installation |
| Dimensions: | 2U, 17.3" x 17.9" x 3.7" (440mm x 455mm x 95mm) |
