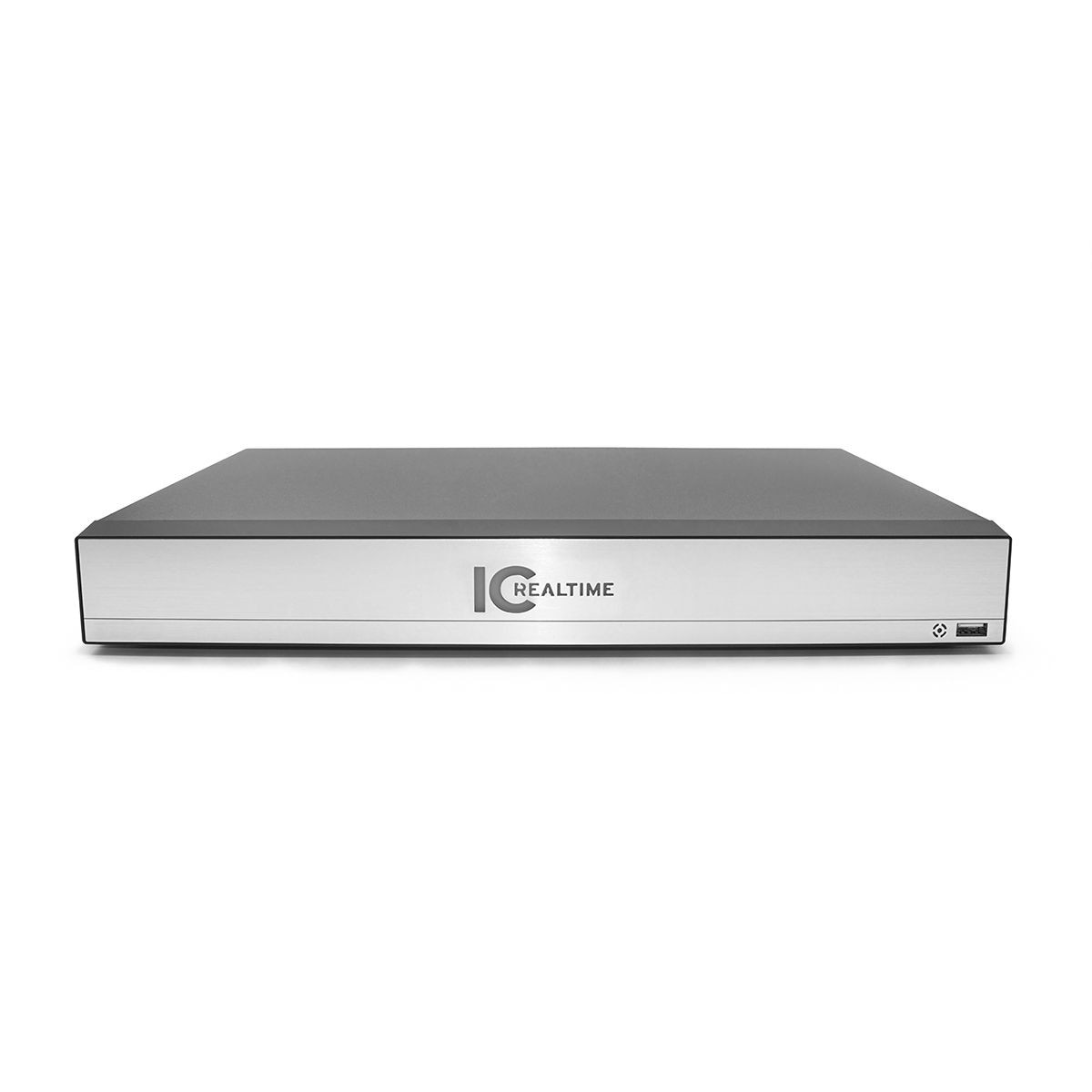

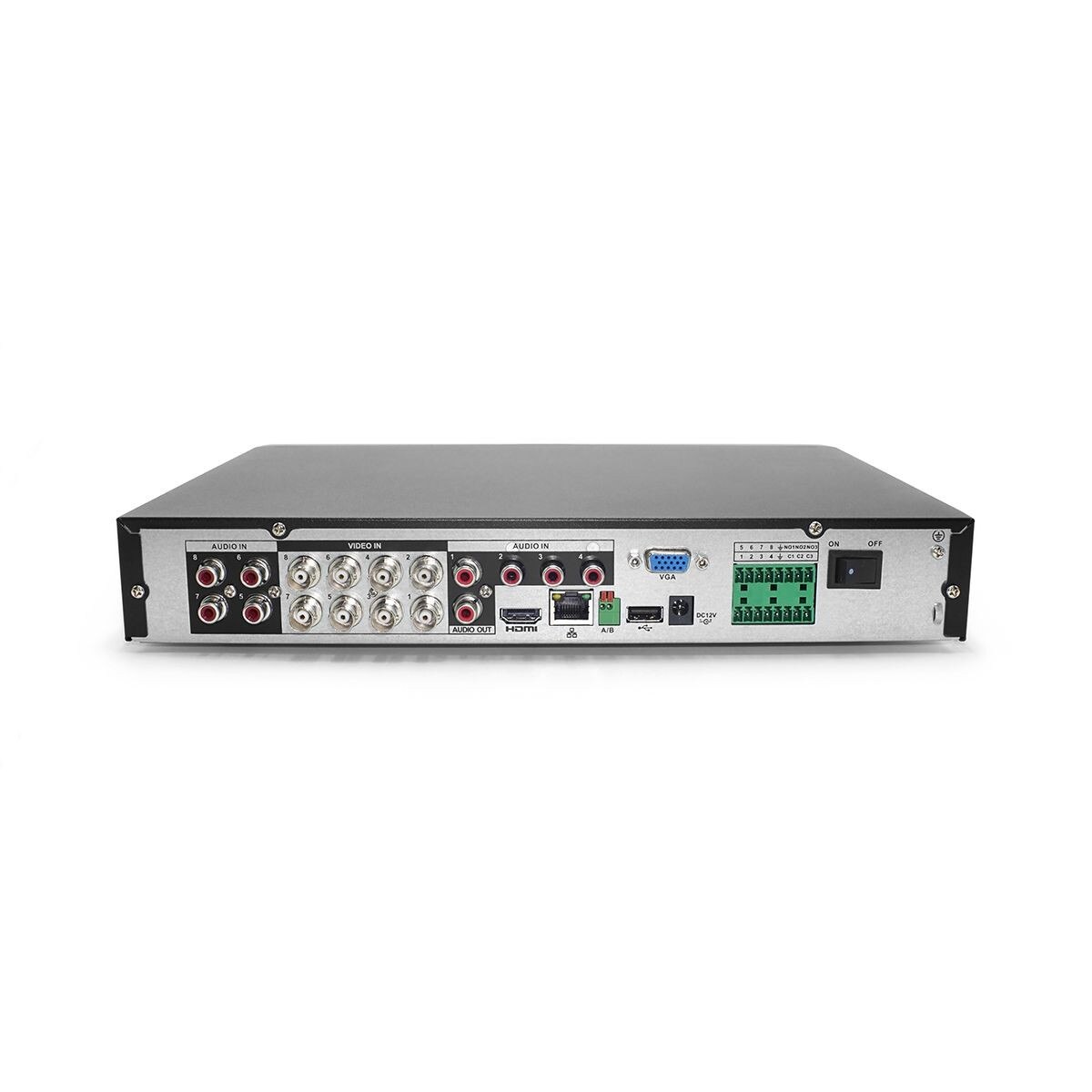

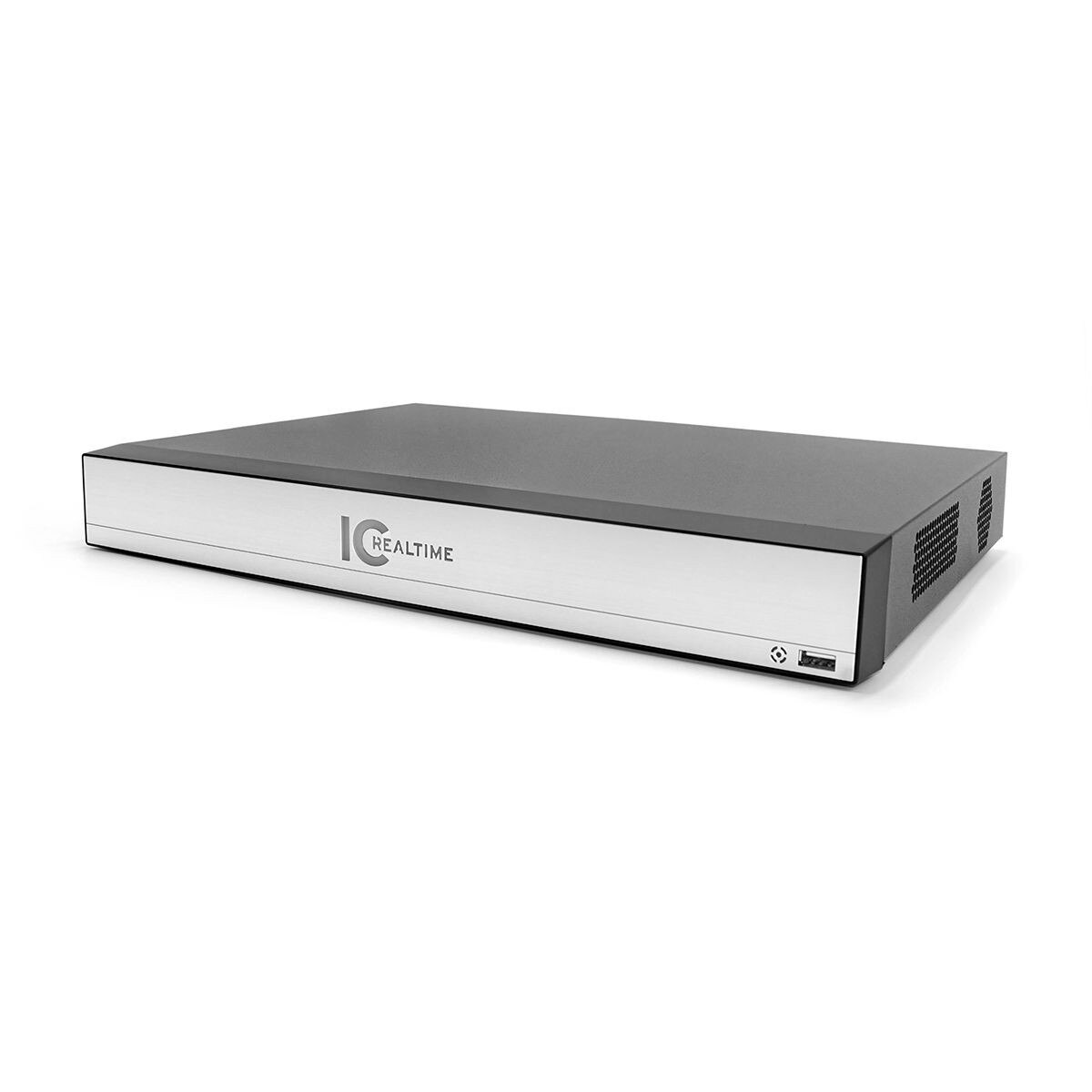

AVR-1408

(0) No Reviews yet
SKU: AVR-1408-WEB
ITEM WEIGHT: 10
8 channel 1U HD-AVS Pentabrid DVR - Supports Upto 4MP Resolution - H.265 Compression - HDMI - Pentaplex Operation
8+4 Ch | Up to 6MP | 48Mbps Total
1 HDD
1 RJ-45 Port (10/100M)
2 USB | Alarm 8/3 | 1 HDMI / 1 VGA
ONVIF 16.12 CGI Conformant
Mini 1U | Desktop or Rack Shelf

Details

Premier Pentabrid technology in a petite package - the AVR1400 series of recorders. Our latest ICRealtime AVR-1400 series recorders cover the best of all five analog signals: standard def analog, AVS, TVI, AHD. and IP. Ideal for installations where the environment is mixed between analog and IP Cameras, or for upgrading. existing systems. to the next level of resolution. The AVR-1400 series recorders are capable of recording. analog cameras at 960H resolution, HDAVS cameras up to 4MP, and IP cameras up to 8MP! Bidirectional Audio is supported on this recorder with a single Mic Input and Speaker output. The AVR-1400 series recorders are deceptively strong, packing all of this technology into a small, 1U ‘desktop’ style DVR chassis housing up to 2 HDDs internally. This series of recorders are available in 4, 8 and 16 channel offerings, enabling it to be deployed into diverse and varying sizes of installations ranging from small residential to light commercial. Since. the pentabrid series of. recorders supports both analog, HD over coax and IP cameras, it is a good fit for existing installations that want to expand into IP cameras without replacing analog cameras. Like all IC Realtime series recorders, this device utilizes H.264+ compression technology, enabling crisp image viewing with the least bandwidth consumption possible. This unit adopts an embedded system design, as well as a Linux Operating System, resulting in high levels of stability, performance, and most importantly: reliability. In addition, this unit is fully operational from remote locations (Search / Playback / Backup / Configuration). over standard Ethernet networks.

Specifications

System
Main Processor: Embedded Processor
Operating System: Embedded LINUX
Display
Display Interface: 1 HDMI ,1 VGA
Display Resolution: 1920 x 1080, 1280 x 1024, 1280 x 720
Multi-screen Display: When IP extension mode not enabled: 1/4/8/9, When IP extension mode enabled: 1/4/8/9/16
OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video
IP Camera Input: 8+4 Channel, each channel up to 6MP
HDAVS input: 8 Channel, BNC (HD-AVS Camera 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps, AHD Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps TVI Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps CVBS Camera PAL/NTSC)
Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis
Playback: 1 / 4 / 9
Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode: USB Device/Network
Bit Rate: 32Kbps ~ 6144Kbps Per Channel
Audio
Compression: AAC(only for the 1st channel), G.711A, G.711U, PCM
Two-way Talk: Reuse audio in/out, RCA
Recording
Record Compression: H.265+/H.265/H.264+/H.264
Record Resolution: 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate: Main stream:the 1st & 2nd channels 5M-N(1~10fps), other channels 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps) Sub stream: D1/CIF(1~15fps)
Record Mode: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval: 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Storage
Internal HDD: 1 SATA Port, up to 10TB capacity
eSATA: N/A
Network
Ethernet: 1 RJ-45 Port (100M)
Protocol: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search
Compatability: IC Realtime, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Max. User Access: 128 Users
Smart Phone: iPhone, iPad, Android
Interface
RS232: N/A
RS485: 1 Port, for PTZ Control
USB: 2 USB 2.0
Electrical
Power Supply: DC12V/2A
Power Consumption: <10W
Enviromental
Operating Conditions: -10C ~ +55C (+14F ~ +131F), 10%~ 90% RH
Storage Conditions: -20C ~ +70C (-4F ~ +158F) , 0~ 90% RH
Construction
Installation: Desktop installation
Dimensions: Mini 1U, 325mm x 255mm x 55mm (12.8" x 10" x 2.2")
