STREAM-3s-016
Specifications
| Video | |
| Compression: | Video: H.265, H.264 Audio: G.711A, G.711 ulaw, G726 |
| Resolution: | HDMI - 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768. VGA - 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 |

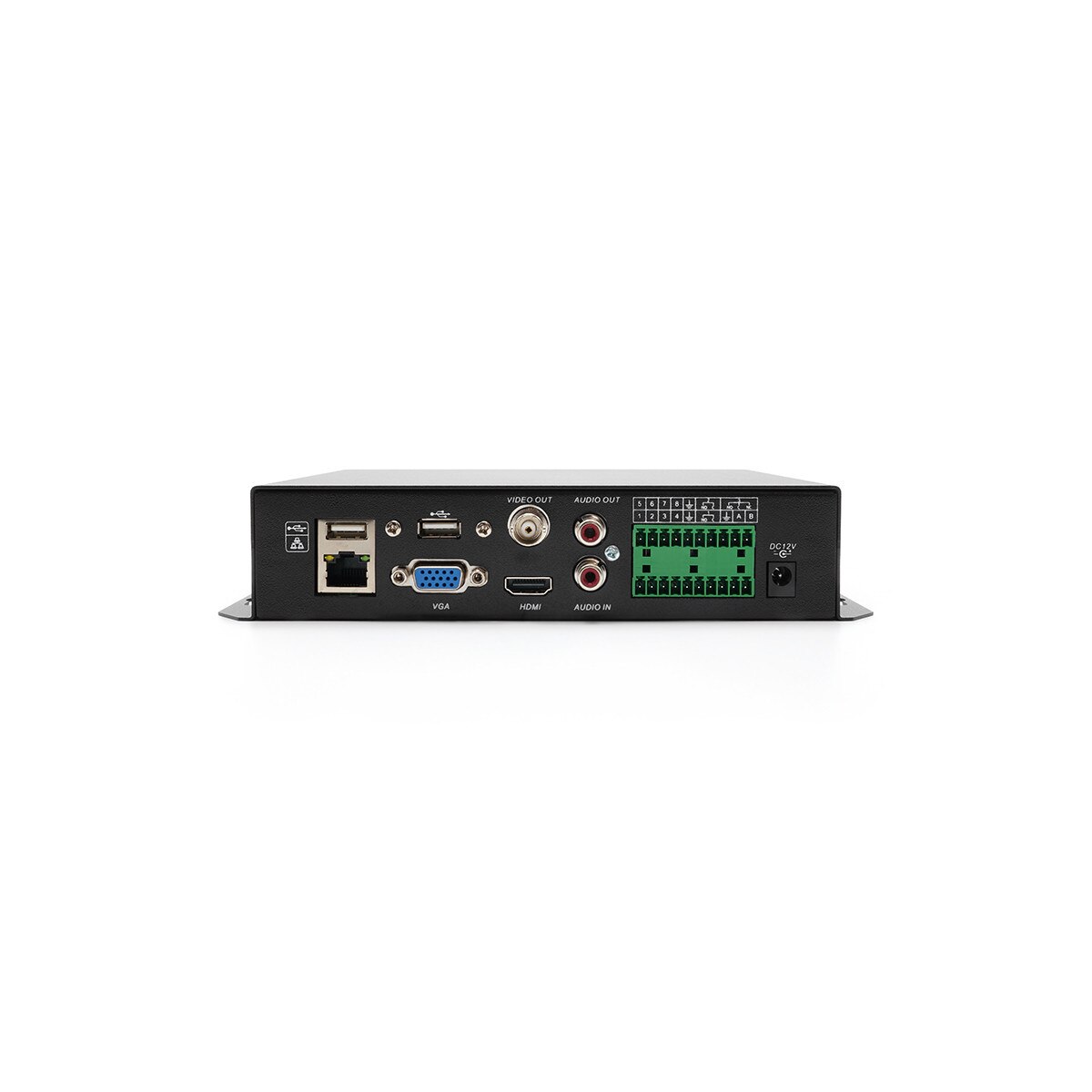

| Interface | |
| Video Interface: | 1 1.4 HDMI, 1 VGA, 1 CVBS (BNC, 1.0Vp-p, 75 ohms) |
| RS485: | 1 ch, Half-duplex |
| Alarm I/O: | Input: 8 ch, switchable. Output: 4 ch, Relay NO/NC |
| Electrical | |
| Power Consumption: | 6W |
| Environmental | |
| Operating Conditions: | -10° C - +55° C; 10% - 90% RH |
| Construction | |
| Casing: | Metal |
