8 Port Full Gigabit ePoE Switch 120W Max.

Layer-two ePoE switch
Supports long distance PoE transmission up to 800m with ePoE technology
Industrial wide temperature design
Supports IEEE802.3af, IEEE802.3at, Hi-PoE standards

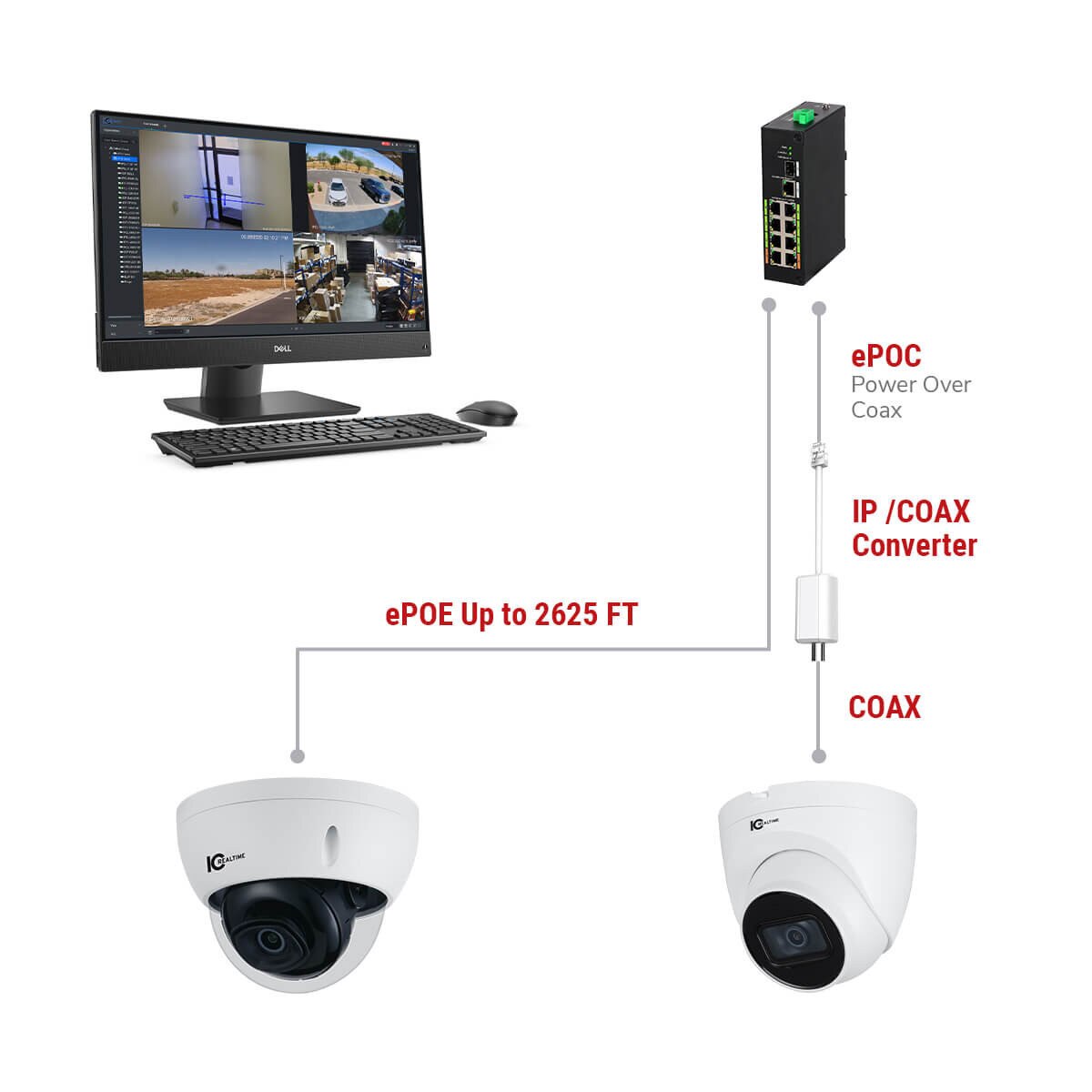

PWR-EPOE-8-V2 is IC Realtime’s latest version of our 8-port layer-two, unmanaged ePoE gigabit switch. The original version was designed to be a POE camera powerhouse in a compact format to support power-hungry devices out to up to 2624 feet (800M). As an unmanaged network switch, there is no need to spend time setting it up. Installers can “plug and play” PWR-EPOE-8-V2 immediately within your network. This 8 switch has built-in QoS services to ensure that the connected devices are working correctly. This eight-port gigabit switch is the ideal network & power source for ePoE rated cameras and supports both Hi-PoE and PoC power supply technology, simplifying camera system wiring. The new V2 version is even more powerful, with 90W HI-PoE is available on ports 1 and 5. And up to 30W on the other ports, for a total of 120W total output. LED port indicators display the status of transmissions and modes. The device is compact, industrial-grade, has rear-mounted rail mount hooks, and supports a wide operating temperature range. If you need an efficient, compact Hi-POE capable 8 port unmanaged switch, PWR-EPOE-8-V2 is your best bet.


Ethernet: Port 1-8: 8 × RJ-45 10/100 Mbps
Port 9: 1 × RJ-45 10/100/1000 Mbps
Port 10: 1 × SFP 1000 Mbps
Protocol: IEEE802.3, IEEE802.3u, IEEE802.3ab/z, IEEE802.3X, IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

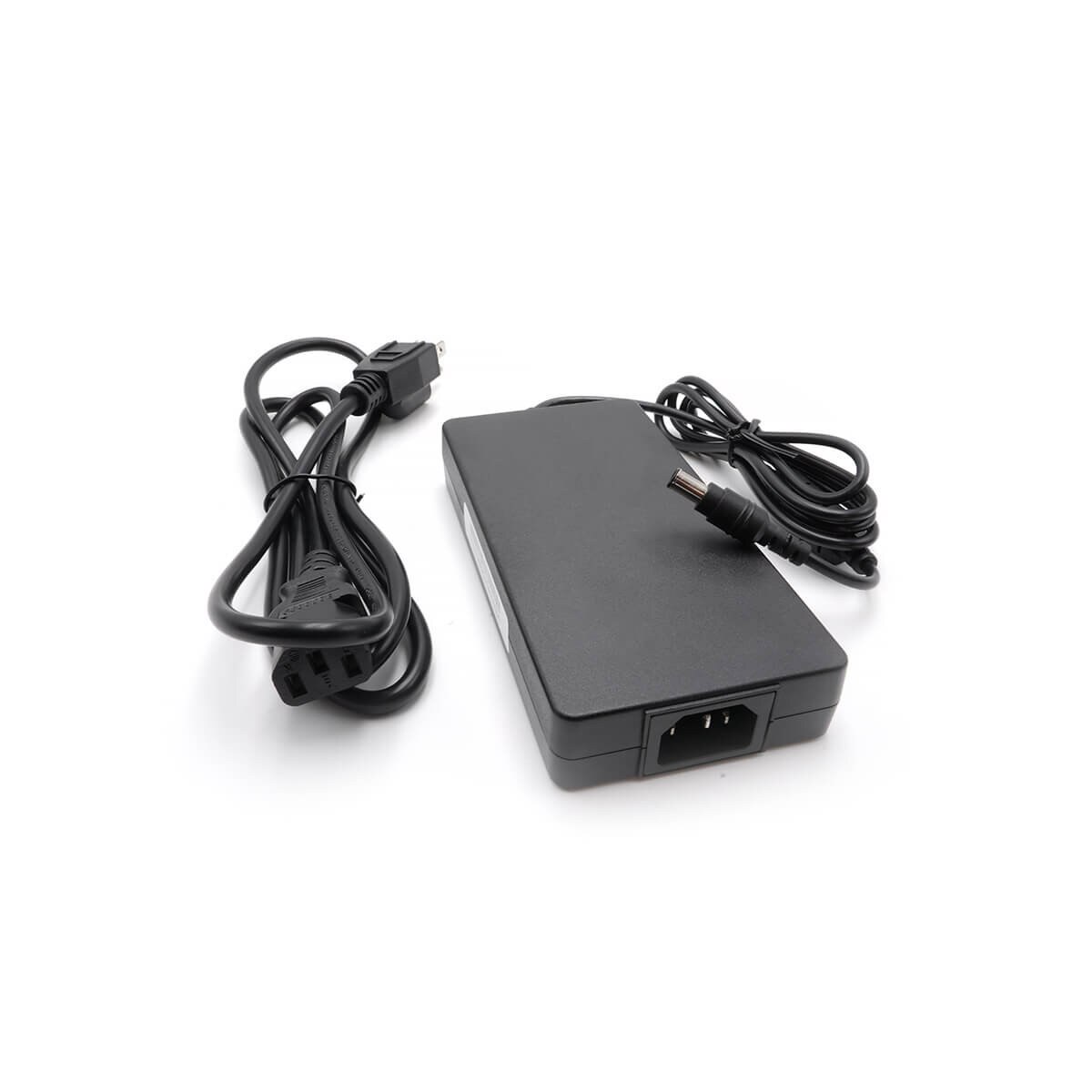

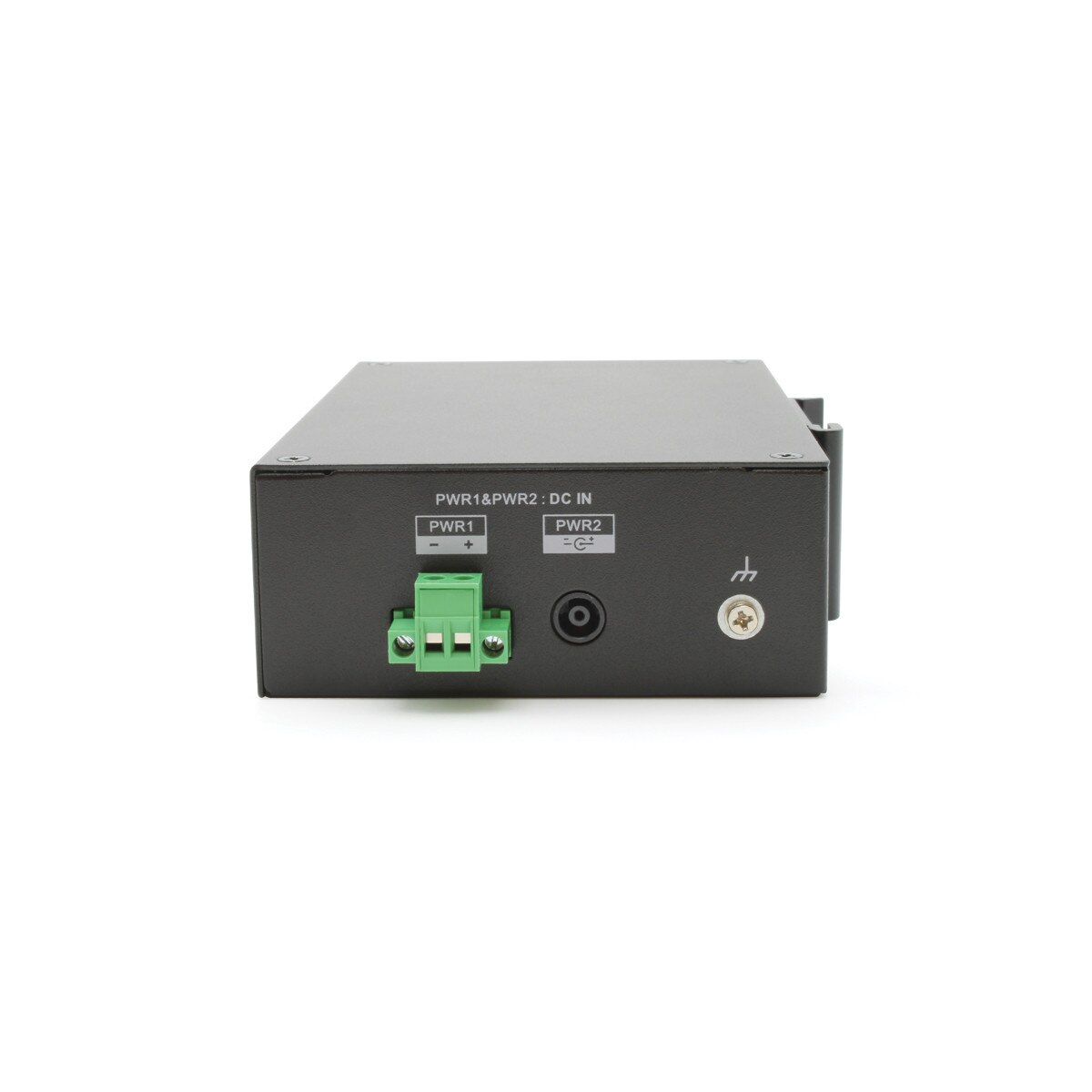

Power Supply: External power supply: 54 VDC, 2.22 A
Power Consumption: Port 1,5 ≤90 W
Port 2,3,4,6,7,8 ≤30 W
Total ≤120 W
Operating Conditions: ﹣30°C~65°C
Dimensions: 5.91" × 3.94" × 1.65
(150 mm × 100 mm × 42 mm)
