PWR-EPOE-24
Details

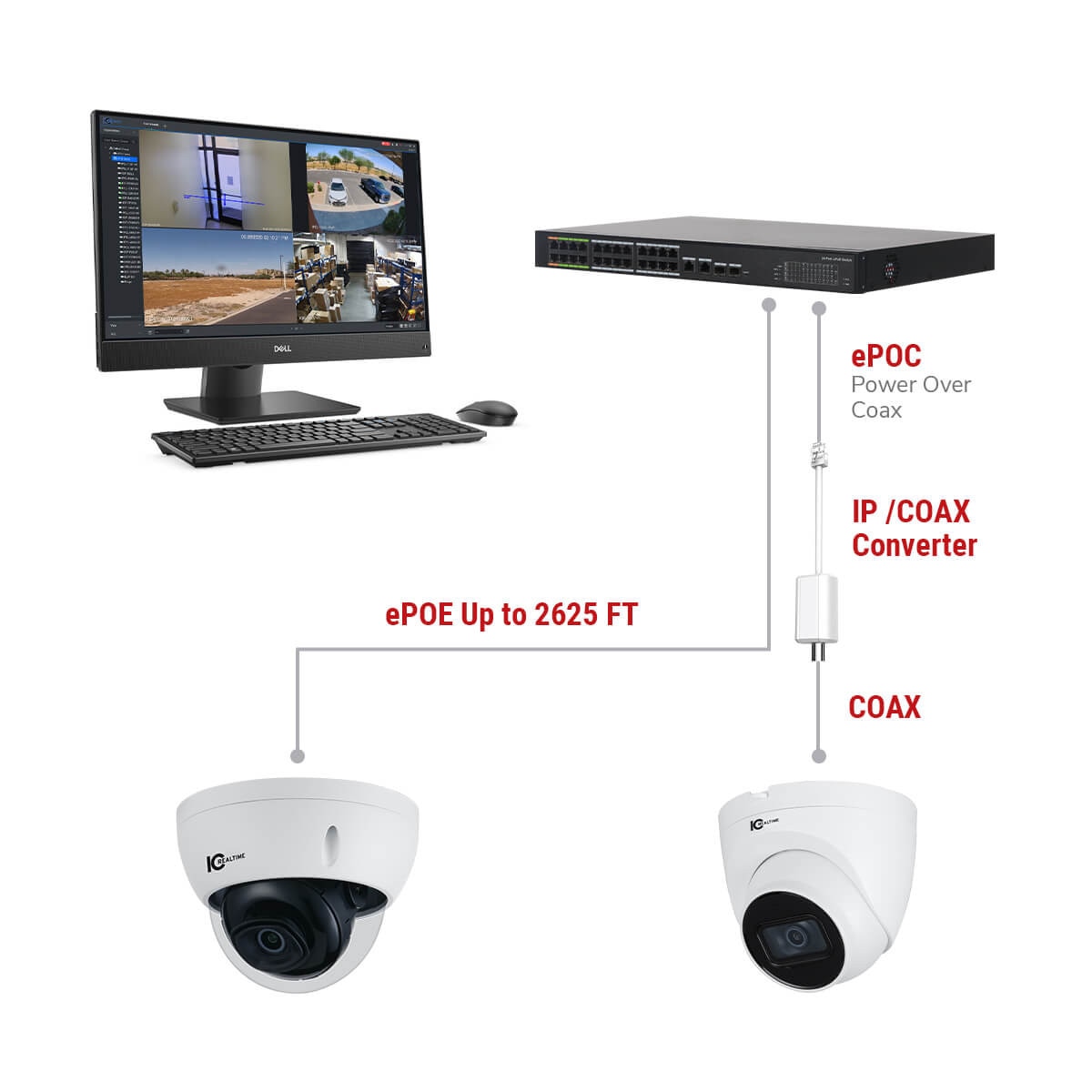

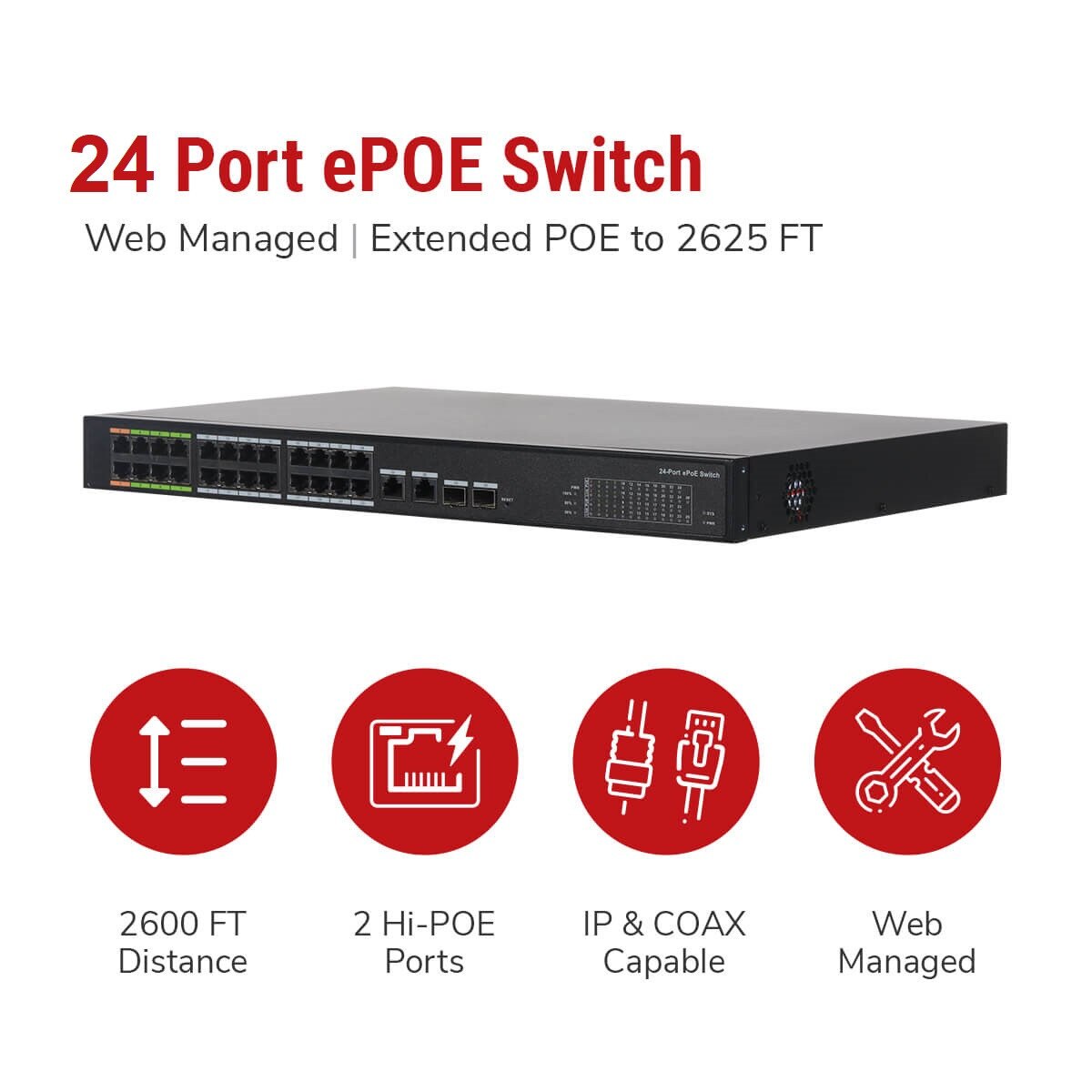

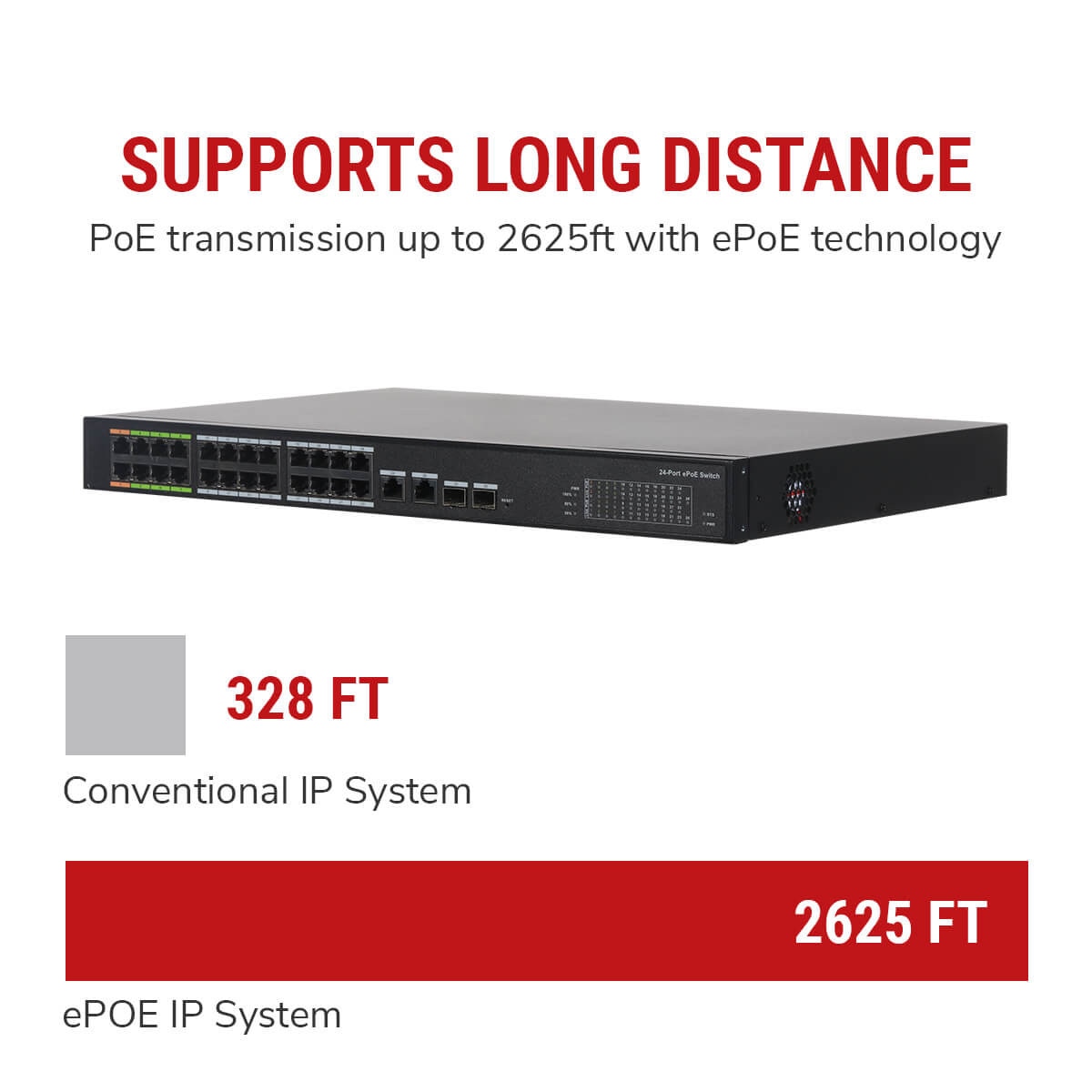

The PWR-EPOE-24 is a 24-port gigabit network switch capable of up to 2624 feet of data transmission. HI-PoE is also available on ports 1-2. This Layer-two web-managed network switch is backward compatible with standard PoE. Ports 1-8 support ePOE and POC technology and support both twisted-pair and coaxial cable transmission.
It is generously equipped with power over Ethernet budget of 360 watts and offers security, system, and PoE management features. Simplify construction and wiring with adaptive PoE and PoC power supply technologies. The device is built to withstand harsh environments and wide industrial temperature variants. The switch also comes with rack ears for rack mount installation.
It is generously equipped with power over Ethernet budget of 360 watts and offers security, system, and PoE management features. Simplify construction and wiring with adaptive PoE and PoC power supply technologies. The device is built to withstand harsh environments and wide industrial temperature variants. The switch also comes with rack ears for rack mount installation.
Specifications
| Network | |
| Ethernet: | 2*10/100/1000 Base-T 2*1000 Base-X (Combo ports) 24*10/100 Base-T (PoE power supply) |
| Protocol: | Conforms IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Electrical | |
| Power Supply: | AC100-240V, 50/60Hz |
| Environmental | |
| Operating Conditions: | -10°C~55°C |
| Construction | |
| Dimensions: | 440mm x300mm x44mm |
