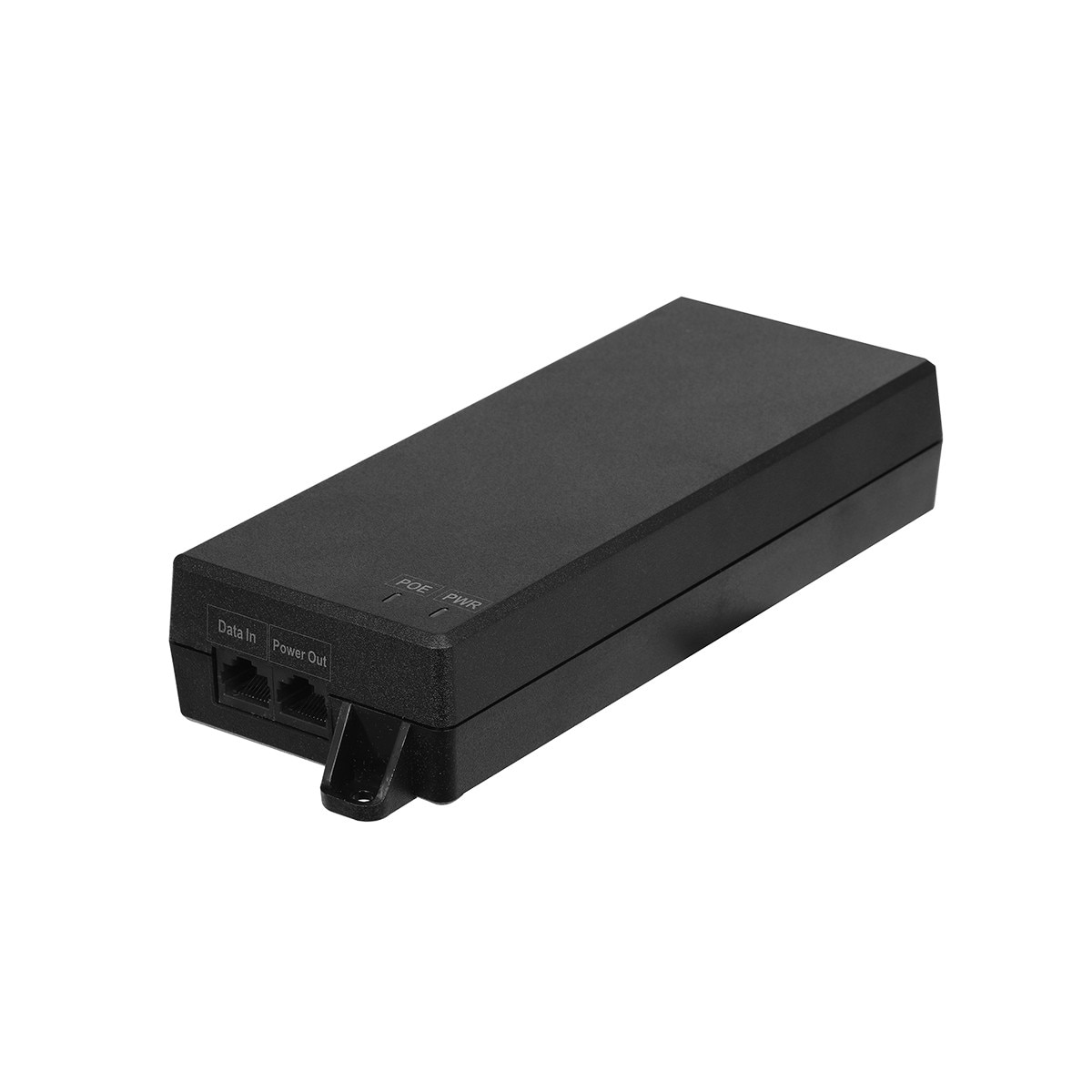

POE-INJECTOR-75W Single Port Hi-POE Injector for PTZs
Supports high power consumption Hi-PoE PTZ cameras
Delivers network and power signal over one cable
Up to 75W of power over ethernet
Supports DoE Level VI
Level 4 Lighting Protection


Power Over Ethernet is a godsend for security camera professionals, allowing single-wire network connection & camera operations power with one RJ45 cable. But unlike standard IP cameras with low power consumption, larger power-zoom and Hi-PoE PTZ cameras, like IC Realtime’s state-of-the-art IPEL-P8040X series, have motors, fans & heaters that require higher 802.3at Hi-PoE. At these power levels, even the best network cables can show diminished power trying to push 48-56V of POE DC power to a Hi-POE camera at the end of a long cable run. That’s where IC Realtime’s new POE-INJECTOR-75W comes to the rescue.


POE-INJECTOR-75W is a mid-span POE injector so it can deliver power closer to the actual camera location to minimize voltage loss due to long cable runs or line defects. While not weatherproof itself, it is capable of operating in temperatures from -31F up to +149F so it can be used inside a structure, in a NEMA box installation, or a remote PTZ junction box like our MNT-BOX 2, as long as there is AC access this little POE powerhouse will help eliminate POE power issues for good.


Unsteady power or low camera-end POE voltages can make POE cameras misbehave in mysterious & seemingly untraceable ways or even drop out at night when power demand from IR arrays spikes or on cold nights when internal heaters kick in. This is even more vexing when an installer’s on-site camera testing or even on-bench testing shows no issue with the unit - but then unreliability shows up again once re-installed. Dropping in a POE-INJECTOR-75W during installation or if problems pop up will ensure POE-caused glitches end once and for all.

Camera systems are meant to run reliably 24/7 and under any weather conditions. IC Realtiume’s new POE-INJECTOR-75W is an investment in that capability and the kind of high-power POE gear that ensures that dependability continues for a long time.


Ethernet: 1 Data In, 1 Out (RJ-45)
1*10/100/1000 Base-T
1*10/100/1000 Base-T( PoE power supply)
Compatibility: 802.3af, 802.3at, Hi-PoE
Casing: Plastic
Dimensions: 8.2” x 2.9” x 1.5”
