ORB OUTDOOR 2
Details

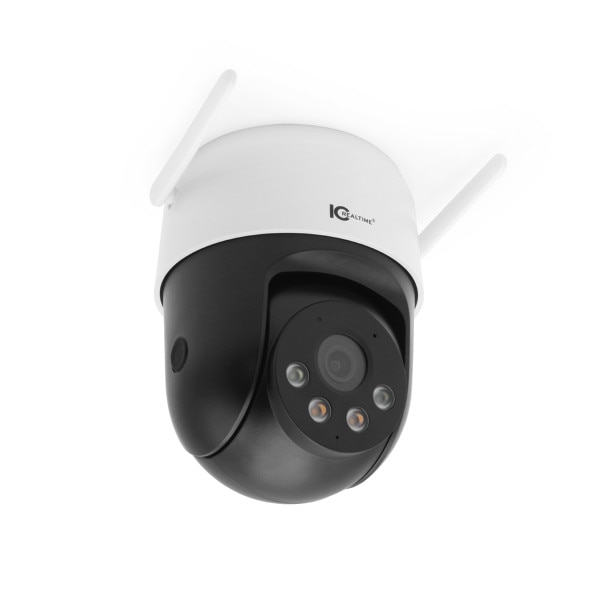

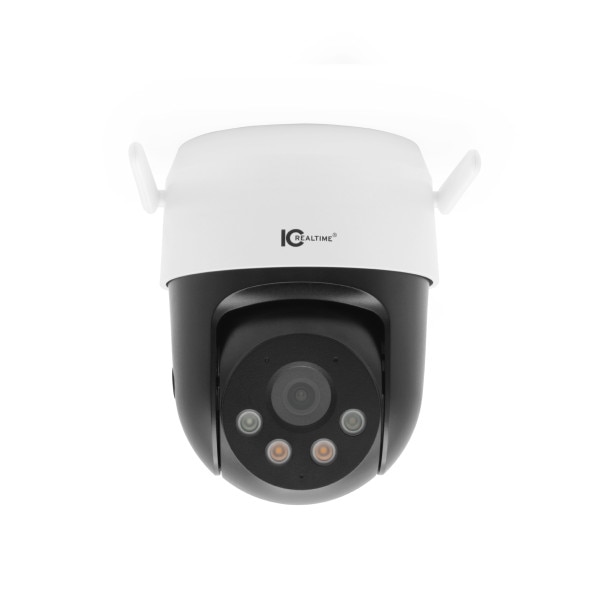

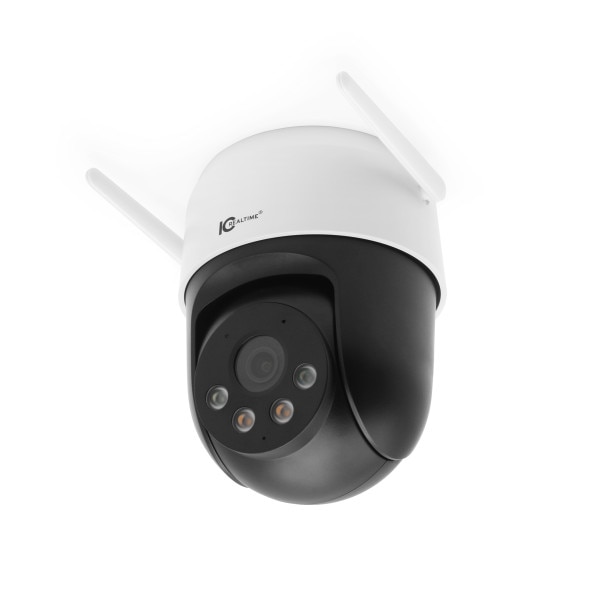

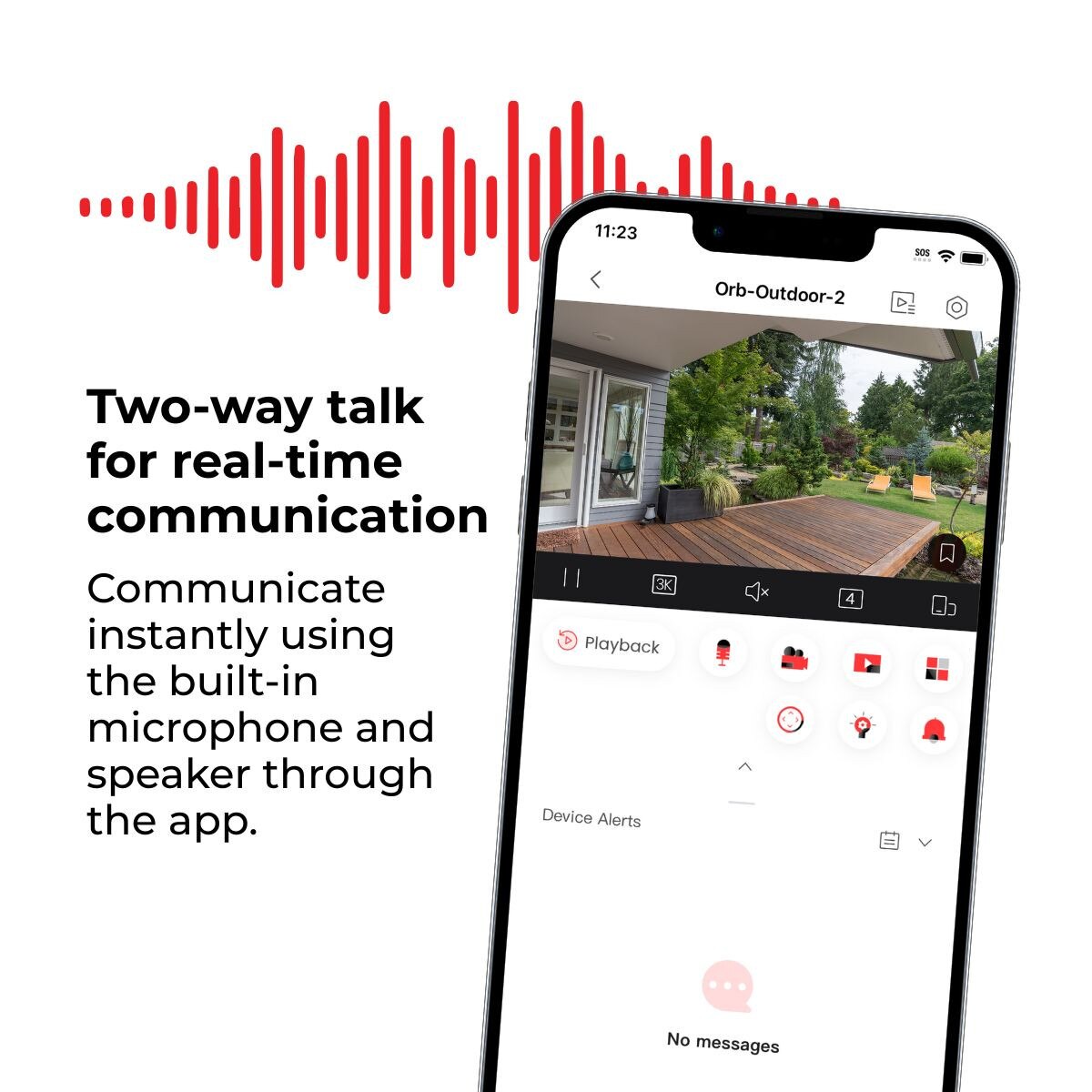

The Orb Outdoor 2 from IC Realtime’s IC Home lineup is a powerful 5MP Wi-Fi pan & tilt camera built for outdoor security. It features Smart Dual Illumination and Active Deterrence with flashing red and blue LEDs. Stay connected through the IC View Pro app on iOS or Android, where you can talk through the camera, view live footage, or watch playback- anytime, anywhere.
Specifications
| Camera | |
| Image Sensor: | 1/2.7" CMOS |

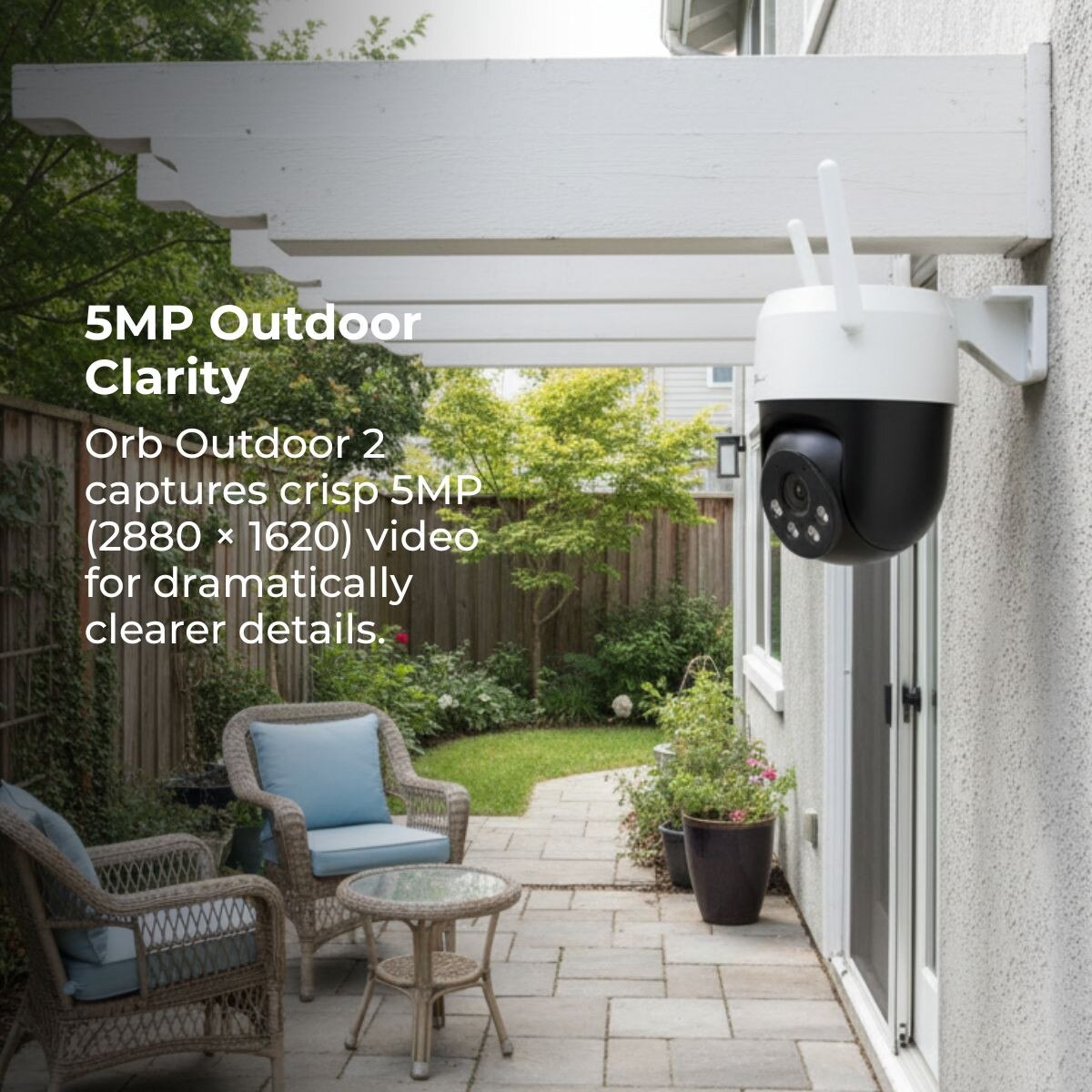

| Effective Pixels: | 5MP (2880 × 1620) |
| Minimum Illumination: | 0.007 lux@F1.6 (Color, 30 IRE) 0.0007 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance: | 98.43 ft (30 m); IR & White LED |
| Illumination LEDs: | 2 IR, 2 White; Smart Dual Illumination |
| Camera Illumination Type: | IR and White Light |
| Lens | |
| Lens Type: | Fixed |
| Focal Length: | 4.0 mm |
| Max. Aperture: | F1.6 |
| Angle of View: | H: 78°; V: 42°; D: 92° |
| PTZ | |
| Pan/Tilt Range: | Pan: 0° to 355°; Tilt: –5° to 80° |
| Intelligence | |

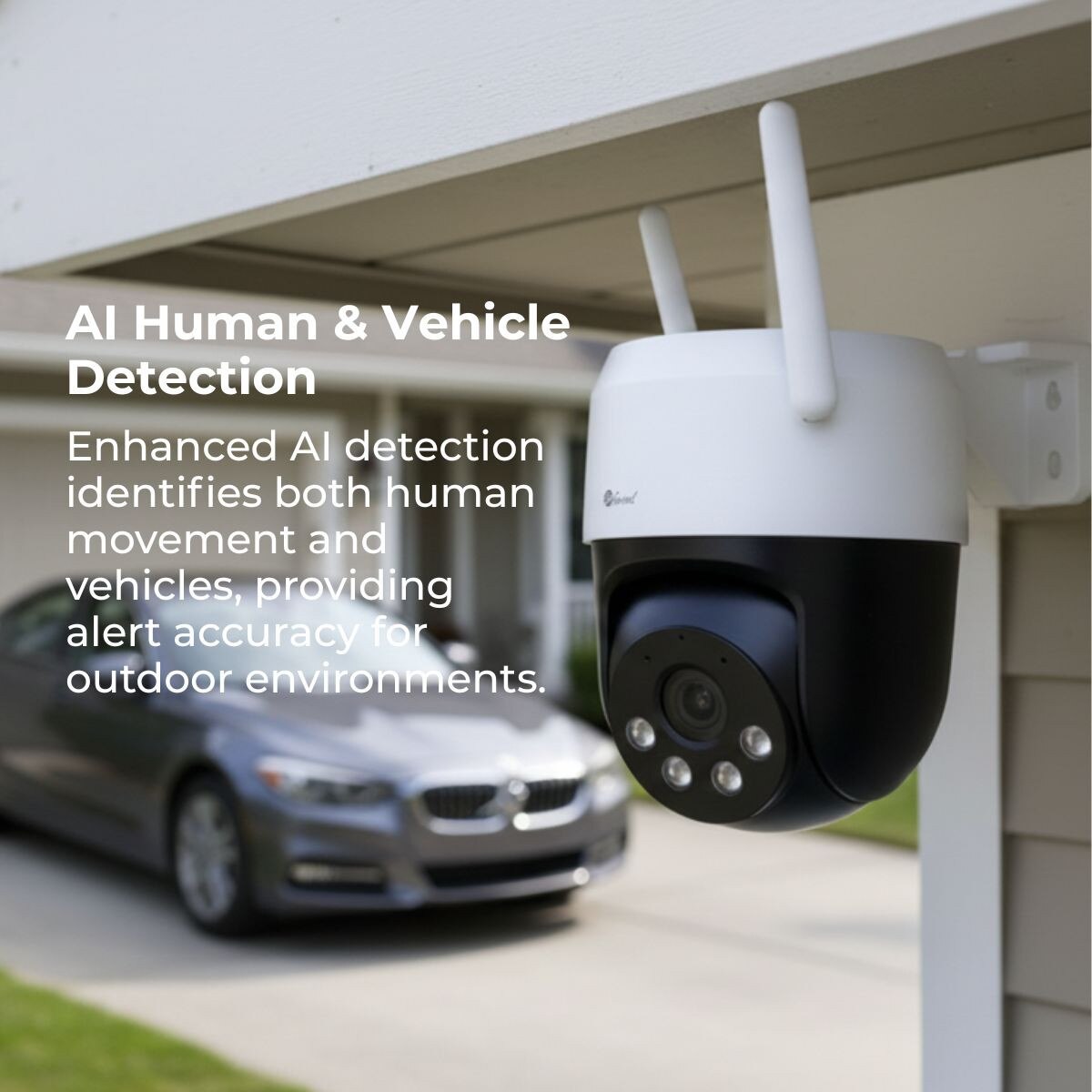

| IVS: | Human and Vehicle Detection; Audible Alert and Visual Red+ Blue Flashing LEDs |
| Video | |
| Compression: | H.264: 32 kbps–6144 kbps; H.265: 32 kbps–6144 kbps; H.264H; H.264B; MJPEG (sub stream) |
| Resolution: | 2880 × 1620 (5MP), 640 × 360 |
| Frame Rate: | Main: 2880 × 1620@ (1-25/30 fps) Sub: 640 × 360@(1-25/30 fps) |
| Day/Night: | Auto(ICR)/Color/B/W |
| Backlight Compensation: | BLC / HLC / WDR |
| Flip: | 0°/180° |
| WDR: | DWDR |
| Audio | |
| Compression: | G.711a; G.711Mu; PCM |
| Network | |
| Ethernet: | RJ-45 (10/100 Base-T) |
| Wifi: | IEEE 802.11a/b/g/n/ac/ax 2.4 G & 5 G, EIRP≤20 dBm@2400–2483.5 MHz (CE), EIRP≤23 dBm@5150–5250 MHz (CE), EIRP≤20 dBm@5250–5350 MHz (CE), EIRP≤20 dBm@5470–5725 MHz (CE), EIRP≤14 dBm@5725–5875 MHz (CE) |
| Interoperability: | ONVIF (Profile S & Profile G & Profile T); CGI |
| Edge Storage: | IC Realtime NVR’s and HDVR’s |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | IC Now |
| Smart Phone: | IC View Pro App (iOS, Android) |
| Interface | |
| Audio I/O: | Built-in Mic & Speakers |

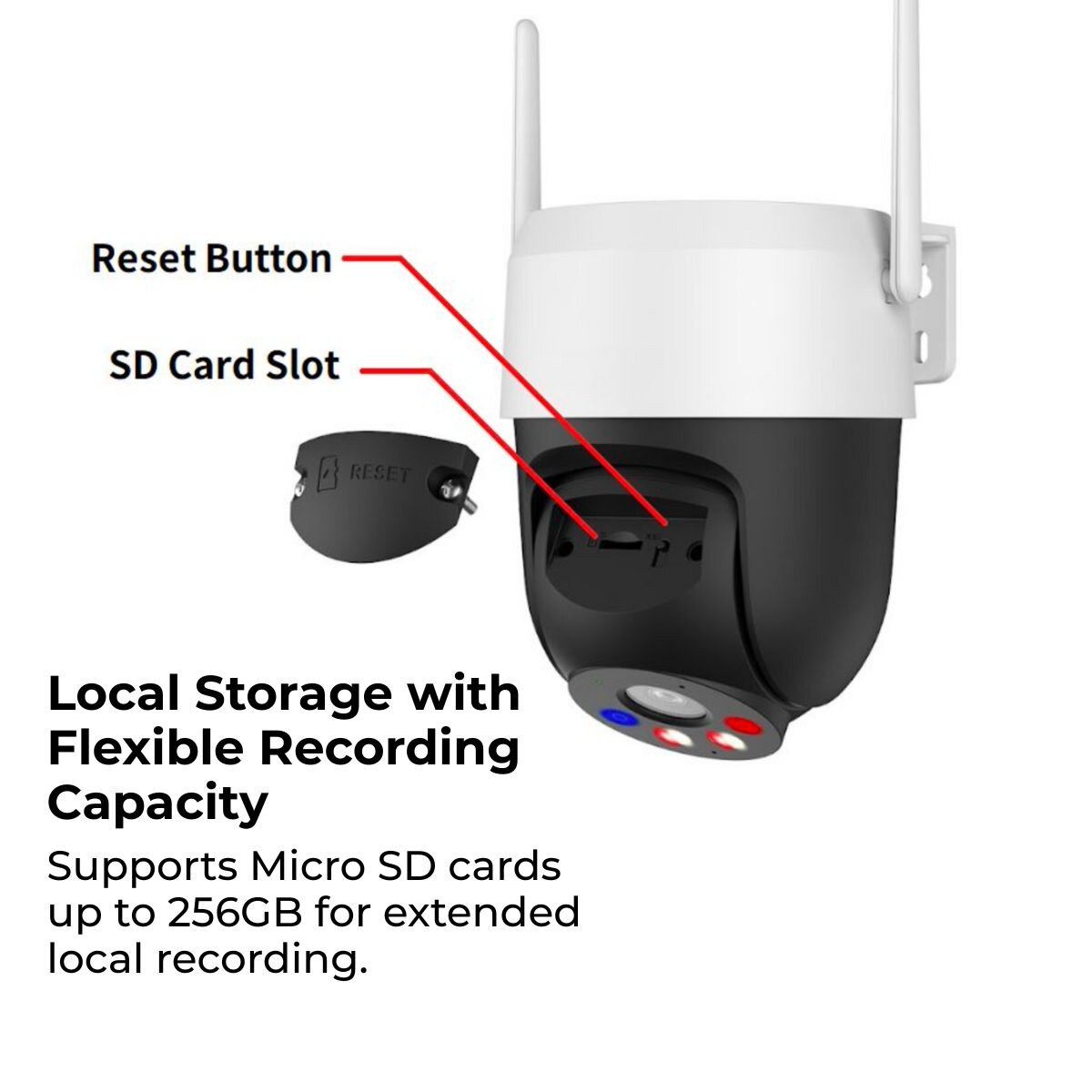

| Memory Slot: | Supports up to 256GB Micro SD Card |
| Electrical | |
| Power Supply: | 12 VDC (±30%); Included |
| Power Consumption: | 2 W, Maximum: 14 W |
| Environmental | |
| Operating Conditions: | –22 °F to +122 °F (–30 °C to +55 °C) |
| Operating Humidity: | Less than 95% RH, non-condensing |
| Ingress Protection: | IP66 |
| Construction | |
| Casing: | Plastic |

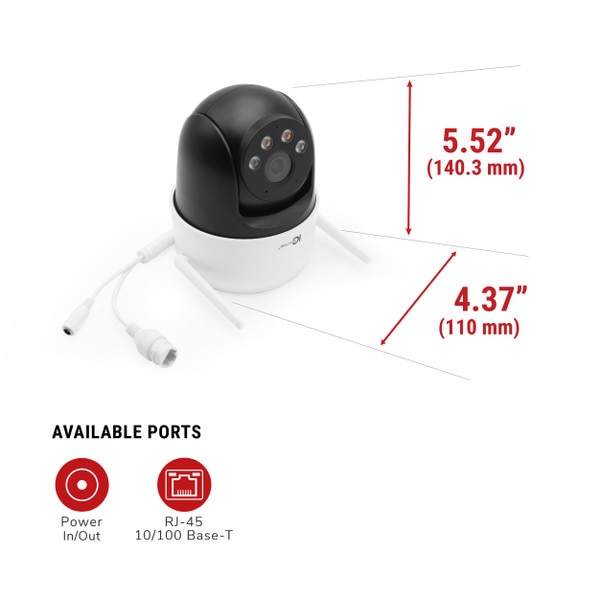

| Dimensions: | 4.94" × 4.37" × 5.52" (125.4 mm × 110 mm × 140.3 mm) |
