Orb 2 — 5MP Wi-Fi 6 Indoor Pan/Tilt Camera
Compact indoor pan/tilt security with sharper 5MP video, smarter human detection, enhanced night vision, two-way audio, and a true mechanical privacy mode, fully managed in IC View+.
Overview
ORB 2 is the next generation of IC Realtime’s compact indoor pan/tilt camera, now redesigned with sharper 5MP video, smoother motion control, smarter human detection, and tighter night-vision performance. It delivers full-room visibility with pan and tilt function, along with built-in two-way audio and a true privacy mode that physically hides the lens when not in use.
Powered by Wi-Fi 6 and integrated into IC View+, ORB 2 works seamlessly alongside other IC Realtime cameras and NVRs, offering dealers a simple entry-level surveillance option that fits into the larger ecosystem. Perfect for monitoring living rooms, offices, nurseries, retail counters, pets, and after-hours activity.
Key Benefits
- Full 360° Room Awareness — Pan/tilt control lets users look around the room remotely for activity checks, pet monitoring, and alarm verification.
- Sharper 5MP Video Quality — Upgraded resolution delivers clearer details than typical 1080p indoor cameras for identifying faces, actions, and objects.
- Smarter Human Detection — Reduces false alerts from pets, shadows, or general motion while sending more relevant notifications.
- Enhanced Night Vision — Improved IR performance provides cleaner low-light indoor footage for nighttime monitoring.

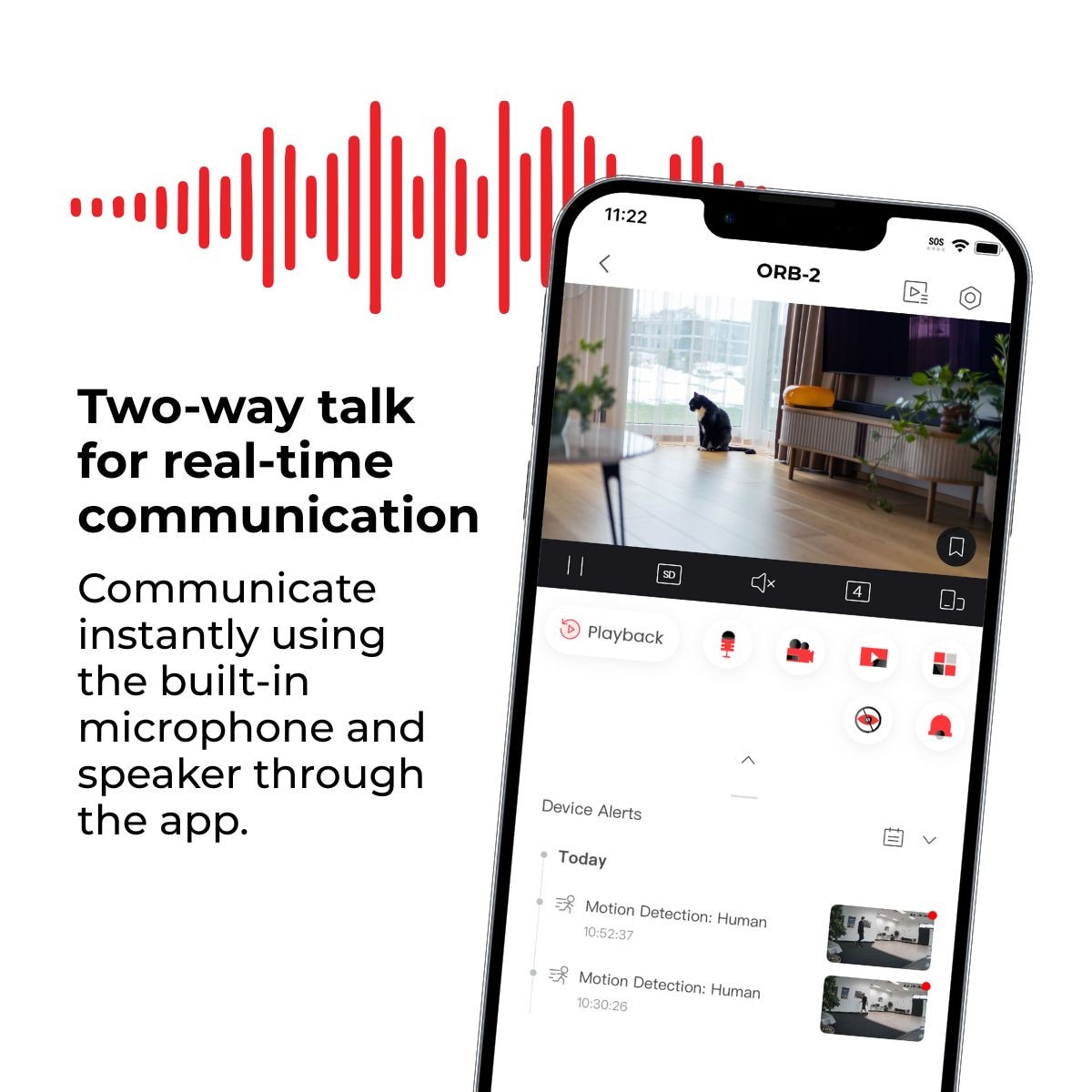

- Built-In Two-Way Audio — Talk to family, employees, or pets directly through the camera.
- App-Activated Siren — Trigger an audible deterrent from the IC View+ app to stop unwanted activity or alert occupants in real time.

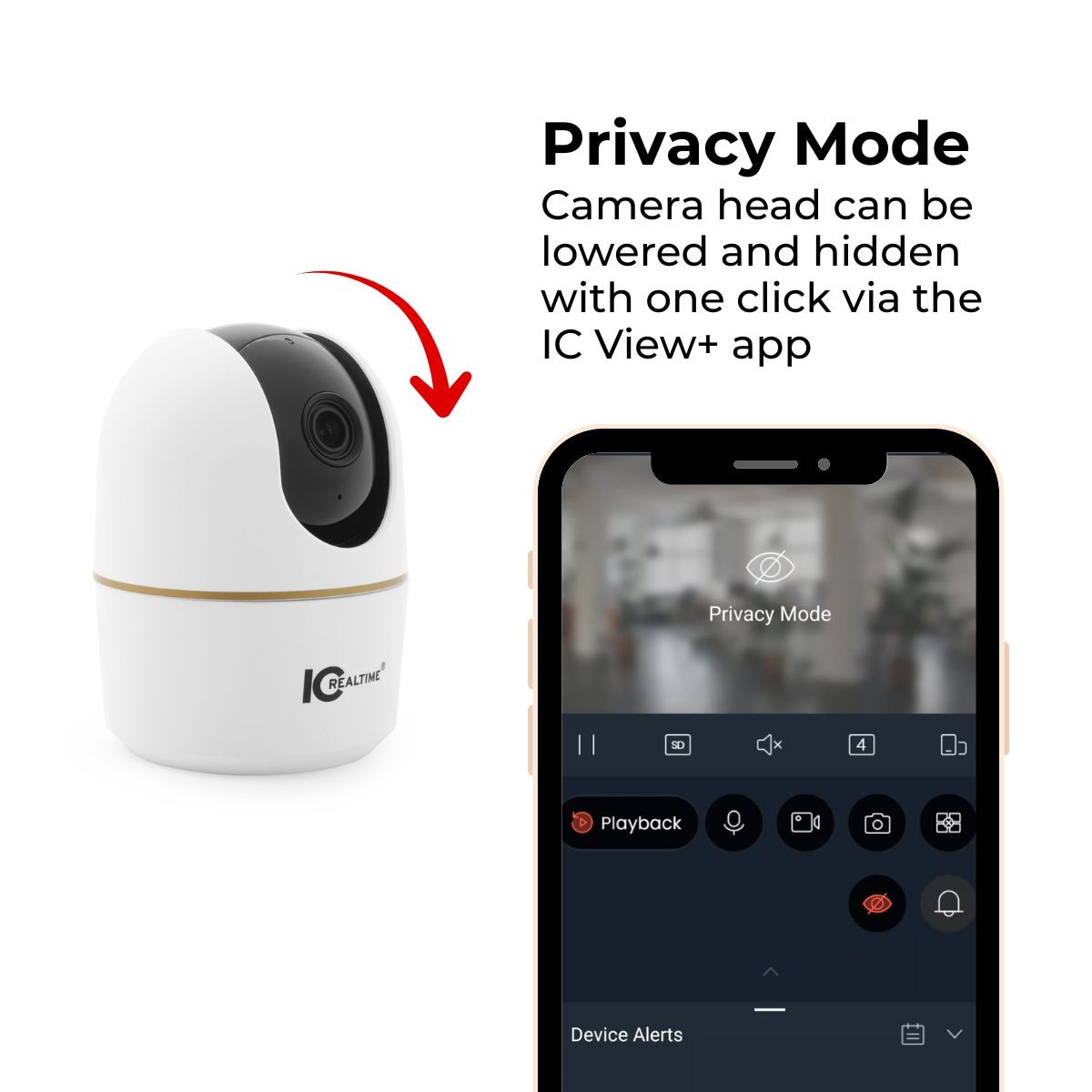

- Privacy Mode — Mechanical privacy mode physically hides the lens when enabled.
- Easy Wi-Fi Setup — Wi-Fi 6 support ensures stable streaming and fewer dropouts.
- IC View+ Integration — Manage ORB 2 in the same app as IC Realtime NVRs and outdoor cameras.
Quick Specs
Applications
- Residential living rooms, nurseries, and hallways
- Small business interiors and reception areas
- Retail counters and employee monitoring
- Pet monitoring while away
- Temporary or mobile deployments
FAQ
How is ORB 2 different from typical indoor Wi-Fi cameras?
ORB 2 offers pan/tilt coverage, 5MP clarity, human detection, and a physical privacy mode—features many basic indoor cameras don’t provide.
Does ORB 2 work with IC View+?
Yes. ORB 2 is fully integrated with IC View+, letting users control it alongside IC Realtime NVRs and outdoor cameras.
Does this camera require a subscription?
No. ORB 2 stores video locally via microSD or on a compatible IC Realtime recorder—no subscription required.

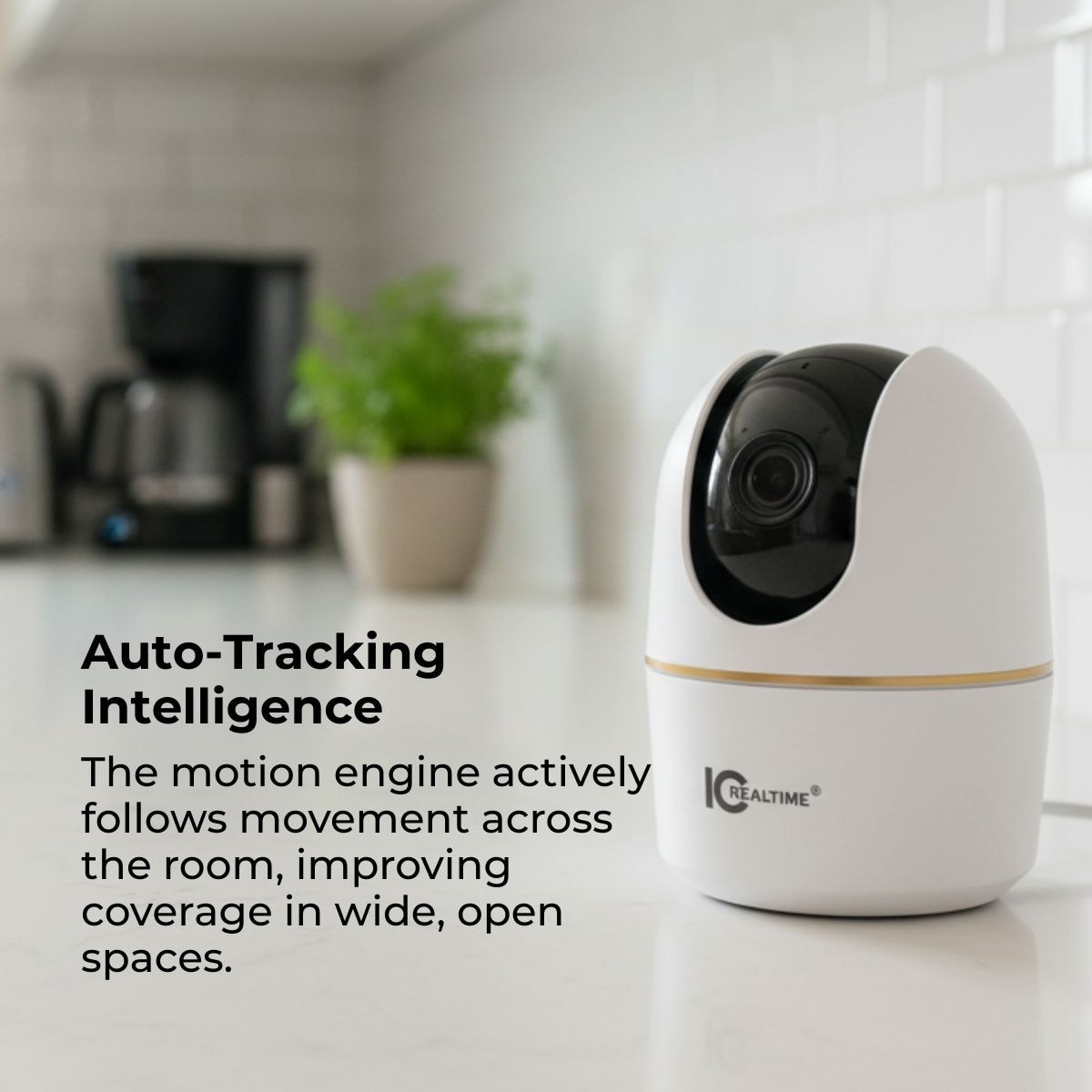

Can ORB 2 track movement?
Yes. It can follow movement automatically using its pan/tilt capability and smart detection features.
Is there a way to disable the camera for privacy?
Yes. ORB 2 includes a mechanical privacy mode that hides the lens when enabled.
Can it be mounted upside down on ceilings?
Yes. ORB 2 supports upside-down installation for ceiling mounting.
Does it record audio?
Yes. ORB 2 supports full two-way audio with a built-in mic and speaker.
Where should this camera be used?
Indoors only — ideal for homes, offices, retail, and remote monitoring.
Specifications
| Camera | |
| Image Sensor: | 1/3" CMOS |
| Effective Pixels: | 5MP (2880 × 1620) |
| Illumination Distance: | 32.8 ft (10 m) |
| Illumination On/Off Control: | Auto |
| Illumination LEDs: | 1 |
| Camera Illumination Type: | IR |
| Lens | |
| Max. Aperture: | F2.0 |
| Angle of View: | H: 74°; V: 41°; D: 88° |
| PTZ | |
| Pan/Tilt Range: | Pan: 0° to 355°; Tilt: –5° to 80° |
| Intelligence | |
| IVS: | Human Detection |

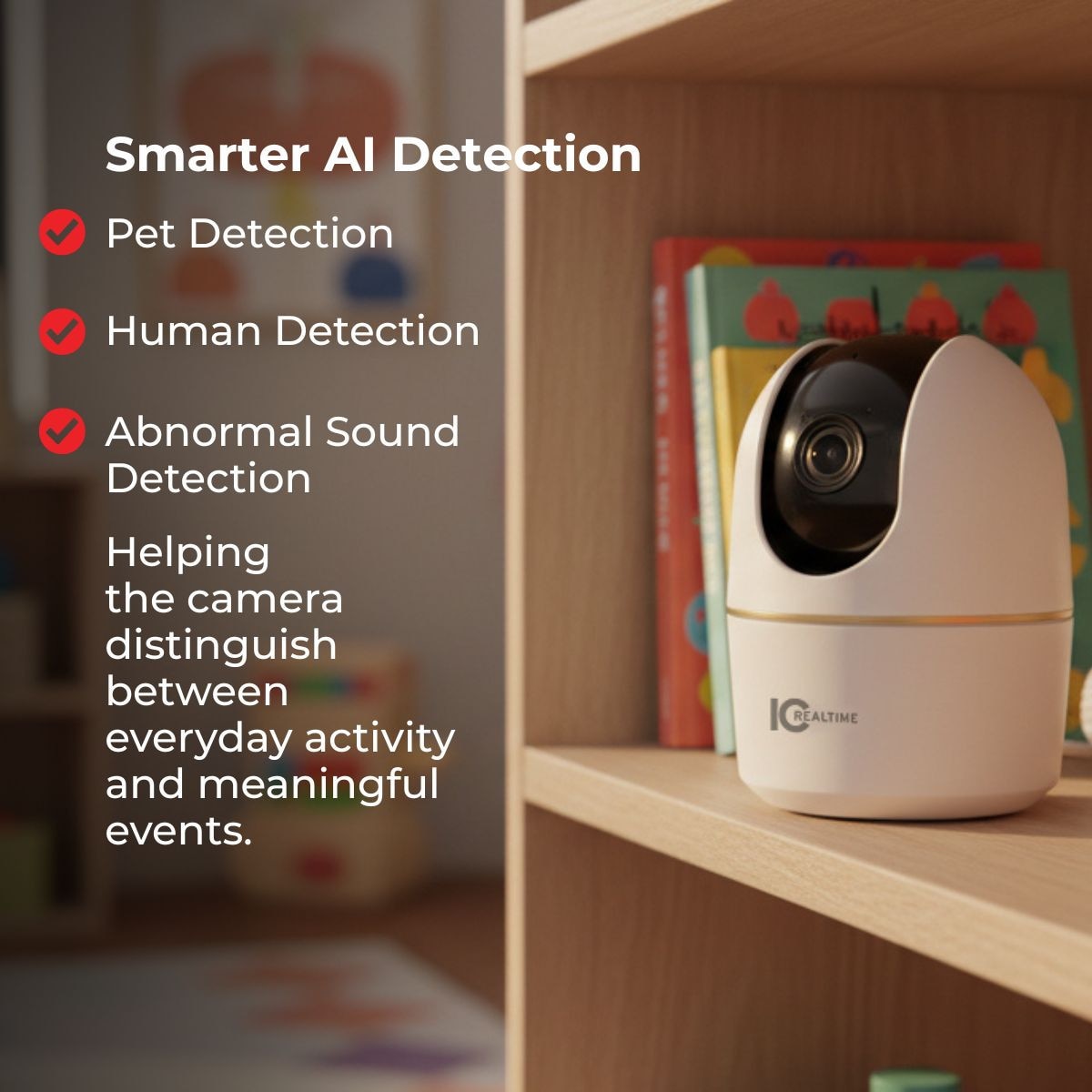

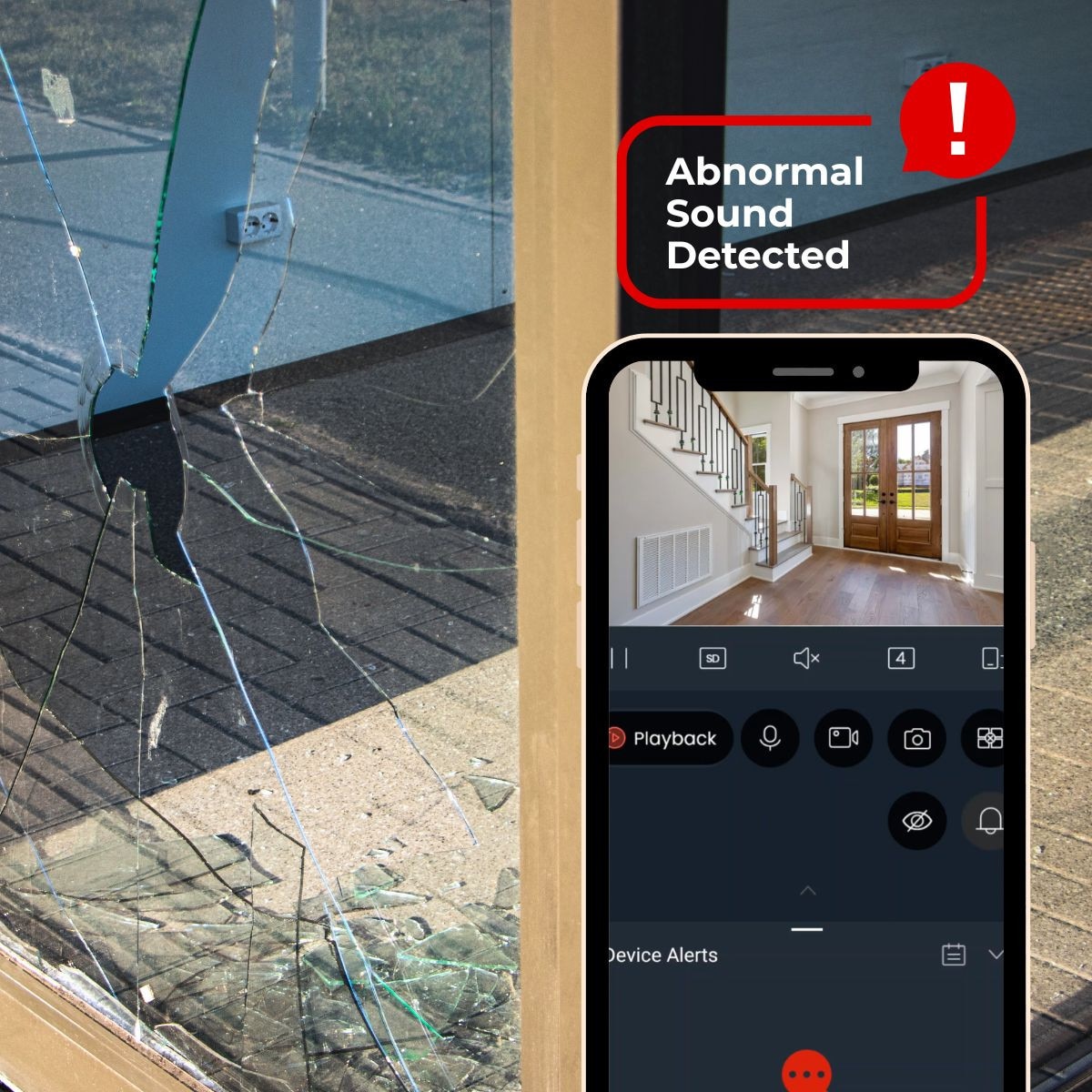

| Advanced Intelligent Functions: | Pet Detection, Abnormal Sound Detection |
| Video | |
| Compression: | H.265 (80 kbps–4096 kbps) |
| Resolution: | 5MP (2880 × 1620); nHD (640 × 360) |
| Frame Rate: | Main Stream: 2880 × 1620@ (1-25/30 fps) Sub Stream: 640 × 360@(1-25/30 fps) |
| Day/Night: | Auto(ICR)/Color/B/W |
| Flip: | 0°/180° |
| WDR: | DWDR |
| Audio | |
| Compression: | G.711a |
| Network | |

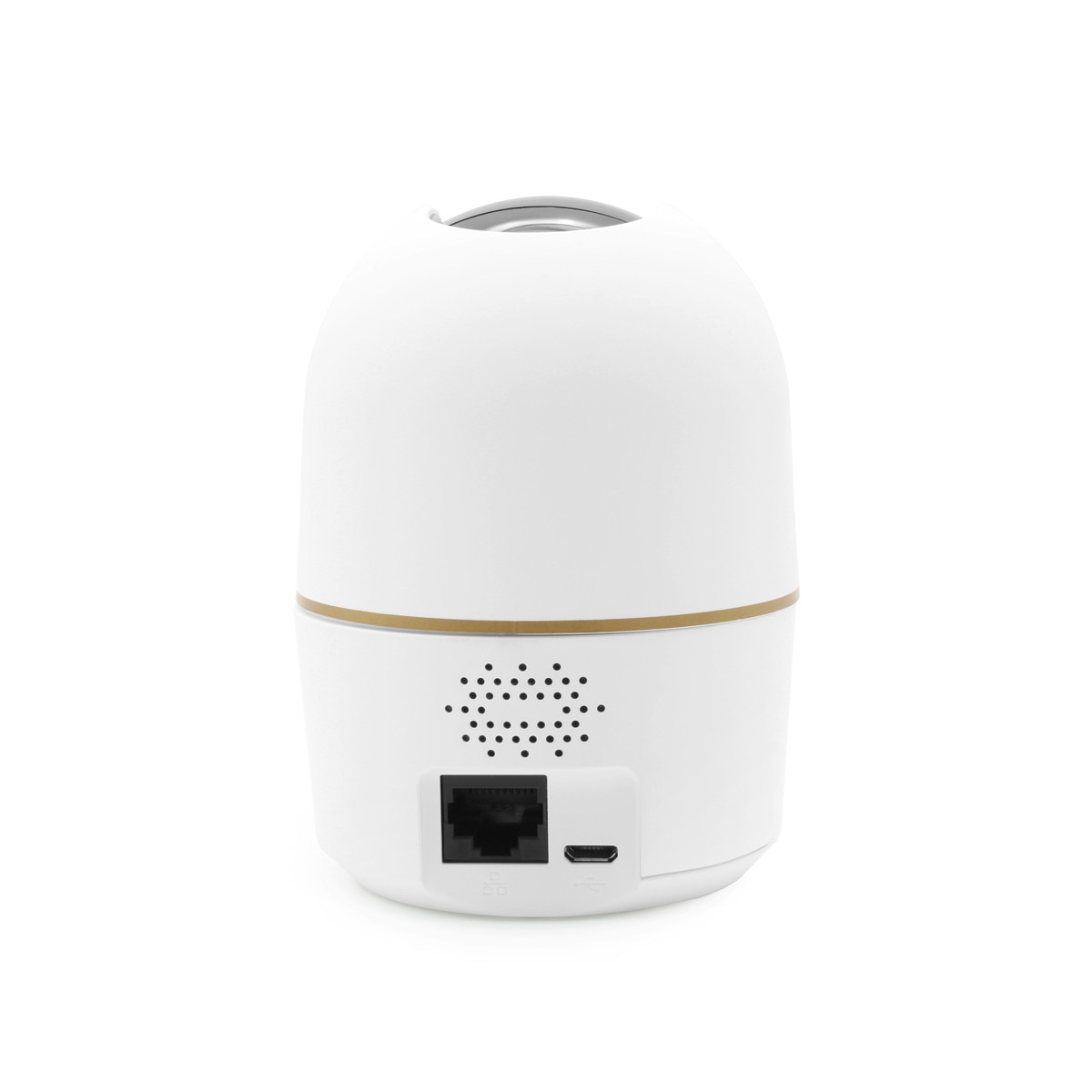

| Ethernet: | RJ-45 (10/100 Base-T) |
| Wifi: | IEEE 802.11b/g/n/ax 2.412-2.472 GHz, 2.4G |
| Edge Storage: | IC Realtime NVR’s and HDVR’s |
| Management Software: | IC Now |
| Smart Phone: | IC View Pro App (iOS, Android) |
| Interface | |
| Audio I/O: | Built-in Mic & Speakers |
| Memory Slot: | Supports up to 256GB Micro SD Card |
| Electrical | |

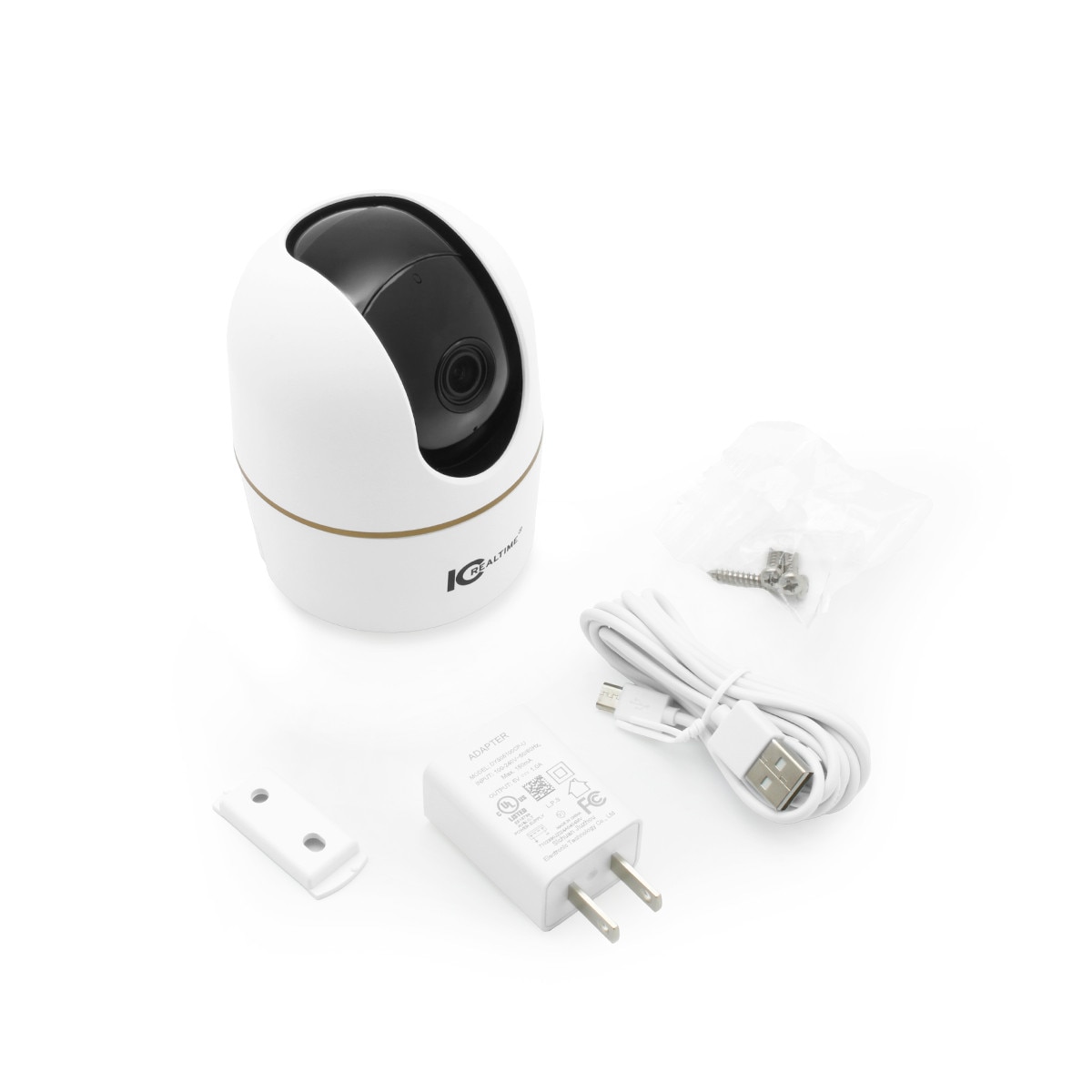

| Power Supply: | 5 VDC; Included |
| Power Consumption: | 1.9 W, Maximum: 4 W |
| Environmental | |
| Operating Conditions: | +14 °F to +113 °F (–10 °C to +45 °C) |
| Operating Humidity: | Less than 95% RH |
| Construction | |
| Casing: | Plastic |
| Dimensions: | Ø3.06" × 4.26" (Ø77.8 mm × 108.1 mm) |
