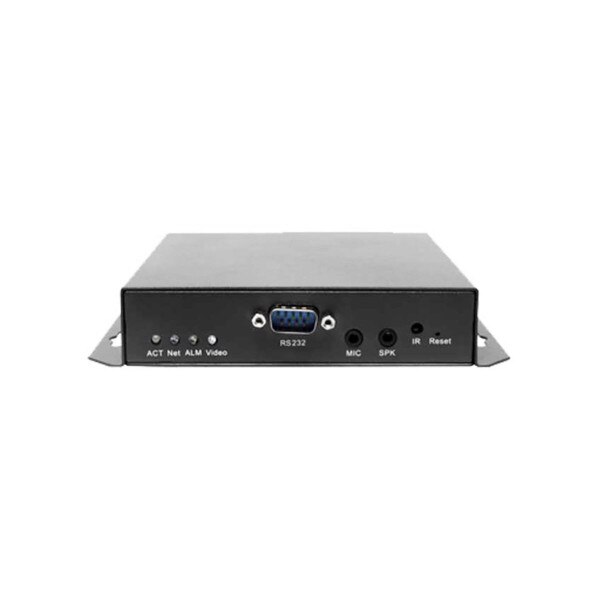

NVS-3002
Details
IC Realtime’s newest Network Video Servers now incorporate penta-brid access technology such as HDCVI, AHD, TVI, CVBS and IP cameras. The new hardware also supports H.264+/H.264/MJPEG encoding, a 128GB SD card and 2 way talk.
Designed as a full compatibility Encoder, the NVS-3002 supports 2 channel input of HDCVI/AHD/TVI/CVBS at 1080p up to 30fps, enabling you to add coax cameras to your NVR.
Designed as a full compatibility Encoder, the NVS-3002 supports 2 channel input of HDCVI/AHD/TVI/CVBS at 1080p up to 30fps, enabling you to add coax cameras to your NVR.
Specifications
| Video | |
| Compression: | H.264+/H.264/MJPEG |
| Resolution: | 1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
| Frame Rate: | Main stream: 1080P/720P/960H/D1/HD1/ BCIF/CIF/QCIF (1~25/30fps) Sub stream:CIF/QCIF(1~25/30fps) |
| Bit Rate: | 1Kbps ~ 6144Kbps Per Channel |
| Audio | |
| Compression: | G.711A, G.711U, PCM |
| Network | |
| Ethernet: | 1 RJ45 Port, 10M/100M self-adaptive Ethernet interface |
| Compatibility: | IC Realtime, Clearview, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Dahua, Sanyo, Sony, Videotec, Vivotek, and more |
| Web Viewer: | IE, Firefox, Chrome, Safari |
| Interface | |
| RS232: | 1 Port, for PC Communication and Keyboard |
| RS485: | 1 Port, for PTZ Control |
| Audio I/O: | 2 Input, 1 Output |
| Alarm I/O: | 4/2 |
| Memory Slot: | 128GB |
| Electrical | |
| Power Supply: | DC 12V/2A |
| Power Consumption: | <10W |
| Environmental | |
| Operating Conditions: | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
| Storage Conditions: | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Construction | |
| Casing: | Metal |
| Dimensions: | 136mm×162mm×30mm (5.4" x 6.4" x 1.2") |
| Gross Weight: | 1kg (2.2lb) |
