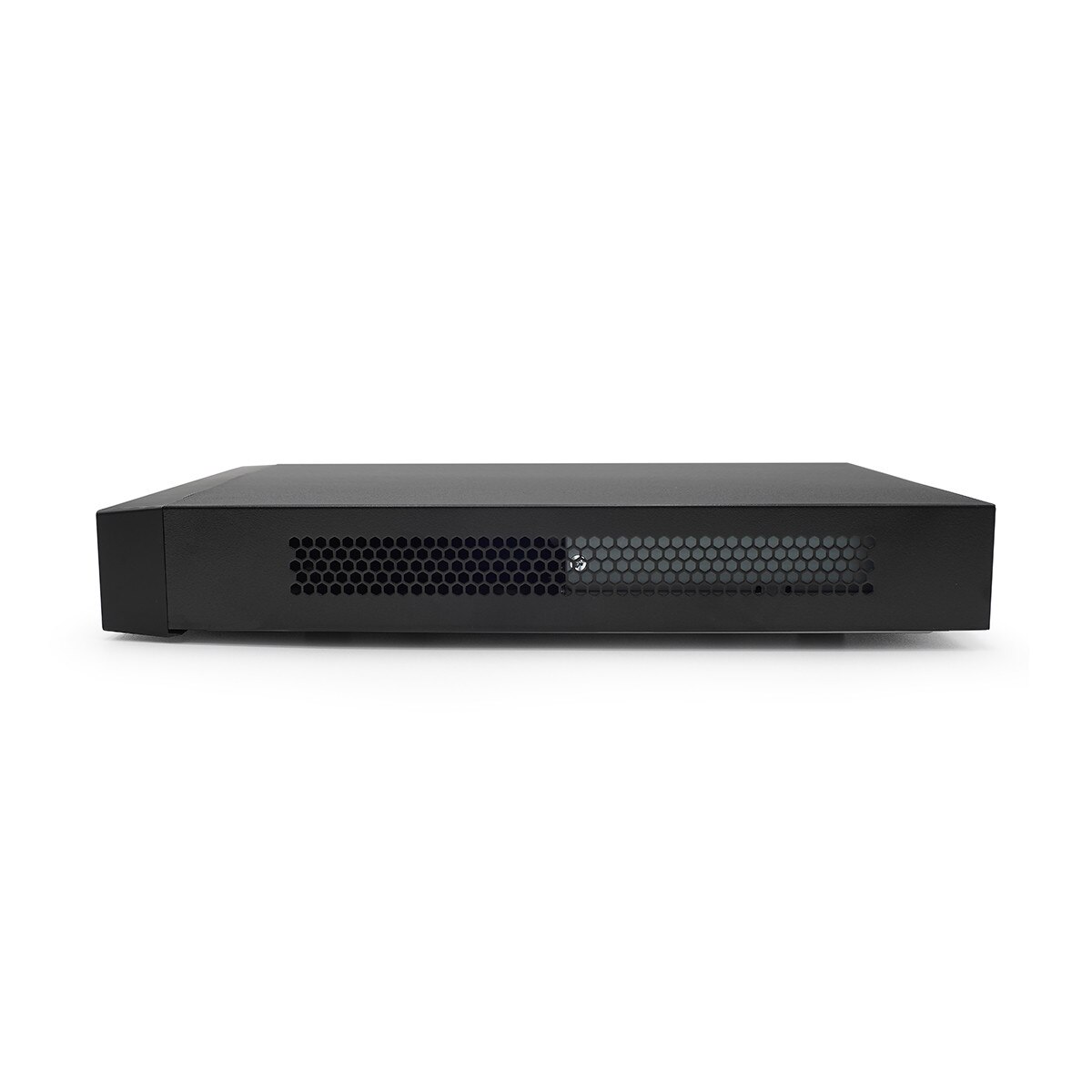

NVR-MX08POE-1U4K1

(0) No Reviews yet
SKU: NVR-MX08POE-1U4K1-WEB
ITEM WEIGHT: 20
8 Channel 1U NVR - Integrated 8 Port POE Switch - Supports 8MP Resolution - 200Mbps throughput - H.264 - up to 12TB
8 Ch | Up to 8MP | 200Mbps Total
2 HDDs

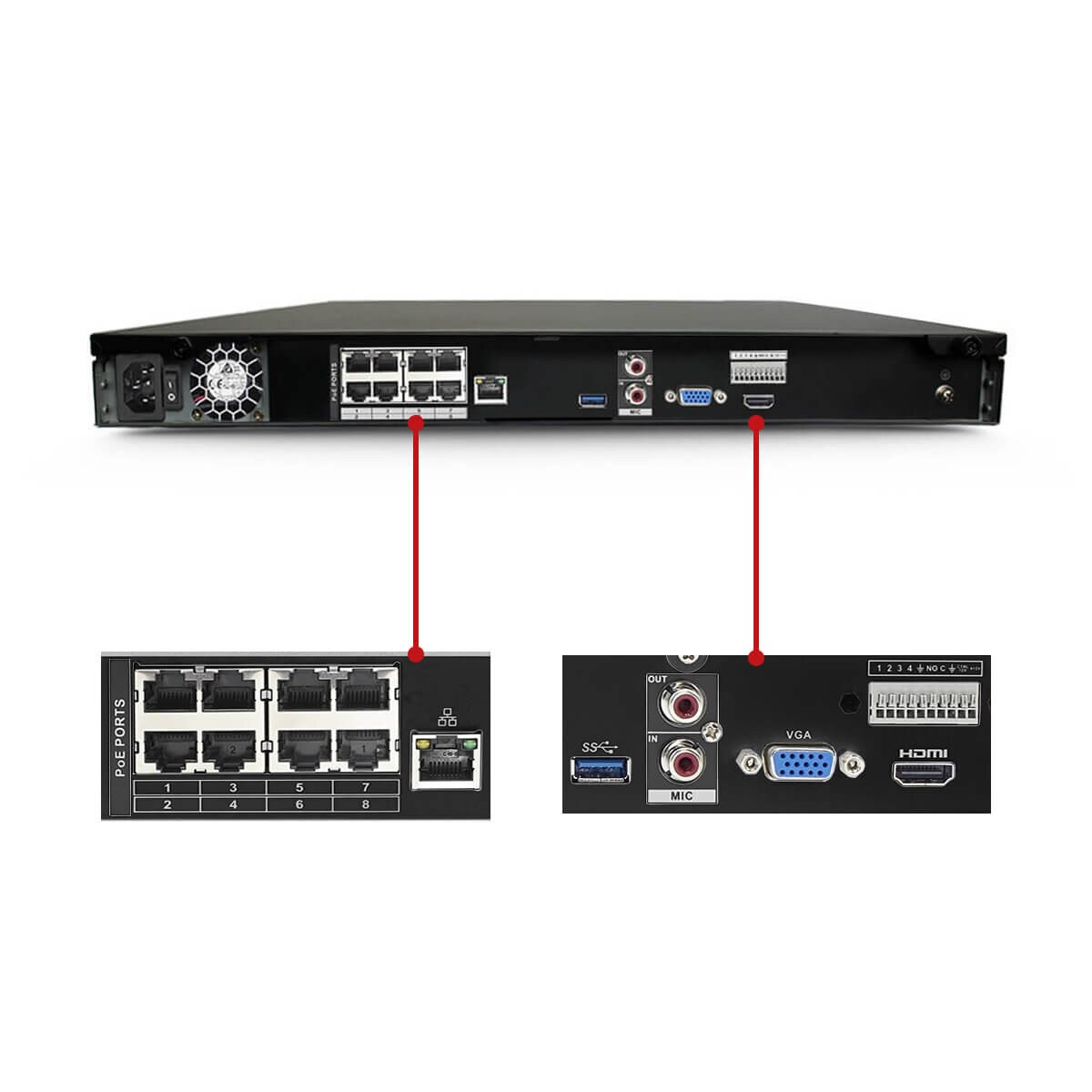

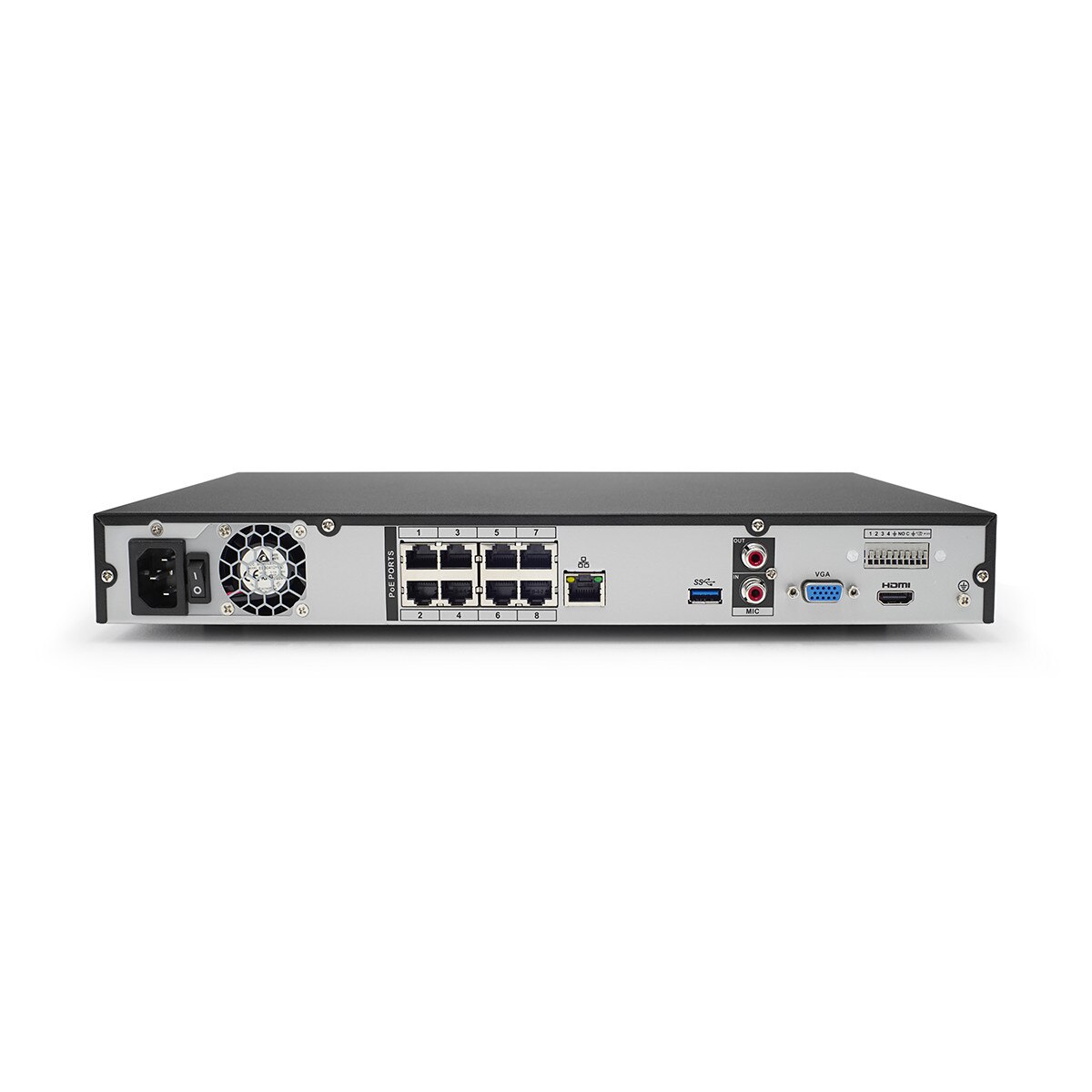

8 PoE (IEEE802.3af/at) | 1 RJ-45 (10/100/1000Mbps)
2 USB | Alarm 4/1 | 1 HDMI / 1 VGA
ONVIF 2.4 CGI Conformant
1U | Desktop or Rack Shelf

Details

Affordable, small form factor 8 Channel IP Camera Network recorder for residential and small office use. The NVR-MX series of IC Realtime NVR's is the entry level for IP Camera storage devices. The NVR-MX footprint is about the size of a DVD player, while still having room for 2 full size HDDs, and a 8 port integrated POE switch.

Specifications

System
Main Processor: Quad-core embedded processor
Operating System: Embedded LINUX
Display
Display Interface: 1 HDMI, 1 VGA
Display Resolution: HDMI: 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720 VGA: 1920 x 1080, 1280 x 1024, 1280 x 720
Multi-screen Display: 1/4/8/9
OSD: Camera title, Time, Camera lock, Motion detection, Recording
HDMI Decoding: 2ch@4K 30fps 8ch@1080P 30fps
Video
IP Camera Input: 8 Channel
Trigger Events: Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering
Playback: 1 / 4 / 9
Search Mode: Time /Date, MD and Exact Search(accurate to second), Smart search
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play,Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode: USB Device/Network
Bit Rate: 16Kbps ~ 20Mbps Per Channel
Audio
Two-way Talk: 1 Channel Input, 1 Channel Output, RCA
Recording
Record Compression: Smart H.265+/H.265/Smart H.264+/H.264
Record Resolution: 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P
Record Rate: 200Mbps
Record Mode: Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
Record Interval: 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Storage
Internal HDD: 2 SATA III Ports, Up to 6 TB capacity for each HDD
HDD Mode: Single
Network
Ethernet: 1 RJ-45 Port (10/100/1000Mbps)
Protocol: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search , Easy4ip
Compatability: Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more
Max. User Access: 128 Users
Smart Phone: iPhone, iPad, Android
PoE: 8 ports (IEEE802.3at/af)
Interface
RS232: N/A
RS485: N/A
USB: 2 ports (1 USB2.0, 1 USB3.0)
Electrical
Power Supply: AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption: NVR: < 9.6W(without HDD) PoE: Max 25.5w for single port, 130w in total
Total POE Budget: PoE: Max 25.5w for single port, 130w in total
Enviromental
Operating Conditions: -10C ~ +55C (+14F ~ +131F), 86 ~ 106kpa
Storage Conditions: -20C ~ +70C (-4F ~ +158F), 0 ~ 90% RH
Construction
Dimensions: 1U, 375mm x 327.5mm x 53mm (14.8" x 12.9" x2.1")
