NVR-FX24POE-15U4K1
Details
IC Realtime leaps directly into mid-21st century video technology with our new NVR-FX24POE-15U4K1 - the largest capacity 24 Channel 4K Power Over Internet Network Video Recorder (POE NVR) we have ever made. This recorder packs a built-in 24 port POE switch on a compact chassis that uses only 1.5U rack space or 20" of shelf space. With its vast 40 TB hard drive storage, cutting-edge FlexSmartAI features, and IC Realtime's legendary South Korean-made dependability, this new TAA-compliant 4K NVR shatters expectations.
24 SECURITY CAMERA NVR + POE SWITCH
When installed in a 1.5U server rack space with its included rack ears, NVR-FX24POE looks like just any other rack-mounted power supply or network switch. But inside, it's a 24 channel, 4K NVR that runs like a video superhero with an utterly massive 320 Mbps of incoming bandwidth. The 24 port built-in POE switch saves rack space, wiring complexity, and the cost of an external POE switch. Housed in a space-efficient server format case with four internal SATA-III hard drive bays, NVR-FX24POE is more than just another network video recorder. It's a scaleable, intelligence agency-grade video security appliance.
WHAT AI IS MADE FOR
All of NVR-FX24POE's channels have access to FlexSmartAI, our built-in AI-assisted detection & analysis system. Integrators & operators working with FlexSmartAi security cameras can set up a customized mix of inputs with virtually any artificial intelligence & deep learning skill set your installation may require. Channel features include:
SMART NETWORK VIDEO APPLIANCE
NVR-FX24POE's sleek black front plate belies the hardware & software sophistication inside. Whatever challenging surveillance duties you assign to this 24 channel POE NVR, it has the intelligence and "power tools" to handle them. Need 360° camera de-warping? Already built-in. Want AI metadata-powered searches? It does that too. Dual HDMI ports? Check. And to make video playback easier, all video data points can be identified, tracked & marked with metadata tags for massive time saving during video review.

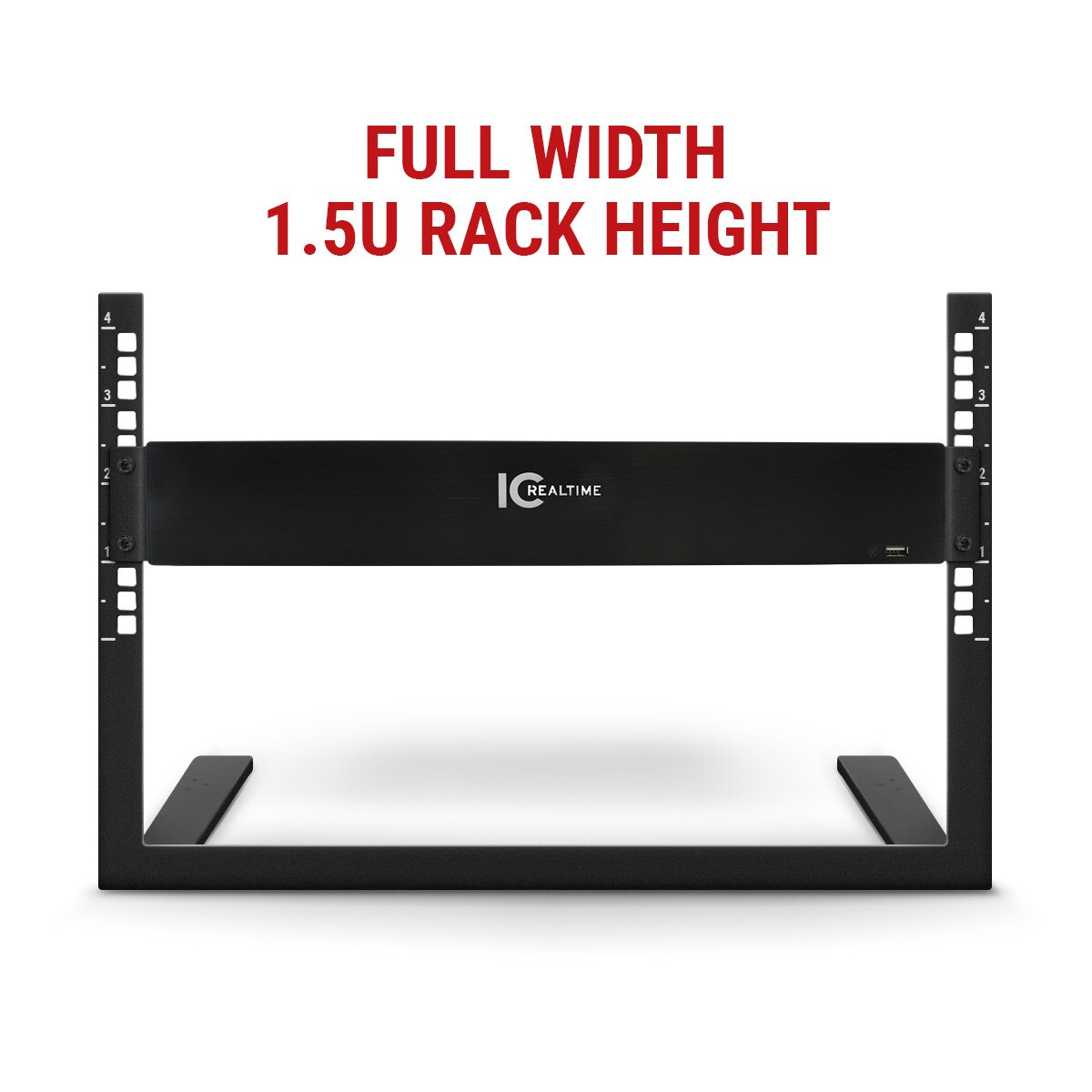

ONE 1.5 U RACKSPACE, 24 POE SECURITY CAMERAS - DONE.
Since NVR-FX24POE is rack-mountable, it's perfect for high-density surveillance camera environments with dedicated equipment closets & rack systems like education facilities, high-volume retail, production lines, and cannabis grow houses & processing facilities. For commercial settings, NVR-FX24POE delivers the high-grade business intelligence capabilities that make it ideal for fulfillment warehouses and industrial production locations.
COST EFFICIENCY FOR BUSY AREAS
South Korean-made, TAA compliant NVR-FX24POE is our most cost & space-efficient 24 port POE NVR. Ideal for efficient coverage of high human and vehicle traffic sites like banks and casinos, NVR-FX24POE's compact design & government-friendly TAA certification also make it ideal for high-intensity overwatch areas like customs warehouses, airports, and law enforcement facilities.
24 PLUG & PLAY CAMERAS + ADDED SECURITY
NVR-FX24POE virtually defines the term ”easy installation” for up to 24 channels of direct connect IP/POE video security. These channel-dense units make installing up to 24 cameras “Plug & Play” easy. The massive 320Mbs throughput lets you “future-proof” your installation and build out your system to whatever number of cameras & mix of capabilities your installation requires. And since these cameras are directly plugged into NVR-FX24POE's built-in POE switch, camera traffic is isolated from the network and cameras are “air gapped” for added network security.
IC Realtime's new TAA compliant NVR-FX24POE is the largest capacity POE NVR we have ever offered. Its outstanding features and South Korean chassis make it the ideal, single component core of any advanced IP video security system. If you are a security, AV, or IT professional dealing with an IP camera nightmare "rack nest" of jumper cables, NVRS, PoE switches and camera cables, then IC Realtime's new NVR-FX24POE-15U4K1 is your 24 channel, single component savior.
24 SECURITY CAMERA NVR + POE SWITCH
When installed in a 1.5U server rack space with its included rack ears, NVR-FX24POE looks like just any other rack-mounted power supply or network switch. But inside, it's a 24 channel, 4K NVR that runs like a video superhero with an utterly massive 320 Mbps of incoming bandwidth. The 24 port built-in POE switch saves rack space, wiring complexity, and the cost of an external POE switch. Housed in a space-efficient server format case with four internal SATA-III hard drive bays, NVR-FX24POE is more than just another network video recorder. It's a scaleable, intelligence agency-grade video security appliance.
WHAT AI IS MADE FOR
All of NVR-FX24POE's channels have access to FlexSmartAI, our built-in AI-assisted detection & analysis system. Integrators & operators working with FlexSmartAi security cameras can set up a customized mix of inputs with virtually any artificial intelligence & deep learning skill set your installation may require. Channel features include:
- AI-assisted facial recognition.
- Video Metadata search.
- Human/ Vehicle Recognition
- Heat mapping.
SMART NETWORK VIDEO APPLIANCE
NVR-FX24POE's sleek black front plate belies the hardware & software sophistication inside. Whatever challenging surveillance duties you assign to this 24 channel POE NVR, it has the intelligence and "power tools" to handle them. Need 360° camera de-warping? Already built-in. Want AI metadata-powered searches? It does that too. Dual HDMI ports? Check. And to make video playback easier, all video data points can be identified, tracked & marked with metadata tags for massive time saving during video review.
ONE 1.5 U RACKSPACE, 24 POE SECURITY CAMERAS - DONE.
Since NVR-FX24POE is rack-mountable, it's perfect for high-density surveillance camera environments with dedicated equipment closets & rack systems like education facilities, high-volume retail, production lines, and cannabis grow houses & processing facilities. For commercial settings, NVR-FX24POE delivers the high-grade business intelligence capabilities that make it ideal for fulfillment warehouses and industrial production locations.
COST EFFICIENCY FOR BUSY AREAS
South Korean-made, TAA compliant NVR-FX24POE is our most cost & space-efficient 24 port POE NVR. Ideal for efficient coverage of high human and vehicle traffic sites like banks and casinos, NVR-FX24POE's compact design & government-friendly TAA certification also make it ideal for high-intensity overwatch areas like customs warehouses, airports, and law enforcement facilities.
24 PLUG & PLAY CAMERAS + ADDED SECURITY
NVR-FX24POE virtually defines the term ”easy installation” for up to 24 channels of direct connect IP/POE video security. These channel-dense units make installing up to 24 cameras “Plug & Play” easy. The massive 320Mbs throughput lets you “future-proof” your installation and build out your system to whatever number of cameras & mix of capabilities your installation requires. And since these cameras are directly plugged into NVR-FX24POE's built-in POE switch, camera traffic is isolated from the network and cameras are “air gapped” for added network security.
IC Realtime's new TAA compliant NVR-FX24POE is the largest capacity POE NVR we have ever offered. Its outstanding features and South Korean chassis make it the ideal, single component core of any advanced IP video security system. If you are a security, AV, or IT professional dealing with an IP camera nightmare "rack nest" of jumper cables, NVRS, PoE switches and camera cables, then IC Realtime's new NVR-FX24POE-15U4K1 is your 24 channel, single component savior.
Specifications
| System | |
| Main Processor: | Industrial-grade embedded processor |
| Operating System: | Embedded LINUX |
| Display | |
| Display Interface: | 2 HDMI, 1 VGA |
| Display Resolution: | HDMI1: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720 VGA1: 1920 × 1080; 1280 × 1024; 1280 × 720 HDMI2/VGA2: 1920 × 1080 |
| OSD: | Camera title, Time, Camera lock, Motion detection, Recording |
| Fisheye Dewarp: | 1 channel |
| Display Split: | 1st Screen: 1/4/8/9/16/25 2nd Screen: 1/4/8/9/16 |
| HDMI Decoding: | 4x 8MP cameras @10Mbps 8x 4MP cameras @10Mbps 16x 1080P cameras @10Mbps |
| Intelligence | |
| IVS: | (Supported by camera) People Counting, Heat Map, Tripwire and Intrusion, Missing, and Abandon object |
| Advanced Intelligent Functions: | AI functions supported by camera: (24ch) Intelligent Motion Detect (iMD): Motion detection alarm with human and vehicle recognition. (20ch) Perimeter Protection: Tripwire & intrusion; Recognition of human and vehicle (14ch) Face Recognition (16ch) Metadata (4ch) ANPR: License Plate Recognition AI functions supported by NVR: (1ch) Fisheye Dewarp Support |
| Video | |
| Supported Camera Types: | IP |
| IP Camera Input: | 24 Channel |
| Trigger Events: | Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips |
| Video Detection: | Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering |
| Playback: | 1/4/9/16 |
| Search Mode: | Time /Date, MD and Exact Search (accurate to second), Smart search |
| Playback Function: | 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off |
| Backup Mode: | USB Device/Network |
| Bit Rate: | 16Kbps ~ 20Mbps Per Channel |
| Audio | |
| Compression: | G.711A/G.711U/PCM/G726 |
| Two-way Talk: | 1 Channel Input, 1 Channel Output, RCA |
| Recording | |
| Record Compression: | Smart H.265+; Smart H.264+; H.265; H.264; MJPEG |
| Record Resolution: | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more |
| Record Mode: | Manual; schedule (general; MD; alarm; MD & alarm; AI intelligent) |
| Record Interval: | 1 ~ 120 min (default: 60 min), Pre-record:1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Throughput: | 320 Mbps |
| Storage | |
| Internal HDD: | 4 SATA III Ports, Up to 10 TB capacity for each HDD |
| eSATA: | 1 port |
| Network | |
| Ethernet: | 1 RJ-45 Port (10/100/1000Mbps) |
| Protocol: | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, FTP, P2P |
| Compatibility: | ONVIF (profile T/S/G); CGI; SDK |
| Max. User Access: | 128 Users |
| Web Viewer: | Chrome, IE9 or above, Firefox |

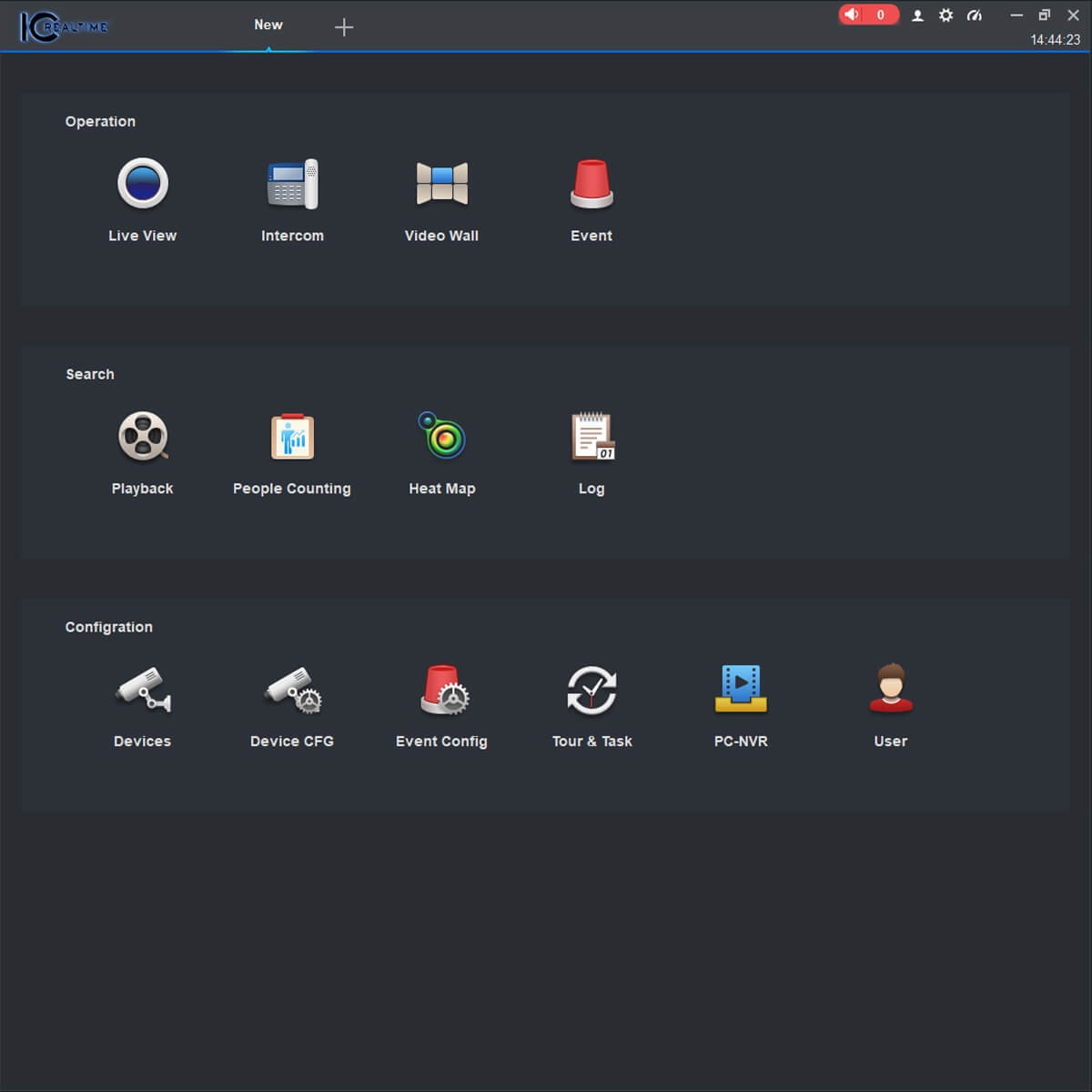

| Management Software: | Smart ICRSS, DSS |
| Smart Phone: | iPhone, iPad, Android |
| PoE: | 24 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE |
| Interface | |
| RS232: | 1 channel, for debug and pass through serial data |
| RS485: | 1 channel, used to control PTZ, supports multiple protocols |
| USB: | 3 ports (1 USB2.0, 2 USB3.0) |
| Electrical | |
| Power Supply: | 100V–240V AC, 50 Hz–60 Hz |
| Power Consumption: | < 18W (without HDD) |
| Total POE Budget: | 220W |
| Environmental | |
| Operating Conditions: | +14°F to +131°F (-10°C to +55°C) |
| Construction | |
| Installation: | Desktop or Rack mountable |
| Dimensions: | 17.3" x 15.5" x 1.7" (439mm x 393mm x 43mm) |
