NVR-FX24POE-15U32MP1
Details

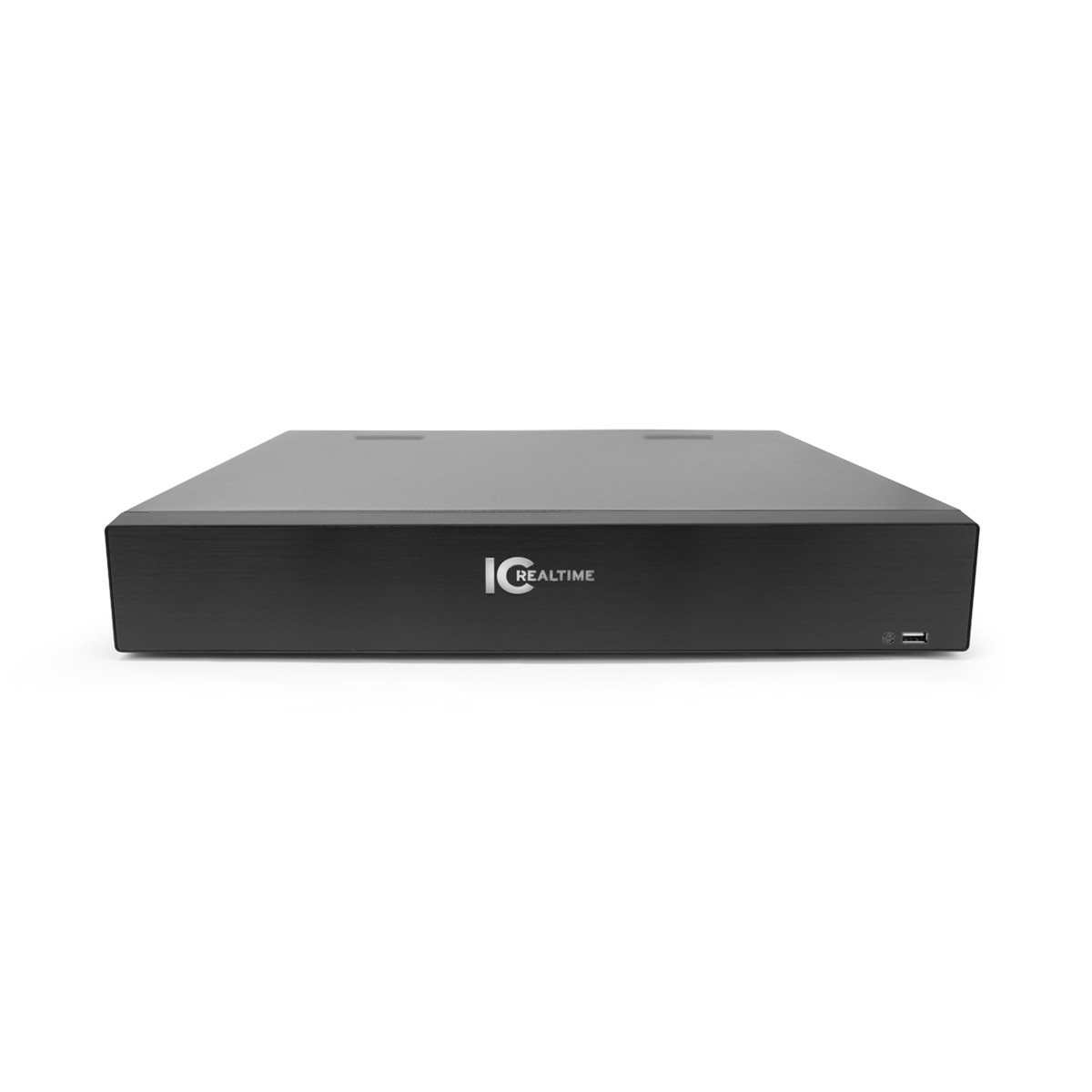

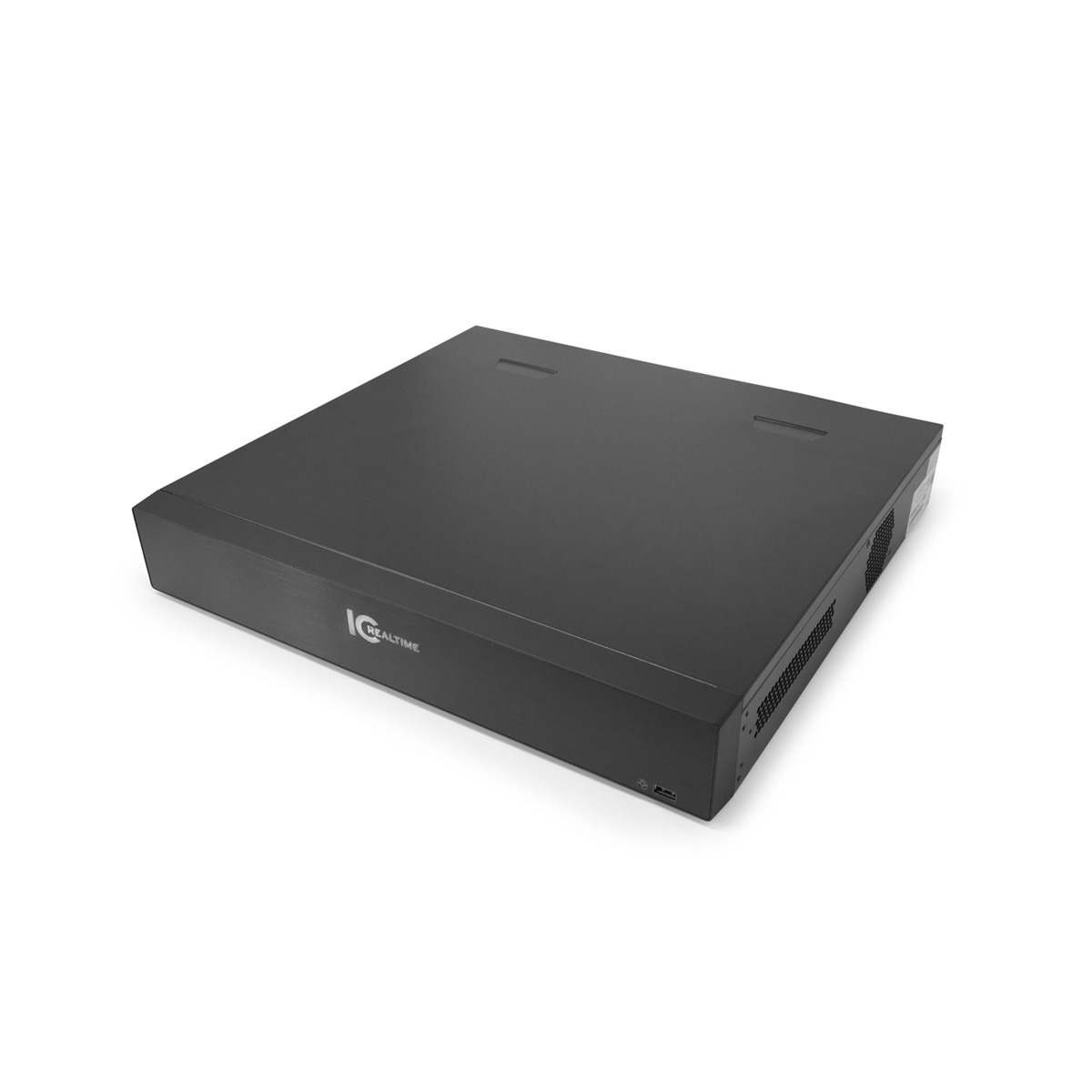

IC Realtime's largest capacity 24-Channel Power Over Internet Network Video Recorder (POE NVR) has just been updated with all-new features. Introducting the NVR-FX24POE-15U32MP1, this recorder packs a built-in 24 port POE switch on a compact chassis Introducing the IC Realtime NVR-FX24POE-15U32MP1, a state-of-the-art network video recorder designed to elevate your surveillance experience. Powered by ICR's robust Linux-based ICR 4.0 operating system, this rack-mountable unit is engineered for performance and reliability, featuring a compact 1.5U chassis that measures 17.32" × 16.36" × 2.99". The NVR supports up to 24 channels, delivering stunning video quality with a remarkable resolution of up to 32MP.
Experience advanced video compression with Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG support, all while maintaining an impressive bandwidth of 384 Mbps (with AI by NVR disabled). The NVR-FX24POE-15U32MP1 offers dual HDMI and VGA outputs, allowing for different video source outputs on HDMI1 and HDMI2, with HDMI supporting resolutions up to 4K for crystal-clear displays. With four SATA III ports, you can achieve a staggering total storage capacity of 64TB, with each HDD accommodating up to 16TB.
Designed for seamless connectivity, the NVR features 24 camera ports with 10/100 Mbps PoE support in compliance with IEEE 802.3 af/at, making it the perfect solution for both standalone and integrated smart home systems, and compatibility with third-party cameras thanks to its Bridge Mode capability.
AI by NVR
Harness the power of intelligent surveillance with the NVR's advanced AI capabilities. The NVR processors enhance non-intelligent cameras, enabling features such as Intelligent Video System (IVS), face detection, face recognition, and perimeter protection. The NVR-FX24POE-15U32MP1 also integrates seamlessly with AI-enabled cameras, supporting advanced features like ANPR, people counting, and 3D analysis. Its ONVIF compliance with profiles T, S, and G ensures compatibility with a wide range of devices, while its CGI and SDK capabilities provide further integration flexibility.
Manufactured in South Korea, this exceptional NVR conforms to the Trade Agreements Act (TAA) and is backed by a comprehensive 10-year warranty and excellent technical support. Stay connected and in control with the IC View+ mobile app, available for both iOS and Android, as well as the IC Now desktop software. Elevate your surveillance system with the IC Realtime NVR-FX24POE-15U32MP1— Where your security is our business.
Specifications
| System | |
| Main Processor: | Multi-core embedded processor |
| Operating System: | Embedded LINUX, ICR 4.0 |
| Display | |

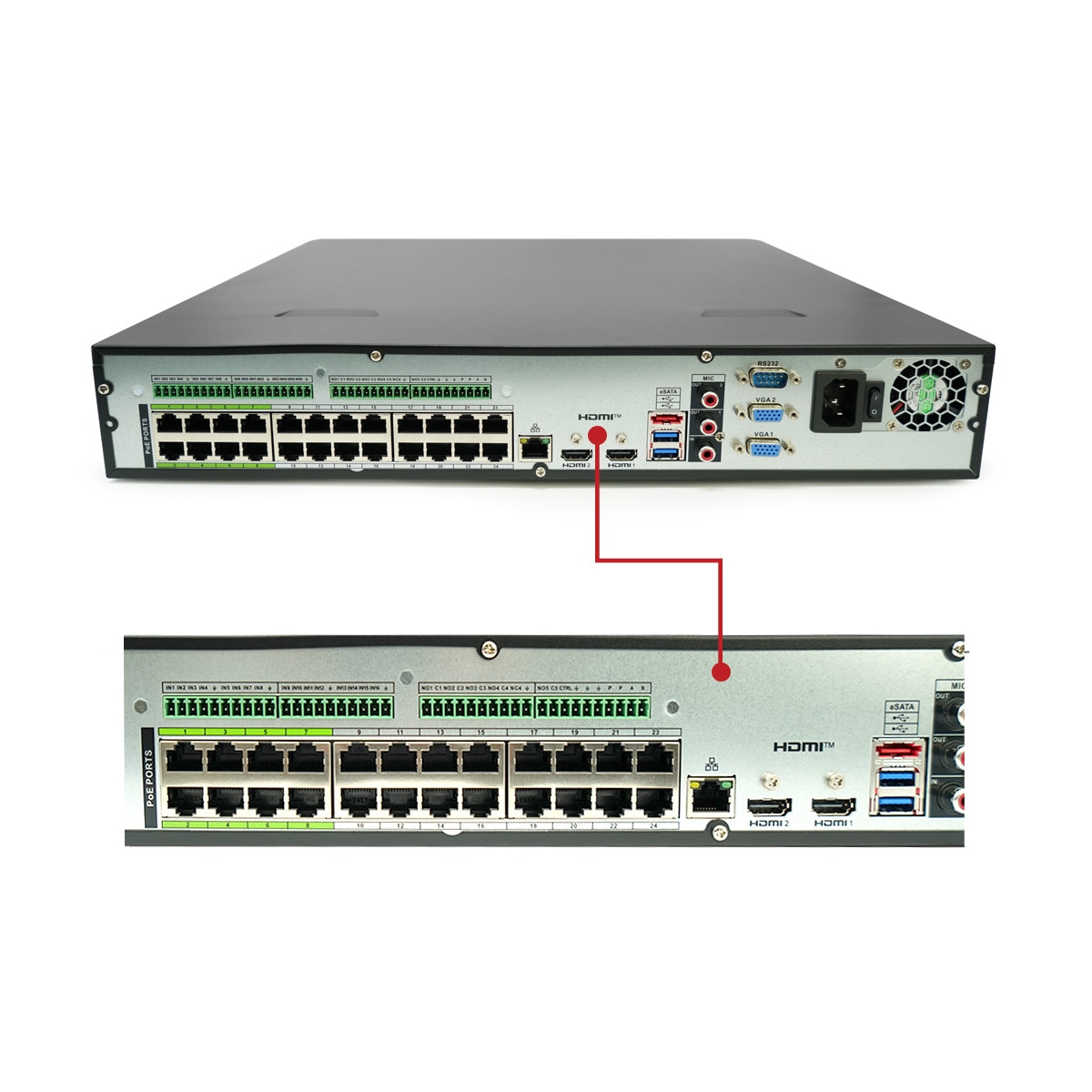

| Display Interface: | 2-ports VGA, 2-ports HDMI video output. Different video source output for HDMI1 and HDMI2, Simultaneous video source output for VGA1 and HDMI1, Simultaneous video source output for VGA2 and HDMI2 |
| Display Resolution: | HDMI: Up to 4K VGA: Up to 1080p |
| Fisheye Dewarp: | Supported |
| Display Split: | Main Screen: 1/4/8/9/16/25 Sub Screen: 1/4/8/9/16 |
| HDMI Decoding: | AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 24-channel 1080p@30 fps AI disabled: 1-channel 32 MP@25 fps; 1-channel 24MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 24-channel 1080p@30 fps |
| Intelligence | |
| IVS: | IVS; Tripwire & intrusion |
| Advanced Intelligent Functions: | AI by Recorder: IVS, Face detection, Face recognition, Perimeter Protection, and iMD AI by Camera: Face detection; Face recognition; Video metadata (human, motor vehicles, and non-motor vehicles) Perimeter Protection; iMD2.0; ANPR; people counting; 3D analysis; Crowd Distribution; Heat map Perimeter Protection. Tripwire & intrusion; Recognition of human and vehicle: 4 channels, 10 IVS rules for each channel (AI by Recorder) or 16 channels (AI by Camera) Intelligent Motion Detect (iMD): 8 channels (AI by Recorder) or 16 channels (AI by Camera) Face Detection: 2 channels, up to 12 face images/s each channel (AI by Recorder) or 16 channels (AI by Camera) Face Recognition:1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s or: 2. 2-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s Video Metadata: 8 channels (AI by Camera) Vehicle License Plate Comparison: 8 channels (AI by Camera) |
| Video | |
| Supported Camera Types: | IP |
| IP Camera Input: | 24 |
| Trigger Events: | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal fan behavior; cybersecurity exception; |
| Video Detection: | Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); iMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| Playback: | Up to 16 channels |
| Search Mode: | Object Search, Basic, AI Search |
| Playback Function: | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom |
| Backup Mode: | USB Device/Network |
| Audio | |
| Compression: | G.711a; G.711u; PCM; G726 |
| Two-way Talk: | Supported |
| Recording | |
| Record Compression: | Smart H.265+/H.265/Smart H.264+/H.264/MJPEG |
| Record Resolution: | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF |
| Record Bit Rate: | 16Kbps ~ 20Mbps Per Channel |
| Record Mode: | Manual, Schedule (Regular, Motion Detection , Alarm, IVS), Stop |
| Record Interval: | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Incoming Bandwith: | AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps;8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps;16-channel 4 MP@30 fps; 24-channel 1080p@30 fps AI enabled: 1-channel 32 MP@25 fps; 1-channel 24MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps;6-channel 8 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 24-channel 1080p@30 fps |
| Throughput: | 384 |
| Storage | |
| Internal HDD: | 4 SATA III Ports, Up to 16 TB capacity for each HDD |
| eSATA: | 1 port |
| Network | |
| Ethernet: | 1 RJ-45 Port (10/100/1000Mbps) |
| Protocol: | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports ICR IP camera, DVR, NVS, etc.); ISCSI |
| Compatibility: | ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK |
| Web Viewer: | Chrome, IE 9 or later, Edge, Safari, Firefox |
| Management Software: | IC Now |
| Smart Phone: | iOS, Android (IC View+) |
| PoE: | 24 ports, 10/100 Mbps, IEEE 802.3 af/at. Bridge Mode Supported. |
| Interface | |
| USB: | 3 (1 front USB 2.0 ports, 2 rear USB 3.0 ports) |
| Audio I/O: | 1 Channel Input, 2 Channel Output, RCA |
| Electrical | |
| Power Supply: | AC100V ~ 240V, 50 ~ 60 Hz |
| Power Consumption: | <13 W (without HDD) |
| Total POE Budget: | Total output power of PoE is 210W, Maximum output power of a single port is 25.5W |
| Construction | |
| Installation: | Rack mountable |
| Dimensions: | 1.5U, 17.32" × 16.36" ×2.99" (440.0 mm × 415.6 mm x 76.0 mm) |
