IC Realtime product designs have always been guided by feedback & input from our professional users and by decades of in-house industry experience. That invaluable real-world input is part of what makes IC Realtime’s new FX series rack-mountable network video recorders such a powerful addition to the IC Realtime Video Ecosystem.

Video security professionals have long used industry-standard 19” open bay rack systems to organize installations and securely protect equipment. This efficient system is time-proven and has become the default system used in countless server farms and sophisticated business & residential facilities.

The FX16POE is a state-of-the-art, South Korean built NVR that is not only among the best TAA compliant rack-mountable network video appliances in the world, it now bristles with IC Realtime’s newest and most inclusive FlexSmartAi features. These re-engineered recorders now give IC Realtime clients access to Artificial Intelligence and algorithmic deep- learning advantages never before possible at this price point.

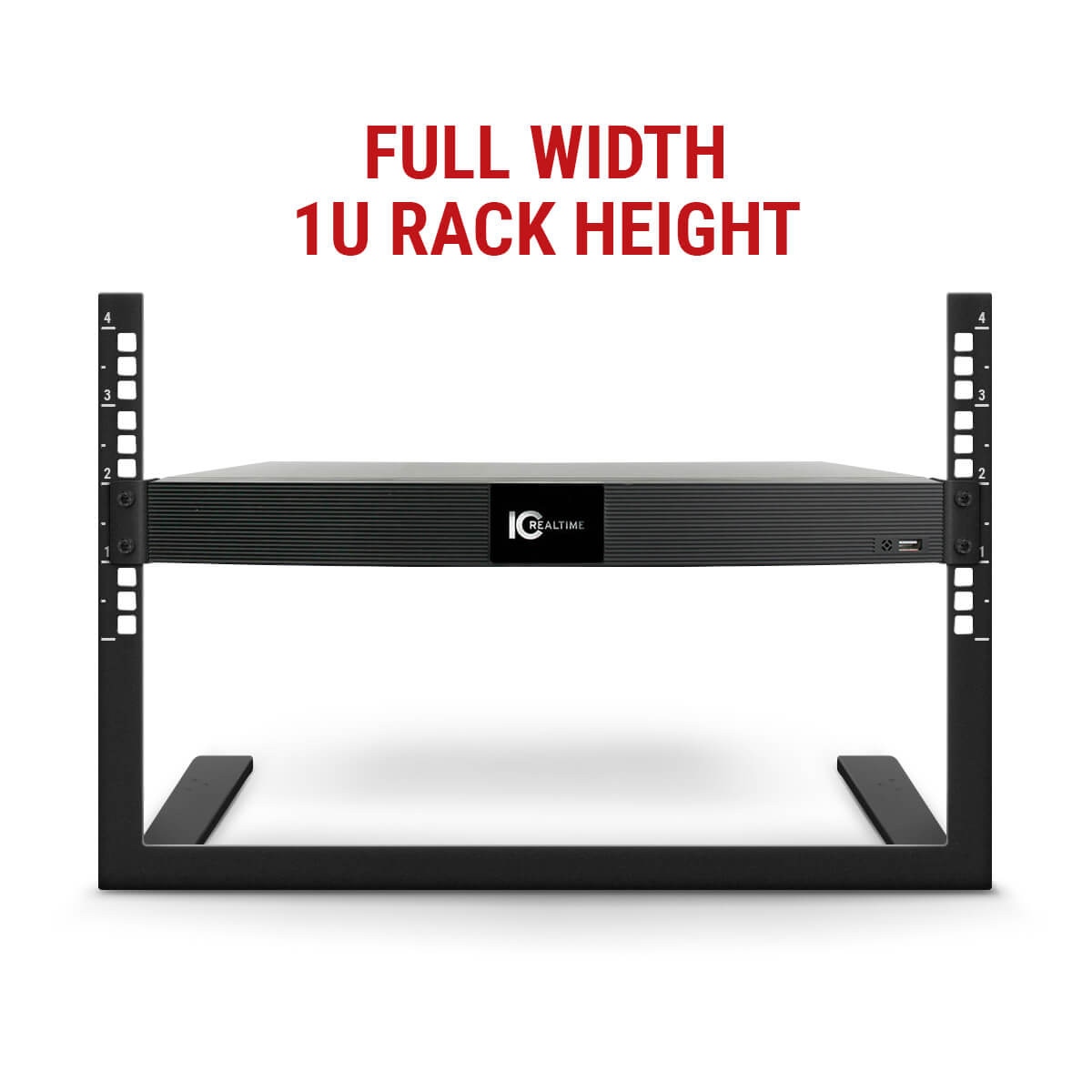

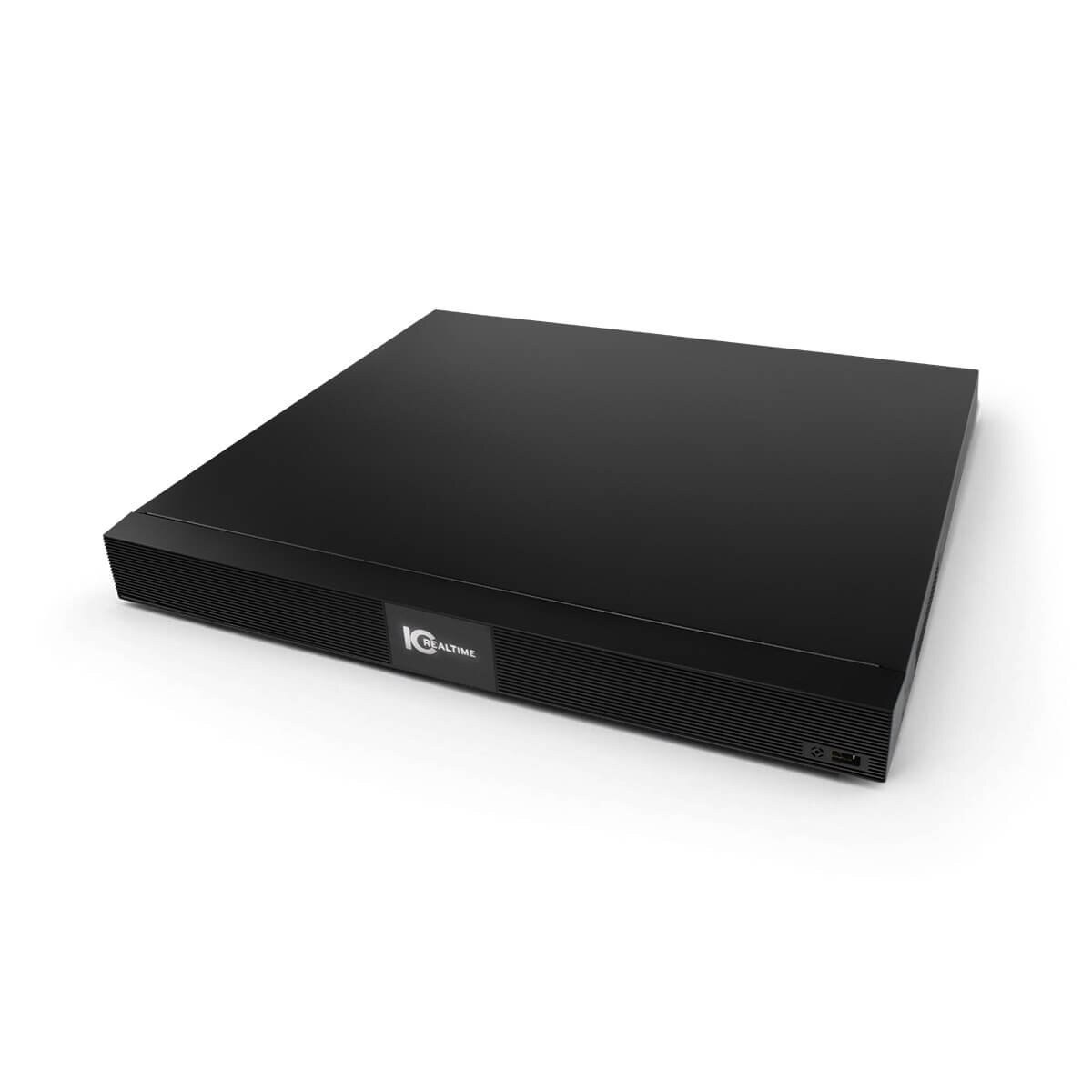

The NVR-FX16POE-1U4K1 is a sixteen-channel, 1U rack-mountable case Network Video Recorder that features an on-chassis 120w sixteen port PoE switch that will power cameras at up to 25.5w per channel. This feature alone saves the cost and rack space of a separate PoE switch and enables direct Camera to NVR CAT5/6 runs for easy “plug-and-play” IP camera installs. The FX16POE’s industrial-grade embedded processor and Linux operating system enable a massive 128Mbps throughput and per-channel adjustable bit rates up to 20Mbps per channel for 4K cameras up to 8MP, and 4K @30fps recording on 2 of the NVR’s 16 channels, 1080P HD on 8 channels or 720P on all 16. The FX series is UL, CE and FCC certified.

Despite their sophistication, our FX series NVRs are easy to install.  They are smart, thanks to IC Realtime’s latest redesigned GUI interface that makes them easy to navigate and configure by supporting P2P network connectivity. Setting a system up is “plug and play” easy. The FX series will automatically configure an adequate & updateable level of cybersecurity as they are installed.

 IC Realtime cameras & recorders are protected from cyber threats by multiple layers of authorizations & password protections to ensure device & network security. All network traffic is encrypted in both directions to a point where our gear now meets the newest network UL CAP certification standards.

All FX series NVRs use Smart H.265+ video encoding, our version of High-Efficiency Video Coding (HEVC) that uses an AI-based video compression scheme. This H.265 and AI combo reduces bit rates up to 90% compared with standard H.264 for maximum stream speed. These smart NVRS are also backward compatible with H.264 & ONVIF (Profile S), CGI, SDK, and P2P compliant to handle previously installed cameras.

FlexSmart Ai cameras with advanced IVS (Intelligent Video System) and IMD (Intelligent Motion Detection) capabilities are supported on all 16 channels.

The FX series recorders will work with FlexSmartAi cameras to recognize features like; camera-based tripwire, intrusion, advanced IVS perimeter protection, heat map & abandoned / missing object detection, and Ai enhanced smart motion detection. Dependably recognizing motor vehicles and humans to reduce false alerts and speed searches.

Simultaneous VGA and HDMI video outputs are available on the chassis and will decode up to 2 channels @ 4K, or 8 channels at 1080p for HDMI output.
