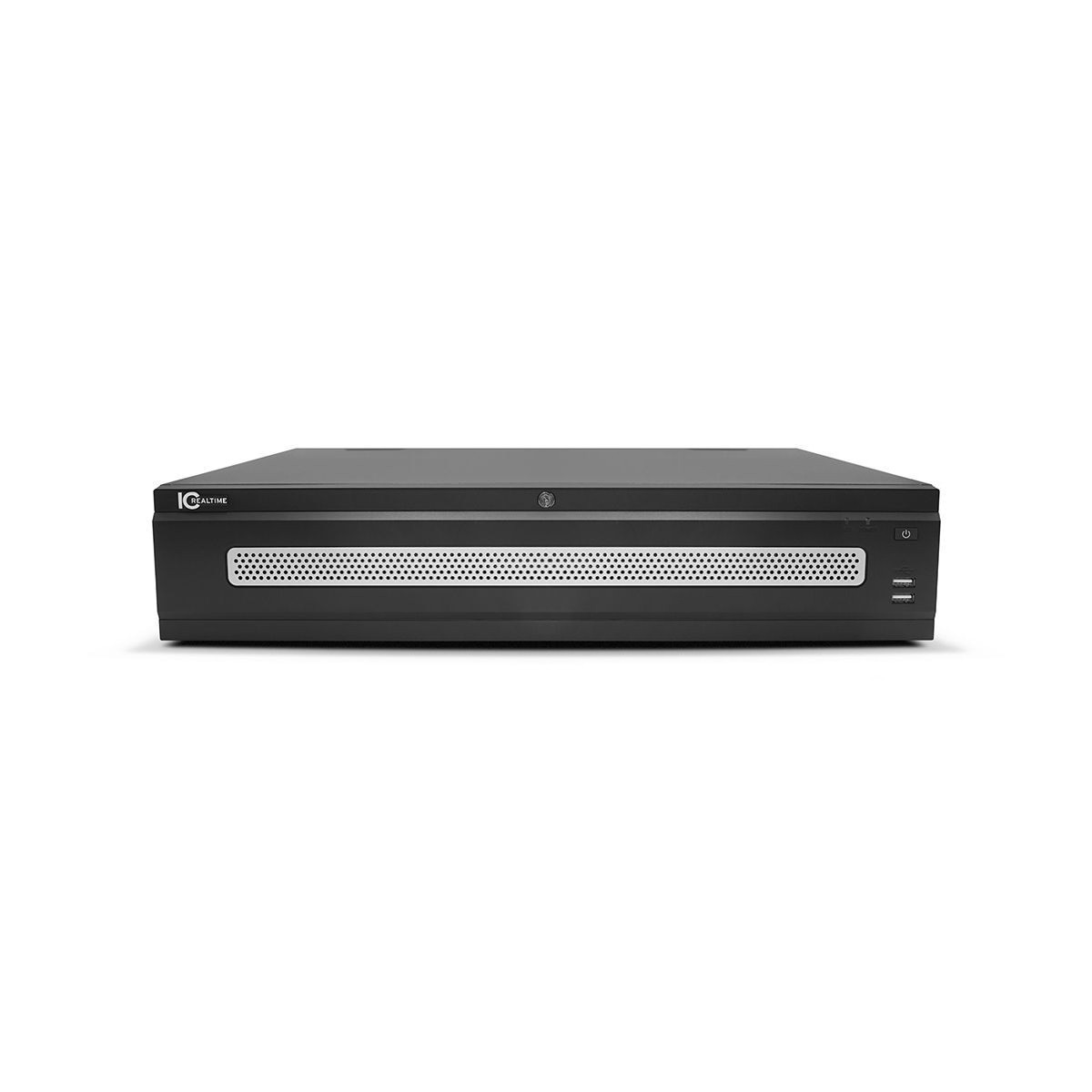

NVR-EL32-2U32MP1

How do you improve on the NVR that’s already the video security industry’s best TAA-compliant 32-channel video recorder? The same way you upgrade a sports car - with a new & more powerful engine! IC Realtime’s new NVR-EL32-2U32MP1 network appliance recorder is now built with an even more powerful Multi-core Embedded Processor that makes it capable of up to a massive 1024Mbps thruput to handle today’s high megapixel cameras and simultaneously streams up to 32 channels of HD, 4K, and even 8K output to one of its four HDMI ports.

THE NEXT BIG THING IN DATA SECURITY & AI
This latest NVR-EL32 model is built with our newest version of IC Realtime’s ICR OS 4.0 that’s not only factory packed with the latest firmware & cybersecurity protocols, NVR-EL32 is built to be constantly updateable to protect against emerging threats. IC Realtime’s Intelligent Video System (IVS) detection & alert capabilities are available on all 32 channels at the camera and recorder level, In fact, NVR-EL32 can not only take full advantage of camera-based IMD (Intelligent Motion Detection), tripwires with Perimeter Protection for human and vehicle detection and business intelligence such as heat mapping, face detection & people counting, its built-in AI can add perimeter protection or iMD on cams that don't have them.

CAMS UP TO 32MP & 360° DE-WARPING
The NVR-EL32 now has the horsepower to handle cameras up to 32MP(!) resolution for preview and playback, along with the ability to both record the native 12MP “Fisheye” input from our IPEL-F12F-IRW2 camera and internally de-warp this ultra-detailed 360° view into flat, normal camera views for real-time live viewing. Using it with this 12MP “all seeing eye” gives the NVR-EL32 the capability to record & later decode footage into multiple time-coordinated flat views, invaluable for later “who did what & when” reviews of fast-moving, wide-ranging incidents ranging from school cafeteria food fights to prison yard incidents to vehicle accidents.

PACKIN’ 8 INTERNAL SATA-III SLOTS
By offboarding POE to local camera switches, NVR-EL32 has the power overhead & slot space with a front-accessible & hot-swappable SATA III hard drive bay housing up to 8 internal SATAIII hard drive bays, each capable of holding up to a 16TB hard drive - that’s an insane internal capacity for up to 128TB onboard. Drives can be RAID configured as Raid 0/1/5/6/10 and support Global HDD hot spare and includes digital records preserving “Hot Standby” capability to ensure a secure ”failover” system where the slave instantly takes over a failed drive for immediate backup.

FOUR HDMI PORTS + DUAL NETWORK PORTS

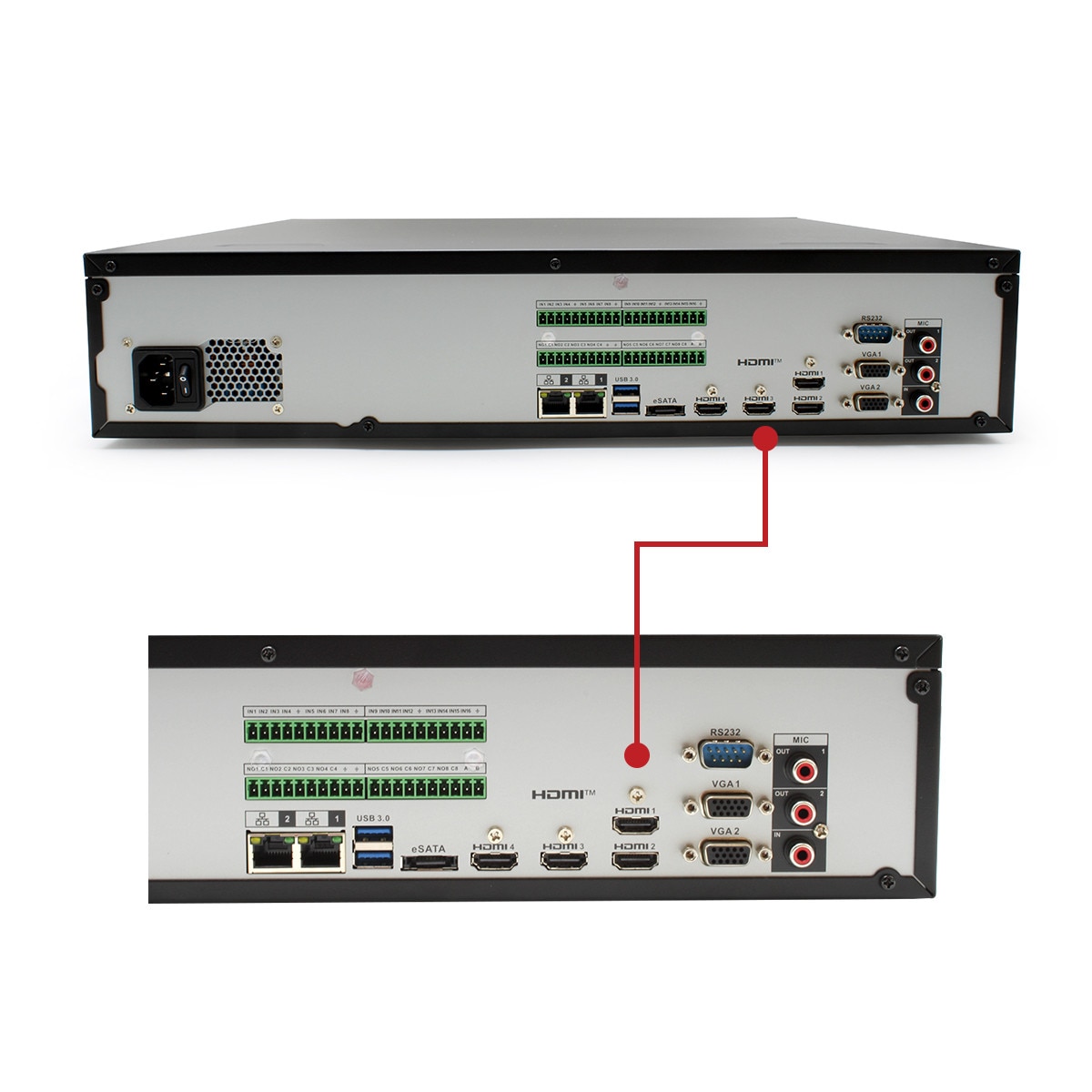

As a rack-mountable network appliance, NVR-EL32 is equipped with dual RJ-45 jacks on the backplane with port #1 reserved for NVR user network access to leave port #2’s bandwidth fully available for camera inputs from their remote POE switches for reduced latency. The backplane also includes 4 HDMI outputs for outputs up to 8K and a VGA port for local monitors, plus numerous interface ports including 16 low-level in & 8 programmable NO/NC alarm input ports, a set of RCA jack analog 2-way “talk back” audio in/out ports as well as an RS232 port for external PC comm.

OPEN ARCHITECTURE FOR VMS & MULTIBRAND CAMERA COMPATIBILITY
NVR-EL32 is designed to be a universal network video appliance, compatible with numerous third-party devices and video management systems. Open architecture ensures interoperability & integration with ONVIF 2.4 protocols for multiple IP-enabled solutions, all of which means our South Korean-made NVR-EL32-2U32MP1 is built to form the core of any multi-POE switch IP camera system.

If your security installation uses up to 32 cameras running on remote POE switches, and your system design calls for a TAA-certified, rack-mountable 8HD “video vault” processing powerhouse camera server & storage appliance with a 10 Year Limited Warranty and cutting edge AI skills, an open & interoperable architecture that can work flawlessly with VMS systems, then IC Realtime’s new NVR-EL32-2U32MP1 is the industry’s smartest & most powerful choice.
