NVR-EL16-2U32MP1

If you want to add Artificial Intelligence to your camera system, and your installation uses 16 or fewer cameras running on remote POE switches, IC Realtime’s new 16-channel 4K AI-NVR is now the ideal dual-network port “network appliance” solution. NVR-EL16-2U32MP1 handles cameras up to 32MP and adds vast new AI detection, internal database recognition, metadata & business intelligence skills onboard.

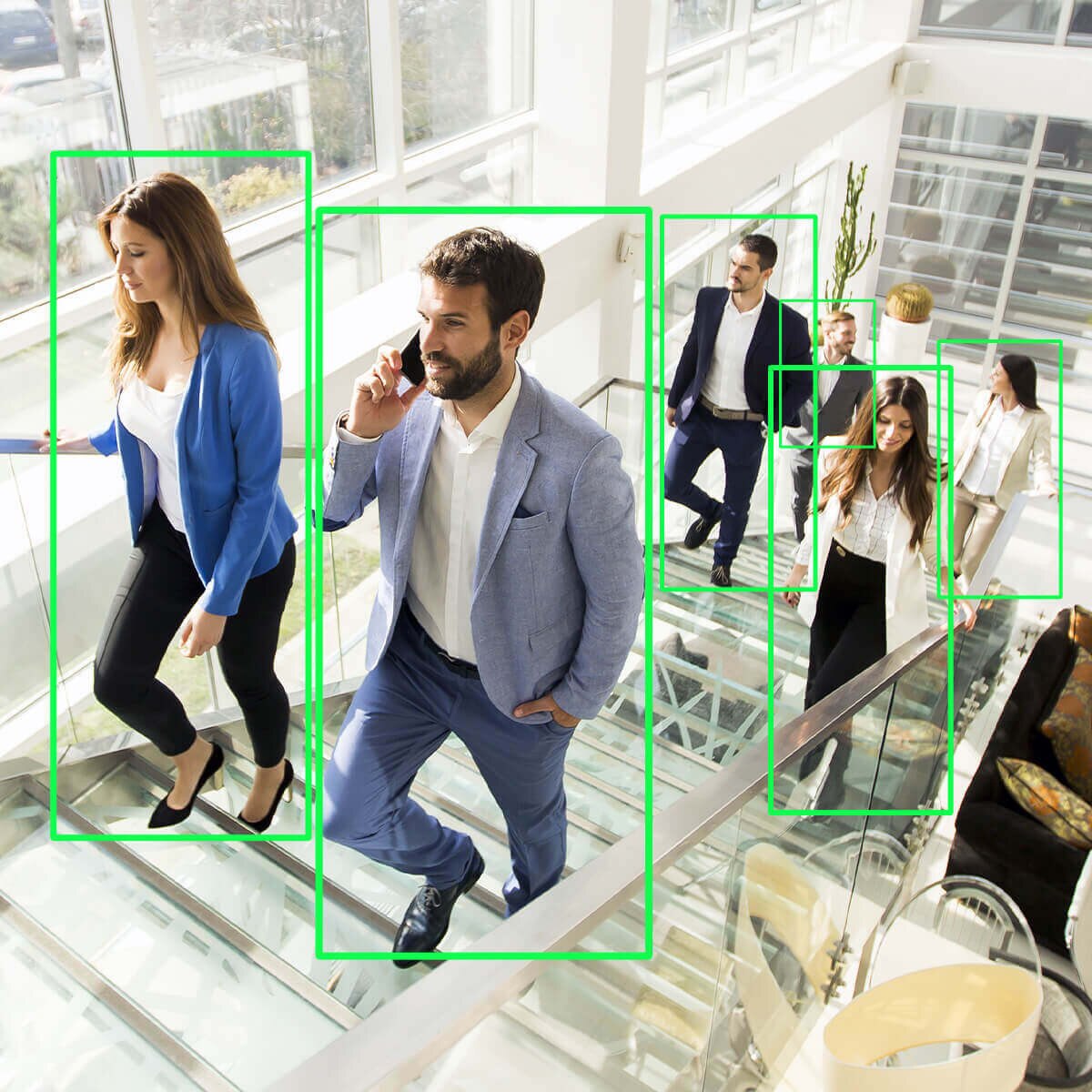

MASSIVE AI INSIDE FOR DETECTION + FACIAL, VEHICLE & PLATE RECOGNITION
Everyone is talking about how AI is changing the future of our civilization, and our new NVR-EL16-2U32MP1 has a built-in AI system that exemplifies that for video security. This new unit employs AI enhancements in functions ranging from H.265+/H.265/Smart H.264+/H.264/ MJPEG video compression to stream management to human, face, vehicle & license plate detection & recognition. It can handle up to 20 face databases with 20,000 images (total capacity of 2.5 GB), When combined with its massive 384bs processing thruput the new NVR-EL16-2U32MP1 literally takes Artificial Intelligence to the next level of customizable overwatch performance.

AI THAT’S READY FOR THE NEXT GENERATION OF METADATA CAMERAS
IC Realtime’s FlexSmartAi system flexibly splits AI-enhanced skills between cameras & their recorder, so the NVR-EL16 enables both camera and NVR-based Intelligent Video System (IVS), with 8 channels of NVR-based AI-enhanced iMD detection and on all 16 channels with camera-based IMD (Intelligent Motion Detection), plus perimeter protection, heat mapping, face detection & recognition, people counting to operate at full capacities. Future-proof out of the box, NVR-EL16-2U32MP1 uses IC Realtime’s new ICR 4.0 operating system and works perfectly with both existing IC Realtime & multiple manufacturers’ network cameras, and comes ready for IC Realtime’s newest metadata streaming AI cameras. Capable of storing & extracting camera-streamed metadata along with each channel’s audio & video recordings, NVR-EL16-2U32MP1 will power multi-channel intelligent Object Searches and business intelligence applications.

8 INTERNAL SATA III HARD DRIVES = NETWORK VIDEO VAULT

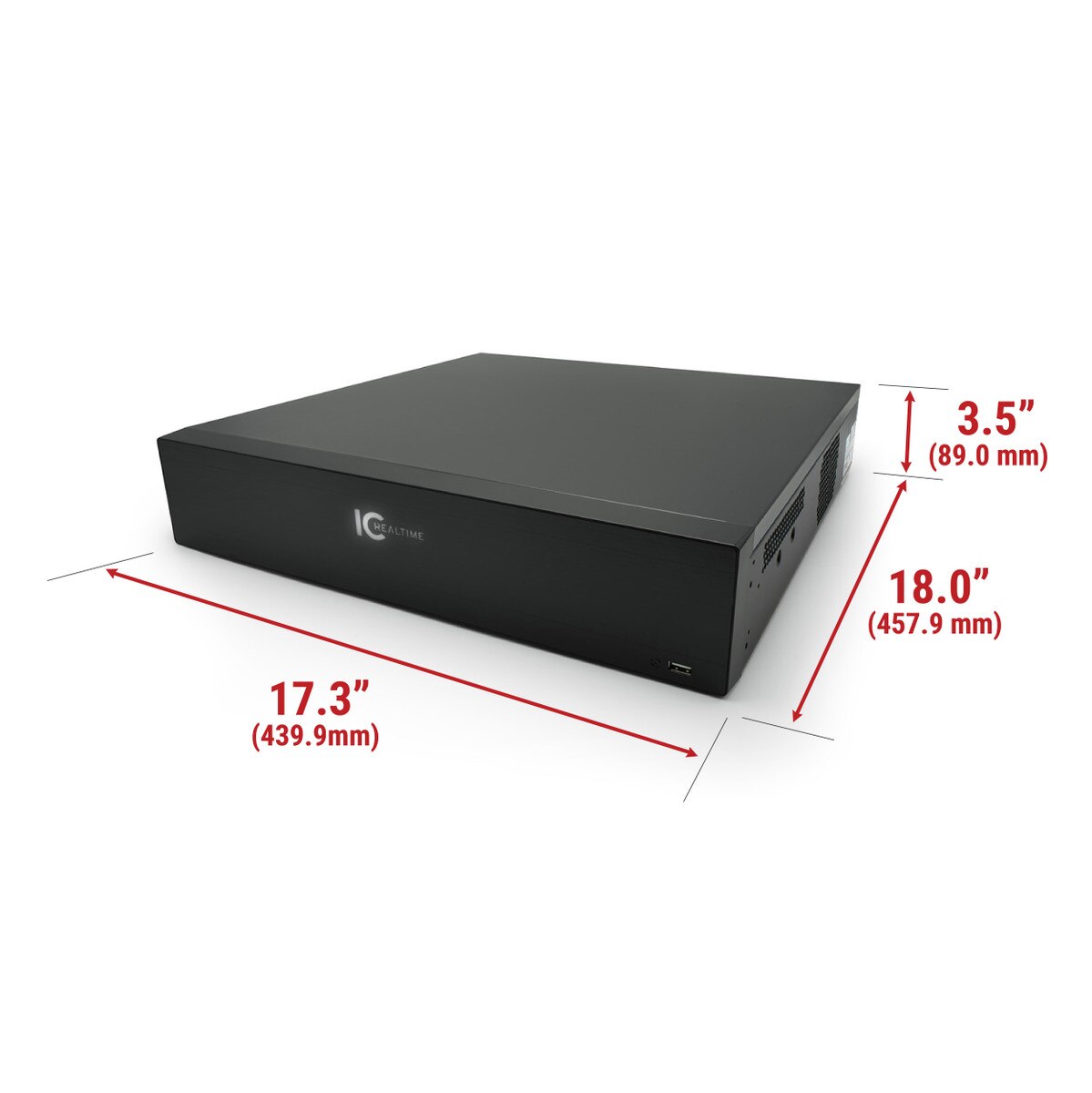

NVR-EL16-2U32MP1 is the perfect dual HDMI output processing core for any 4k network video appliance system. With its 2U rack-mountable chassis and the space & power requirements saved by off-boarding POE ports, it has room for 8 internal SATAIII hard drive ports and a large internal power supply. With the max 16TB hard drive in each port, the NVR-EL16 can support up to eight 16TB SATA-III hard drives. Just to be clear - that’s up to 128TB of storage inside its 2U frame. And JIC there’s a rear panel eSATA port too.

32MP CAMERA & FISHEYE DE-WARPING
A cutting-edge, professional video camera management solution, NVR-EL16-2U32MP1 is able to assign resources where needed, giving it the flexibility to handle IP cameras up to 32-megapixel, with all 16 channels capable of 1080P and up to 4 channels at 4K resolution on the local display. The unit can also de-warp our famous EL-F12F-IRW2 and F50F 180° native “fisheye” cameras camera into flat, normal camera views, and do facial, vehicle & plate recognition using its secure internal database. Always ready for the future, NVR-EL16 is designed with open architecture to ensure interoperability & integration with ONVIF 21.12 (Profiles T, S & G) plus CGI, P2P, SDK protocols to be compatible with video management systems and numerous third-party devices solutions.

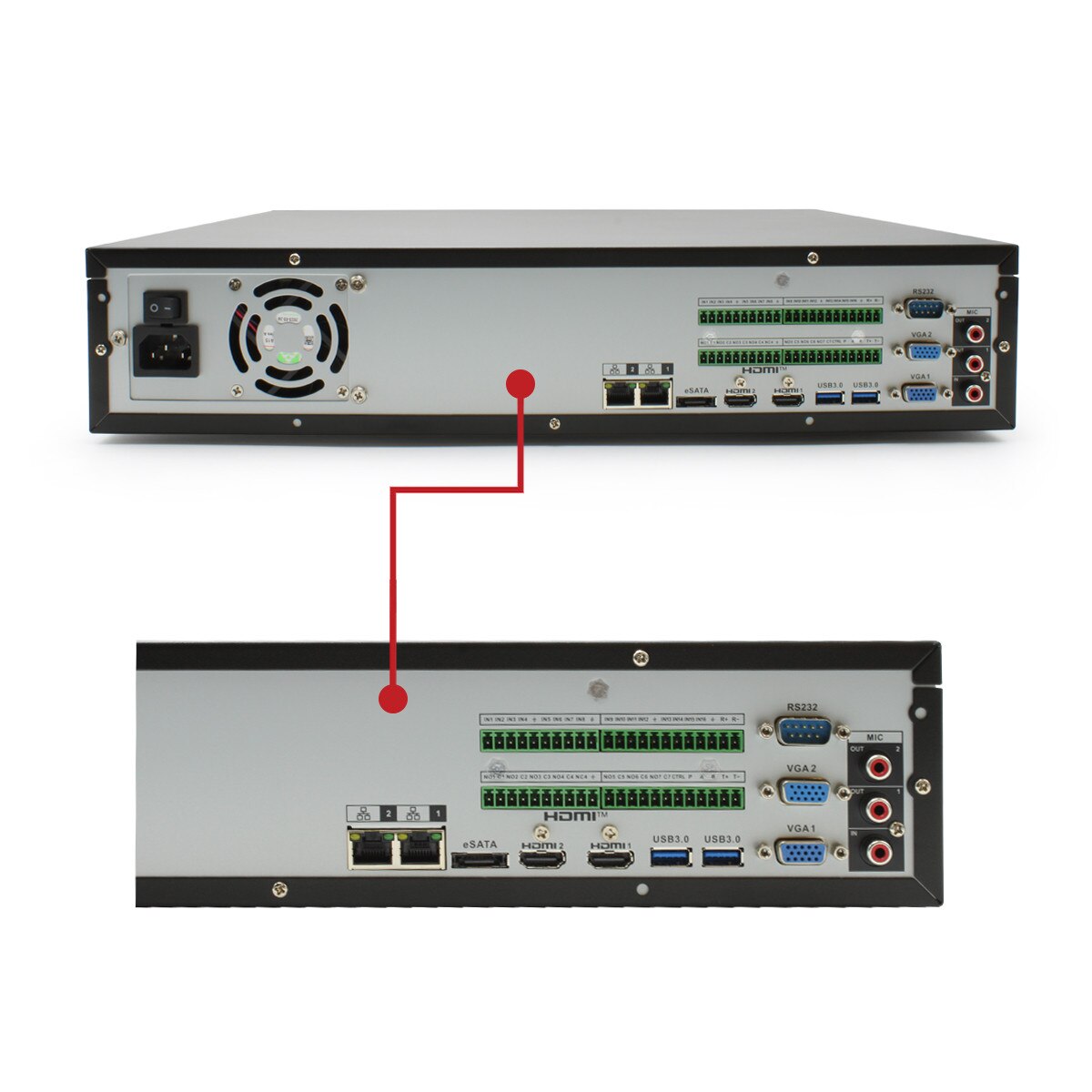

One look at the NVR-EL16-2U32MP1’s backplane tells the unit’s compatibility story. Besides the dual RJ-45 1000MB network ports, there are 2 HDMI outputs, 2 VGA outputs, 16 alarm inputs plus 6 outputs, an eSATA port, and a set of RCA jack audio in/out ports. If you need a rack-mountable future-proof 16-camera AI NVR with the horsepower to handle pro-level AI detection on multiple HD, QHD & 4K video feeds & outputs and store huge amounts of footage onboard, this is your lucky day. IC Realtime’s new TAA-compliant NVR-EL16-2U32MP1 is the best long-warranty, 16-channel network video recorder on the market today.
