NVR-8128K-DR
Details

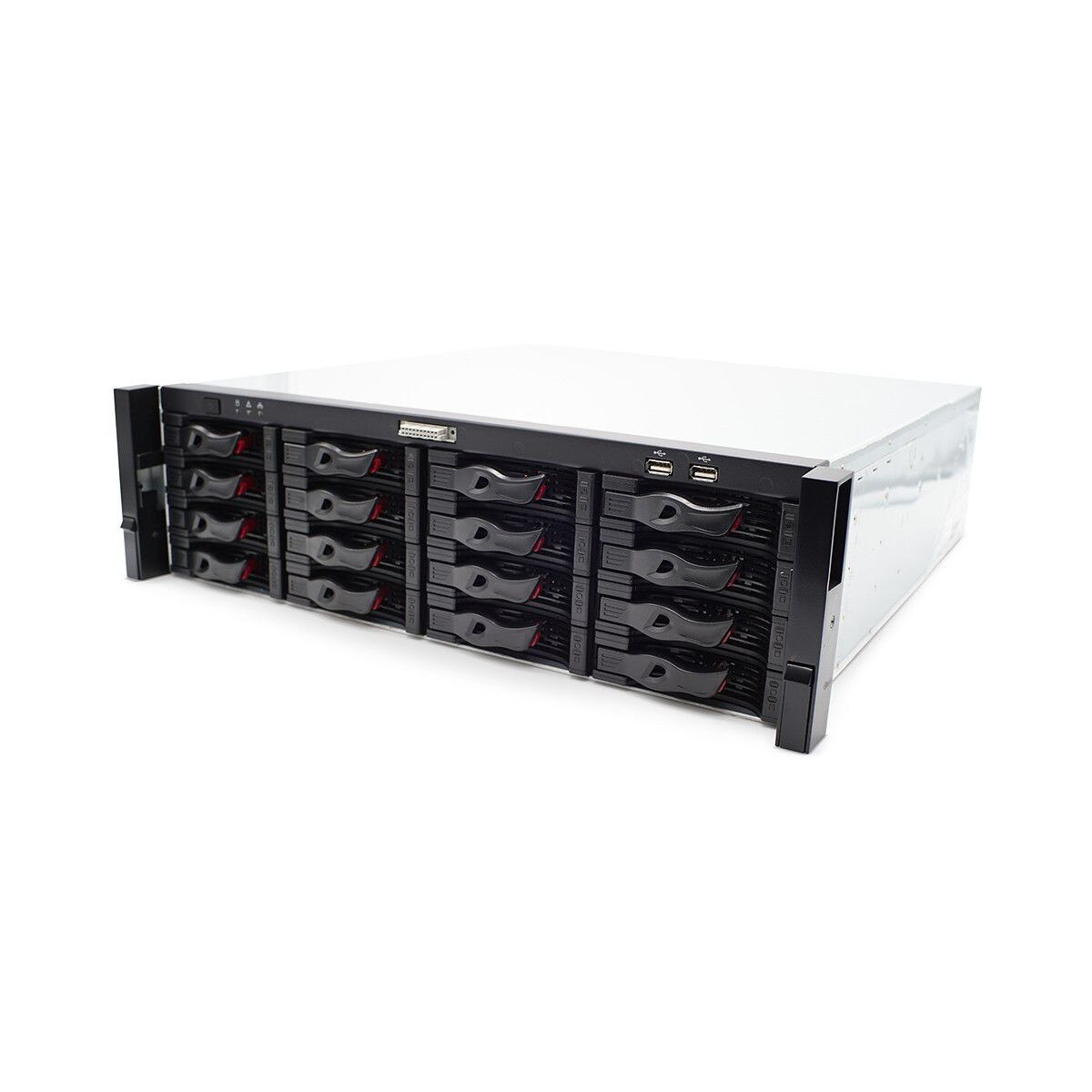

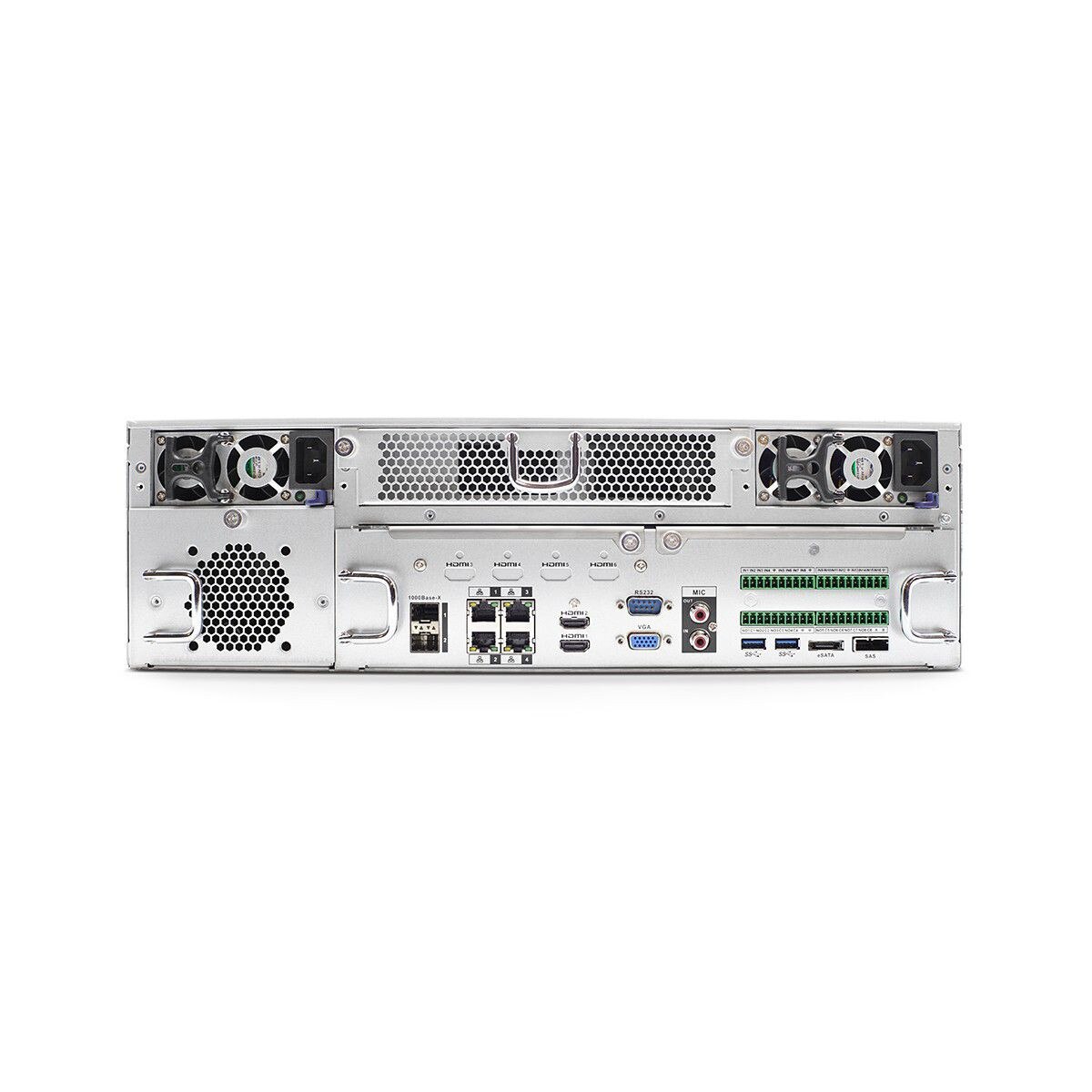

Our top-of-the-line recorder offers massive storage and processing power. It's capable of recording up to 128 channels of high definition video. Best of all, you will be recording and displaying surveillance footage of up to 4K resolution. The built-in video analytics make this a powerful unit ideal for large-scale projects that require smart surveillance The device supports: tripwire, intrusion, scene change, and object abandon. In addition, the system supports audio baseline detection, so if the audio in a room goes from normal to violent, the system can take a snapshot, send an email, or set off an annunciatior or alarm device. The NVR has redundant 120V power supplies, 4 gigabit Ethernet cards, and up to 16 hard drives with a total built in storage capacity of 160TB. With an Intel i7 processor and 8 gigabytes of RAM, this NVR is built for the toughest jobs. Channel Bandwidth:
128 * 1.3 MP Cameras at 2Mbp
64 * 2 MP Cameras at 4Mbps
64 * 3 MP Cameras at 4Mbps
42 * 6 MP Cameras at 6Mbp
42 * 12 MP Cameras at 6Mbps
128 * 1.3 MP Cameras at 2Mbp
64 * 2 MP Cameras at 4Mbps
64 * 3 MP Cameras at 4Mbps
42 * 6 MP Cameras at 6Mbp
42 * 12 MP Cameras at 6Mbps
Specifications
| System | |
| Main Processor: | Intel Quad-core Processor |
| Operating System: | Embedded LINUX |
| Display | |
| Display Interface: | 2 HDMI (up to 3840 x 2160 , Different Source), 1 VGA |
| Display Resolution: | 3840 x 2160 , 1920 x 1080 , 1280 x 1024, 1280 x 720 , 1024 x 768 |
| OSD: | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Display Split: | 1 channel VGA output, 2 channels HDMI output, VGA and HDMI 1 homologous output, double HDMI heterogeneous output. Support 4K display for both HDMI1 and HDMI2 1 channel VGA output, 2 channels HDMI output, VGA and HDMI 1 homologous output, double HDMI heterogeneous output. Support 4K display for both HDMI1 and HDMI2 |
| HDMI Decoding: | 128 * 1.3 MP Cameras at 2Mbp 64 * 2 MP Cameras at 4Mbps 64 * 3 MP Cameras at 4Mbps 42 * 6 MP Cameras at 6Mbp 42 * 12 MP Cameras at 6Mbps |
| Video | |
| Supported Camera Types: | IP |
| IP Camera Input: | 128 Channel |
| Trigger Events: | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection: | Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering |
| Playback: | 128 Mbps in Raid 5 Mode; 64 Mbps in single HDD Mode |
| Search Mode: | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function: | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode: | USB Device/Network/eSATA Device |
| Bit Rate: | 16Kbps ~ 20Mbps Per Channel |
| Audio | |
| Two-way Talk: | 1 Channel Input, 1 Channel Output, RCA |
| Recording | |
| Record Compression: | H.265/H.264/MJPEG |
| Record Resolution: | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P etc. |
| Record Mode: | Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Holiday, Stop |
| Record Interval: | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Throughput: | 384Mbps |
| Storage | |

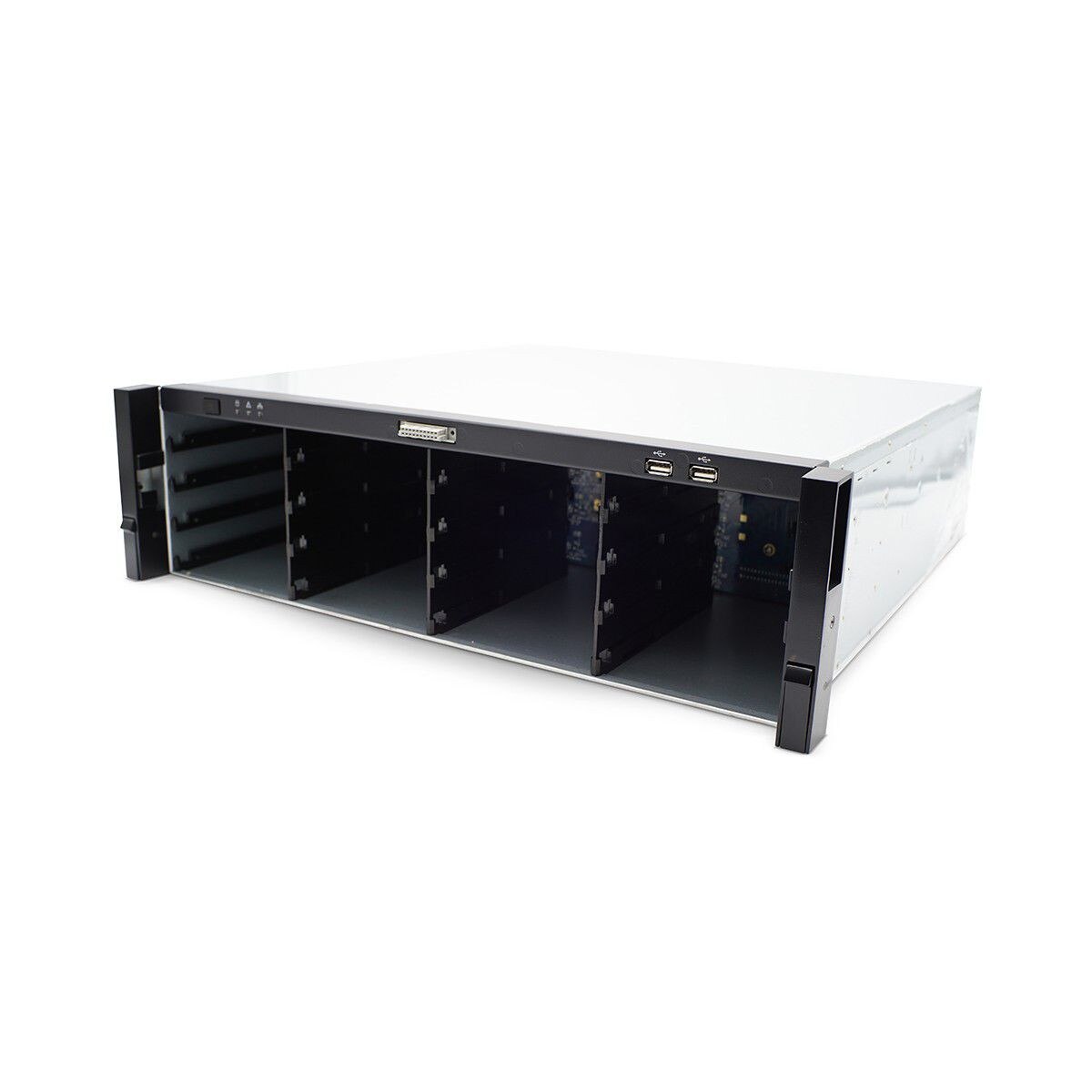

| Internal HDD: | 16 SATA III Ports, Up to 10 TB capacity for each HDD |
| HDD Mode: | Single, Raid 0/1/5/10(Enterprise-level HDDs are recommended), Support Global HDD Hot-spare |
| eSATA: | 1 eSATA Port (Please contact technical engineer to confirm the compatible device) |
| Network | |
| Ethernet: | 4 RJ-45 Ports (10/100/1000Mbps) |
| Protocol: | HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search |
| Compatibility: | IC Realtime, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| Max. User Access: | 128 Users |
| Smart Phone: | iPhone, iPad, Android |
| Interface | |
| RS232: | 1 Port, for PC Communication and Keyboard |
| RS485: | 1 Port, for PTZ Control |
| USB: | 4 USB Ports (2 USB 2.0 , 2 USB 3.0 ) |
| Electrical | |
| Power Supply: | AC100V ~ 240V, 50 ~ 60 Hz, Redundant |
| Power Consumption: | <51W (Without HDD) |
| Environmental | |
| Operating Conditions: | -10C ~ +55C (+14F ~ +131F), 86 ~ 106kpa |
| Storage Conditions: | -20C ~ +70C (-4F ~ +158F), 0 ~ 90% RH |
| Construction | |
| Installation: | Rack-mounted |
| Dimensions: | 3U, 485mm x 529.9mm x 133.2mm (19.1" x 20.9" x 5 .2") |
