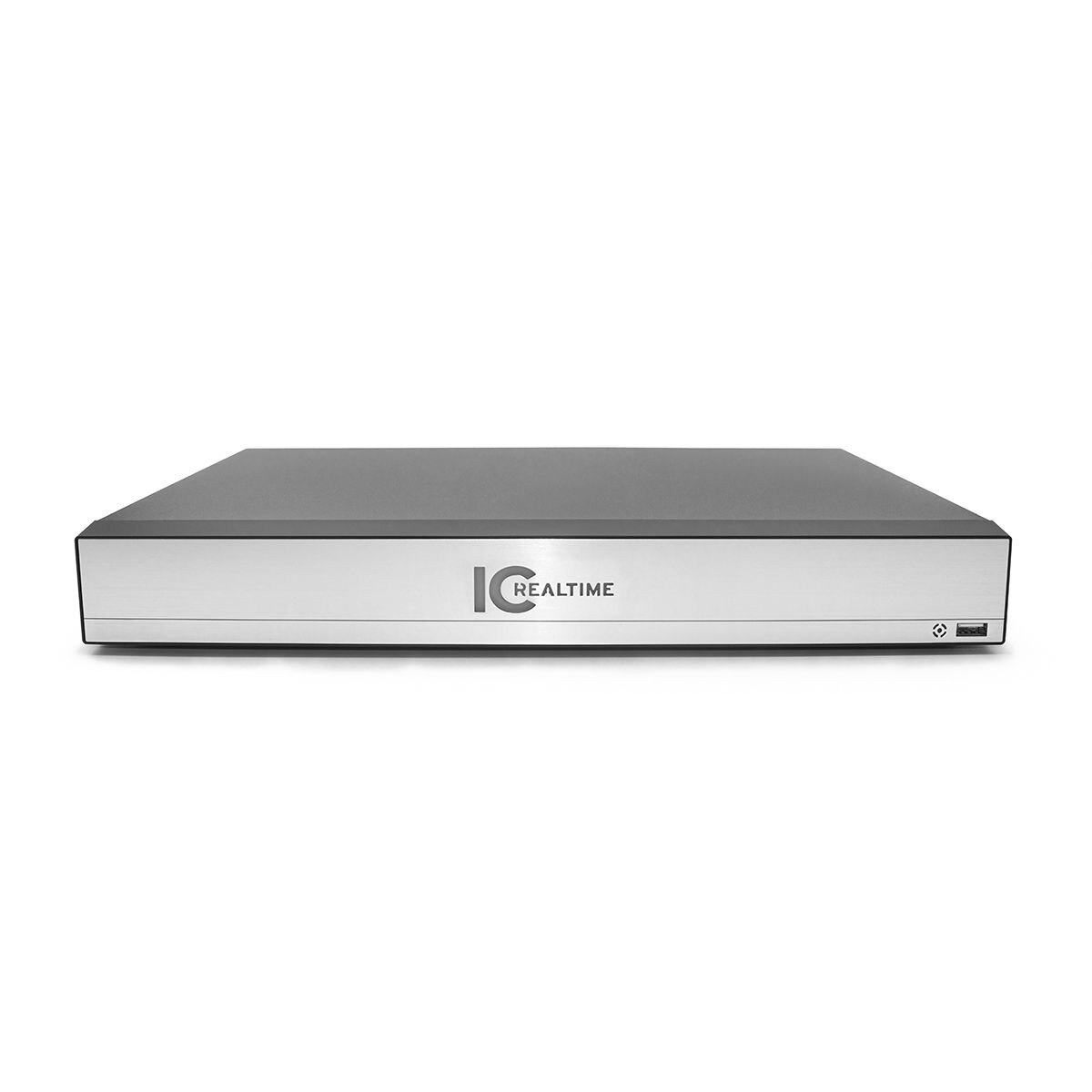

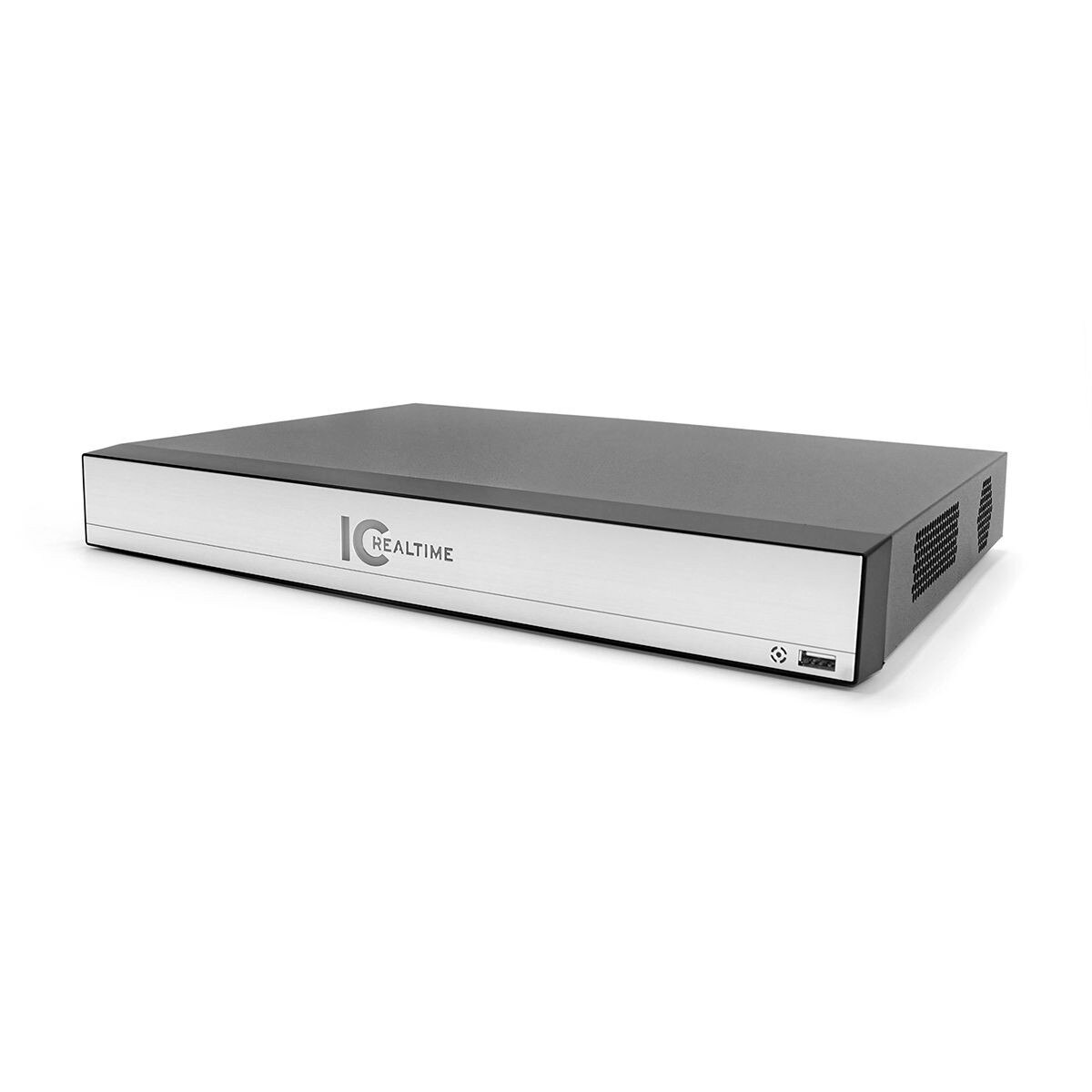

NVR-716MP

(0) No Reviews yet
SKU: NVR-716MP-WEB
ITEM WEIGHT: 20
16 Channel 1.5U NVR - Integrated 16 Port POE Switch - Supports 8MP Resolution - 200Mbps throughput - H.264 / H.265 - up ...
16 Ch | Up to 8MP | 200Mbps Total
4 HDDs

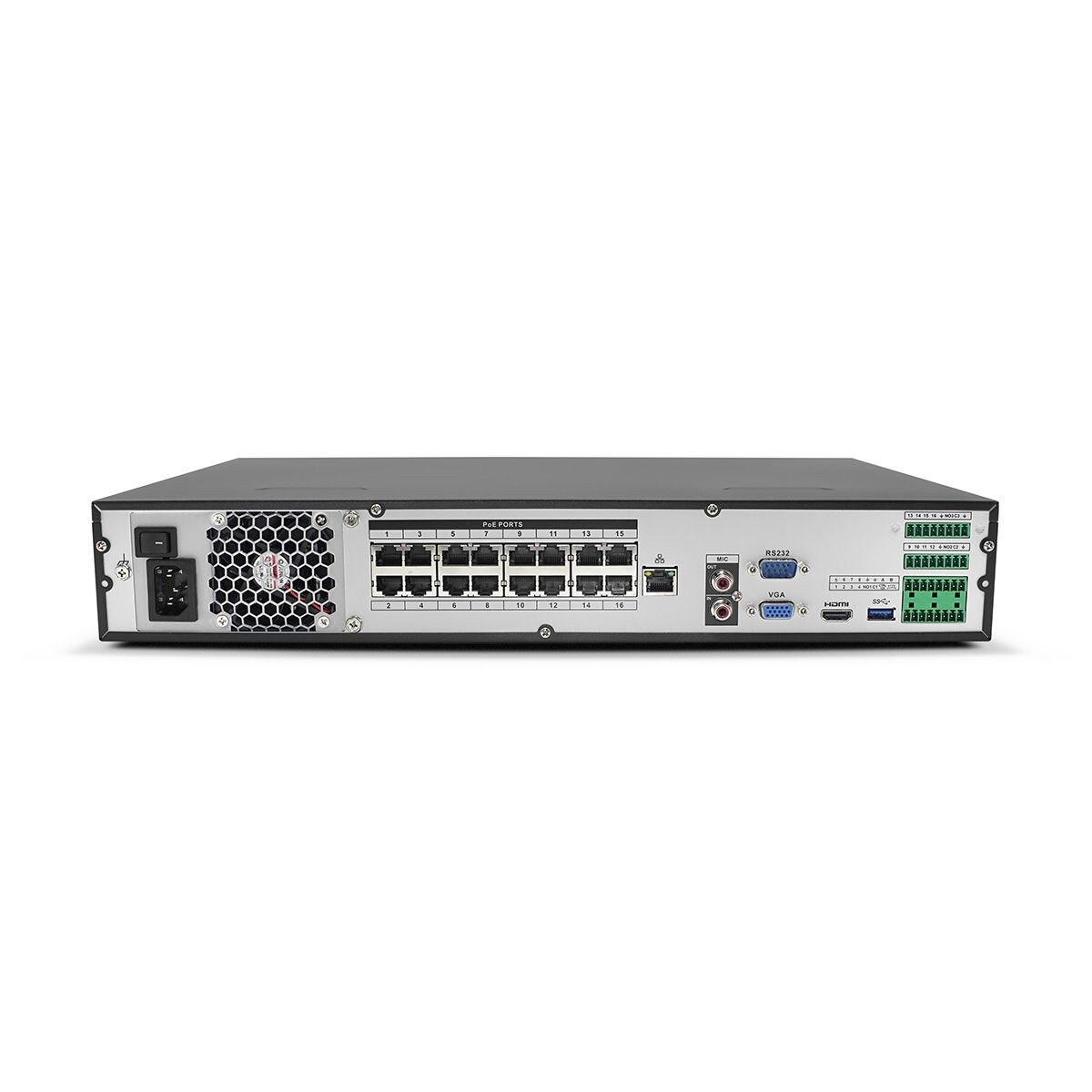

16 PoE (IEEE802.3af/at) | 1 RJ-45 (10/100/1000Mbps)
2 USB | Alarm 16/4 | 1 HDMI / 1 VGA
ONVIF 2.4 CGI Conformant
1.5U | Desktop or Rack Mount

Details

Powerful network surveillance meets plug-and-play functionality. The 700MP series of Network Video Recorders is the top-of-the-line recorder for those who are looking for high resolution recording and built in POE switches. The NVR716MP has 16 channels of recording capability, 16 POE ports , and can manage 200Mbps of total decoding and recording throughput.

Specifications

System
Main Processor: Quad-core embedded processor
Operating System: Embedded LINUX
Display
Display Interface: 1 HDMI, 1 VGA
Display Resolution: HDMI: 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720 VGA: 1920 x 1080, 1280 x 1024, 1280 x 720
Multi-screen Display: 1/4/8/9/16
OSD: Camera title, Time, Camera lock, Motion detection, Recording
HDMI Decoding: 2ch@4K 30fps 8ch@1080P 30fps
Video
IP Camera Input: 16 Channel
Trigger Events: Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering
Playback: 1 / 4 / 9 / 16
Search Mode: Time /Date, MD and Exact Search (accurate to second), Smart search
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode: USB Device/Network
Bit Rate: 16Kbps ~ 20Mbps Per Channel
Audio
Two-way Talk: 1 Channel Input, 1 Channel Output, RCA
Recording
Record Compression: H.265/ H.264
Record Resolution: 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P
Record Rate: 200Mbps
Record Mode: Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
Record Interval: 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Storage
Internal HDD: 4 SATA III Ports, Up to 6 TB capacity for each HDD
HDD Mode: Single
Network
Ethernet: 1 RJ-45 Port(10/100/1000Mbps)
Protocol: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search , Easy4ip
Compatability: Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more
Max. User Access: 128 Users
Smart Phone: iPhone, iPad, Android
Interface
RS232: 1 Port, for PC Communication and Keyboard
RS485: 1 Port, for PTZ Control
USB: 2 ports(1 USB2.0, 1 USB3.0)
Electrical
Power Supply: AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption: NVR: <13.7W (Without HDD), PoE: Max 25.5w for single port, 150w in total
Enviromental
Operating Conditions: -10C ~ +55C (+14F ~ +131F), 86 ~ 106kpa
Storage Conditions: -20C ~ +70C (-4F ~ +158F), 0 ~ 90% RH
Construction
Dimensions: 1.5U, 440mm x 411.1mm x 76mm (17.3" x 16.2" x 3.0")
