NEMABOX-LG-AL

(0)No Reviews yet
SKU: NEMABOX-LG-AL
Jump to Product Specs

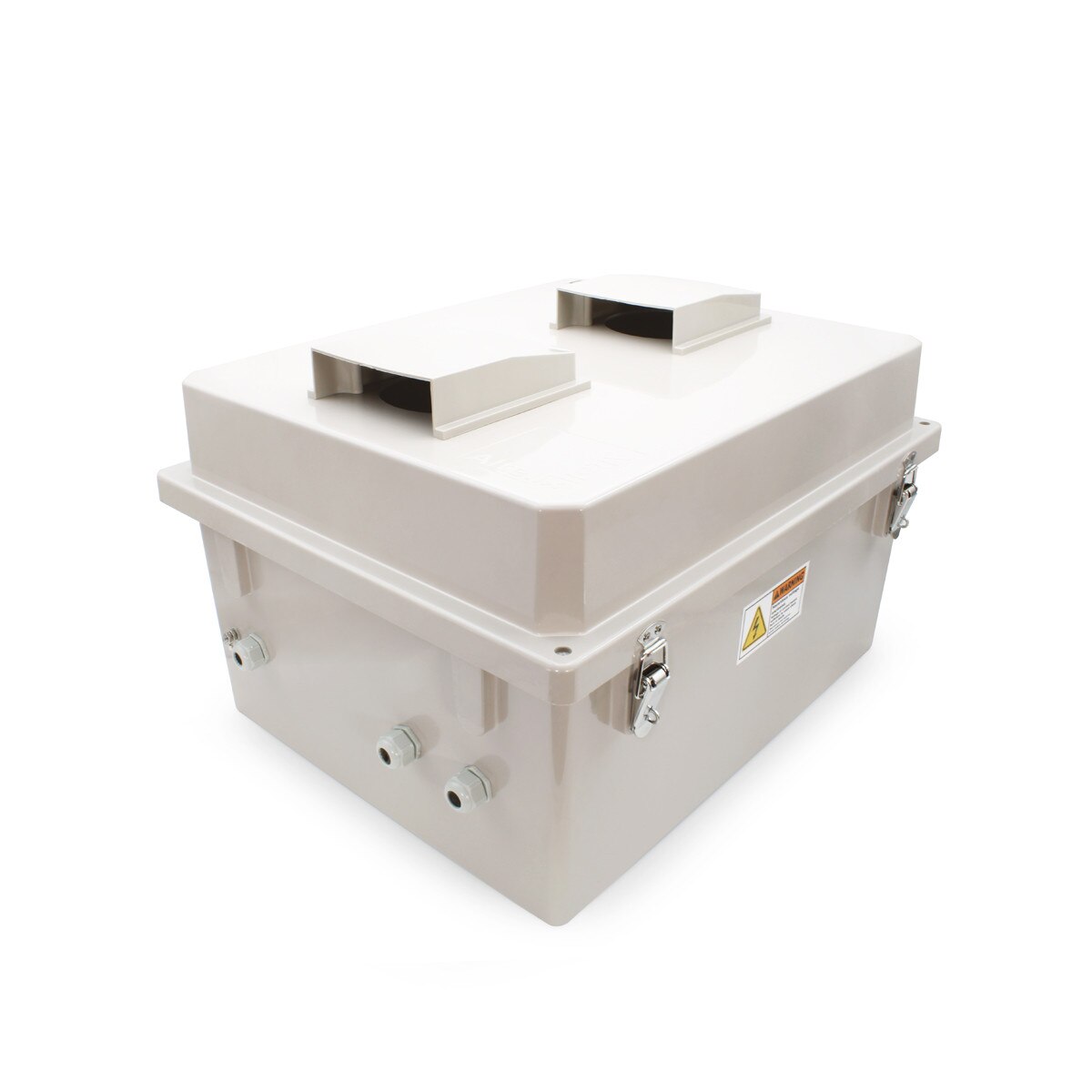

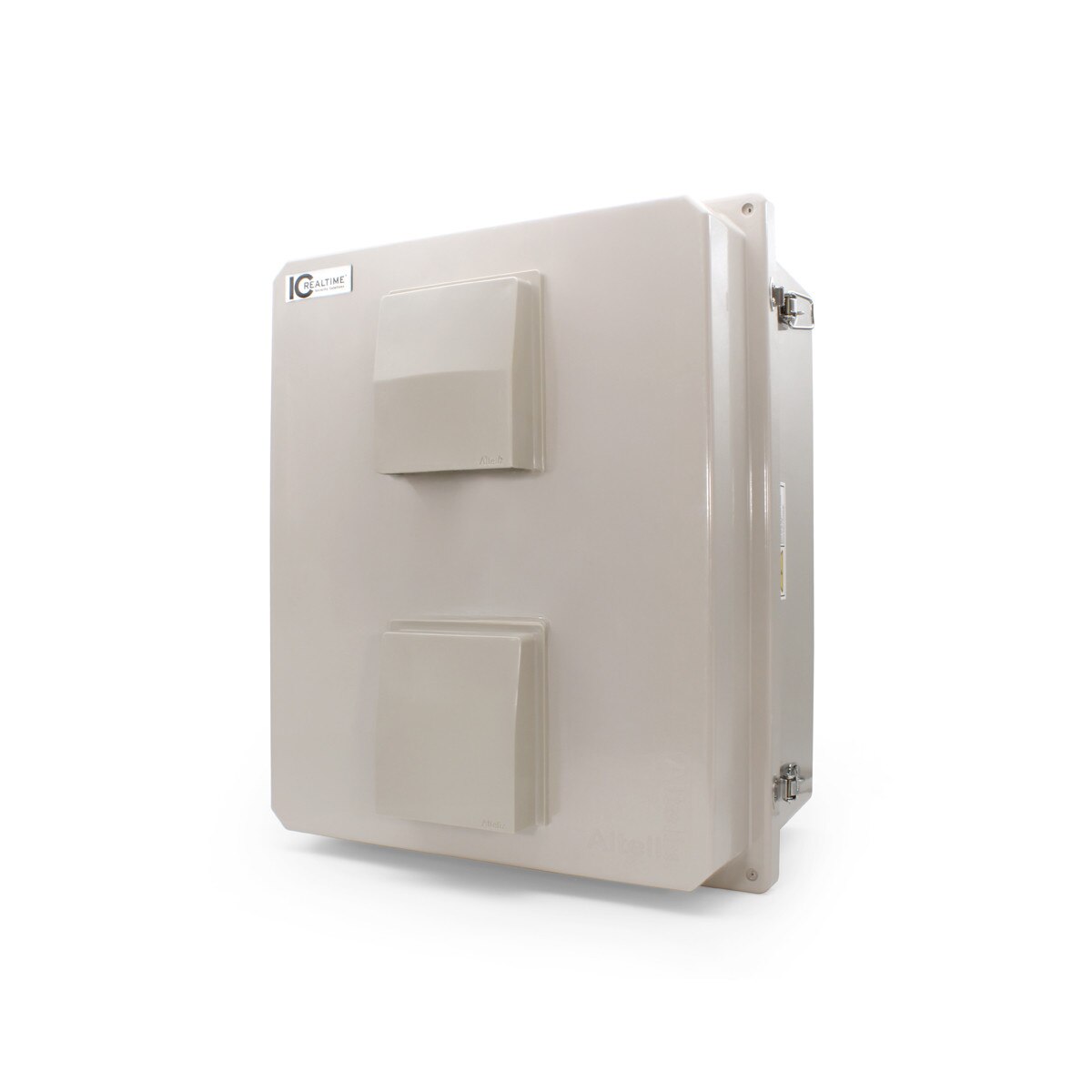

Large NEMA Enclosure with Dual Cooling Fans and Aluminum Mounting Plate

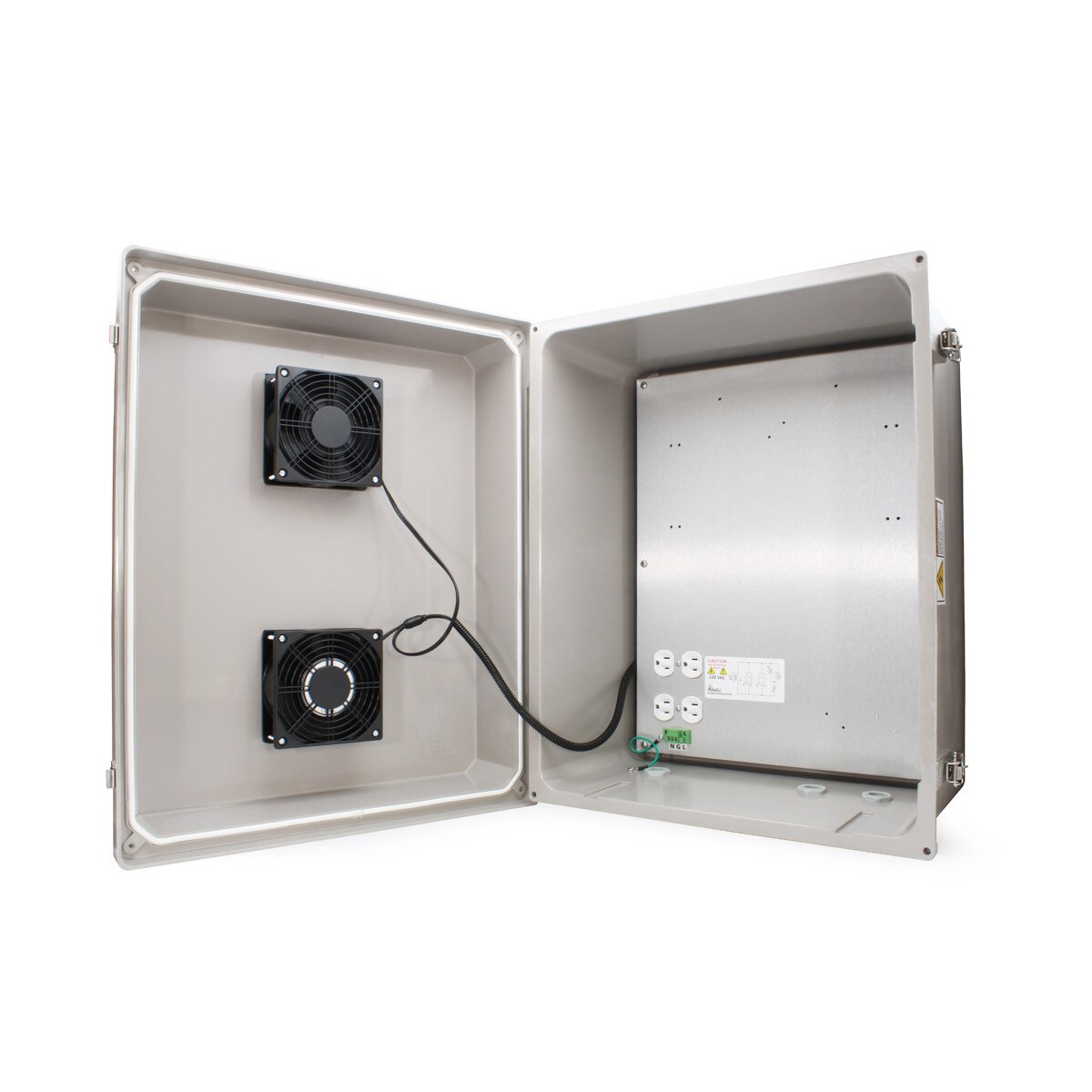

Dual Thermostat-Controlled Fans - Maintains safe internal temps, extends device lifespan
(4) Pre-Wired 120VAC Outlets - Plug-and-play power for recorders, cameras, or PoE equipment
Aluminum Mounting Plate - Easy customization and secure equipment installation
Extra Deep Lid - Increased clearance for bulky recorders or networking gear

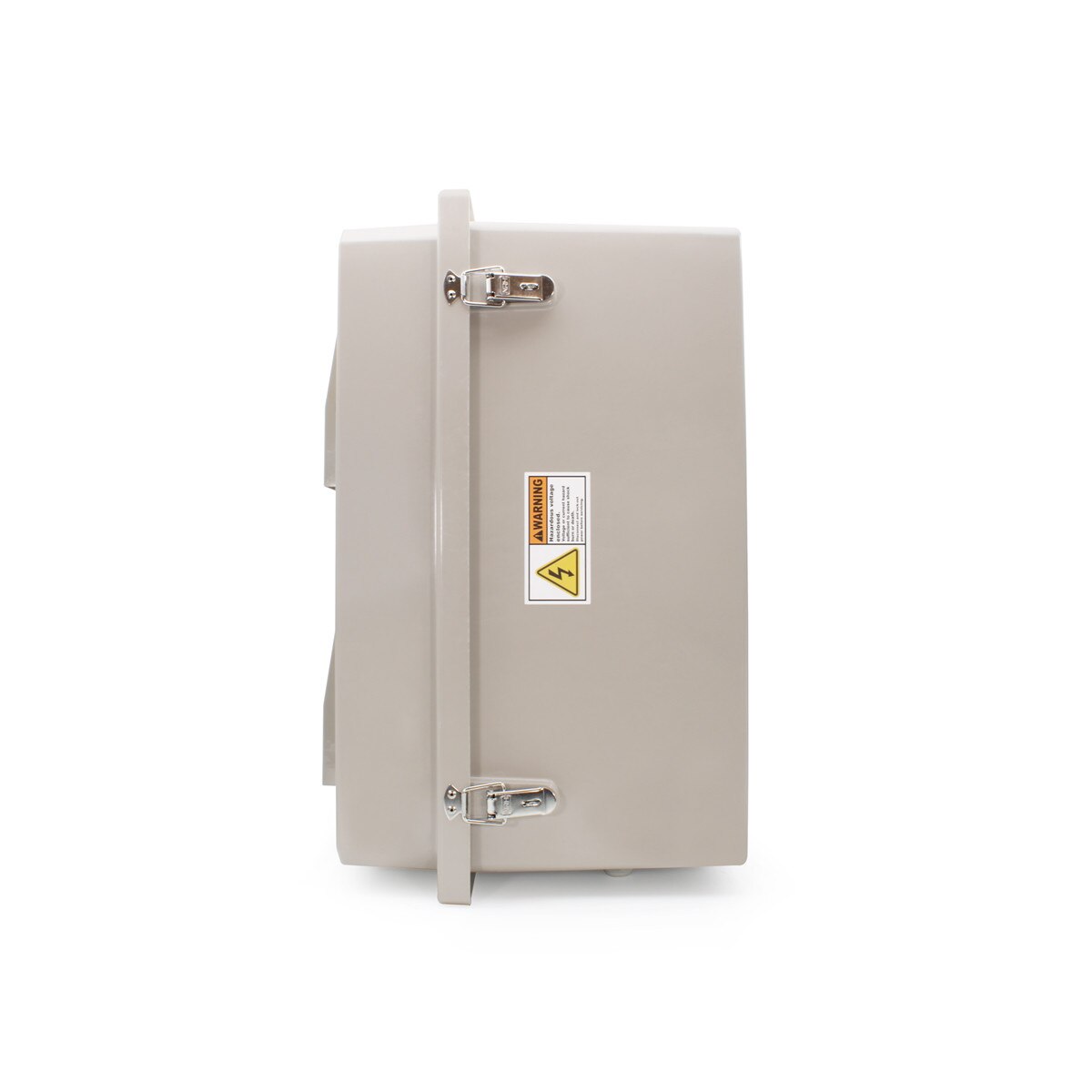

316 Stainless Hinges + Quick Release Latches - Corrosion-resistant and padlock ready

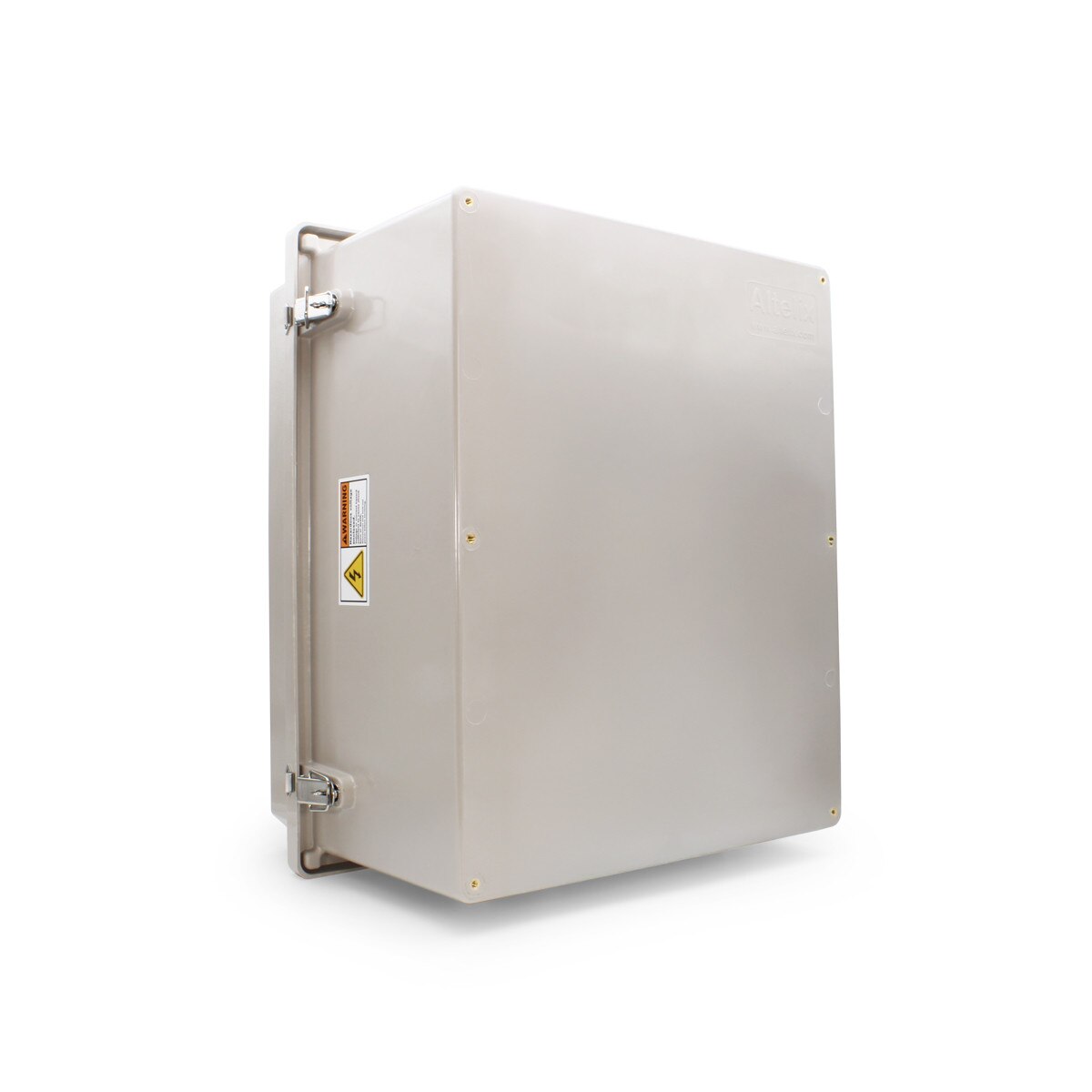

Fiberglass Reinforced Polyester (FRP) Housing - UV-stable, dent-proof, and RF-transparent
Back

Details

Product Description

NEMABOX-LG-AL

Rugged outdoor enclosure for recorders, networking devices, and power components. Pre-wired outlets, dual cooling fans, and extra interior clearance streamline demanding surveillance installs.

Overview

The NEMABOX-LG-AL protects critical equipment in all weather with active cooling and ample space for bulky gear. It’s built for integrators who need reliability without the custom-build headache.

Purpose

Replace ad-hoc housings with a plug-and-play enclosure that adds thermostat-controlled airflow, pre-wired power, and long-term durability—cutting install time and heat-related callbacks.

Key Benefits

  • All-weather protection for mission-critical recorders and network gear
  • Faster installs via pre-wired outlets and quick-connect terminal block
  • Dual thermostat-controlled fans help extend equipment life
  • Secure, serviceable access: stainless quick-release latches with padlock hasps

Quick Specs

Material
Fiberglass Reinforced Polyester (FRP)
Voltage
120VAC, Max Load 15A
Cooling Fans
On 100°F (38°C), Off 79°F (26°C)
Outer Dimensions
21.8 × 17.9 × 14.3 in (553 × 454 × 363 mm)
Inner Dimensions
18.7 × 14.7 × 9.5 in (475 × 374 × 241 mm)
Mounting Plate
0.08 in (2.0 mm) Aluminum, 18.7 × 14.8 in (475 × 378 mm)
Weight
20.6 lbs (9.3 kg)
Terminal Block
12–18 AWG
Rating
NEMA Type 3R, 3RX / IP24
Flame Rating
UL94-5V

Datasheet: DS-NEMABOX-LG-AL

Applications

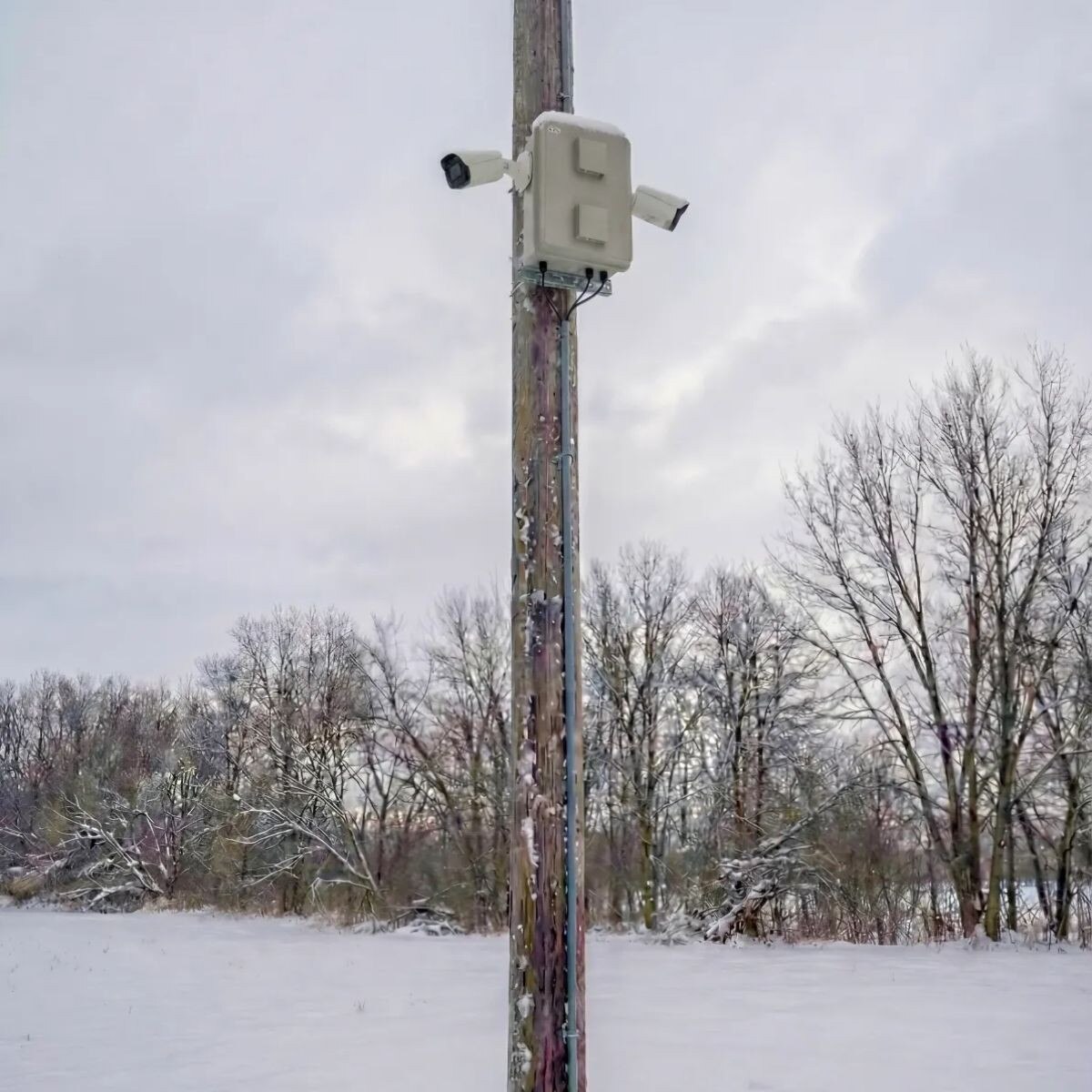

  • Outdoor recorder/NVR housing

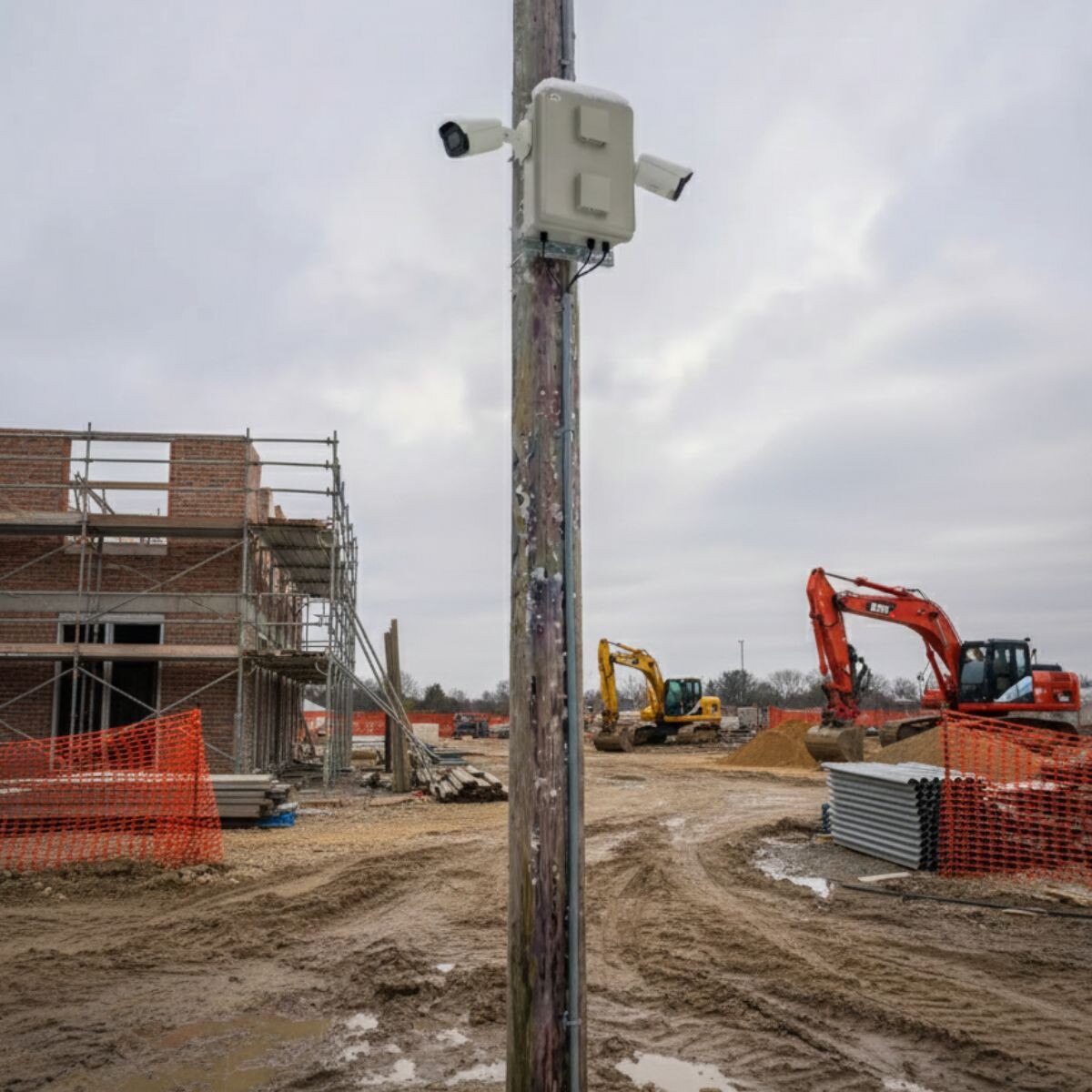

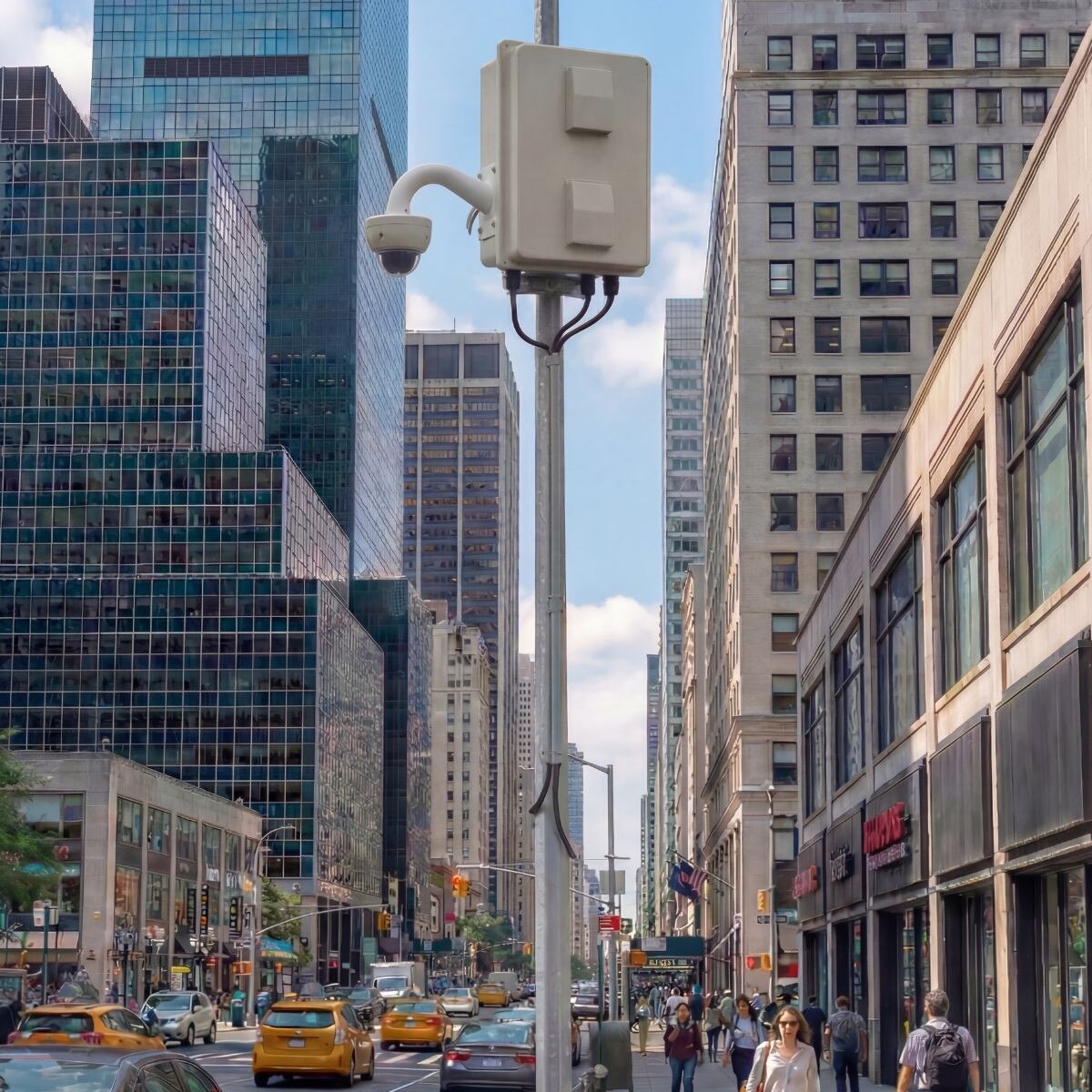

  • Power & cooling hub for surveillance installations
  • Protection for networking/PoE gear
  • Smart home & AV control in harsh environments

FAQ

What does this NEMA box do?

It houses and protects surveillance or networking equipment outdoors, with built-in cooling and power distribution.

Why would I need this enclosure?

To keep sensitive gear safe from heat, rain, and corrosion while simplifying power and mounting.

Can it be used in different setups?

Yes—supports recorders, cameras, PoE switches, and wireless gear across multiple deployment types.

Does it come with hardware?

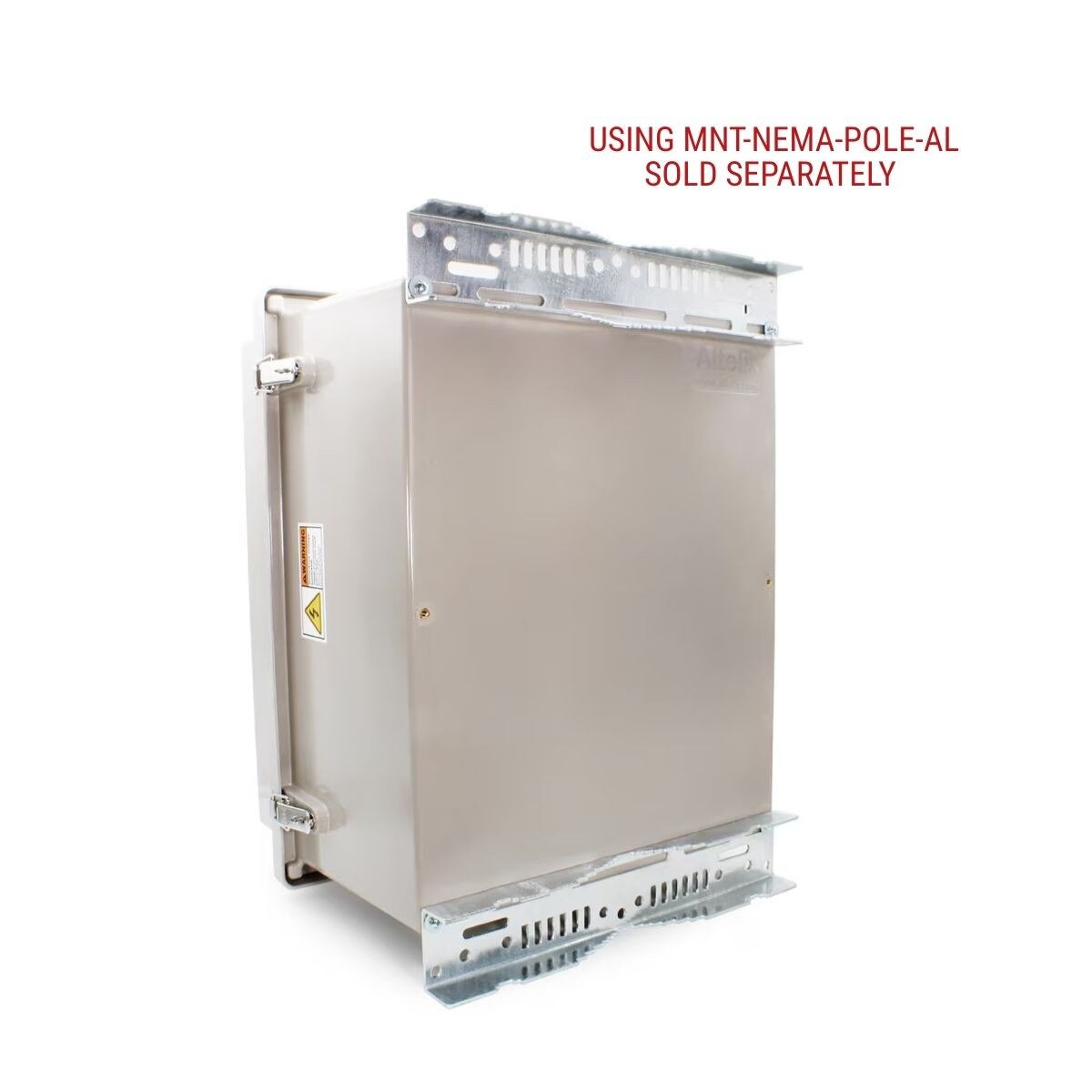

Yes—includes cable glands, mounting feet, and pre-wired AC outlets. Pole-mount kits are available separately.

Is it universal?

Yes—RF-transparent FRP design is compatible with wired and wireless equipment.

What are the main benefits?

Reliability, faster installs, built-in power, and active cooling for long-term stability.

Back

Specifications

Electrical
Power Supply: 120 VAC
Environmental
Ingress Protection: NEMA Type 3R, 3RX/ IP24
Construction
Casing: Fiberglass Reinforced Polyester
Dimensions: 21.8 x 17.9 x 14.3 inches (55.3 x 45.4 x 36.6cm)
