NEMA BOX LG

(0) No Reviews yet
SKU: NEMA BOX LG
ITEM WEIGHT: 30
Fan Cooled Nema Encosure, FRP 18x16x8" w/120VAC

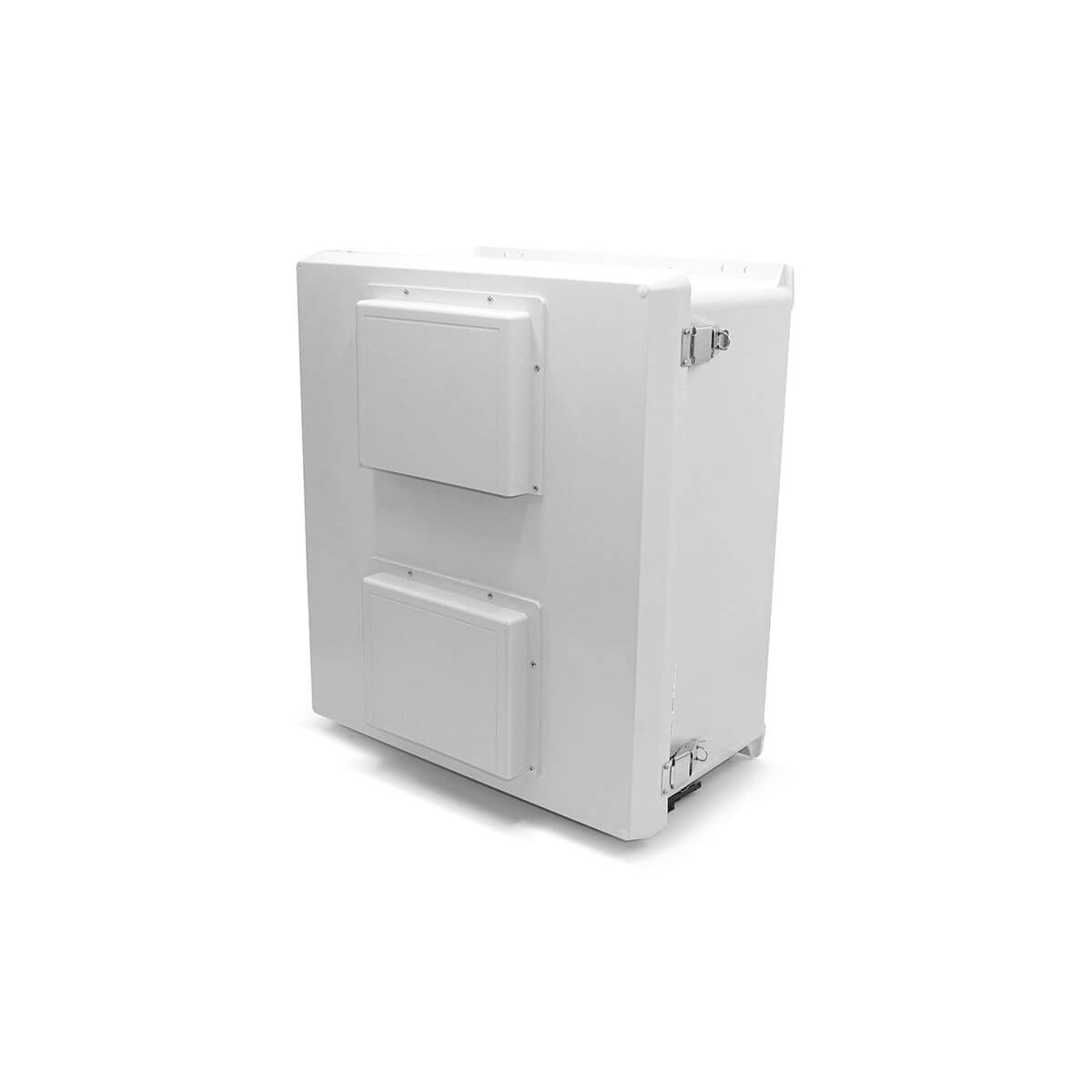

Molded Fiberglass Reinforced Polyester (FRP) industrial Enclosure
NEMA Type 3R, 3RX / IP24 rated
Custom housing for various IC Realtime Recorders and Cameras

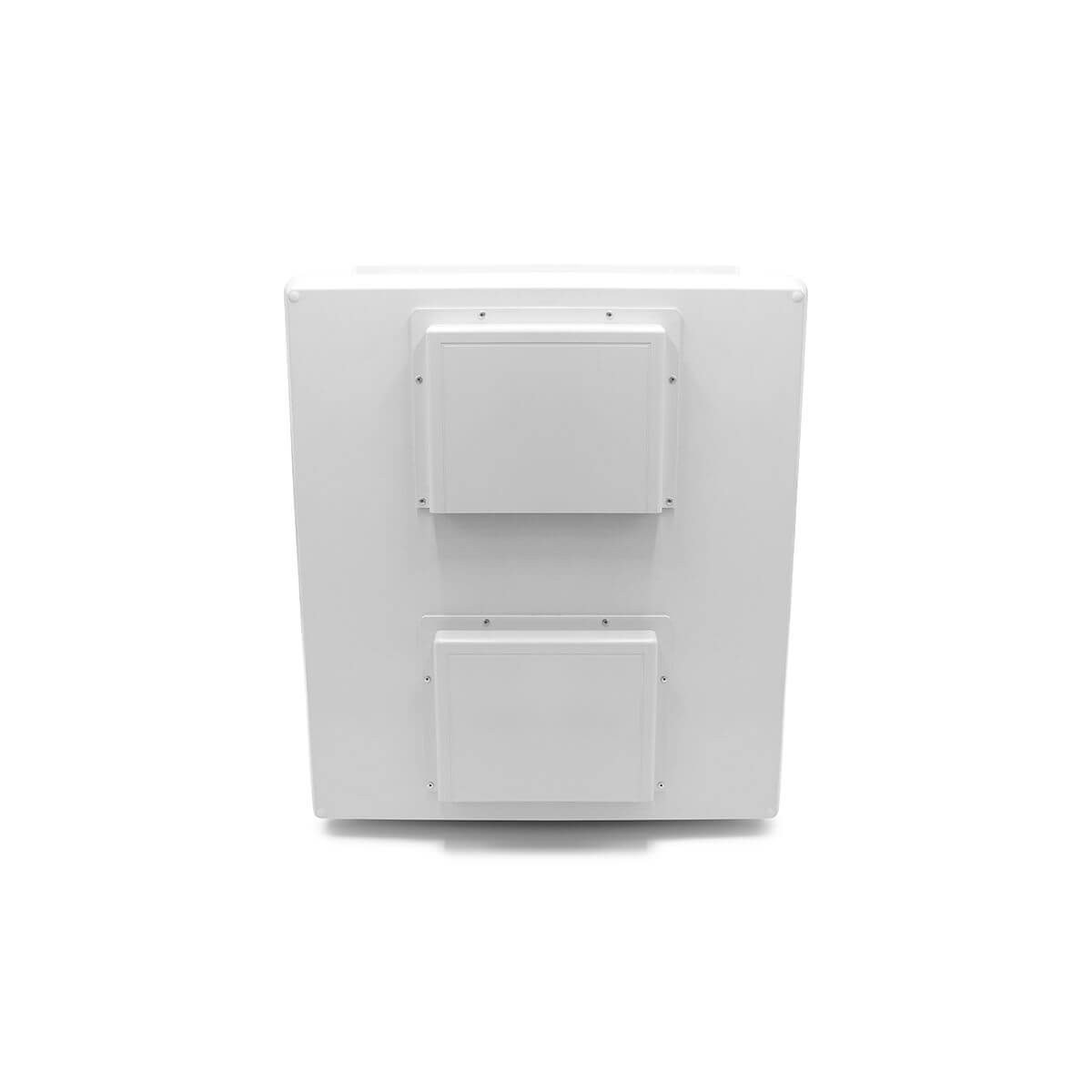

Fully gasketed raised Vented lid with removable filters & integral mounting flange
Aluminum mounting plate with surge protected duplex 120 VAC outlets
Solid State Fan Controller
*Special Order. Please contact IC Realtime for pricing and availability.

Details

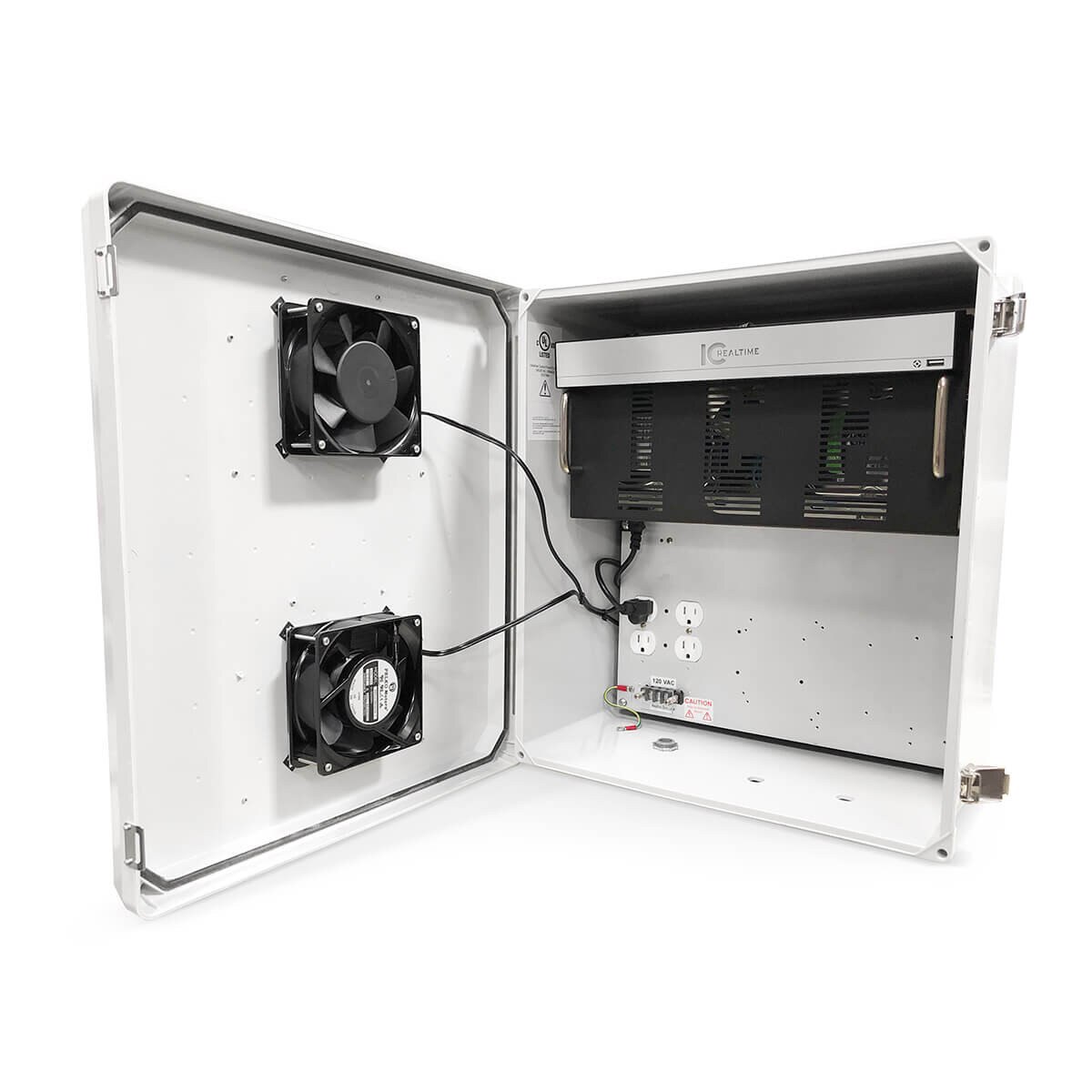

The NEMA BOX LG is fully customizable housing used with various IC Realtime recorders and cameras for the most demanding outdoor applications. Constructed from molded fiberglass reinforced polyester, the enclosure is a rugged weatherproof design that is well suited for wide temperature extremes or installations subjected to hard rain or heat. Inside the box is a large aluminum mounting plate with four 120 VAC outlets to power internal devices as well as the dual Solid State Controlled Cooling Fans.

Combined with your choice of IC Realtime cameras and recorders, the NEMA Box LG is a fully weatherproof and vandal proof self-contained device with all required components (cooler, network equipment, power supply, UPS , and LCD monitor).

Specifications

Electrical
Power Supply: 120 VAC
Enviromental
Ingress Protection: NEMA Type 3R, 3RX/ IP24
Construction
Casing: Fiberglass Reinforced Polyester
Dimensions: 19.5 x 17.5 x 10 inches(49.5 x 44.4 x 25.4cm)
