MNT-REC2-V2
Details
Product Description

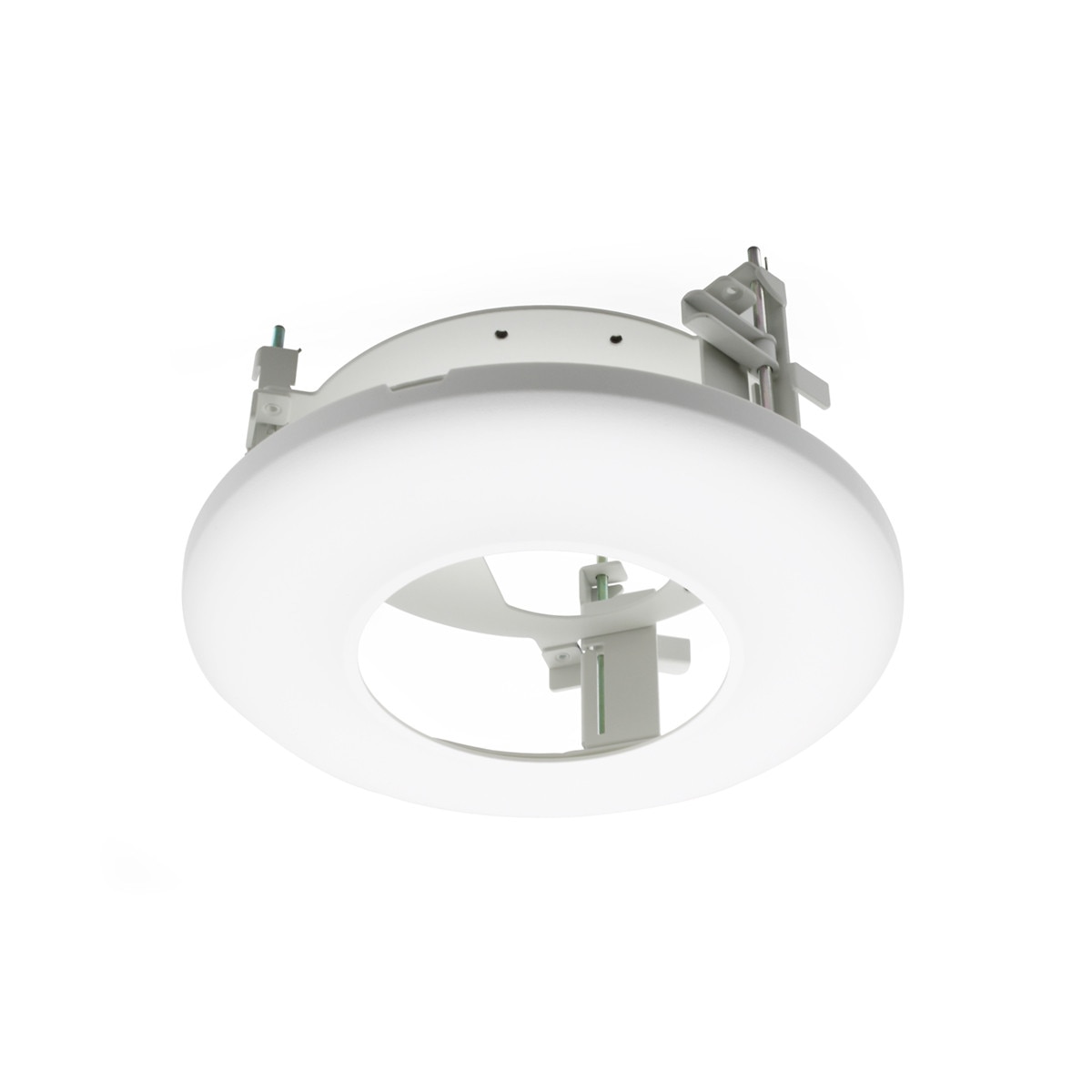

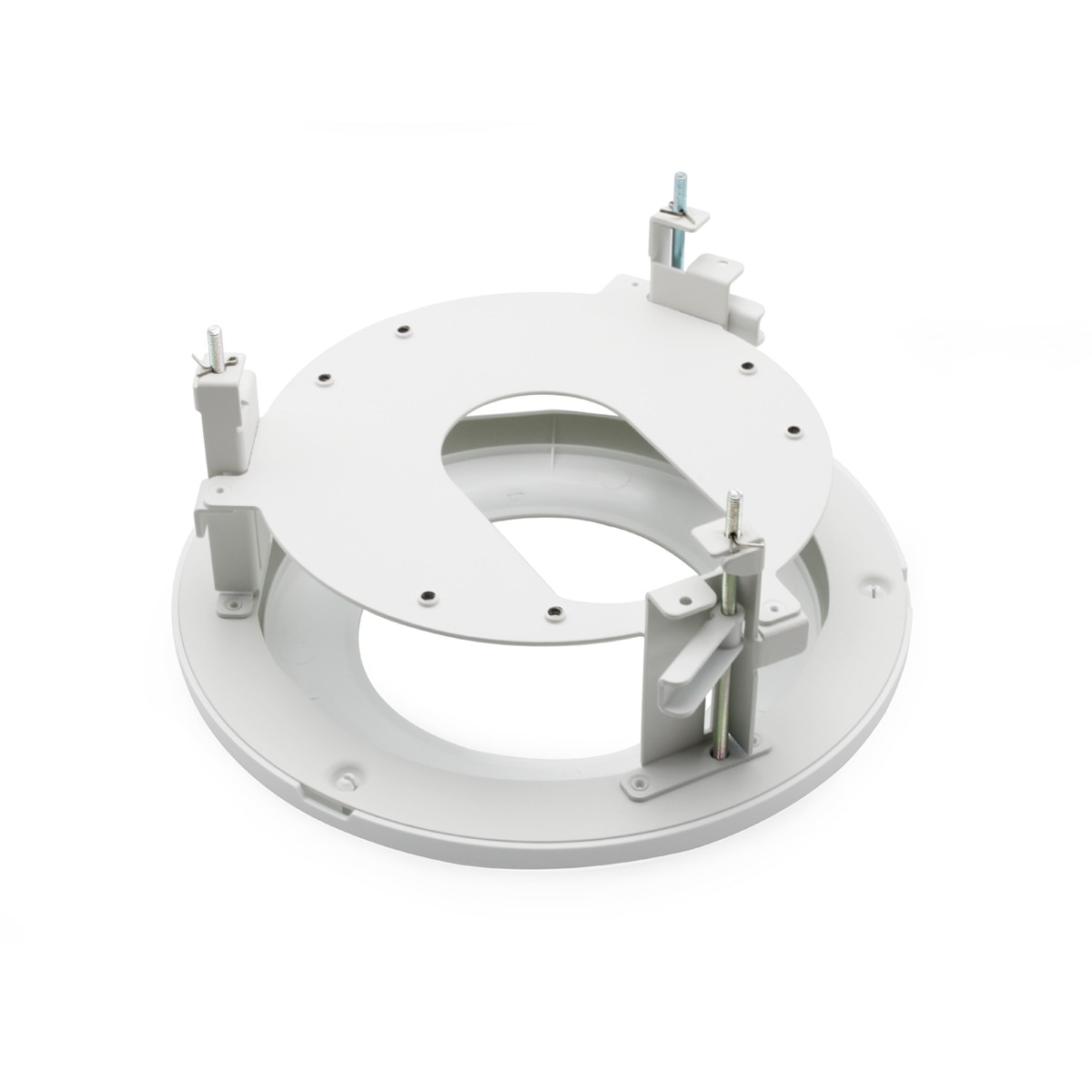

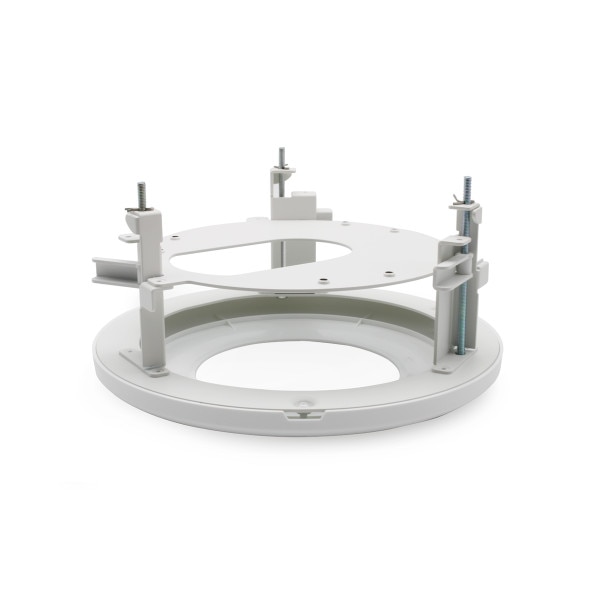

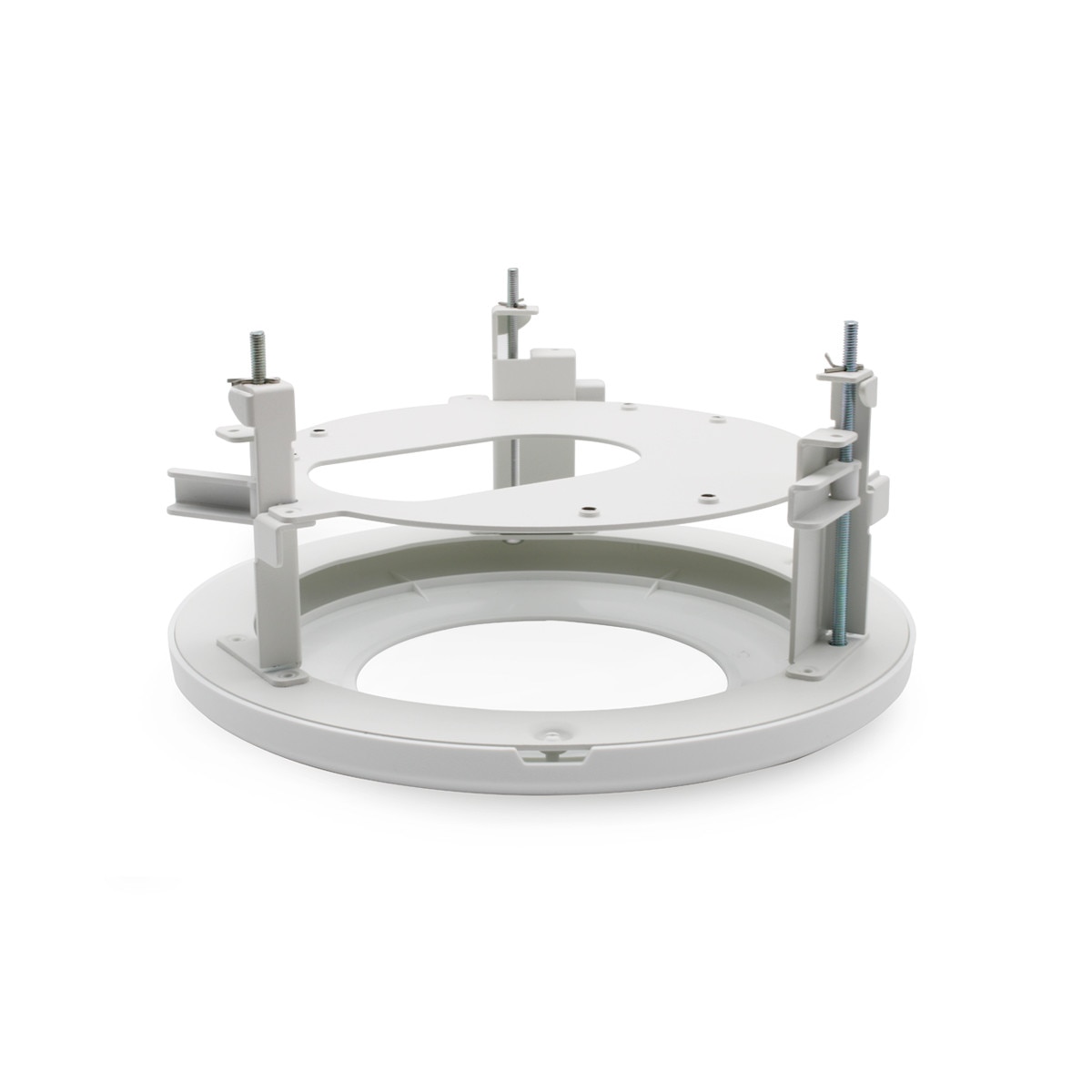

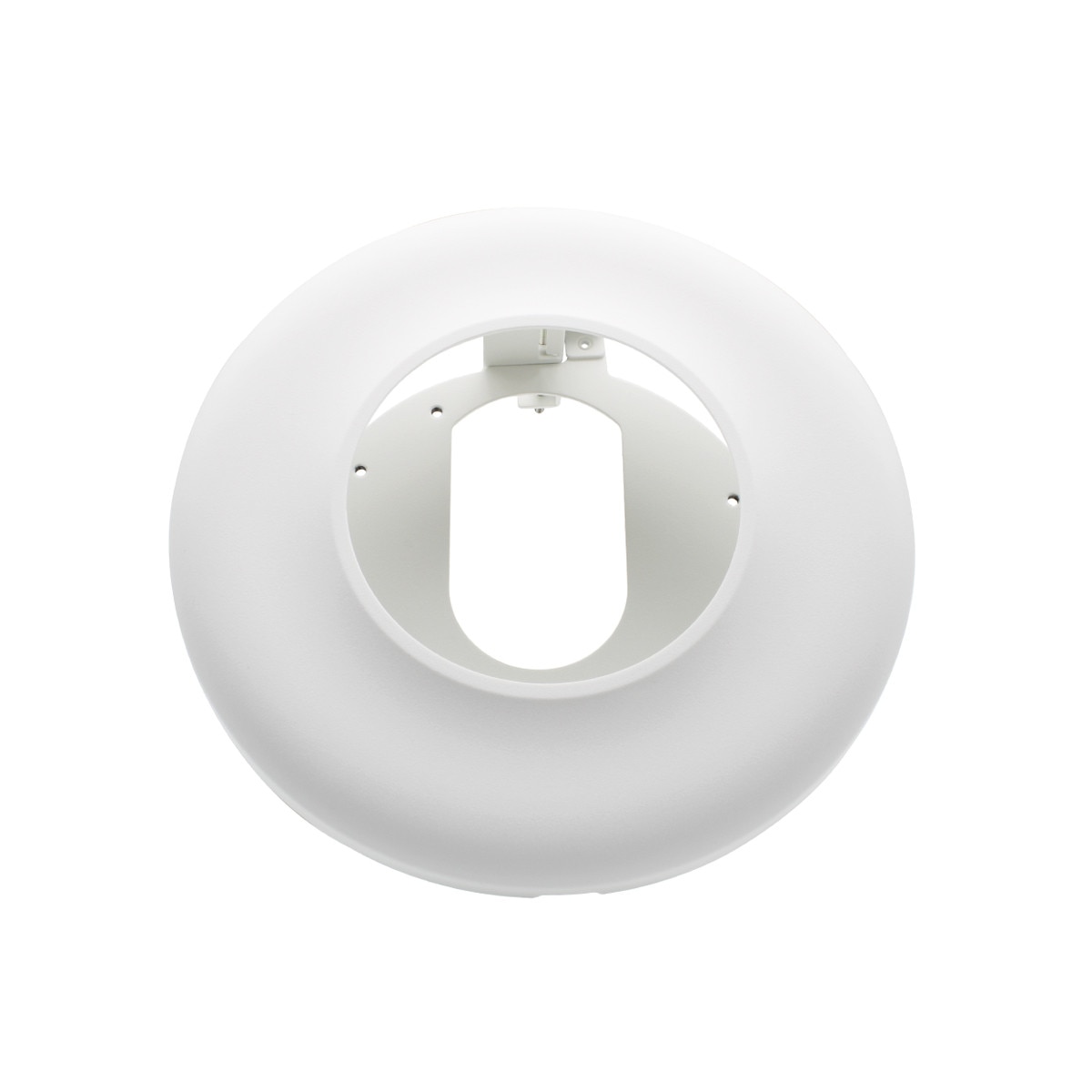

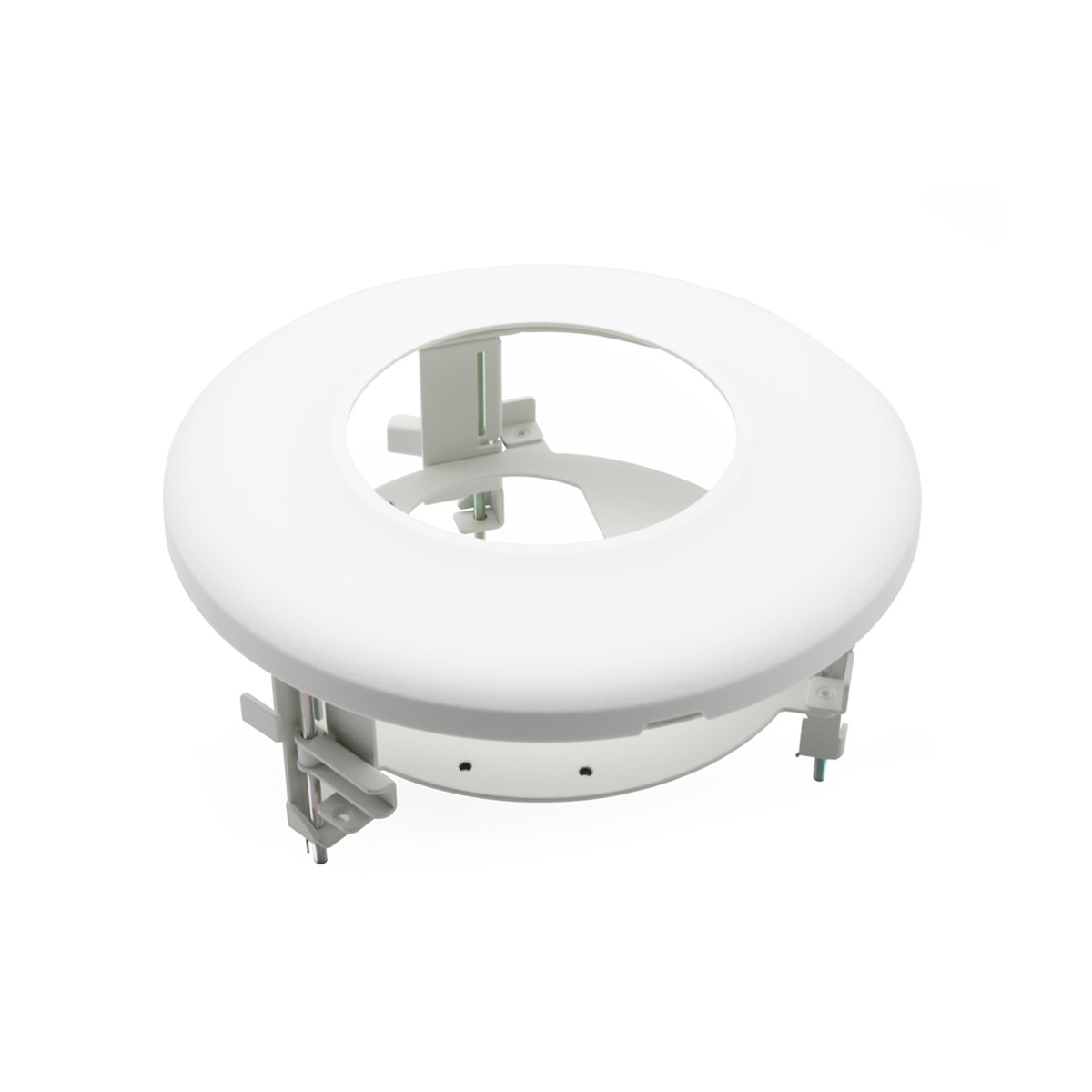

MNT-REC2-V2 — Recessed Ceiling Mount for Large Dome Cameras
Recessed ceiling mount bracket for large dome cameras. Designed for strength, clean aesthetics, and easy maintenance in commercial or residential environments.
Overview
The MNT-REC2-V2 is built for large dome cameras, blending them into ceilings with a discreet in-ceiling design. It offers durability, a higher load capacity, and simplified disassembly for maintenance.
Purpose
Integrators choose this mount for environments requiring concealed, strong, and service-friendly dome installations.
Key Benefits
- Clean recessed appearance for large dome cameras
- Supports up to 6.61 lb (3.0 kg) for heavier domes
- Easy disassembly simplifies service and adjustments
- Reliable in wide temperature and humidity ranges
Quick Specs
Material
SECC & PC
Dimensions
Ø8.33" × 4.32" (Ø211.5 × 109.7 mm)
Weight
1.21 lb (0.55 kg)
Load Bearing
6.61 lb (3.0 kg)
Color
White
Operating Temp
-40°F ~ 140°F (-40°C ~ 60°C)
Humidity
< 90% RH
Package Contents
Bracket, 3 × M4 screws, S3.0 wrench, Install guide
Applications
- In-ceiling installs for large dome cameras
- Retail, office, and hospitality spaces
- Discreet residential security setups
- Retrofit and new ceiling construction
FAQ
What cameras fit this mount?
Large-size dome cameras (see compatibility list).
Why recessed mounting?
For a clean, low-profile appearance that hides hardware.
What’s the load rating?
Supports up to 6.61 lb (3.0 kg).
Is hardware included?
Yes — bracket, screws, wrench, and guide are included.
What environments is it rated for?
Operates -40°F to 140°F, <90% humidity.
Specifications
| Environmental | |
| Operating Conditions: | -40°F~140°F (40ºC~60ºC) |
| Operating Humidity: | 0~90% RH |
| Construction | |
| Casing: | SECC & PC |
| Dimensions: | 8.33”x4.32” (211.5 mm × 109.7 mm) |
| Gross Weight: | 1.83 lb (0.83 kg) |
| Mounting Pan/Tilt/Rotation: | Pan: 0° to 360° |
