MNT-JUNCTIONBOX-8-B
Details

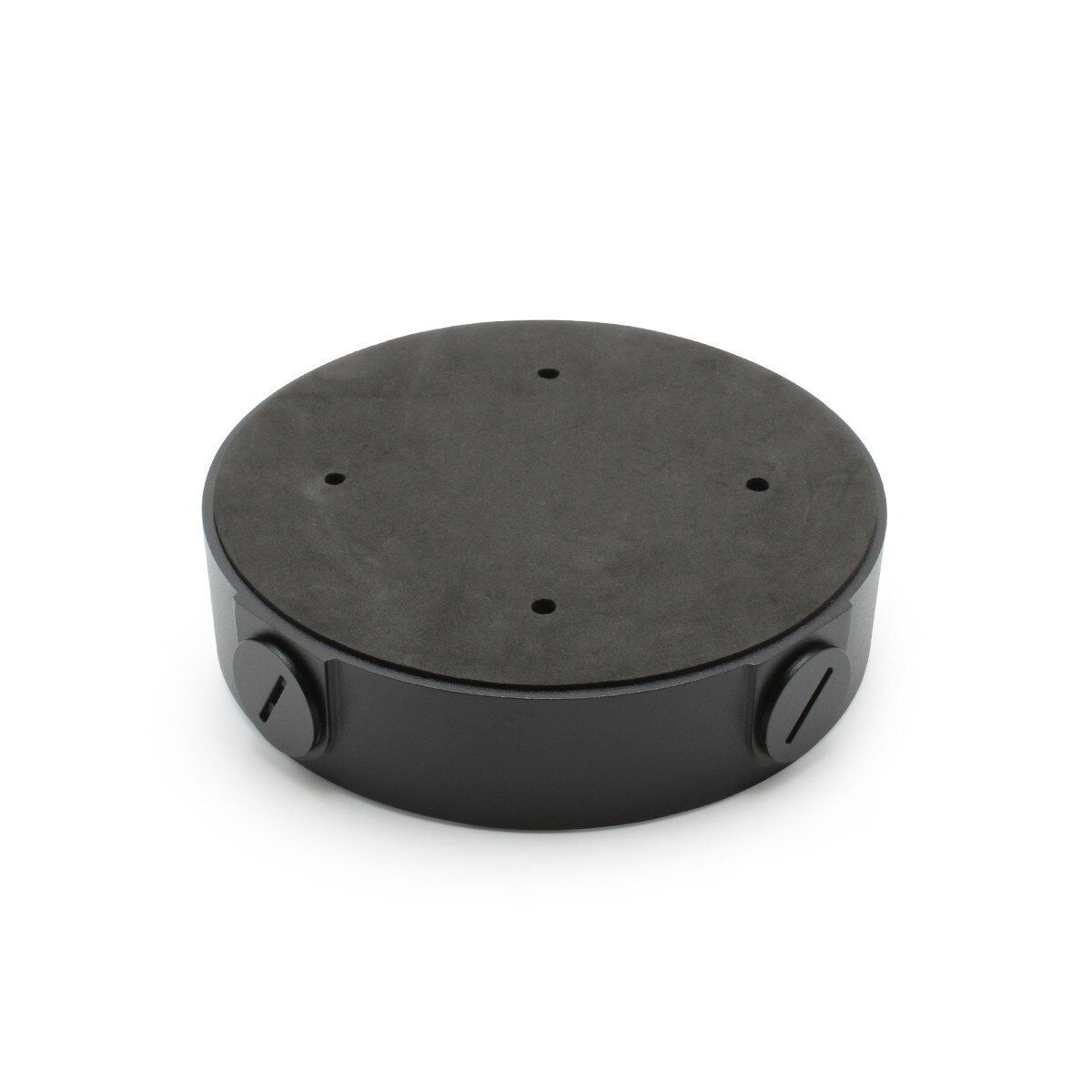

MNT-JUNCTIONBOX-8-B is one of those useful camera accessories that does exactly what a camera pro needs - it makes camera installation start quicker, go smoothly & end in record time. MNT-JB8 fits multiple IC Realtime medium size black dome cameras and - like all our junction boxes that fit Factory Black cameras - MNT-JB8 has a camera-matched black finish so it appears as part of the camera base once installed.
While some of our junction boxes are intended only for indoor use, MNT-JB8 is weatherproof when correctly installed, making it suitable for installation either indoors or outdoors. The wall contact bottom of the cast metal base is covered by a base gasket and has a rear center thru-wall conduit connection access for surface attachment, and two side-mounted ¾” threaded NPT ports with removable weather-tight caps for surface conduit installation.
The MNT-JUNCTIONBOX-8-B camera contact top has camera base mounting holes that are pre-drilled to accommodate a wide variety of 3-hole-based IC Realtime medium-size dome cameras, and MNT-JB8’s Factory Black exterior is painted on the same production line as the Factory Black cameras to exactly match any attached Factory Black finish medium dome cameras.
MNT-JUNCTIONBOX-8-B is 6.34”x1.46” (161mm x 37mm ) meaning although it is low profile, there is plenty of room inside for your weather-sealed camera pigtail connections. Shipped ready for installation, this junction box comes with mounting hardware and a camera base gasket in the box.
So the next time your job calls for an IC Realtime medium-sized black dome or eyeball camera, be sure to add the MNT-JUNCTIONBOX-8-B for each to ensure a quick & easy installation.
While some of our junction boxes are intended only for indoor use, MNT-JB8 is weatherproof when correctly installed, making it suitable for installation either indoors or outdoors. The wall contact bottom of the cast metal base is covered by a base gasket and has a rear center thru-wall conduit connection access for surface attachment, and two side-mounted ¾” threaded NPT ports with removable weather-tight caps for surface conduit installation.
The MNT-JUNCTIONBOX-8-B camera contact top has camera base mounting holes that are pre-drilled to accommodate a wide variety of 3-hole-based IC Realtime medium-size dome cameras, and MNT-JB8’s Factory Black exterior is painted on the same production line as the Factory Black cameras to exactly match any attached Factory Black finish medium dome cameras.
MNT-JUNCTIONBOX-8-B is 6.34”x1.46” (161mm x 37mm ) meaning although it is low profile, there is plenty of room inside for your weather-sealed camera pigtail connections. Shipped ready for installation, this junction box comes with mounting hardware and a camera base gasket in the box.
So the next time your job calls for an IC Realtime medium-sized black dome or eyeball camera, be sure to add the MNT-JUNCTIONBOX-8-B for each to ensure a quick & easy installation.
