IPVMX-E40F-W1-LED
Details

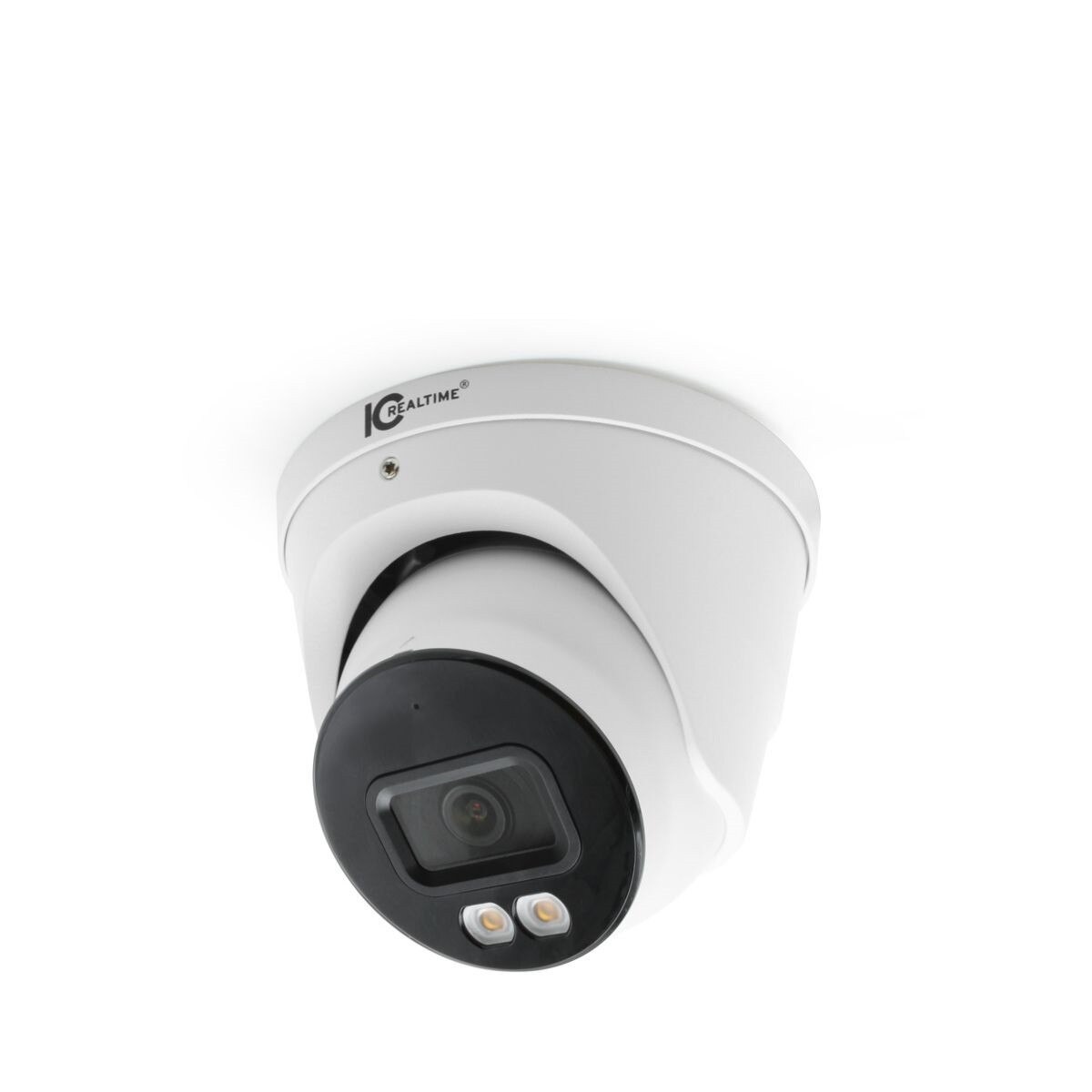

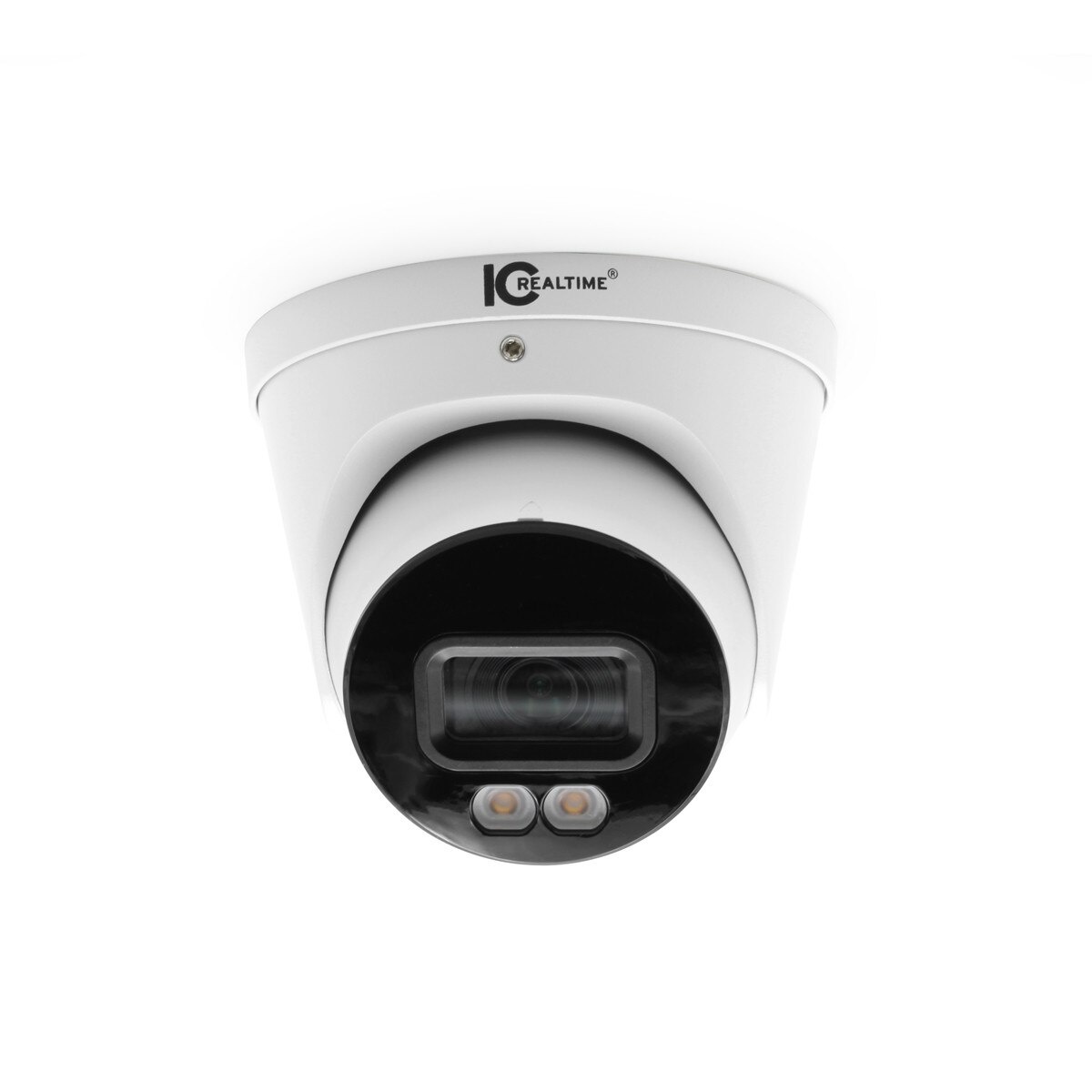

IC Realtime's latest eyeball camera is something special. This eyeball dome camera it’s built to stay in full color 24/7. Our new IPVMX-E40F-W1-LED starts with an extraordinary 4MP QHD Starlight sensor that can still see in color at light levels 3x darker than a moonless night. Then we add a special wide angle “warm white” LEDs and our new wide aperture 2.8mm lens with a 103° wide FOV. This combination results in 4MP (2688 × 1520) full-color night vision. For NVR-based or advanced “eyes & ears” for VMS systems, this eyeball dome is among the world’s best fixed-focus 24/7 color cameras.
ALL THE COLOR - ALL THE TIME
IPVMX-E40F-W1-LED features an ultra-sensitive Starlight chipset that stays in color mode . It dependably streams in color down to 0.003 lux of ambient light. Below that - since dim natural light at night blurs color to gray - this eyeball dome adds just enough "warm white" light in complete darkness to see colors accurately. Its dual LEDs flood the camera's FOV with what looks to human eyes like a gentle glow. But that light wash of full-spectrum photons is enough to let the camera's large-aperture lens and 4MP Starlight chip resolve full-color video out to 90+ feet. IPVMX-E40F-W1-LED streams its F.O.V. in both full color and 4MP QHD clarity, 24/7.
OUR MOST UNIVERSAL CAMERA DESIGN

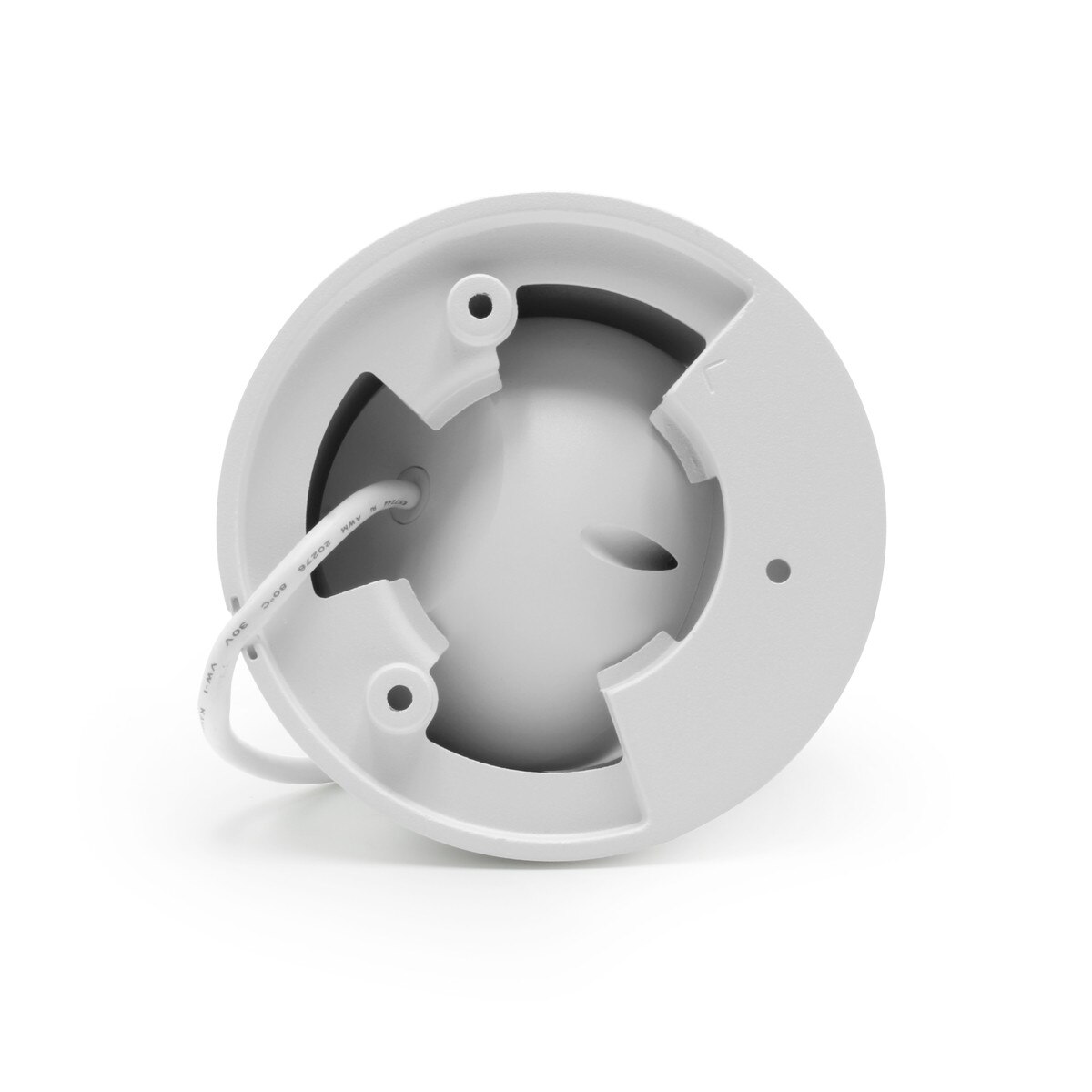

Turret or eyeball IP cameras offer the perfect blend of easy installation and FOV aiming found in bullet cameras, coupled with the low-profile damage & weather resistance of dome cameras. Encased within a sealed, cast metal IP67-rated "camball," the IPVMX-E40F-W1-LED's imaging core is safeguarded. This unique design allows for a 360° rotation and 0°–78° tilt, mounted on its sturdy 4.8" round cast metal base. Its unparalleled flexibility and durability have made it a top choice for swift and hassle-free installations on any mounting surface.
MAX COLOR + MAX FEATURES
The IPVMX-E40F-W1-LED embodies the Max Series design goals. It’s a professional-grade, dependable video security solution that's remarkably easy to install. The camera fuses IC Realtime's renowned video excellence with cutting-edge AI detection & image management The IPVMX-E40F-W1-LED offers a 120dB Wide Dynamic Range for sharp edge and detail delineation, customizable controls for BLC, WB, rotation, and mirror-image settings. This camera incorporates 3D Digital Noise Reduction for cleaner video frames. It has three resolution & frame rate adjustable streams, along with Smart H.265+/Smart H.264+ stream compression codecs. Furthermore, it is Profile G/S/T ONVIF compliant, equipped with an internal 256GB mSD slot, and can be powered via POE at under 9 watts or locally with 12VDC power.
Specifications
| Camera | |
| Image Sensor: | 1/1.8” 4 Megapixel progressive scan CMOS |
| Effective Pixels: | 2688(H) x 1520(V) 4 Megapixels |
| RAM/Rom: | 128MB/ 512MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.002 Lux@F1.6 |
| Illumination Distance: | 131.2 ft (Distance up to 40 m) |
| Illumination On/Off Control: | Auto/ Manual |
| Illumination LEDs: | 2 |
| Camera Illumination Type: | White Light |
| Lens | |
| Lens Type: | Fixed |
| Mount Type: | Board-in |
| Focal Length: | 2.8mm |
| Max. Aperture: | F1.6 |
| Angle of View: | H: 113°, V: 60° |
| Focus Control: | Fixed |
| DORI - Detect: | 192ft |
| DORI - Observe: | 75ft |
| DORI - Recognize: | 39ft |
| DORI - Identify: | 20ft |
| Video | |
| Compression: | H.265,H.264,H.264B,H.264H,MJPEG (sub stream) |
| Streaming Capability: | 3 Streams |
| Resolution: | 4M (2688 x 1520) / 3M (2304 x 1296) / 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 352 x 240) |
| Frame Rate: | Main Stream: 4M(1 - 25/30fps) Sub Stream: D1(1 - 25/30fps) Third Stream: 10800P(1 - 25/30fps) |
| Bit Rate Control: | CBR/ VBR |
| Bit Rate: | H.264: 32 Kbps–8192 Kbps H.265: 19 Kbps–8192 Kbps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / WDR(140dB) |
| White Balance: | Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zones Rectangular) |
| Region of Interest: | Off / On (4 Zones) |
| Smart IR: | Supported |
| Flip: | 0 / 90 / 180 / 270 |
| Mirror: | Off / On |
| Privacy Masking: | Off / On (4 Area Rectangle) |
| Audio | |
| Compression: | G.711a, G.711Mu, G.726, AAC, G.723 |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP;FTP; SFTP; DHCP; DNS; DDNS; QoS ;UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability: | ONVIF(Profile S/Profile G); P2P |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 20 |
| Edge Storage: | Edge Storage, NAS; FTP; SFTP Micro SD card 256GB |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Interface | |
| Audio I/O: | Built-in Microphone |
| Memory Slot: | 256MB Micro SD |
| Electrical | |
| Power Supply: | DC12V PoE (802.3af)(Class 0) |
| Power Consumption: | < 7.2W |
| Environmental | |
| Operating Conditions: | -22 F ~ +140 F (-30 C ~ +60 C) / Less than 95% RH |
| Storage Conditions: | -22° F to +140° F (-30° C to +60° C) |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal |
| Dimensions: | 4.17” × 3.91” (106 mm × 99.2 mm) |
| Gross Weight: | 1.57 lb (0.71 kg) |
