IPND-PB18F-IRW1
Details

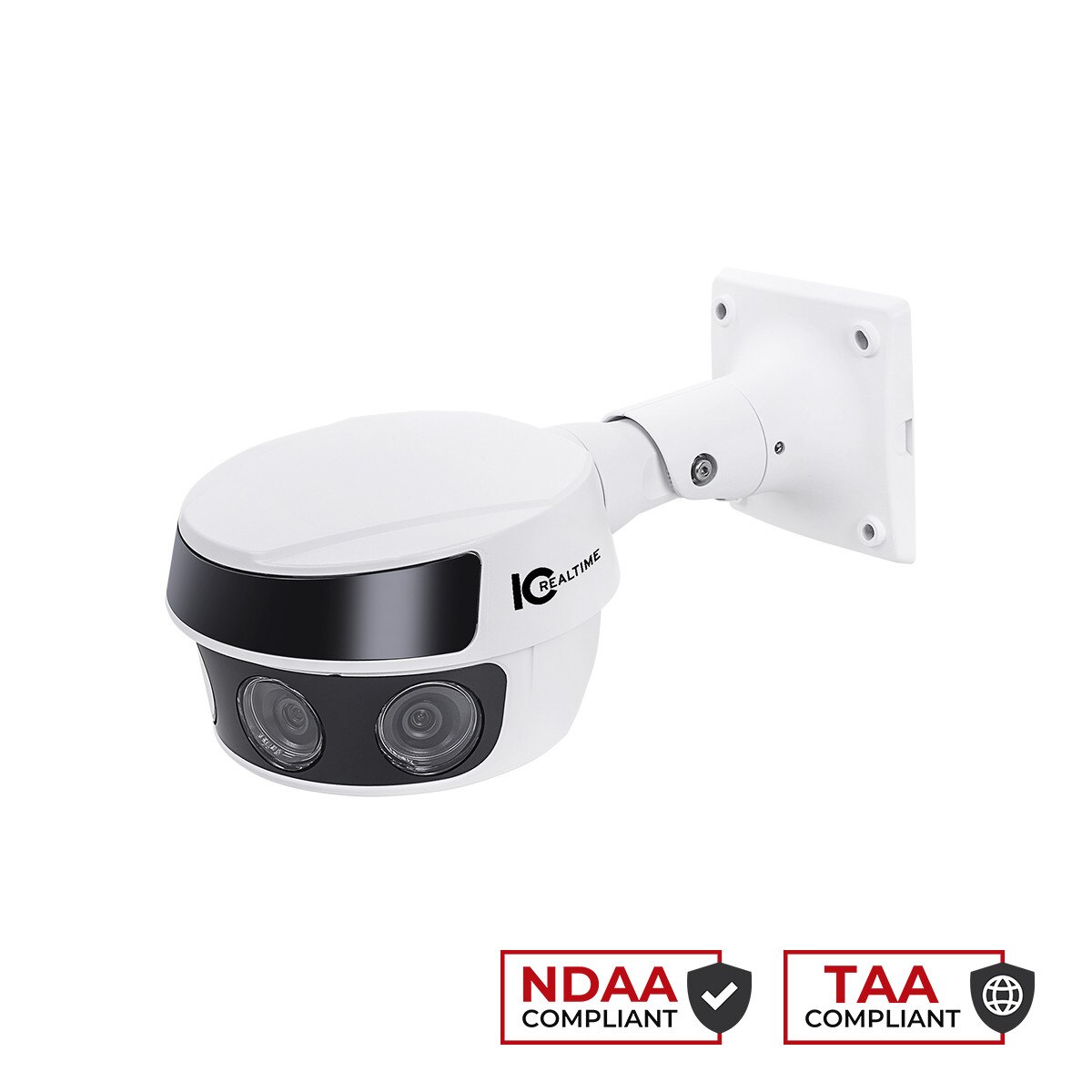

IPND-PB18F-IRW1 — 18MP NDAA & TAA-Compliant 180° Panoramic Multi-Sensor Camera
18MP NDAA-compliant and TAA-compliant panoramic multi-sensor camera featuring a seamless 180° field of view, fixed 3.5 mm lens, Smart IR illumination, WDR Pro imaging, AI-powered video analytics, and enterprise-grade cybersecurity for wide-area perimeter and storefront surveillance.
Overview
The IPND-PB18F-IRW1 is a professional 18MP panoramic multi-sensor camera designed for wide-area surveillance where one continuous view is more valuable than multiple separate camera angles. With a stitched 6912 × 2624 panoramic image and a 180° horizontal field of view, it is well suited for storefronts, building exteriors, wide perimeters, transportation areas, and other environments requiring broad situational awareness.
Its fixed 3.5 mm lens, Smart IR illumination up to 30 meters, WDR Pro imaging, and auto lens alignment help deliver dependable wide-area coverage across changing lighting conditions. Unlike a traditional multi-camera setup, the IPND-PB18F-IRW1 provides one high-resolution panoramic view designed to simplify monitoring across expansive scenes.
As part of the IC Secure platform, the IPND-PB18F-IRW1 integrates with IC Secure recording servers and professional video management software to create one complete surveillance ecosystem with centralized management, AI-powered investigations, enterprise recording, and simplified long-term ownership.
Key Benefits
- Seamless 180° Panoramic Coverage — Captures one continuous wide-area view across a 180° horizontal field of view for broad situational awareness.
- 18MP High-Resolution Imaging — Captures video at up to 6912 × 2624 resolution for detailed panoramic monitoring and recorded video review.
- Wide Perimeter & Storefront Coverage — Ideal for storefronts, building exteriors, wide perimeters, transportation areas, and open commercial environments.
- Smart IR Night Vision — Four built-in IR LEDs provide Smart IR illumination up to 30 meters for low-light surveillance.
- WDR Pro Performance — Helps maintain image detail in scenes containing both bright and dark areas for improved visibility in challenging lighting conditions.
- AI Analytics at the Camera — Supports people and vehicle detection, face detection, intrusion detection, line crossing, loitering, unattended object detection, missing object detection, Advanced Smart Tracking, object attributes, and best-shot extraction while generating intelligent metadata for investigation workflows.
- Enterprise Cybersecurity — Includes HTTPS, IEEE 802.1X authentication, Secure Boot, signed firmware, configurable password strength protection, audit logs, user access logs, and user account management.
- Compliance by Design — NDAA-compliant, TAA-compliant, and UL Listed for projects requiring trusted surveillance equipment.
Quick Specs
Built for Compliance-Driven Projects
Every IC Secure camera is NDAA-compliant, TAA-compliant, and UL Listed, making the platform an excellent choice for government, education, healthcare, critical infrastructure, transportation, commercial, and enterprise surveillance deployments where trusted products and long-term reliability are essential.
Applications
- Storefronts
- Wide perimeters
- Building exteriors
- Transportation facilities
- Commercial properties
- Parking areas
- Campus walkways
- Industrial sites
- Public gathering areas
- Large exterior entrances
Part of the IC Secure Platform
The IPND-PB18F-IRW1 is designed to work with IC Secure recording servers and professional video management software. Together, they create one complete surveillance ecosystem featuring centralized management, Deep Search AI, intelligent video analytics, enterprise recording, and simplified ownership with no separate software licensing to purchase or manage.
FAQ
What is a panoramic security camera?
A panoramic security camera captures a wide-area view from a single camera position. The IPND-PB18F-IRW1 provides a 180° horizontal field of view, making it useful for monitoring storefronts, wide perimeters, building exteriors, and other broad scenes.
What is the difference between a panoramic camera and a fisheye camera?
A panoramic camera provides a wide, stitched view designed for broad horizontal coverage, while a fisheye camera uses an ultra-wide hemispheric lens that may require dewarping for practical viewing. The IPND-PB18F-IRW1 is designed for a continuous 180° panoramic image across wide exterior and commercial scenes.
Can one panoramic camera replace multiple standard cameras?
In many wide-area applications, a panoramic camera can reduce the need for multiple directional cameras by covering a broad scene from one installation point. Actual coverage depends on the mounting location, scene layout, viewing distance, and the level of image detail required.
Where should a 180° panoramic camera be installed?
180° panoramic cameras are commonly installed at storefronts, building exteriors, wide perimeters, parking areas, transit facilities, campus walkways, and other locations where broad horizontal coverage is needed.
Is the IPND-PB18F-IRW1 suitable for outdoor installations?
Yes. The IPND-PB18F-IRW1 features IP66, IK10, and IP6K9K ratings, making it suitable for demanding indoor and outdoor surveillance applications.
How does 18MP resolution help panoramic surveillance?
An 18MP panoramic camera captures a high-resolution wide image, helping operators review broad scenes with more detail than lower-resolution panoramic cameras captured under similar conditions.
How do AI analytics improve video surveillance?
Supported IC Secure cameras analyze video at the camera to detect people, vehicles, faces, and defined events while generating intelligent metadata. This metadata supports event detection and more efficient investigation workflows within the IC Secure platform.
Can IC Secure panoramic cameras work with ONVIF systems?
Yes. The IPND-PB18F-IRW1 supports ONVIF Profiles G, S, and T for interoperability with compatible video management systems. It is also designed to integrate with IC Secure recording servers and professional video management software as part of the complete IC Secure platform.
Do IC Secure cameras require recurring software licenses?
When paired with an IC Secure recording server, enterprise video management software is included for the server’s advertised camera capacity. There are no separate recurring VMS software licenses to purchase or manage.
Why choose the complete IC Secure platform?
IC Secure combines NDAA-compliant, TAA-compliant, and UL Listed cameras, enterprise recording servers, and professional video management software into one integrated ecosystem. Together, they provide centralized management, Deep Search AI, intelligent video analytics, enterprise recording, and simplified long-term ownership through a unified surveillance platform.
Specifications
| Camera | |
| Image Sensor: | 1/2.8" Progressive CMOS |
| Effective Pixels: | 6912 (H) × 2624 (V) |
| RAM/Rom: | 8GB/ 8GB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.055 lux @ F2.0 (Color) <0.005 lux @ F2.0 (B/W) 0 lux with IR illumination on |
| S/N Ratio: | 54 dB |
| Illumination Distance: | Up to 98 ft (30 m) |
| Illumination On/Off Control: | Auto/ Manual |
| Illumination LEDs: | 4 |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed-focal |
| Focal Length: | 3.5mm |
| Max. Aperture: | F2.0 |
| Angle of View: | Horizontal: 180°; Vertical: 62.5°; Diagonal: 180° |
| DORI - Detect: | 73.3 m (240.5 ft) |
| DORI - Observe: | 29.3 m (96.2 ft) |
| DORI - Recognize: | 14.7 m (48.1 ft) |
| DORI - Identify: | 7.3 m (24 ft) |
| Intelligence | |
| IVS: | Line crossing; Intrusion, Unattended object; Missing object, Loitering detection, Face detection |
| Advanced Intelligent Functions: | Object Detection: People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Best shot, Path Extraction Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) |
| Video | |
| Compression: | H265, H264, MJPEG |
| Resolution: | 6912x2624, 4416x1600, 2304x832 |
| Frame Rate: | 30fps @ 2816x2816 (WDR off) 20fps @ 2816x2816 (WDR on) |
| Bit Rate Control: | Fixed Quality / Constrained |
| Bit Rate: | H.264: 20 Kbps–80 Mbps H.265: 20 Kbps–80 Mbps |
| Day/Night: | Auto(ICR) / Color / B/W / Schedule |
| Backlight Compensation: | BLC / HLC / WDR |
| White Balance: | Default (Auto)/Fixed/Manual/Panorama |
| Noise Reduction: | 3DNR |
| Motion Detection: | Off / On (5 Area) |
| Privacy Masking: | Off / On (5 Area) |
| WDR: | WDR Pro |
| Audio | |
| Compression: | G.711, G.726, MPEG-2 AAC-LC |
| Network | |
| Ethernet: | 10Base-T/100Base-TX Ethernet (RJ-45) |
| Protocol: | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interoperability: | ONVIF (Profile S/Profile G/Profile T) |
| Max. User Access: | Live streaming for up to 10 users / devices |
| Management Software: | IC Secure |
| Smart Phone: | IOS, Android |
| Interface | |
| Audio I/O: | Built-in Mic, Audio Line-in, Audio Line-out |
| Alarm I/O: | Digital Input: 1 channel Digital Output: 1 channel (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A) |
| Factory Reset: | Supported |
| Memory Slot: | Micro SD Card (support max. 1TB) |
| Electrical | |
| Power Supply: | AC 24V, IEEE 802.3at PoE Class 4 (Simultaneous Power Redundancy Supported) |
| Power Consumption: | PoE: Max. 18.81 W AC 24V: Max. 26.4 W |
| Environmental | |
| Operating Conditions: | Starting Temperature: -30°C ~ 55°C (-22°F ~ 131°F) Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F) (IR off) -40°C ~ 50°C (-40°F ~ 122°F) (IR on) |
| Operating Humidity: | 98% RH (non-condensing) |
| Ingress Protection: | IP66 |
| Vandal Resistance: | IK10 |
| Construction | |
| Dimensions: | 308 mm x 167 mm x 130 mm (12.13" × 6.57" × 5.12") |
