IPND-M80V-IRW1
Details

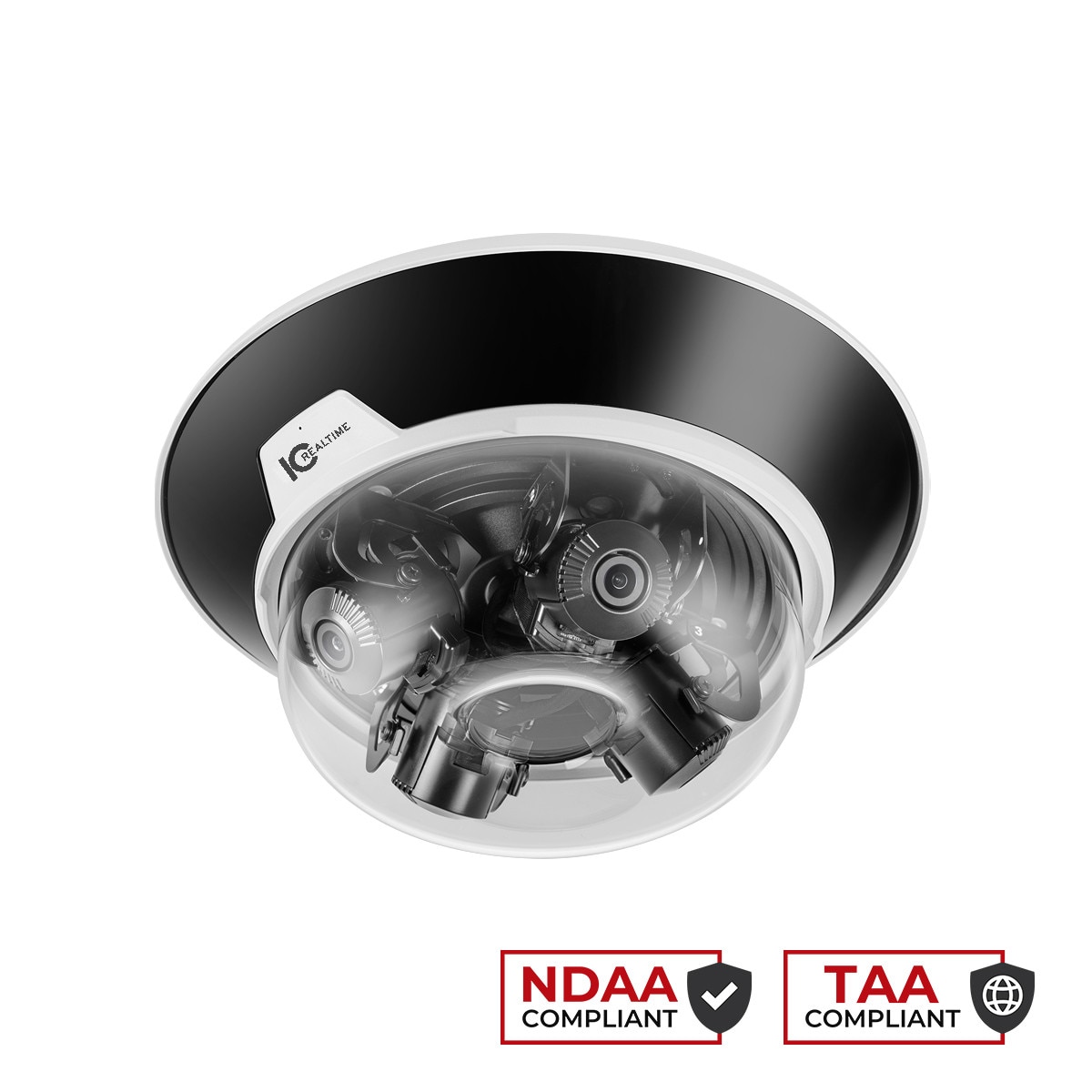

IPND-M80V-IRW1 — 4×5MP NDAA & TAA-Compliant 360° Multi-Sensor Dome Camera
4×5MP NDAA-compliant and TAA-compliant multi-sensor dome camera featuring four independently adjustable motorized varifocal lenses, up to 360° coverage, Smart IR illumination, WDR Pro imaging, AI-powered video analytics, and enterprise-grade cybersecurity.
Overview
The IPND-M80V-IRW1 is a professional multi-sensor dome camera designed for locations where one installation point needs to cover multiple directions. With four 5MP sensors in a single vandal-resistant dome, it can monitor intersections, warehouses, atriums, campuses, building corners, and open areas while reducing the need for multiple separate camera housings.
Each sensor features a 3.2–7.7 mm motorized varifocal lens with remote focus, allowing installers to independently adjust coverage for each view. Smart IR illumination up to 30 meters, WDR Pro imaging, and on-camera AI analytics help support dependable visibility and investigation workflows across all four channels.
As part of the IC Secure platform, the IPND-M80V-IRW1 integrates with IC Secure recording servers and professional video management software to create one complete surveillance ecosystem with centralized management, AI-powered investigations, enterprise recording, and simplified long-term ownership.
Key Benefits
- Four Sensors, One Camera — Four independently positioned 5MP sensors provide multi-directional coverage from a single camera housing.
- Up to 360° Multi-Directional Coverage — Four independently adjustable sensors can be positioned to monitor multiple directions and provide up to 360° coverage from a single camera location.
- Motorized Varifocal Lenses — Each lens supports motorized varifocal adjustment and remote focus, helping installers fine-tune coverage per sensor after installation.
- Smart IR Night Vision — Eight built-in IR LEDs provide Smart IR illumination up to 30 meters for low-light surveillance.
- AI Analytics at the Camera — Supports people and vehicle detection, face detection, intrusion detection, line crossing, loitering, unattended object detection, missing object detection, crowd detection, and smart motion detection while generating intelligent metadata for investigation workflows.
- WDR Pro Performance — Helps maintain image detail in scenes containing both bright and dark areas for improved visibility in challenging lighting conditions.
- Enterprise Cybersecurity — Includes HTTPS, IEEE 802.1X authentication, Secure Boot, signed firmware, configurable password strength protection, audit logs, user access logs, user account management, certificate management, and a built-in FIPS 140-2 Level 2 certified Trusted Platform Module (TPM).
- Compliance by Design — NDAA-compliant, TAA-compliant, and UL Listed for projects requiring trusted surveillance equipment.
Quick Specs
Built for Compliance-Driven Projects
Every IC Secure camera is NDAA-compliant, TAA-compliant, and UL Listed, making the platform an excellent choice for government, education, healthcare, critical infrastructure, transportation, commercial, and enterprise surveillance deployments where trusted products and long-term reliability are essential.
Applications
- Intersections
- Warehouses
- Atriums
- Building corners
- Enterprise campuses
- Parking areas
- Commercial facilities
- Transit facilities
- Public gathering spaces
- 360° open-area coverage
Part of the IC Secure Platform
The IPND-M80V-IRW1 is designed to work with IC Secure recording servers and professional video management software. Together, they create one complete surveillance ecosystem featuring centralized management, Deep Search AI, intelligent video analytics, enterprise recording, and simplified ownership with no separate software licensing to purchase or manage.
FAQ
What is a multi-sensor security camera?
A multi-sensor security camera combines multiple camera sensors into one housing. The IPND-M80V-IRW1 uses four 5MP sensors to monitor multiple directions from a single installation point, helping reduce the number of separate cameras needed for wide-area coverage.
Can one multi-sensor camera replace multiple standard cameras?
In many applications, yes. A four-sensor camera can reduce the need for multiple separate cameras by covering several directions from one mounting point. Coverage depends on mounting location, scene layout, lens positioning, and the level of image detail required.
What does 4×5MP mean?
4×5MP means the camera includes four separate 5MP sensors, with each sensor capturing up to 2560 × 1920 resolution. This gives operators multiple independent views from a single camera housing.
Is this the same as a fisheye camera?
No. A fisheye camera uses one ultra-wide lens to capture a curved panoramic image, while a multi-sensor camera uses multiple individual lenses to capture separate directional views. Multi-sensor cameras are often preferred when installers want multiple adjustable views without fisheye distortion.
Can each lens be adjusted independently?
Yes. Each lens supports motorized varifocal adjustment, remote focus, tilt adjustment, and rotation, allowing installers to fine-tune each sensor’s view based on the installation environment.
Where should a multi-sensor camera be installed?
Multi-sensor cameras are commonly installed at intersections, atriums, warehouses, building corners, parking areas, campus walkways, transit facilities, and other locations where multiple directions need to be monitored from one installation point.
Is the IPND-M80V-IRW1 suitable for outdoor installations?
Yes. The IPND-M80V-IRW1 features an IP66 weather-resistant rating, IK10 impact-resistant rating, and NEMA 4X enclosure rating, making it suitable for indoor and outdoor surveillance applications.
How do AI analytics improve video surveillance?
Supported IC Secure cameras analyze video at the camera to detect defined objects and events while generating intelligent metadata. This metadata supports event detection and more efficient investigation workflows within the IC Secure platform.
Do IC Secure cameras require recurring software licenses?
When paired with an IC Secure recording server, enterprise video management software is included for the server’s advertised camera capacity. There are no separate recurring VMS software licenses to purchase or manage.
Why choose the complete IC Secure platform?
IC Secure combines NDAA-compliant, TAA-compliant, and UL Listed cameras, enterprise recording servers, and professional video management software into one integrated ecosystem. Together, they provide centralized management, Deep Search AI, intelligent video analytics, enterprise recording, and simplified long-term ownership through a unified surveillance platform.
Specifications
| Camera | |
| Image Sensor: | 1/2.8" Progressive CMOS |
| Effective Pixels: | 2560x1920 (5MP) x 4 |
| RAM/Rom: | 8GB/ 4GB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.07Lux/F1.85 (Color) 0.005Lux/F1.85 (B/W) 0Lux/1.85 (IR on) |
| S/N Ratio: | 64 dB |
| Illumination Distance: | Up to 98 ft (30 m) |
| Illumination On/Off Control: | Manual |
| Illumination LEDs: | 8 |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Motorized Vari-focal |
| Focal Length: | 3.2 ~ 7.7mm |
| Max. Aperture: | F1.85 ~ F2.4 |
| Angle of View: | Horizontal: 94° ~ 43°; Vertical: 67° ~ 33°; Diagonal: 129° ~ 54° |
| Focus Control: | Auto / Manual |
| DORI - Detect: | Wide: 68.5 m (224.8 ft) Tele: 136.9 m ( 449.1 ft) |
| DORI - Observe: | Wide: 27.4 m (89.9 ft) Tele: 54.8 m ( 179.6 ft) |
| DORI - Recognize: | Wide: 13.7 m (44.9 ft) Tele: 27.4 m ( 89.8 ft) |
| DORI - Identify: | Wide: 6.8 m (22.3 ft) Tele: 13.7 m ( 44.8 ft) |
| Intelligence | |
| IVS: | People detection, Vehicle detection, Line crossing; Intrusion, Unattended object; Missing object, Loitering detection, Face detection, Crowd detection |
| Advanced Intelligent Functions: | Object Detection: People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Best shot, Path Extraction Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) |
| Video | |
| Compression: | H265, H264, MJPEG |
| Resolution: | 2560x1920, 2048x1536, 1920x1440, 1600x1200, 1280x960, 800x600, 640x480 (4:3) |
| Frame Rate: | H.265 & H.264: 30 fps @ (2560x1920) x 4 MJPEG: 15 fps @ (2560x1920) x 4 |
| Bit Rate Control: | Fixed Quality / Constrained |
| Bit Rate: | H.264: 1 Mbps–80 Mbps H.265: 20 Kbps–80 Mbps |
| Day/Night: | Auto(ICR) / Color / B/W / Schedule |
| Backlight Compensation: | BLC / HLC / WDR |
| White Balance: | Default (Auto)/Fixed/Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3DNR |
| Motion Detection: | Off / On (5 Area) |
| Flip: | 0°/90°/180°/270° |
| Mirror: | Off / On |
| Privacy Masking: | Off / On (5 Area) |
| WDR: | WDR Pro |
| Audio | |
| Compression: | G.711, G.726, MPEG-2 AAC-LC |
| Network | |
| Ethernet: | 10Base-T/100Base-TX Ethernet (RJ-45) |
| Protocol: | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interoperability: | ONVIF (Profile S/Profile G/Profile T/Profile M) |
| Max. User Access: | Live streaming for up to 20 users / devices |
| Management Software: | IC Secure |
| Smart Phone: | IOS, Android |
| Interface | |
| Audio I/O: | Built-in microphone (effective range 5 meters) |
| Factory Reset: | Supported |
| Memory Slot: | Micro SD Card (support max. 1TB) |
| Electrical | |
| Power Supply: | 24VAC *, IEEE 802.3at PoE Class 4 * Requires accessory cable. |
| Power Consumption: | Max 25.5W |
| Environmental | |
| Operating Conditions: | Starting Temperature: -30°C ~ 55°C (-22°F ~ 131°F) Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F) (IR off) -40°C ~ 50°C (-40°F ~ 122°F) (IR on) |
| Operating Humidity: | 98% RH (non-condensing) |
| Ingress Protection: | IP66 |
| Vandal Resistance: | IK10 |
| Construction | |
| Dimensions: | Ø 275 mm x 118 mm (Ø 10.83" × 4.65") |
