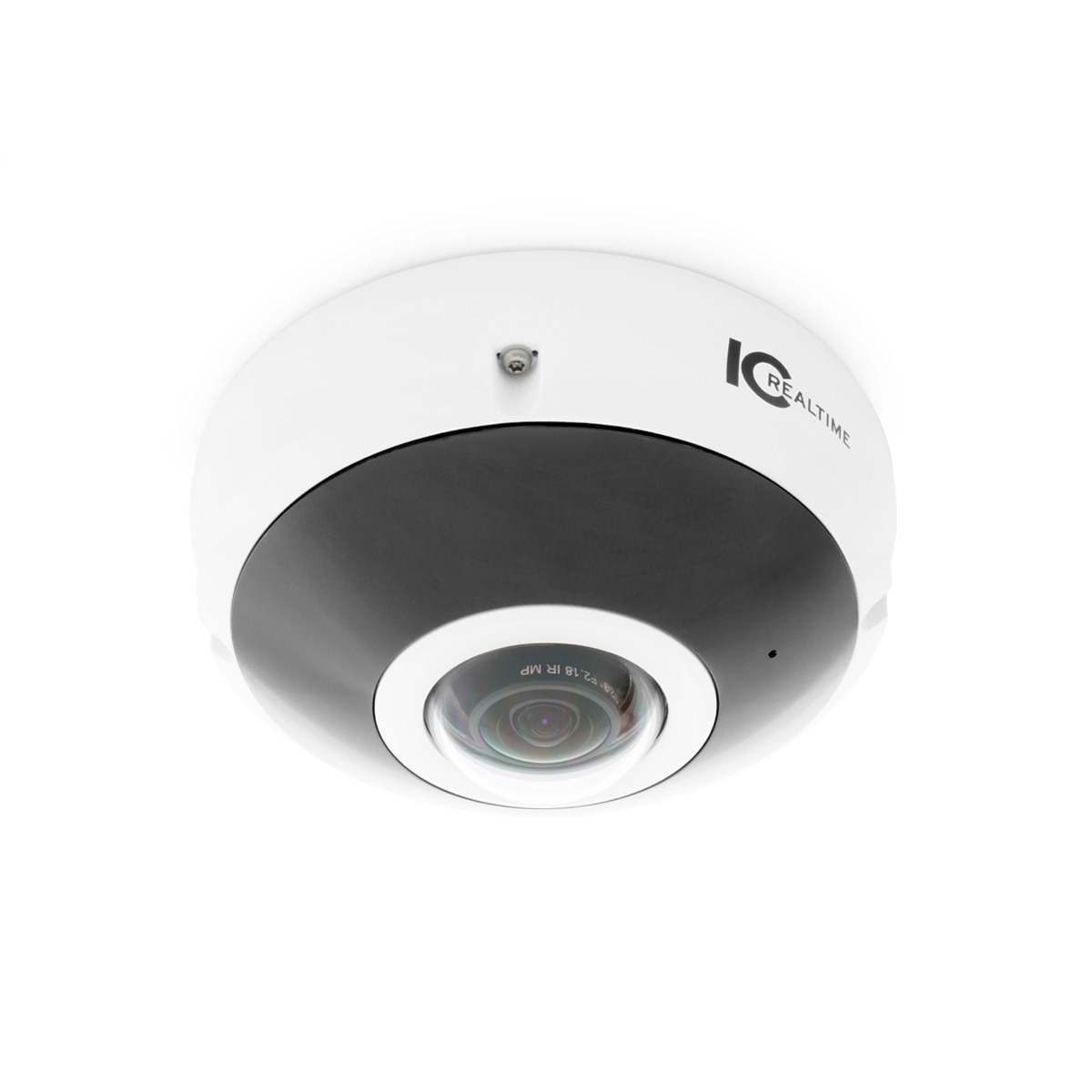

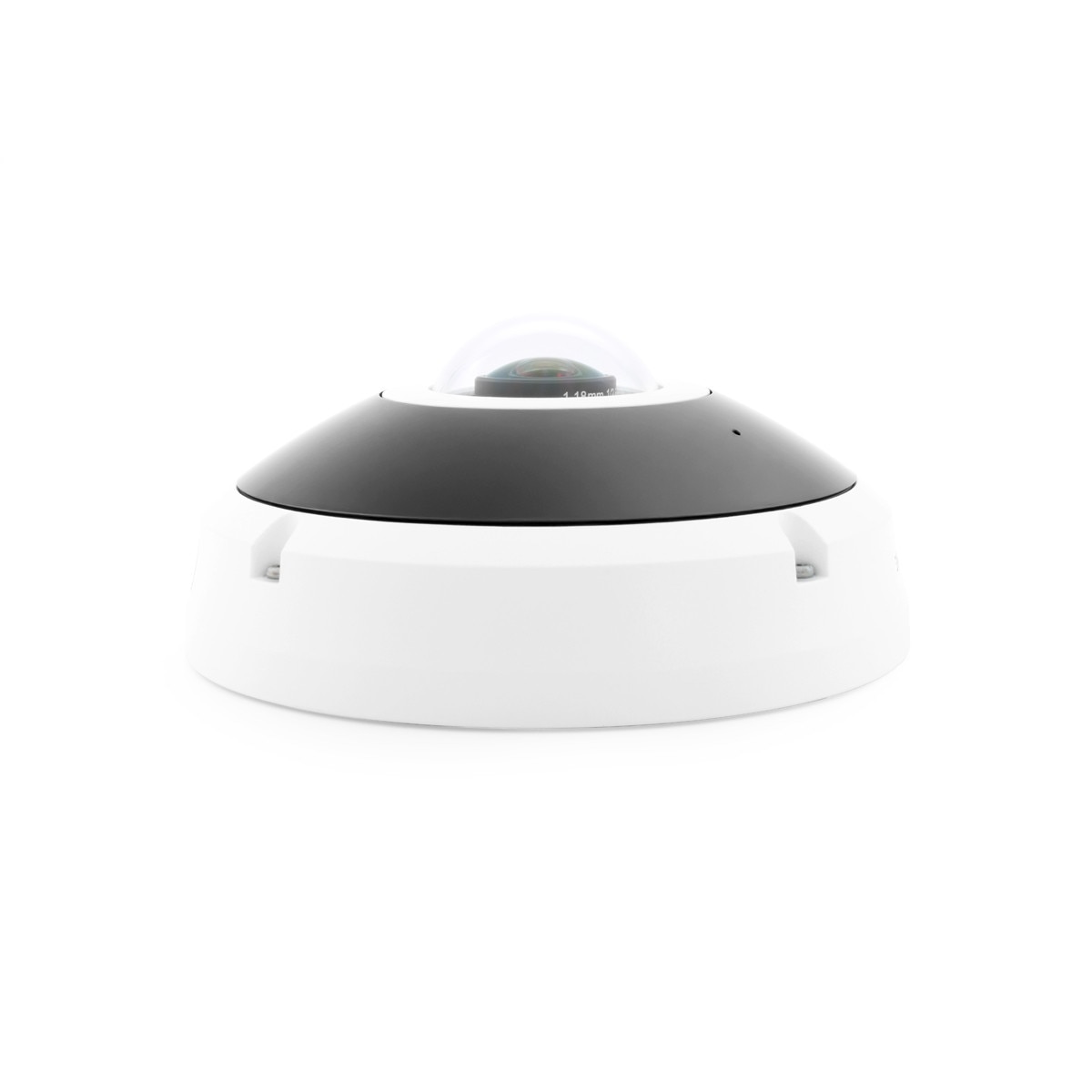

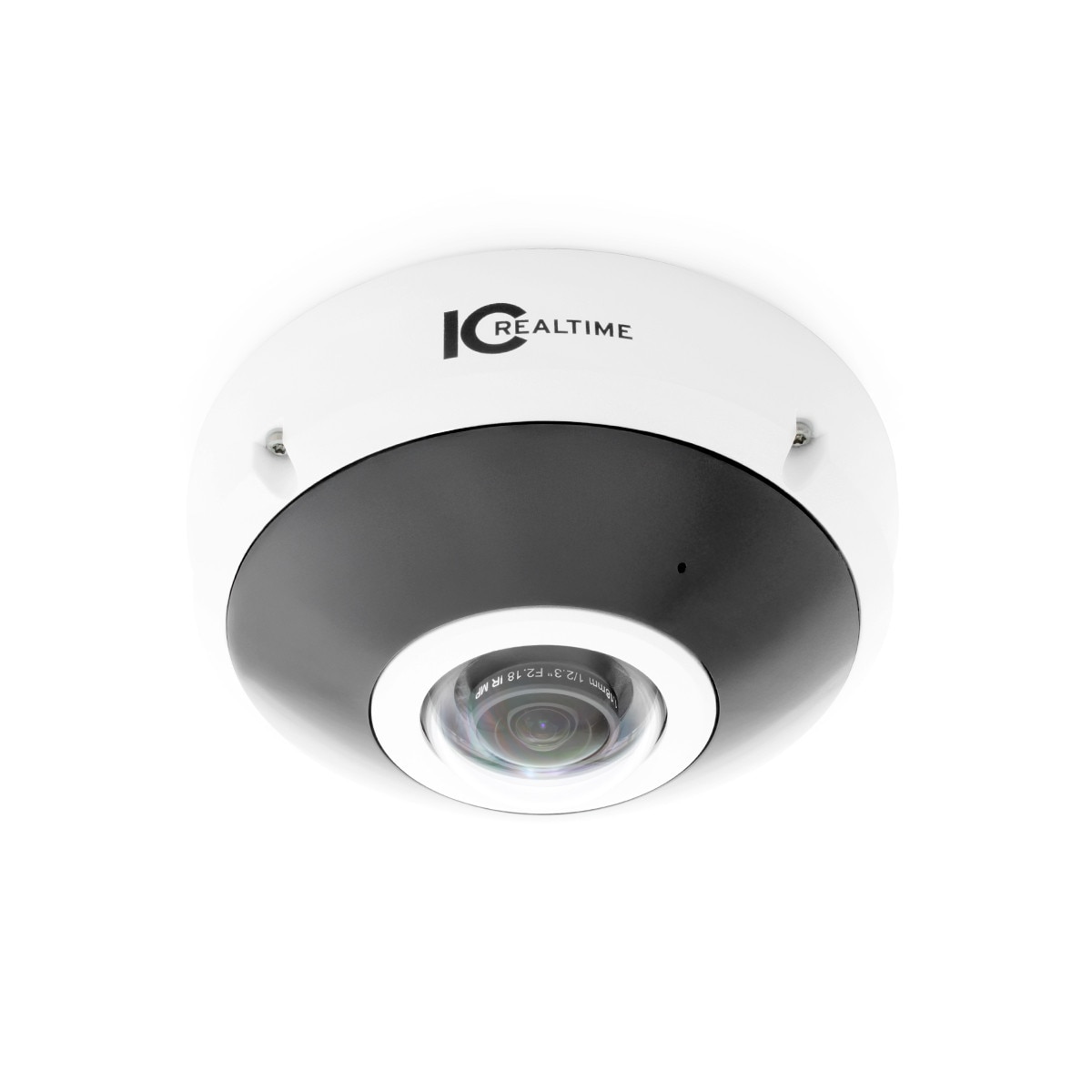

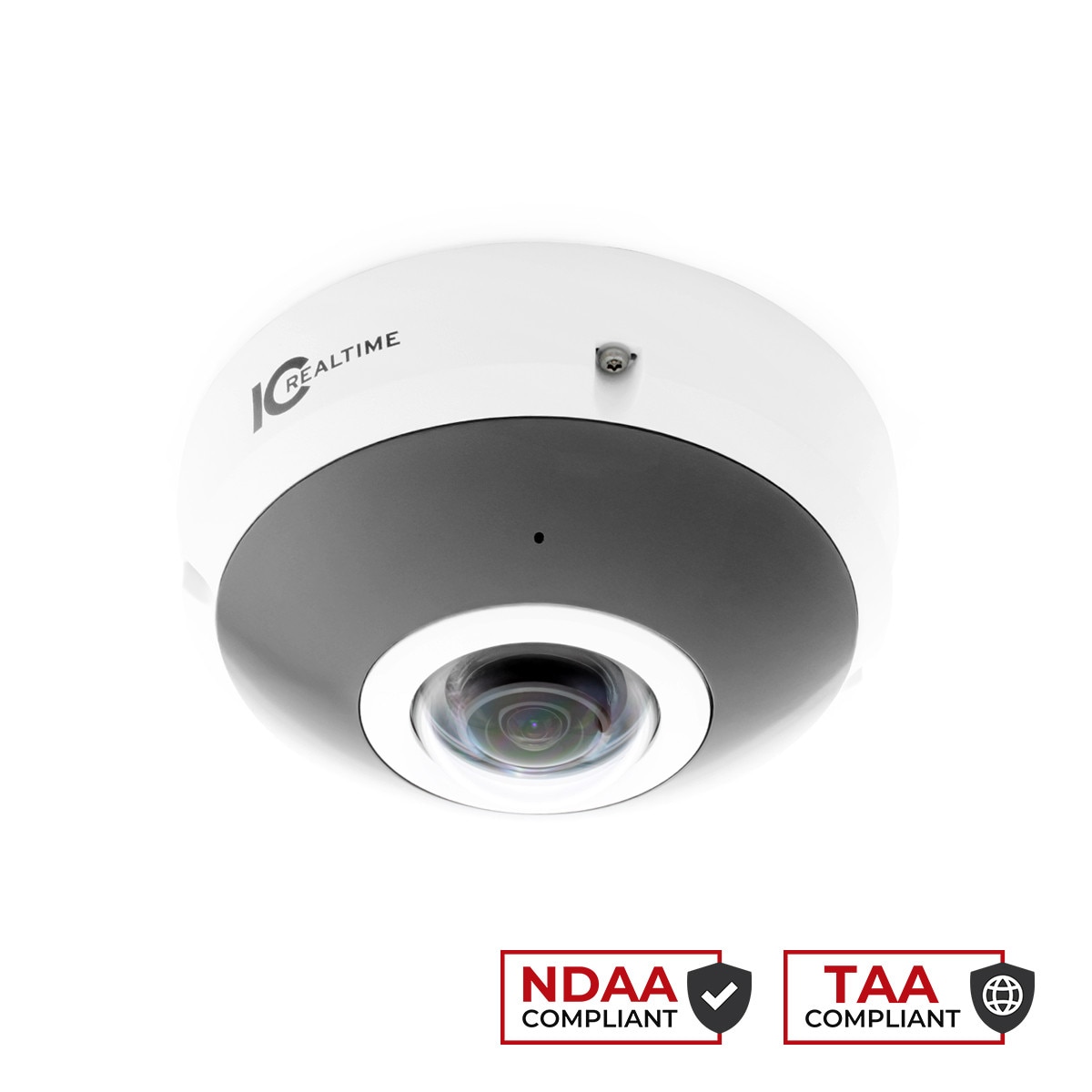

IPND-F80F-IRW1 — 8MP NDAA & TAA-Compliant 360° Fisheye Camera
8MP NDAA-compliant and TAA-compliant fisheye camera designed for 360° surrounding coverage, featuring Smart IR illumination, client-side and local dewarping, WDR Pro imaging, AI-powered video analytics, and enterprise-grade cybersecurity.
Overview
The IPND-F80F-IRW1 is a professional 8MP panoramic fisheye camera designed for open areas where broad situational awareness is more important than a narrow directional view. With a 1.18 mm fixed-focal lens and a 180° horizontal, vertical, and diagonal field of view, it allows a single camera to monitor lobbies, retail spaces, classrooms, warehouses, offices, and other open environments.
Unlike traditional fixed cameras that focus on one direction, the IPND-F80F-IRW1 provides wide-area coverage from a single camera position. Client-side and local dewarping provide flexible viewing of the camera’s wide-area fisheye image, while Smart IR illumination up to 20 meters and WDR Pro imaging help support dependable visibility across changing lighting conditions.
On-camera AI analytics generate intelligent metadata that supports event detection and investigation workflows within the IC Secure platform. As part of the complete IC Secure ecosystem, the IPND-F80F-IRW1 integrates with IC Secure recording servers and professional video management software to provide centralized management, AI-powered investigations, enterprise recording, and simplified long-term ownership.
Key Benefits
- 360° Surrounding Coverage — Hemispheric 180° horizontal, vertical, and diagonal field of view provides broad situational awareness from a single camera position.
- 8MP Panoramic Imaging — Captures video at up to 2816 × 2816 resolution for detailed wide-area monitoring and recorded video review.
- Client & Local Dewarping — Supports client-side and local dewarping for flexible viewing and monitoring of the camera’s wide-area fisheye image.
- Smart IR Night Vision — Four built-in IR LEDs provide illumination up to 20 meters for low-light surveillance applications.
- AI Analytics at the Camera — Supports intelligent video analytics while generating metadata that can support event detection and investigation workflows within the IC Secure platform.
- WDR Pro Performance — Helps maintain image detail in scenes containing both bright and dark areas for improved visibility in challenging lighting conditions.
- Enterprise Cybersecurity — Includes HTTPS, IEEE 802.1X authentication, Secure Boot, signed firmware, user access logs, user account management, audit logs, and configurable password strength protections.
- Compliance by Design — NDAA-compliant, TAA-compliant, and UL Listed for projects requiring trusted surveillance equipment.
Quick Specs
Built for Compliance-Driven Projects
Every IC Secure camera is NDAA-compliant, TAA-compliant, and UL Listed, making the platform an excellent choice for government, education, healthcare, critical infrastructure, transportation, commercial, and enterprise surveillance deployments where trusted products and long-term reliability are essential.
Applications
- Retail stores
- Lobbies
- Classrooms
- Open office areas
- Warehouses
- Healthcare waiting areas
- Reception areas
- Public gathering spaces
- Commercial facilities
- Indoor and outdoor open-area surveillance
Part of the IC Secure Platform
The IPND-F80F-IRW1 is designed to work with IC Secure recording servers and professional video management software. Together, they create one complete surveillance ecosystem featuring centralized management, Deep Search AI, intelligent video analytics, enterprise recording, and simplified ownership with no separate software licensing to purchase or manage.
FAQ
What is a fisheye security camera?
A fisheye security camera uses an ultra-wide lens to capture a broad hemispheric view from a single camera. The IPND-F80F-IRW1 provides a 180° field of view horizontally, vertically, and diagonally, making it useful for monitoring open areas from one mounting location.
Can one fisheye camera replace multiple standard cameras?
In many open-area applications, a fisheye camera can reduce the number of directional cameras needed by providing broad situational awareness from a single device. Coverage depends on the mounting location, scene layout, installation height, and level of image detail required.
What is dewarping on a fisheye camera?
Dewarping processes the camera’s curved fisheye image into a more practical viewing perspective for monitoring and video review. The IPND-F80F-IRW1 supports client-side and local dewarping for flexible viewing of its wide-area image.
What is the difference between client-side and local dewarping?
Client-side dewarping processes the fisheye image within compatible viewing software, while local dewarping is performed by the camera. Supporting both approaches provides greater flexibility for viewing and managing fisheye video within compatible surveillance environments.
Where should a fisheye camera be installed?
Fisheye cameras are commonly installed in lobbies, retail spaces, classrooms, open offices, warehouses, waiting areas, reception areas, and other open environments where broad situational awareness is needed from a single camera location.
Is the IPND-F80F-IRW1 suitable for outdoor installations?
Yes. The IPND-F80F-IRW1 features an IP66 weather-resistant rating, IK10 impact-resistant rating, and NEMA 4X enclosure rating, making it suitable for indoor and outdoor surveillance applications.
How do AI analytics improve video surveillance?
Supported IC Secure cameras analyze video at the camera to detect defined objects and events while generating intelligent metadata. This metadata supports event detection and more efficient investigation workflows within the IC Secure platform.
What is Deep Search AI?
Deep Search AI is an investigation capability included with the IC Secure platform that uses searchable video metadata generated by supported IC Secure cameras to help operators locate relevant people, vehicles, and events within recorded video more efficiently.
Can IC Secure fisheye cameras work with ONVIF systems?
Yes. The IPND-F80F-IRW1 supports ONVIF Profiles G, S, T, and M for interoperability with compatible video management systems. It is also designed to integrate with IC Secure recording servers and professional video management software as part of the complete IC Secure platform.
Do IC Secure cameras require recurring software licenses?
When paired with an IC Secure recording server, enterprise video management software is included for the server’s advertised camera capacity. There are no separate recurring VMS software licenses to purchase or manage.
Why choose the complete IC Secure platform?
IC Secure combines NDAA-compliant, TAA-compliant, and UL Listed cameras, enterprise recording servers, and professional video management software into one integrated ecosystem. Together, they provide centralized management, Deep Search AI, intelligent video analytics, enterprise recording, and simplified long-term ownership through a unified surveillance platform.
Specifications
| Camera | |
| Image Sensor: | 1/2.3" Progressive CMOS |
| Effective Pixels: | 2816 (H) × 2816 (V) |
| RAM/Rom: | 8GB/ 2GB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.1Lux/F2.18(Color) <0.005Lux/F2.18(B/W) 0Lux/F2.18(IR on) |
| S/N Ratio: | 56.9 dB |
| Illumination Distance: | Up to 65.6 ft (20 m) |
| Illumination On/Off Control: | Auto/ Manual |
| Illumination LEDs: | 4 |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed-focal |
| Focal Length: | 1.18mm |
| Max. Aperture: | F2.18 |
| Angle of View: | Horizontal: 180°; Vertical: 180°; Diagonal: 180° |
| DORI - Detect: | 30.3 m (99.4 ft) |
| DORI - Observe: | 12.0 m (39.4 ft) |
| DORI - Recognize: | 6.1 m (20.0 ft) |
| DORI - Identify: | 3.0 m (9.8 ft) |
| Intelligence | |
| IVS: | Line crossing; Intrusion, Unattended object; Missing object, Loitering detection, Face detection |
| Advanced Intelligent Functions: | Object Detection: People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Best shot, Path Extraction Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) |
| Video | |
| Compression: | H265, H264, MJPEG |
| Frame Rate: | 30fps @ 2816x2816 (WDR off) 20fps @ 2816x2816 (WDR on) |
| Bit Rate Control: | Fixed Quality / Constrained |
| Bit Rate: | H.264: 1 Mbps–80 Mbps H.265: 20 Kbps–80 Mbps |
| Day/Night: | Auto(ICR) / Color / B/W / Schedule |
| Backlight Compensation: | BLC / HLC / WDR |
| White Balance: | Default (Auto)/Fixed/Manual |
| Noise Reduction: | 3DNR |
| Motion Detection: | Off / On (5 Area) |
| Flip: | Off / On |
| Mirror: | Off / On |
| Privacy Masking: | Off / On (5 Area) |
| WDR: | WDR Pro |
| Audio | |
| Compression: | G.711, G.726, MPEG-2 AAC-LC |
| Network | |
| Ethernet: | 10Base-T/100Base-TX Ethernet (RJ-45) |
| Protocol: | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interoperability: | ONVIF (Profile S/Profile G/Profile T/Profile M) |
| Max. User Access: | Live streaming for up to 10 users / devices |
| Management Software: | IC Secure |
| Smart Phone: | IOS, Android |
| Interface | |
| Audio I/O: | Built-in microphone (effective range 5 meters) |
| Factory Reset: | Supported |
| Memory Slot: | Micro SD Card (support max. 1TB) |
| Electrical | |
| Power Supply: | IEEE 802.3at PoE Class 4 |
| Power Consumption: | Max. 22.8W (IR on) / 10.75W (IR off) |
| Environmental | |
| Operating Conditions: | Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F) Working Temperature: -40°C ~ 50°C (-40°F ~ 131°F) (IR off) -40°C ~ 50°C (-40°F ~ 122°F) (IR on) |
| Operating Humidity: | 90% RH (non-condensing) |
| Ingress Protection: | IP66 |
| Vandal Resistance: | IK10 |
| Construction | |
| Dimensions: | Ø150 mm x 68.4 mm (Ø 5.91" × 2.69") |
