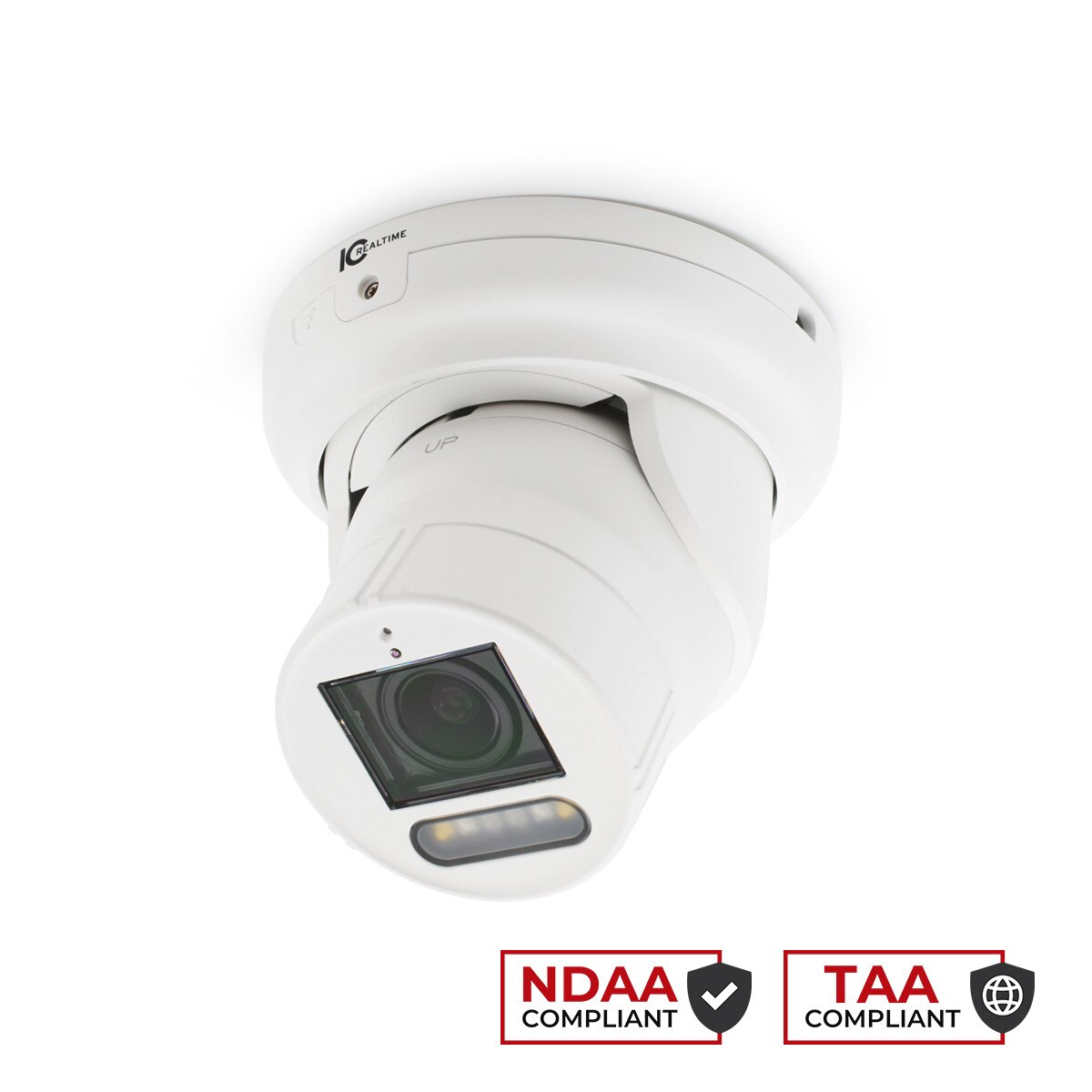

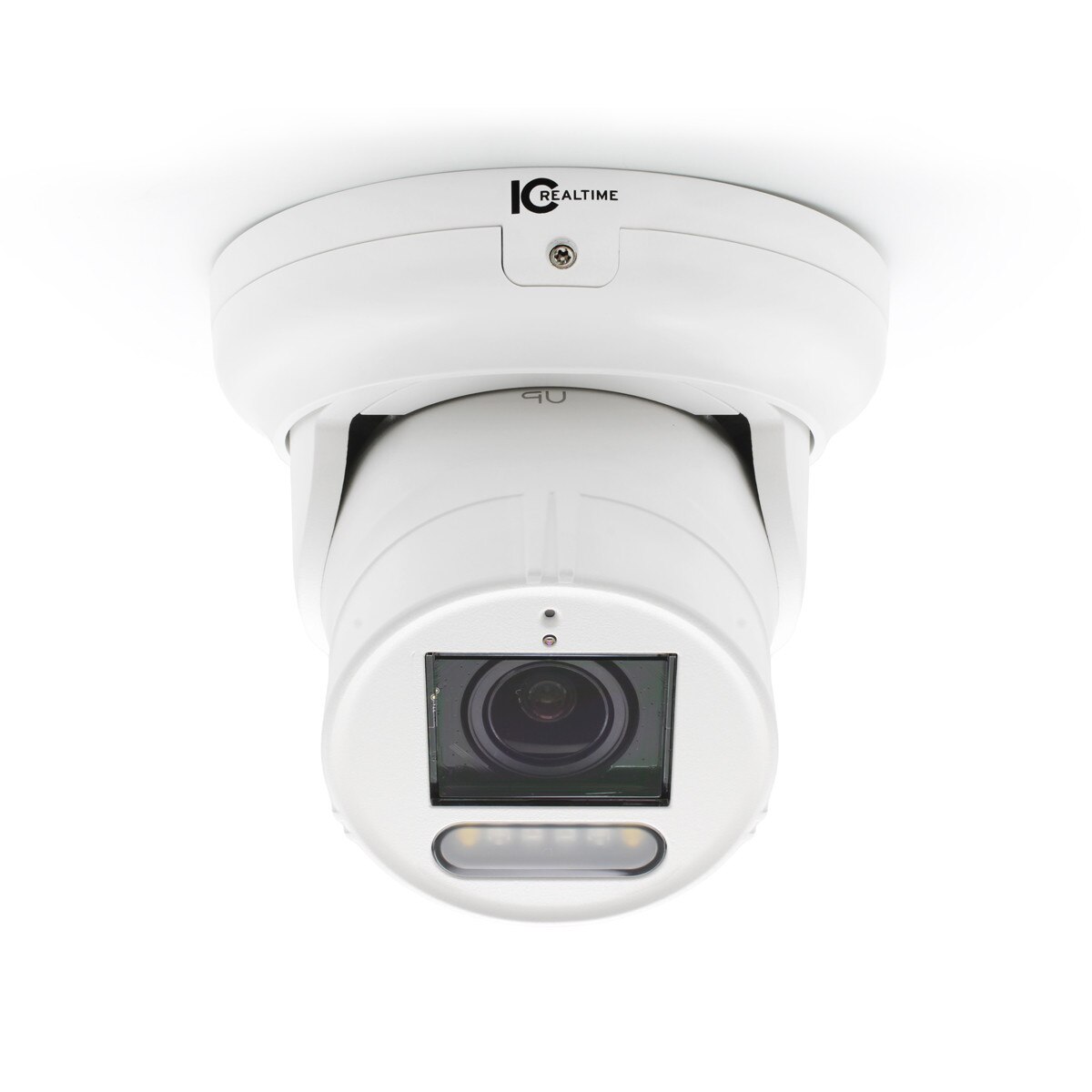

IPND-E80V-DIW1 — 8MP NDAA-Compliant Varifocal Dual Light Turret Camera
8MP NDAA-compliant varifocal turret camera featuring Hybrid Dual Light illumination, a motorized autofocus varifocal lens, AI-powered video analytics, WDR Pro, and enterprise-grade cybersecurity for high-detail surveillance deployments.
Overview
The IPND-E80V-DIW1 is a professional 8MP varifocal turret camera designed for projects where high-resolution image detail, intelligent analytics, and installation flexibility are essential. Delivering Ultra HD 8MP resolution with a motorized autofocus varifocal lens, it captures detailed video while allowing installers to remotely adjust zoom and focus to optimize coverage after installation.
Hybrid Dual Light illumination, WDR Pro imaging, and on-camera AI analytics provide dependable performance across a wide range of surveillance environments, while enterprise cybersecurity features help support secure deployments in government, education, healthcare, utilities, transportation, commercial facilities, and other compliance-driven applications.
As part of the IC Secure platform, the IPND-E80V-DIW1 integrates with IC Secure recording servers and enterprise video management software to create one complete surveillance ecosystem with centralized management, AI-powered investigations, and simplified long-term ownership.
Key Benefits
- 8MP Ultra HD Resolution — Captures detailed video at up to 3840 × 2160 resolution for live monitoring, evidence collection, and forensic investigations.
- Motorized Autofocus Varifocal Lens — 4.3–9.8 mm motorized lens supports remote zoom and focus adjustment, allowing installers to optimize coverage after installation.
- Hybrid Dual Light Technology — Built-in infrared illumination up to 40 meters and warm white illumination up to 30 meters provide flexible nighttime surveillance across changing lighting conditions.
- AI Analytics at the Camera — Supports people and vehicle detection, face detection, intrusion detection, line crossing, loitering, unattended object detection, missing object detection, and Advanced Smart Tracking while generating intelligent metadata for investigation workflows.
- WDR Pro Performance — Helps maintain image detail in scenes containing both bright and dark areas for improved visibility in challenging lighting conditions.
- Enterprise Cybersecurity — Includes Secure Boot, signed firmware, HTTPS, IEEE 802.1X authentication, TLS 1.2/1.3, a built-in FIPS 140-2 Level 2 certified Trusted Platform Module (TPM), user account management, and additional network security protections.
- Compliance by Design — NDAA-compliant architecture designed for organizations and projects requiring compliant surveillance infrastructure.
Quick Specs
Applications
- Critical infrastructure
- Government facilities
- Healthcare campuses
- Commercial buildings
- Enterprise campuses
- Utilities
- Parking lots
- Building entrances
- Warehouses
- Transportation facilities
Part of the IC Secure Platform
The IPND-E80V-DIW1 is designed to work with IC Secure enterprise recording servers and professional video management software. Together, they create one complete surveillance ecosystem featuring centralized management, Deep Search AI, intelligent video analytics, and enterprise recording with no separate software licensing to purchase or manage.
FAQ
Why choose an 8MP security camera?
An 8MP security camera captures four times the pixel count of a 1080p camera, providing greater image detail for live monitoring, evidence collection, and forensic investigations. The additional resolution can also provide greater flexibility when digitally examining specific areas of recorded video.
When should I choose an 8MP camera instead of a 5MP camera?
An 8MP camera may be preferred when higher image detail is a priority, such as critical infrastructure, government facilities, commercial campuses, healthcare environments, parking areas, and other locations where detailed recorded video is important.
Does higher resolution improve digital zoom?
Higher-resolution cameras capture more pixels, which can provide greater detail when digitally examining a portion of recorded video compared with lower-resolution footage captured under similar conditions. Actual image detail also depends on factors including lens selection, viewing distance, lighting, camera placement, and compression.
Can I adjust the viewing angle after installation?
Yes. The IPND-E80V-DIW1 features a motorized autofocus 4.3–9.8 mm varifocal lens with remote zoom and focus controls, allowing installers to fine-tune scene coverage after installation.
Is the IPND-E80V-DIW1 suitable for critical infrastructure?
The IPND-E80V-DIW1 is designed for professional surveillance deployments requiring high-resolution imaging, NDAA compliance, enterprise cybersecurity features, intelligent video analytics, and durable IP67 and IK10-rated construction. These capabilities make it suitable for utilities, government facilities, transportation, healthcare, and other critical infrastructure applications.
How do AI analytics improve video surveillance?
Supported IC Secure cameras analyze video at the camera to detect people, vehicles, faces, and defined events while generating intelligent metadata. This metadata can support event detection and more efficient investigation workflows within the IC Secure platform.
What is Deep Search AI?
Deep Search AI is an investigation capability within the IC Secure platform that uses searchable video metadata to help operators locate relevant people, vehicles, and events within recorded video more efficiently.
Can IC Secure cameras work with ONVIF systems?
Yes. The IPND-E80V-DIW1 supports ONVIF Profiles G, S, T, and M for interoperability with compatible video management systems. IC Secure cameras are also designed to integrate with IC Secure recording servers and video management software as part of the complete IC Secure platform.
Do IC Secure cameras require recurring software licenses?
When paired with an IC Secure recording server, the enterprise video management software is included for the server’s advertised camera capacity, with no separate VMS software licensing to purchase or manage.
Why choose the complete IC Secure platform?
IC Secure combines NDAA-compliant cameras, enterprise recording servers, and professional video management software into one integrated ecosystem. The platform provides centralized management, intelligent video analytics, AI-powered investigation capabilities, enterprise recording infrastructure, and a consistent software experience across server tiers.
Specifications
| Camera | |
| Image Sensor: | 1/1.8" Progressive CMOS |
| Effective Pixels: | 3840 (H) × 2160 (V) |
| RAM/Rom: | 8GB/ 2GB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.02 lux @ F1.6 (Color) <0.005 lux @ F1.6 (B/W) 0 lux with IR illumination on |
| S/N Ratio: | 54 dB |
| Illumination Distance: | Up to 131.23 ft (40 m) (IR); Up to 98.43 ft (30 m) (Warm light) |
| Illumination On/Off Control: | Auto / Manual |
| Camera Illumination Type: | IR and White Light |
| Lens | |
| Lens Type: | Motorized Vari-focal |
| Focal Length: | 4.3 ~ 9.8mm |
| Max. Aperture: | F1.6 ~ F2.6 |
| Angle of View: | Horizontal: 110.4° ~ 45.1°; Vertical: 57.9° ~ 25.4°; Diagonal: 133.9° ~ 51.8° |
| Optical Zoom: | 2.3x |
| Focus Control: | Auto / Manual |
| Close Focus Distance: | Wide: 0.3 m (1.0 ft) Tele: 0.8 m (2.6 ft) |
| DORI - Detect: | Wide: 88.1 m (289.2 ft) Tele: 197.6 m (648.2 ft) |
| DORI - Observe: | Wide: 35.0 m (114.9 ft) Tele: 77.9 m (255.7 ft) |
| DORI - Recognize: | Wide: 17.5 m (57.4 ft) Tele: 39.0 m (127.8 ft) |
| DORI - Identify: | Wide: 8.7 m (28.6 ft) Tele: 19.5 m (63.9 ft) |
| PTZ | |
| Pan/Tilt Range: | Pan: 350° / Tilt: 70° / Rotation: 350° |
| Intelligence | |
| IVS: | Line crossing; Intrusion, Unattended object; Missing object, Loitering detection, Face detection |
| Advanced Intelligent Functions: | Object Detection: People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Best shot, Path Extraction Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) |
| Video | |
| Compression: | H265, H264, MJPEG |
| Resolution: | 3840x2160, 3328x1872, 3072x1728, 2688x1520, 2560x1440, 1920x1080, 1280x720, 640x360 (16:9) |
| Frame Rate: | Main stream: 30 fps @ 3840x2160 (8MP) Second stream: 30fps @1920x1080 Third stream: 30 fps @ 1280x720 |
| Bit Rate Control: | Fixed Quality / Constrained |
| Day/Night: | Auto(ICR) / Color / B/W / Schedule |
| Backlight Compensation: | BLC / HLC / WDR |
| White Balance: | Default (Auto)/Fixed/Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3DNR |
| Motion Detection: | Off / On (5 Area) |
| Flip: | 0°/90°/180°/270° |
| Mirror: | Off / On |
| Privacy Masking: | Off / On (5 Area) |
| WDR: | WDR Pro |
| Audio | |
| Compression: | G.711, G.726, MPEG-2 AAC-LC |
| Network | |
| Ethernet: | 10Base-T/100Base-TX Ethernet (RJ-45) |
| Protocol: | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interoperability: | ONVIF (Profile S/Profile G/Profile T/Profile M) |
| Max. User Access: | Live streaming for up to 10 users / devices |
| Management Software: | IC Secure |
| Smart Phone: | IOS, Android |
| Interface | |
| Audio I/O: | Built-in Mic, Built-in speaker, Audio Line-in, Audio Line-out |
| Alarm I/O: | Digital Input: 1 channel Digital Output: 1 channel (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A) |
| Factory Reset: | Supported |
| Memory Slot: | Micro SD Card (support max. 1TB) |
| Electrical | |
| Power Supply: | IEEE 802.3af PoE Class 3 |
| Power Consumption: | Max. 12.4W (IR on) / 9.6W (IR off) |
| Environmental | |
| Operating Conditions: | Starting Temperature: -10°C ~ 50°C (-14°F ~ 122°F) Working Temperature: -30°C ~ 50°C (-22°F ~ 122°F) (IR off) -30°C ~ 45°C (-22°F ~ 113°F) (IR on) |
| Operating Humidity: | 98% RH (non-condensing) |
| Ingress Protection: | IP66 |
| Vandal Resistance: | IK10 |
| Construction | |

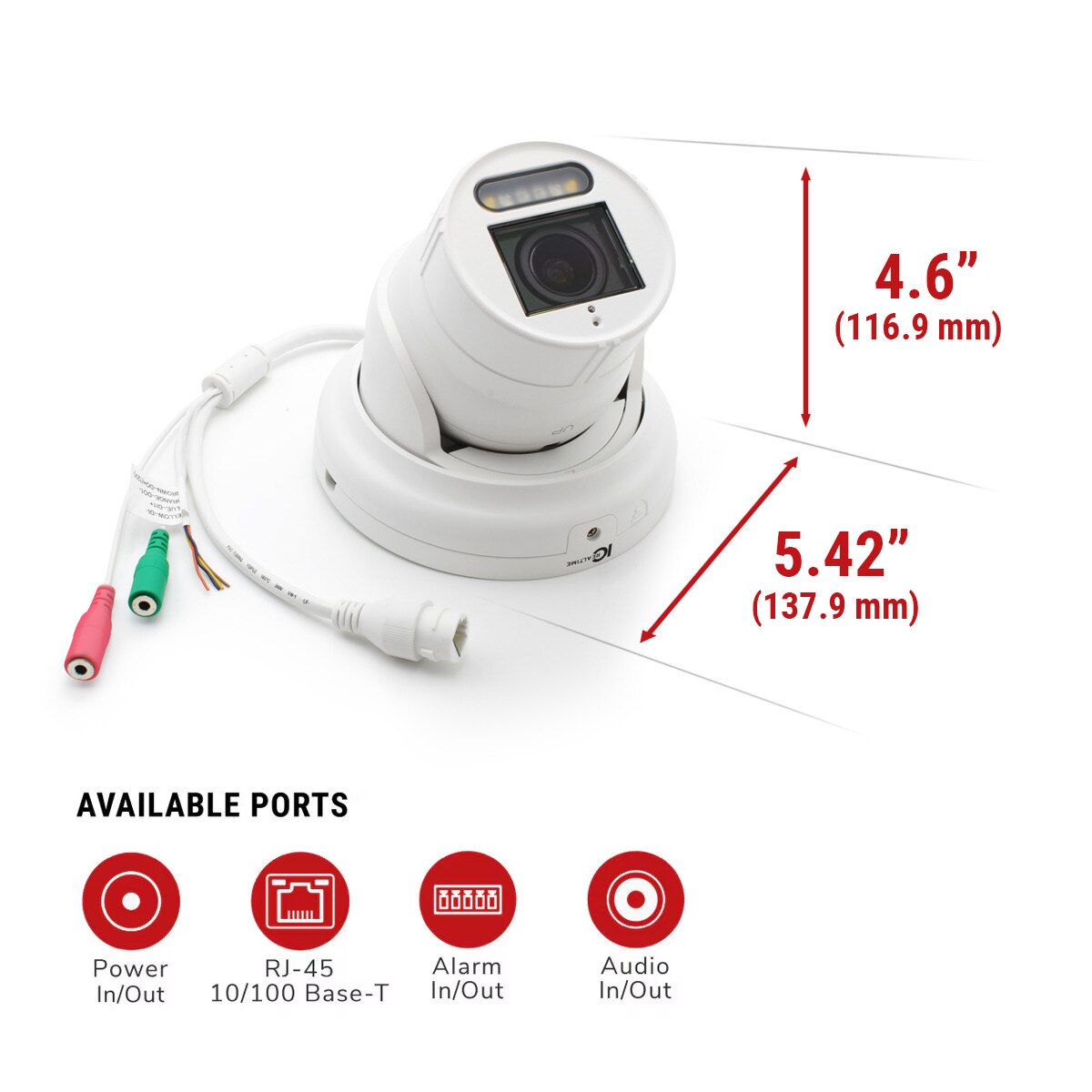

| Dimensions: | Ø 137.9 mm x 116.9 mm (Ø 5.43" × 4.60") |
