IPND-E50V-DIW1
Details

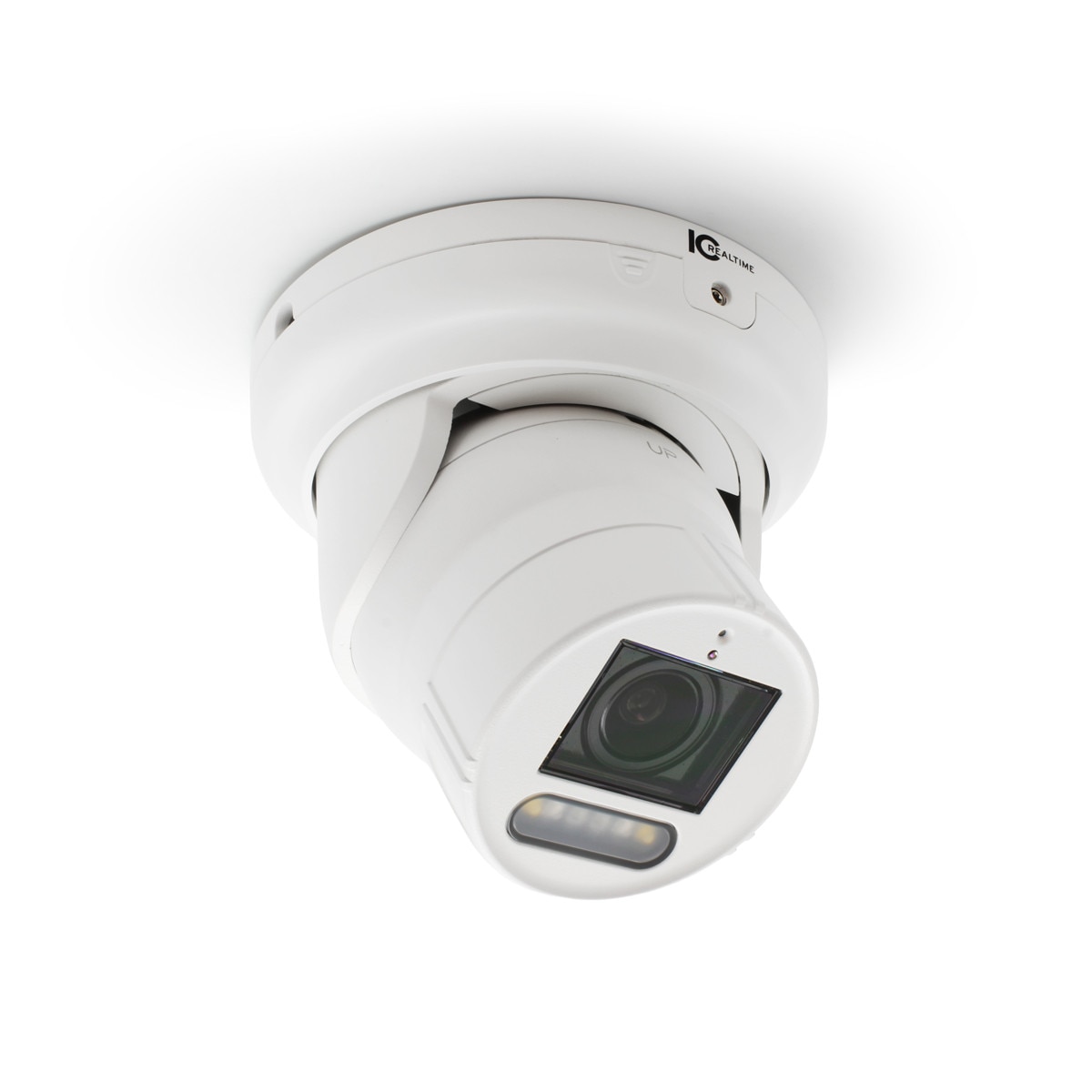

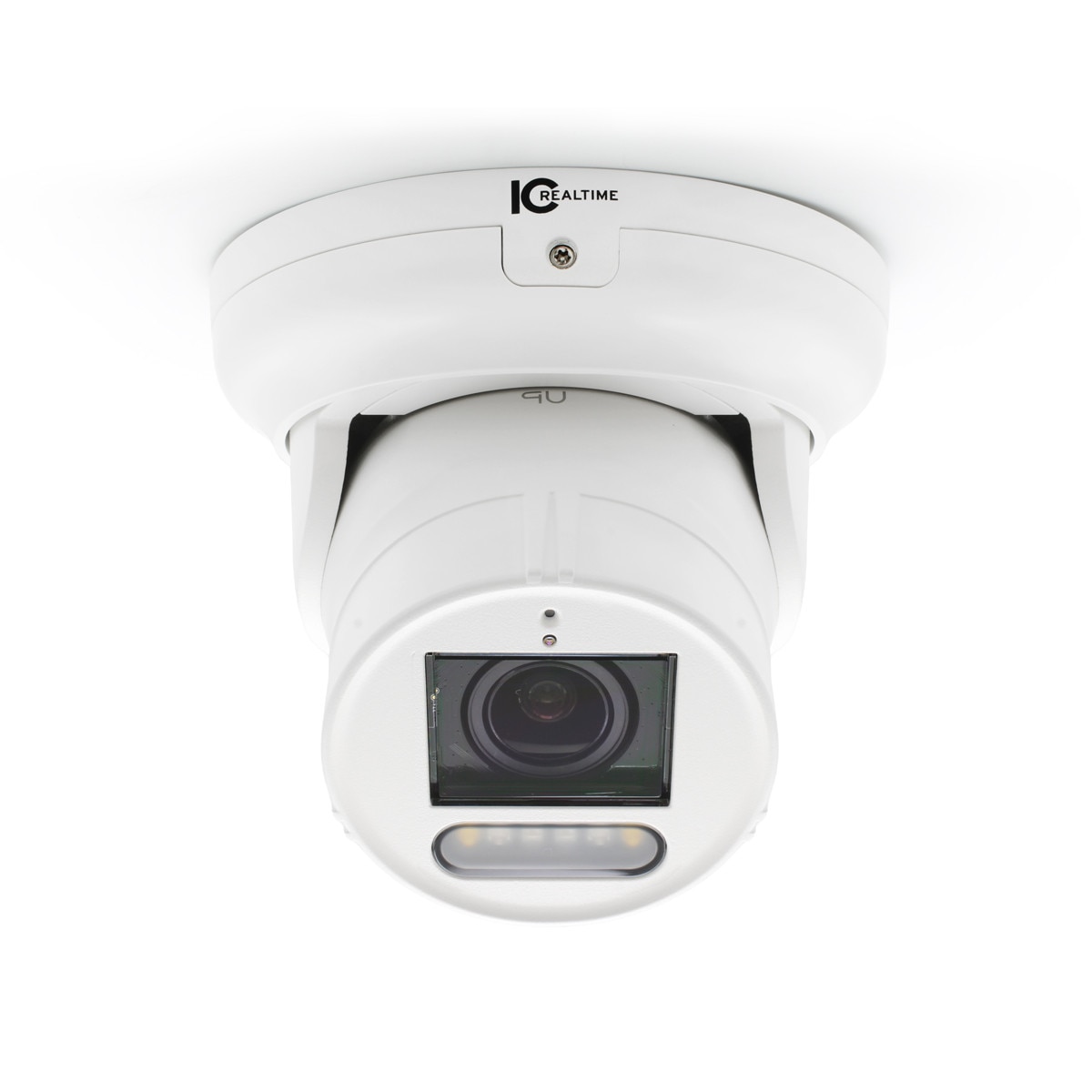

5MP NDAA & TAA-Compliant Varifocal Dual Light Turret Camera
5MP NDAA-compliant and TAA-compliant varifocal turret camera featuring Hybrid Dual Light illumination, a motorized autofocus varifocal lens, AI-powered video analytics, WDR Pro, and enterprise-grade cybersecurity for flexible professional surveillance deployments.
Overview
The IPND-E50V-DIW1 is a professional 5MP varifocal turret camera designed for compliance-driven projects requiring flexible scene coverage, intelligent video analytics, and dependable image performance.
Unlike a fixed-lens camera, the IPND-E50V-DIW1 features a 2.8–12 mm motorized autofocus varifocal lens, allowing installers to remotely adjust zoom and focus after installation. This flexibility makes it easy to optimize wide-area coverage or tighten the field of view for entrances, parking lots, loading docks, campuses, commercial buildings, and other environments where surveillance requirements may evolve over time.
Hybrid Dual Light illumination, WDR Pro imaging, and on-camera AI analytics deliver dependable performance across changing lighting conditions, while enterprise cybersecurity features help support secure deployments in government, education, healthcare, utilities, transportation, and commercial environments.
As part of the IC Secure platform, the IPND-E50V-DIW1 integrates seamlessly with IC Secure recording servers and enterprise video management software to create one complete surveillance ecosystem with centralized management, AI-powered investigations, and simplified long-term ownership.
Key Benefits
- Flexible Scene Coverage — Motorized 2.8–12 mm autofocus varifocal lens allows installers to remotely fine-tune the field of view after installation.
- 5MP Professional Imaging — Captures detailed video at up to 2560 × 1920 resolution for live monitoring, evidence collection, and everyday investigations.
- Hybrid Dual Light Technology — Infrared illumination up to 40 meters and warm white illumination up to 30 meters provide flexible nighttime surveillance across changing lighting conditions.
- AI Analytics at the Camera — Supports people and vehicle detection, face detection, intrusion detection, line crossing, loitering, unattended object detection, missing object detection, and Advanced Smart Tracking while generating intelligent metadata for investigation workflows.
- WDR Pro Performance — Helps maintain image detail in scenes containing both bright and dark areas for improved visibility in challenging lighting conditions.
- Enterprise Cybersecurity — Includes Secure Boot, signed firmware, HTTPS, IEEE 802.1X authentication, TLS 1.2/1.3, a built-in FIPS 140-2 Level 2 certified Trusted Platform Module (TPM), user account management, and additional network security protections.

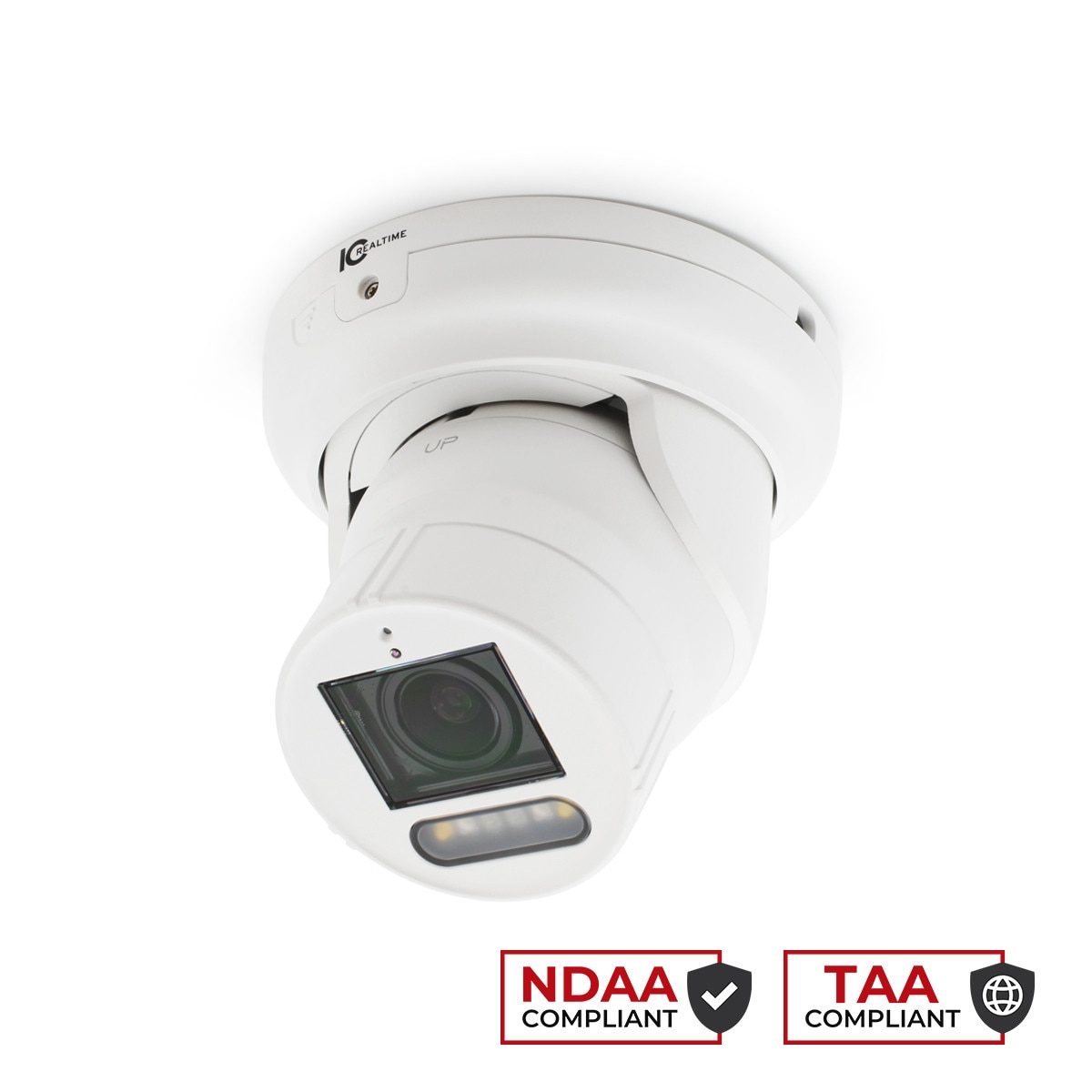

- Compliance by Design — NDAA-compliant and TAA-compliant architecture designed for government, education, healthcare, transportation, utilities, and other projects requiring trusted surveillance infrastructure.
Quick Specs
Built for Compliance-Driven Projects
Every IC Secure camera is NDAA-compliant, TAA-compliant, and UL Listed, making the platform an excellent choice for government, education, healthcare, critical infrastructure, transportation, commercial, and enterprise surveillance deployments where trusted products and long-term reliability are essential.
Applications
- Parking lots
- Loading docks
- School campuses
- Commercial buildings
- Healthcare facilities
- Government facilities
- Building entrances
- Utilities
- Warehouses
- Enterprise campuses
Part of the IC Secure Platform
The IPND-E50V-DIW1 is designed to work seamlessly with IC Secure recording servers and professional video management software. Together, they create one complete surveillance ecosystem featuring centralized management, Deep Search AI, intelligent video analytics, enterprise recording, and simplified ownership with no separate software licensing to purchase or manage.
FAQ
What is a motorized varifocal security camera?
A motorized varifocal security camera allows installers to remotely adjust the camera's zoom and focus after installation without replacing the lens. This provides greater installation flexibility and makes it easier to optimize coverage for changing surveillance requirements.
When should I choose a varifocal security camera instead of a fixed-lens camera?
Varifocal cameras are ideal when the required viewing area may change during installation or over time. They allow installers to fine-tune coverage for parking lots, loading docks, entrances, hallways, campuses, and perimeter applications without relocating the camera.
Can the zoom be adjusted after the camera is installed?
Yes. The IPND-E50V-DIW1 features a motorized autofocus varifocal lens that allows authorized users to remotely adjust zoom and focus through the video management system, making future scene adjustments simple and efficient.
What are the benefits of a 2.8–12 mm varifocal lens?
A 2.8–12 mm varifocal lens provides flexibility to capture both wide-area coverage and tighter scene detail. Wider focal lengths are well suited for general surveillance, while longer focal lengths help focus on entrances, gates, loading areas, or other locations where additional detail is desired.
Is a varifocal camera better for parking lots and commercial properties?
Varifocal cameras are commonly selected for parking lots, loading docks, commercial buildings, campuses, and perimeter applications because they allow installers to optimize the field of view after installation without physically relocating the camera.
How do AI analytics improve video surveillance?
Supported IC Secure cameras analyze video directly at the camera to detect people, vehicles, faces, and defined events while generating intelligent metadata. This metadata supports event detection and more efficient investigation workflows within the IC Secure platform.
What is Deep Search AI?
Deep Search AI is an investigation capability included with the IC Secure platform that uses searchable video metadata to help operators quickly locate relevant people, vehicles, and events within recorded video.
Can IC Secure cameras work with ONVIF systems?
Yes. The IPND-E50V-DIW1 supports ONVIF Profiles G, S, T, and M for interoperability with compatible video management systems. IC Secure cameras are also designed to integrate with IC Secure recording servers and professional video management software as part of the complete IC Secure platform.
Do IC Secure cameras require recurring software licenses?
When paired with an IC Secure recording server, enterprise video management software is included for the server's advertised camera capacity. There are no separate recurring VMS software licenses to purchase or manage.
Why choose the complete IC Secure platform?
IC Secure combines NDAA-compliant, TAA-compliant, and UL Listed cameras, enterprise recording servers, and professional video management software into one integrated ecosystem. The platform provides centralized management, intelligent video analytics, AI-powered investigation capabilities, enterprise recording infrastructure, and a consistent software experience across every server model while eliminating separate software licensing.
Specifications
| Camera | |
| Image Sensor: | 1/2.8" Progressive CMOS |
| Effective Pixels: | 2560 (H) × 1920 (V) |
| RAM/Rom: | 8GB/ 2GB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.004 lux @ F1.6 (Color) <0.005 lux @ F1.6 (B/W) 0 lux with IR illumination on |
| S/N Ratio: | 55 dB |
| Illumination Distance: | Up to 131.23 ft (40 m) (IR); Up to 98.43 ft (30 m) (Warm light) |
| Illumination On/Off Control: | Auto / Manual |
| Camera Illumination Type: | IR and White Light |
| Lens | |
| Lens Type: | Motorized Vari-focal |
| Focal Length: | 2.8 ~ 12mm |
| Max. Aperture: | F1.6 ~ F3.3 |
| Angle of View: | Horizontal: 95.4° ~ 28.7°; Vertical: 68.8° ~ 21.5°; Diagonal: 129.6° ~ 35.9° |
| Focus Control: | Auto / Manual |
| Close Focus Distance: | Wide: 0.3 m (1.0 ft) Tele: 1.0 m (3.28 ft) |
| DORI - Detect: | Wide: 67.0 m (219.9 ft) Tele: 205.7 m (674.8 ft) |
| DORI - Observe: | Wide: 26.7 m (87.5 ft) Tele: 81.6 m (267.8 ft) |
| DORI - Recognize: | Wide: 13.3 m (43.7 ft) Tele: 41.0 m (134.4 ft) |
| DORI - Identify: | Wide: 6.6 m (21.7 ft) Tele: 20.5 m (67.1 ft) |
| PTZ | |
| Pan/Tilt Range: | Pan: 350° / Tilt: 70° / Rotation: 350° |
| Intelligence | |
| IVS: | Line crossing; Intrusion, Unattended object; Missing object, Loitering detection, Face detection |
| Advanced Intelligent Functions: | Object Detection: People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Best shot, Path Extraction Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) |
| Video | |
| Compression: | H265, H264, MJPEG |
| Resolution: | 2560x1920, 2048x1536, 1920x1440, 1600x1200, 1280x960, 800x600, 640x480 (4:3) |
| Frame Rate: | Main stream: 30 fps @ 2560x1920 (5MP) Second stream: 30fps @1920x1440 Third stream: 30 fps @ 1280x960 |
| Bit Rate Control: | Fixed Quality / Constrained |
| Bit Rate: | H.264: 20 Kbps–80 Mbps H.265: 20 Kbps–80 Mbps |
| Day/Night: | Auto(ICR) / Color / B/W / Schedule |
| Backlight Compensation: | BLC / HLC / WDR |
| White Balance: | Default (Auto)/Fixed/Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3DNR |
| Motion Detection: | Off / On (5 Area) |
| Flip: | 0°/90°/180°/270° |
| Mirror: | Off / On |
| Privacy Masking: | Off / On (5 Area) |
| WDR: | WDR Pro |
| Audio | |
| Compression: | G.711, G.726, MPEG-2 AAC-LC |
| Network | |
| Ethernet: | 10Base-T/100Base-TX Ethernet (RJ-45) |
| Protocol: | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interoperability: | ONVIF (Profile S/Profile G/Profile T/Profile M) |
| Max. User Access: | Live streaming for up to 10 users / devices |
| Management Software: | IC Secure |
| Smart Phone: | IOS, Android |
| Interface | |
| Audio I/O: | Built-in Mic, Built-in speaker, Audio Line-in, Audio Line-out |
| Alarm I/O: | Digital Input: 1 channel Digital Output: 1 channel (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A) |
| Factory Reset: | Supported |
| Memory Slot: | Micro SD Card (support max. 1TB) |
| Electrical | |
| Power Supply: | IEEE 802.3af PoE Class 3 |
| Power Consumption: | Max. 12.4W (IR on) / 9.6W (IR off) |
| Environmental | |
| Operating Conditions: | Starting Temperature: -10°C ~ 50°C (-14°F ~ 122°F) Working Temperature: -30°C ~ 50°C (-22°F ~ 122°F) (IR off) -30°C ~ 45°C (-22°F ~ 113°F) (IR on) |
| Operating Humidity: | 98% RH (non-condensing) |
| Ingress Protection: | IP66 |
| Vandal Resistance: | IK10 |
| Construction | |

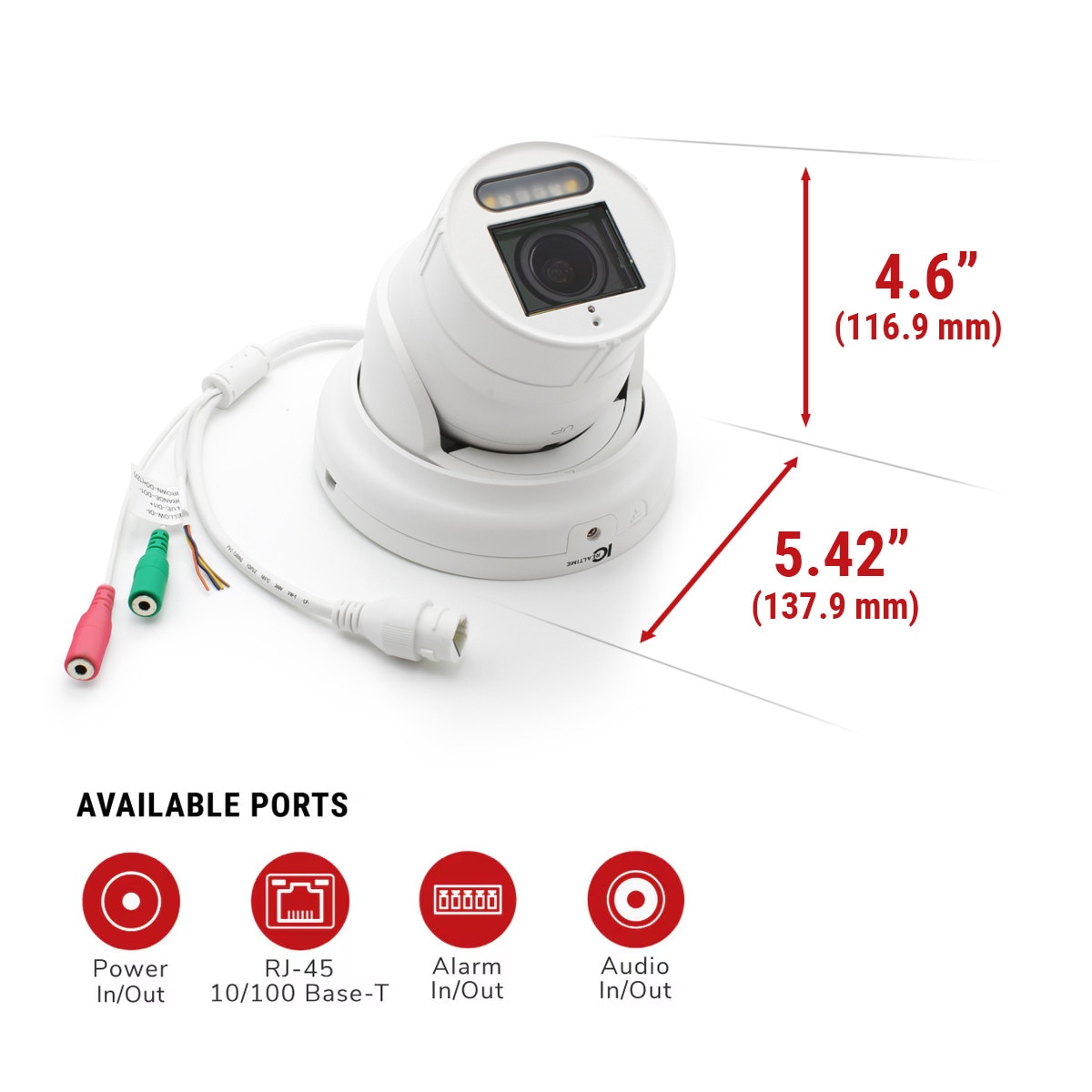

| Dimensions: | Ø 137.9 mm x 116.9 mm (Ø 5.43" × 4.60") |
