IPND-D80V-IRW1
Details

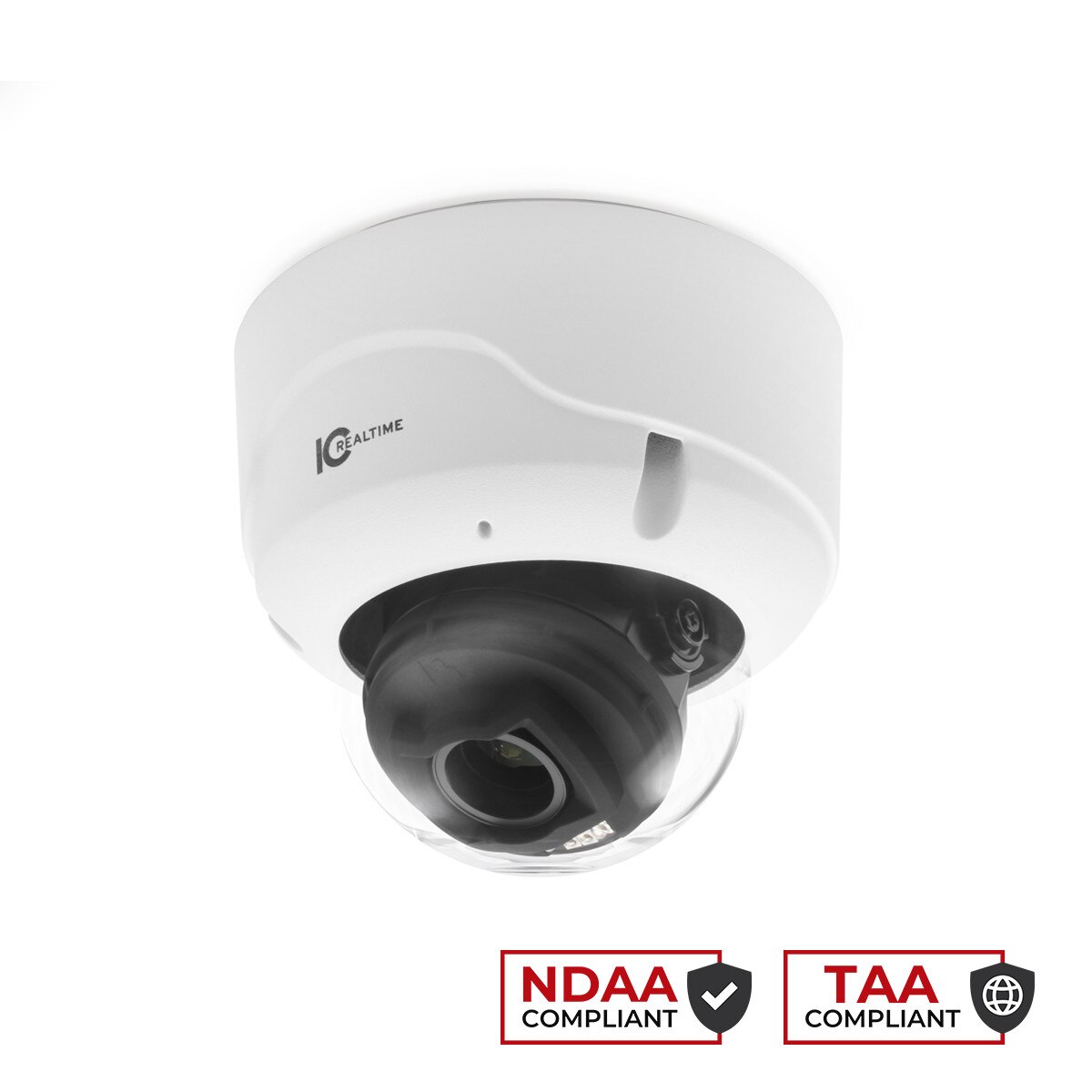

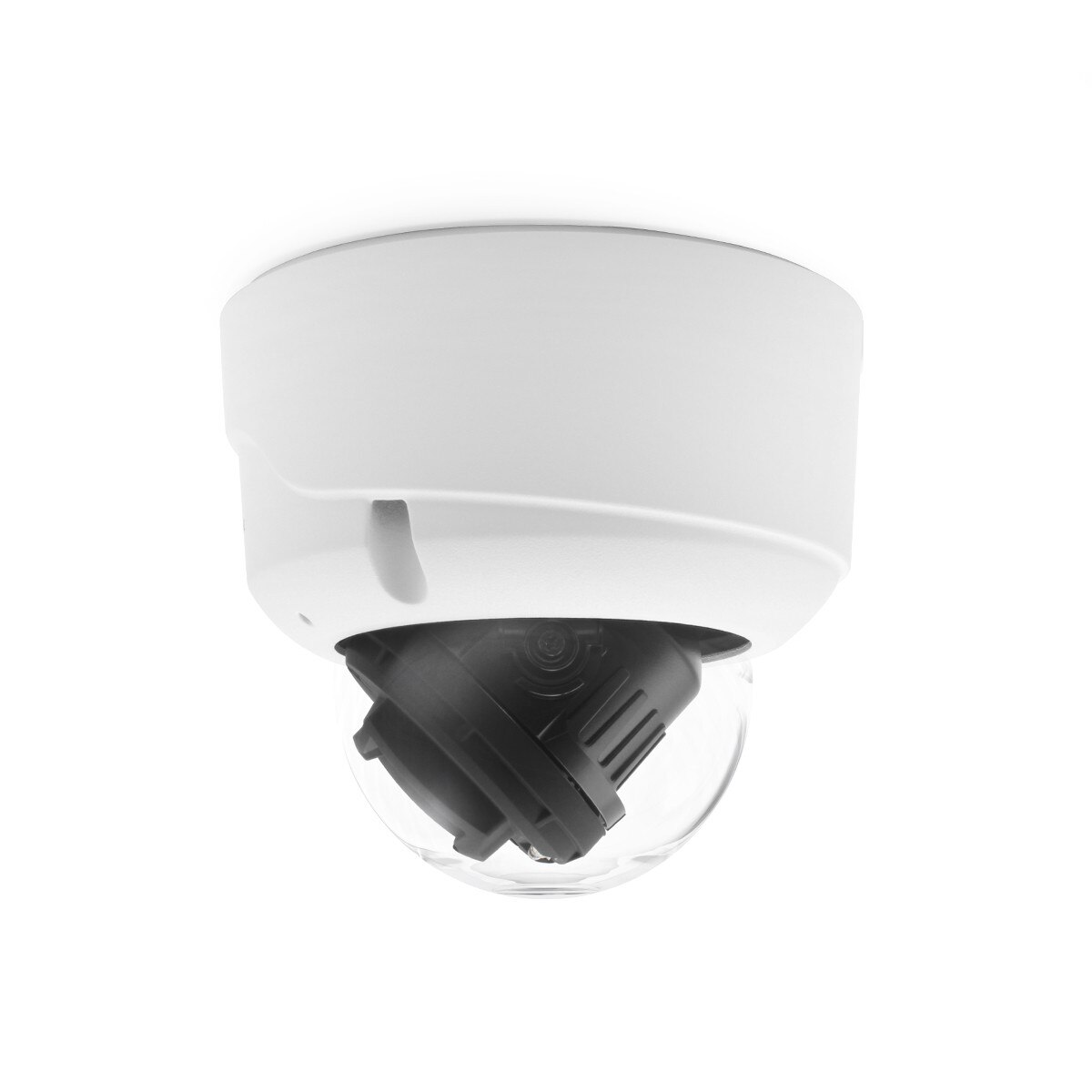

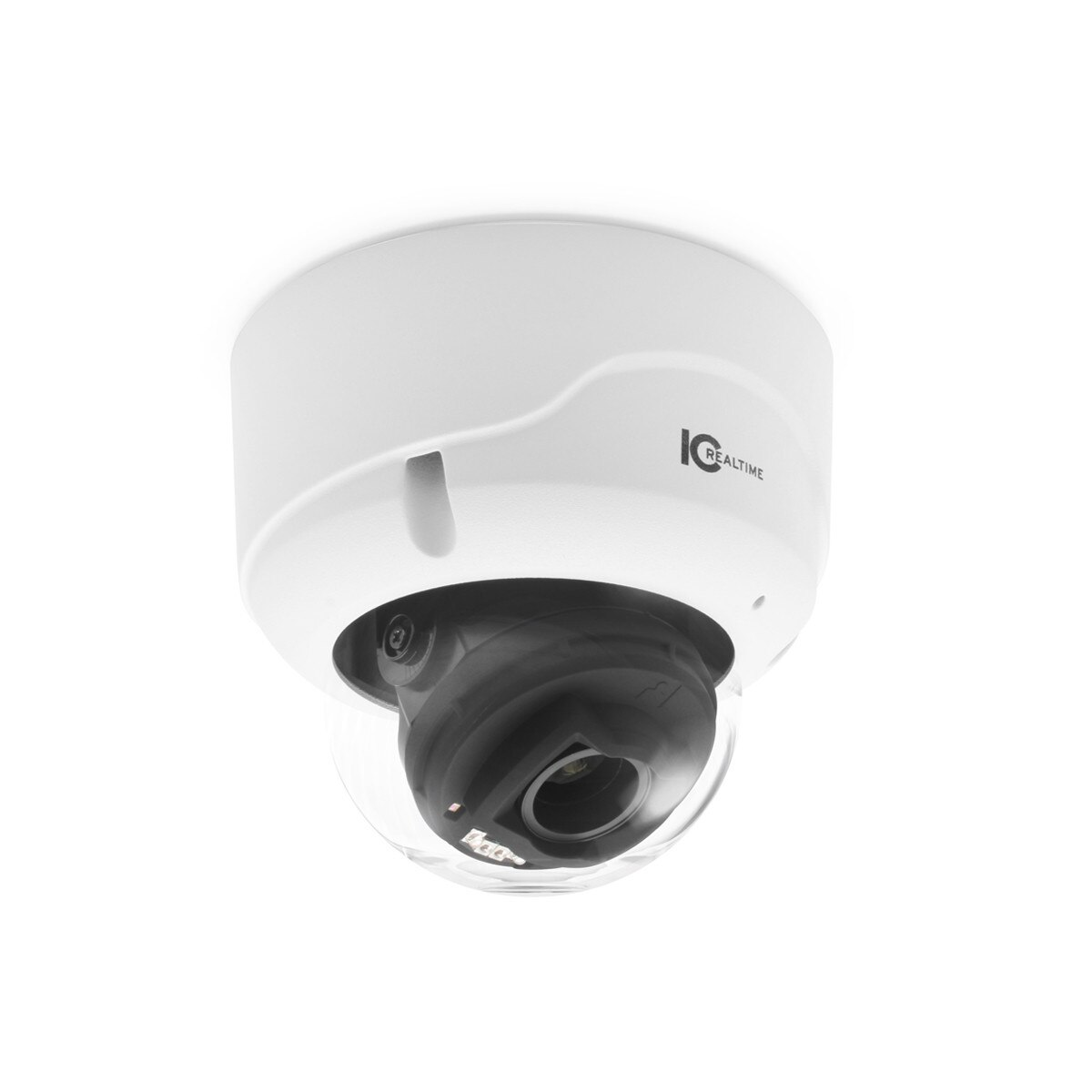

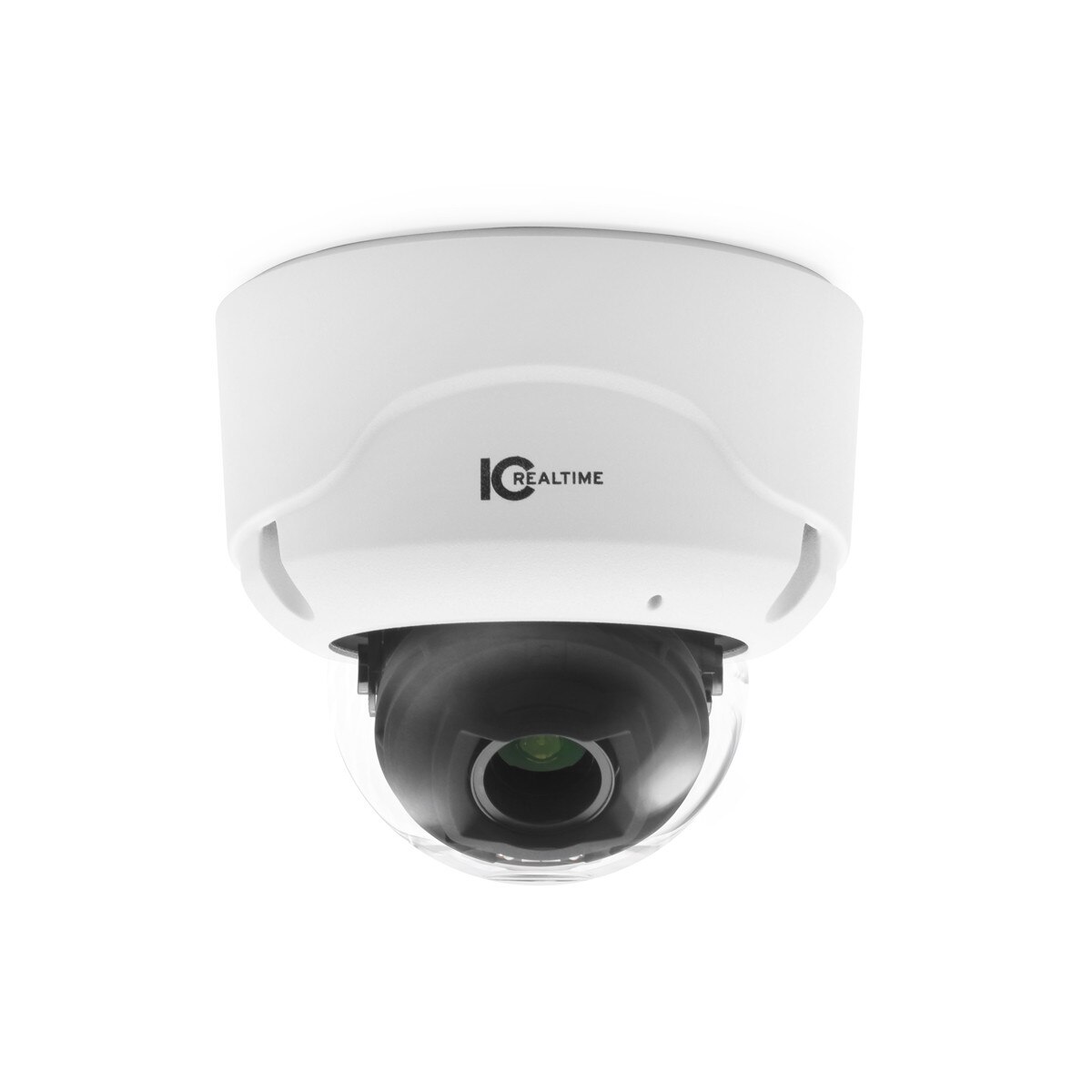

8MP NDAA & TAA Compliant Vandal-Resistant Dome Camera
8MP NDAA-compliant, TAA-compliant, vandal-resistant dome camera featuring a motorized autofocus varifocal lens, Smart IR illumination, AI-powered video analytics, WDR Pro, and enterprise-grade cybersecurity for demanding indoor and outdoor surveillance applications.
Overview
The IPND-D80V-IRW1 is a professional 8MP vandal-resistant dome camera designed for locations where high-resolution imaging, durability, and intelligent surveillance are equally important. Its IK10-rated housing helps protect against physical impact and tampering, making it well-suited for schools, healthcare facilities, public buildings, transportation facilities, commercial properties, and other high-traffic environments.
The 4.3–9.8 mm motorized autofocus varifocal lens supports remote zoom and focus adjustment, allowing installers to optimize scene coverage after installation. On-camera AI analytics, WDR Pro imaging, and Smart IR illumination up to 40 meters provide dependable surveillance capabilities across a wide range of applications and lighting conditions.
As part of the IC Secure platform, the IPND-D80V-IRW1 integrates with IC Secure enterprise recording servers and professional video management software to create one complete surveillance ecosystem with centralized management, AI-powered investigations, and simplified long-term ownership.
Key Benefits
- Vandal-Resistant Design — IK10-rated housing helps protect the camera against physical impact in schools, public buildings, healthcare facilities, transportation environments, and other high-traffic locations.
- 8MP Ultra HD Imaging — Captures detailed video at up to 3840 × 2160 resolution for live monitoring, evidence collection, and forensic investigations.
- Motorized Autofocus Varifocal Lens — 4.3–9.8 mm motorized lens supports remote zoom and focus adjustment, allowing installers to optimize coverage after installation.
- Smart IR Night Vision — Four built-in IR LEDs provide illumination up to 40 meters, with Smart IR technology designed to help manage illumination across nighttime scenes.
- AI Analytics at the Camera — Supports people and vehicle detection, face detection, intrusion detection, line crossing, loitering, unattended object detection, missing object detection, and Advanced Smart Tracking while generating intelligent metadata for investigation workflows.
- WDR Pro Performance — Helps maintain image detail in scenes containing both bright and dark areas for improved visibility in challenging lighting conditions.
- Enterprise Cybersecurity — Includes Secure Boot, signed firmware, HTTPS, IEEE 802.1X authentication, TLS 1.2/1.3, a built-in FIPS 140-2 Level 2 certified Trusted Platform Module (TPM), user account management, and additional network security protections.
- Open Platform Integration — Supports ONVIF Profiles G, S, T, and M for interoperability with compatible video management systems.
Quick Specs
Applications
- Schools and universities
- Hospitals and healthcare facilities
- Government buildings
- Commercial offices
- Retail environments
- Airports and transportation facilities
- Hotels
- Banking environments
- Public entrances
- Enterprise campuses
Part of the IC Secure Platform
The IPND-D80V-IRW1 is designed to work with IC Secure enterprise recording servers and professional video management software. Together, they create a complete surveillance ecosystem featuring centralized management, Deep Search AI, intelligent video analytics, and enterprise recording, with no separate software licenses to purchase or manage.
FAQ
What is a vandal-resistant dome camera?
A vandal-resistant dome camera is designed for locations where surveillance equipment may be exposed to physical impact or tampering. The IPND-D80V-IRW1 features an IK10-rated housing that helps protect the camera in high-traffic environments such as schools, healthcare facilities, transportation facilities, and commercial buildings.
When should I choose a dome camera instead of a turret camera?
A vandal-resistant dome camera is a strong choice for public-facing and high-traffic environments where durability and tamper resistance are priorities. The enclosed dome design and IK10-rated housing make the IPND-D80V-IRW1 well suited for schools, healthcare facilities, offices, retail environments, public entrances, and similar applications.
What does an IK10 rating mean?
IK10 is an impact-resistance classification indicating that an enclosure has been tested to withstand a specified level of mechanical impact. For surveillance applications, an IK10-rated housing provides added protection in locations where cameras may be exposed to vandalism, tampering, or accidental physical impact.
Can the IPND-D80V-IRW1 be installed outdoors?
Yes. The IPND-D80V-IRW1 features an IP66 weather-resistant rating and an IK10 impact-resistant housing, making it suitable for both indoor and outdoor surveillance installations.
Why are dome cameras commonly used in schools and healthcare facilities?
Vandal-resistant dome cameras are commonly selected for schools, healthcare facilities, and other public environments because their enclosed design provides added physical protection while maintaining a discreet appearance. The IPND-D80V-IRW1 combines IK10-rated construction with 8MP imaging, a motorized varifocal lens, and intelligent video analytics for demanding surveillance applications.
How do AI analytics improve video surveillance?
Supported IC Secure cameras analyze video at the camera to detect people, vehicles, faces, and defined events while generating intelligent metadata. This metadata can support event detection and more efficient investigation workflows within the IC Secure platform.
What is Deep Search AI?
Deep Search AI is an investigation capability within the IC Secure platform that uses searchable video metadata to help operators locate relevant people, vehicles, and events within recorded video more efficiently.
Can IC Secure cameras work with ONVIF systems?
Yes. The IPND-D80V-IRW1 supports ONVIF Profiles G, S, T, and M for interoperability with compatible video management systems. IC Secure cameras are also designed to integrate with IC Secure recording servers and video management software as part of the complete IC Secure platform.
Do IC Secure cameras require recurring software licenses?
When paired with an IC Secure recording server, enterprise video management software is included for the server’s advertised camera capacity, with no separate VMS software licensing to purchase or manage.
Why choose the complete IC Secure platform?
IC Secure combines NDAA-compliant cameras, enterprise recording servers, and professional video management software into one integrated ecosystem. The platform provides centralized management, intelligent video analytics, AI-powered investigation capabilities, enterprise recording infrastructure, and a consistent software experience across server tiers.
Specifications
| Camera | |
| Image Sensor: | 1/1.8" Progressive CMOS |
| Effective Pixels: | 3840 (H) × 2160 (V) |
| RAM/Rom: | 8GB/ 2GB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.02 lux @ F1.6 (Color) <0.005 lux @ F1.6 (B/W) 0 lux with IR illumination on |
| S/N Ratio: | 54 dB |
| Illumination Distance: | Up to 40 meters with Smart IR |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 4x LEDs |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Motorized Vari-focal |
| Focal Length: | 4.3 ~ 9.8mm |
| Max. Aperture: | F1.6 ~ F2.6 |
| Angle of View: | Horizontal: 110.4° ~ 45.1°; Vertical: 57.9° ~ 25.4°; Diagonal: 133.9° ~ 51.8° |
| Optical Zoom: | 2.3x |
| Focus Control: | Auto / Manual |
| Close Focus Distance: | Wide: 0.3 m (1.0 ft) Tele: 0.8 m (2.6 ft) |
| DORI - Detect: | Wide: 88.1 m (289.2 ft) Tele: 197.6 m (648.2 ft) |
| DORI - Observe: | Wide: 35.0 m (114.9 ft) Tele: 77.9 m (255.7 ft) |
| DORI - Recognize: | Wide: 17.5 m (57.4 ft) Tele: 39.0 m (127.8 ft) |
| DORI - Identify: | Wide: 8.7 m (28.6 ft) Tele: 19.5 m (63.9 ft) |
| PTZ | |
| Pan/Tilt Range: | Pan: 350° / Tilt: 80° / Rotation: 350° |
| Intelligence | |
| IVS: | Line crossing; Intrusion, Unattended object; Missing object, Loitering detection, Face detection |
| Advanced Intelligent Functions: | Object Detection: People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Best shot, Path Extraction Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) |
| Video | |
| Compression: | H265, H264, MJPEG |
| Resolution: | 3840x2160, 3328x1872, 3072x1728, 2688x1520, 2560x1440, 1920x1080, 1280x720, 640x360 (16:9) |
| Frame Rate: | Main stream: 30 fps @ 3840x2160 (8MP) Second stream: 30fps @1920x1080 Third stream: 30 fps @ 1280x720 |
| Bit Rate Control: | Fixed Quality / Constrained |
| Bit Rate: | H.264: 20 Kbps–20 Mbps H.265: 20 Kbps–20 Mbps |
| Day/Night: | Auto(ICR) / Color / B/W / Schedule |
| Backlight Compensation: | BLC / HLC / WDR(120dB) |
| White Balance: | Default (Auto)/Fixed/Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3DNR |
| Motion Detection: | Off / On (5 Area) |
| Flip: | 0°/90°/180°/270° |
| Mirror: | Off / On |
| Privacy Masking: | Off / On (5 Area) |
| WDR: | 120dB |
| Audio | |
| Compression: | G.711, G.726, MPEG-2 AAC-LC |
| Network | |
| Ethernet: | 10Base-T/100Base-TX Ethernet (RJ-45) |
| Protocol: | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interoperability: | ONVIF (Profile S/Profile G/Profile T/Profile M) |
| Max. User Access: | Live streaming for up to 10 users / devices |
| Management Software: | IC Secure |
| Smart Phone: | IOS, Android |
| Interface | |
| Audio I/O: | Built-in Mic |
| Factory Reset: | Supported |
| Memory Slot: | Micro SD Card (support max. 1TB) |
| Electrical | |
| Power Supply: | IEEE 802.3af PoE Class 3 |
| Power Consumption: | Max. 12.4W (IR on) / 9.6W (IR off) |
| Environmental | |
| Operating Conditions: | Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F) Working Temperature: -35°C ~ 60°C (-31°F ~ 140°F) (IR off) -35°C ~ 50°C (-31°F ~ 122°F) (IR on) |
| Operating Humidity: | 98% RH (non-condensing) |
| Ingress Protection: | IP66 |
| Vandal Resistance: | IK10 |
| Construction | |

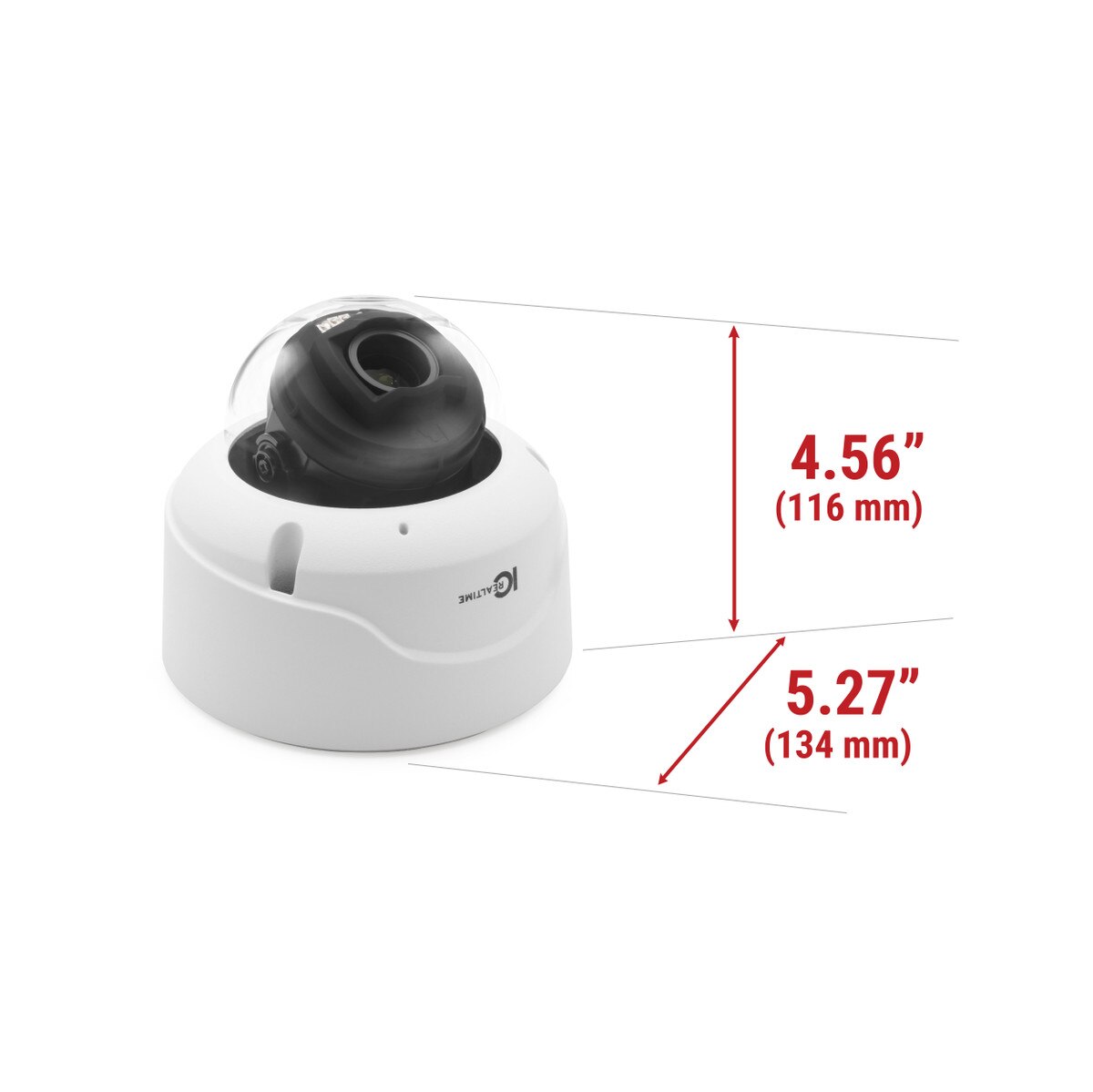

| Dimensions: | Ø 134mm x 116 mm (Ø 5.28" × 4.57") |
| Gross Weight: | 0.99 kg (2.18 lbs) |
