IPMX-P40F-W1-LED
Details

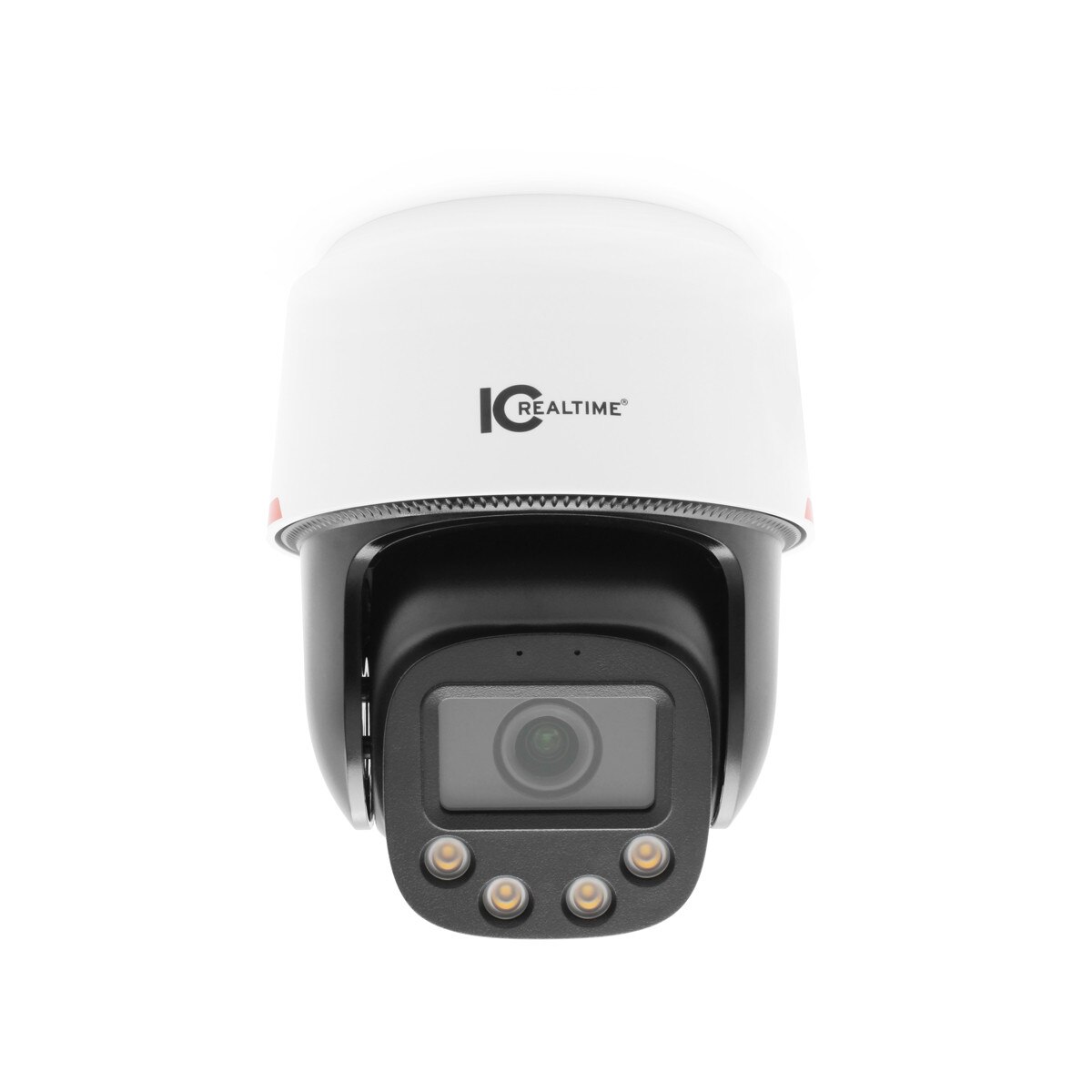

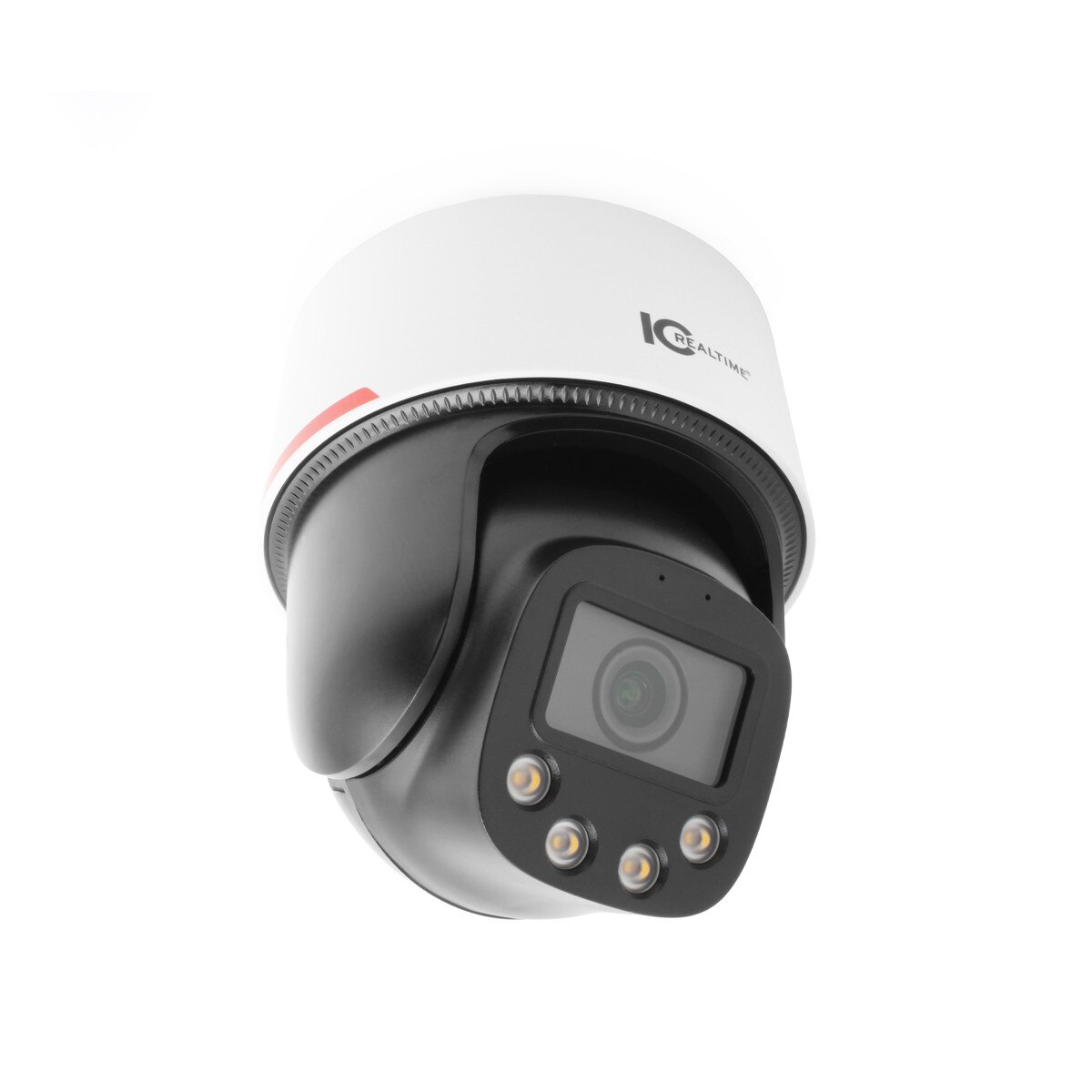

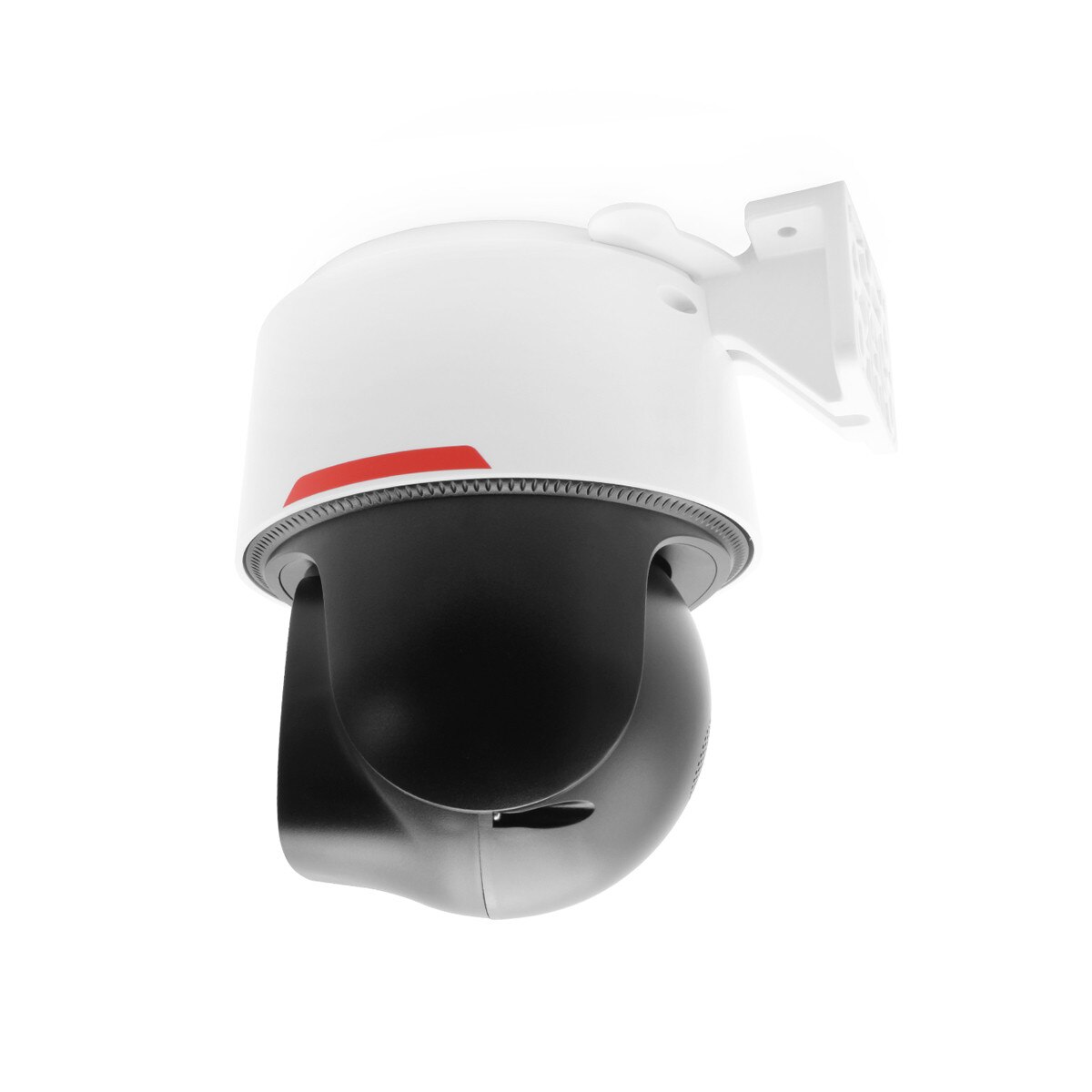

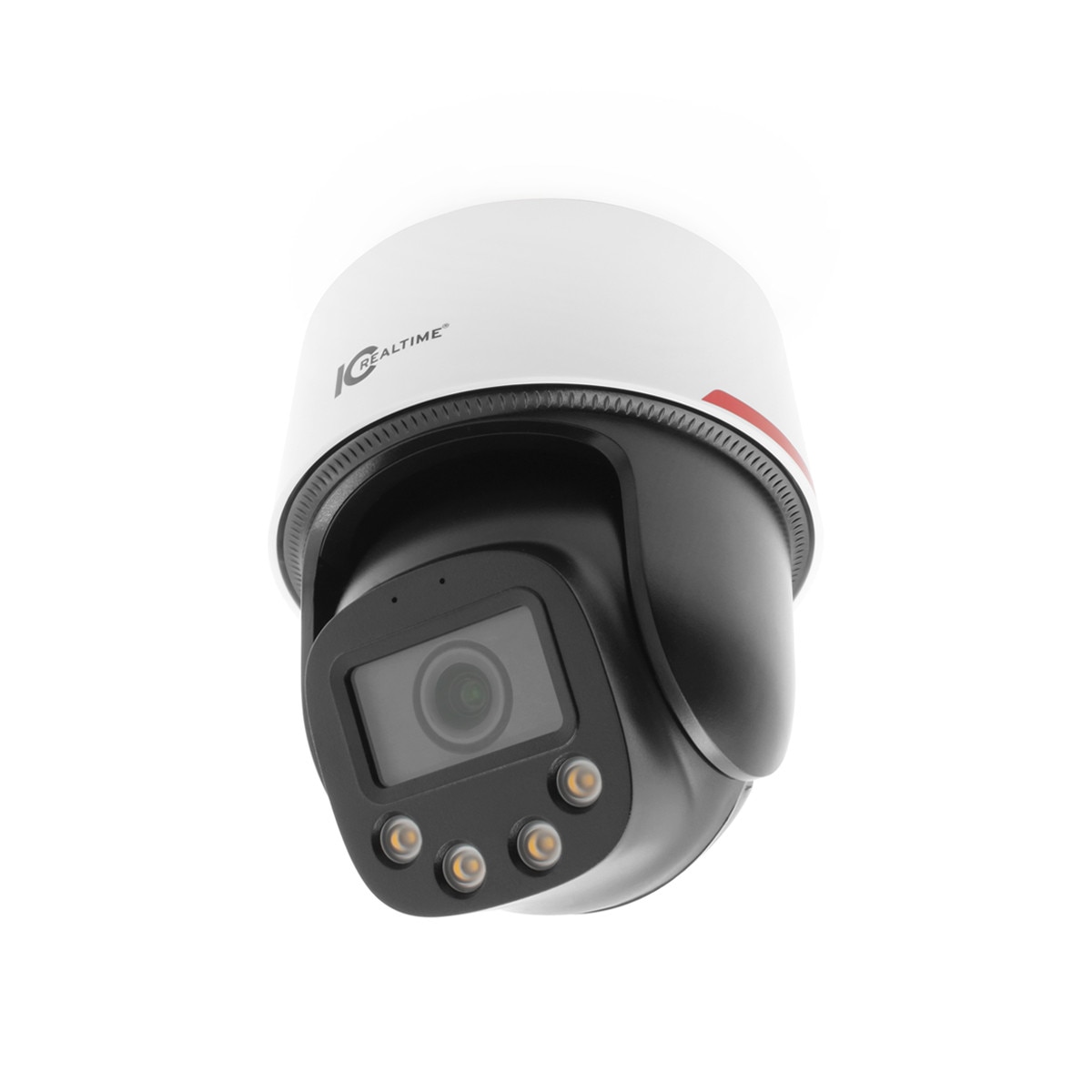

4MP Pro Full-Color PT with Active Deterrence & AI Intelligence
The Pro Full-Color PT delivers advanced coverage with full-color imaging, flashing LEDs, 2-way audio, and AI Intelligence that detects, tracks, and deters in real time.
Overview
You know the call — the one that comes after hours because the footage missed the moment. The IPMX-P40F-W1-LED is built to make sure that never happens. Its 4MP STARVIS™ sensor captures detail in color even in near darkness, while the integrated PT tracks movement across wide areas automatically. When motion is detected, flashing LEDs and two-way audio provide instant deterrence, giving operators the ability to challenge intruders or communicate directly from the camera. It’s not just recording — it’s response in real time.
Built for Integrators
Designed for pros who handle dynamic environments, this compact PT simplifies installation while delivering full coverage and smart automation. With active deterrence, and advanced AI Intelligence, it replaces multiple fixed cameras with a single intelligent unit — reducing costs, streamlining cabling, and adding interactive protection clients will notice immediately.
Key Benefits
- Full-color imaging with 1/1.8" 4MP STARVIS™ CMOS sensor
- Active deterrence with flashing warm LEDs and 2-way talk
- Smart motion tracking powered by AI Intelligence
- Perimeter, Tripwire, and Intrusion detection analytics
- Compact, weather-rated housing ideal for commercial or residential use
Quick Specs
Applications
- Parking lots, warehouses, and perimeter coverage
- Retail, schools, and small business environments needing deterrence
- Dynamic residential installs requiring full-area movement tracking
- Any project needing color-at-night and interactive audio
FAQ
What makes this a Pro PT?
Full-color imaging, active deterrence, and AI-driven tracking combine to make it the professional choice for mobile coverage.
How does the deterrence work?
When motion is detected, the camera can flash LEDs and broadcast warnings through its built-in speaker, or allow two-way talk-down.
Does it support color at night?
Yes — warm LEDs illuminate up to 98 ft for detailed full-color images even in low-light conditions.
What AI features are built in?
Auto-Tracking, Perimeter, Tripwire, and Intrusion Detection powered by AI Intelligence.
Is it suitable for outdoor use?
Yes — the IP66 housing and PoE power make it reliable for both indoor and outdoor installs.
Specifications
| Camera | |
| Image Sensor: | 1/1.8" CMOS |
| Effective Pixels: | 2560 (H) × 1440 (V), 4 Megapixels |
| RAM/Rom: | 256 MB/ 256 MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.0005 lux@F1.0 (Color, 30 IRE); 0 lux（illuminator on） |
| S/N Ratio: | ≥55 dB |
| Illumination Distance: | 98 ft (30 m) |
| Camera Illumination Type: | White Light |
| Lens | |
| Lens Type: | Fixed |
| Focal Length: | 4 mm |
| Max. Aperture: | F1.0 |
| Angle of View: | H: 97°; V: 52°; D:114° |
| Close Focus Distance: | 8.53 ft (2.6 m) |
| DORI - Detect: | 230 ft (70.10 m) |
| DORI - Observe: | 92 ft (28.04 m) |
| DORI - Recognize: | 46 ft (14.02 m) |
| DORI - Identify: | 23 ft (7.01 m) |
| PTZ | |
| Pan/Tilt Range: | Pan: 0° to 345°; Tilt: 0° to +90° |
| Manual Control Speed: | Pan: 0.1°–34.5°/s; Tilt: 0.1°–36.4°/s |
| Preset Speed: | Pan: 0.1°–33.8°/s; Tilt: 0.1°–36.3°/s |
| Presets: | 300 |
| Idle Motion: | Preset/Tour |
| Intelligence | |
| IVS: | Tripwire; intrusion |
| Advanced Intelligent Functions: | Human Auto-Tracking (supported with iMD) |
| Video | |
| Compression: | Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream) |
| Streaming Capability: | 2 Streams |
| Resolution: | 4M (2560 × 1440); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate: | Main stream: 4M/1080p/720p@(1–25/30 fps) Sub stream1: D1/VGA/CIF@(1–25/30 fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H264: 3,072 kbps–15,104 kbps H265: 1,280 kbps–9,216 kbps |
| Day/Night: | Color/B/W |
| Backlight Compensation: | BLC / HLC / DWDR |
| White Balance: | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 2DNR/3DNR |
| Region of Interest: | Support |
| Flip: | 180° |
| WDR: | DWDR |
| Audio | |
| Compression: | PCM, G.711A, G.711Mu |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP;RTP; PPPoE; RTMP; Bonjour; NFS |
| Interoperability: | ONVIF (Profile S & Profile G & Profile T);CGI;SDK |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 20 (total bandwidth 64M) |
| Edge Storage: | Micro SD card (Up to 256 GB); FTP |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | IC Now, IC Now Pro |
| Smart Phone: | IOS, Android |
| Interface | |
| Audio I/O: | Built-in Mic and Speaker |
| Electrical | |
| Power Supply: | 12 VDC, 1A ± 10% PoE (802.3af); PSU Not included. |
| Power Consumption: | PoE: Basic: 3.6 W Max: 9.5 W (LEDs on + PT moving) |
| Environmental | |
| Operating Conditions: | –22 °F to +131 °F (–30 °C to +55 °C) / Less than 95% RH |
| Ingress Protection: | IP66 |
| Construction | |
| Casing: | Plastic |

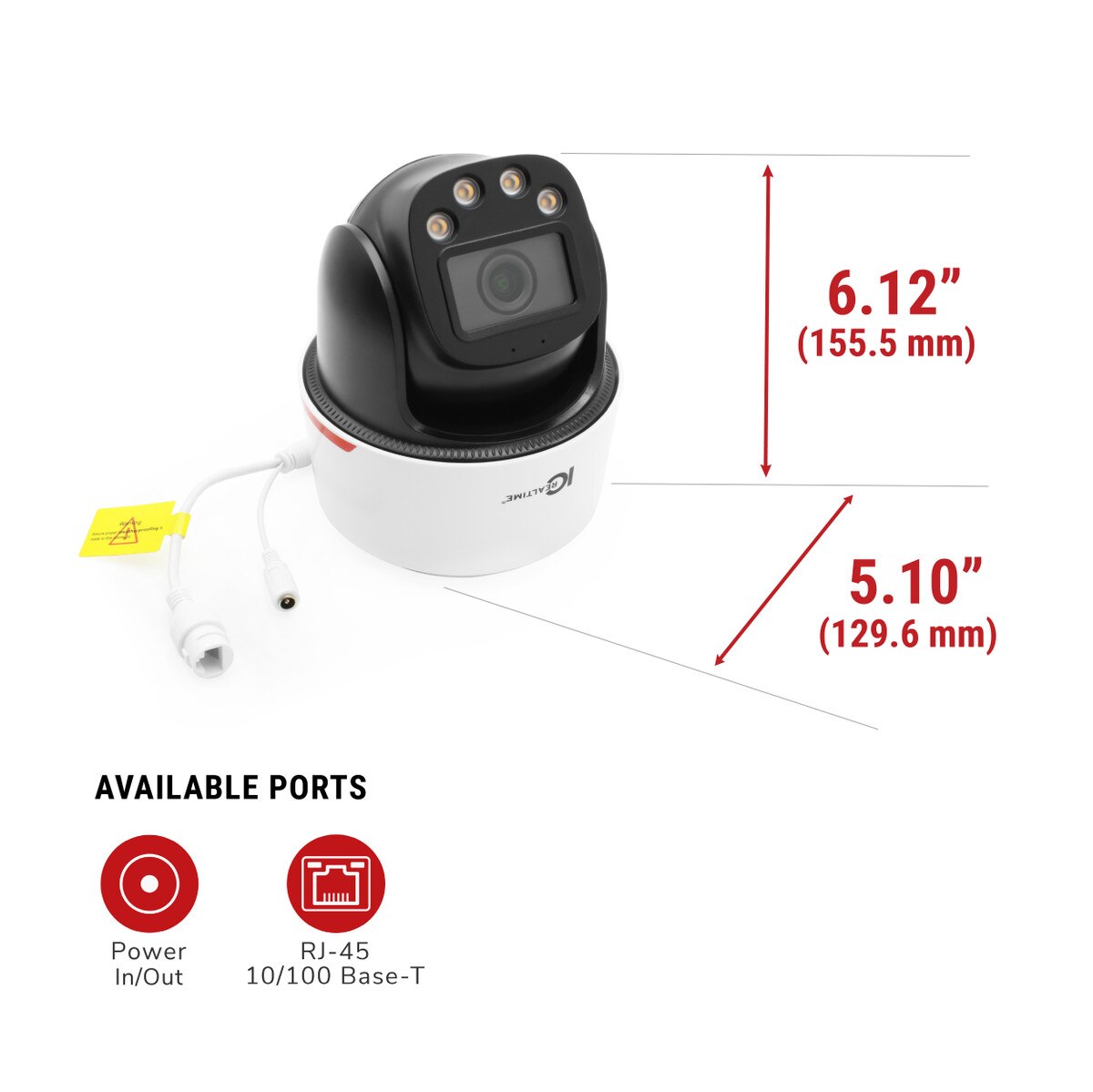

| Dimensions: | 6.04" × Ø5.09" (153.5 mm × Ø129.3 mm) |
| Gross Weight: | 2.20 lb (1 kg) |
