IPMX-E20F-IRW1

(0) No Reviews yet
SKU: IPMX-E20F-IRW1
ITEM WEIGHT: 2
2MP IP Indoor/Outdoor Small Size Vandal Eyeball Dome Fixed 3.6mm Lens (86 AOV) 98 ft IR POE
1/2.8 CMOS Starvis | 2MP | 60fps@2MP
3.6mm | fixed | AoV 87
Max. IR length 98ft | Smart IR | 12 IR LEDs
1ch audio in 1ch audio out | 1ch alarm in 1ch alarm out | 32GB mSD
IP67 | 12VDC or PoE | Max. 6W
IVS | AGC | 120dB True WDR | HLC | BLC | 3DNR

Details

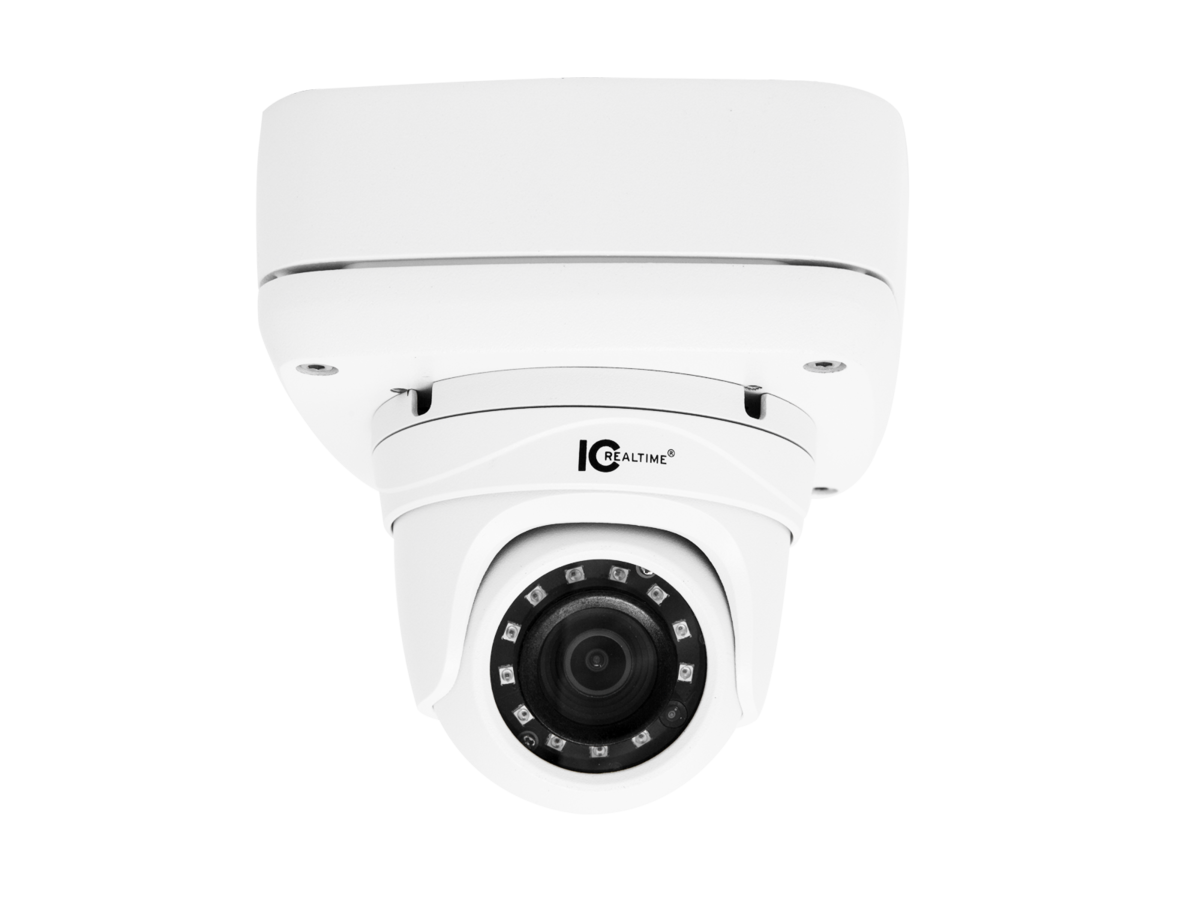

Similar in design to cameras like the ICR-D2000-IR and ICIP-D2000IR, IPMX-E20F-IRW1 is an orbital, free-floating dome camera. This camera is a popular seller, due to its high resolution and ease of installation. Inside the camera, it contains a high resolution, 2 Megapixel Sony Progressive Scan Exmor CMOS sensor, capable of outputting a crisp, clear image. The optics on this camera include a fixed 3.6mm lens. Built in IR LED illumination is effective up to 60' at 0 light. Made in Korea

Specifications

Camera
Image Sensor: 1/2.8 2 Megapixel progressive scan STARVIS CMOS
Effective Pixels: 1920(H) x 1080(V)
RAM/Rom: 256MB / 32MB
Scanning System: Progressive
Minimum Illumination: 0.009Lux/F2.0( Color1/3s30IRE) 0.07Lux/2.0( Color1/30s30IRE) 0Lux/F2.0(IR on)
S/N Ratio: More than 50dB
IR Distance: Distance up to 30m(98ft)
IR On/Off Control: Auto/Manual
IR LEDs: 12
Lens
Lens Type: Fixed
Mount Type: Board-in
Focal Length: 3.6mm
Max. Aperture: F2.0
Angle of View: H: 87 degrees V: 48 degrees
Focus Control: Fixed
DORI - Detect: 55m (180ft)
DORI - Observe: 22m (72ft)
DORI - Recognize: 11m (36ft)
DORI - Identify: 6m (20ft)
PTZ
Pan/Tilt Range: Pan:0 ~ 360 ; / Tilt:0 ~ 90 ; / Rotation:0 ~ 360
Intelligence
Smart Function: Tripwire / Intrusion / Abandoned or Missing Object / Face Detection
Video
Compression: H.265+ / H.265 / H.264+ / H.264
Resolution: 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 /352 x 240)
Frame Rate: Main Stream: 1080P(1 - 50/60fps) Sub Stream: D1(1 - 50/60fps) Third Stream: 1080P(1 - 25/30fps)
Bit Rate: H.264: 24 - 9472Kbps H.265: 14 - 5632Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR(120dB)
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zones Rectangular)
Region of Interest: Off / On (4 Zones)
Smart IR: Supported
Digital Zoom: 16x
Flip: 0 / 90 / 180 / 270
Mirror: Off / On
Privacy Masking: Up to 4 areas
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
Interoperability: ONVIF / PSIA / CGI
Compatability: ONVIF / PSIA / CGI
Streaming Method: Unicast / Multicast
Max. User Access: 20 Users
Edge Storage: NAS / Local PC for instant recording
Interface
Video Interface: N/A
Electrical
Power Supply: DC12V PoE (802.3af)(Class 0)
Power Consumption: < 6W
Enviromental
Operating Conditions: -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
Ingress Protection: IP67
Construction
Casing: Metal
Dimensions: 93.4mm x 79.4mm (3.68in x 3.13in)
Gross Weight: 0.42Kg (0.93lb)

Downloads
