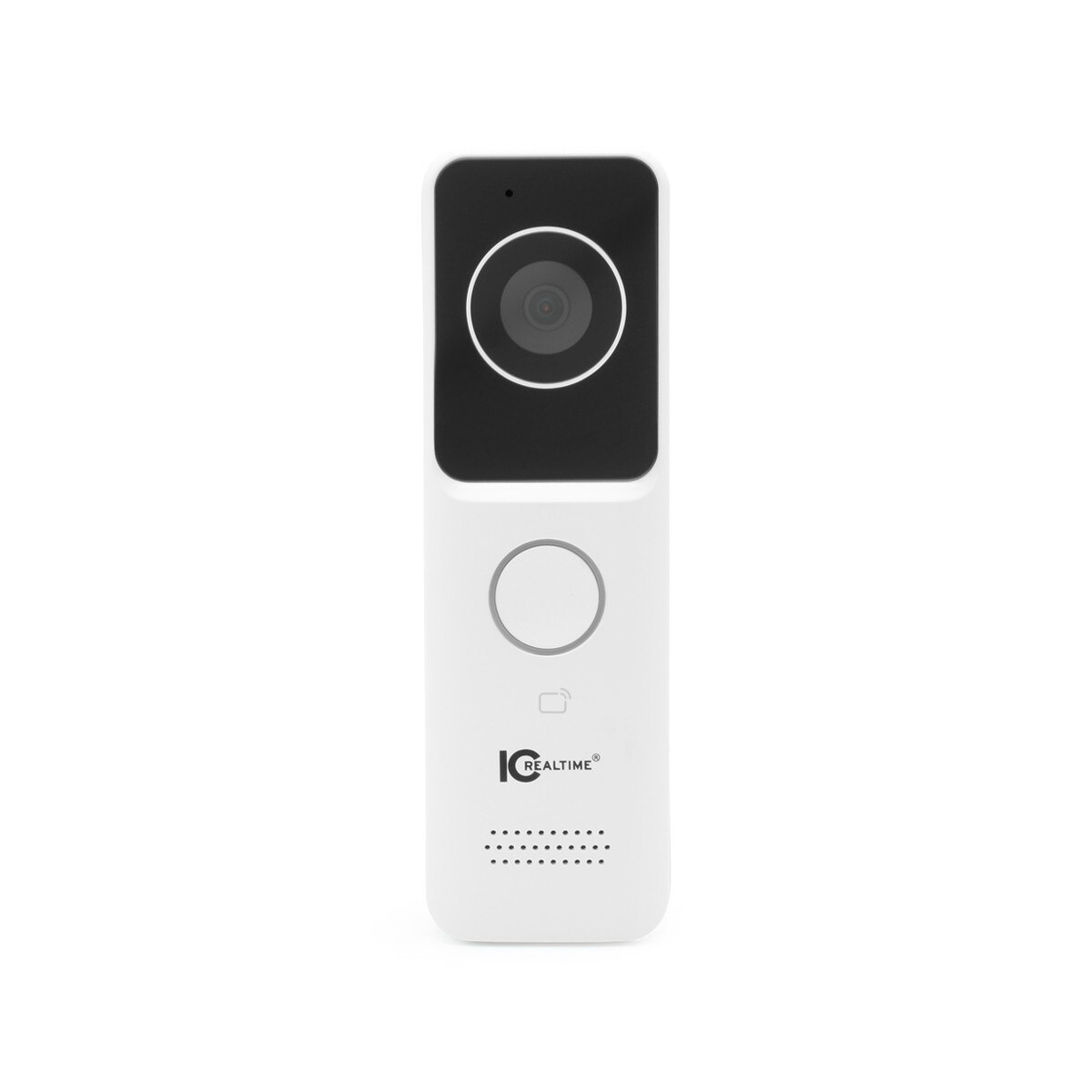

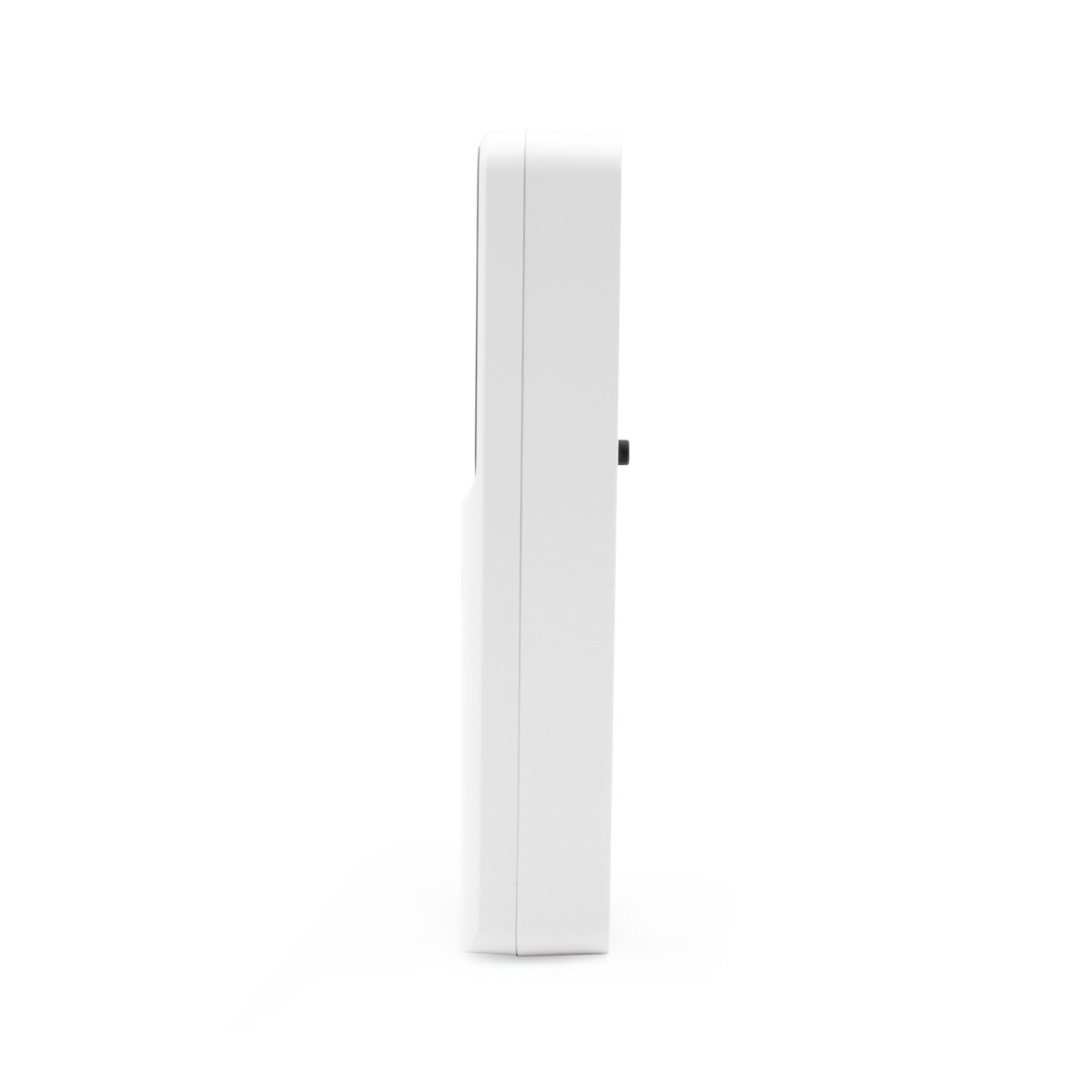

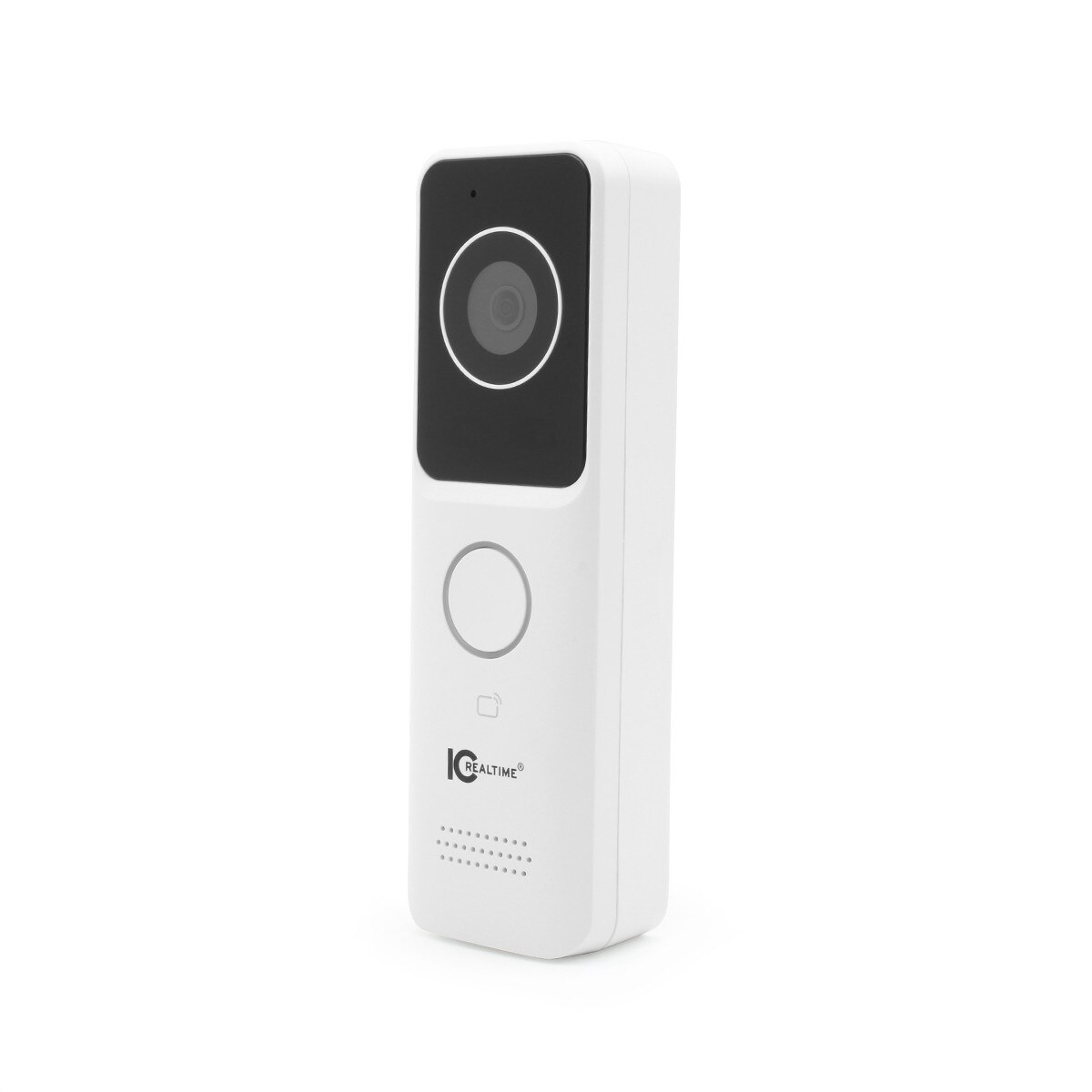

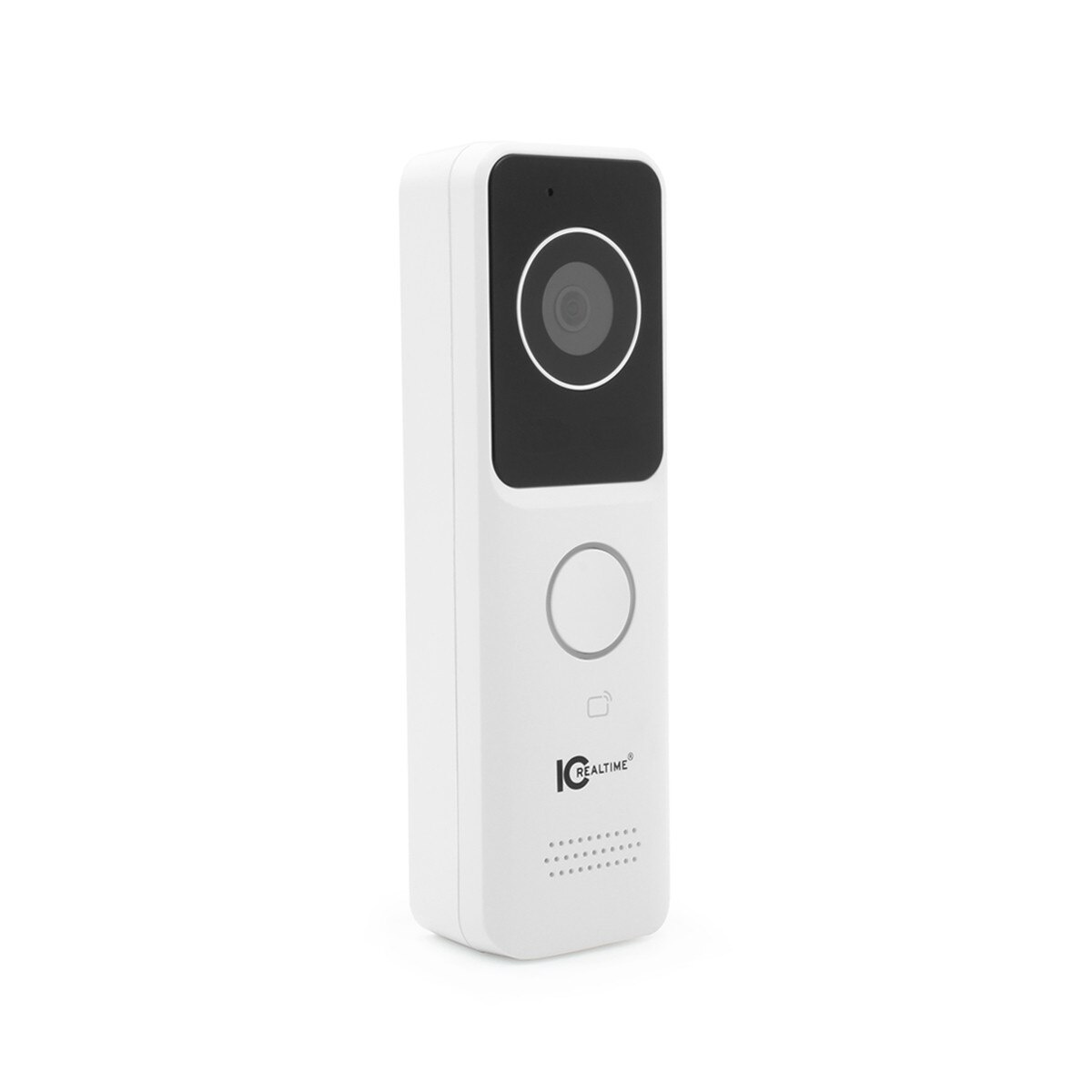

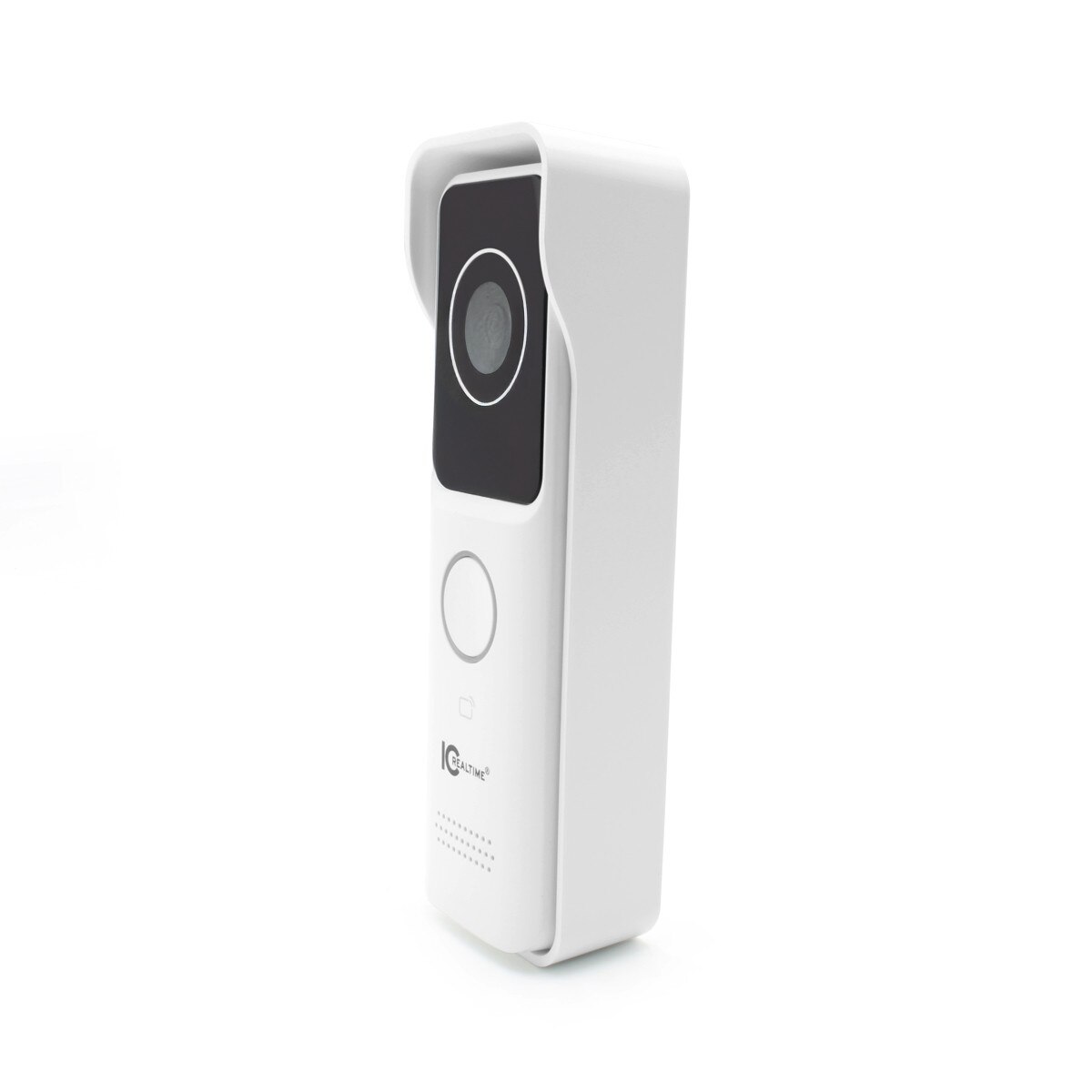

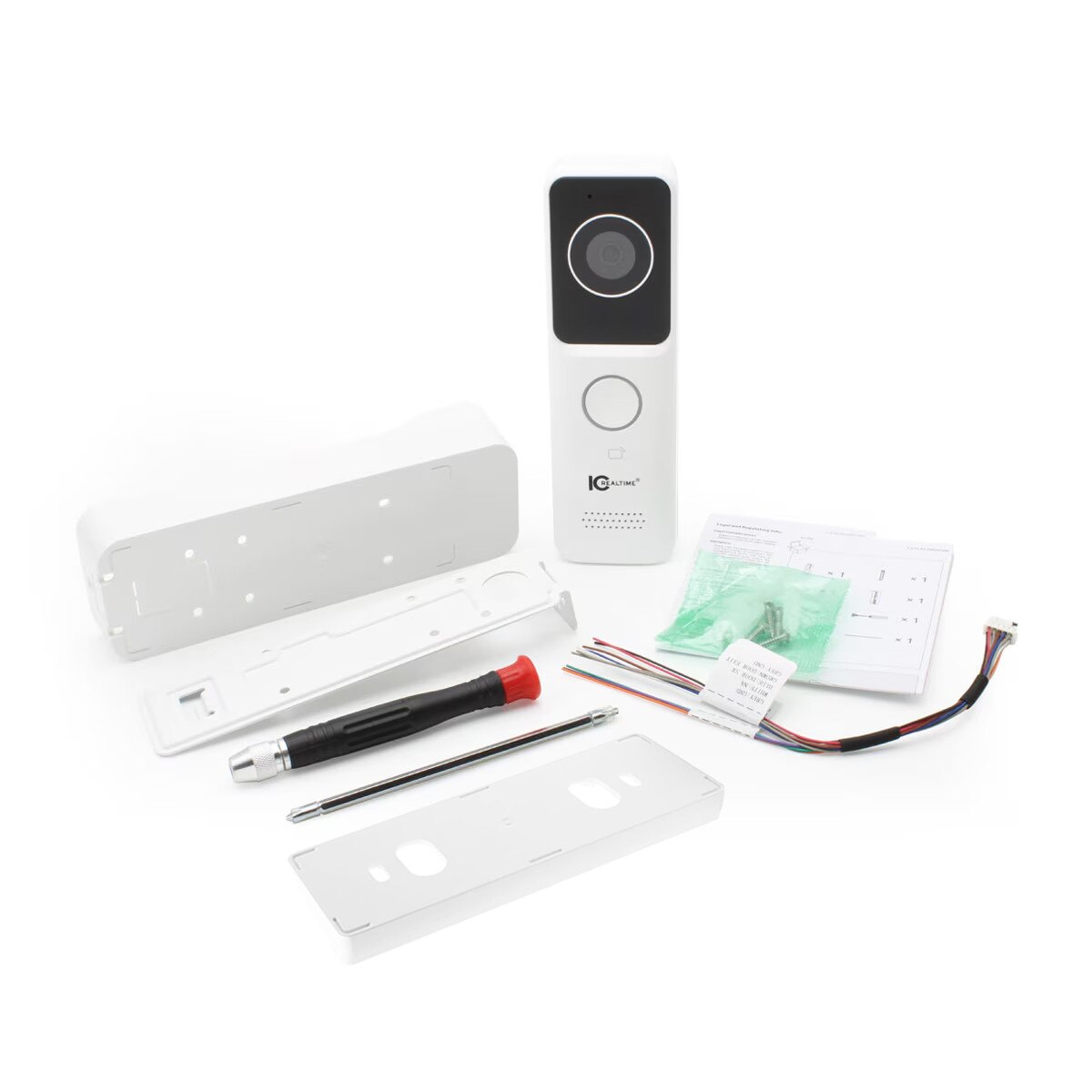

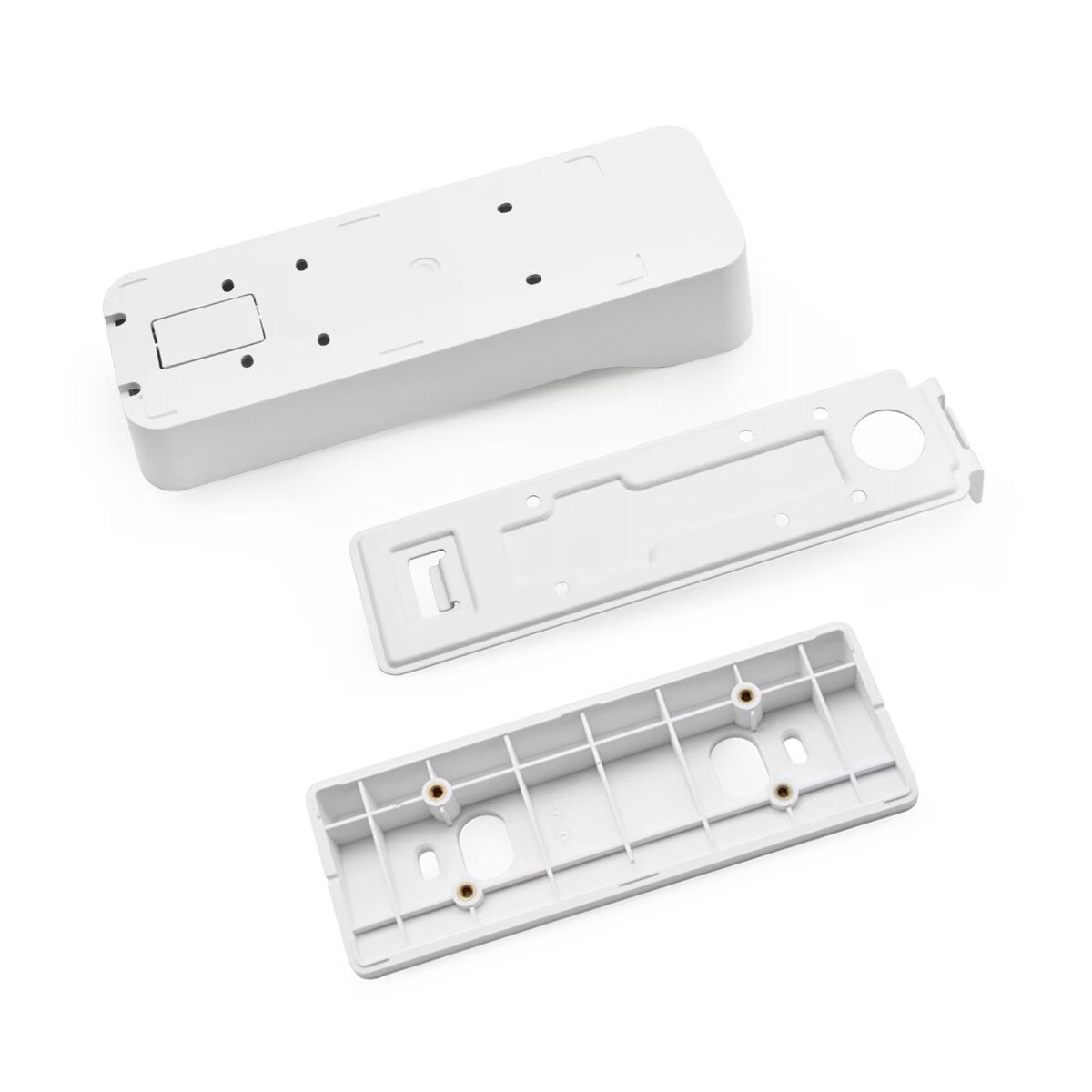

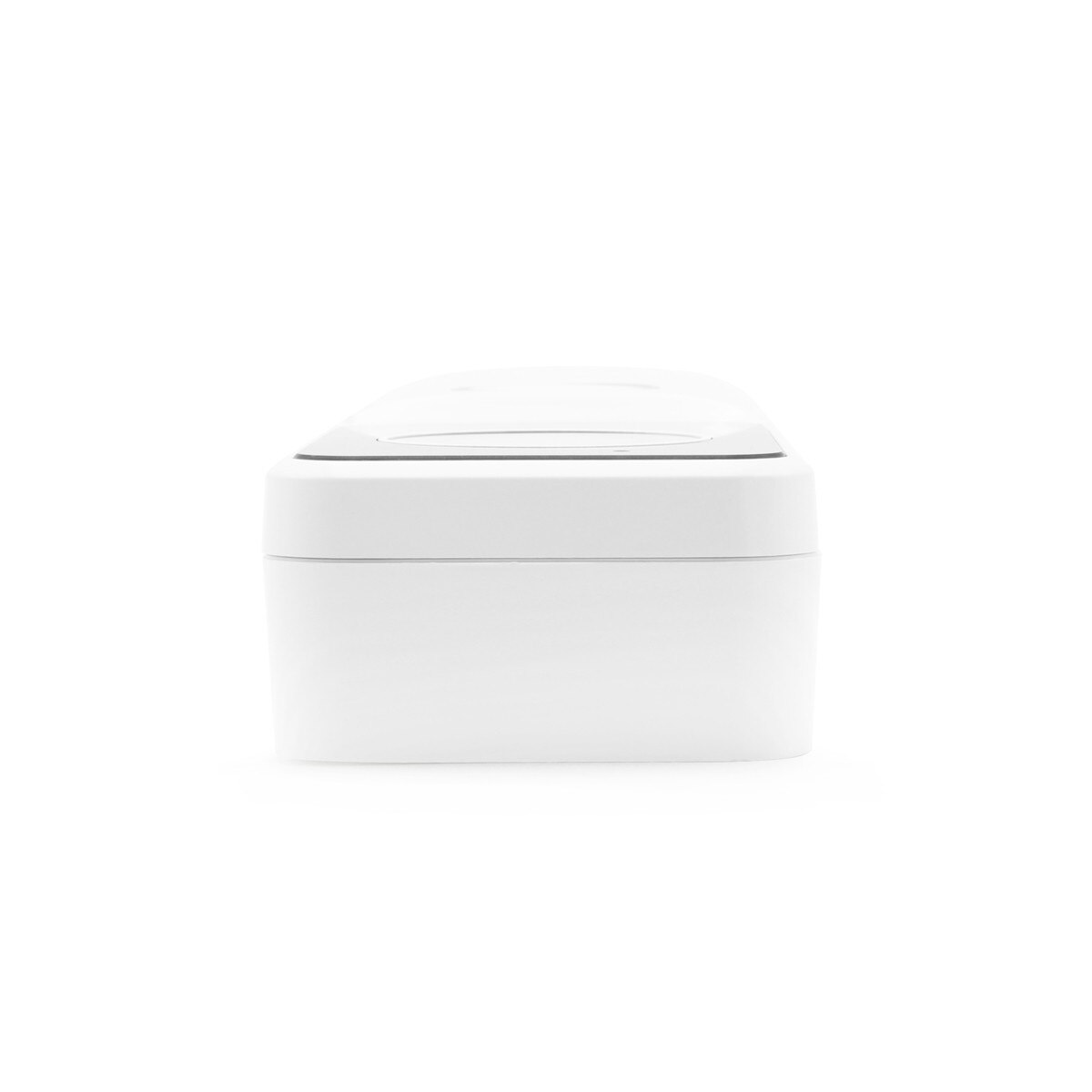

Dinger Pro Door Station [White] with Angle Mount
Details
Dinger Pro Door Station — PoE Video Entry With SIP Integration
2MP PoE video door station with IR night vision, two-way audio, SIP intercom support, and reliable wired networking for integrated residential and SMB installations.
The Dinger Pro Door Station is a professional-grade video entry solution designed for residential and small-business installations where reliability, integration, and privacy matter. Built primarily for PoE installations, it delivers stable power and network connectivity through a single Ethernet cable—eliminating common issues associated with wireless doorbells such as signal dropouts, latency, and battery maintenance.
With 2MP resolution, IR night vision, and a wide 110° field of view, it provides clear visitor identification day or night. Its SIP-based communication architecture allows it to function as a true intercom endpoint, routing calls across intercom panels, mobile apps, and monitoring software. As a hybrid entry solution within the IC Home lineup, the Dinger Pro Door Station gives dealers the flexibility to support both Wi-Fi-based installs and fully integrated structured-wiring environments.
Key Benefits
- Professional-grade reliability — PoE power and hardwired Ethernet for consistent uptime with no Wi-Fi dropouts or battery maintenance.
- Intercom-ready communication — SIP support enables true intercom workflows across panels, mobile devices, and monitoring systems.
- AI-powered detection with NVR integration — Enables smart alerts when paired with IC Realtime AI-enabled NVRs.
- Clear visitor identification — 2MP sensor with a 110° field of view and IR night vision for dependable day and night visibility.
- Built for integrated systems — Works with SIP intercom platforms, ONVIF-supported systems, and VMS environments.
- Privacy-first recording — Supports local recording to microSD or IC Realtime NVRs with no required cloud subscription.
- Flexible installation options — Designed for PoE (recommended) with optional Wi-Fi support when Ethernet is not available.
- Built for integrated systems — Works with SIP intercom platforms, ONVIF-supported systems, and VMS environments.
Quick Specs
Applications
- Residential front doors
- Integrated smart home systems
- Small-business storefronts
- Office reception areas
- Delivery and secondary entrances
- Multi-unit properties using SIP intercom systems
FAQ
What makes this different from a typical Wi-Fi doorbell?
The Dinger Pro Door Station is designed for PoE installations, providing more reliable power, network connectivity, and long-term performance than a Wi-Fi-only doorbell.
Why is this a 2MP camera instead of a higher resolution?
The 2MP resolution is intentional to help ensure fast, stable video for intercom communication, where responsiveness matters more than ultra-high resolution at door distance.
Can it integrate with intercom systems?
Yes. It supports SIP communication, allowing it to connect with compatible intercom panels, mobile apps, and monitoring systems.
Does it require cloud storage?
No. The Dinger Pro Door Station supports local recording to microSD or IC Realtime NVRs, giving users full control over their video.
Can it still be used in Wi-Fi environments?
Yes. While PoE is recommended, the device also supports Wi-Fi connectivity when Ethernet is not available.
Where does this fit in the IC Realtime lineup?
It is positioned as a hybrid entry solution within IC Home while maintaining its professional intercom architecture from the Max Series.
Specifications
| Camera | |
| Image Sensor: | 1/2.8" CMOS |
| Effective Pixels: | 1920 (H) ×1080 (V) |
| RAM/Rom: | 128MB / 256MB |
| Illumination Distance: | 16.5ft (5m) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 2 |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed |
| Max. Aperture: | F2.1 |
| Angle of View: | H: 110°; V: 62°; D: 133° |
| DORI - Detect: | 99.5 ft |
| DORI - Observe: | 39.7 ft |
| DORI - Recognize: | 19.88 ft |
| DORI - Identify: | 10 ft |
| Video | |
| Compression: | H.264; H.265 |
| Resolution: | 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 480); WVGA (800×480); VGA (640 × 80); CIF (352 × 288/352 × 240) |
| Frame Rate: | NTSC: 30 fps PAL: 25 Fps |
| Bit Rate Control: | 768 kbps–8 Mbps |
| Bit Rate: | CBR |
| Day/Night: | Auto (ICR)/Color/B/W; Color/B/W |
| Backlight Compensation: | BLC / HLC / WDR |
| Noise Reduction: | 2DNR/3DNR |
| Flip: | 0°/180° |
| WDR: | 120 dB |
| Audio | |
| Compression: | G.711a; G.711u; PCM |
| Network | |

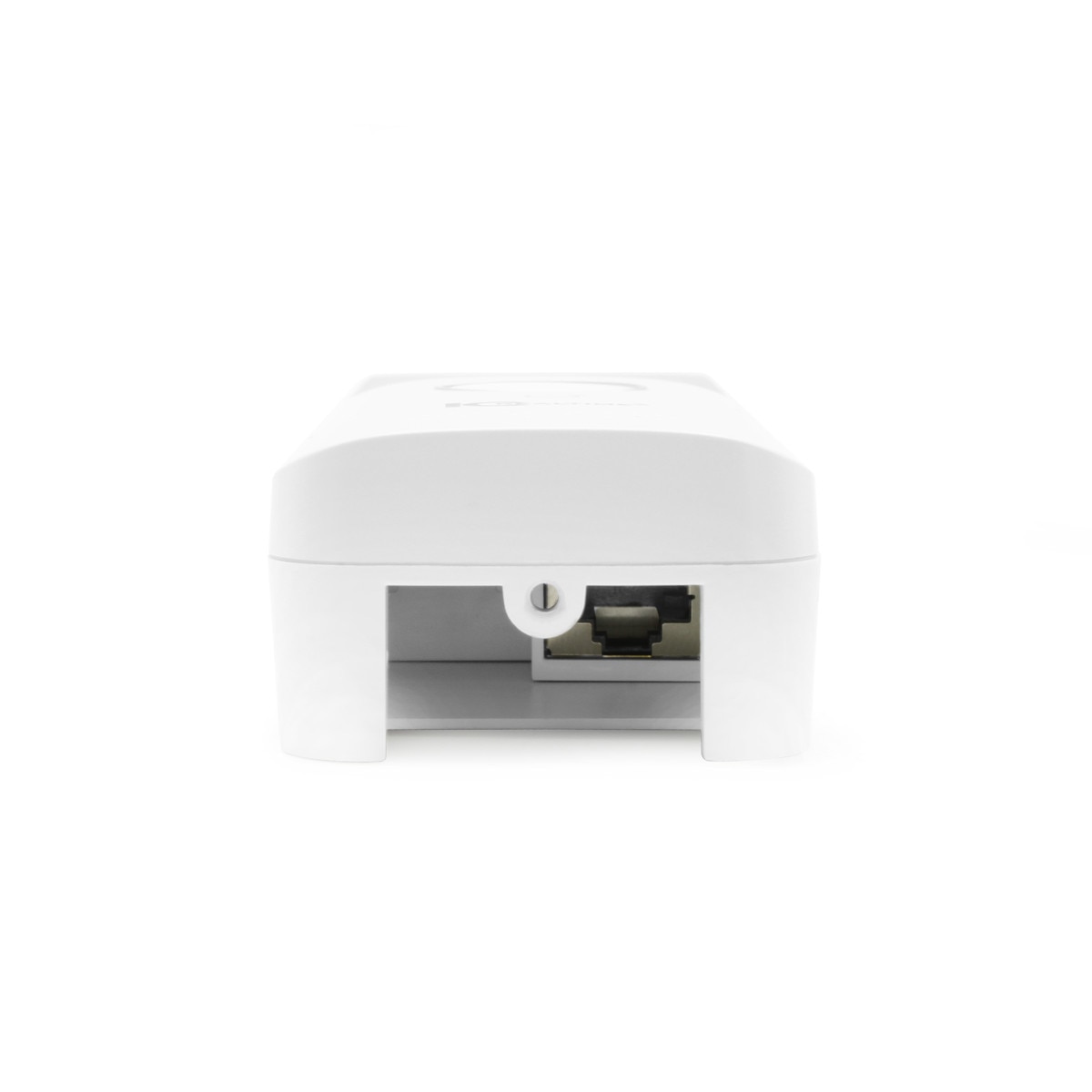

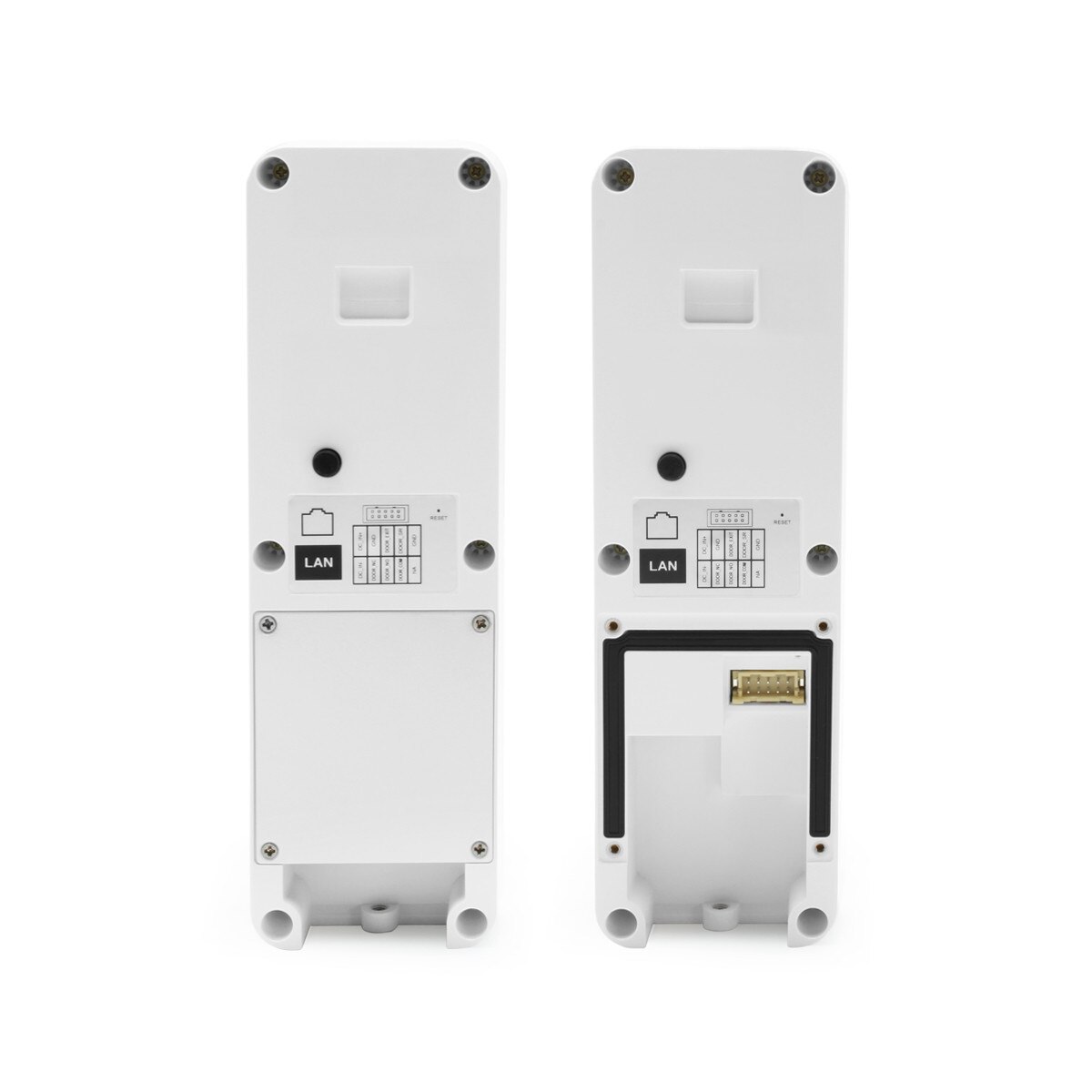

| Ethernet: | 1 × RJ-45 10/100 Mbps Ethernet port |
| Protocol: | RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF |
| Wifi: | 2.4 GHz: IEEE802.11b/g/n | WPA2-PSK |
| Interoperability: | ONVIF 23.12; CGI; Third-party SIP Clients |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | IC NOW |
| Smart Phone: | IC View Pro App (iOS, Android) |
| Interface | |
| Audio I/O: | Built-In Microphone and Speakers |
| Memory Slot: | Micro SD card (Max. 256 GB) |
| Electrical | |
| Power Supply: | 12–33 VDC, 1 A ; Standard PoE |
| Power Consumption: | ≤ 3.5 W (standby), ≤ 6 W (working) |
| Environmental | |
| Operating Conditions: | -40°F to +140°F (-40°C to +60°C) |
| Operating Humidity: | 10%–90% (RH), non-condensing |
| Ingress Protection: | IP65 |
| Construction | |
| Casing: | PC+ABS |
| Dimensions: | 6.30" × 1.97" × 1.18" (160 mm × 50 mm × 30 mm) |
| Gross Weight: | 0.40 lb (0.18 kg) |
