IPMX-B40F-IRW1-AI

(0)No Reviews yet
SKU: IPMX-B40F-IRW1-AI
Jump to Product Specs

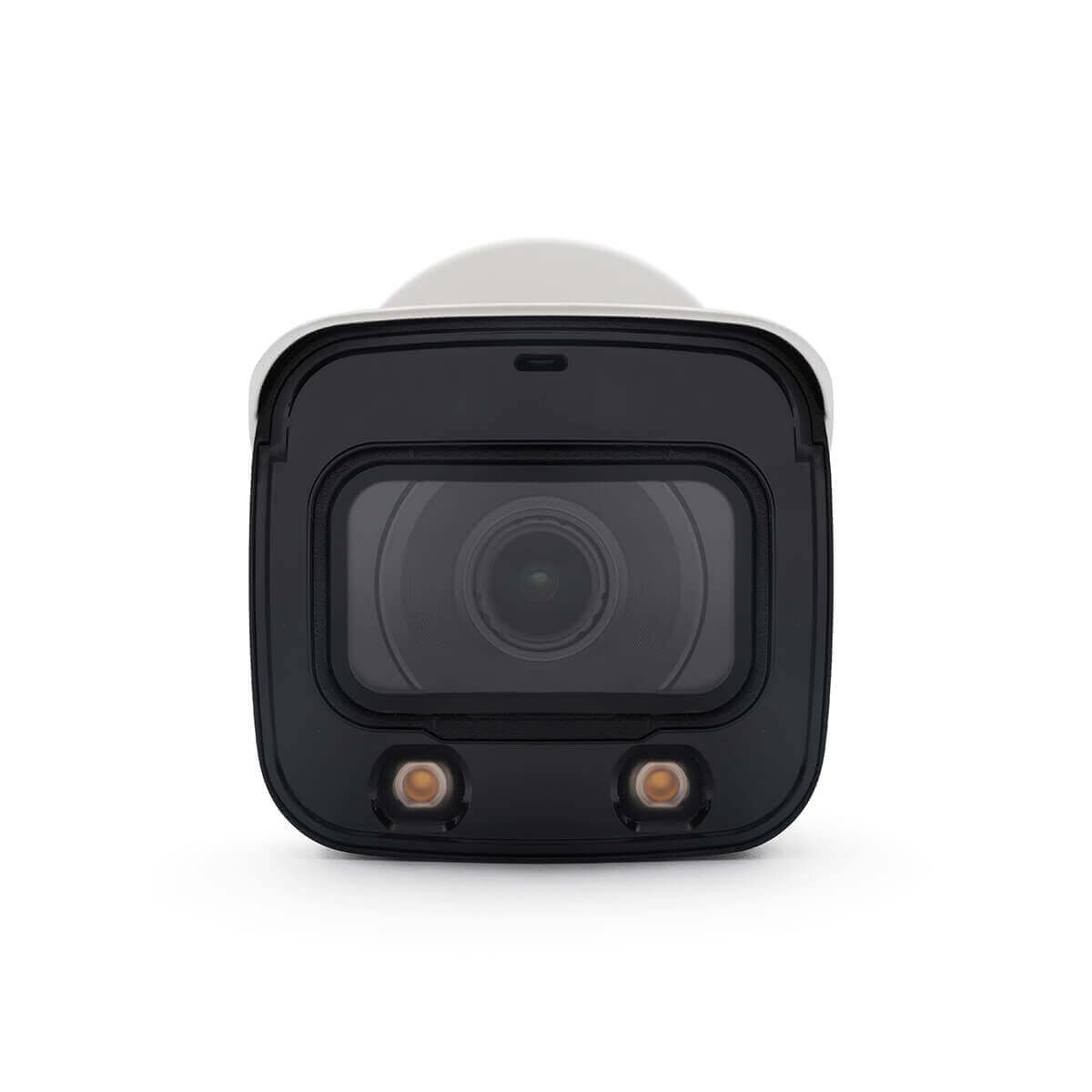

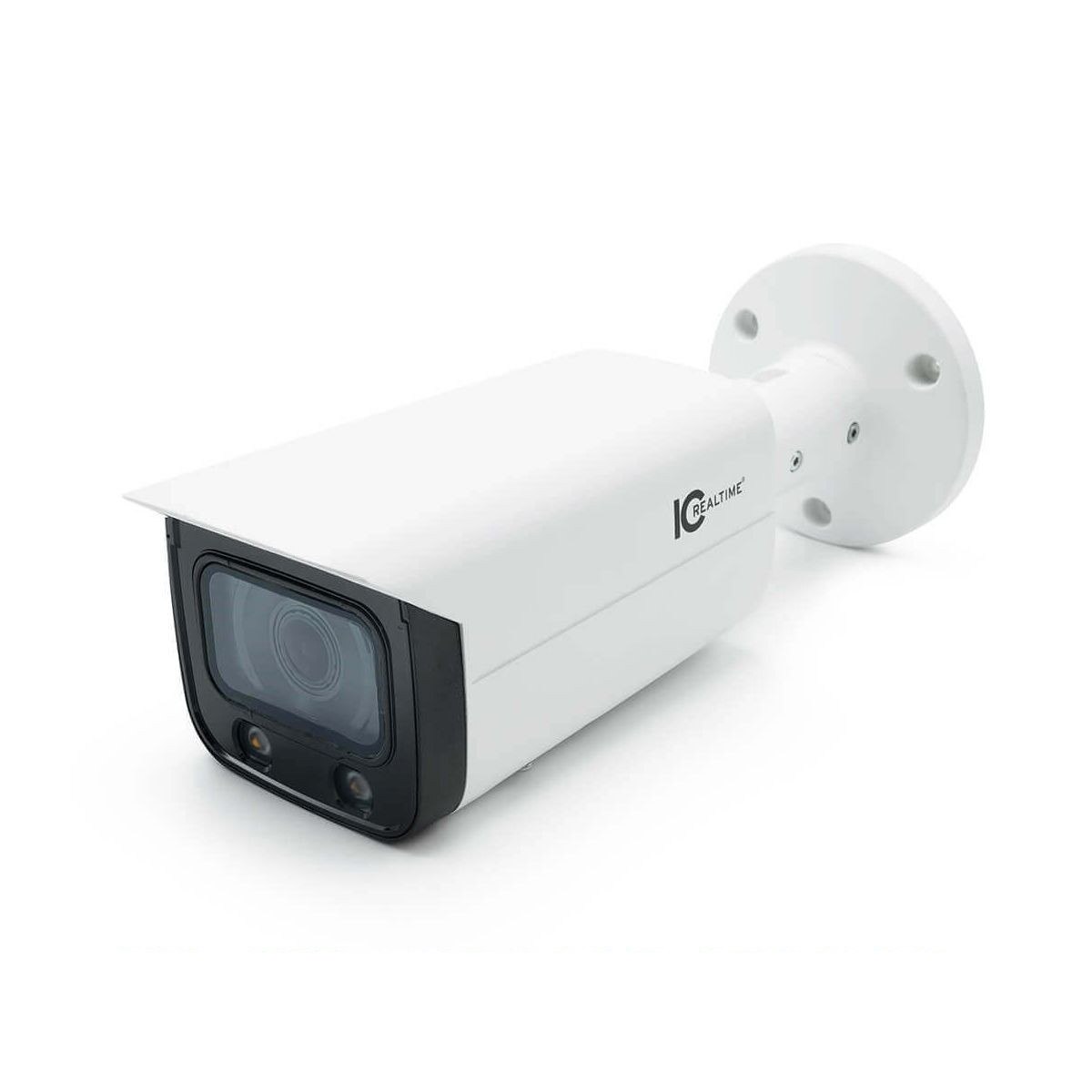

4MP IP AI series Indoor/Outdoor Mid Size Bullet. 2.8mm Fixed Lens (113° AOV). 66 Feet Smart White Light LED. POE Capa...

1/1.8” CMOS | 4MP | 30fps@4MP
2.8mm | Fixed Lens | AoV 113
Illumination Distance 66ft | Colored Starlight (iSniper+) | 2 Warm light LEDs
1ch audio in 1ch audio out | 256GB mSD
IP67 | IK10 | 12VDC or PoE | Max. 7.4W
IVS | AGC | 140dB WDR | HLC | BLC | 3DNR
Discontinued Item

Details

Welcome to a world of full color night vision security cameras and onboard artificial intelligence. This artificial intelligence for security camera systems gives you a face detection camera and a people counting camera all-in-one.

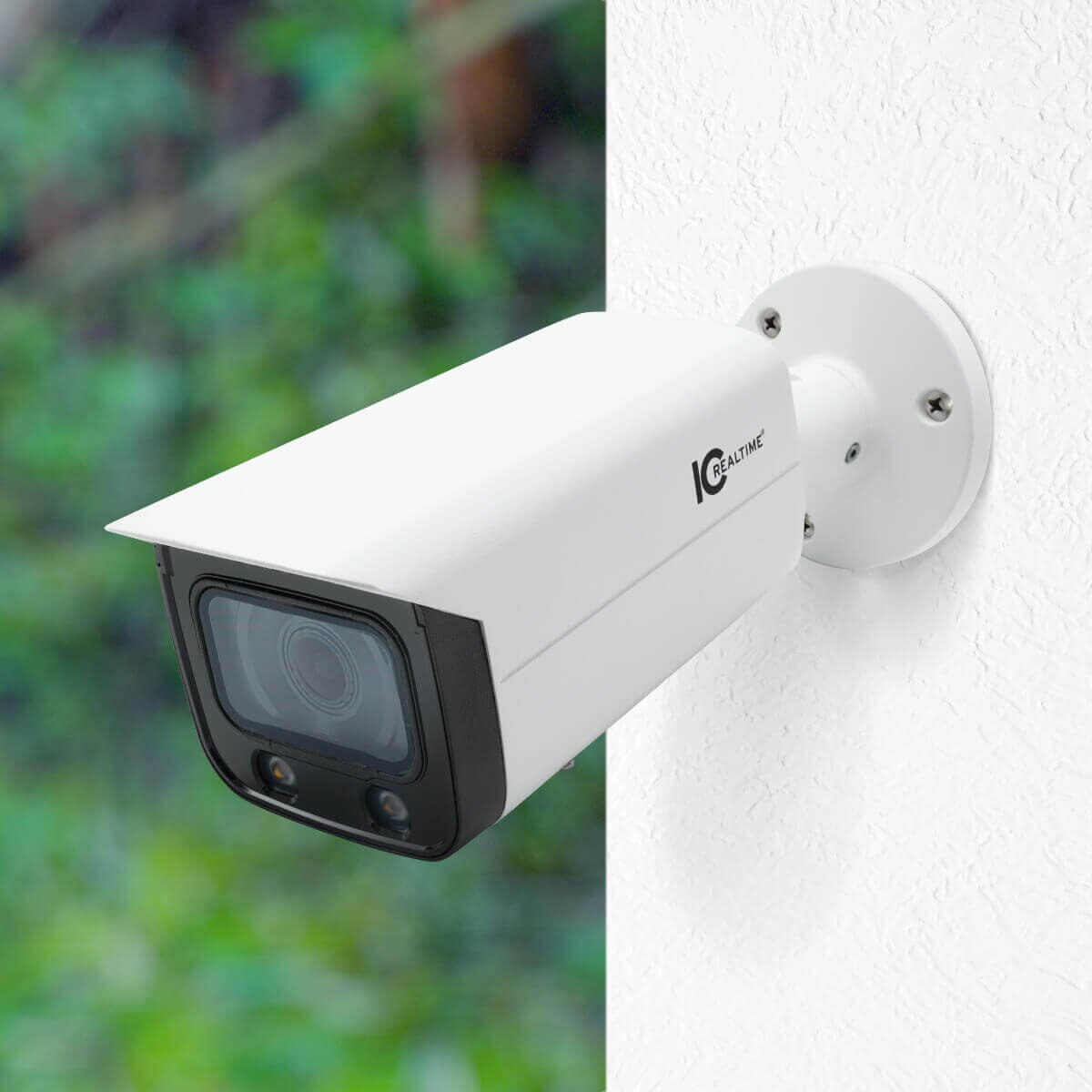

Are you looking for the best perimeter security cameras? This mid-sized bullet is an IP67 security camera designed with an alarm & audio input and output. The Max Series lineup delivers on the commercial features you desire.

These security camera images are consistent and crisp regardless of extreme contrast or light conditions and rated at 140dB of True Wide Dynamic Range (WDR).

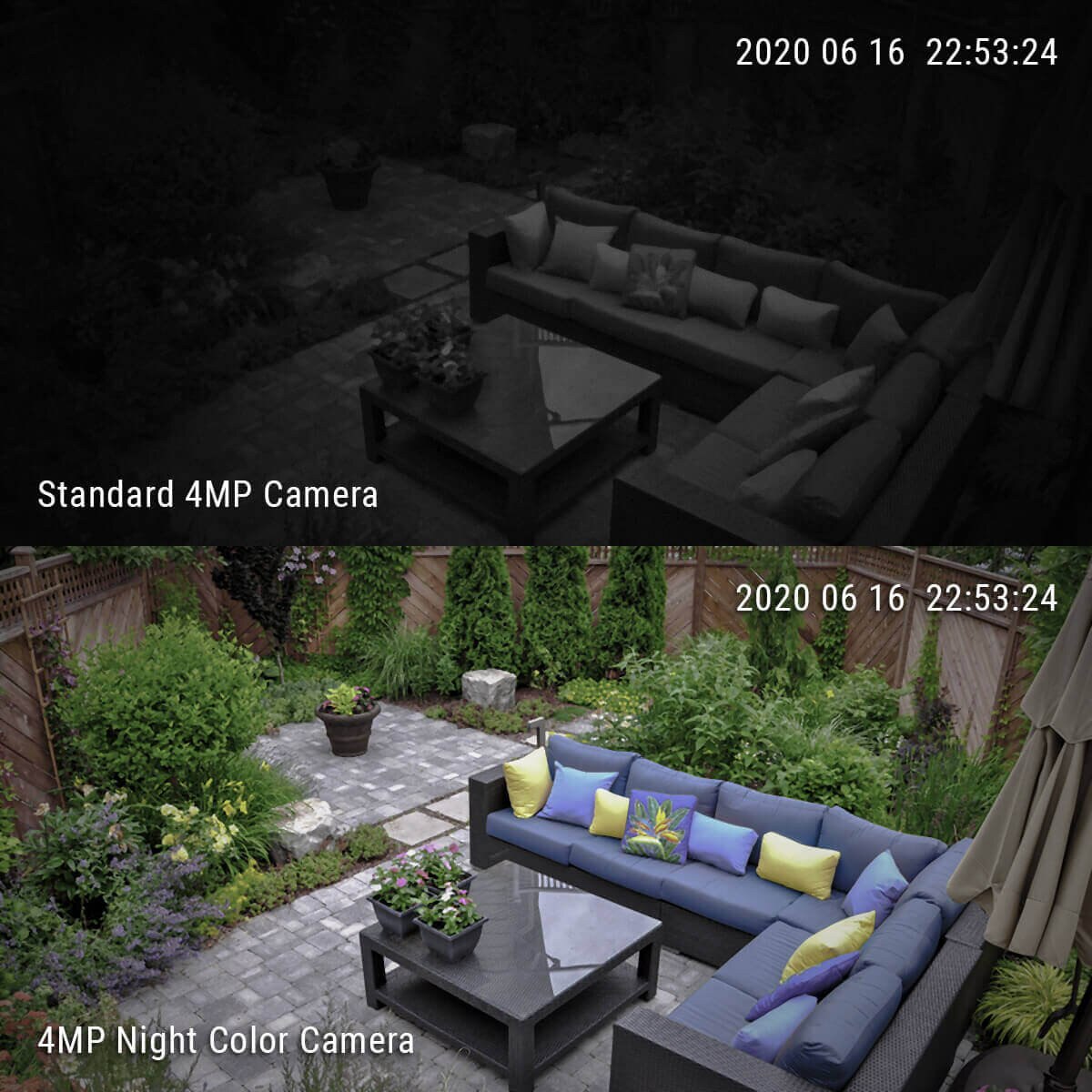

Enhance your existing 4-megapixel security camera system with full-color starlight. With a higher amount of absorbed light and advanced image processing algorithms, this advanced starlight security camera presents impressive low light performance while maintaining an exceptional balance between noise and blur reduction of moving objects.

The White light LED feature supports up to 66 feet and reproduces immersive color images in pitch-black environments - It virtually eliminates the problem of washed out subjects in close proximity.

It’s also a Micro SD security camera, meaning that it supports up to a 256 GB micro SD card. The camera is HTML5 compliant and can be accessed using Chrome, Firefox, or Safari since there are no plugins required! In terms of efficiency, it offers triple streams, capable of a full 30 frames per second (FPS) at it’s rated resolution and provides the latest space-saving H.265 compression. Benefit from the latest advancements in night vision security systems and A.I technology because the future of tomorrow is within reach of today!

Specifications

Camera
Image Sensor: 1/1.8” 4 Megapixel progressive scan CMOS
Effective Pixels: 2688(H) x1520(V)
RAM/Rom: 512MB/ 128MB
Scanning System: Progressive
Minimum Illumination: 0.002 Lux@F1.6
S/N Ratio: > 56 dB
Illumination Distance: Distance up to 20 m (66 ft)
Illumination On/Off Control: Auto/ Manual
Illumination LEDs: 2
Camera Illumination Type: White Light
Lens
Lens Type: Fixed-focal
Focal Length: 2.8mm
Max. Aperture: F1.6
Angle of View: H: 113°, V: 60
Close Focus Distance: 1.3 m (4.27 ft)
DORI - Detect: 190ft
DORI - Observe: 75ft
DORI - Recognize: 39ft
DORI - Identify: 20ft
Intelligence
IVS: Object Abandoned/Missing, Heat Map

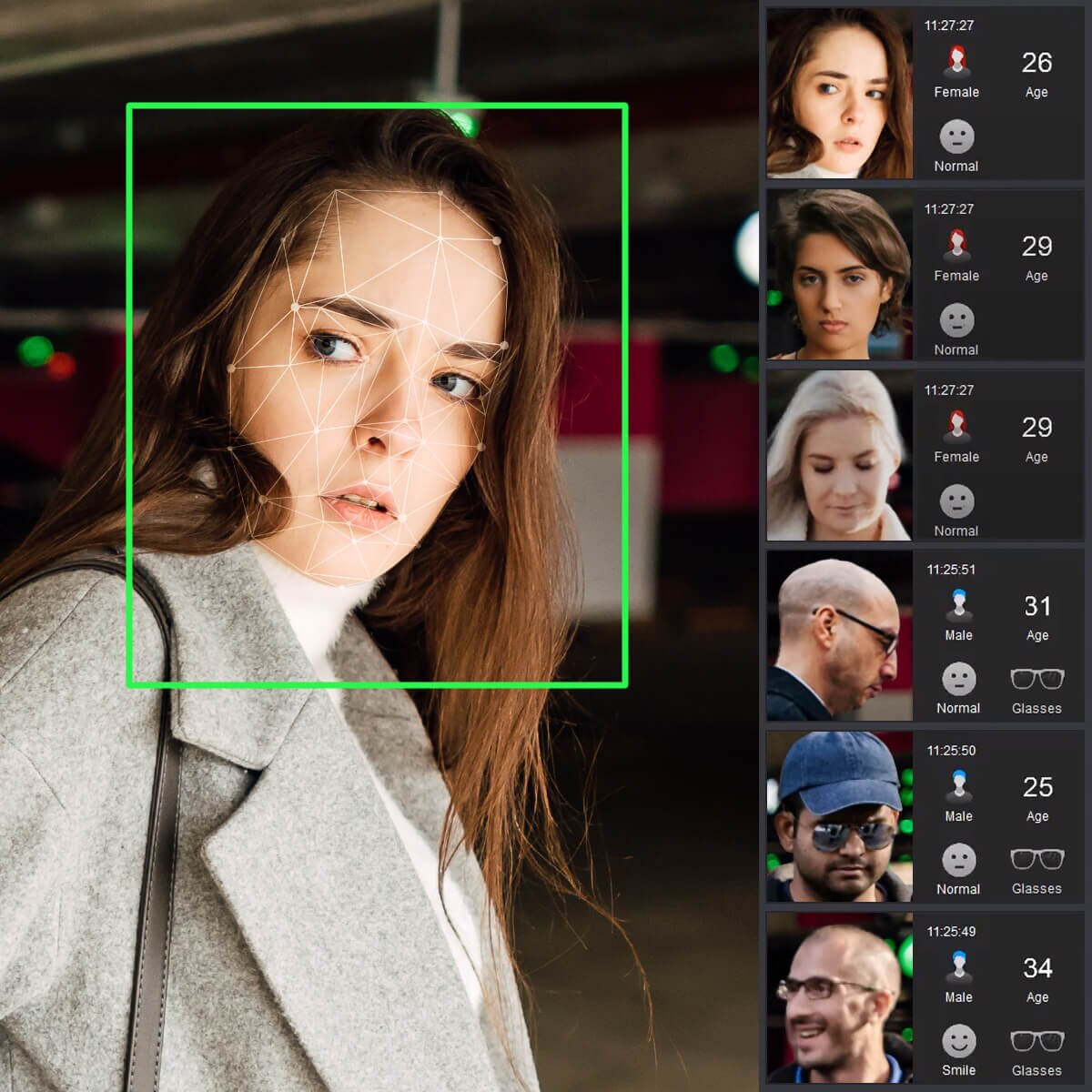

Advanced Intelligent Functions: Supports Face Detect.

Perimeter Protection: Tripwire, Intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering

Supports Line crossing/Region/Queueing people counting; Supports 4 accesses independent detection, 4 areas independent detection
Video
Compression: H.265,H.264,H.264B,H.264H,
MJPEG (only supported by sub stream)
Streaming Capability: 3 Streams
Resolution: 2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)
Frame Rate: Main Stream:
2688 × 1520 (1 fps–25/30 fps)
2560 × 1440 (1 fps–25/30 fps)
1920 × 1080 (1 fps–50/60 fps)

Sub Stream: D1 (1 fps–50/60 fps)

Third Stream: 1080P (1 fps–16 fps)
Bit Rate Control: CBR/ VBR
Bit Rate: H.264: 32 Kbps–8192 Kbps
H.265: 19 Kbps–8192 Kbps
Day/Night: Auto(ICR) / Color / B/W
White Balance: Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Smart IR: Support
Flip: 0°/90°/180°/270°
Privacy Masking: Off / On (4 Area, Rectangle)
WDR: 140dB
Audio
Compression: G.711a, G.711Mu, G.726, AAC, G.723
Network
Ethernet: RJ-45 (10/100 Base-T)
Protocol: IPv4; IPv6; HTTP; HTTPS;TCP; UDP; ARP;RTP; RTSP ;RTCP; RTMP; SMTP; FTP;SFTP; DHCP; DNS; DDNS; QoS;UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE;802.1x; SNMP
Interoperability: ONVIF / PSIA / CGI/ Milestone
Compatibility: ONVIF (Profile S/Profile G/Profile T), CGI, P2P
Streaming Method: Unicast / Multicast
Max. User Access: 20
Edge Storage: NAS; FTP; SFTP; Micro SD card 256 GB
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: SmartICRSS, DSS
Smart Phone: iOS, Android
Interface
Audio I/O: 1/1 channel In/Out
Alarm I/O: 2 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC
Factory Reset: Yes
Memory Slot: 265GB Micro SD
Electrical
Power Supply: DC 12V (±30%), PoE (802.3af) (Class 0)
Power Consumption: <7.4W
Environmental
Operating Conditions: -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Conditions: -40°C to +60°C (-40°F to +140°F)

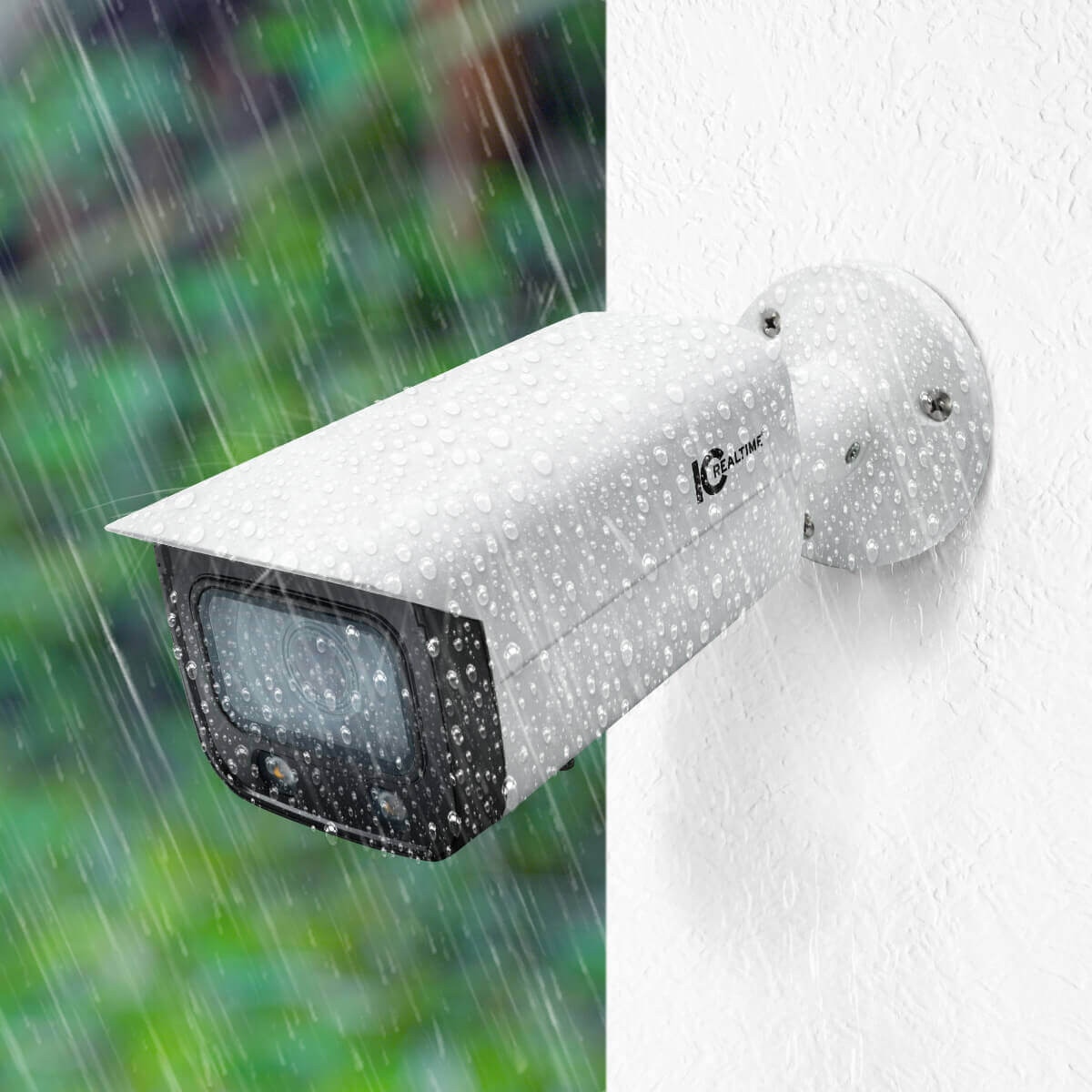

Ingress Protection: IP67
Vandal Resistance: N/A
Construction
Casing: Metal

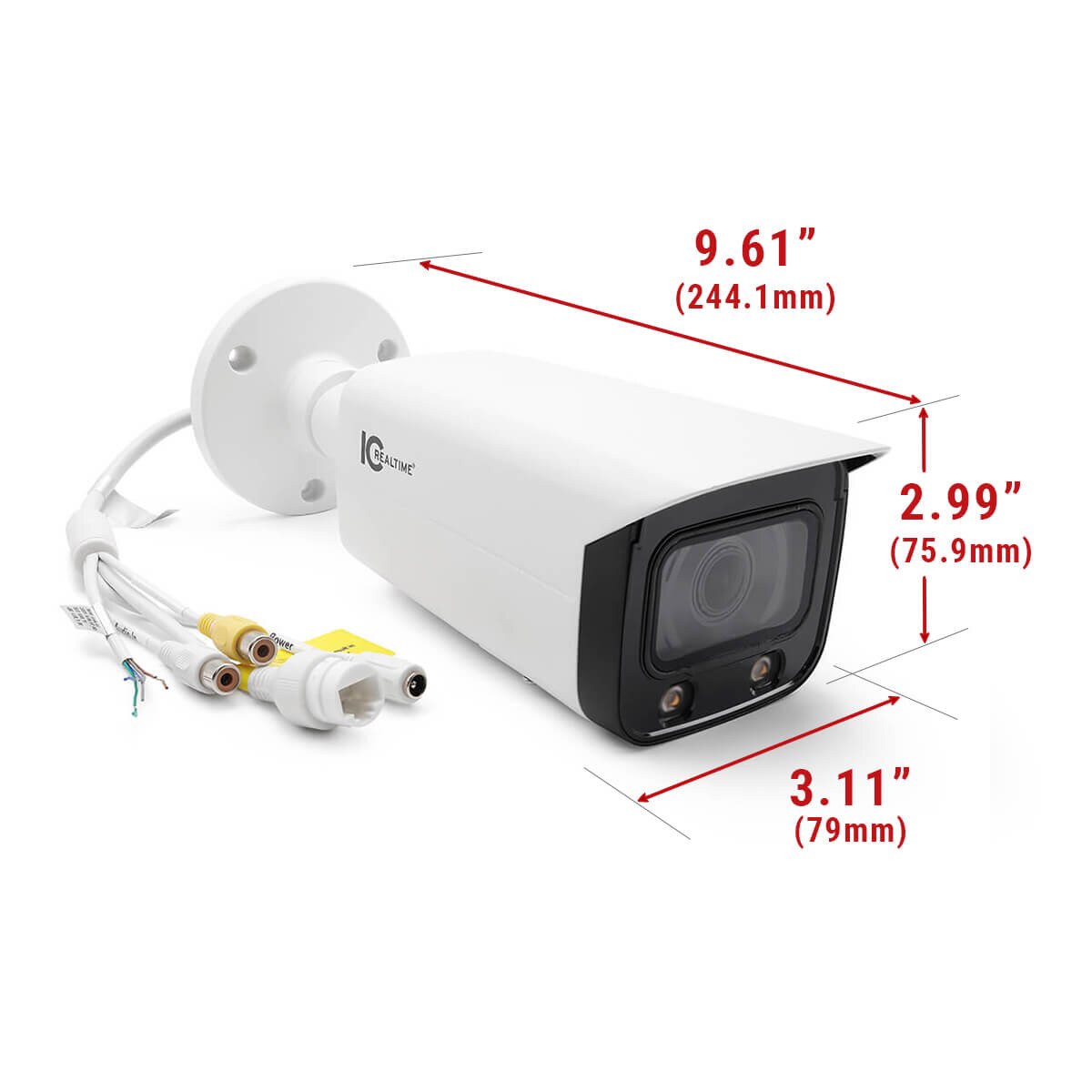

Dimensions: 244.1 mm × 79.0 mm × 75.9 mm (9.61” × 3.11” × 2.99”
Gross Weight: 1.08 kg (2.38 lb)

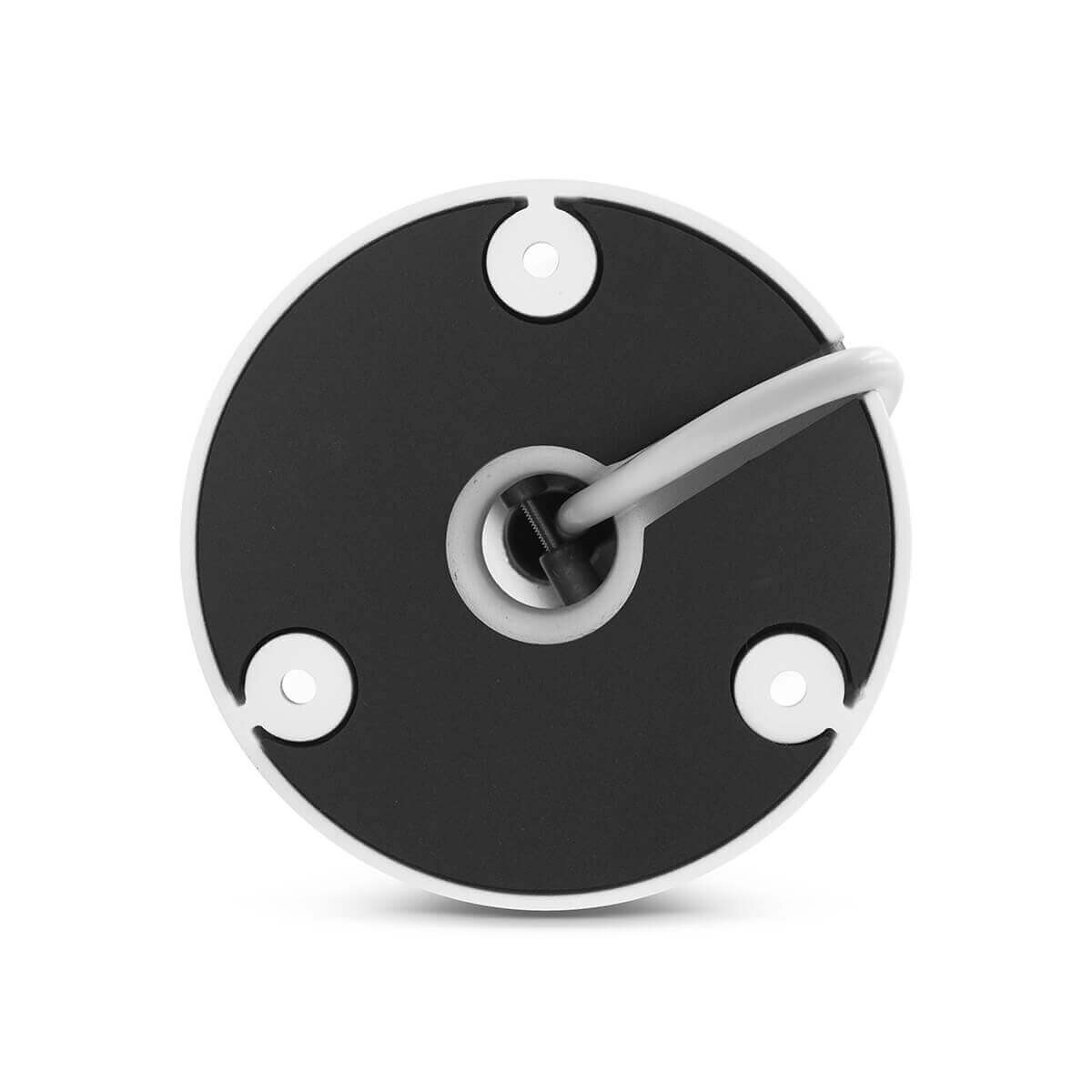

Mounting Pan/Tilt/Rotation: Horizontal: 0°–360° Vertical: 0°–90° Rotation: 0°–360°
