IPMX-B40F-IRW1
Details

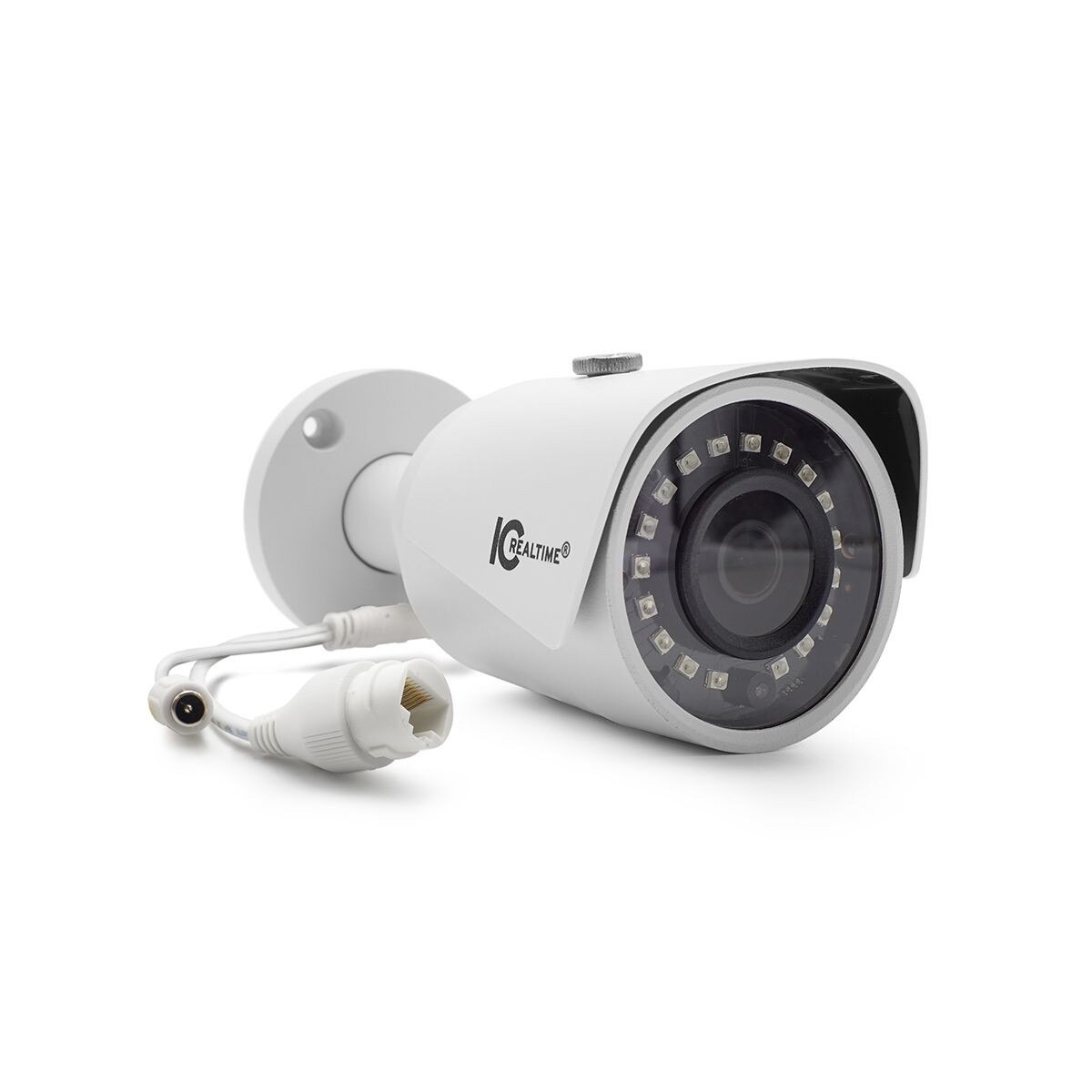

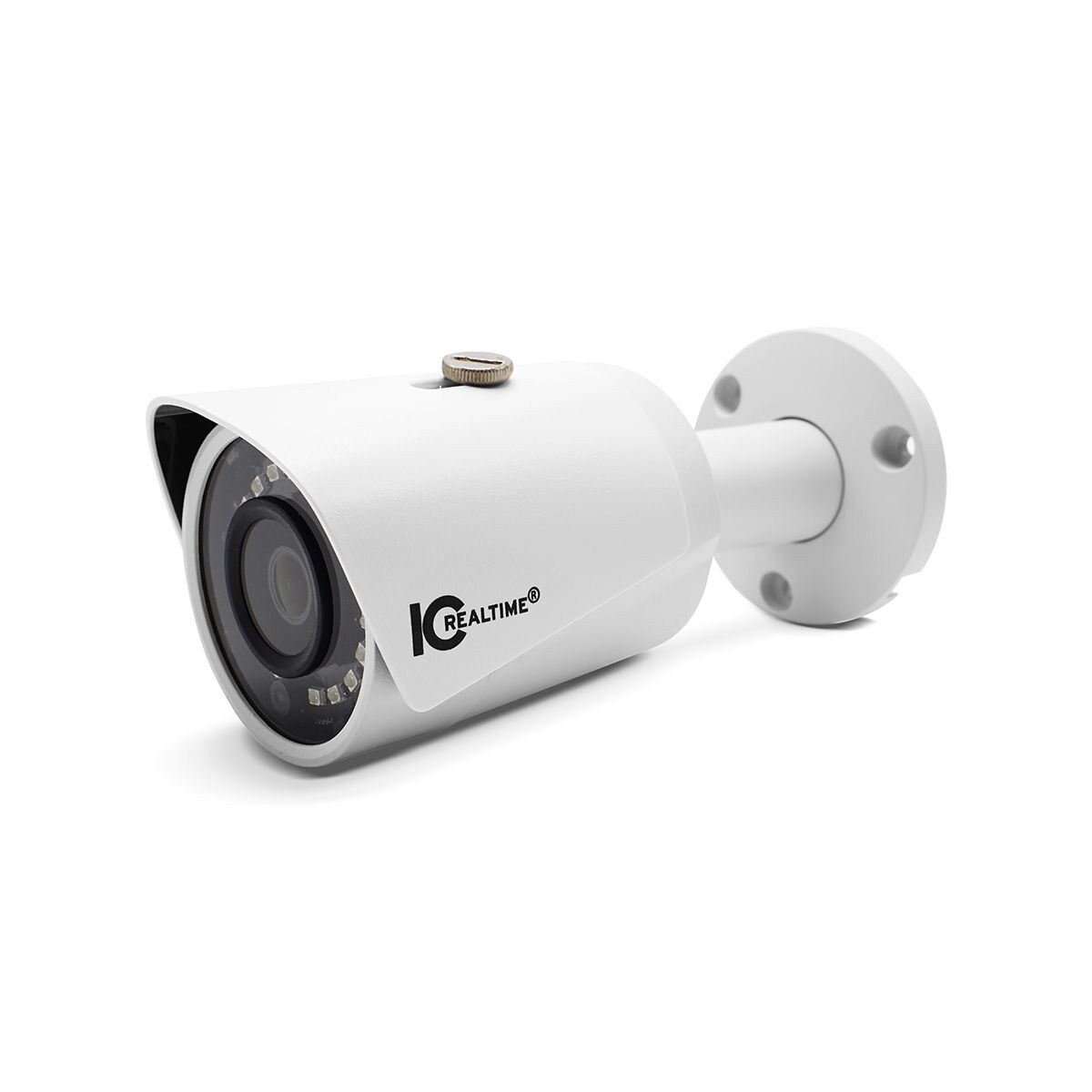

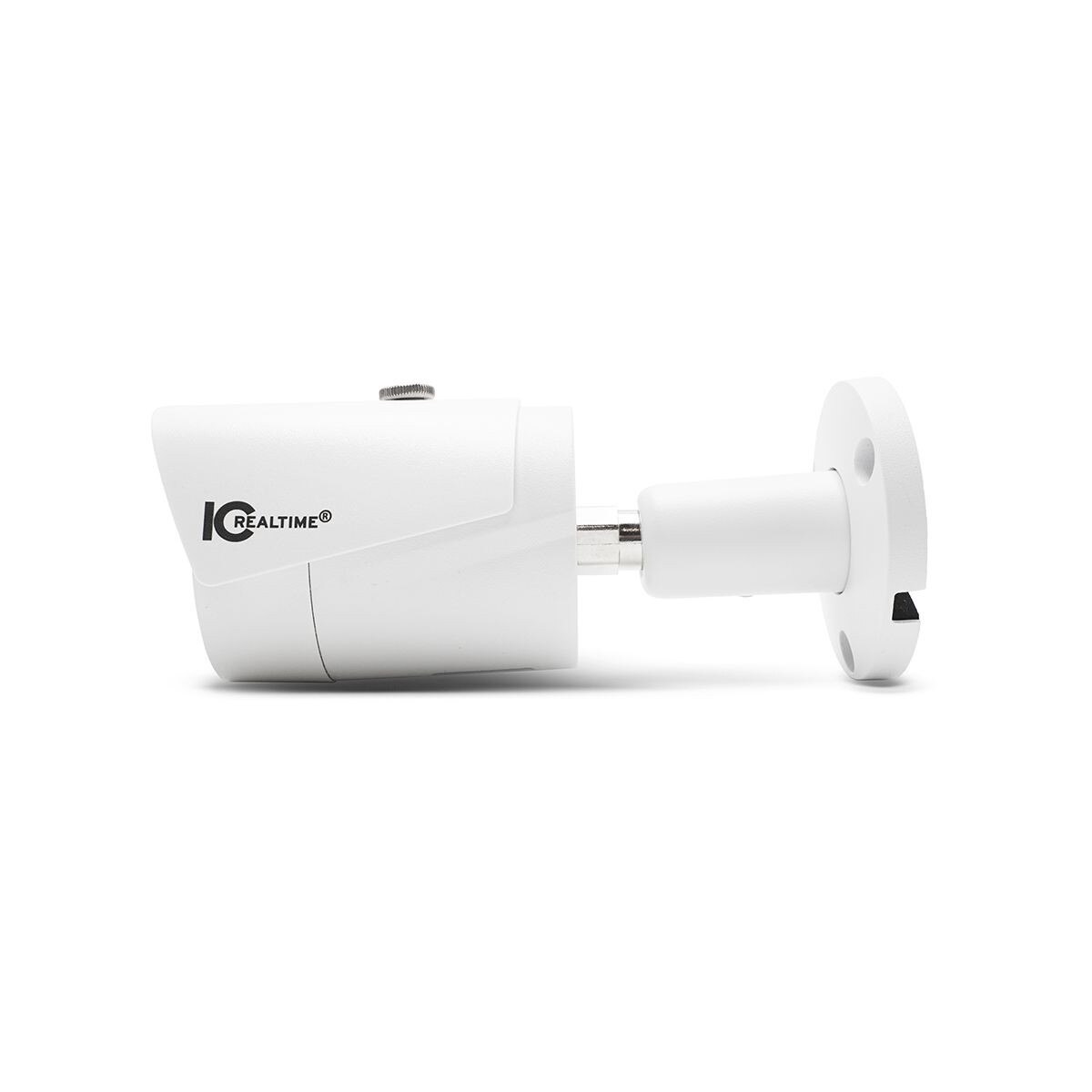

IC Realtime’s IPMX-B40F-IRW1 packs many features all in a compact mini bullet form factor. This camera is equipped with a 1/3” progressive scan CMOS with a 2.8mm fixed lens capable of 4MP at 30fps. Storage is also optimized with H.265 compression support.
Other features include IVS support with Tripwire, Intrusion, Object Abandoned/Missing as well as Face Detection and True 120dB WDR for image enhancement under many light conditions. The camera also has IP67 protection and PoE support.
Other features include IVS support with Tripwire, Intrusion, Object Abandoned/Missing as well as Face Detection and True 120dB WDR for image enhancement under many light conditions. The camera also has IP67 protection and PoE support.
Specifications
| Camera | |
| Image Sensor: | 1/3 4 Megapixel progressive scan CMOS |
| Effective Pixels: | 2688(H) x 1520(V) |
| RAM/Rom: | 512MB / 32MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.08Lux/F2.0( Color1/3s30IRE) 0.3Lux/2.0( Color1/30s30IRE) 0Lux/F2.0(IR on) |
| S/N Ratio: | More than 50dB |
| Illumination Distance: | Distance up tp 30m (98ft) |
| Illumination On/Off Control: | Auto/Manual |

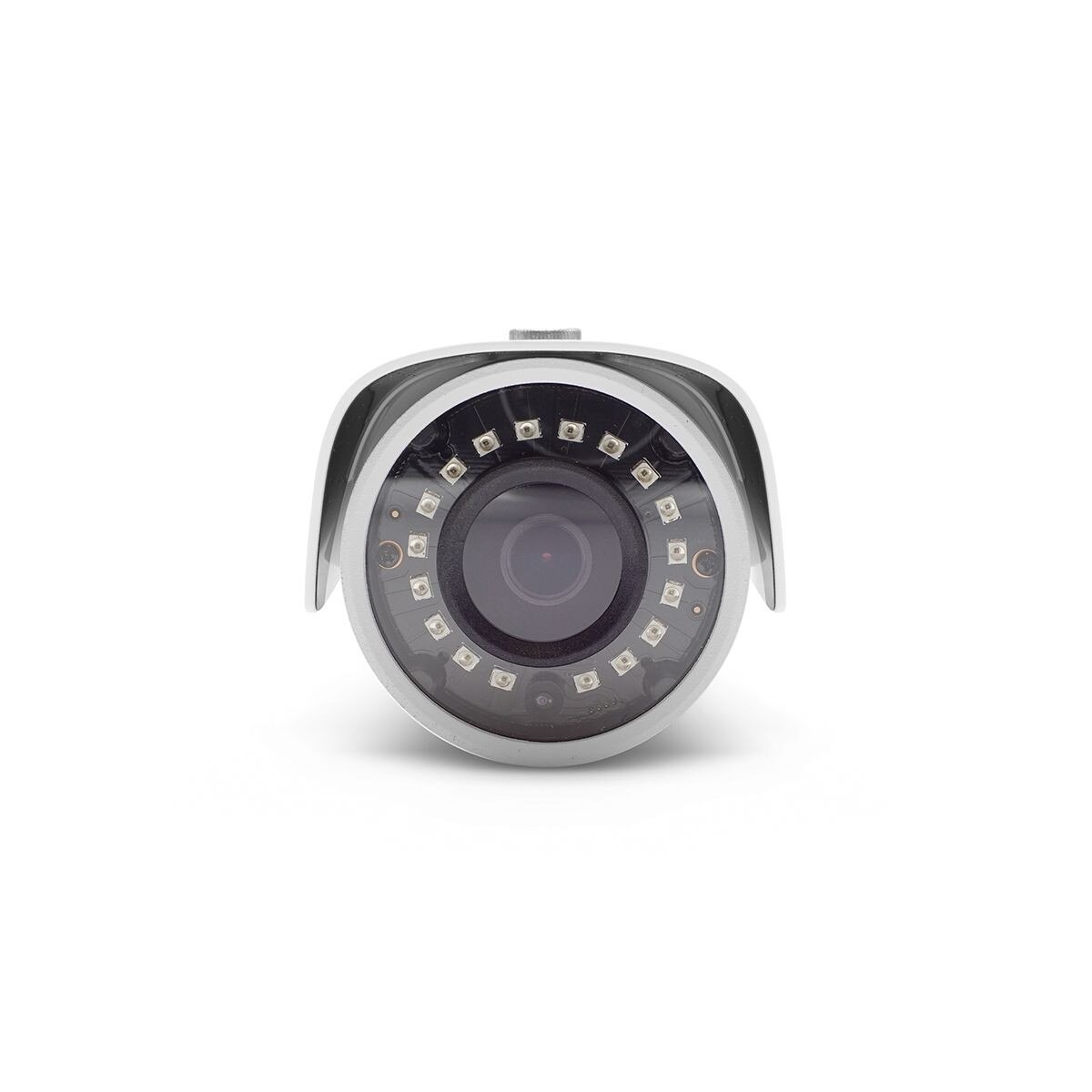

| Illumination LEDs: | 18 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed |
| Mount Type: | Board-in |
| Focal Length: | 2.8mm |
| Max. Aperture: | F2.0 |
| Angle of View: | H: 104 degrees V: 57 degrees |
| Focus Control: | Fixed |
| DORI - Detect: | 63m (207ft) |
| DORI - Observe: | 25m (82ft) |
| DORI - Recognize: | 13m (43ft) |
| DORI - Identify: | 6m (20ft) |
| PTZ | |
| Pan/Tilt Range: | Pan:0 ~ 360 ; / Tilt:0 ~ 90 ; / Rotation:0 ~ 360 |
| Intelligence | |
| IVS: | Tripwire, Intrusion, Object Abandoned/Missing |
| Advanced Intelligent Functions: | Face Detection |
| Video | |
| Compression: | H.265+ / H.265 / H.264+ / H.264 |
| Resolution: | 4M(2688 x 1520) / 3M (2304 x 1296) / 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 352 x 240) |
| Frame Rate: | Main Stream: 4M(1 - 25/30fps) Sub Stream: D1(1 - 25/30fps) Third Stream: 720P(1 - 25/30fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.264: 24 - 10240Kbps H.265: 14 - 9984Kbps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / WDR(120dB) |
| White Balance: | Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zones Rectangular) |
| Region of Interest: | Off / On (4 Zones) |
| Smart IR: | Supported |
| Digital Zoom: | 16x |
| Flip: | 0 / 90 / 180 / 270 |
| Mirror: | Off / On |
| Privacy Masking: | Up to 4 areas |
| WDR: | 120Db |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP |
| Interoperability: | ONVIF / PSIA / CGI |
| Compatibility: | ONVIF Profile S&G / API |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 20 Users |
| Edge Storage: | NAS / Local PC for instant recording |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | SmartICRSS, DSS |
| Smart Phone: | IOS, Android |
| Interface | |
| Video Interface: | N/A |
| Electrical | |
| Power Supply: | DC12V PoE (802.3af)(Class 0) |
| Power Consumption: | < 6W |
| Environmental | |
| Operating Conditions: | -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal |
| Dimensions: | 161.9mm x 69.8mm x 69.8mm (6.37in x 2.75in x 2.75in) |
| Gross Weight: | 0.44Kg (0.97lb) |

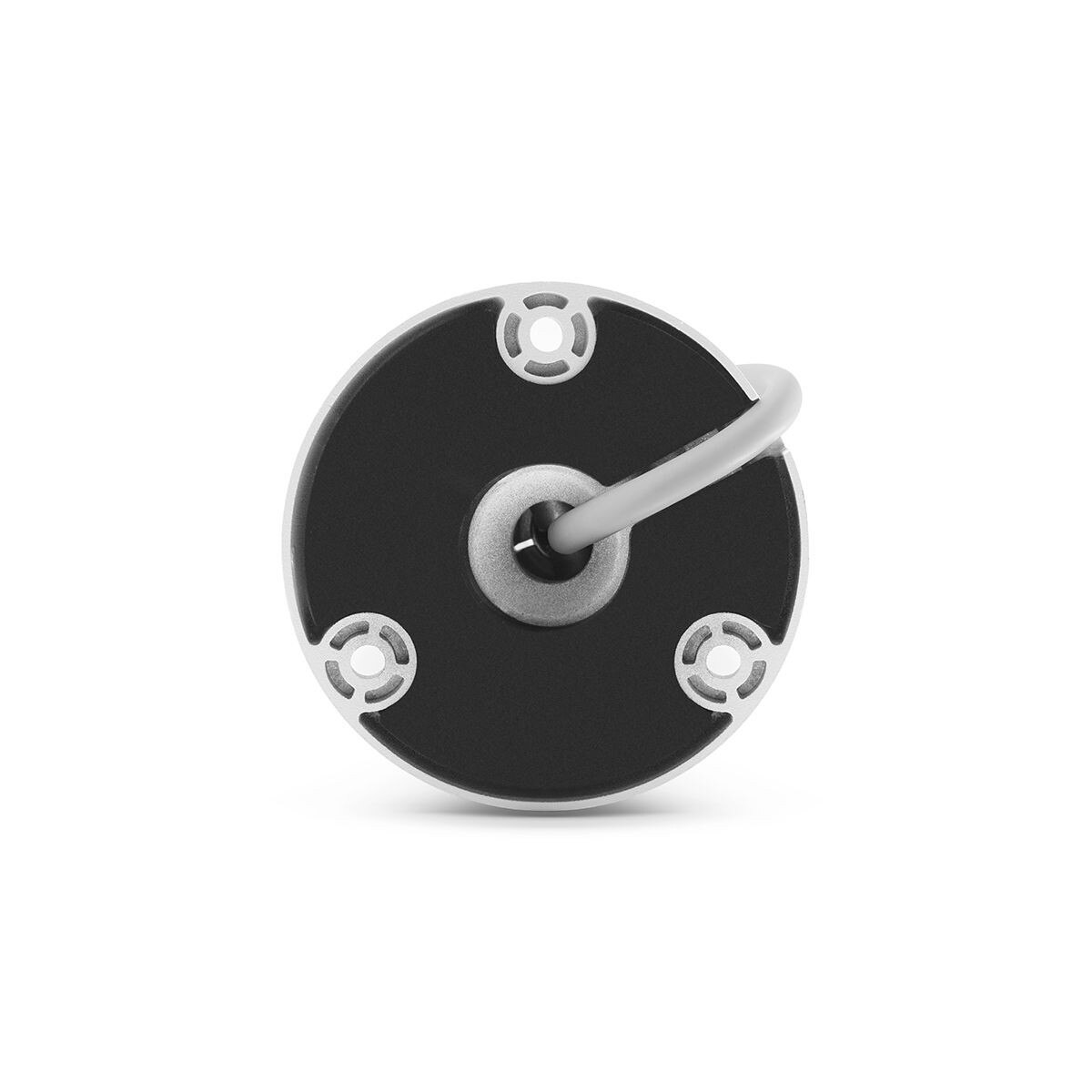

| Mounting Pan/Tilt/Rotation: | Pan:0 ̊~360 ̊; Tilt:0 ̊~90 ̊; Rotation:0 ̊~360 ̊ |
