IPFX-P2030X-IRW1

(0) No Reviews yet
SKU: IPFX-P2030X-IRW1
ITEM WEIGHT: 25

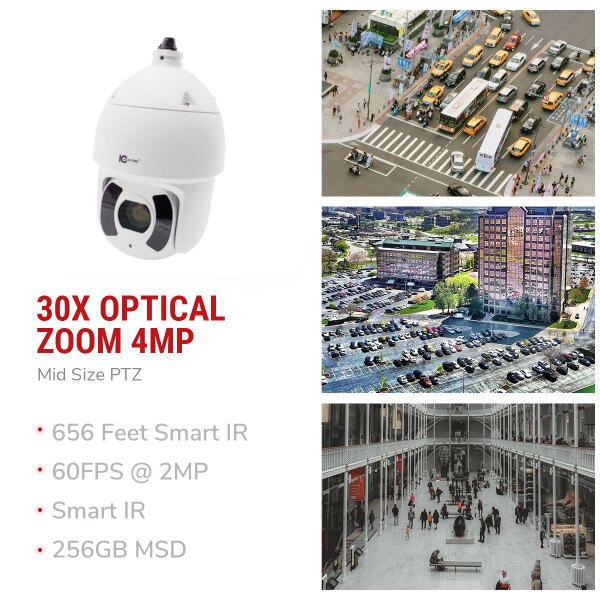

2MP IP Full Size Starlight PTZ. 30X Optical Zoom. 656 Feet Smart IR. Ai (Advanced Intelligence) On-Board Analytics. (Wal...
1/2.8 CMOS Starvis | 2MP | 60fps@2MP
4.5mm to 135mm | motorized varifocal | AoV 67.8 to 2.4
Max. IR length 656ft | Smart IR | 6 IR LEDs
1ch audio in 1ch audio out | 7ch alarm in 2ch alarm out | 256GB mSD
IP67 | IK10 | 24VAC | Max. 25W
IVS | Auto Tracking | AGC | 120dB True WDR | HLC | BLC | Ultra DNR

Details

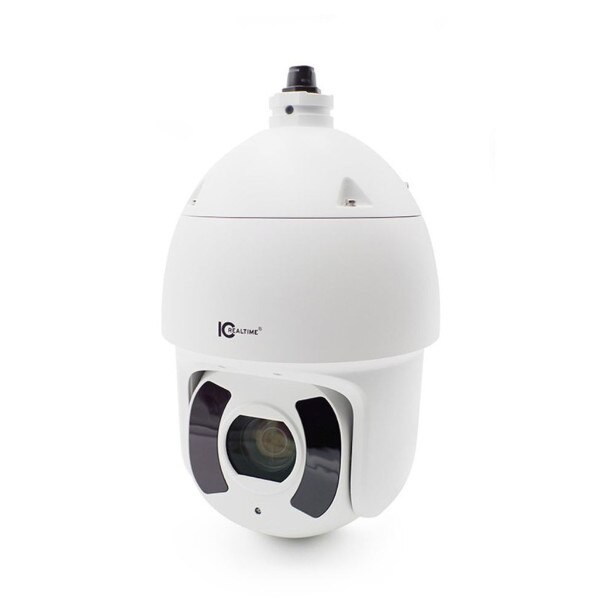

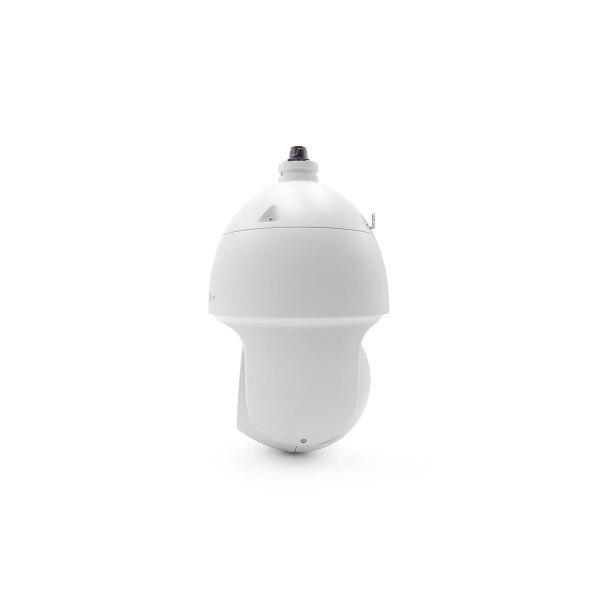

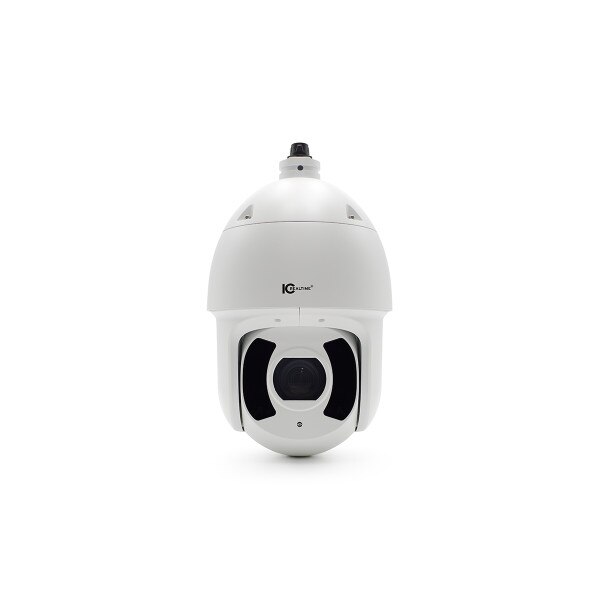

The IPFX-P2030X-IRW1 is a 2 Megapixel camera with IR LEDs capable of 656' of Smart IR Illumination, 2.8'' STARLIGHT CMOS sensor, and 30x optical zoom. The PTZ camera auto recognizes standard protocols over RS-485 such as ICR-SD and Pelco-P/D, without troublesome dip switches or configuration.

It supports both H.264 video and MPEG4 audio transmission, simultaneously. This camera can function independent of an NVR. By utilizing H.264 video and MPEG4 audio compression, the highest stream quality is achieved while also maintaining excellent stream compression and bandwidth.

The IPFX-P2030X-IRW1 enclosure itself has a strong impact rating, which can guarantee proper operation even under a heavy strike. The IPFX-P2030X-IRW1 also supports analog video output and two-way, bidirectional talk. It can be used in either analog or IP environments.

Specifications

Camera
Image Sensor: 1/2.8 STARVIS CMOS
Effective Pixels: 1920(H) x 1080(V) 2 Megapixels
RAM/Rom: 1024M / 128M
Scanning System: Progressive
Electronic Shutter Speed: Supported
Minimum Illumination: Color: 0.005Lux@F1.6 B/W: 0.0005Lux@F1.6 0Lux@F1.6 (IR on)
S/N Ratio: More than 55dB
IR Distance: Distance up to 200m (656ft)
IR On/Off Control: Auto/Manual
IR LEDs: 6
Lens
Focal Length: 4.5-135mm
Max. Aperture: F1.6 - F4.4
Angle of View: H: 67.8 - 2.4 degrees

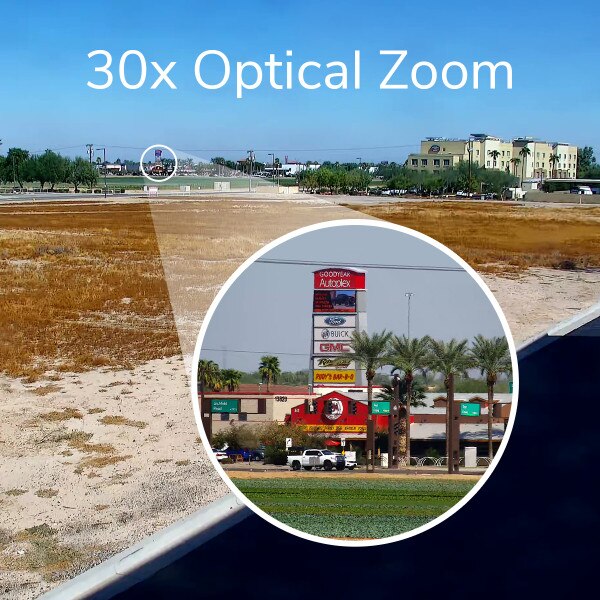

Optical Zoom: 30x
Focus Control: Auto/Manual
Close Focus Distance: 100 - 1000mm (3.94 - 39.37in)
DORI - Detect: 1862m (6109ft)
DORI - Observe: 744m (2441ft)
DORI - Recognize: 372m (1220ft)
DORI - Identify: 186m (610ft)
PTZ
Pan/Tilt Range: Pan: 0 ~ 360 endless; / Tilt: -20 ~ 90 & auto flip 180
Manual Control Speed: Pan: 0.1 ~ 200/s / Tilt: 0.1 ~ 120/s
Preset Speed: Pan: 300 degrees/s Tilt: 200 degrees/s
Presets: 300
PTZ Mode: 5 Pattern / 8 Tour / Auto Pan / Auto Scan
Speed Setup: Human-oriented focal Length / speed adaptation
Power up Action: Auto restore to previous PTZ and lens status after power failure
Idle Motion: Activate Preset / Scan / Tour / Pattern if there is no command in the specified period
Protocol: ICR-SD / Pelco-P/D (Auto recognition)
Intelligence
Smart Function: Tripwire / Intrusion / Abandoned or Missing Object / Face Detection / Heat Map
Video
Compression: H.265+ / H.265 / H.264+ / H.264
Resolution: 1080P (1920 x 1080) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240)
Frame Rate: Main stream: 1080P / 1.3M / 720P(1 - 50/60fps) Sub stream1: D1 / CIF(1 - 25/30fps) Sub stream2: 1080P / 1.3M / 720P / D1 / CIF (1 - 25/30fps)
Bit Rate: H.265/H.264: 448K - 8192Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR (120dB)
White Balance: Auto / ATW / Indoor / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: Ultra DNR (2D / 3D)
Motion Detection: Support
Region of Interest: Support
Electronic Image Stabilization (EIS): Supported
Digital Zoom: 16X
Flip: 180
Privacy Masking: Up to 24 areas
WDR: 120db
Audio
Compression: G.711a / G.711Mu / AAC / G.722 / G.726 / G.729 / MPEG2-L2
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: IPv4 / IPv6 / HTTP / HTTPS / SSL / TCP/IP / UDP / UPnP / ICMP / IGMP / SNMP / RTSP / RTP / SMTP / NTP / DHCP / DNS / PPPOE / DDNS / FTP / IP Filter / QoS / Bonjour / 802.1x
Interoperability: ONVIF / PSIA / CGI
Compatability: ONVIF Profile S&G / API
Streaming Method: Unicast / Multicast
Max. User Access: 20 Users
Edge Storage: NAS / Local PC for instant recording / Micro SD card 256GB

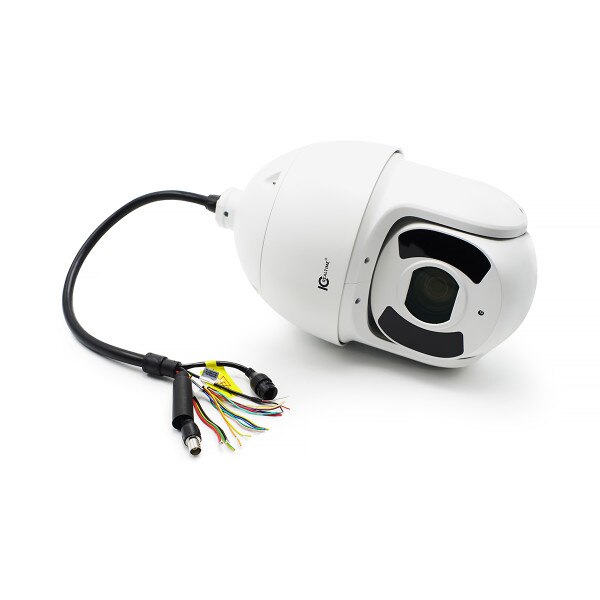

Interface
Video Interface: 1 port (BNC 1.0V[p-p] 75 Ohms)
RS485: 1
Audio I/O: 1/1 channel In/Out
Alarm I/O: 7/2
Memory Slot: Micro SD card 256GB
Electrical
Power Supply: AC24V/3A( +/- 25%) PoE+(802.3at)
Power Consumption: 17W 25W(IR On Heater On)
Enviromental
Operating Conditions: -40C ~ 70C (-40F ~ +158F) / Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal

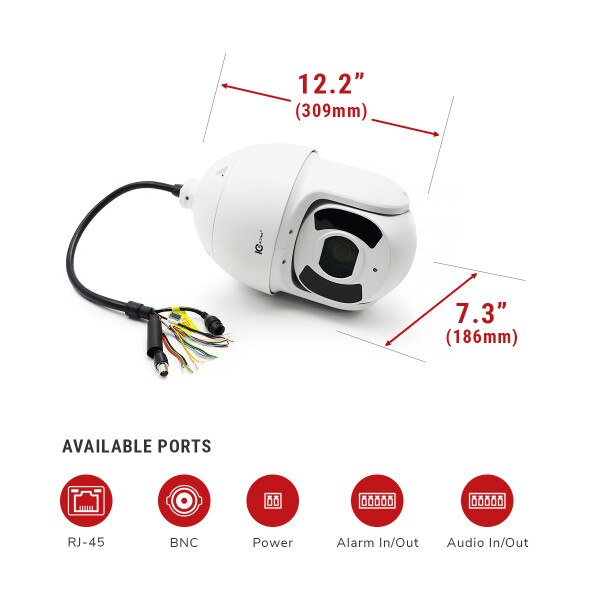

Dimensions: 209 x 337.4mm
Gross Weight: 9.1kg (20.06lb)
