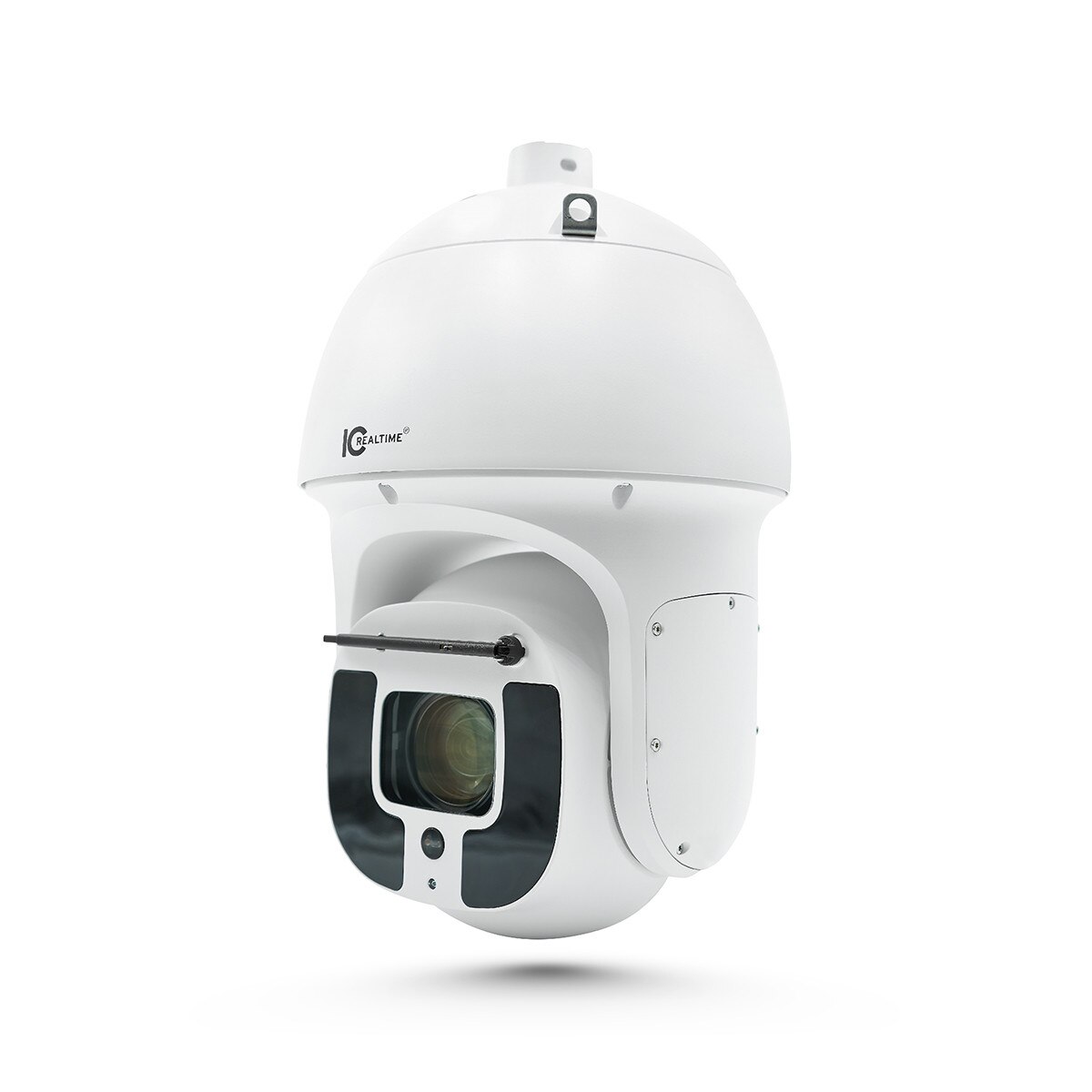

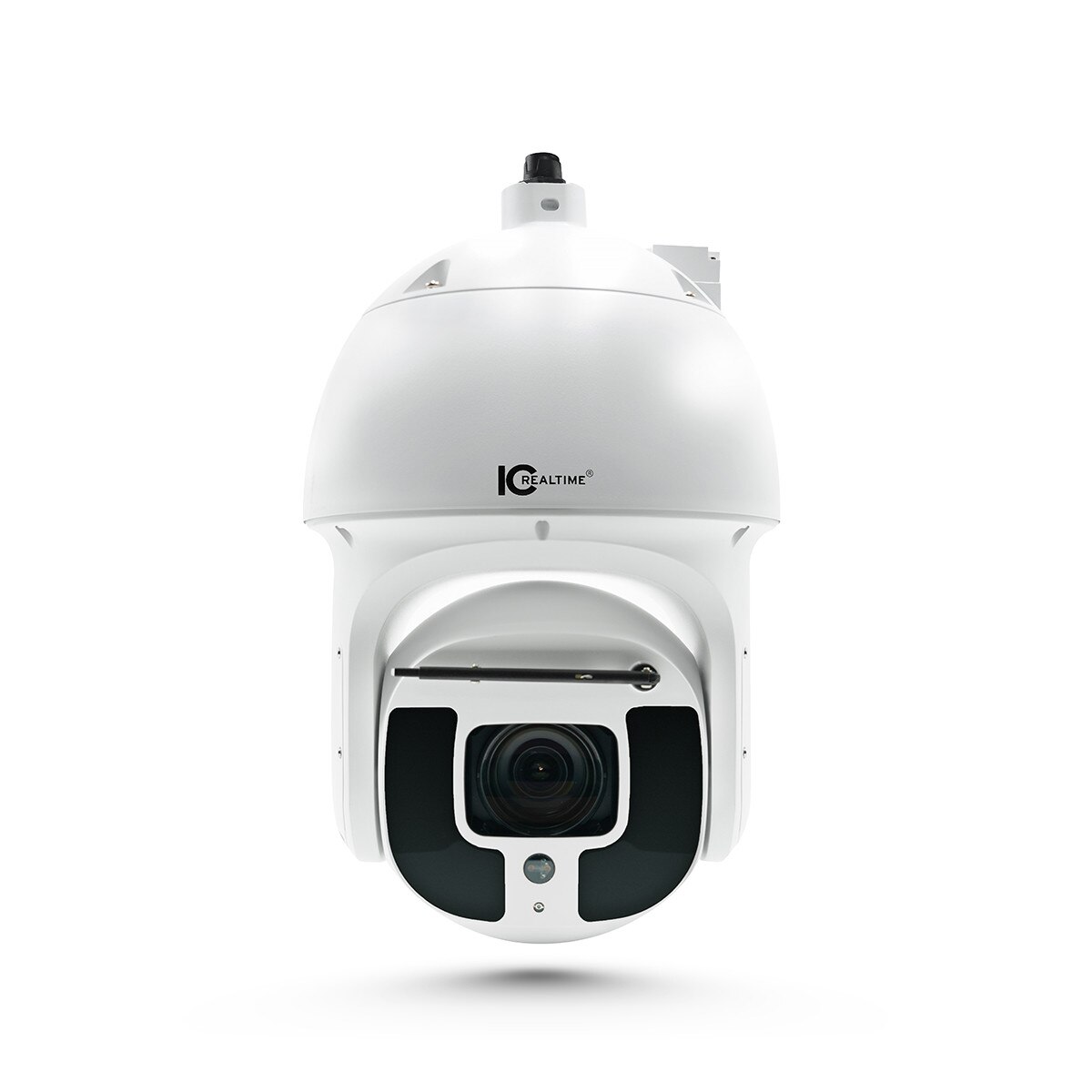

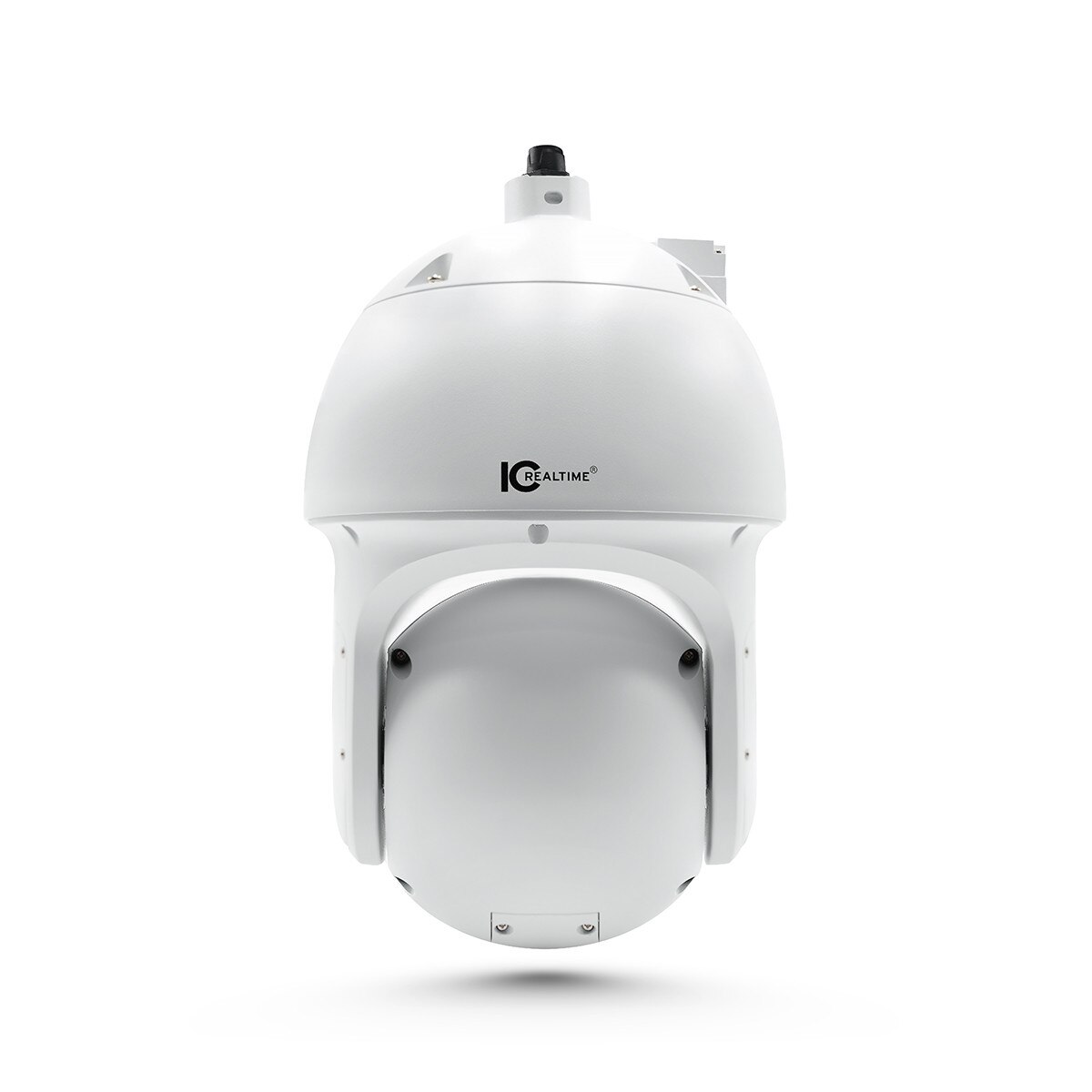

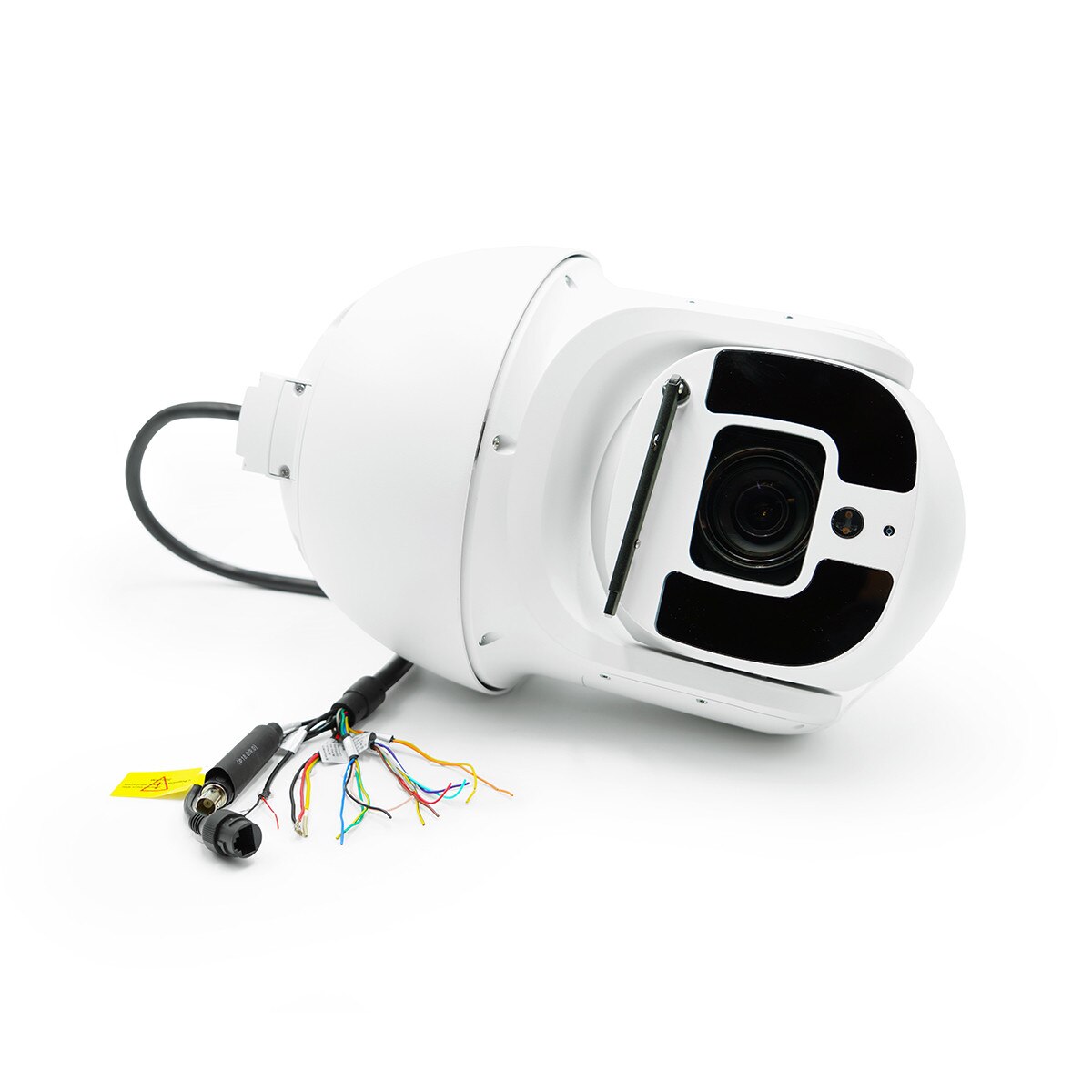

IPEL-P8040X-IRW1-AI
Details

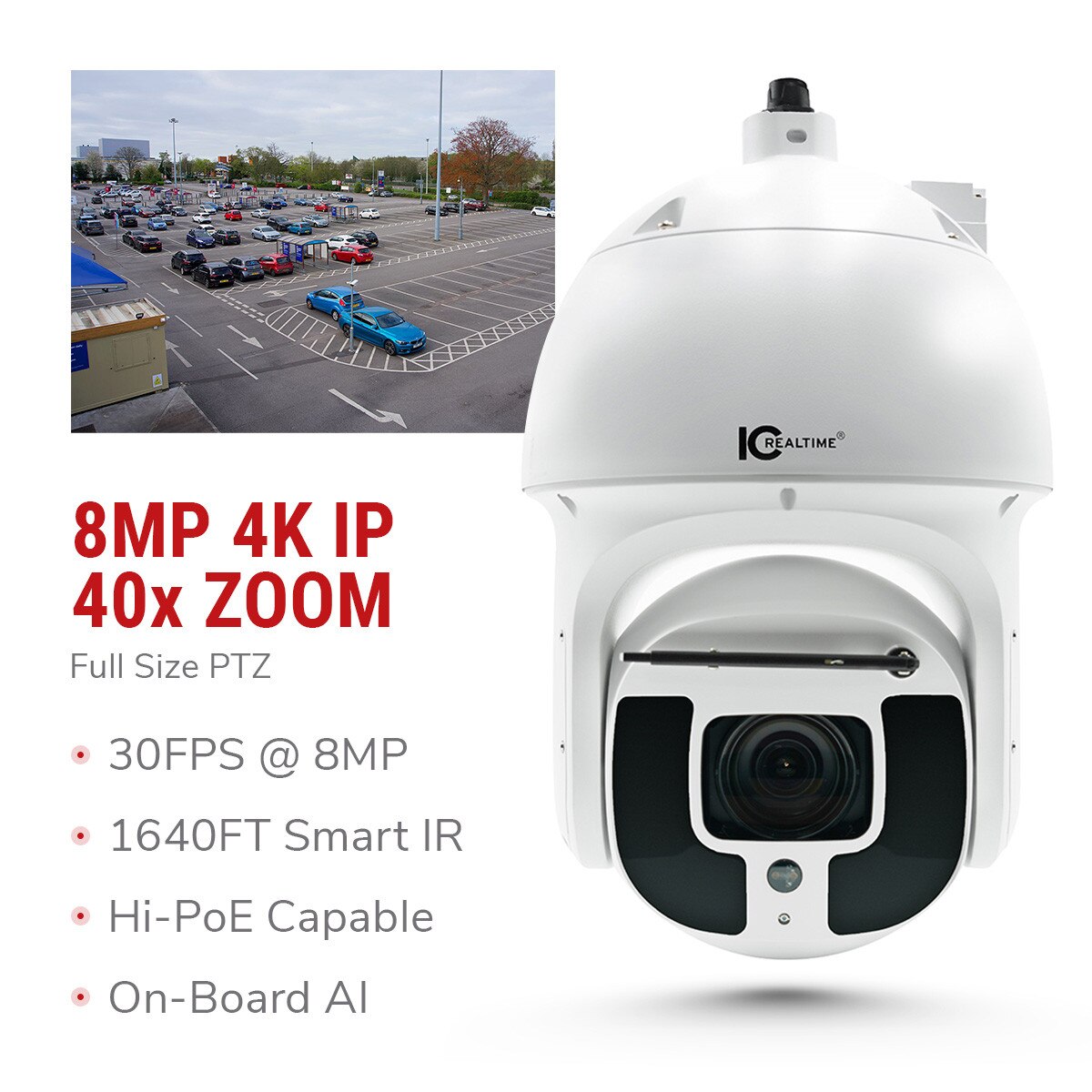

IC Realtime’s most advanced PTZ yet, the IPEL-P8040X-IRW1-AI combines a suite of AI features with a 4K, 40X zoom PTZ! The camera AI supports Face Recognition with metadata, IVS, Perimeter Protection, and Deep Learning-based Auto-Tracking for high flexibility and accuracy when combined with our AI-capable Recorders. Together with infrared illumination up to 1640 ft and Starlight Technology, the camera is the perfect solution for dark, low light applications.
The series combines a day/night mechanical IR cut filter for the highest image quality in variable lighting conditions during the day, and True WDR for applications with direct sunlight or glare. In addition, the PTZ supports Hi-PoE, Smart Wiper and is IP67 rated.
The series combines a day/night mechanical IR cut filter for the highest image quality in variable lighting conditions during the day, and True WDR for applications with direct sunlight or glare. In addition, the PTZ supports Hi-PoE, Smart Wiper and is IP67 rated.
Specifications
| Camera | |
| Image Sensor: | 1/1.8" 8 Megapixel CMOS |
| Effective Pixels: | 3840(H) x 2160(V) 8 Megapixels |
| RAM/Rom: | 8GB/ 2GB |
| Scanning System: | Progressive |
| Minimum Illumination: | Color: 0.005 Lux@F1.4 B/W: 0.0005 Lux@F1.4 0 Lux@F1.4 (illuminator on) |
| Illumination Distance: | Distance up to 1640ft (500m) |
| Illumination On/Off Control: | Auto/Manual |
| Illumination LEDs: | 10 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Varifocal |
| Focal Length: | 5.6mm-223mm |
| Max. Aperture: | F1.4 - F4.5 |
| Angle of View: | H: 63.9°–2.0°; V: 37.3°–1.1 ° |

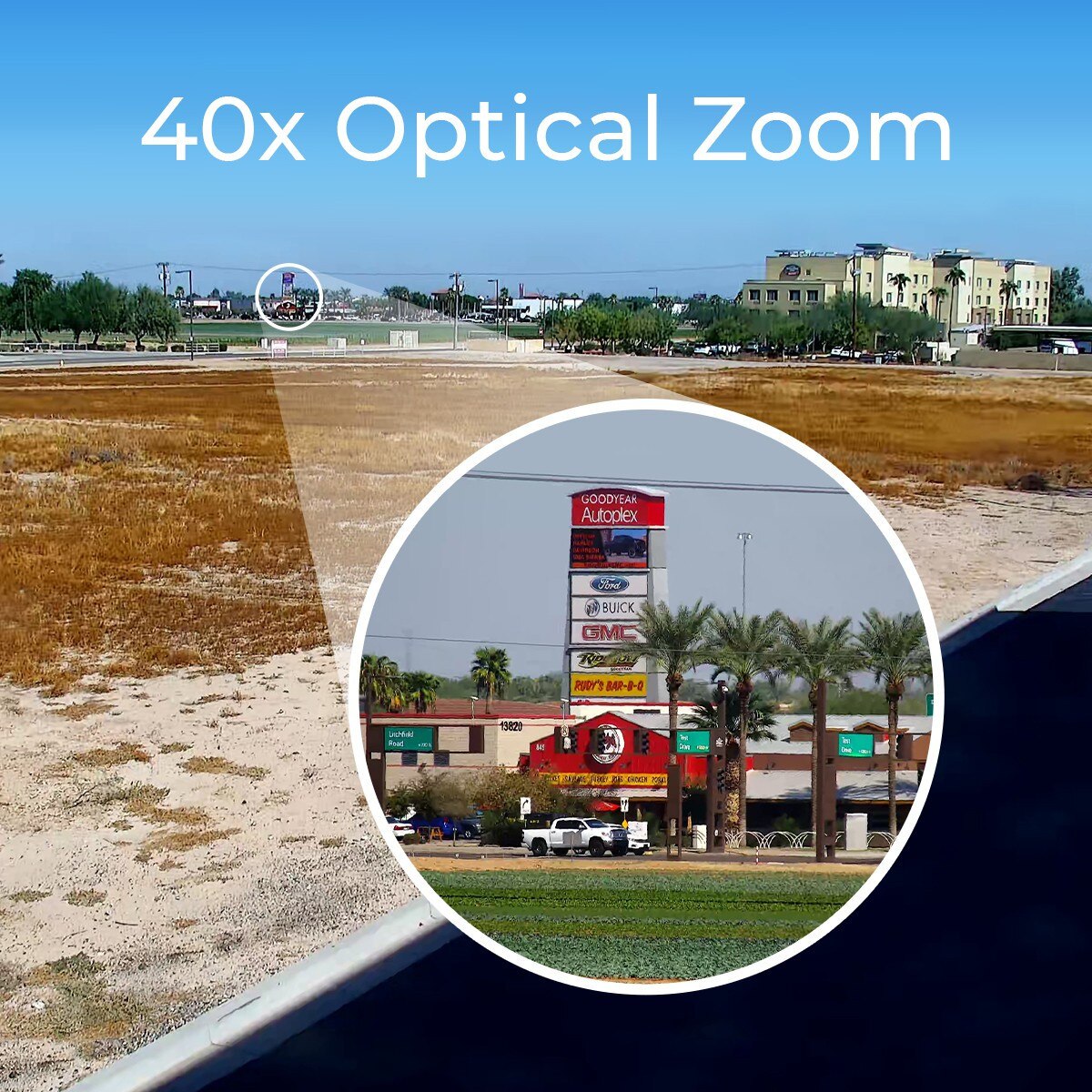

| Optical Zoom: | 40x |
| Focus Control: | Auto/Manual |
| Close Focus Distance: | 1.64 ft–6.56 ft (0.5 m–2 m) |
| DORI - Detect: | 14435ft (4400m) |
| DORI - Observe: | 5708ft (1740m) |
| DORI - Recognize: | 2887ft (880m) |
| DORI - Identify: | 1443ft 9440m) |
| PTZ | |
| Pan/Tilt Range: | Pan: 0 ~ 360 endless; / Tilt: -20 ~ 90 & auto flip 180 |
| Manual Control Speed: | Pan: 0.1° ~240° /s; Tilt: 0.1° ~100° /s |
| Preset Speed: | Pan: 240 degrees/s Tilt: 120 degrees/s |
| Presets: | 300 |
| PTZ Mode: | 5 Pattern / 8 Tour / Auto Pan / Auto Scan |
| Speed Setup: | Human-oriented focal Length / speed adaptation |
| Power up Action: | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion: | Activate Preset / Scan / Tour / Pattern if there is no command in the specified period |
| Protocol: | ICR-SD, Pelco-P/D (Auto recognition) |
| Intelligence | |
| IVS: | Object Abandoned/Missing |

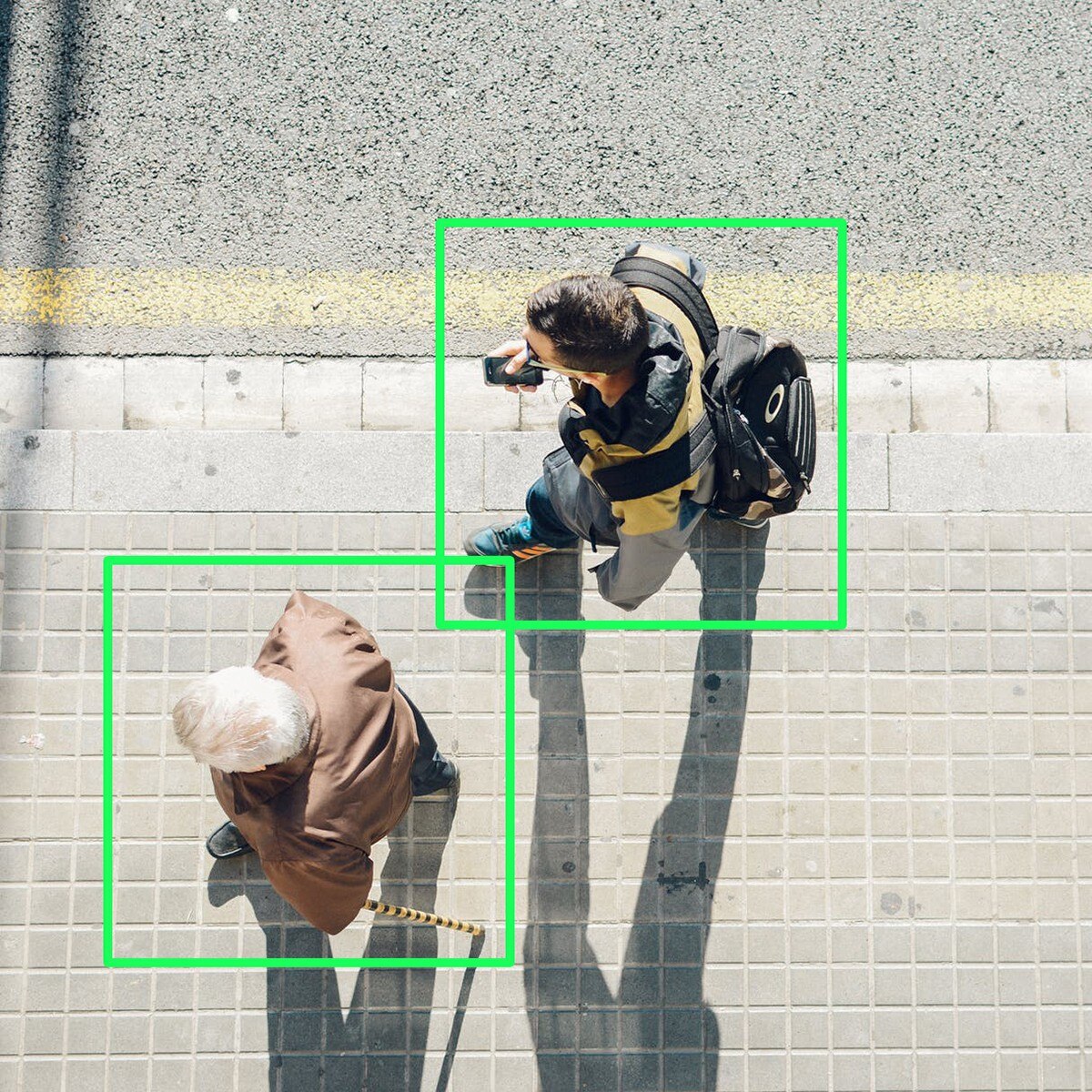

| Advanced Intelligent Functions: | AI Auto Tracking, Perimeter Protection |
| Video | |
| Compression: | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG (Sub Stream 1) |
| Streaming Capability: | 3 Streams |
| Resolution: | 4K (3840 x 2160) / 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240) |
| Frame Rate: | Main stream: 4K / 1080P / 1.3M / 720P(1 - 25/30fps) Sub stream1: D1 / CIF(1 - 25/30fps) Sub stream2: 1080P / 720P / D1(1 - 25/30fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H264: 512 Kbps–16384 Kbps H265: 256 Kbps–10240 Kbps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / WDR (120dB) |
| White Balance: | Auto / ATW / Indoor / Outdoor / Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | Ultra DNR (2D / 3D) |
| Motion Detection: | Support |
| Smart IR: | Support |
| Digital Zoom: | 16X |
| Flip: | 180 |
| Privacy Masking: | Up to 24 areas |
| WDR: | True WDR, 120dB |
| Audio | |
| Compression: | G.711a; G.711mu; G.726; AAC; G722.1; G.729; MPEG2-Layer2; G723 |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | IPv4 / IPv6 / HTTP / HTTPS / SSL / TCP/IP / UDP / UPnP / ICMP / IGMP / SNMP / RTSP / RTP / SMTP / NTP / DHCP / DNS / PPPOE / DDNS / FTP / IP Filter / QoS / Bonjour / 802.1x |
| Interoperability: | ONVIF Profile S&G&T; CGI |
| Compatibility: | ONVIF / PSIA / CGI |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 20 Users |
| Edge Storage: | NAS / Local PC for instant recording / Micro SD card 256GB |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | Smart ICRSS/ DSS |
| Interface | |
| Video Interface: | 1 port (BNC) |
| RS485: | 1 |
| Audio I/O: | 1/1 channel In/Out |
| Alarm I/O: | 7/2 |
| Memory Slot: | Micro SD Card 256GB |
| Electrical | |
| Power Supply: | DC 36V/2.23A (±25%), Hi-PoE |
| Power Consumption: | 30 W, 48 W (IR light on) |
| Environmental | |
| Operating Conditions: | –40 °F to +158 °F (–40 °C to +70 °C) / |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal |
| Dimensions: | 10.3” x 16.3” (262mm x 415.6 mm) |
| Gross Weight: | 13.5kg(29.76lb) |
