IPEL-P5030X-IRW1

(0) No Reviews yet
SKU: IPEL-P5030X-IRW1
ITEM WEIGHT: 25
5MP IP Full Size PTZ. 30X Optical Zoom. 656 Feet Smart IR. Hi-PoE Capable. Ai (Advanced Intelligence) On-Board Analytics...
1/1.9 CMOS Starvis | 5MP | 30fps@5MP
6mm to 180mm | motorized varifocal | AoV 61.2 to 2.32
Max. IR length 656ft | Smart IR | 10 IR LEDs
1ch audio in 1ch audio out | 7ch alarm in 2ch alarm out | 256GB mSD
IP67 | IK10 | 24VAC or Hi-PoE | Max. 38W
IVS | Auto Tracking | AGC | DWDR | HLC | BLC | Ultra DNR

Details

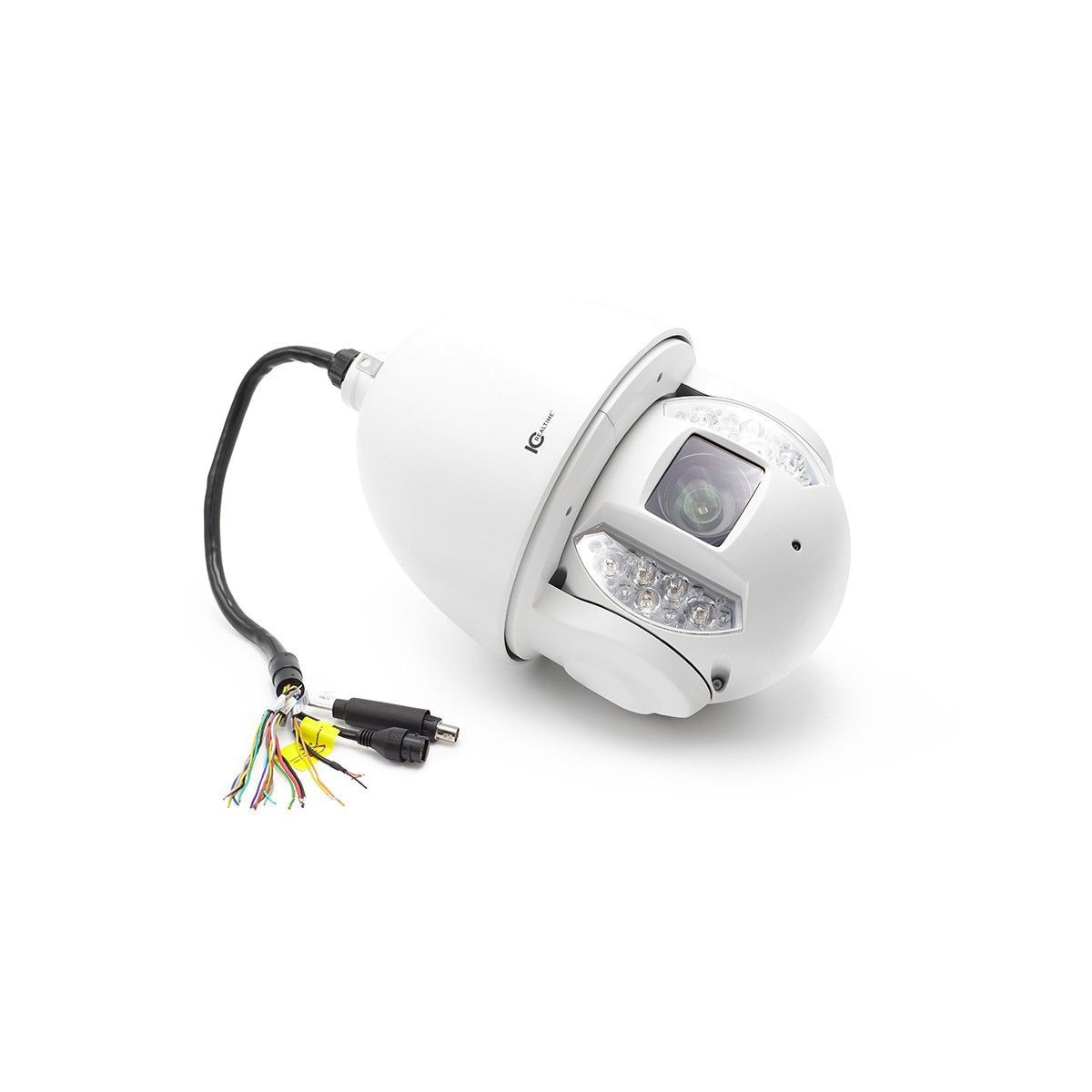

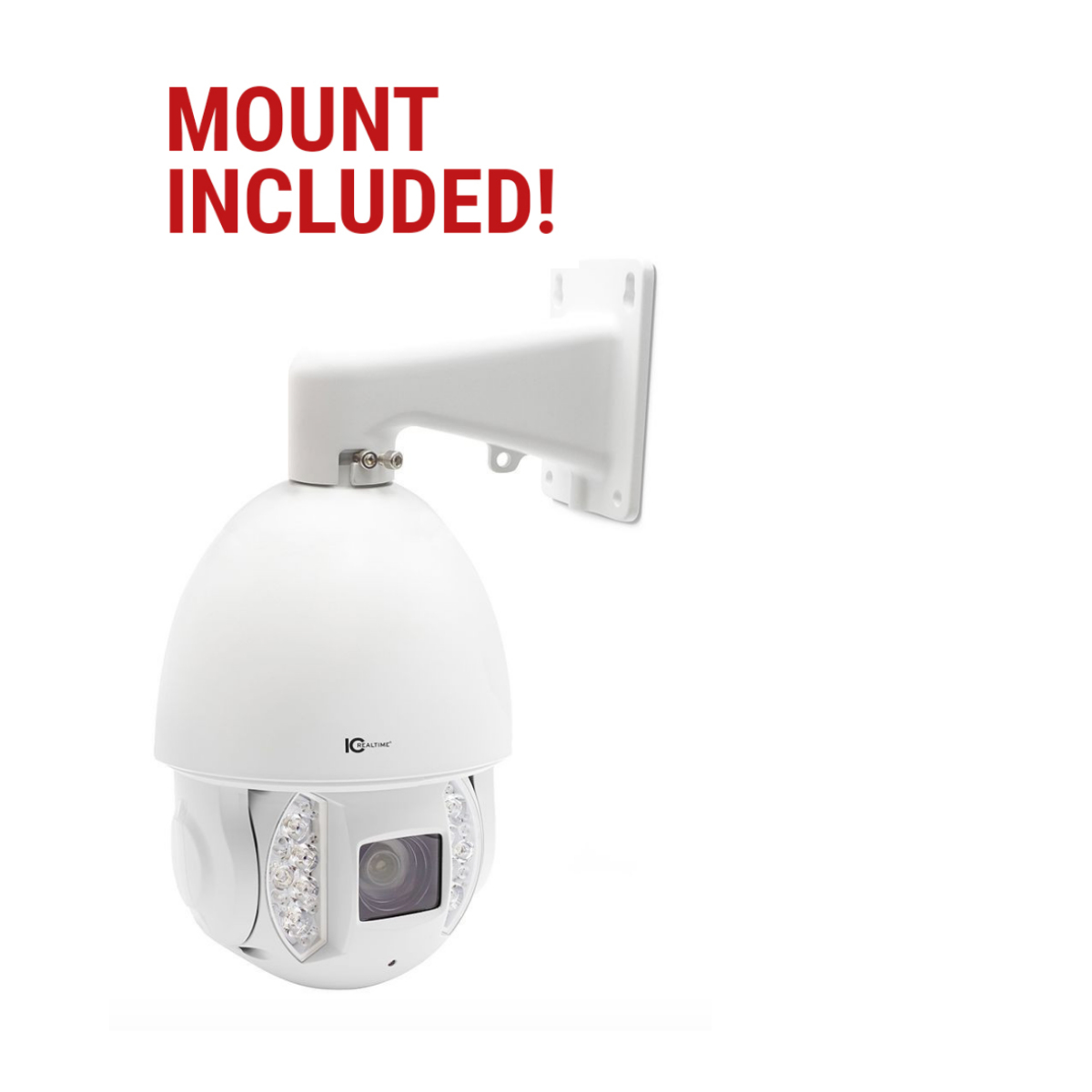

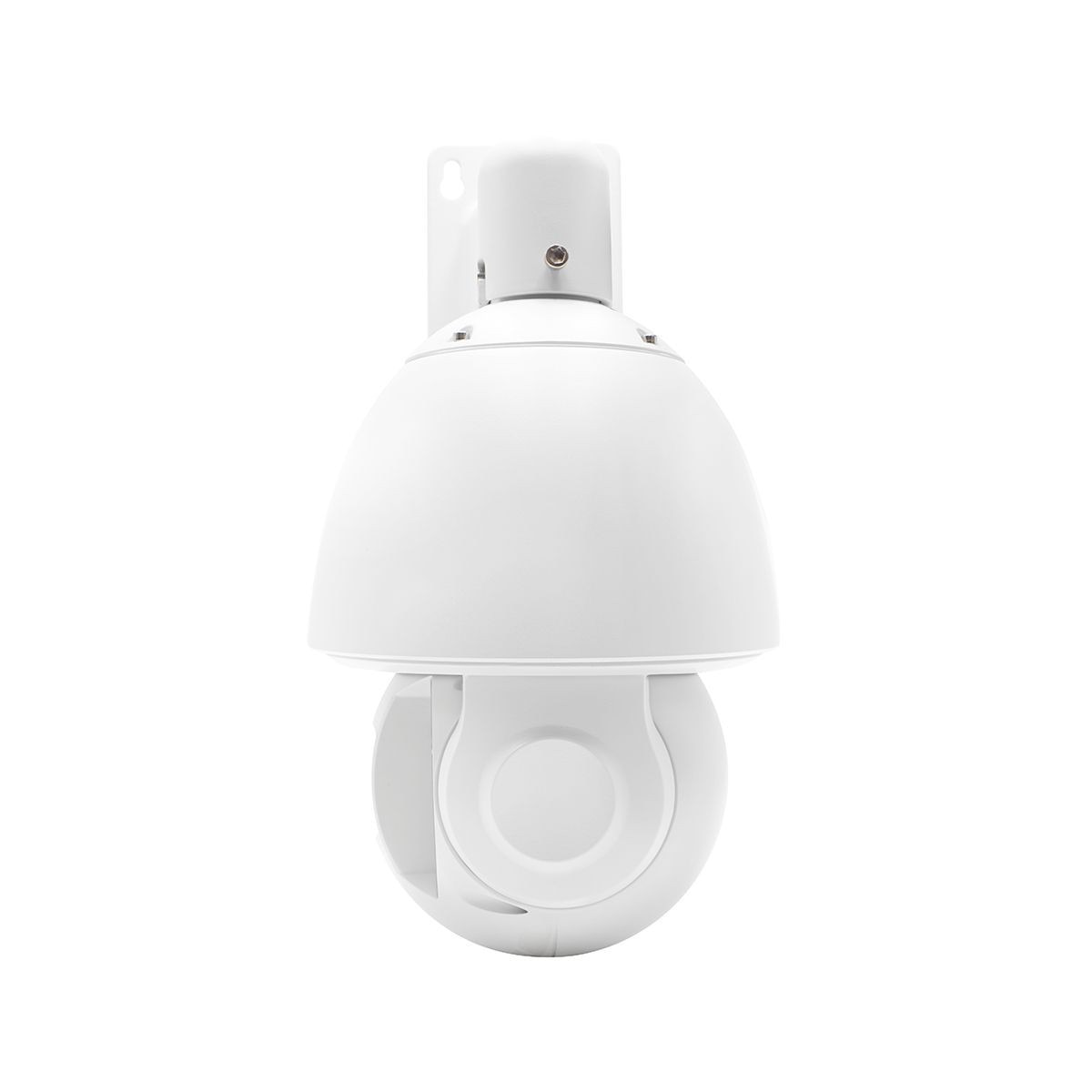

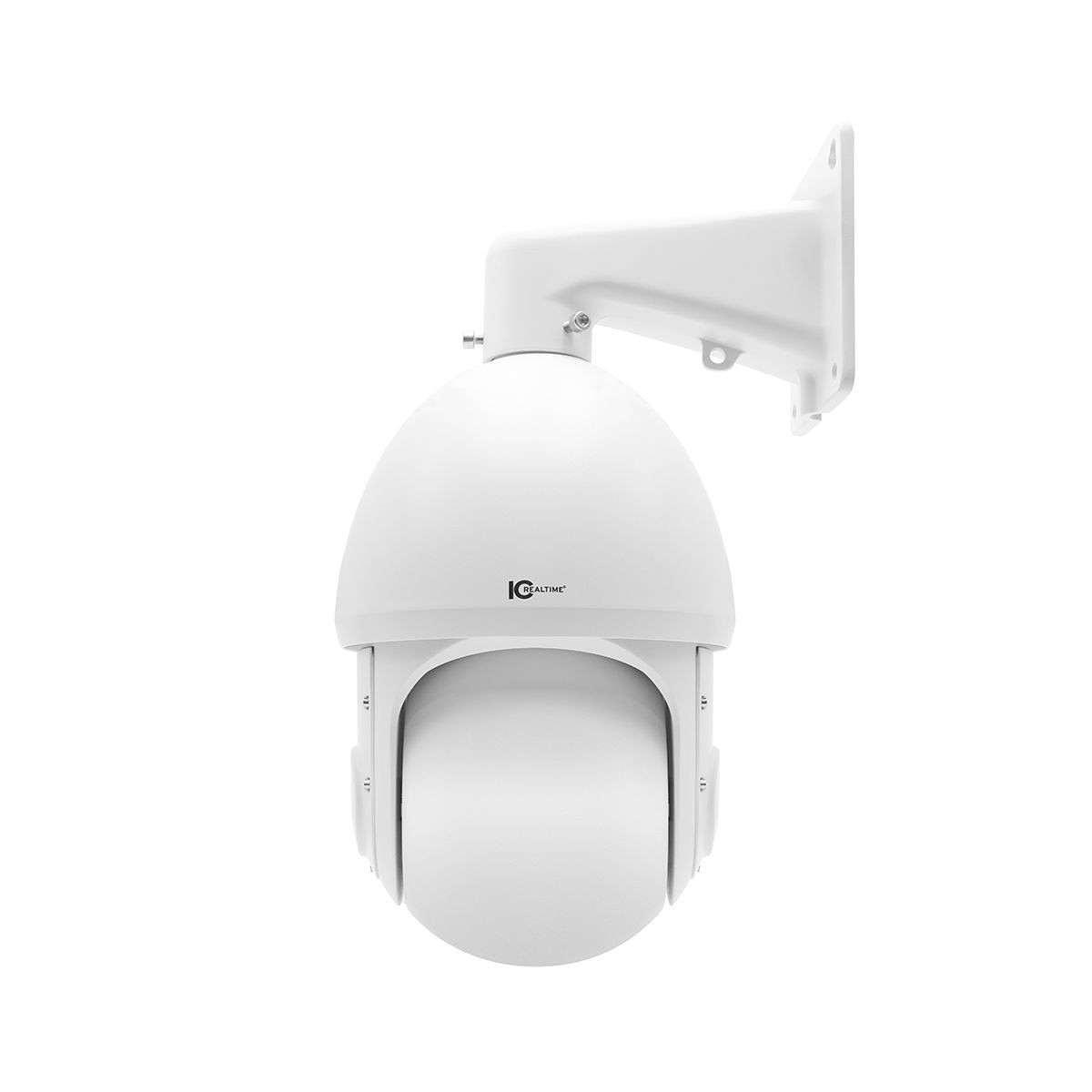

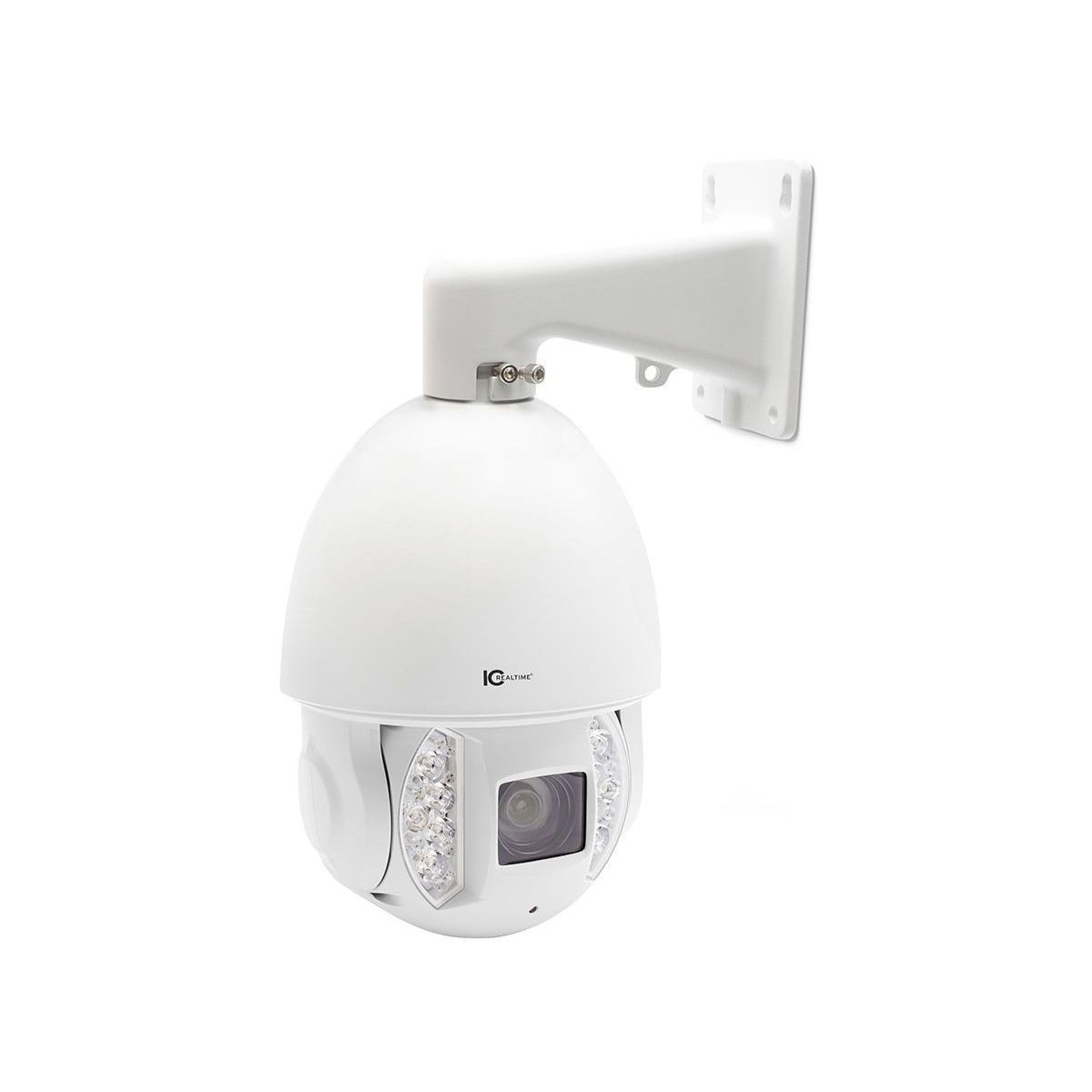

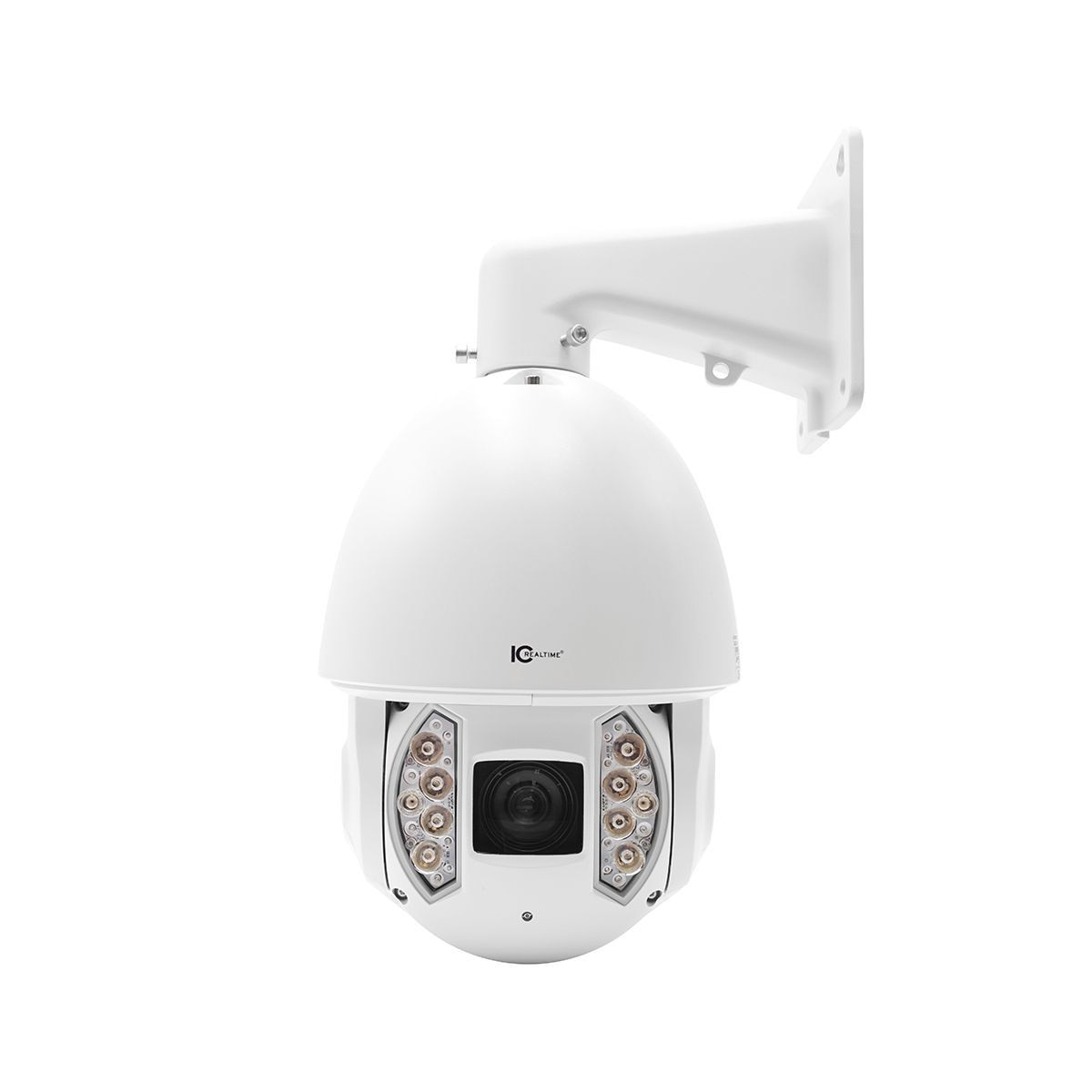

A new, and sleek designed PTZ, with the critically acclaimed Advanced Intelligence Video Analytics - the ICIP-IPEL-P5030X-IRW1 PTZ camera.

This camera is a fully weatherproof, day/night, high resolution IP camera. This PTZ adopts a unique design by physically separating the IR LEDs from the camera block itself, resulting in perfect night time imaging without causing issues such as IR reflection. The optics on this camera are a 30X powered zoom (6 - 180MM), delivering a crystal clear 5 Megapixel image. 0 lux is not a problem for this camera, as the high intensity IR LED's are capable of illumination at distances up to 656'.

Specifications

Camera
Image Sensor: 1/1.9 6 Megapixel STARVIS CMOS
Effective Pixels: 2560(H) x 1920(V) 5 Megapixels
RAM/Rom: 1024M / 128M
Scanning System: Progressive
Electronic Shutter Speed: Supported
Minimum Illumination: Color: 0.05Lux@F1.6 B/W: 0.005Lux@F1.6 0Lux@F1.6 (IR on)
S/N Ratio: More than 55dB
IR Distance: Distance up to 200m (656ft)
IR On/Off Control: Auto/Manual
IR LEDs: 10
Lens
Focal Length: 6-180mm
Max. Aperture: F1.5 - F4.3
Angle of View: H: 61.2 - 2.1 degrees
Optical Zoom: 30x
Focus Control: Auto/Manual
Close Focus Distance: 100 - 1000mm (3.94 - 39.37in)
DORI - Detect: 2250m (7832ft)
DORI - Observe: 900m (2953ft)
DORI - Recognize: 450m (1476ft)
DORI - Identify: 225m (738ft)
PTZ
Pan/Tilt Range: Pan: 0 ~ 360 endless; / Tilt: -20 ~ 90 & auto flip 180
Manual Control Speed: Pan: 0.1 ~ 200/s / Tilt: 0.1 ~ 120/s
Preset Speed: Pan: 240 degrees/s Tilt: 200 degrees/s
Presets: 300
PTZ Mode: 5 Pattern / 8 Tour / Auto Pan / Auto Scan
Speed Setup: Human-oriented focal Length / speed adaptation
Power up Action: Auto restore to previous PTZ and lens status after power failure
Idle Motion: Activate Preset / Scan / Tour / Pattern if there is no command in the specified period
Protocol: ICR-SD
Intelligence
Smart Function: Tripwire / Intrusion / Abandoned or Missing Object / Face Detection / Heat Map
Video
Compression: H.265 / H.264
Resolution: 5M (2560 x 1920) / 3M (2048 x 1536) / 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240)
Frame Rate: Main stream: 5M / 3M(1 - 25/30fps) 1080P / 1.3M / 720P(1 - 50/60fps) Sub stream1: D1 / CIF(1 - 25/30fps) Sub stream2: 5M / 1080P / 1.3M / 720P / D1 / CIF (1 - 25/30fps)
Bit Rate: H.265/H.264: 448K - 8192Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / DWDR
White Balance: Auto / ATW / Indoor / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: Ultra DNR (2D / 3D)
Motion Detection: Support
Region of Interest: Support
Electronic Image Stabilization (EIS): Supported
Digital Zoom: 16X
Flip: 180
Privacy Masking: Up to 24 areas
Audio
Compression: G.711a / G.711Mu / AAC / G.722 / G.726 / MPEG2-L2
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: IPv4 / IPv6 / HTTP / HTTPS / SSL / TCP/IP / UDP / UPnP / ICMP / IGMP / SNMP / RTSP / RTP / SMTP / NTP / DHCP / DNS / PPPOE / DDNS / FTP / IP Filter / QoS / Bonjour / 802.1x
Interoperability: ONVIF / PSIA / CGI
Compatability: ONVIF / PSIA / CGI
Streaming Method: Unicast / Multicast
Max. User Access: 20 Users
Edge Storage: NAS / Local PC for instant recording / Micro SD card 256GB
Interface
Video Interface: 1 port (BNC 1.0V[p-p] 75 Ohms)
RS485: 1
Audio I/O: 1/1 channel In/Out
Alarm I/O: 7/2
Memory Slot: Micro SD Card 256GB
Electrical
Power Supply: AC24V/3A( +/- 25%) Hi-PoE
Power Consumption: 24W (38W IR on)
Enviromental
Operating Conditions: -40C ~ 70C (-40F ~ +158F) / Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal
Dimensions: 240mm x 382 mm
Gross Weight: 10.1kg (22.27lb)
