IPEL-D30V-IRW1

(0) No Reviews yet
SKU: IPEL-D30V-IRW1
ITEM WEIGHT: 4
3MP IP Indoor/Outdoor Full Size Vandal Dome 2.8-12mm Motorized Lens (87 - 31 AOV) 150 ft Smart IR POE AI
1/2.8 CMOS Starvis | 3MP | 60fps@3MP
2.7mm to 13.5mm | motorized varifocal | AoV 99 to 28
Max. IR length 164ft | Smart IR | 3 IR LEDs
1ch audio in 1ch audio out | 1ch alarm in 1ch alarm out | 128GB mSD
IP67 | IK10 | 12VDC 24VAC or PoE+ | Max. 18W
IVS | AGC | 140dB True WDR | HLC | BLC | SSA | 3DNR

Details

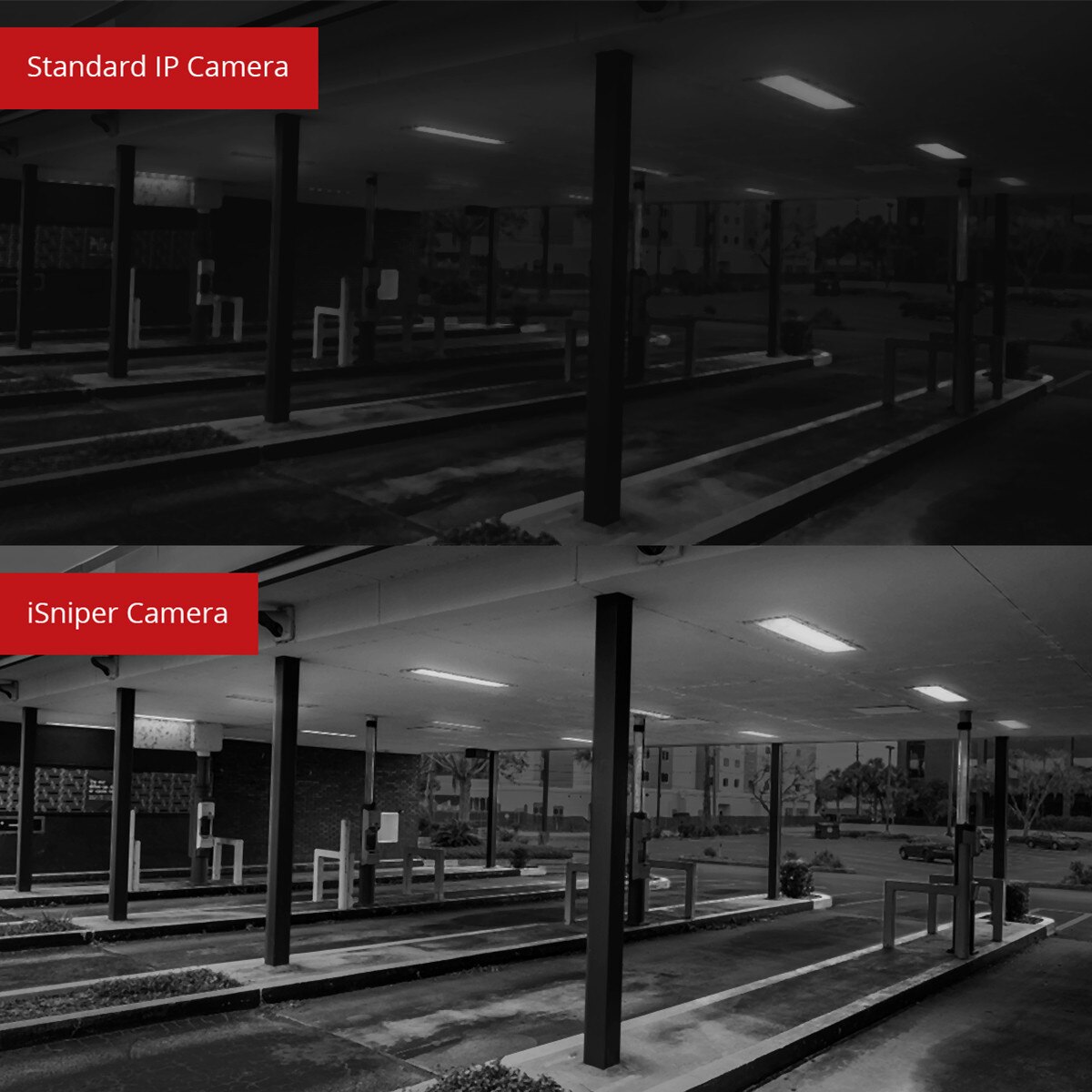

When an entry level dome camera just won't do‚ look no further than the IPEL-D30V-IRW1. Taking aim at video with low light, the iSniper Gen2 series image sensor produces unparalleled levels of image sharpness, and full vibrant color in even the lowest lighting conditions.

This sleek indoor/outdoor IP dome camera packs some serious hardware. Powered by a large 1/2.8''CMOS i-Sniper sensor, this image sensor achieves maximum light gathering capability with image sharpness levels to match. Due to the large image sensor, the camera itself is able to remain in color (Day) mode longer than typical Day/Night cameras, and display full color video with only minimal lighting. On top of the iSniper imager sits a motorized 2.8mm-12mm lens which provides anywhere from a 87 to 31 degree horizontal Field of View. Typical applications for this type of camera include: Parking Lots, Warehouses, Exterior Residential, and commercial applications.

Specifications

Camera
Image Sensor: 1/2.8 3 Megapixel progressive scan STARVIS CMOS
Effective Pixels: 2048(H) x 1536(V)
RAM/Rom: 1024MB / 128MB
Scanning System: Progressive
Electronic Shutter Speed: Supported
Minimum Illumination: 0.005Lux/F1.4 (Color1/3s30IRE) 0.03Lux/F1.4 (Color1/30s30IRE) 0Lux/F1.4(IR on)
S/N Ratio: More than 50dB
IR Distance: Distance up to 50m(164ft)
IR On/Off Control: Auto/ Manual
IR LEDs: 3
Lens
Lens Type: Motorized / Auto Iris (HALL)
Mount Type: Board-in
Focal Length: 2.7-13.5mm motorized
Max. Aperture: F1.4
Angle of View: H: 99 - 28 degrees V:67 - 21 degrees
Optical Zoom: 5x
Focus Control: Motorized
Close Focus Distance: 300mm (11.81in )
DORI - Detect: 54m (177ft) / 166m (545ft)
DORI - Observe: 22m (72ft) / 66m (217ft)
DORI - Recognize: 11m (36ft) / 33m (108ft)
DORI - Identify: 5m (16ft) / 17m (56ft)
PTZ
Pan/Tilt Range: Pan:0 ~ 355 ; / Tilt:0 ~ 65 ; / Rotation:0 ~ 355
Intelligence
Smart Function: Tripwire / Intrusion / Object Abandoned / Face Detection / People Counting / Heat Map
Video
Compression: H.265 / H.264 / H.264B / H.264H / MJPEG(Sub Stream)
Resolution: 3M (2048 x 1536) / 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 342 x 240)
Frame Rate: Main Stream: 3M(1 - 50/60fps) Sub Stream: D1 (1 - 50/60fps) Third Stream: 1080P(1 - 50/60fps)
Bit Rate: H.264: 24 - 10240Kbps H.265: 14 - 9216Kbps
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR(140dB) / SSA
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zones Rectangular)
Region of Interest: Off / On (4 Zones)
Electronic Image Stabilization (EIS): Supported
Smart IR: Supported
Digital Zoom: 16X
Flip: 0 / 90 / 180 / 270
Mirror: Off / On
Privacy Masking: Off / On (4 Area Rectangle)
Audio
Compression: G.711a / G.711Mu / AAC / G.726
Network
Ethernet: RJ-45 (100/1000Base-T)
Protocol: HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / RTCP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / IEEE 802.1x / Multicast / ICMP / IGMP / SNMP / TLS
Interoperability: ONVIF / PSIA / CGI
Compatability: ONVIF Profile S&G / API
Streaming Method: Unicast / Multicast
Max. User Access: 10 Users
Edge Storage: NAS / Local PC for instant recording / Micro SD Card 128GB
Interface
Video Interface: 1 port (For adjustment only)
Audio I/O: 1/1 channel In/Out
Alarm I/O: 1 channel In: 5mA 5VDC / 1 channel Out: 1A 30VDC or 0.5A 50VAC
Memory Slot: Micro SD Card 128GB
Electrical
Power Supply: DC12VAC24V PoE+ (802.3at)(Class 4)
Power Consumption: < 18W
Enviromental
Operating Conditions: -40 C ~ +60 C (-40 F ~ +140 F) / Less than 95% RH
Ingress Protection: IP67
Vandal Resistance: IK10
Construction
Casing: Metal

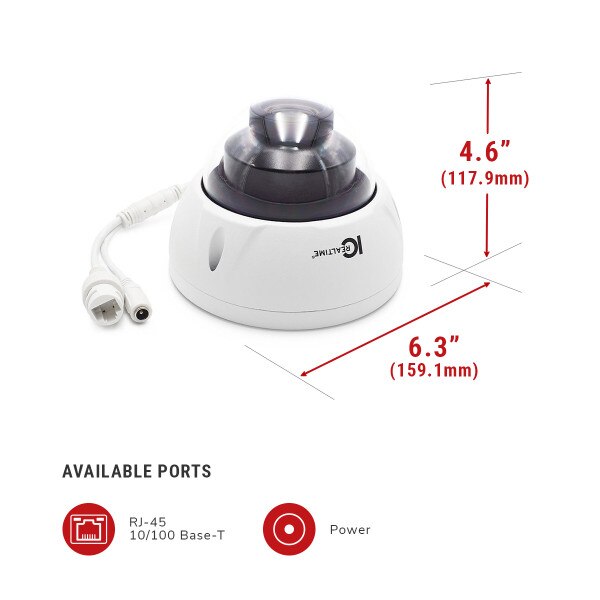

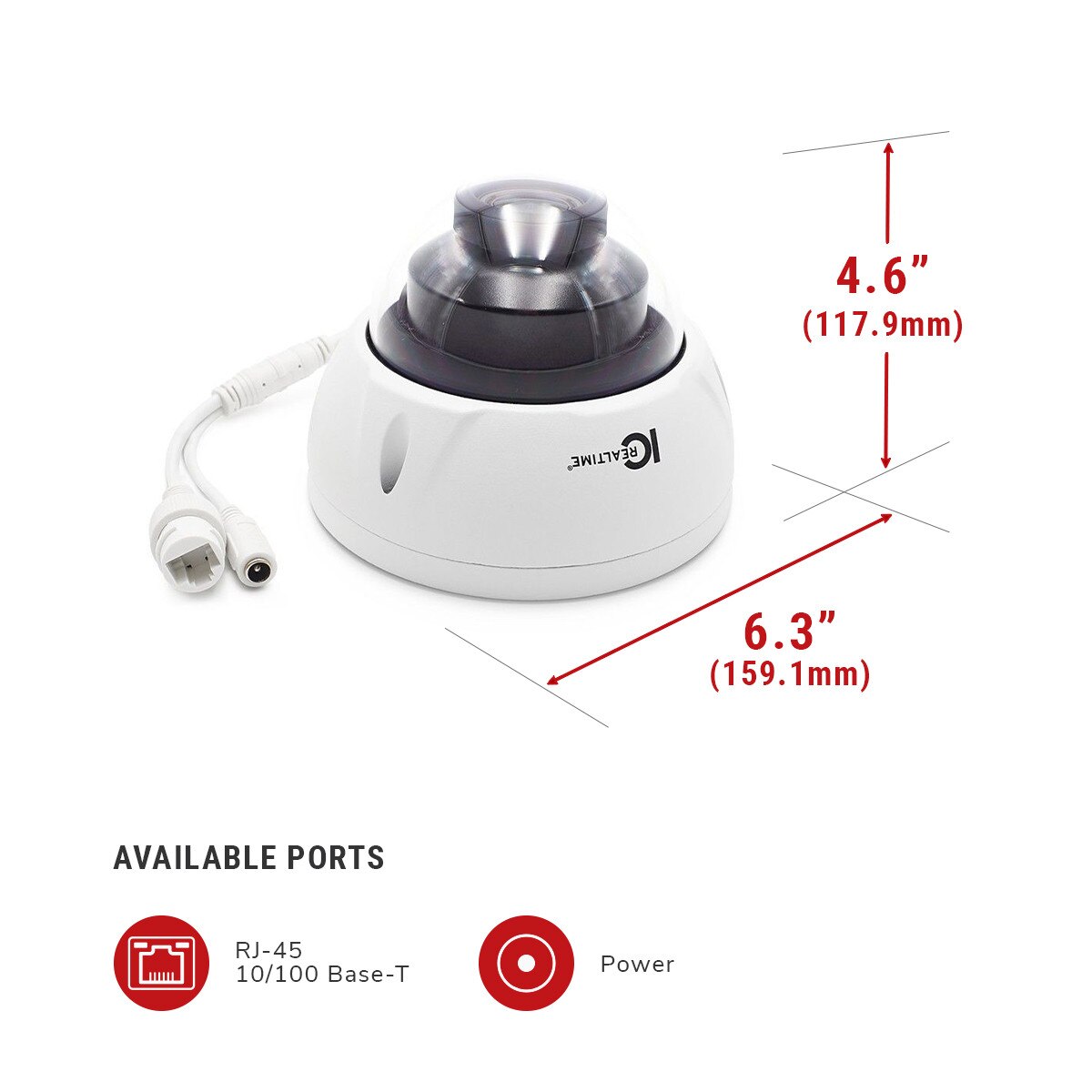

Dimensions: 159.1mm x 117.9mm (6.26in x 4.64in)
Gross Weight: 1.75 kg (3.56lb)
