IPEL-B80V-IRW1
Details
Ultra HD Surveillance is here - now you can capture your surveillance footage in stunning 4K resolution! The new IP Elite series of 4K cameras paired with a compatible 4K series NVR will bring your surveillance system to new, unforeseen levels of clarity and resolution.

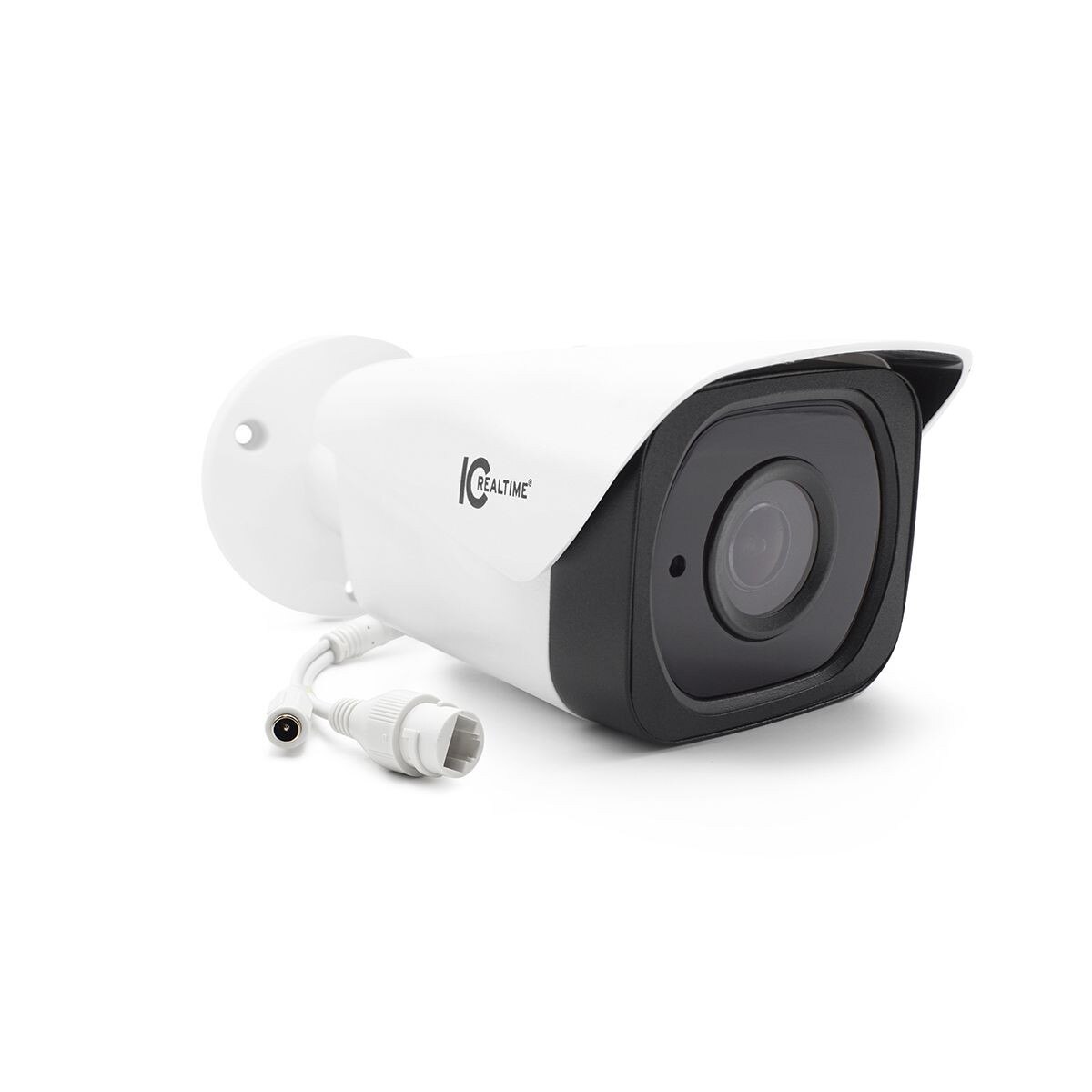

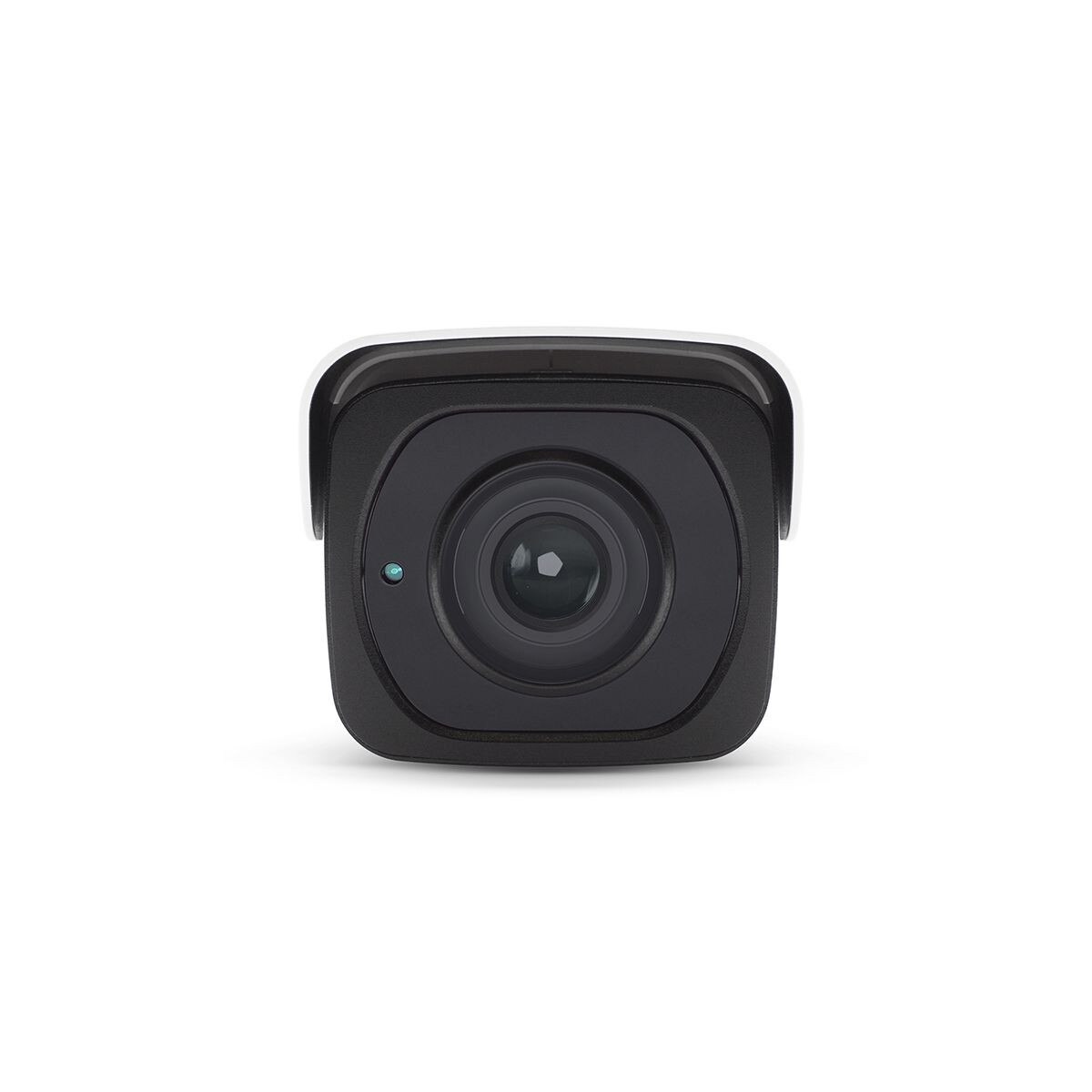

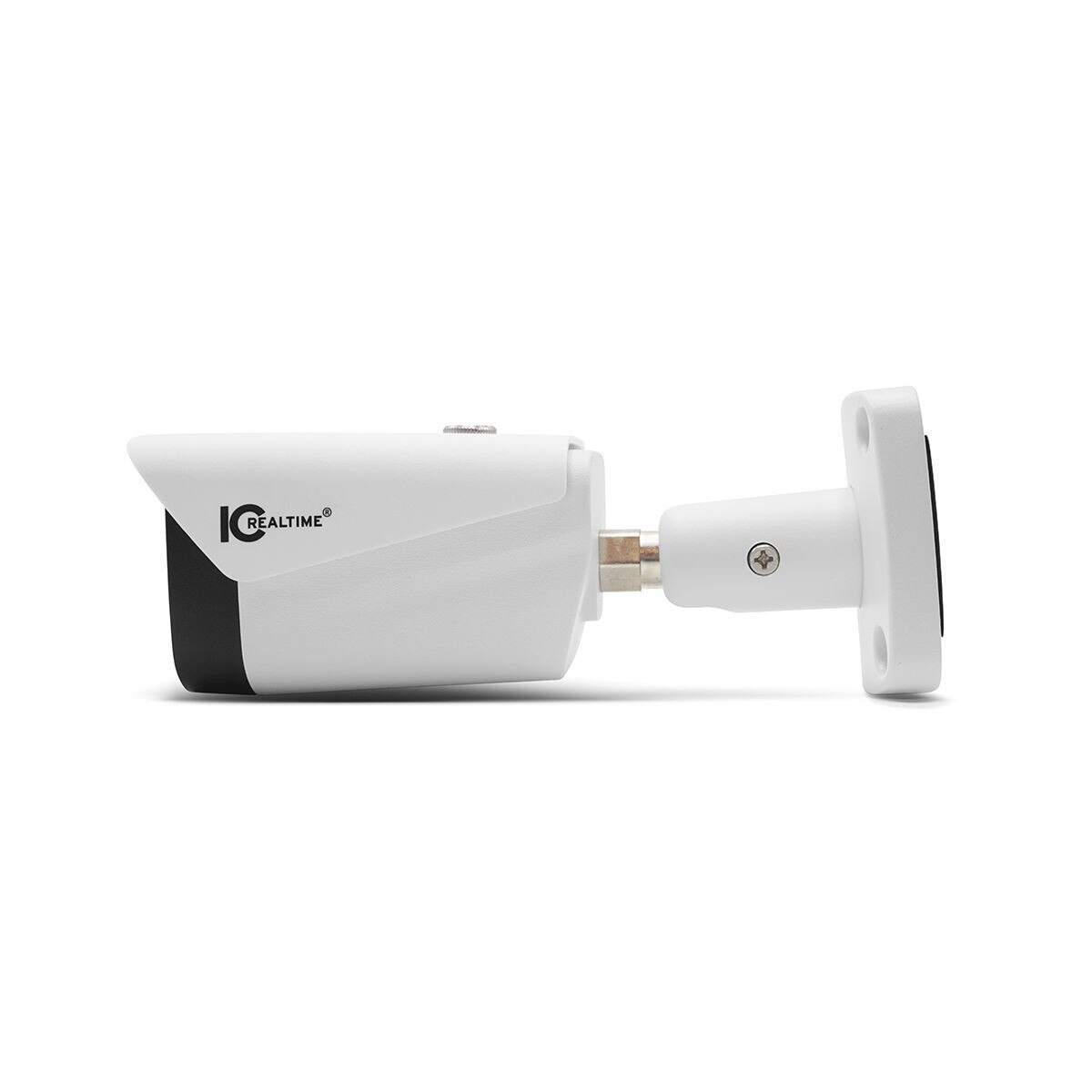

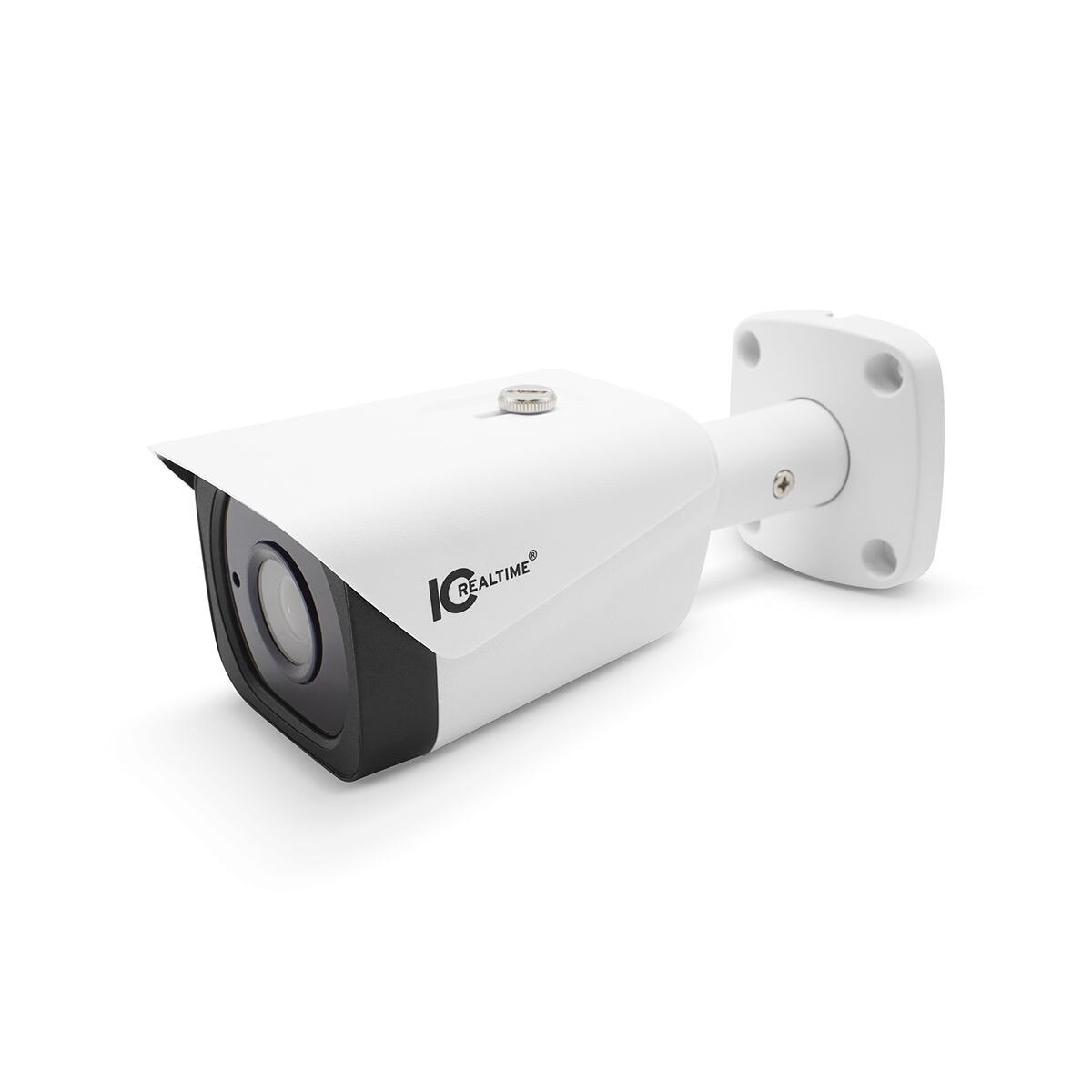

The IPEL-B80V-IRW1 is an 8MP (4K) Day/Night Bullet camera. It utilizes a cutting edge 1/2.5'' 8MP CMOS sensor deliver stunning 4K resolution at frame rates as high as 15FPS. On top of the sensor sits a fixed 4mm lens which delivers a handy, general purpose 112° Horizontal field of view. 2 high intensity IR Illuminators are equipped and yield 131' (40 meters) of IR distance, allowing long range shots as well. This camera also represents the 'AI' line of smart cameras from ICRealtime. It's AI (Advanced Intelligence) suite of features includes: Tripwire, Intrusion, and Missing/Abandoned Objects. E-PoE is also supported as well as IK10 and IP67 protection.
The IPEL-B80V-IRW1 is an 8MP (4K) Day/Night Bullet camera. It utilizes a cutting edge 1/2.5'' 8MP CMOS sensor deliver stunning 4K resolution at frame rates as high as 15FPS. On top of the sensor sits a fixed 4mm lens which delivers a handy, general purpose 112° Horizontal field of view. 2 high intensity IR Illuminators are equipped and yield 131' (40 meters) of IR distance, allowing long range shots as well. This camera also represents the 'AI' line of smart cameras from ICRealtime. It's AI (Advanced Intelligence) suite of features includes: Tripwire, Intrusion, and Missing/Abandoned Objects. E-PoE is also supported as well as IK10 and IP67 protection.
Specifications
| Camera | |
| Image Sensor: | 1/2.5 8 Megapixel progressive scan STARVIS CMOS |
| Effective Pixels: | 3840(H) x 2160(V) |
| RAM/Rom: | 512MB / 32MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.06Lux/F1.6( Color1/3s30IRE) 0.3Lux/F1.6( Color1/30s30IRE) 0Lux/F1.6(IR on) |
| S/N Ratio: | More than 50dB |
| Illumination Distance: | Distance up to 40m (131ft) |
| Illumination On/Off Control: | Auto/Manual |
| Illumination LEDs: | 2 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed |
| Mount Type: | Board-in |
| Focal Length: | 2.8mm |
| Max. Aperture: | F1.6 |
| Angle of View: | H:112 degrees V:69 degrees |
| Focus Control: | Fixed |
| Close Focus Distance: | 900mm (35.43in) |
| DORI - Detect: | 69m (226ft) |
| DORI - Observe: | 28m (92ft) |
| DORI - Recognize: | 14m (46ft) |
| DORI - Identify: | 7m (23ft) |
| PTZ | |
| Pan/Tilt Range: | Pan:0 ~ 360 ; / Tilt:0 ~ 90 ; / Rotation:0 ~ 360 |
| Video | |
| Compression: | H.265+ / H.265 / H.264+ / H.264 |
| Resolution: | 4K (3840 x 2160) / 6M (3072 x 2048) / 5M (2560 x 1920) / 3M (2048 x 1536) / 3M (2304 x 1296) / 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 352 x 240) |
| Frame Rate: | Main Stream: 4K(1 - 15fps) / 3M(1 - 25/30fps) Sub Stream: D1(1 - 25/30fps) Third Stream: 1080P(1 - 25/30fps) |
| Bit Rate: | H.264: 24K - 10240Kbps H.265: 14K - 9984Kbps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / WDR(120dB) |
| White Balance: | Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zones Rectangular) |
| Region of Interest: | Off / On (4 Zones) |
| Smart IR: | Supported |
| Digital Zoom: | 16x |
| Flip: | 0 / 90 / 180 / 270 |
| Mirror: | Off / On |
| Privacy Masking: | Up to 4 areas |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP |
| Interoperability: | ONVIF / PSIA / CGI/ Milestone |
| Compatibility: | ONVIF / PSIA / CGI |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 20 Users |
| Edge Storage: | NAS / Local PC for instant recording / Micro SD Card 128GB |
| Interface | |
| Video Interface: | N/A |
| Memory Slot: | Micro SD Card 128GB |
| Electrical | |
| Power Supply: | DC12V PoE (802.3af)(Class 0) E-PoE Support |
| Power Consumption: | < 6.5W |
| Environmental | |
| Operating Conditions: | -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal |
| Dimensions: | 180mm x 70mm x 70mm (7.09in x 2.76in x 2.76in) |
| Gross Weight: | 0.53 kg (1.17lb) |
