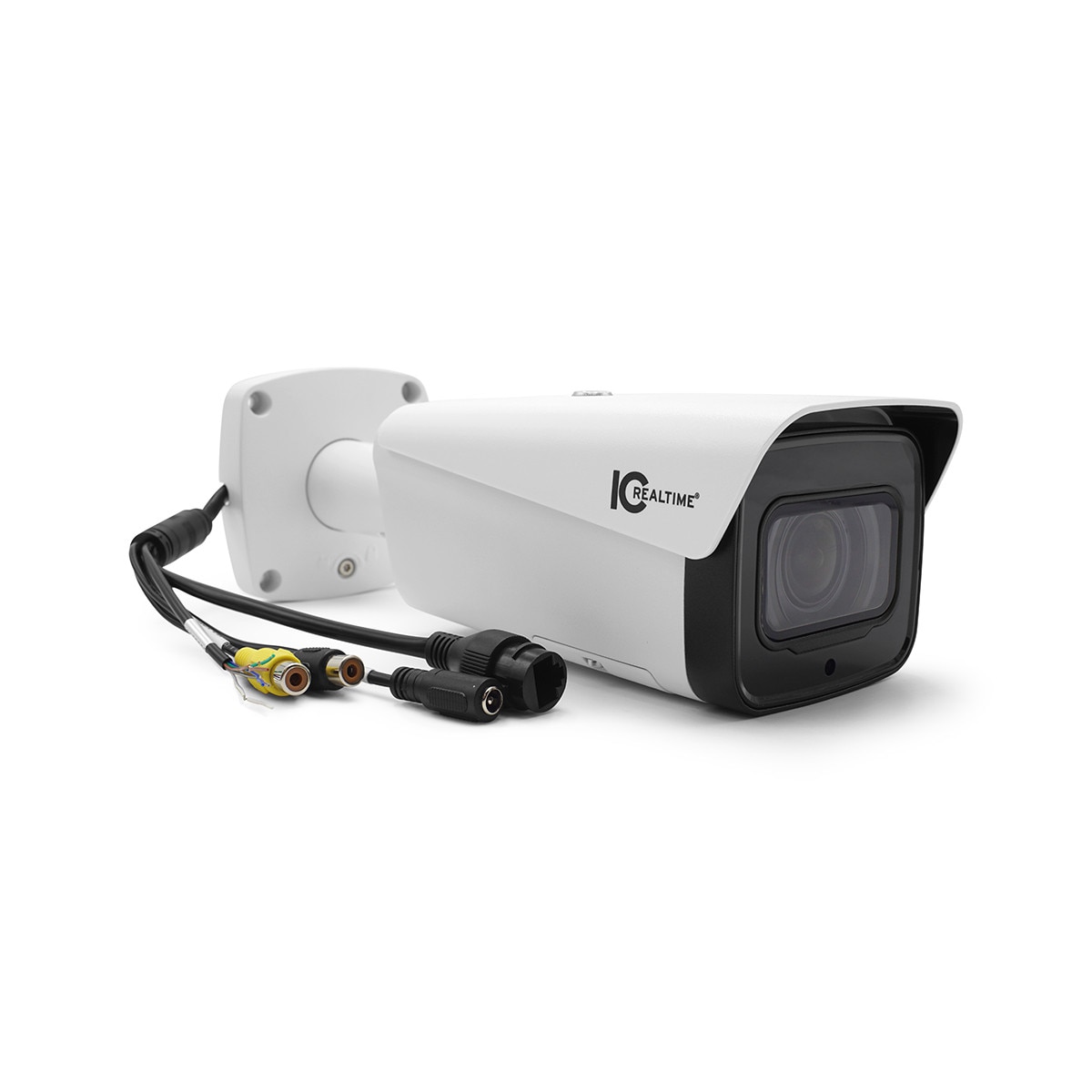

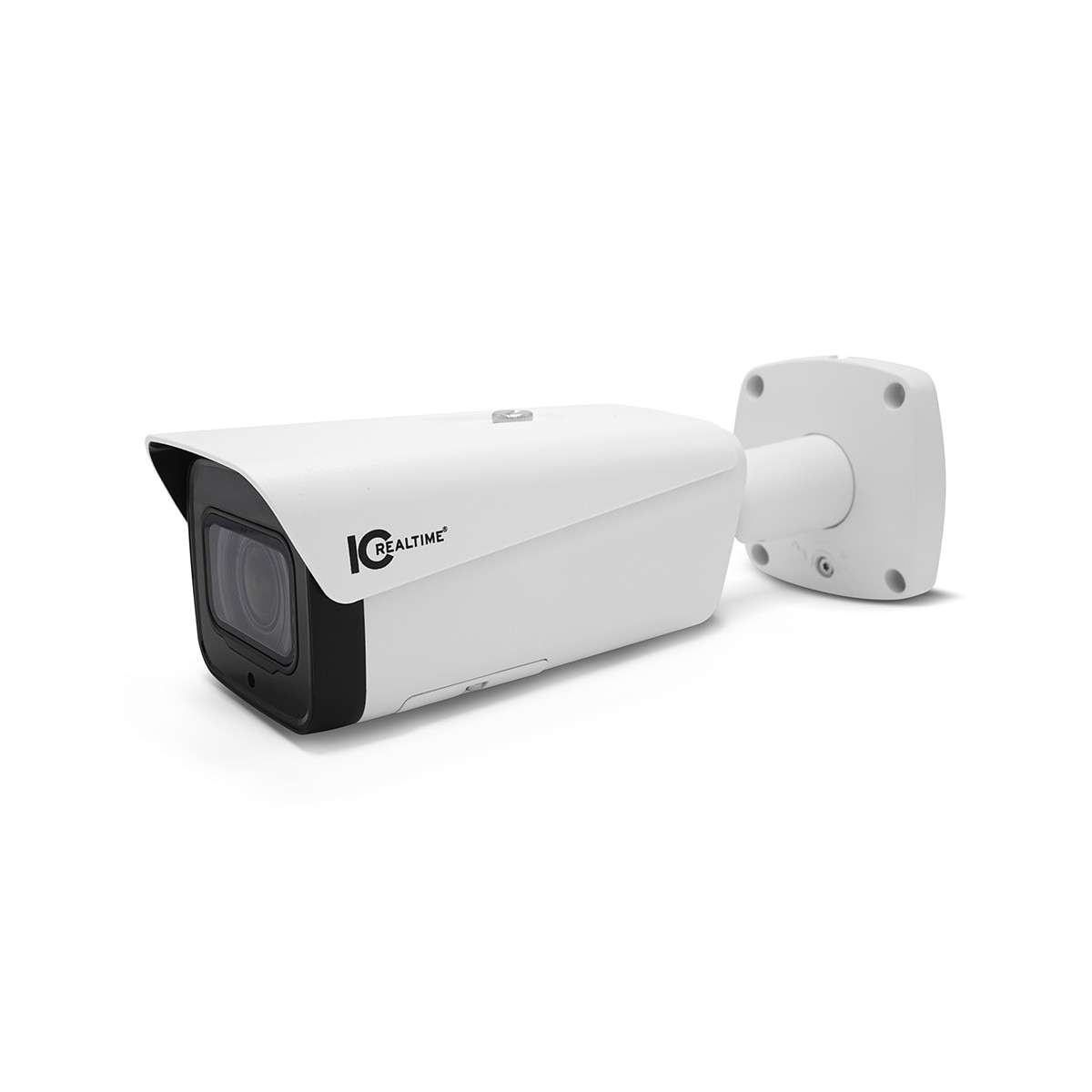

IPEL-B2012X-IRW1
Details
Designed for the toughest, longest distance surveillance applications possible - the IPEL-B2012X-IRW1. This camera takes aim at low light video surveillance with it's STARVIS CMOS image sensor which produces unparalleled levels of image sharpness, and full vibrant color in even the lowest lighting conditions.
This sleek indoor/outdoor IP Bullet camera packs some serious hardware. Powered by a large 1/2.8" progressive scan STARVIS CMOS sensor, this camera achieves maximum light gathering capability with image sharpness levels to match. Due to the large image sensor, the camera itself is able to remain in color (Day) mode longer than typical Day/Night camera, and display full color video with only minimal lighting. On top of the imager sits a motorized 5.3mm - 64mm lens which provides anywhere from a 59 to 5 degree Horizontal Field of View. Extreme Long Range IR illuminators intelligently adjust themselves to your video scene, achieving illumination at distances up to 656 feet! The camera also supports extended PoE (ePOE) for long distance transmission. Typical applications for this type of camera include: Parking Lots, Warehouses, Exterior Residential, and commercial applications.
This sleek indoor/outdoor IP Bullet camera packs some serious hardware. Powered by a large 1/2.8" progressive scan STARVIS CMOS sensor, this camera achieves maximum light gathering capability with image sharpness levels to match. Due to the large image sensor, the camera itself is able to remain in color (Day) mode longer than typical Day/Night camera, and display full color video with only minimal lighting. On top of the imager sits a motorized 5.3mm - 64mm lens which provides anywhere from a 59 to 5 degree Horizontal Field of View. Extreme Long Range IR illuminators intelligently adjust themselves to your video scene, achieving illumination at distances up to 656 feet! The camera also supports extended PoE (ePOE) for long distance transmission. Typical applications for this type of camera include: Parking Lots, Warehouses, Exterior Residential, and commercial applications.
Specifications
| Camera | |
| Image Sensor: | 1/2.8 2 Megapixel progressive scan STARVIS CMOS |
| Effective Pixels: | 1920(H) x 1080(V) |
| RAM/Rom: | 32MB/256MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.006Lux/F1.4 ( Color1/3s30IRE) 0.05Lux/F1.4 ( Color1/30s30IRE) 0Lux/F1.4 (IR on) |
| S/N Ratio: | More than 50dB |
| Illumination Distance: | Distance up to 200m (656ft) |
| Illumination On/Off Control: | Auto/Manual |
| Illumination LEDs: | 4 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Motorized/ Auto Iris (DC) |
| Mount Type: | Board-in |
| Focal Length: | 5.3-64mm |
| Max. Aperture: | F1.4 |
| Angle of View: | H: 59 - 5 degrees V:34 - 3 degrees |
| Optical Zoom: | 12x |
| Focus Control: | Motorized |
| Close Focus Distance: | 1500mm (59in) |
| DORI - Detect: | 236ft/2893ft |
| DORI - Observe: | 95ft /1158ft |
| DORI - Recognize: | 46ft/577ft |
| DORI - Identify: | 23ft/288ft |
| Video | |
| Compression: | H.265+/H.265/H.264+/H.264 |
| Streaming Capability: | 3 Streams |
| Resolution: | 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 342 x 240) |
| Frame Rate: | Main Stream: 1080P(1 - 50/60fps) Sub Stream: D1 (1 - 50/60fps) Third Stream: 1080P(1 - 50/60fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.264: 24 - 10240Kbps H.265: 14 - 6144Kbps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / WDR (120dB) |
| White Balance: | Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zone, Rectangle) |
| Region of Interest: | Off / On (4 Zone) |
| Smart IR: | Support |
| Mirror: | Off / On |
| Privacy Masking: | Up to 4 areas |
| WDR: | 120dB |
| Audio | |
| Compression: | G.711a / G.711Mu / AAC / G.726 |
| Network | |
| Ethernet: | RJ-45 (100/1000Base-T) |
| Protocol: | HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / RTCP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / IEEE 802.1x / Multicast / ICMP / IGMP / SNMP / TLS |
| Interoperability: | ONVIF / PSIA / CGI |
| Compatibility: | ONVIF Profile S&G / API |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 10 Users |
| Edge Storage: | NAS Local PC for instant recording Micro SD card 128GB |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | SmartICRSS, DSS |
| Smart Phone: | IOS, Android |
| Interface | |
| Video Interface: | 1 Port (adjustment only) |
| Audio I/O: | 1/1 channel In/Out |
| Memory Slot: | Micro SD Card 128GB |
| Electrical | |
| Power Supply: | DC12V, PoE (802.3af)(Class 0) E-PoE Support |
| Power Consumption: | <12.95W |
| Environmental | |
| Operating Conditions: | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Storage Conditions: | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Ingress Protection: | IP67 |
| Vandal Resistance: | IK10 |
| Construction | |
| Casing: | Metal |
| Dimensions: | 273.2mm×95.0mm×95.0mm (10.76”×3.74”×3.74”) |
| Gross Weight: | 1.51Kg (3.33lb) |
| Mounting Pan/Tilt/Rotation: | Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚ |
