IPEG-E40F-IRW1
Details

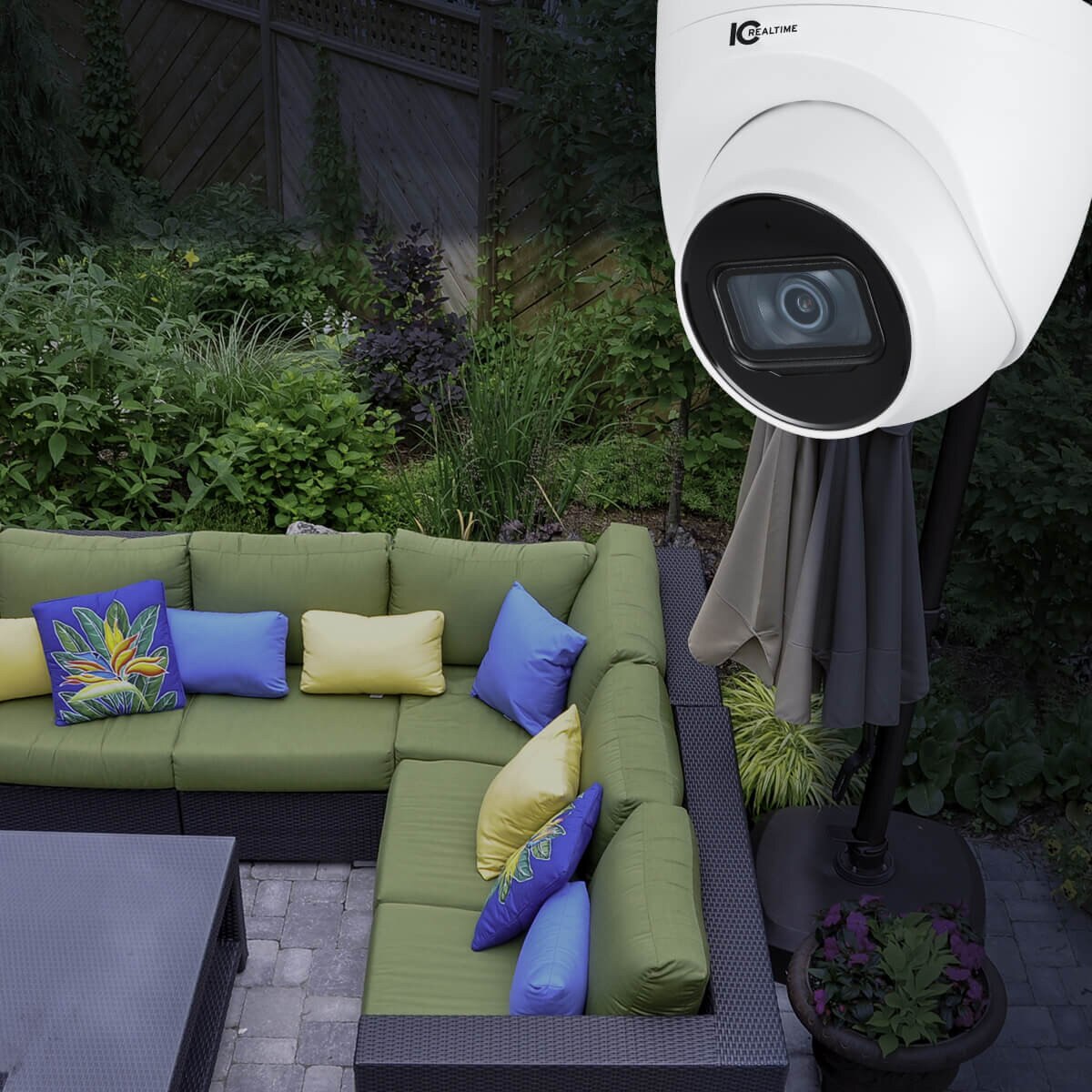

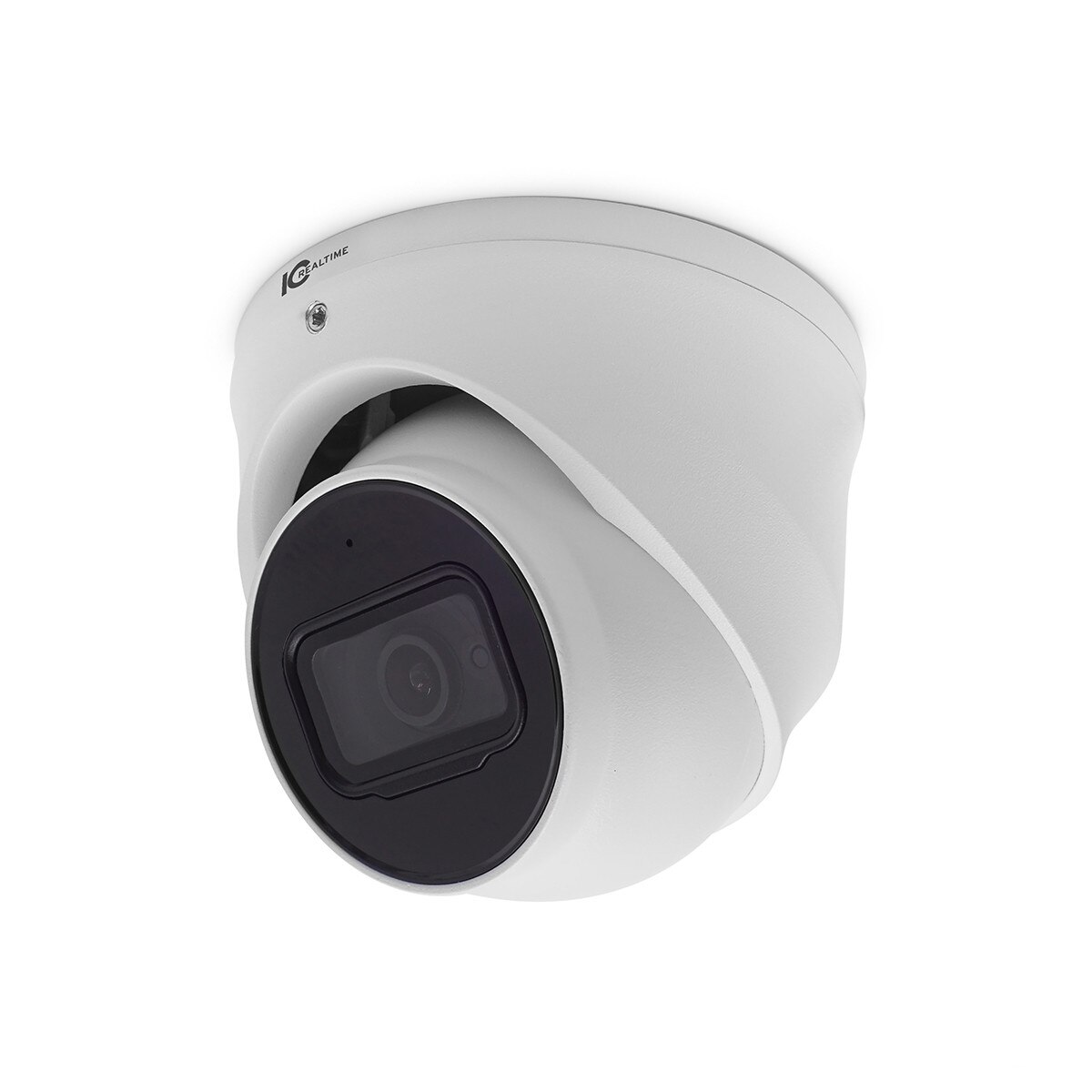

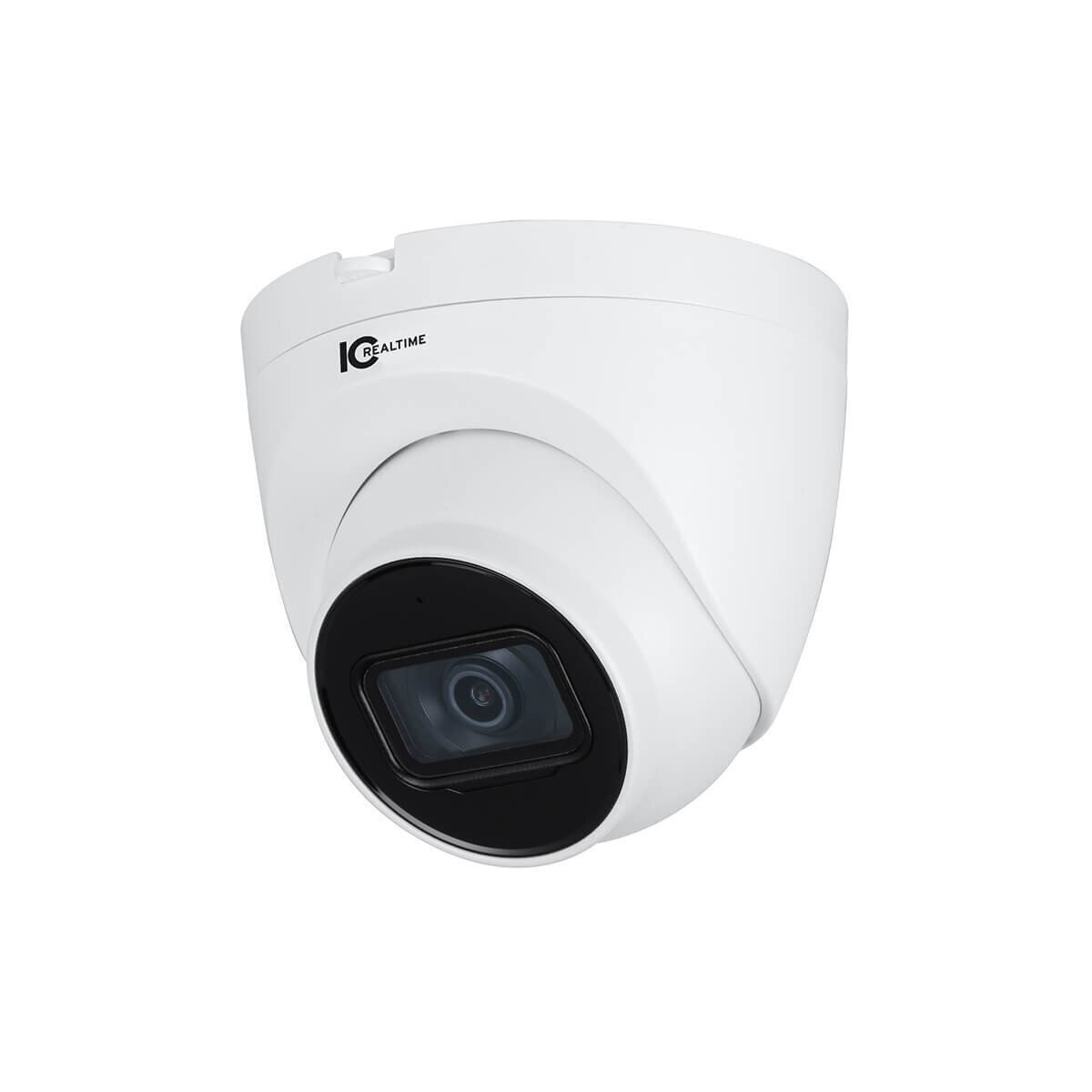

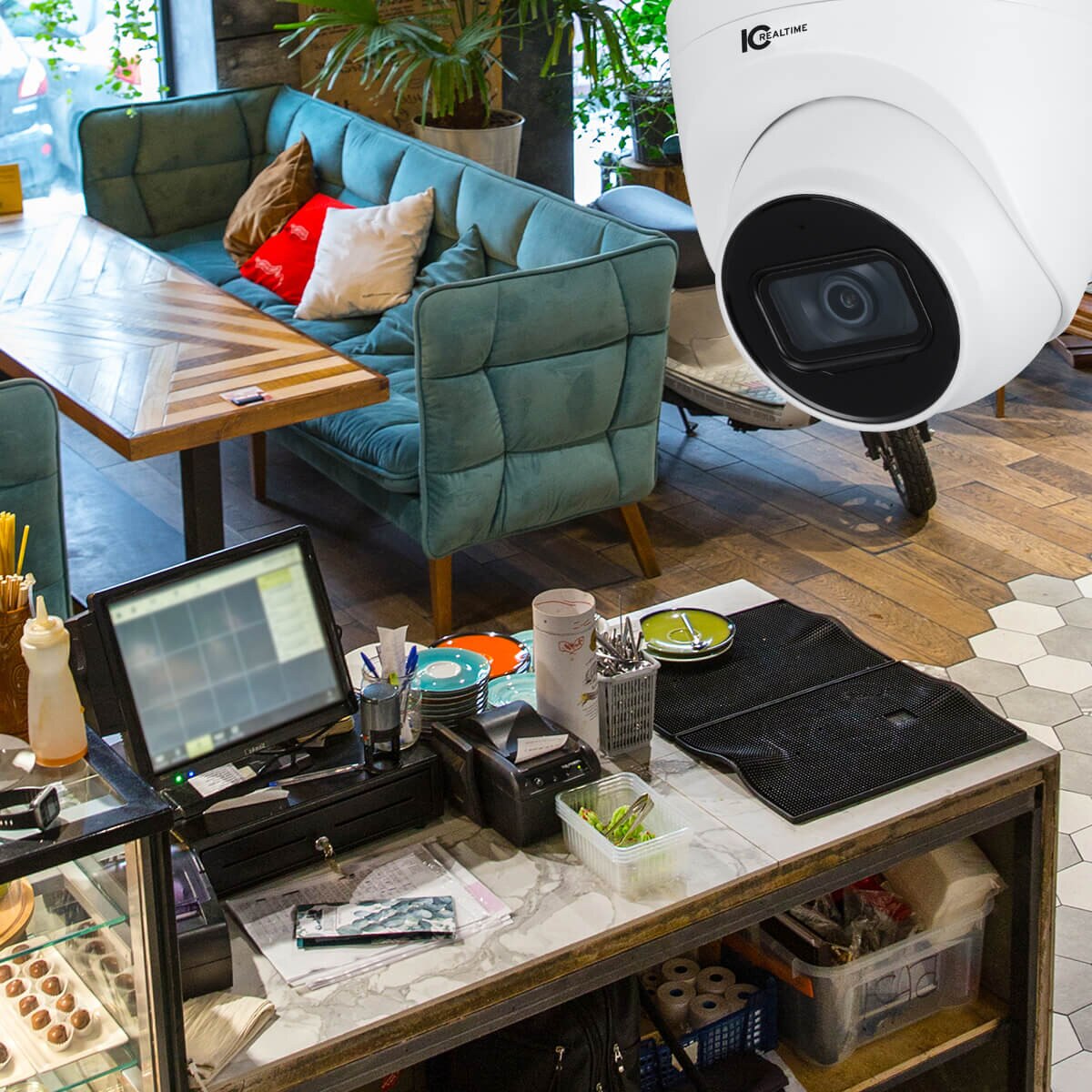

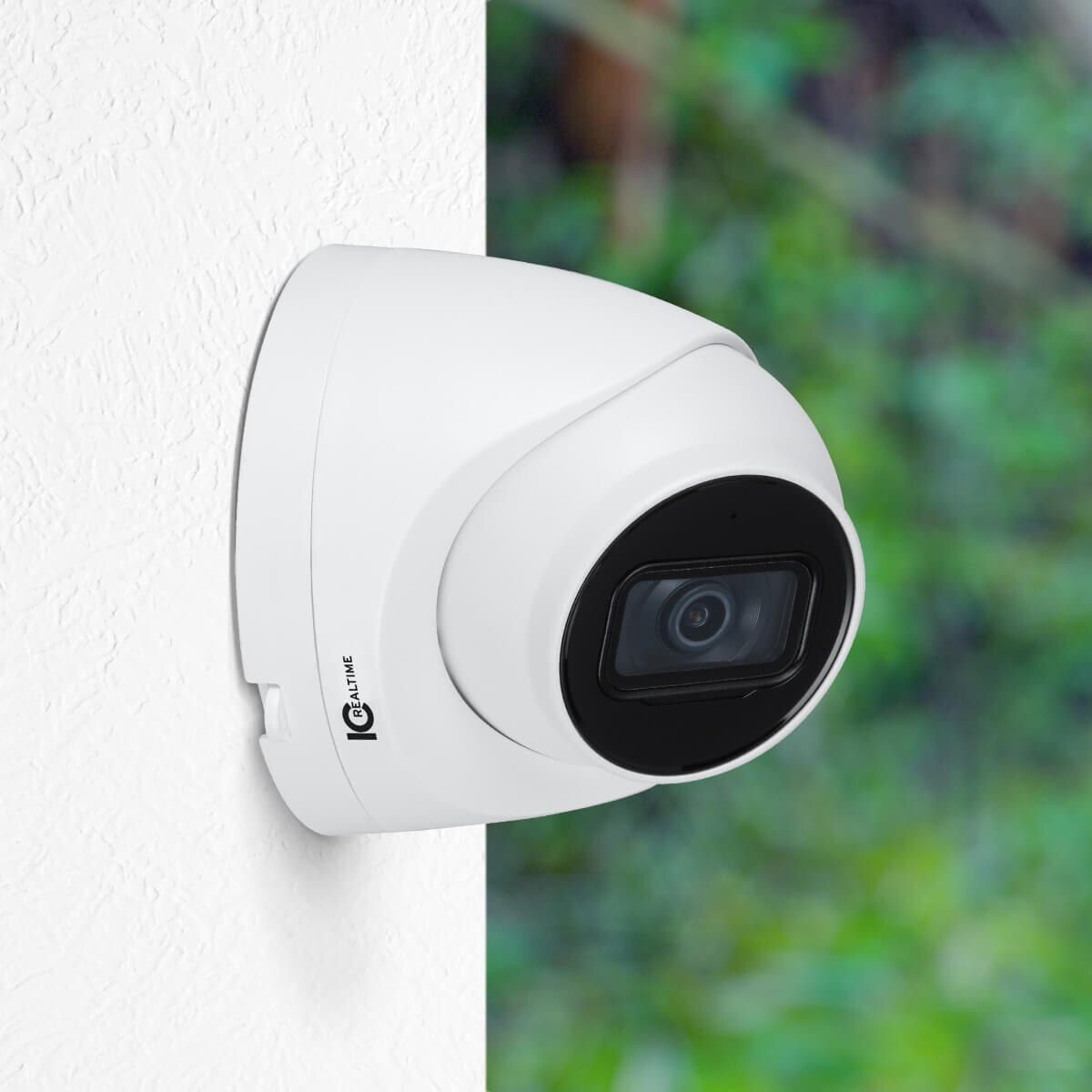

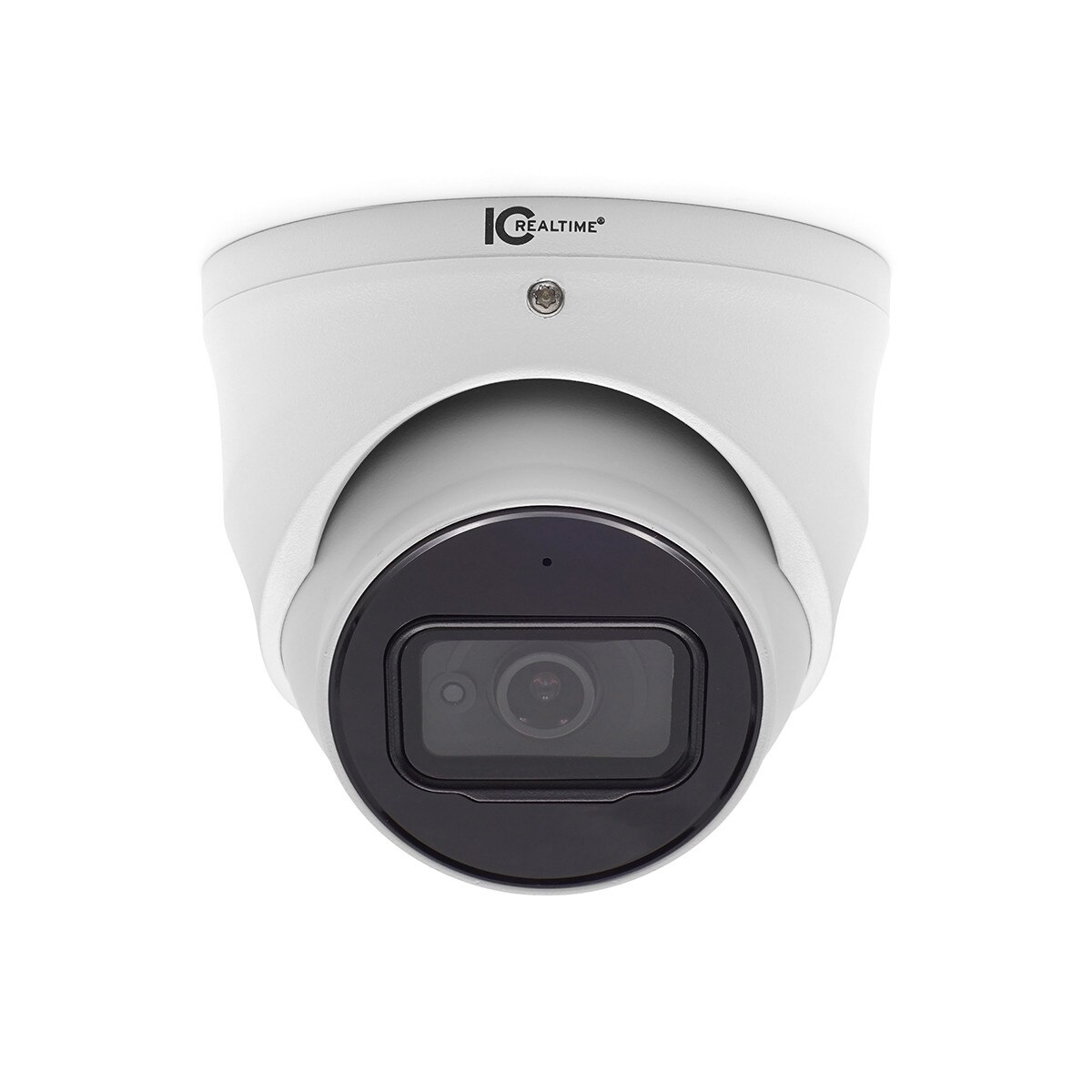

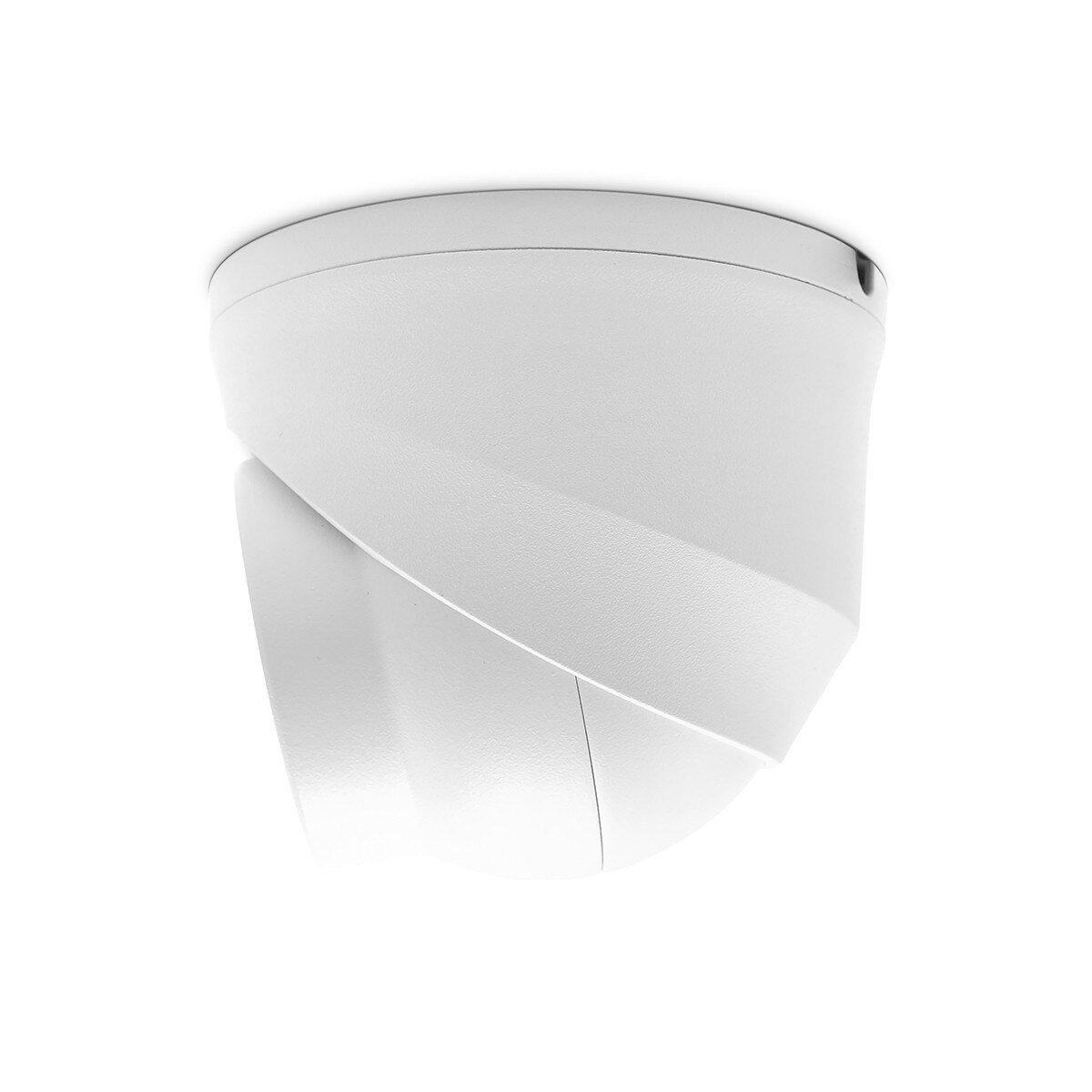

This small-sized turret dome security camera can easily be dialed without removing any covers. The generous quipped camera is rated for indoor & outdoor use, and its lite commercial-grade is available as a budget-friendly buy. As part of the Edge Line, it offers 4MP resolution, H.265 compression, and equipped with True WDR, which provides clarity regardless of variations in contrast. A micro SD card slot is available, supporting up to 256GB of storage.
Capture up to 30 frames per second at 4MP with a 2.8mm lens and an expanded 102-degree field of view. Bargain brand cameras fall short in terms of features that matter. This IP starlight turret dome camera delivers 98 feet of real night vision in 0 lux. All Edge series products come with a 7-year limited warranty
Made In South Korea And Conforms To The Trade Agreements Act (TAA) *as of August 2021*
Capture up to 30 frames per second at 4MP with a 2.8mm lens and an expanded 102-degree field of view. Bargain brand cameras fall short in terms of features that matter. This IP starlight turret dome camera delivers 98 feet of real night vision in 0 lux. All Edge series products come with a 7-year limited warranty
Made In South Korea And Conforms To The Trade Agreements Act (TAA) *as of August 2021*
Specifications
| Camera | |
| Image Sensor: | 1/3” 4 Megapixel progressive CMOS |
| Effective Pixels: | 2688(H)x1520(V) |
| RAM/Rom: | 128MB/128MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.008 Lux @ F1.6 |
| S/N Ratio: | More than 50dB |
| Illumination Distance: | 98ft (Up to 30m) |
| Illumination On/Off Control: | Auto / Manual |
| Illumination LEDs: | 2 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed |
| Mount Type: | Board-in |
| Focal Length: | 2.8mm |
| Max. Aperture: | F1.6 |
| Angle of View: | Horizontal: 102.0°, Vertical: 55.0° |
| Optical Zoom: | N/A |
| Focus Control: | Fixed |
| Close Focus Distance: | 2.63ft |
| DORI - Detect: | 183ft |
| DORI - Observe: | 73ft |
| DORI - Recognize: | 36ft |
| DORI - Identify: | 18ft |
| Video | |
| Compression: | H.265; H.264; H.264B; MJPEG |
| Streaming Capability: | 2 Streams |
| Resolution: | 4M(2688 x 1520) / 3M(2304 x 1296) / 1080P(1920 x 1080) / 720P(1280 x 720) / VGA(640 x 480) / D1(704 x 576 / 704 x 480) / CIF(352 x 288 / 352 x 240) |
| Frame Rate: | Main Stream: 4MP 2688 × 1520 (1 fps-20 fps)4MP 2560 × 1440 (1 fps-25/30 fps) Sub Stream: D1 704 × 576 (1 fps-25fps) D1 704 × 480 (1 fps-30fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.265: 12K~ 6144K H.264: 32K~6144K |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / WDR (120dB) |
| White Balance: | Auto/natural/ street lamp/ outdoor/ manual/ regional/ custom |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zone, Rectangle) |
| Region of Interest: | Off / On (4 Zone) |
| Smart IR: | Yes |
| Defog: | N/A |
| Digital Zoom: | 16x |
| Flip: | 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower.) |
| Mirror: | Off / On |
| Privacy Masking: | Off / On (4 Area, Rectangle) |
| Audio | |
| Compression: | G.711A; G.711Mu; G.726; AAC |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
| Interoperability: | ONVIF Profile S&G, API, Milestone |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 10 Users/20 Users |
| Edge Storage: | FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | SmartICRSS, DSS |
| Smart Phone: | IOS, Android |
| Interface | |
| Video Interface: | N/A |
| RS485: | N/A |
| Audio I/O: | Built-in Microphone |
| Alarm I/O: | N/A |
| Electrical | |
| Power Supply: | DC12V, PoE (802.3af)(Class 0) |
| Power Consumption: | <6.6W |
| Environmental | |
| Operating Conditions: | -40°F to +140°F (-40°C to +60°C)/less than ≤ 95% RH |
| Storage Conditions: | -40°F to +140°F (-40°C to +60°C) |
| Storage Humidity: | Less than 95% RH |

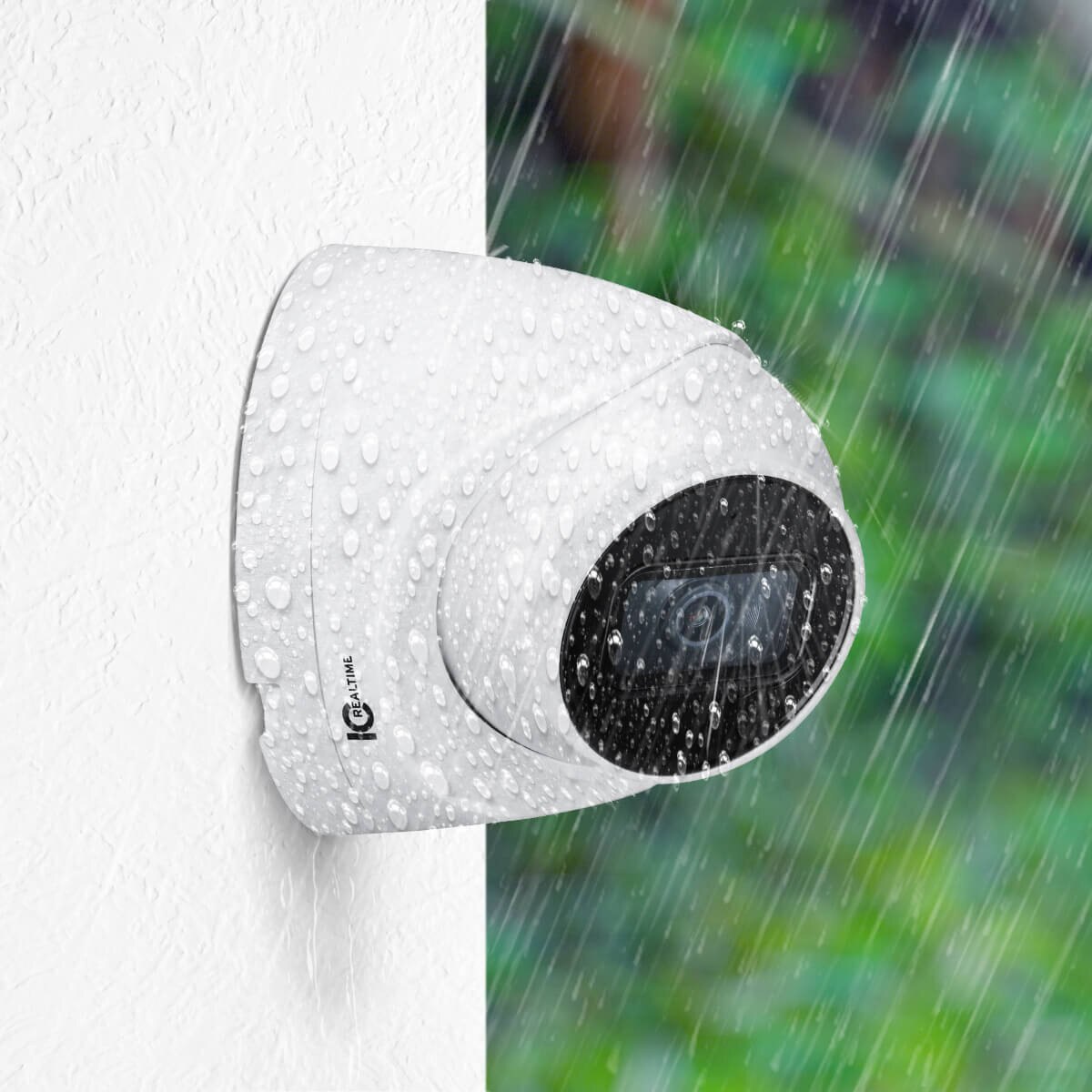

| Ingress Protection: | IP67 |
| Vandal Resistance: | IK10 |
| Construction | |
| Casing: | Metal+Plastic |
| Dimensions: | 3.97" × 4.33" (100.9 mm × 109.9 mm) |
| Gross Weight: | 1.2 lb (0.56 kg) |
