IPEG-E20F-IRW3
Details

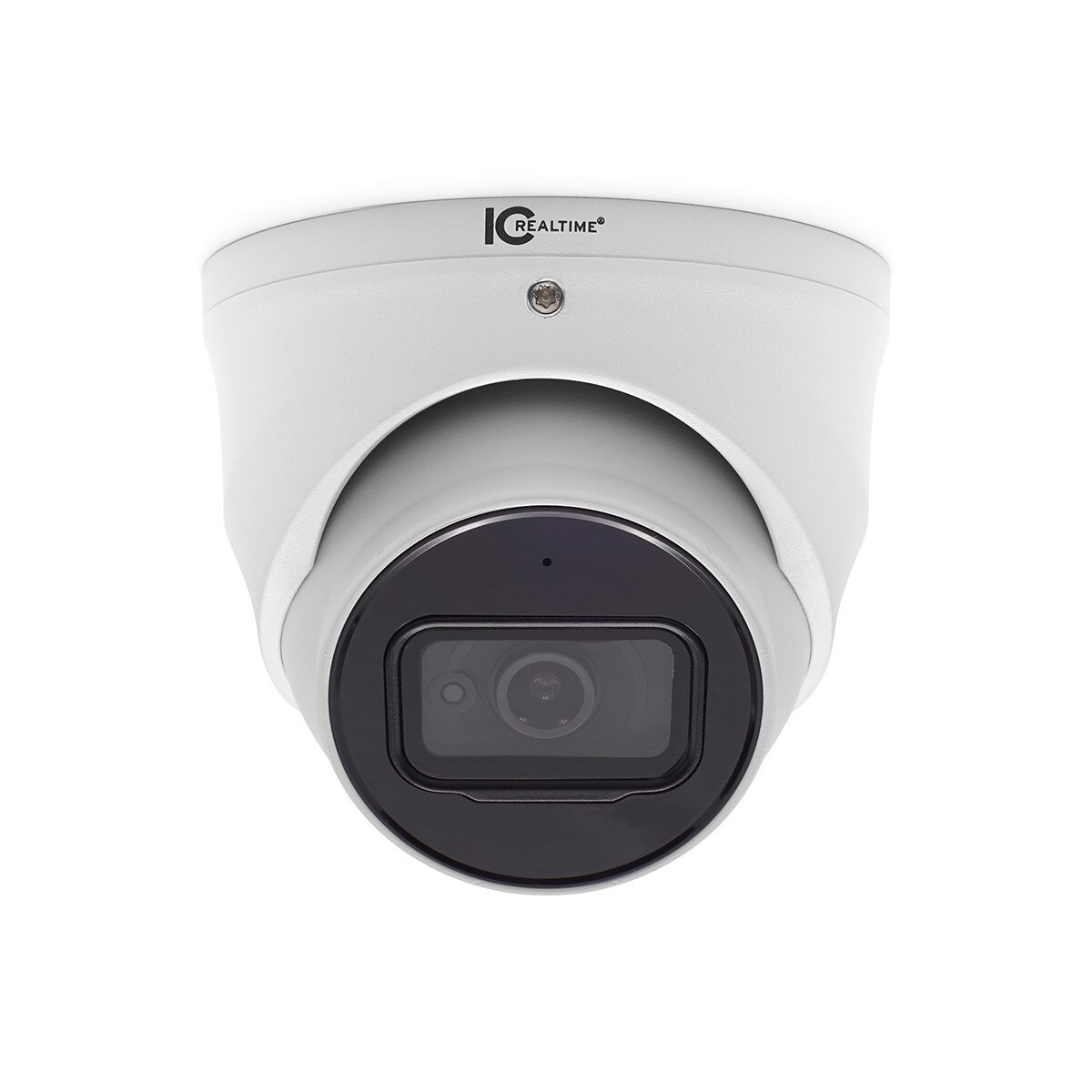

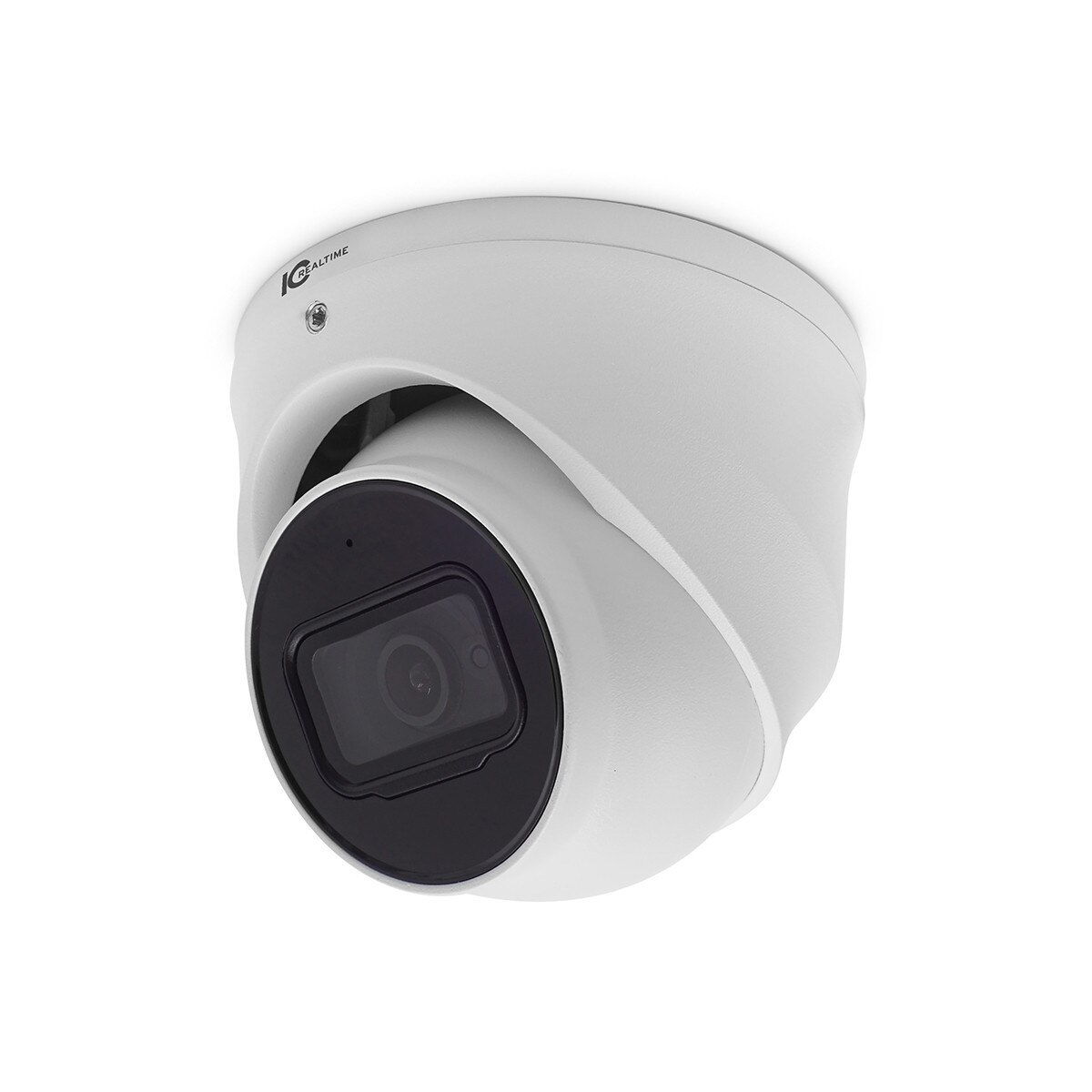

One of IC Realtime’s most popular full HD/1080P eyeball dome cameras has just received a major series upgrade. Now with a Starlight video sensor for low-light color streams, H.265 compression, an expanded 265Gb mSD card slot, and a built-in microphone, IPEG-E20F-IRW3 is the new version of our Edge Series 2MP eyeball dome camera. This IRW3 version of our most cost-effective POE eyeball dome adds even more advanced features to what’s already one of our camera integrator’s favorite cameras.
COMPLETE A/V COVERAGE
The new IPEG-E20F offers all the industry-leading performance our dealers expect in IC Realtime cameras. An integrated microphone for camera area pickup encodes audio with the video stream for simultaneous recording. The E20F’s new 2MP Starlight video chipset streams color down to 0.005 lux and then utilizes SmartIR to reach out 95+ feet in complete darkness. Once you hear & see the new IPEG-E20F-IRW3 it will be hard to believe this is one of our most cost-efficient cameras.
STATE OF THE ART INSIDE
Equipped with our super sharp 2.8mm medium wide-angle lens, the IPEG-E20F-IRW3 provides a 110° x 59° Field of View with excellent D.O.R.I. numbers that make it the ideal “eyes'' for any NVR-based face/vehicle detection & recognition systems. The excellent video clarity in every frame of the IPEG-E20F-IRW3’s lens & sensor combo is then enhanced by IC Realtime’s legendary exposure management suite with customizable backlight, highlight, and digital wide dynamic range controls that let you dial in the perfect image exposures for any environment.
WEATHERPROOF & DISCRETE

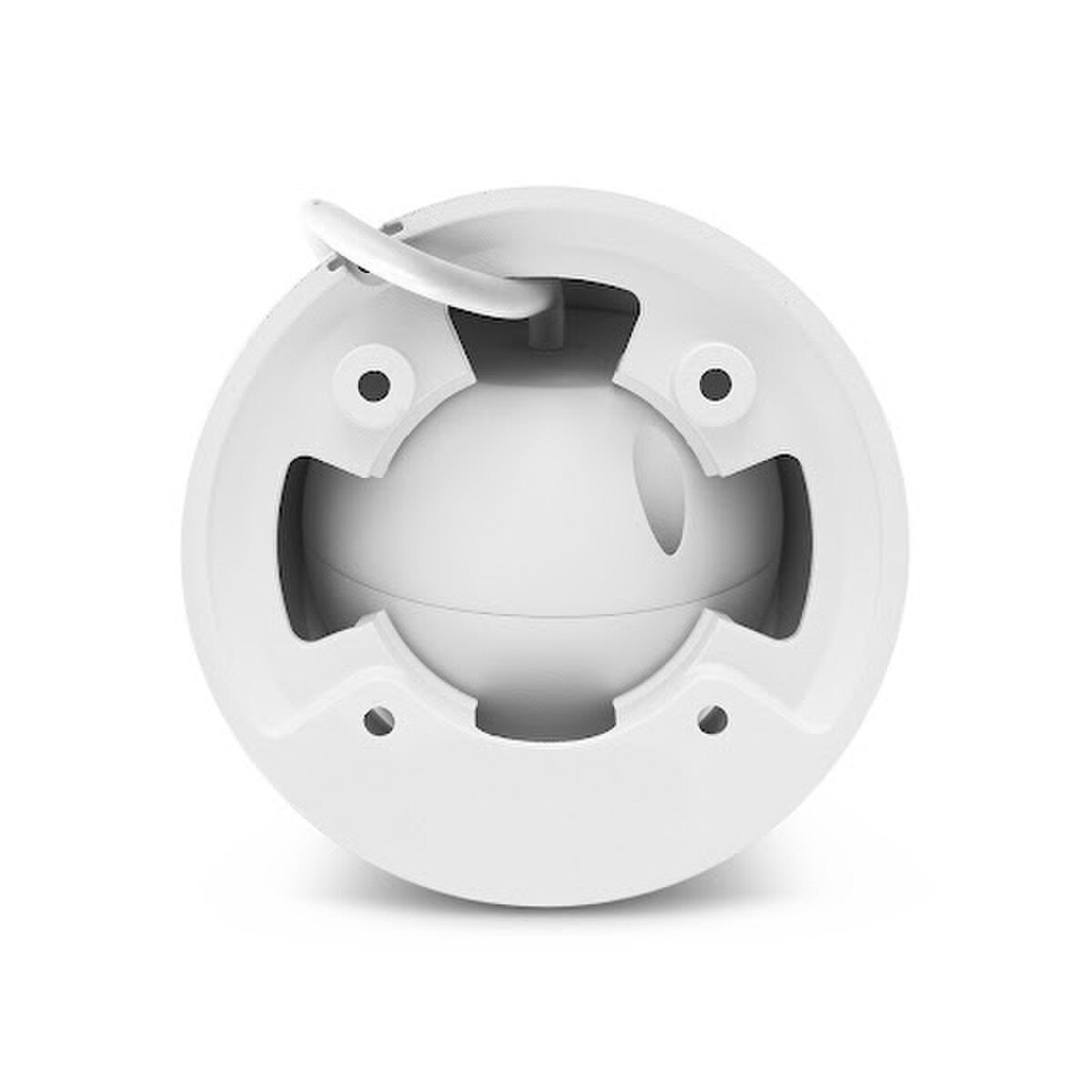

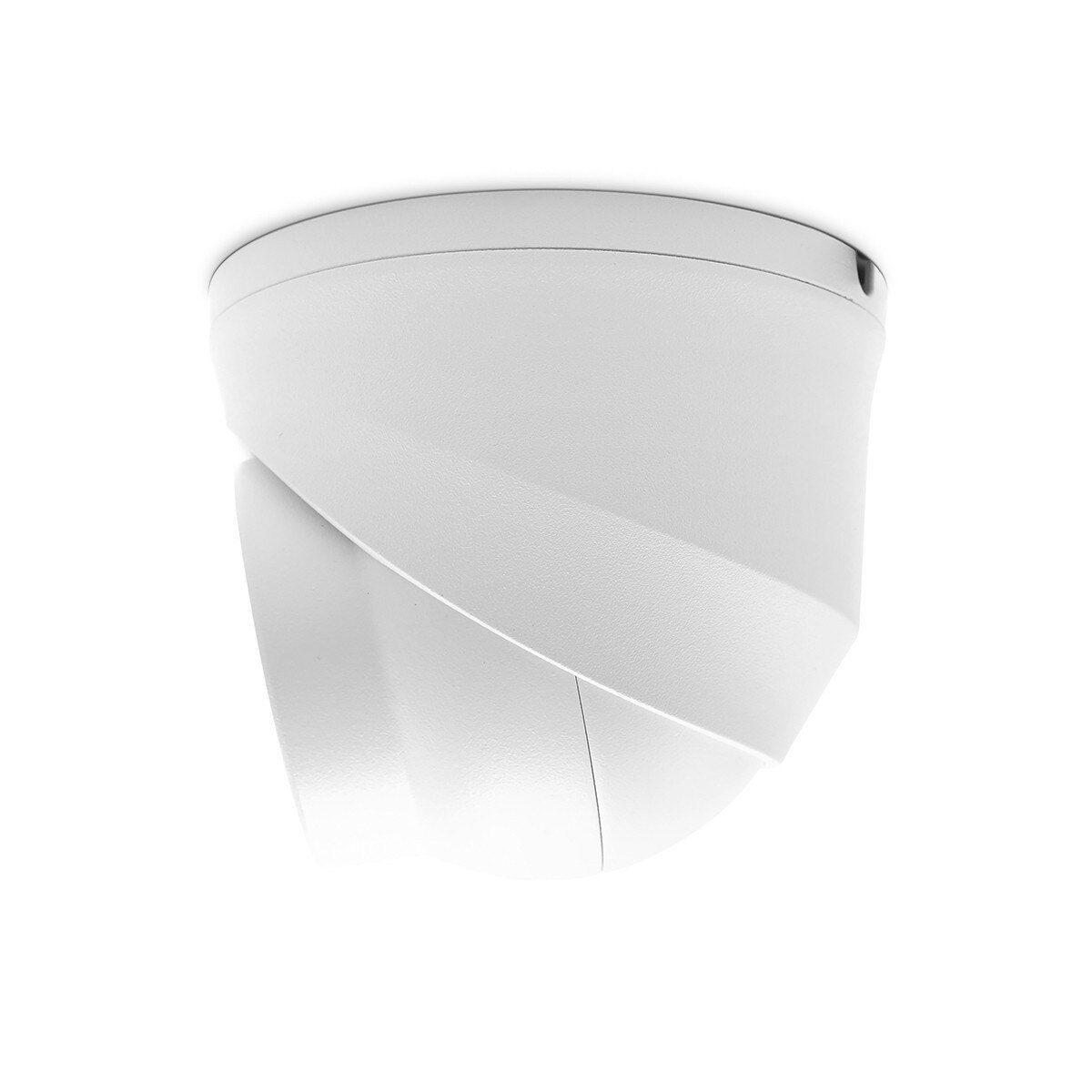

All of this state-of-the-art A/V overwatch capability is then packed into IPEG-E20F-IRW3’s “cam ball” mechanism that’s IP67 waterproof and can operate dependably even in extreme temperatures -40F to +140F. The easy installation of the cam ball on the eyeball dome’s base & shroud makes the IPEG-E20F-IRW3 eyeball dome an integrator favorite for quick installation, and when ceiling or wall mounted its white finish & tiny 3.97” x 4.3” size make it all but invisible to casual observers.
THE FLEXIBLE “GO TO” UPGRADE CAMERA
And as with all IC Realtime’s professional series IP cameras, if POE is not available the camera can use its 2.1mm coax power jack to operate on 12VDC power or economically replace a legacy analog camera using its existing coax wiring with our IVB-EOC-202C balun set. HTML5 and OnVif compatibility makes it the perfect way to upgrade your video coverage in all IP video systems.
Camera professionals know that keeping a case of full-featured IP/POE cameras in stock - and even one or two on the truck - pays off when those “I need it installed today!” sales opportunities or the dreaded weekend service calls light up your phone. With excellent Starlight night color video, a built-in mic, quick installation weatherproof eyeball dome design, and 7-Year Edge Series limited warranty, IPEG-E20F-IRW3 should be that camera.
COMPLETE A/V COVERAGE
The new IPEG-E20F offers all the industry-leading performance our dealers expect in IC Realtime cameras. An integrated microphone for camera area pickup encodes audio with the video stream for simultaneous recording. The E20F’s new 2MP Starlight video chipset streams color down to 0.005 lux and then utilizes SmartIR to reach out 95+ feet in complete darkness. Once you hear & see the new IPEG-E20F-IRW3 it will be hard to believe this is one of our most cost-efficient cameras.
STATE OF THE ART INSIDE
Equipped with our super sharp 2.8mm medium wide-angle lens, the IPEG-E20F-IRW3 provides a 110° x 59° Field of View with excellent D.O.R.I. numbers that make it the ideal “eyes'' for any NVR-based face/vehicle detection & recognition systems. The excellent video clarity in every frame of the IPEG-E20F-IRW3’s lens & sensor combo is then enhanced by IC Realtime’s legendary exposure management suite with customizable backlight, highlight, and digital wide dynamic range controls that let you dial in the perfect image exposures for any environment.
WEATHERPROOF & DISCRETE
All of this state-of-the-art A/V overwatch capability is then packed into IPEG-E20F-IRW3’s “cam ball” mechanism that’s IP67 waterproof and can operate dependably even in extreme temperatures -40F to +140F. The easy installation of the cam ball on the eyeball dome’s base & shroud makes the IPEG-E20F-IRW3 eyeball dome an integrator favorite for quick installation, and when ceiling or wall mounted its white finish & tiny 3.97” x 4.3” size make it all but invisible to casual observers.
THE FLEXIBLE “GO TO” UPGRADE CAMERA
And as with all IC Realtime’s professional series IP cameras, if POE is not available the camera can use its 2.1mm coax power jack to operate on 12VDC power or economically replace a legacy analog camera using its existing coax wiring with our IVB-EOC-202C balun set. HTML5 and OnVif compatibility makes it the perfect way to upgrade your video coverage in all IP video systems.
Camera professionals know that keeping a case of full-featured IP/POE cameras in stock - and even one or two on the truck - pays off when those “I need it installed today!” sales opportunities or the dreaded weekend service calls light up your phone. With excellent Starlight night color video, a built-in mic, quick installation weatherproof eyeball dome design, and 7-Year Edge Series limited warranty, IPEG-E20F-IRW3 should be that camera.
Specifications
| Camera | |
| Image Sensor: | 1/2.7” 2Megapixel progressive CMOS |
| Effective Pixels: | 1920(H) x 1080(V) 2 Megapixels |
| RAM/Rom: | 128MB / 128MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.005 Lux @ F1.6 |
| Illumination Distance: | Distance up to 98ft (30m) |
| Illumination On/Off Control: | Auto/ Manual |
| Illumination LEDs: | 2 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed |
| Mount Type: | M12 |
| Focal Length: | 2.8 mm |
| Max. Aperture: | F1.6 |
| Angle of View: | Horizonal: 110.0°, Vertical: 59.0° |
| Focus Control: | Fixed |
| Close Focus Distance: | 1.97 ft (0.6 m) |
| DORI - Detect: | 122ft |
| DORI - Observe: | 48ft |
| DORI - Recognize: | 24ft |
| DORI - Identify: | 12ft |
| Intelligence | |
| IVS: | N/A |
| Advanced Intelligent Functions: | N/A |
| Video | |
| Compression: | H.265; H.264; H.264B; MJPEG (Sub Stream only) |
| Streaming Capability: | 2 streams |
| Resolution: | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate: | Main Stream: 1920 × 1080 (1 fps-25/30 fps) Sub Stream: 704 × 576 (1 fps-25fps) 704 × 480 (1 fps-30fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC |
| White Balance: | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control: | Auto / Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zones Rectangular) |
| Region of Interest: | Off / On (4 Zones) |
| Smart IR: | Supported |
| Flip: | 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution.) |
| Mirror: | Off / On |
| Privacy Masking: | Off / On (4 Area Rectangle) |
| WDR: | DWDR |
| Audio | |
| Compression: | G.711A; G.711Mu; G.726; AAC |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
| Interoperability: | ONVIF(Profile S/Profile G);CGI;P2P |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 20 |
| Edge Storage: | FTP; SFTP; Micro SD Card (support max. 256 GB) |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | SmartICRSS, DSS |
| Smart Phone: | IOS; Android |
| Interface | |
| Audio I/O: | Built-in Microphone |
| Alarm I/O: | N/A |

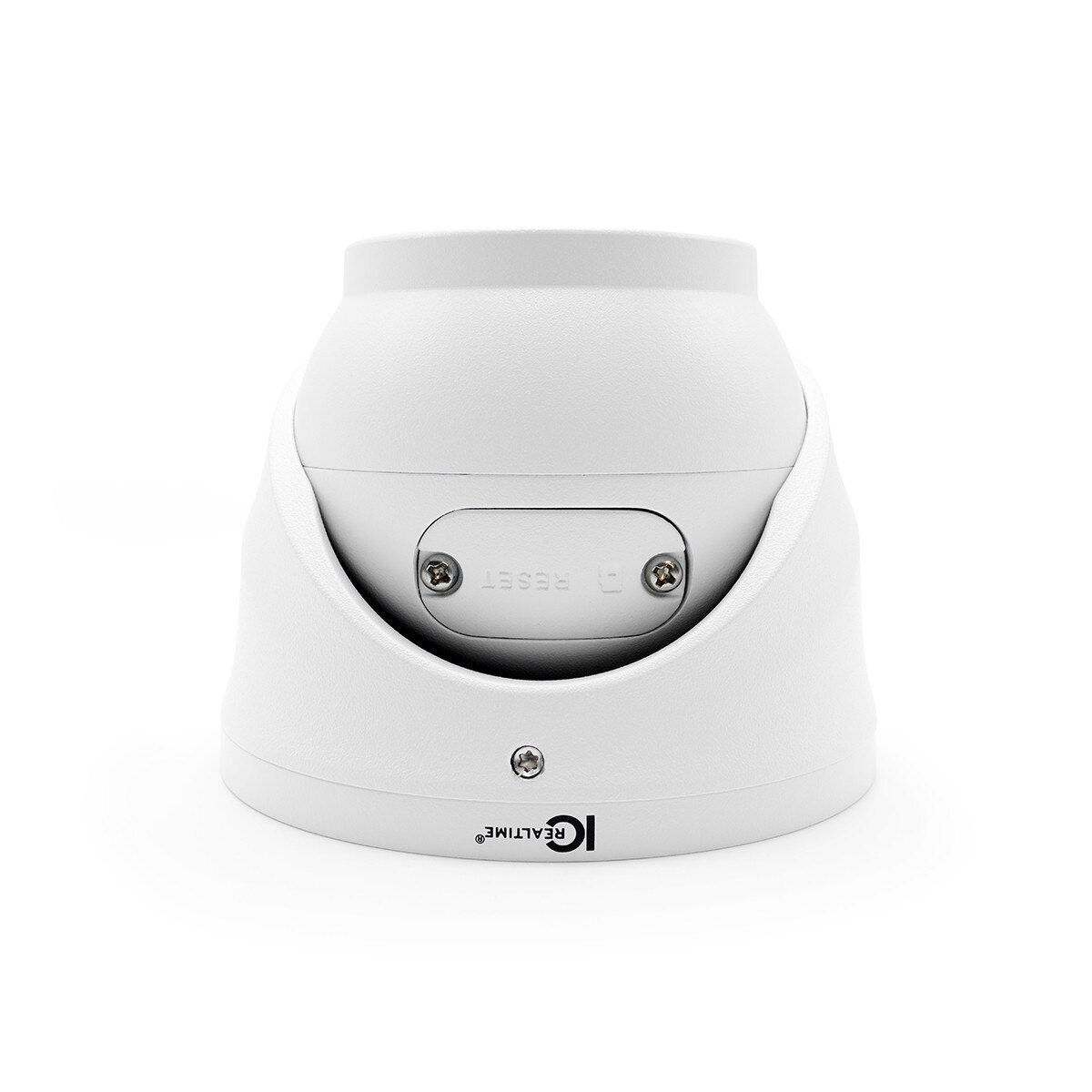

| Memory Slot: | 256GB Micro SD |
| Electrical | |
| Power Supply: | 12V DC/ PoE |
| Power Consumption: | Basic power consumption: 1.7W (12V DC), 2.1W (POE) Max power consumption (H.265, Max resolution, Max stream, WDR, IR on): 5.1W (12V DC), 5.9W (POE) |
| Environmental | |
| Operating Conditions: | -40°F to +140°F (-40°C to +60°C)/ Less than 95% RH |
| Storage Humidity: | -40°F to +140°F (-40°C to +60°C) |
| Ingress Protection: | IP67 |
| Construction | |
| Casing: | Metal + Plastic |

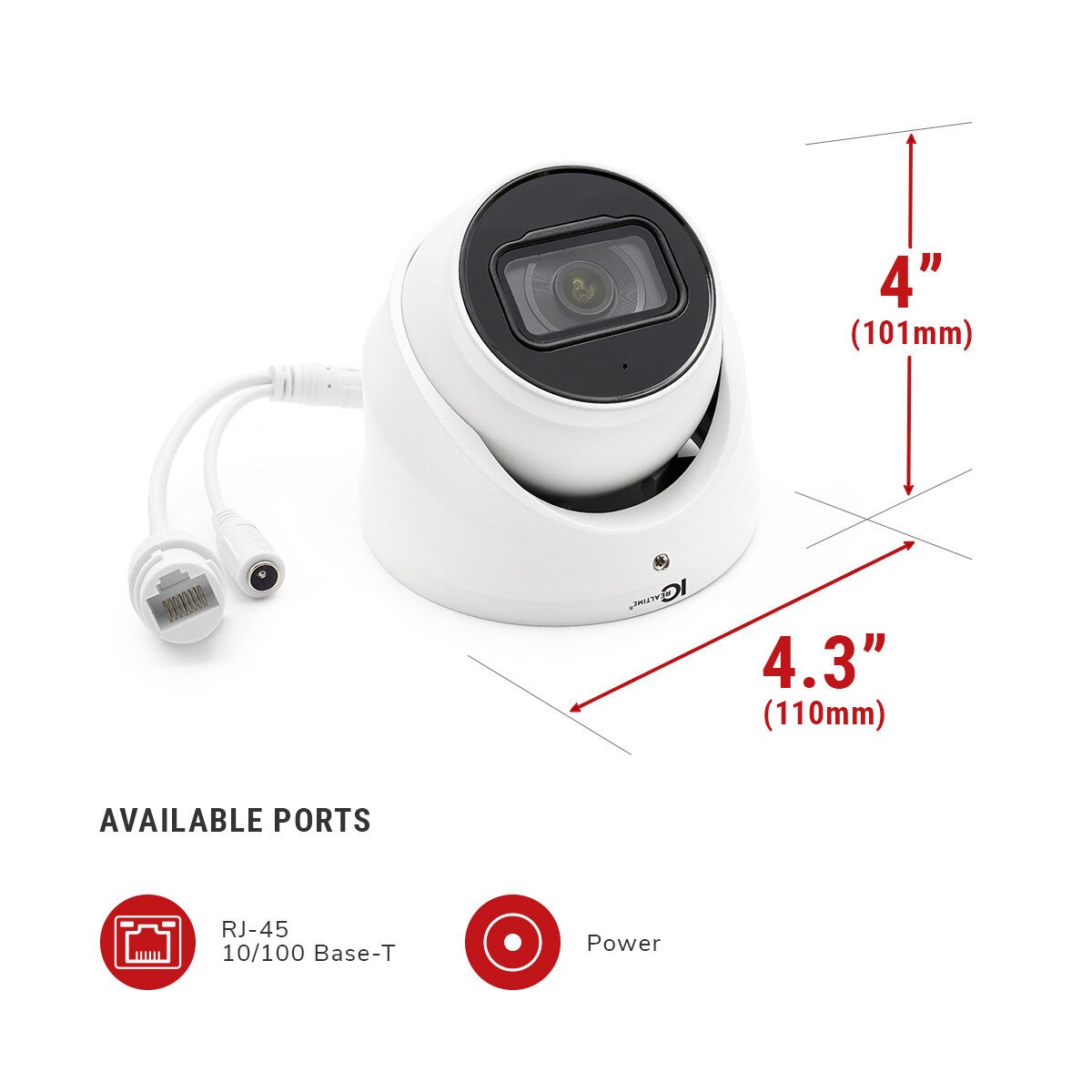

| Dimensions: | 4.0" × 4.3" (100.9 mm × 109.9 mm) |
| Gross Weight: | 1.2 lb (0.56 kg) |
| Mounting Pan/Tilt/Rotation: | Horizontal: 0°–360° Vertical: 0°–78° Rotation: 0°–360° |
