IPEG-B20V-IRW2
Details

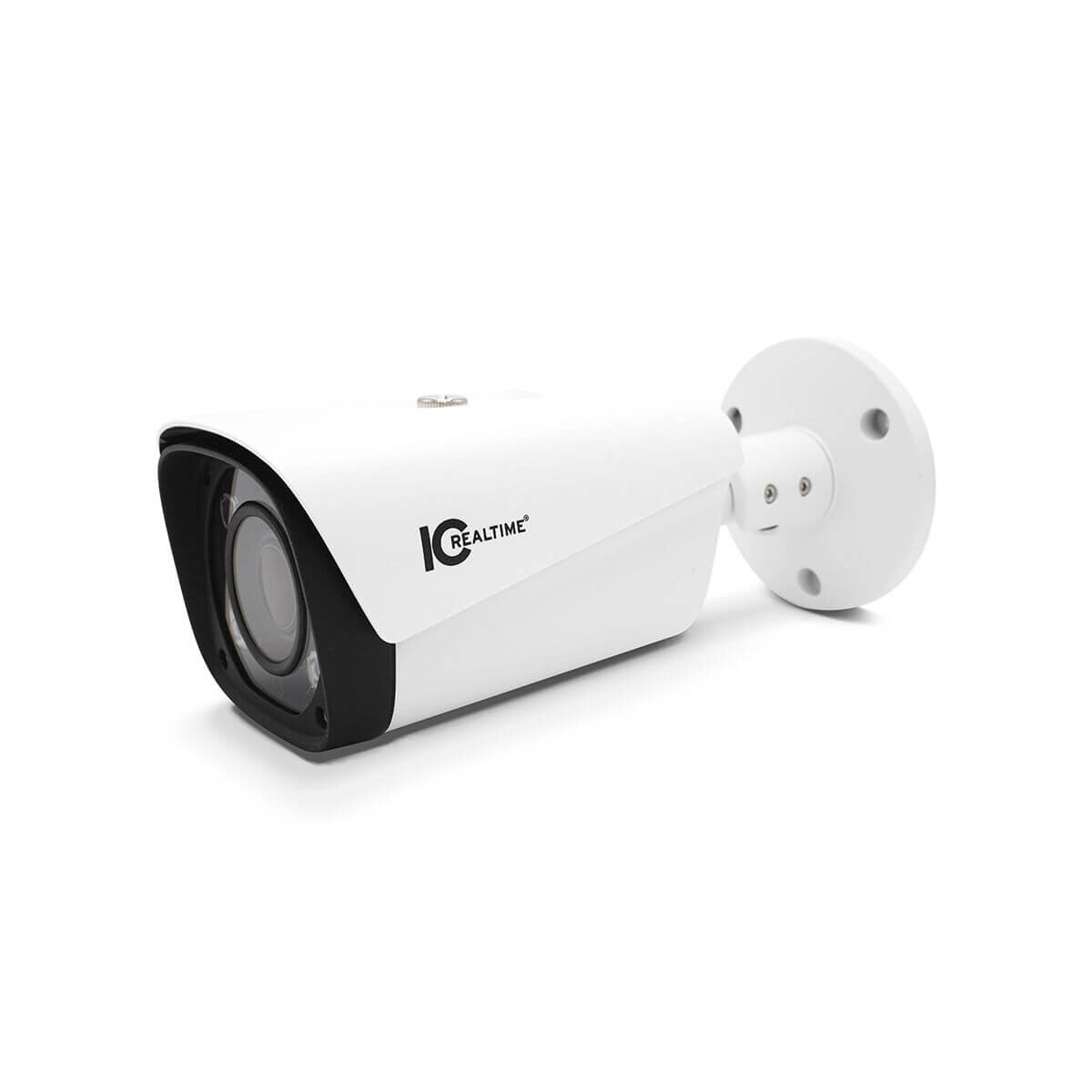

Your favorite weatherproof security camera now includes several sought after commercial features. This 2MP varifocal bullet camera with optical zoom has a 2.8 to 12 mm motorized lens. In addition to the benefits of a 4X optical zoom, it also offers up to 16X digital zoom. Capable of supporting dual streams, this security camera features H.265 High-Efficiency Video Encoding (HEVC) and full backward compatibility with H.264.
What makes this mini IR bullet camera stand out from most is the benefit of up to 164 feet of true night vision. Conforming to ONVIF (Open Network Video Interface Forum) specifications, it is compatible with different network video product manufacturers.
The IR bullet network cameras Smart IR technology can adjust the intensity of the camera infrared LED and compensate for the distance of an object. This feature prevents images from becoming washed out as they move closer.
Furthermore, this network bullet camera delivers high-quality video without straining your network and requires no plugins. HTML5 compliant cameras do not restrict you to using Internet Explorer. Enjoy accessing your indoor and outdoor waterproof security camera from any browser such as Chrome or Safari. The surveillance camera's digital wide dynamic range (DWDR) settings help when exposure is affected by extreme light intensity or contrast.
For those looking for a security camera with SD card recorder abilities, it supports up to 256GB. All IC Realtime Edge products carry a 7-year product warranty.
What makes this mini IR bullet camera stand out from most is the benefit of up to 164 feet of true night vision. Conforming to ONVIF (Open Network Video Interface Forum) specifications, it is compatible with different network video product manufacturers.
The IR bullet network cameras Smart IR technology can adjust the intensity of the camera infrared LED and compensate for the distance of an object. This feature prevents images from becoming washed out as they move closer.
Furthermore, this network bullet camera delivers high-quality video without straining your network and requires no plugins. HTML5 compliant cameras do not restrict you to using Internet Explorer. Enjoy accessing your indoor and outdoor waterproof security camera from any browser such as Chrome or Safari. The surveillance camera's digital wide dynamic range (DWDR) settings help when exposure is affected by extreme light intensity or contrast.
For those looking for a security camera with SD card recorder abilities, it supports up to 256GB. All IC Realtime Edge products carry a 7-year product warranty.
Specifications
| Camera | |
| Image Sensor: | 1/2.7" 2 Megapixel progressive CMOS |
| Effective Pixels: | 1920(H)x1080(V) |
| RAM/Rom: | 16MB/64MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.008 Lux @ F1.7 |
| S/N Ratio: | More than 50dB |
| Illumination Distance: | Distance up to 50m (164ft) |
| Illumination On/Off Control: | Auto / Manual |

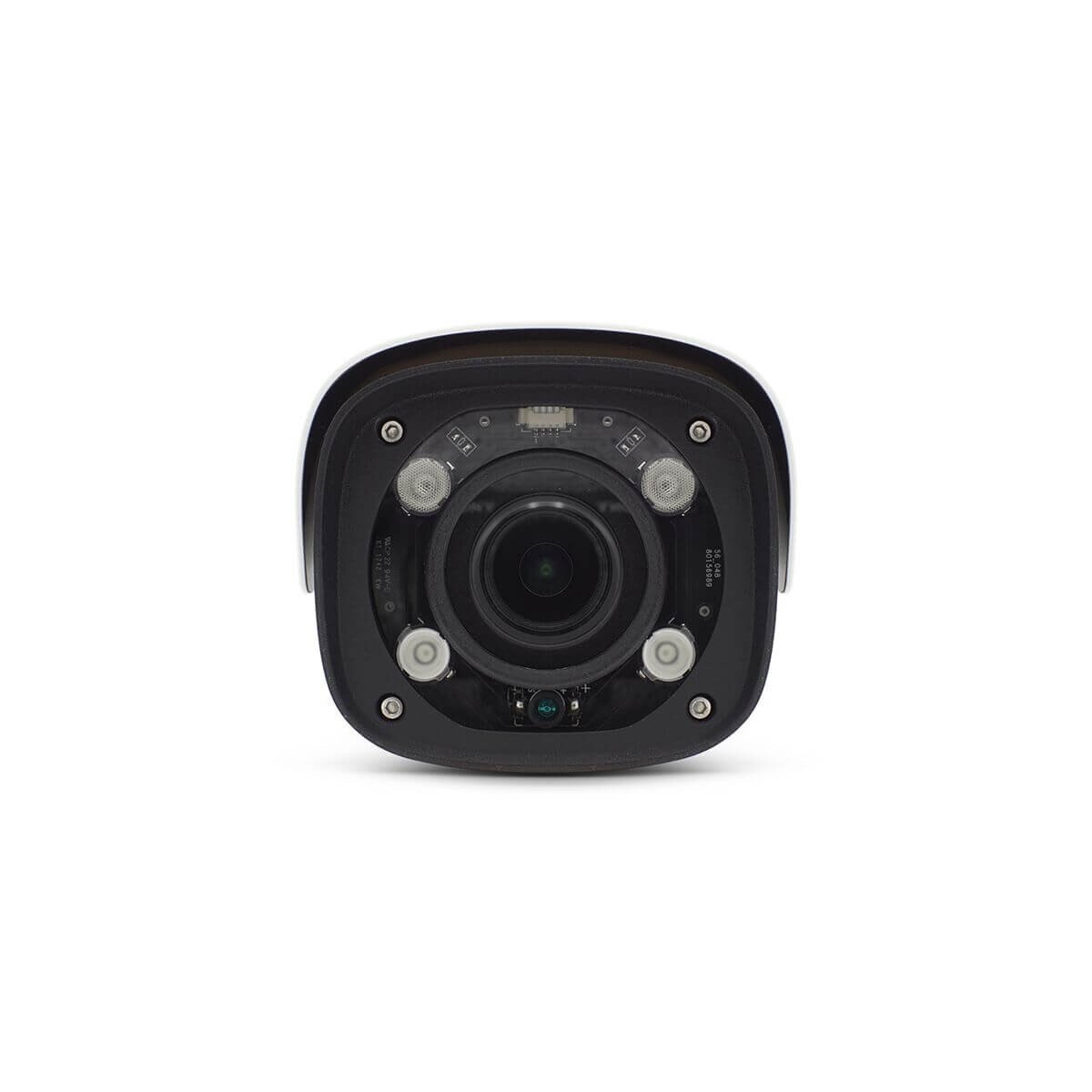

| Illumination LEDs: | 4 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Motorized |
| Mount Type: | Board-in Type |
| Focal Length: | 2.8mm~12mm |
| Max. Aperture: | F1.7 |
| Angle of View: | Horizontal: 106°–33°, Vertical: 56°–19° |
| Focus Control: | Auto |
| Close Focus Distance: | 0.8 m (2.6 ft) |
| DORI - Detect: | 144ft /502ft |
| DORI - Observe: | 57ft/200ft |
| DORI - Recognize: | 28ft/100ft |
| DORI - Identify: | 14ft/50ft |
| Video | |
| Compression: | H.265; H.264; H.264H; H.264B; MJPEG |
| Streaming Capability: | 2 Streams |
| Resolution: | 1080P(1920x1080)/1.3M(1280×960)/720P(1280×720) /D1(704×576/704×480)/CIF(352×288/352×240) |
| Frame Rate: | Main Stream - 1080P/960P/720P(1 ~ 30fps) Sub Stream - D1/CIF(1 ~ 30fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.264: 40 ~ 8192Kbps H.265: 40 ~ 8192Kbps |
| Day/Night: | Auto(ICR)/Color/B/W |
| Backlight Compensation: | BLC / HLC / DWDR |
| White Balance: | Auto/Manual |
| Gain Control: | Auto/Manual |
| Noise Reduction: | 3D DNR |
| Motion Detection: | Off / On (4 Zone, Rectangle) |
| Region of Interest: | Off / On (4 Zone) |
| Smart IR: | Support |
| Flip: | 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower.) |
| Privacy Masking: | Up to 4 areas |
| Audio | |
| Compression: | N/A |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast |
| Interoperability: | ONVIF (Profile S); CGI; Genetec; P2P |
| Compatibility: | ONVIF, CGI, PSIA |
| Streaming Method: | 2 Streams |
| Max. User Access: | 20 Users |
| Edge Storage: | NAS Local PC for instant recording Micro SD card 256GB |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | SmartICRSS, DSS |
| Smart Phone: | iPhone, iPad, Android, Windows Phone |
| Interface | |
| Audio I/O: | N/A |
| Alarm I/O: | N/A |
| Memory Slot: | 256GB |
| Electrical | |
| Power Supply: | 12VDC / PoE (802.3af) |
| Power Consumption: | Max 6.2W |
| Environmental | |
| Operating Conditions: | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Storage Conditions: | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Ingress Protection: | IP67 |
| Vandal Resistance: | N/A |
| Construction | |
| Casing: | Metal |

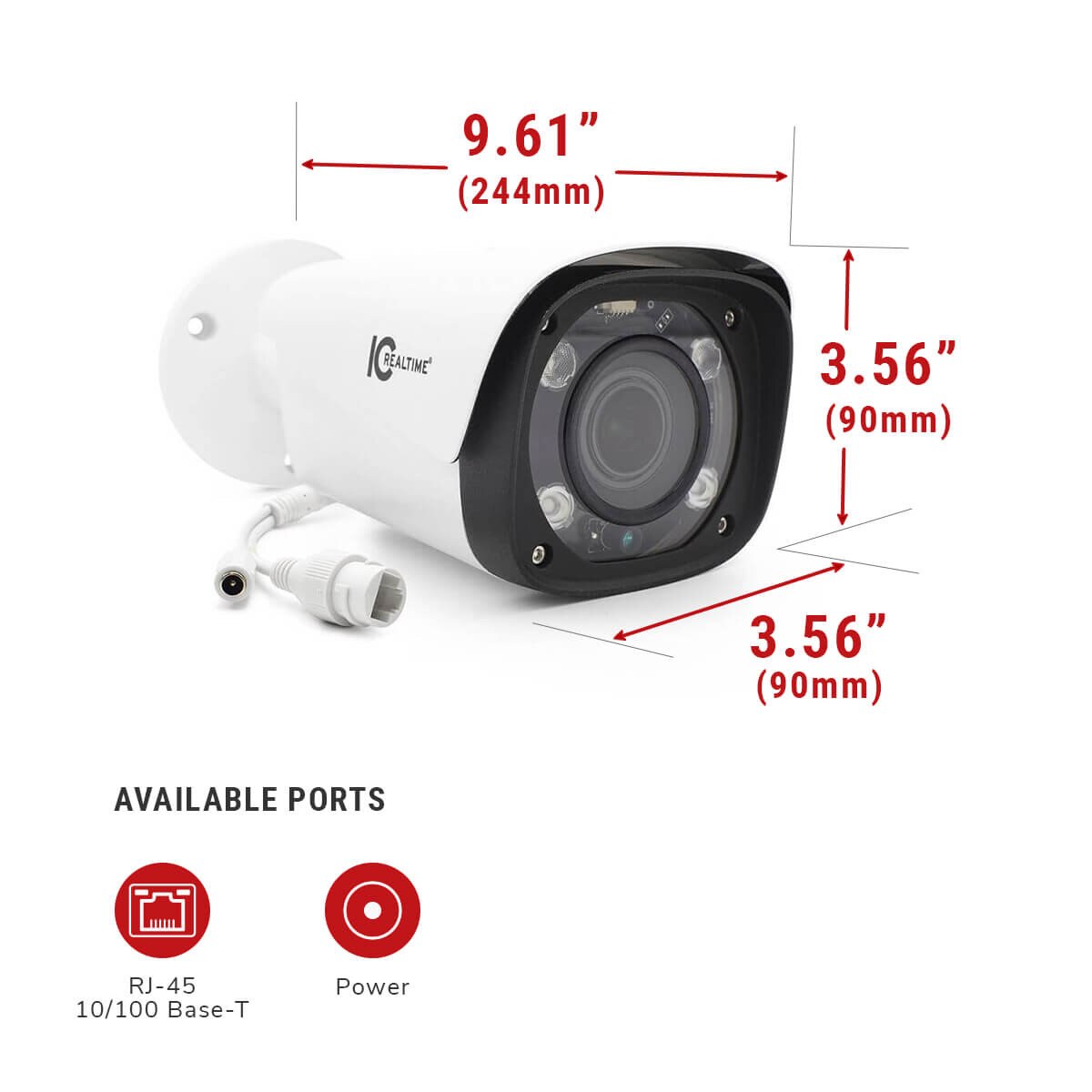

| Dimensions: | 244.1 mm × 90.4 mm (9.6" × 3.6") |
| Gross Weight: | 1.12 kg (2.5 lb) |

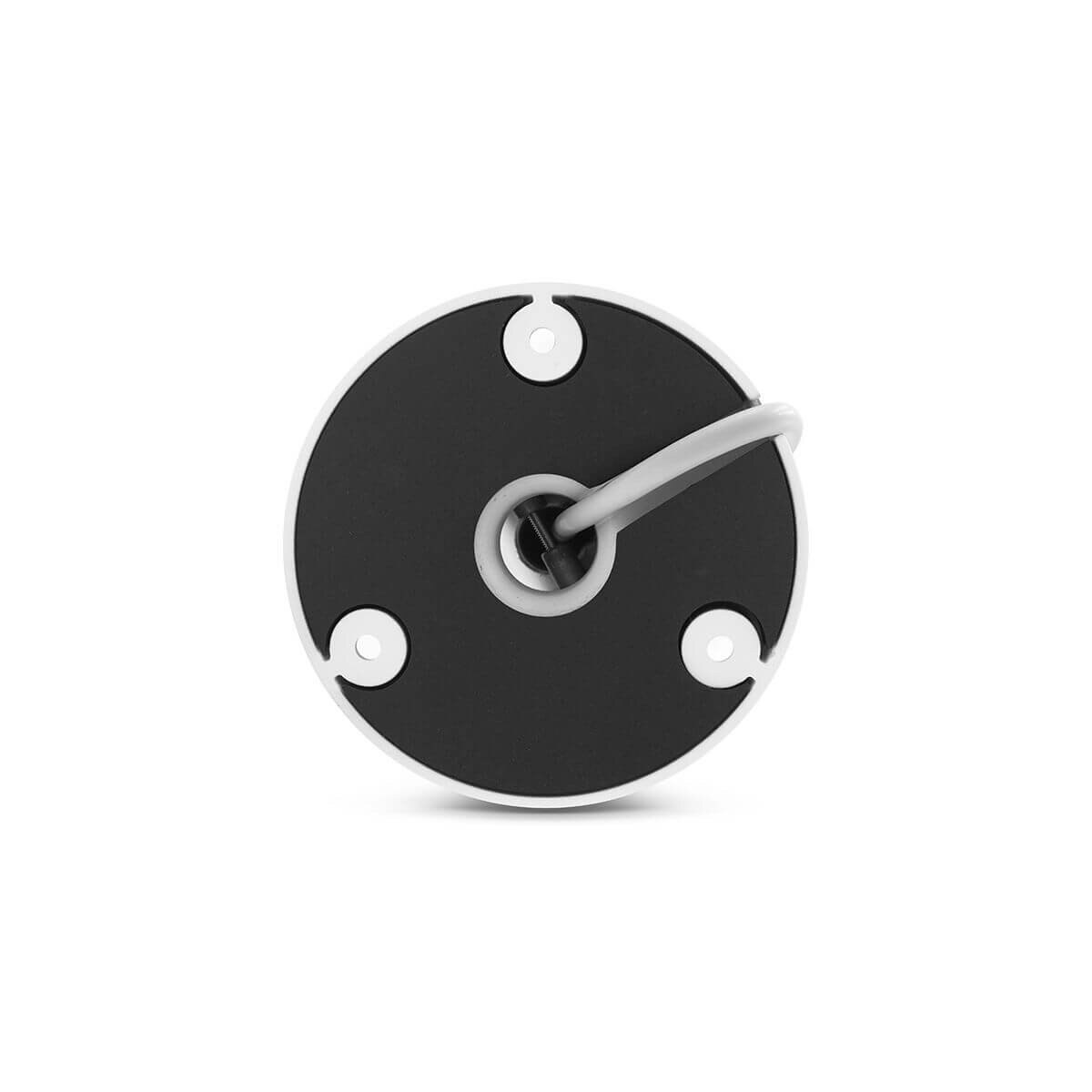

| Mounting Pan/Tilt/Rotation: | Pan: 0°–360°Tilt: 0°–90°Rotation: 0°–360° |
