IPB-82A
Details

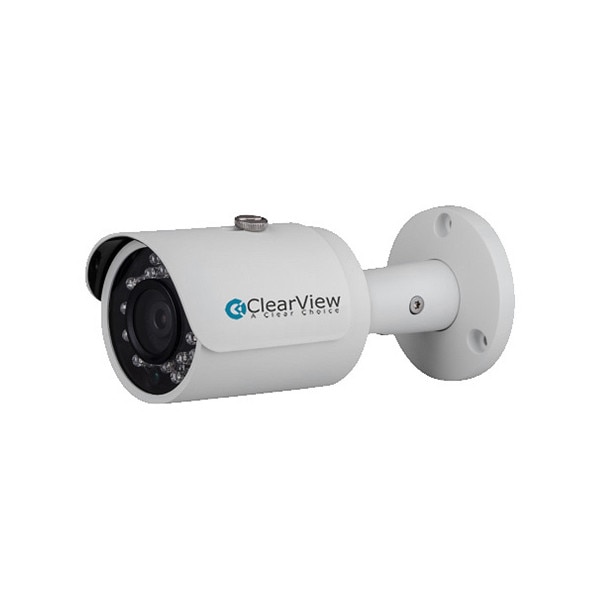

Clearview's IP-82A is a 1080P Mini Bullet style network camera with a 1/2.7” 2Megapixel progressive scan CMOS and a 2.8 mm fixed lens. The camera also features a Max. IR LEDs Length of 30m, IP67 rating and PoE.
Specifications
| Camera | |
| Image Sensor: | 1/2.7” 2Megapixel progresive CMOS |
| Effective Pixels: | 1920(H) x1080(V) |
| RAM/Rom: | 256MB/32MB |
| Scanning System: | Progressive |
| Minimum Illumination: | 0.08Lux/F2.0( Color,1/3s,30IRE) 0.3Lux/F2.0( Color,1/30s,30IRE) 0Lux/F2.0(IR on) |
| S/N Ratio: | More than 50dB |
| Illumination Distance: | Distance up to 30m(98ft) |
| Illumination On/Off Control: | Auto/ Manual |
| Illumination LEDs: | 18 |
| IR Wavelength: | 850 nm |
| Camera Illumination Type: | IR |
| Lens | |
| Lens Type: | Fixed |
| Mount Type: | Board-in |
| Focal Length: | 2.8 mm |
| Max. Aperture: | F2.0/F2.0 |
| Angle of View: | H:104°/92°,V:55°/50° |
| Focus Control: | Fixed |
| Close Focus Distance: | 0.6m(0.9m) |
| DORI - Detect: | 40(131ft) |
| DORI - Observe: | 16(52ft) |
| DORI - Recognize: | 8(26ft) |
| DORI - Identify: | 4(13ft) |
| Video | |
| Compression: | H.265/H.264H/MJPEG(Sub Stream) |
| Streaming Capability: | 2 Streams |
| Resolution: | 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240) |
| Frame Rate: | Main Stream: 1080P(1 ~ 25/30fps) Sub Stream: D1(1 ~ 25/30fps) |
| Bit Rate Control: | CBR/VBR |
| Bit Rate: | H.265: 12K ~ 6400Kbps H.264: 32K ~ 10240Kbps |
| Day/Night: | Auto(ICR) / Color / B/W |
| Backlight Compensation: | BLC / HLC / DWDR |
| White Balance: | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control: | Auto/Manual |
| Noise Reduction: | 3D DNR |
| Smart IR: | Support |
| Digital Zoom: | 16x |
| Flip: | 0°/90°/180°/270° |
| Mirror: | Off / On |
| Audio | |
| Compression: | N/A |
| Network | |
| Ethernet: | RJ-45 (10/100Base-T) |
| Protocol: | HTTP;HTTPs; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS;UPnP; NTP; Bonjour; IEEE 802.1x; Multicast; ICMP; IGMP; TLS |
| Wifi: | N/A |
| Compatibility: | ONVIF Profile S&G, API |
| Streaming Method: | Unicast / Multicast |
| Max. User Access: | 10 Users / 20 Users |
| Edge Storage: | NAS Local PC for instant recording |
| Web Viewer: | IE, Chrome, Firefox, Safari |
| Management Software: | Smart ICRSS, DSS |
| Smart Phone: | IOS, Android |
| Interface | |
| Audio I/O: | N/A |
| Alarm I/O: | N/A |
| Memory Slot: | N/A |
| Electrical | |
| Power Supply: | DC12V, PoE (802.3af)(Class 0) |
| Power Consumption: | <5.5W |
| Environmental | |
| Operating Conditions: | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Storage Conditions: | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Ingress Protection: | IP67 |
| Vandal Resistance: | N/A |
| Construction | |
| Casing: | Metal+Plastic |
| Dimensions: | 70mm×164.7mm(2.76''x6.49'') |
| Gross Weight: | 0.44Kg(0.97lb) |
| Mounting Pan/Tilt/Rotation: | Pan:0° ~360° ; Tilt:0° ~90° ; Rotation:0° ~360° |
